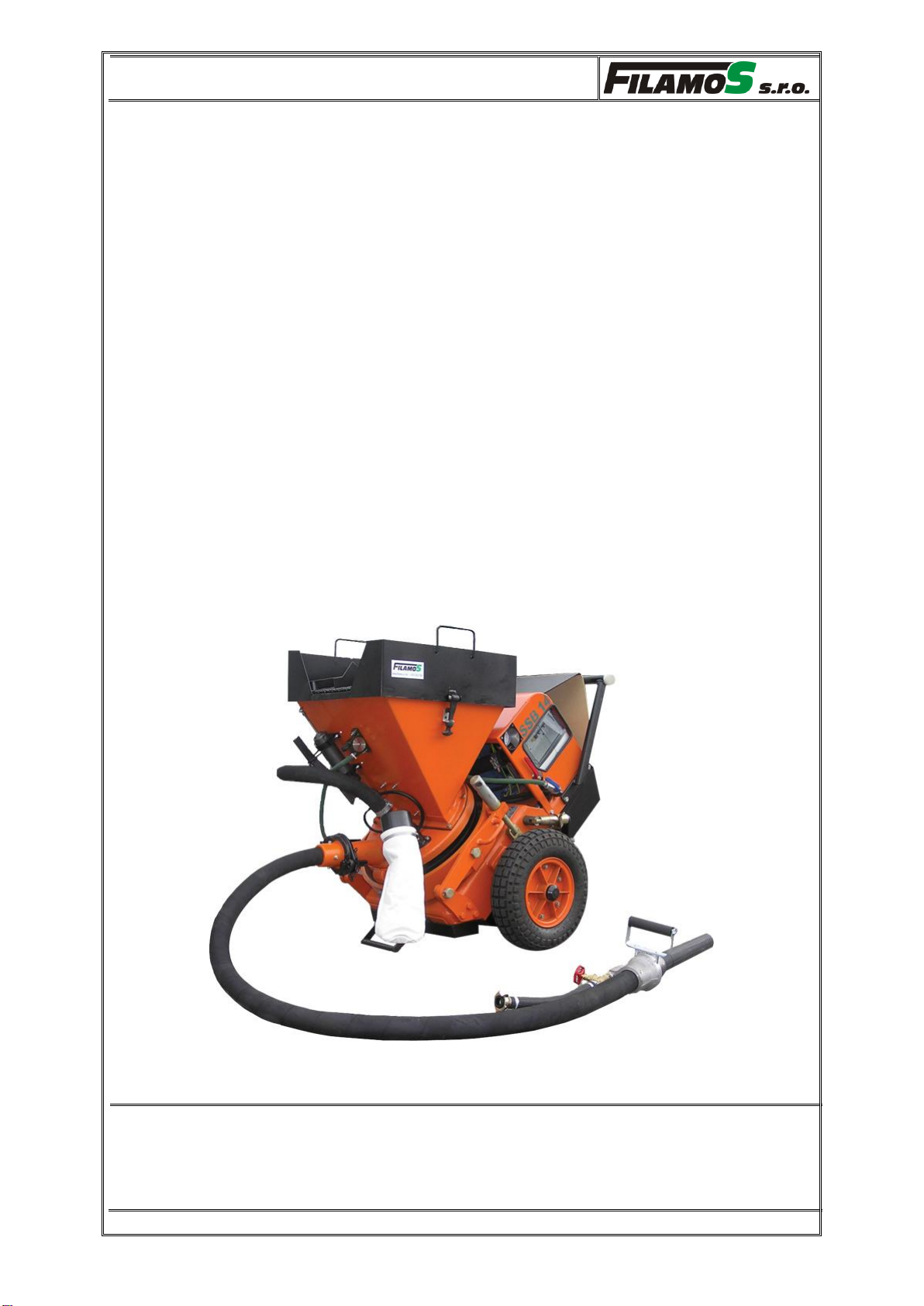

Filamos SSB 14 STANDARD User manual

Concrete Spraying Machine - SSB 14 line
PRODUCER: FILAMOS, s.r.o.
Hate 546, 261 01 Pribram, Czech Republic
Tel: + 420 318 637 763, Fax: + 420 318 624 181
www.filamos.com
User manual
Concrete Spraying Machine
SSB 14 STANDARD
SSB 14 DUO
SSB 14 COM –F

Concrete Spraying Machine - SSB 14
2
Content Page
I. Preface..........................................................................................3
II. Use................................................................................................3
III. Machine operating.........................................................................3
IV. Description....................................................................................6
V. Technical parameters....................................................................9
VI. Standard accessories..................................................................11
VII. Material .......................................................................................11
VIII. Executions...................................................................................11
IX. Markings .....................................................................................12
X. Testing ........................................................................................12
XI. Delivery.......................................................................................12
XII. Warranty .....................................................................................13
XIII. Packaging ...................................................................................13
XIV. Transport.....................................................................................13
XV. Storing.........................................................................................13
XVI. Servicing .....................................................................................14
XVII. List of standards..........................................................................14
XVIII. Supplements...............................................................................14

Concrete Spraying Machine - SSB 14
3
I. Preface
This user manual is necessary to get basic information about safety use of gunite
machine SSB 14 (further only machine), made by producer FILAMOS, s.r.o.,
Hate 546, 261 01 Pribram, Czech Republic. Other information, recommendations
and technical parameters are mentioned in the Operating and maintance
instructions made by producer. The user manual is obligatory for all users that use
this machine.
II. Use
The machine is designed for spraying concrete, lining mine workings, water
structures and engineering structures, for carrying out repair work of minor extent
in the building industry. If used to spray refractory concrete mixtures, it is
designed to line furnaces, boilers, coke-oven batteries, etc., for cold and hot
spraying, as well as in power engineering and metallurgy.
The machine can also be used to convey bulk materials which do not develop
flammable /explosive/ dust during transport. The dosing of the transported
materials is smooth and continual.
The machine is designed for the operation in the places free of a danger from the
methane (SNM-0) explosion and other inflammable gasses as stated in CSN EN
1127-2.
To guarantee smooth operation of the machine it is necessary to keep to the
recommended aggregate composition according to the granularity chart, per
standards CSN EN 12620,CSN EN 13055-1.
The machine may be used in media with temperatures ranging from + 5 to +40°C.
III. Machine operating
Start operating –opening and adjusting compressed air, then turning on the
electric motor.
Presence of the machine operator is not necessary unless during refilling of the
dry composition and its application.
Finish operating –it is necessary to empty the feeding hopper and blow
compressed air distribution system by air. After that to switch off the electric
motor and then close compressed air cock.
Workmen have to be introduced with:
-User manual,
-Operating and maintenance instructions,
-Operating rules applied to the construction place

Concrete Spraying Machine - SSB 14
4
Workmen are obliged to use personal protective equipment stated in Operating
and maintenance instructions (crash helmet, ocular protection and respirator
against cement dust, convenient work clothes and shoes, work gloves). Workmen
are obliged to do daily notes into the operating diary.
Safety instruction concerning:
-Assembly and the installation –Assembly of the machine is carried out at the
producer and the transport to the client is performed in already assembled form
of the machine. The check of the machine integrity, complexity of the
equipment of the machine is performed in the place of operation. Machine is
switch to the electrical supply and to the compressed air supply after setting to
the place of application.
-Setting to the operation –Machine and its accessories must be appropriately
assembled before setting to the operation. All necessary assembly and
following checking operation steps must be carried out according to the
Operation and Maintenance Manual provided by the producer.
-Operation of the machine –Machine must be used only in accordance with the
Operation and the Maintenance manual provided by the machine producer.
Machine is operated by one operator who is responsible for the faultless
conditions of the machine at the same time.
-Manipulation –machine can be transported by the suitable transport means
defined by the site manager. Total weight of the machine is 300 kg (± 5 %).
Each machine is equipped with catching loops for the connection to lifting
machine. Manipulation must be careful without any dynamic crashes
-Assembly and disassembly –Disassembly of the hoses is done in case of each
transfer to the other operation place Transfer of the machine in assembled
mode is done by mechanical transport means (crane truck, truck). It is
necessary so that there is no pressure of the compressed air in the machine as
well as the switch off the electric supply is done before any disassembly of the
machine
-Adjustment –It means setting up according to the Operation and the
Maintenance Manual. Simple steps without any influence to the safety of the
equipment must be done by the operators according to the local conditions.
Other procedures must be left to the specialised service according to the
Operation and the Maintenance Manual.
-Maintenance –small and operational steps are done by the operators according
to the time order in the Operational Manual. Procedures requiring higher
specific knowledge are done by the authorised service agencies for those
machines.
-Disposal –Disposal of the machine is comprised of decomposition of the
parts to:

Concrete Spraying Machine - SSB 14
5
- Steel material polluted by the dangerous substances
- Colour metals,
- Plastics, rubber and the parts polluted by the dangerous substances
must be disposed off in accordance to the Act about the liquidation of
the dangerous substances.
Training instructions
There are only mentally and physical competent workmen older than 18 years
with theoretical and practical skills qualified to operate the machine.
Other ways of use
There are only concrete, refractory and similar mixtures that could be delivered
through the machine. There is no warranty in case other materials are delivered
through.

Concrete Spraying Machine - SSB 14
6
2
1
5
6
8
9
4
3
10
11
12
7
IV. Description
The machine consists of the following main parts:
-machine drive (electric motor and slide-on gearbox)
-base frame with bearing part [1]
-dosing drums I and II [8]
-machine head with sealing plate [5] and blower [4]
-loading hopper [6] with vibrator and adapter fitted with a screen and saw to
cut the sacks [7]
-rippling
-hinged frame [2] with clamping bolts [10]
-sealing cuff [11]
-dust absorber [3]
-compressed air distribution system,
-el. switch box [9]
-bantam-tyre wheels /rail undercarriage/ [12]
-accessories DN 25, 32, 40.

Concrete Spraying Machine - SSB 14
7
The electric motor is fitted with a stepped pulley and connected by one V-belt
with the slide-on gearbox
The bearing part of the dosing drum, the machine drive and the air distribution
system are fitted to the rear self-supporting frame. The bantam wheels are
screwed to the sides of the base frame.
The dosing drum is fitted to the upper side of the bearing part shaft by a square-
end and clamping nut. There are two dosing drums which can be exchanged
depending on the performance of the machine required and DN (inner diameter)
of the transport hoses.
The machine head is fixed to the hinged frame, and the sealing plate, its bottom
sealing surface bearing on the dosing drum, is fixed to its bottom side. The
blower, air inlet, feeder and exhaust of residual air from the dosing drum pockets
are fitted to the upper side of the machine head.
The loading hopper is equipped with the vibrator and the adapter fitted with a
screen and saw to cut the sacks
There is a rippling in the loading hopper that is used to fulfil the dosing drum
pockets. The rippling can be used only with the dosing drum I.
The hinged frame, in which the machine head is fixed, is fitted at the sides to two
levers which are pivoted on one side in the suspension of the machine frame and
on the other side clamped by two clamping bolts. Clamping bolts are used to
control the pressure of the sealing plate on the dosing drum. The levers have
holders for lifting the machine with a crane.
The sealing cuff is used to seal the space between the base frame and the machine
head. The sealing cuff is fixed with the tightening strip.
The dust absorber with the filter bag is fitted on the machine head. It is used to
catch the residual dust materials from the dosing drum pockets.
The air distribution system consists of the main air inlet and two or three cocks.
The main air inlet is fitted with a cock and quick coupler for the connection with
pressure hose DN 40. The other cocks are used to control the compressed air into
the blower (there is also a pressure gauge), pneumatic vibrator and for the
machine cleaning. The air distribution system is fitted on the lateral side of the
cover.
The machine controls are concentrated on the lateral side of the cover of the
electric motor. Electric power is supplied via a cable to the switch. (For dimension
chart refer to Appendix no.1).
The machine is placed on the bantam-tyre wheels or rail undercarriage.
The accessories consist of the delivery hose, end hose with the nozzle, water hose,
sealing plates and nozzle endings.

Concrete Spraying Machine - SSB 14
8
Working principle
The mixture to be sprayed or conveyed is poured into the loading hopper to fill
the pockets of the dosing drum. The dosing drum is filled continually. From the
pockets of the dosing drum is blown by compressed air to the blower and from
there into the transport hoses, at the end of which a spraying gun is mounted.
Mixing water is fed into the spraying gun simultaneously to moisten the spraying
mixture. The volume of mixing water is controlled by a tap.
Machine drive
There are three types of machine drive:
I. Electric motor with variable speed pulley (STANDARD)
The electric motor is fitted with a stepped pulley and connected by one V-belt with the
slide-on gearbox, which is keyed by a hollow output shaft to the shaft of the bearing
part of the dosing drum. By mechanical rotating the gearbox the drive rpms are
controlled in a range of 1:1,5. The gearbox may be rotated only in time the machine is
stopped. The machine is turned on and the dosing drum is rotating by the central
switch.
II. Two speed electric motor (DUO)
The electric motor is fitted with a stepped pulley and connected by one V-belt with the
slide-on gearbox, which is keyed by a hollow output shaft to the shaft of the bearing
part of the dosing drum. The output is adjusted by the switch. There are two standings
–4 or 6 poles (1450/960 rpms)
III.Electric motor with frequency convertor (COM-F)
The electric motor with the frequency changer is fitted with a stepped pulley and
connected by one V-belt with the slide-on gearbox, which is keyed by a hollow output
shaft to the shaft of the bearing part of the dosing drum. The output is electronically
controlled by four (4) buttons on the related control box. The machine is turned on by
the central switch (dosing drum is not rotating). The drum is rotating when the green
button is pressed. The output is changing by black button “+“ and black button “-“.
The drum stops rotating when the red button is pressed. The machine is turned off
when the central stop is turned. The rpms are controlled in a range of 1:4.

Concrete Spraying Machine - SSB 14
9
V. Technical parameters
SSB 14 STANDARD: 6 poles electric motor with variable pulley 1,5 kW
(11 –16 rpms/min.)
Dosing drum
I
I
II
II
Drum volume /dm3/
3
3
1,2
1,2
Drum rpm
11
16
11
16
Theoretical performance m3x h-1
2
3,0
0,8
1,2
SSB 14 DUO: 4/6 poles electric motor 1,87/1,35 kW (11/16 rpms/min.)
Dosing drum
I
I
II
II
Drum volume /dm3/
3
3
1,2
1,2
Drum rpm
11
16
11
16
Theoretical performance m3x h-1
2
3,0
0,8
1,2
SSB 14 COM-F: 6 poles electric motor 1,5 kW with the frequency convertor
(5 –16 rpms/min)
Dosing drum
I
I
II
II
Drum volume /dm3/
3
3
1,2
1,2
Drum rpm /min-1/
5
16
5
16
Theoretical performance m3x h-1
0,9
3,0
0,4
1,2
The drum should be selected with a view to the performance required.
The technical performance depends on the type and composition of the
transported mixture, the transporting distance, the volume and pressure of
compressed air and the manner of filling the machine feeder.

Concrete Spraying Machine - SSB 14
10
Technical parameters
Air consumption (transport distance 40 m)
2 –5 m3x min-1
Air pressure
0,5 –0,6 MPa
Performance of electric motor
1,5; 1,35/1,87 kW
Voltage system
3 NPE ~ 50 Hz,
3 x 400/230 V / TN-S
Max. deviation of voltage system
± 10 %
Coverage
IP 55
Inner diameter of transport hoses
DN 25, DN 32 for dosing drum II
DN 40 for dosing drum I
Inner diameter of water hose
DN 20
Max. granularity of conveyed material
8 mm for DN 25, DN 32
16 mm for DN 40
Max. horizontal transporting distance
300 m (DN 25, DN 32 150 m)
Max. vertical transporting distance
100 m
The transporting distance and height are directly affected by:
-The composition and water content of the conveyed mixture (with mixtures
consisting mostly of fine fractions –optimum transporting distance is 80 m for
DN 40 hoses and 40 m for DN 32 hoses). Should be tested individually.
-Sufficient amount of compressed air,
-Transport hoses or piping (for larger distances these must be straight with no
bends).
The compressed air must be always dry!
Principal dimensions
Length
1000 mm
Width
780 mm
Height
980 mm
Weight (without accessories)
300 kg

Concrete Spraying Machine - SSB 14
11
VI. Standard accessories
- extension hose –20 m
- end hose with spraying gun –20 m
- water hose –20 m
- sealing plates –3 pcs.
- nozzle ending –2 pcs.
This is a standard mix of spare parts supplied. Each customer is entitled to change
required spare parts and its quantity.
VII. Material
The material used in manufacturing the machine conforms to the valid
manufacturing documentation as regards chemical composition and mechanical
properties.
Aggregate properties for sprayed concrete conform to standards ČSN EN 12620 a
ČSN EN 13055-1.
VIII. Executions
All parts have been manufactured according to production blue-prints. Intolerance
dimensions conform to standards CSN ISO 2768-1.
The electric wiring conforms to standards CSN EN 60204-1. Protection against
the dangerous touch voltage is secured by an automatic switch off the source.
Metal-coating of parts performed in accordance with manufacturing
documentation and standards CSN EN 12 329. Before assembly, the coreless parts
were treated with primer on contact surfaces.
Welds were performed in accordance with blue-prints and standards CSN EN ISO
9692-1.
The product has the surface treatment of 3rd degree of rust aggressive
surroundings protection and the paint complies with CSN ISO 3864.

Concrete Spraying Machine - SSB 14
12
IX. Markings
The machine has a rating plate with the following data:
-Name and residence of manufacturer,
-CE mark –declaration of conformity,
-manufacturer’s number and year of production,
-rated air pressure,
-rated water pressure,
-input,
-rated voltage,
-weight of machine.
Electric motor and gearbox have their own rating plates.
X. Testing
The properties of the machine are checked in the manufacturing plant by means of
a functional test: running empty and under pressure of 0.3 MPa with sealing in
operation mode. Each machine has been tested.
The test consists of the following checks:
-functionality and tightness of the dosing drum and sealing plate (with
exhaust sealed, tightened clamping bolts and machine at the rest),
-loading of the electric motor at idle run with tightened clamping bolts,
-direction of dosing drum rotation (against the direction of clock hands).
The direction is marked by the arrow-head on the machine head.
-functionality and tightness of the air distribution system,
-functionality of the vibrator and the rippling (dosing drum I)
The execution of the tests is recorded in the „CERTIFICATE OF QUALITY
AND COMPLETENNES“.
XI. Delivery
Each product is delivered assembled with the following documentation:
-User manual
-Operating and maintenance instructions
-Report of initial control of electric equipment
-Certificate of quality and completeness –Warranty certificate
-Spare parts catalogue

Concrete Spraying Machine - SSB 14
13
XII. Warranty
The warranty period is 12 months from the date of the machine delivery.
Otherwise according to conditions in purchase contract.
The manufacturer provides no warranty:
- If the product is used for purposes or in a manner other than specified in the User
manual and Operating and Maintenance Instructions,
- If the product is not being given proper care (poor storage, assembly, incorrect
operating),
- If the product has been changed, modified or repaired without the manufacturer’s
previous consent,
- If the machine has been damaged by incorrect electrical connection,
- If the product has been damaged by a third person or vis major,
- If warranty is being claimed without Warranty Certificate,
- On the sealing plate, dosing drum, blower, transport hoses and the nozzle since
theirs lifetime depends on the abrasiveness of the transported material.
XIII. Packaging
The machine is supplied on standard pallets, covered with plastic foil. If different
packaging is requested, this must be included in the purchase contract. The
standard accessories are placed on the pallet with the machine, or placed in the
machine loading hopper. All casings are disposable and charged to the customer.
XIV. Transport
The machine is transported by usual transportation means. When being
transported, the machine should be fixed to avoid spontaneous movement and
damage. For additional information –binding plan, Appendix No. 1.
XV. Storing
The machine and accessories must be stored in spaces protected against the
elements, excessive dampness, acid vapours, oils and fungi.

Concrete Spraying Machine - SSB 14
14
XVI. Servicing
Servicing is carried out in accordance with the servicing conditions given in the
Operating and Maintenance Instructions.
XVII. List of standards
Used standards: European directive No. 98/37/ES according to Appendix No. 1 to
NV 24/2003 Sb., CSN EN ISO 12100–2, CSN EN 294, CSN EN 418, CSN EN
811, CSN EN 953, CSN EN 983, CSN EN 1037, NV 178/2001 Sb., NV 502/2000
Sb., CSN EN 1127-2, CSN EN 12620, CSN EN 13055-1,CSN ISO 2768-1, CSN
EN 60204-1, CSN EN 12329, CSN EN ISO 9692-1,CSN ISO 3864.
XVIII. Supplements
Appendix No. 1: Machine assembly + binding plan + lubricating plan
The End
Pribram, Czech Republic - April 2004
Made by: Jiri Labuda
Producer : FILAMOS, s.r.o., Hate 546, 261 01 Pribram, Czech Republic

Concrete Spraying Machine - SSB 14
15
Appendix No. 1: Machine assembly + binding plan
A: T-A4 grease: every operating hour
B: T-A4 grease: 0,1 kg yearly
C: PP 90 oil - firstly after 200 operating hours, then after 2500 operating hours –1,1 l
1. loading hopper
2. machine head
3. sealing plate
4. dosing drum
5. blower
6. dust absorber
7. tightening clamp
8. air inlet
B
C
A
