Filtronic Bt75 User manual

商品名稱：效率型焊錫煙及塵埃濾淨設備ＥＳＤ（無鉛製程）

商品編號：ＦＩＬＴＲＯＮＩＣＢＴ７５

商品介紹：

全球最優質，瑞典ＦＩＬＴＲＯＮＩＣ製造。

此濾淨設備專門設計用於無鉛錫絲焊接的工作場所，對於無鉛焊錫絲在高溫溶

錫時，所產生的金屬微塵及助焊劑活化後的有毒煙霧和有毒氣體，是有鉛焊錫

絲的３倍之多。

ＢＴ７５濾淨設備功能，可濾除工作場所中，所產生有毒煙霧和有毒氣體的塵埃及

焊錫煙尤有顯著的效果

ＦＩＬＴＲＯＮＩＣＢＴ７５效率型焊錫煙及塵埃濾淨設備ＥＳＤ

特性

１．１．適用於任何不同需求

無鉛焊錫焊接（Ｓｏｌｄｅｒｉｎｇ）、塗膠（Ｇｌｕｉｎｇ）、電鍍（Ｃｏａｔｉｎｇ）、去塵（Ｄｕｓｔ）與

煙害（Ｓｍｏｋｅ）。

２．２．特殊懸掛設計

可輕易懸掛於工作桌旁不佔空間，機器周遭容易清潔．。

３．３．高效率過濾性能

可濾除０．３Ｍｉｃｒｏ微粒達９９．９９％．此過濾桶有較大的集塵空間可延長使用壽

命。

４．４．ＥＳＤ靜電防護

全機外觀材質，均採用ＥＳＤ靜電防護。

規格吸力ｍ３／ｈ７５

噪音比ｄＢ（Ａ）ａｔ１ｍ５４

過濾性能Ｄｏｐ９９．９９％

功率Ｗ６０

輸入電壓ＶｏｌｔａｇｅＡＣ１００Ｖ￣２５０Ｖ自動偵測

體積ｍｍＷｘＨｘＤ２８５ｘ７８５ｘ２４０

重量ｋｇ６．２

WWW.100Y.COM.TW WWW.100Y.COM.TW WWW.100Y.COM.TW

OPERATING

INSTRUCTIONS

BT75BT75

BT75

FilFil

Filter unitter unit

ter unitter unit

ter unit

for extraction of fumes and gasesfor extraction of fumes and gases

for extraction of fumes and gases

OPERATINGINSTRUCTIONSBT75

Version 1

FOR A BETTER WORKBENCH ENVIRONMENT

7. Technical data BT75

Height (mm) 785

Width 285

Depth 240

Weight (kg) 6,2

Noise level dB(A) at 1 m 54

Voltage100 - 240V

Power (watt) 60

Max suction capacity (m3/h) with filters 75

Max suction capacity (m3/h) freeblowing 150

Micro filter - Separation degree, DOP >99,97%

Warranty (except for filters), year 1

EC-guidelines 73/23, 89/336, 89/392, 91/368,

92/31, 93/44, 93/68

8. Spare parts and ordering

Order No

Filter unit BT75 500-1000

Main filter 500-2000

Pre filter bag 500-4000

8.1 Accessories

9. Warranty

NOTE! Only use genuine Filtronic Sweden consumables and spare parts in order to ensure

reliable function and to maintain the unit´s warranty.

All data published in these operating instructions, including information about products

and processes, have been determined by us. However, the information given is not binding

and does not free the user from his or her responsibility to check the equipment before

using it. We reserve the right to introduce technical changes in the course of product develop-

ment.

WWW.100Y.COM.TW WWW.100Y.COM.TW WWW.100Y.COM.TW

Contents

1. Introduction 5. Maintenance and servicing

1.1 Unit contents 5.1 Replacement of filter

1.2 Picture 6 Troubleshooting

2. Safety instructions 7. Technical data

3. Taking into operation 8. Spare parts and ordering

4. Description of function 8.1 Accessories

9. Warranty

1. Introduction

BT75 is a compact filtersystem designed for the work bench where fume extraction is

required.

1.1. Unitcontents

Before you start to use the unit, please check that all components listed below are

complete and undamaged.

- Filter unit BT75

- Power supply unit with cord

- Extraction arm (packed inside the front cover at delivery)

- Mounting bracket with screws (4 pcs) and mounting screws (2 pcs)

(packed inside the front cover at delivery)

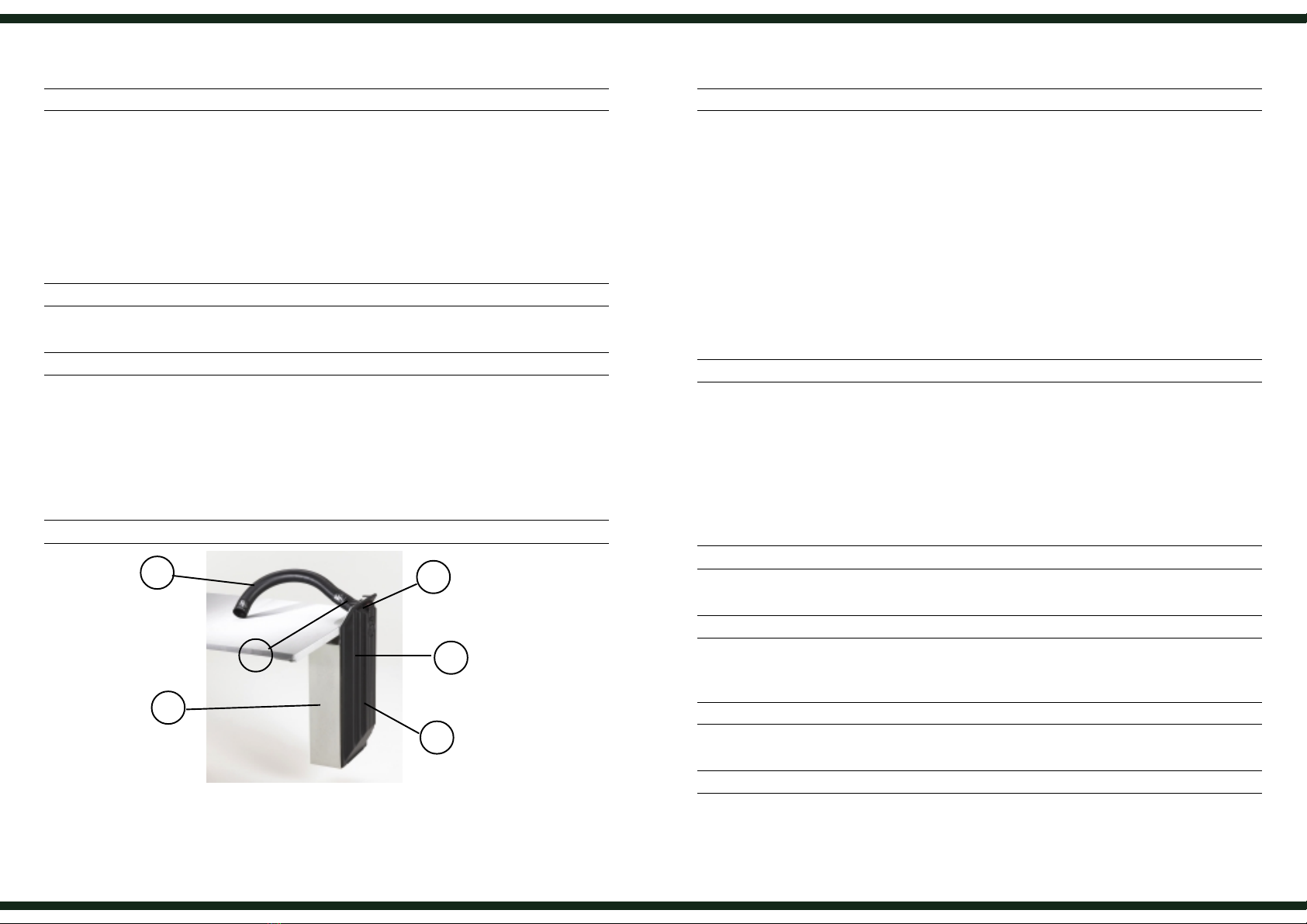

1.2 Picture

1 Connection for extraction arm 4 Main filter

2 Front cover 5 Extraction arm

3 Main switch 6 Pre-filter bag (inside front cover)

2. Safety instructions

Important note:

The filter system must not be exposed to temperature exceeding +50°C , open flame,

ashes, live coal or condensed solvents.

Turn off main switch (pict. 1.2, note 3) or disconnect mains when replacing filter.

Do not modify filter system. Repairs should be only carried out by experienced and

authorised personnel.

Hints towards gas filtration:

The best possible gas filtration will be achieved if:

- Process air temperature in the gas filter < 38 °C

- Relative humidity < 60 % RH

- Gas molecules > 40 g / mol (filtration better with larger molecules)

- Boiling temperature of gas molecules > 0 °C

3. Taking into operation

Connect the power supply unit (delivered with this unit) between the filter unit and the wall

socket.

Place the filter unit so that the fumes and gases are captured by the extraction arm. Hook

it up on/at the working bench (according to separate instructions, packed together with

the mounting screws). Connect the extraction arm (pic. 1.2 note 5) to the filter unit (pic.

1.2 note 1).

The main filter should be marked with the date of filterchange.

4. Description of function

Use the main switch (pic. 1.2 note 3) to turn the filter unit on and off. The lamp in the switch

indicates clogged up main filter

5. Maintenance and servicing

To make sure that the filter system works proper regulary clean nozzles, suction arm and

tube and change the pre-filter bag. If the unit indicates pressure drop replace main filter.

Normal life time for a main filter in the electronic industry is 1500 h.

5.1 Replacement of filter

Follow the instructions on the exterior of the main filter when exchanging main filter and/or

pre-filter bag. The main filter should be marked with the date of filterchange.

6. Troubleshooting

- Check the power supply

- Lift the front cover and check the electrical connections

- Check that the filters are mounted in the correct way and that there is no leakage

OPERATINGINSTRUCTIONSBT75 OPERATING INSTRUCTIONS BT75
