Fimap Genie B User manual

USE AND MAINTENANCE MANUAL
GENIE B
ED. 09-2019 EN
Original instructions
Doc. 10005707
Ver. AE

The descriptions contained in this document are not binding.
The company therefore reserves the right to make any modifications at any time to elements,
details, or accessory supply, as considered necessary for reasons of improvement or
manufacturing/commercial requirements.
The reproduction, even partial, of the text and drawings contained in this document is prohibited
by law.
The company reserves the right to make any technical and/or supply modifications. The images
are for reference purposes only, and are not binding in terms of design and supply.
Symbols used in the manual
Open book symbol with an "i"
Indicates the need to consult the instruction manual
Open book symbol
Used to tell the operator to read the manual before using the machine
Warning symbol
Carefully read the sections marked with this symbol and observe the
indications, for the safety of the operator and the machine
Warning symbol
Indicates danger of gas exhalation and leakage of corrosive liquids
Warning symbol
Danger of fire: keep naked flames at a safe distance
Disposal symbol
Carefully read the sections marked with this symbol, for machine
disposal

4
CONTENTS
ON CONSIGNMENT OF THE MACHINE .................................................................................................................................................. 5
SERIAL NUMBER PLATE ..................................................................................................................................................................... 5
INTRODUCTORY COMMENT ................................................................................................................................................................ 5
INTENDED USE .................................................................................................................................................................................. 5
TECHNICAL DESCRIPTION .................................................................................................................................................................. 6
SYMBOLS USED ON THE MACHINE ...................................................................................................................................................... 7
GENERAL SAFETY REGULATIONS ....................................................................................................................................................... 8
MACHINE PREPARATION .................................................................................................................................................................... 9
1. HANDLING THE PACKED MACHINE ........................................................................................................................................... 9
2. HOW TO UNPACK THE MACHINE .............................................................................................................................................. 9
3. HANDLING AND TRANSPORTATION OF THE UNPACKED MACHINE ............................................................................................... 9
4. INSERTING/CONNECTING THE BATTERIES.............................................................................................................................. 1 0
5. CONNECTING THE CONNECTOR ............................................................................................................................................ 11
6. BATTERY TYPE .................................................................................................................................................................... 11
7. BATTERY MAINTENANCE AND DISPOSAL ................................................................................................................................ 11
8. CHARGING THE BATTERY (WITH BUILT-IN BATTERY CHARGER) .................................................................................................... 12
9. BATTERY INDICATOR ............................................................................................................................................................... 13
10. INSTRUMENT PANEL COMPONENTS ........................................................................................................................................ 13
11. FIXING THE HANDLEBARS ....................................................................................................................................................... 14
12. SOLUTION TANK .................................................................................................................................................................... 14
13. DETERGENT SOLUTION .......................................................................................................................................................... 14
14. RECOVERY TANK ................................................................................................................................................................... 15
15. ASSEMBLING THE BRUSH ....................................................................................................................................................... 15
WORK ............................................................................................................................................................................................ 1 6
1.PREPARING TO WORK ............................................................................................................................................................... 16
2. OVERFLOW DEVICE ............................................................................................................................................................. 16
3.FORWARD MOVEMENTS ............................................................................................................................................................ 16
AT THE END OF THE WORK .............................................................................................................................................................. 17
DAILY MAINTENANCE ...................................................................................................................................................................... 18
1. CLEANING THE RECOVERY TANK ............................................................................................................................................... 18
2.CLEANING THE FRONT AND REAR SQUEEGEES ............................................................................................................................ 18
3.REPLACING THE SQUEEGEE RUBBERS ....................................................................................................................................... 19
4.DISASSEMBLING THE BRUSH ...................................................................................................................................................... 19
PERIODIC MAINTENANCE ................................................................................................................................................................. 20
1.CLEANING THE SQUEEGEE TUBE ................................................................................................................................................ 20
2.CLEANING THE SOLUTION TANK AND FILTER ............................................................................................................................... 20
TROUBLESHOOTING ........................................................................................................................................................................ 21
1.ELECTRICAL SYSTEM SAFETY .................................................................................................................................................... 21
2.INSUFFICIENT WATER ON THE BRUSHES ..................................................................................................................................... 21
3.THE MACHINE DOES NOT CLEAN WELL ........................................................................................................................................ 21
4.THE SQUEEGEE DOES NOT DRY PERFECTLY ............................................................................................................................... 21
5.EXCESSIVE FOAM PRODUCTION ................................................................................................................................................. 21
CHOOSING AND USING THE BRUSHES ............................................................................................................................................... 22
MACHINE DISPOSAL ........................................................................................................................................................................ 23
EC DECLARATION OF CONFORMITY .................................................................................................................................................. 24

5
On consignment of the machine
When the machine is consigned to the customer, an immediate check
must be performed to ensure all the material mentioned in the shipping
documents has been received, and also to check the machine has not
suffered damage during transportation. If this is the case, the carrier must
ascertain the extent of the damage at once, informing our customer
service office. It is only by prompt action of this type that the missing
material can be obtained, and compensation for damage successfully
claimed.
Serial number plate
Introductory comment
GENIE B is a floor scrubbing machine which, by means of the mechanical
action of the rotating brush and the chemical action of a water/detergent
solution, can clean any type of flooring. As it advances, it also collects any
removed dirt as well as the detergent solution not absorbed by the floor.
The machine must only be used for this purpose. Even the best
machines will only work well if used correctly and kept in good working
order. We therefore recommend you read this instruction booklet
carefully, and consult it whenever difficulties arise while using the
machine. If necessary, remember that our customer assistance service
(organised in collaboration with our dealers) is always available for advice
or direct intervention.
Intended use
The floor scrubbing machine is designed for the professional cleaning of
surfaces and floors in industrial, commercial and public environments
only. It is only suitable for use in closed (or at least covered) places.
The machine is not suitable for use in the rain, or under water jets. IT IS
FORBIDDEN to use the machine for picking up dangerous dusts or
inflammable liquids in places with an explosive atmosphere. In addition, it
is not suitable as a means of transport for people or objects.

6
TECHNICAL DESCRIPTION UM Genie B
Nominal input power [IEC 60335-2-72; IEC 62885-9] kW 0,61
Working width mm 360
Width of rear squeegee mm 440
Productivity theoretical m2/h 1332
Brushes (diameter or length) Ø mm 356
Brush rpm rpm 150
Force exerted on brush N 196
Brush motor V/W 12 / 360
Forward speed type Semi-aut.
Maximum gradient 2%
Suction motor V/W 12 / 250
Maximum vacuum [IEC 62885-9; IEC 60312-1] kPa 6,6
Solution tank PE l 8
Recovery tank PE l 8
Battery compartment dimensions (Length / Height / Width) mm 275x210x175
Machine dimensions (Length / Height / Width) mm 690x1115x465
Dimensions of the folded machine (Length/ Height/ Width) mm 795x440x465
Recommended battery (12 AGM 62) V / AhC512-62
Recommended battery weight kg 24
Machine weight when empty kg 44
Transported machine weight kg 68
Weight of the machine when ready for use (GVW) kg 76
Sound pressure level in operator seat [ISO 11201] (LpA) dB 69,3
Uncertainty KpA dB 1.4
Hand-arm vibrations [IEC 60335-2-72; IEC 62885-9; ISO 5349-1] m/s21,8
Uncertainty 3,50%

7
SYMBOLS USED ON THE MACHINE
Tap symbol
Used to indicate the solenoid valve switch
Brush symbol
Used to indicate the brush motor switch
Symbol denoting suction motor
Used to indicate the suction motor switch
Battery symbol
Battery charge level indicator
Indicates the maximum temperature of the detergent solution
Located near the solution tank inlet
Indicates the maximum gradient

8
GENERAL SAFETY REGULATIONS
Before using the machine, please read the following document carefully and follow the
instructions contained herein, along with the instructions in the document supplied with the
machine itself, "GENERAL SAFETY REGULATIONS" (document code 10083659).

9
A
CB
MACHINE PREPARATION
1. HANDLING THE PACKED MACHINE
The machine is contained within specific packaging.
Each pallet is composed of four machines on several levels.
It is not possible to place more than two packages on top of each other.
The total weight is 70kg
The overall dimensions are:
A: 500 mm
B: 500 mm
C: 1150 mm
2. HOW TO UNPACK THE MACHINE
1. Open the packaging on the side indicated.
2. Extract the machine from its packaging.
3. Remove the recovery tank.
3. HANDLING AND TRANSPORTATION OF THE UNPACKED MACHINE
Genie is a machine that can be managed in all situations and transported without effort, even in small
vehicles.
Just lift the front part, using the machine handlebars as a lever. The big rear wheels mean it can be
towed anywhere and loaded on a truck by means of a simple ramp.
Genie E is easy to transport even by car. The total flexibility of the handlebar enables it to be folded, and
the machine can then be placed in the boot of the car with the assistance of a colleague, with no need to
disassemble any of the elements.

10
PREPARATION OF THE MACHINE
4. INSERTING/CONNECTING THE BATTERIES
In the CB version, the machine is supplied with a built-in battery charger and an airtight gel battery. If
you use batteries other than those supplied with the machine, use only 12V AGM or Gel batteries and
proceed as follows.
The batteries must be housed in the special compartment beneath the solution tank.
To insert the batteries you must:
1. Disconnect the quick connector (1) located in the front part of the solution tank.
2. Remove the solution tank and place it on the ground.
3. Open the two rear hinges (2) that close the battery compartment.
4. Turn the handlebars, rotating the handlebar movement lever.
5. Position the battery inside the compartment.
6. Connect the cables.
ATTENTION: You are advised to use airtight batteries only, to avoid the
leakage of acids!
ATTENTION: All installation and maintenance operations must be carried out
by expert personnel, trained at the specialised assistance centre.
ATTENTION: users are advised to always wear protective gloves, to avoid the
risk of serious injury to hands.
ATTENTION: you are advised to only lift and move the batteries with lifting and
transportation means suitable for the specific weight and size.
1
2

11
PREPARATION OF THE MACHINE
5. CONNECTING THE CONNECTOR
1. Connect the battery connector to the machine connector.
2. Reassemble all the elements.
ATTENTION: This process must be carried out by qualified personnel. The
incorrect or imperfect connection of the cables to the connector can seriously
harm people and damage objects
6. BATTERY TYPE
To power the machine it is necessary to use:
 sealed traction batteries with gas recombination or gel technology.
OTHER TYPES MUST NOT BE USED.
The batteries must meet the requirements laid out in the norms: CEI EN 60254-1:2005-12
(CEI 21-5) + CEI EN 60254-2:2008-06 (CEI 21-7)
Every battery consists of DIN-type elements connected in series and providing the clamps with a power
of 12 V. You are advised to use batteries with an electric capacity of 65 Ah (C5)
7. BATTERY MAINTENANCE AND DISPOSAL
For maintenance and recharging, respect the instructions provided by the battery manufacturer.
Particular attention must be paid when choosing the battery charger, if not supplied, since there are
different kinds according to the type and capacity of the battery.
W
hen the battery reaches the end of its working life, it must be disconnected by expert, trained
personnel, then lifted (using the grips and suitable lifting devices) to remove it from the battery
compartment. EXHAUSTED BATTERIES ARE CLASSIFIED AS DANGEROUS WASTE AND MUST BE
CONSIGNED TO THE AUTHORISED BODIES FOR CORRECT DISPOSAL.
Proceed as follows when the battery is dead:
1. Disconnect the quick connector and remove the solution tank.
2. Open the battery compartment and disconnect the connector.
Remove the battery by using suitable devices, lifting it with the provided handles.
ATTENTION: users are advised to always wear protective gloves, to avoid the
risk of serious injury to hands.
ATTENTION: you are advised to only lift and move the batteries with lifting
and transportation means suitable for the specific weight and size

12
PREPARATION OF THE MACHINE
8. CHARGING THE BATTERY (WITH BUILT-IN BATTERY CHARGER)
Perform a battery charging cycle before using the machine.
When replacing the battery, be sure to use batteries that are suitable for the battery charger installed
(use only 12V AGM or Gel batteries).
To charge the battery you must:
1. Make sure the recovery tank and the solution tank are empty.
2. Move the machine near to the battery charger.
3. Remove the battery charger connector socket protection on the back of the machine (1).
4. Plug the battery charger cable (supplied with the machine) into the freed socket.
5. Plug the battery charger cable into the mains socket.
6. For the correct use of the battery charger, follow the instructions in the enclosed booklet.
ATTENTION: If one of the three LEDs flashes refer to the battery charger
manual supplied with the machine
ATTENTION: The machine is equipped with an automatic system that
disconnects the power supply from the electrical system while the batteries are
being recharged
ATTENTION: In order not to cause permanent damage to the batteries, it is
essential to avoid their complete discharge: arrange the recharge within a few
minutes of the switching on of the "discharged batteries" blinking light.
ATTENTION: Never leave the batteries completely flat, even if the machine is
not being used.
ATTENTION: For the daily recharging of the batteries, you must fully respect
the indications provided by the manufacturer or retailer. all installation and
maintenance operations must be carried out by specialised personnel.
ATTENTION: Do not move the machine when the battery charger power
supply cable is connected to the battery charger.
ATTENTION: Danger of gas exhalation and leakage of corrosive liquids.
ATTENTION: Danger of fire: Keep naked flames at a safe distance.
In the event that the charger is not incorporated into the machine, carefully read the use and
maintenance manual of the charger being used to recharge the batteries.

13
PREPARATION OF THE MACHINE

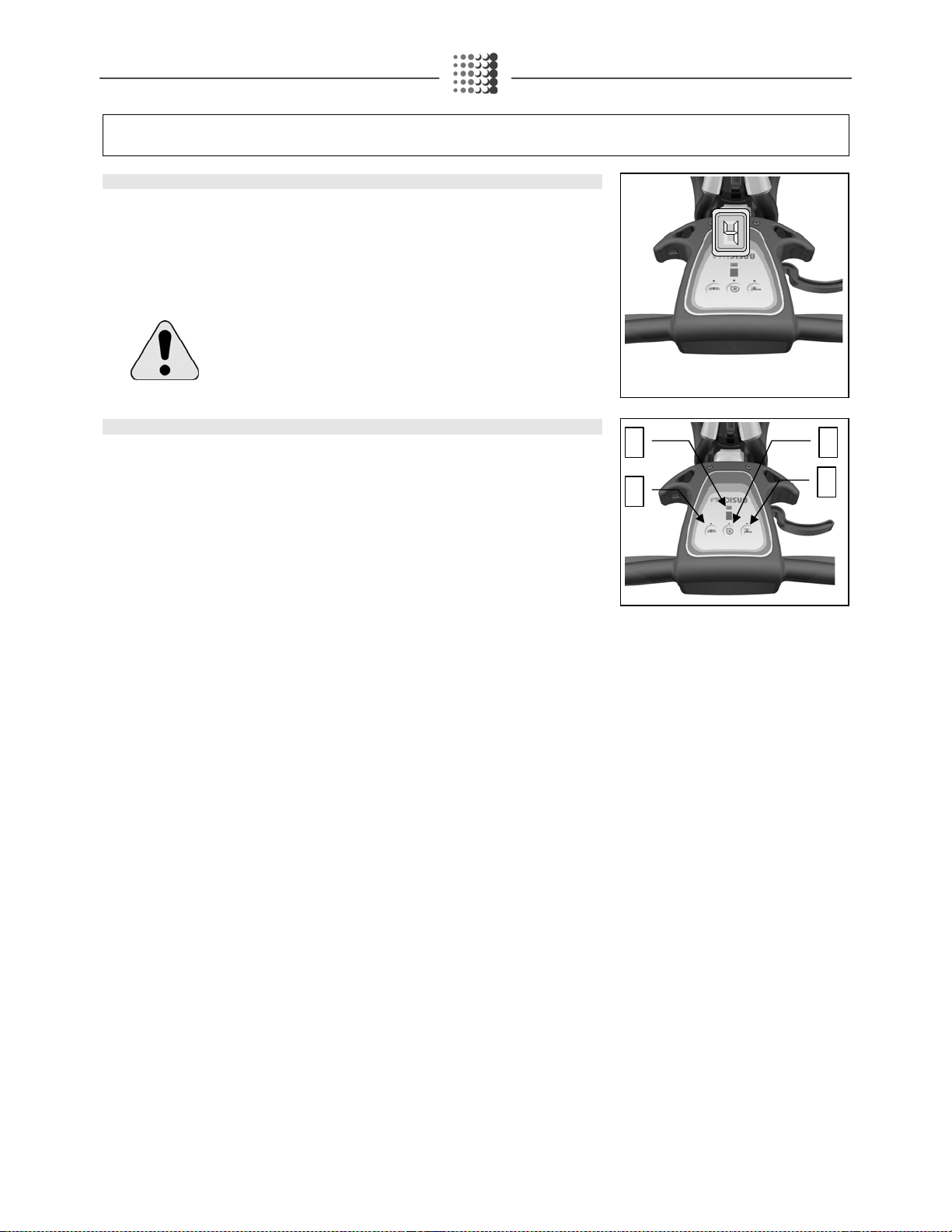

9. BATTERY INDICATOR
The battery indicator is digital, with 4 fixed positions and a flashing one. The numbers that appear on the
display show the approximate charge level.
4= maximum charge
3= ¾ charge
2= 2/4 charge
1= 1/4 charge
0= discharged batteries (flashing)
ATTENTION: A few seconds after the appearance of the flashing “0”, the
brush motor switches off automatically. With the remaining charge it is still
possible, however, to complete the drying process before recharging
10. INSTRUMENT PANEL COMPONENTS
The instrument panel components are identified as follows:
1. Main switch (1).
2. Suction switch (2).
3. Solenoid valve switch (3).
4. Digital battery level indicator (4).
4 2
3
1

14
MACHINE PREPARATION

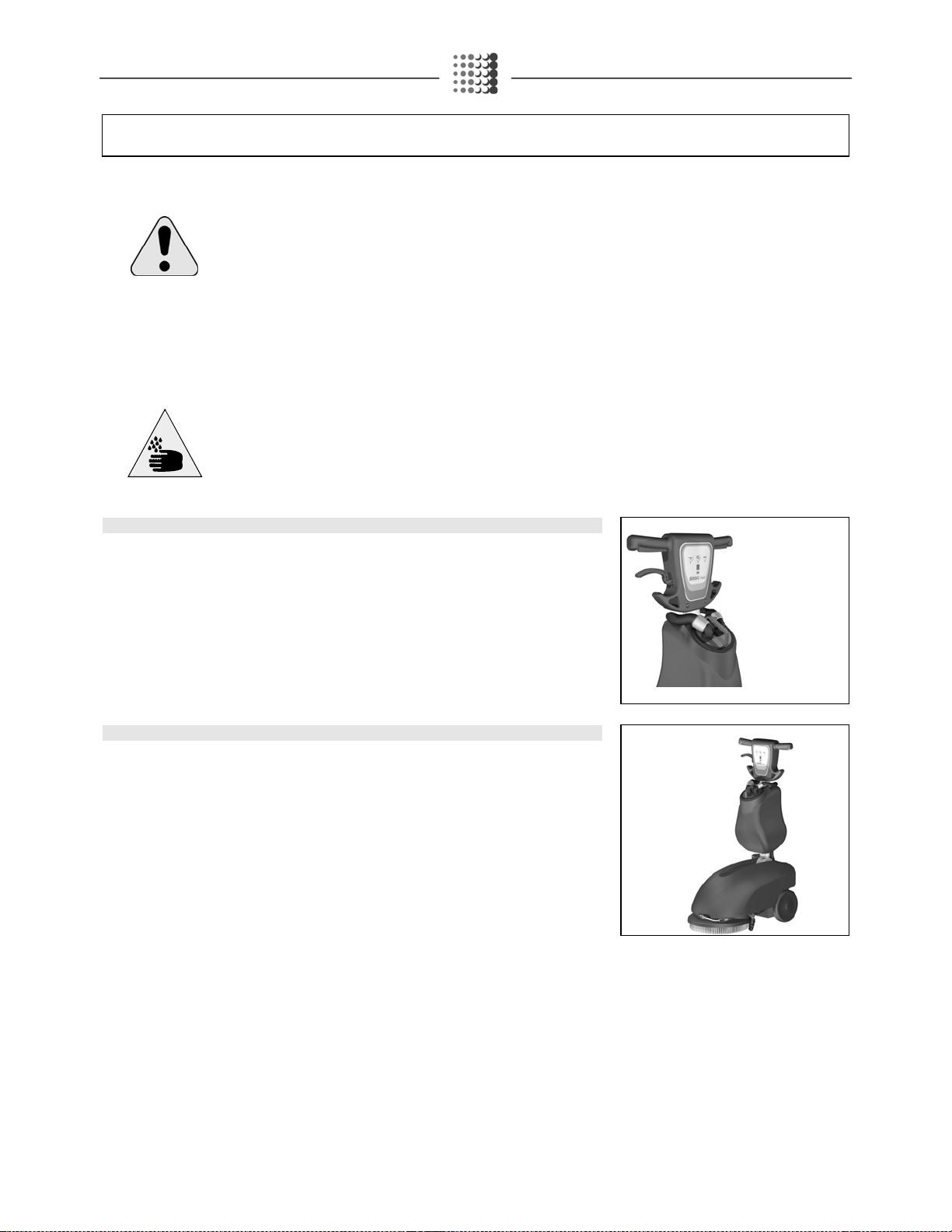

11. FIXING THE HANDLEBARS
For packaging purposes the handlebars are supplied folded; they must now be put in the working
position. Proceed as follows:
1. raise the handlebars by pulling the lever - indicated by the arrow - upwards.
2. place the machine in the working position.
3. attach the recovery tank to the handlebars tube by means of the two hooks.
4. insert the tubes in the connectors that emerge from the recovery tank nut.
12. SOLUTION TANK
The recovery tank must be completely empty each time the solution tank is filled.
Verify that the cap is correctly inserted in its housing (A).
Verify that the quick connection is correctly connected (B).
13. DETERGENT SOLUTION
Proceed as follows to fill the solution tank:
1. Make sure that the recovery tank is empty.
2. Make sure that the main switch is off.
3. Remove the inlet cap located on the right rear side of the machine.
4. Fill it with clean water at a temperature not exceeding 50C.
Add the liquid detergent to the tank in the concentration and manner indicated on the detergent
manufacturer's label. The formation of excess foam could damage the vacuum motor, so use only the
minimum amount of detergent that is necessary.
ATTENTION: Acid or alkaline maintenance detergent can be used with pH
values between 4 and 10 and that do not contain: oxidising agents, chlorine or
bromine, formaldehyde, mineral solvents.
A
B

15
PREPARATION OF THE MACHINE
ATTENTION: Always use detergents whose manufacturer's label indicates
their suitability for use with floor scrubbing machines. Do not use acid or
alkaline products or solvents without this indication.
always use low-foam detergent. To avoid the production of foam, put a
minimum quantity of antifoam liquid in the recovery tank before starting to
clean. Do not use pure acids.
ATTENTION: users are advised to always wear protective gloves, to avoid the
risk of serious injury to hands.
14. RECOVERY TANK
Make sure the recovery tank is empty, otherwise empty it completely.
V
erify that the recovery tank is correctly inserted in its housing, and that the tubes are correctly inserted
in the tank elbows.
V
erify that the cap is correctly closed.
15. ASSEMBLING THE BRUSH
To insert the brush:
1. Place the brush in front of the base body.
2. Raise the brush head by using the handlebars as a lever.
3. Place the brush head above the brush.
4. Activate the handlebar tilt lever.
5. Press the main switch to turn on the machine.
6. Pulse press the dead man's lever to engage the brush to the brush head.

16
WORK

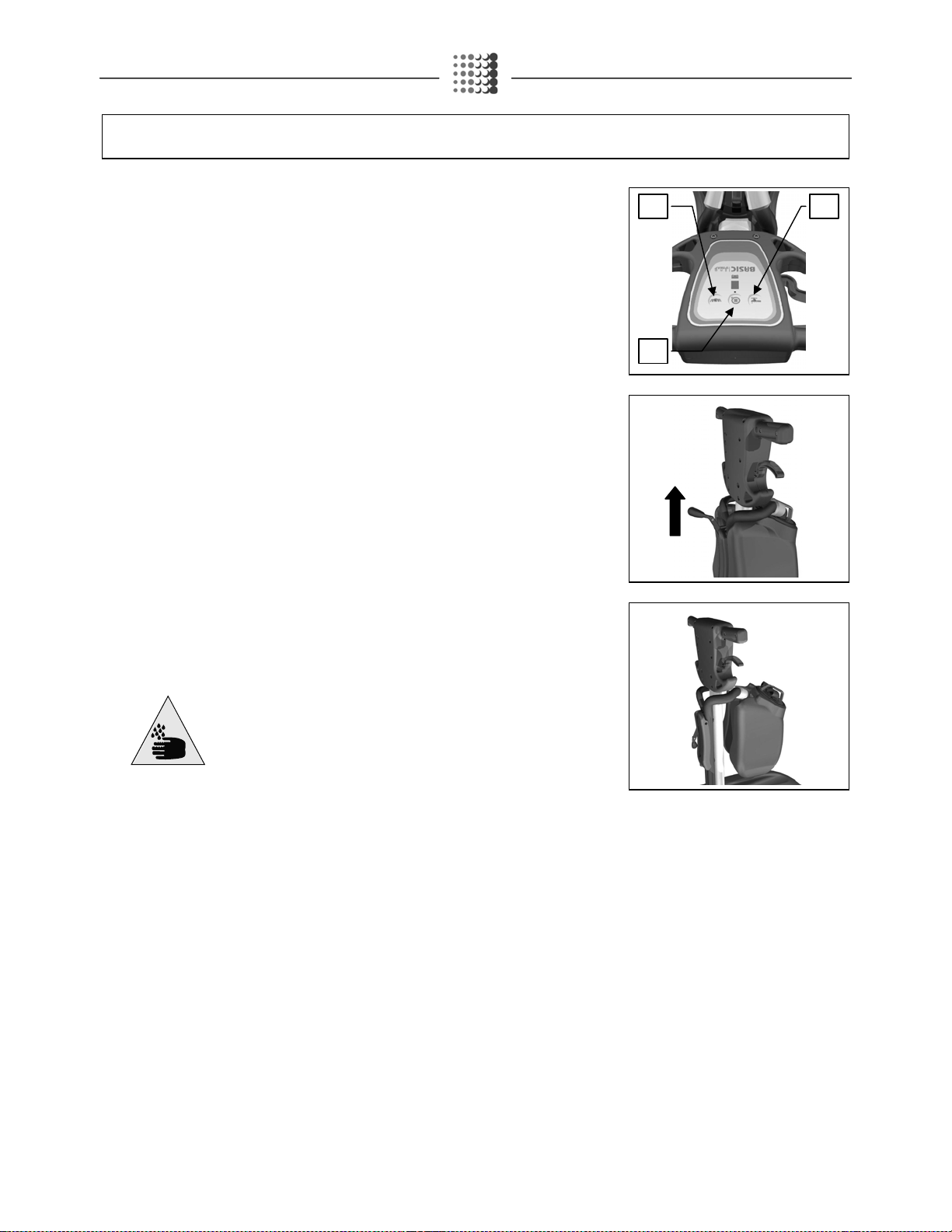

1. PREPARING TO WORK
Before fitting the tanks, it is necessary to carry out certain operations:
1. Open the two rear hinges of the battery compartment.
2. Connect the connector to the batteries.
3. Close the battery compartment.
4. Make sure that the recovery tank is empty.
5. Position the recovery tank on the handlebars, and connect the two tubes.
6. Position the solution tank and connect the quick connector.
7. Carry out the operations to prepare the machine.
8. Lower the squeegee command lever in order to start working.
5. Press the main switch (1) and verify that the green indicator light comes on.
6. Press the suction switch (2).
7. Press the solenoid valve switch (3).
At this point - by using the operating lever that activates the brushes (4) - the machine can work efficiently
until the detergent solution runs out or the batteries run flat
2. OVERFLOW DEVICE
The machine is fitted with a ball filter which is activated when the recovery tank is full, causing the suction
tube to close.
In this case, it is necessary to switch off the machine and empty the recovery tank.
ATTENTION: This operation must be carried out wearing gloves to protect against
contact with dangerous solutions.
3. FORWARD MOVEMENTS
The traction of these machines is obtained by means of the brush which, by working slightly inclined, is
able to drag the machine forwards.
ATTENTION: when making even brief reverse movements, verify that the
squeegee is raised.
1 2
3
4

17
AT THE END OF THE WORK
A
t the end of the work, and before carrying out any type of maintenance, perform the following operations:
1. Turn off the solenoid valve switch (3).
2. Turn off the suction switch (2).
3. Turn off the brush / main switch (1).
4. Raise the rear handle to lift up the squeegee.
5. Take the machine to the location designated for draining the water.
6. Remove the recovery tank, then remove the bayonet cap and tilt the tank to empty it.
7. Remove the solution tank, then remove the filler cap and tilt the tank to empty it.
8. Disassemble the brush and clean it with a jet of water (to disassemble the brush, see
“DISASSEMBLING THE BRUSH” below).
ATTENTION: This operation must be carried out wearing gloves to protect
against contact with dangerous solutions.
1 3
2

18
DAILY MAINTENANCE
PERFORM ALL MAINTENANCE OPERATIONS IN SEQUENCE

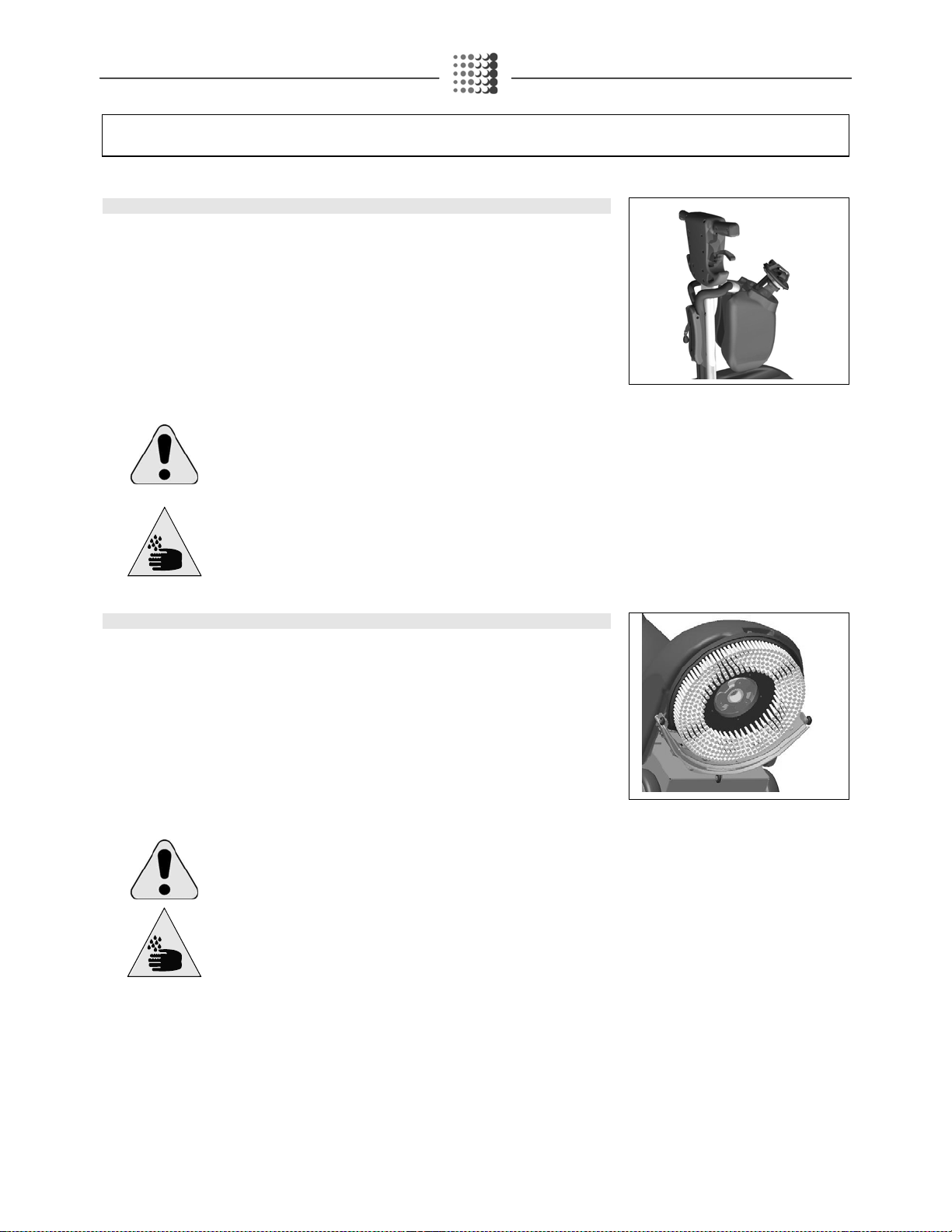

1. CLEANING THE RECOVERY TANK
1. Remove the tubes attached to the connectors of the recovery tank cap.
2. Disconnect the recovery tank from the handlebars.
3. Remove the cap and empty the tank.
4. Clean the filter under running water.
5. Rinse the tank and clean with a jet of water.
6. Assemble all of the components.
ATTENTION: Before carrying out any type of maintenance, disconnect the
machine's battery connector.
ATTENTION: This operation must be carried out wearing gloves to protect
against contact with dangerous solutions.
2. CLEANING THE FRONT AND REAR SQUEEGEES
Verify that the squeegee rubbers are always clean, for a better drying action.
To clean them you must:
1. raise the machine
2. carefully clean the inside
3. carefully clean the squeegee rubbers.
ATTENTION: Before carrying out any type of maintenance, disconnect the
machine's battery connector.
ATTENTION: This operation must be carried out wearing gloves to protect
against contact with dangerous solutions.

19
DAILY MAINTENANCE

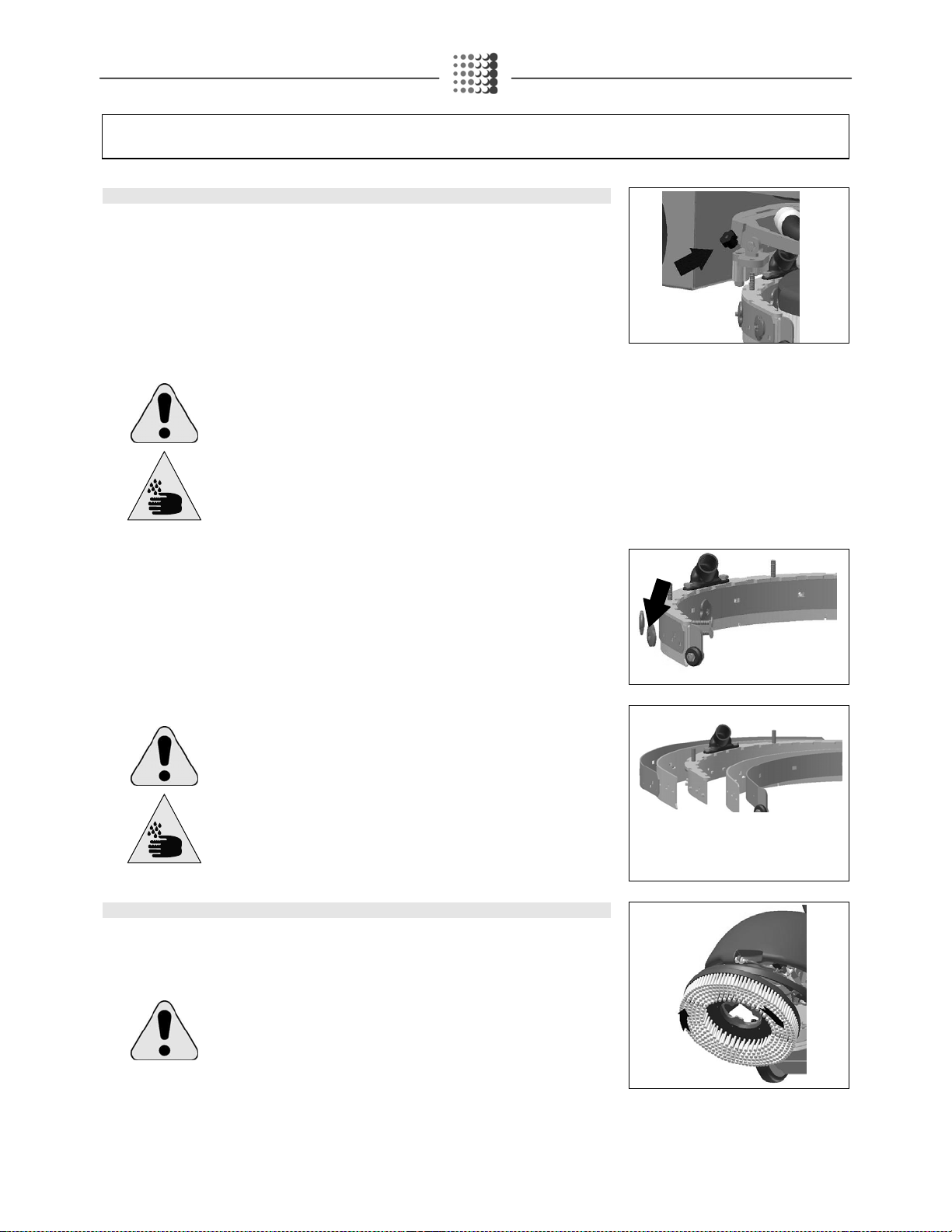

3. REPLACING THE SQUEEGEE RUBBERS
Verify that the state of wear and tear of the squeegee rubbers and, if necessary, replace them. To replace
it you must:
1. Raise the squeegee.
2. Remove the two knobs.
3. Dis-assemble the squeegee from its support.
4. Remove the tube from the squeegee nozzle so that the squeegee can be removed.
ATTENTION: Before carrying out any type of maintenance, disconnect the
machine's battery connector.
ATTENTION: This operation must be carried out wearing gloves to protect
against contact with dangerous solutions.
5. Unscrew the knobs on the squeegee that lock the rubber-pressing blades in place and remove them.
6. Remove the rubber-pressing blades.
7. Replace the rubbers.
8. Assemble all of the components.
ATTENTION: Before carrying out any type of maintenance, disconnect the
machine's battery connector.
ATTENTION: This operation must be carried out wearing gloves to protect
against contact with dangerous solutions.
4. DISASSEMBLING THE BRUSH
1. Raise the squeegee.
2. Raise the machine, using the handlebars as a lever.
3. With the base up, activate the brush command with impulses. The brush will be automatically
released.
ATTENTION: During this operation, check there are no people or objects near
the brush.

20
PERIODIC MAINTENANCE
1. CLEANING THE SQUEEGEE TUBE
Periodically, or whenever suction seems to be unsatisfactory, verify that the squeegee tube is not
obstructed. To clean it, proceed as follows:
1. Remove the tube from the sleeve on the squeegee
2. Remove the other end from the recovery tank
3. Wash the inside of the tube with a water jet introduced from the side where it is connected to the tank
4. Re-assemble the tube.
ATTENTION: Do not wash the tube running between the suction unit and the
suction cap
2. CLEANING THE SOLUTION TANK AND FILTER
1. Detach the quick connection (1) to avoid breaking the connection itself.
2. Remove the solution tank.
3. Unscrew the filler cap (2).
4. Remove the filter and clean it (3).
5. Rinse the tank and clean with a jet of water.
6. Re-assemble the tank, carrying out the above operations in the reverse order.
7. Reassemble the filter and cap.
ATTENTION: Before carrying out any type of maintenance, disconnect the
machine's battery connector.
ATTENTION: This operation must be carried out wearing gloves to protect
against contact with dangerous solutions.
1
2
3
