Fimap FS700 B User manual

USE AND MAINTENANCE MANUAL
FS700 B
FS800 B
ED. 11-2012 EN
ORIGINAL
INSTRUCTIONS
Doc. 10032018
AC Version

The descriptions contained in this document are not binding.
The company therefore reserves the right to make any modifications at any time to
elements, details, or accessory supply, as considered necessary for reasons of
improvement or manufacturing/commercial requirements.
The reproduction, even partial, of the text and drawings contained in this document is
prohibited by law.
The company reserves the right to make any technical and/or supply modifications.
The images are for reference purposes only, and are not binding in terms of design
and supply.
Symbols used in the manual
Open book symbol with an "i"
Indicates the need to consult the instruction manual
Open book symbol
Used to tell the operator to read the manual before using the
machine
Warning symbol
Carefully read the sections marked with this symbol and observe
the indications, for the safety of the operator and the machine
Warning symbol
Indicates danger of gas exhalation and leakage of corrosive
liquids
Warning symbol
Indicates the danger of fire.
Do not go near with free flames
Warning symbol
Indicates that the packed product should be handled with
suitable lifting means that comply with the legal requirements
Disposal symbol
Carefully read the sections marked with this symbol, for machine
disposal

3
CONTENTS
ON CONSIGNMENT OF THE MACHINE.......................................................................................................................................................5H5
INTRODUCTORY COMMENT.......................................................................................................................................................................6H5
IDENTIFICATION DATA................................................................................................................................................................................7H5
TECHNICAL DESCRIPTION .........................................................................................................................................................................8H5
INTENDED USE............................................................................................................................................................................................9H5
SERIAL NUMBER PLATE..............................................................................................................................................................................10H5
TECHNICAL DESCRIPTION .........................................................................................................................................................................11H5
SYMBOLS USED ON THE MACHINE...........................................................................................................................................................12H6
GENERAL SAFETY REGULATIONS.............................................................................................................................................................13H8
MACHINE PREPARATION............................................................................................................................................................................14H9
1 HANDLING OF THE PACKED MACHINE......................................................................................................................................................... 15H9
2 HOW TO UNPACK THE MACHINE..................................................................................................................................................................16H9
3 HOW TO MOVE THE MACHINE......................................................................................................................................................................17H9
4 INSTRUMENT PANEL COMPONENTS............................................................................................................................................................ 18H9

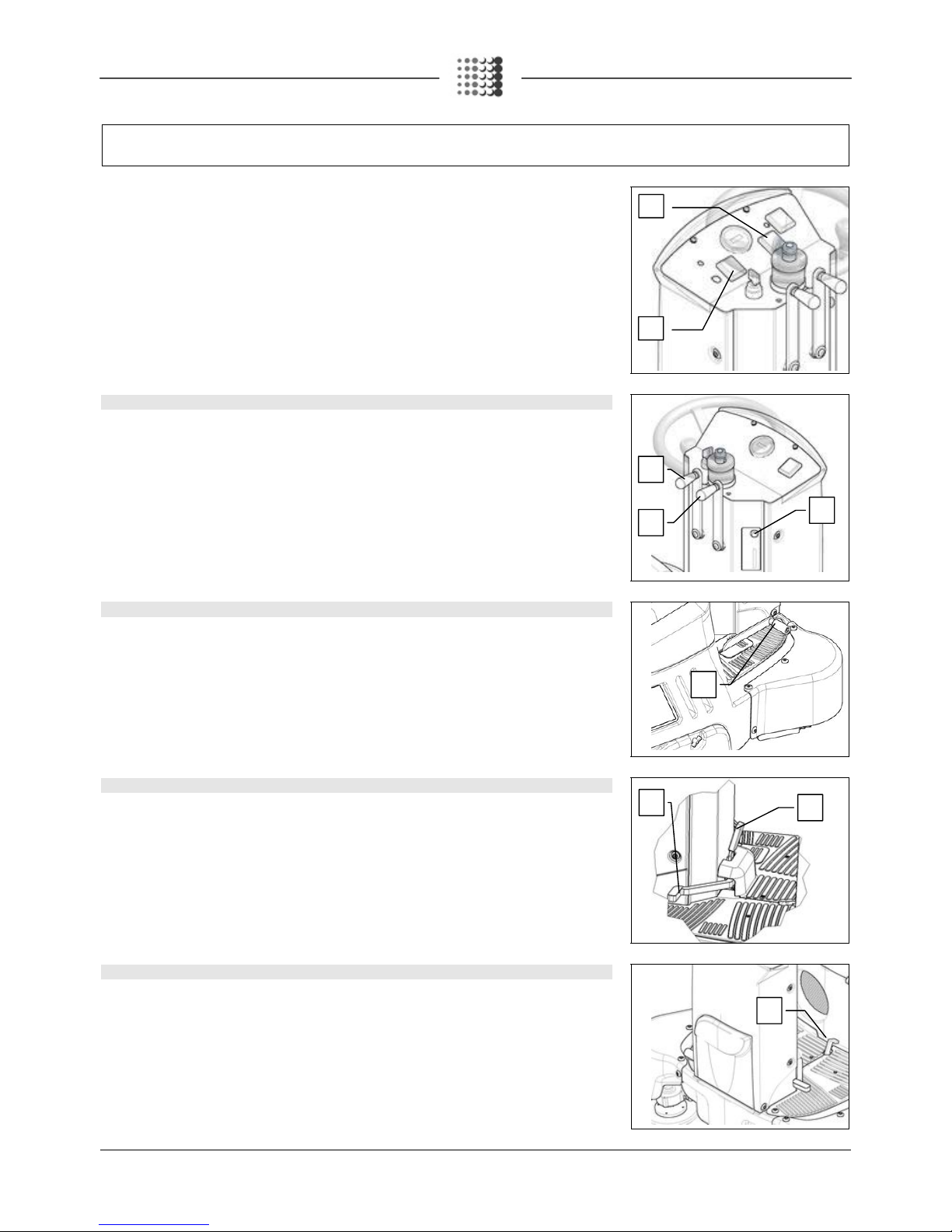

5 STEERING COLUMN COMPONENTS........................................................................................................................................................... 19H10
6 FOOTBOARD FRONT-RIGHT COMPONENTS............................................................................................................................................... 20H10
7 FOOTBOARD FRONT-LEFT COMPONENTS................................................................................................................................................. 21H10
8 FOOTBOARD REAR COMPONENTS............................................................................................................................................................ 22H10
9 SIDE COMPONENTS OF THE MACHINE......................................................................................................................................................23H11
10 REAR COMPONENTS OF THE MACHINE (FS700 B)................................................................................................................................... 24H11
11 FRONT MACHINE COMPONENTS.............................................................................................................................................................. 25H11
12 TYPE OF BATTERY................................................................................................................................................................................... 26H11

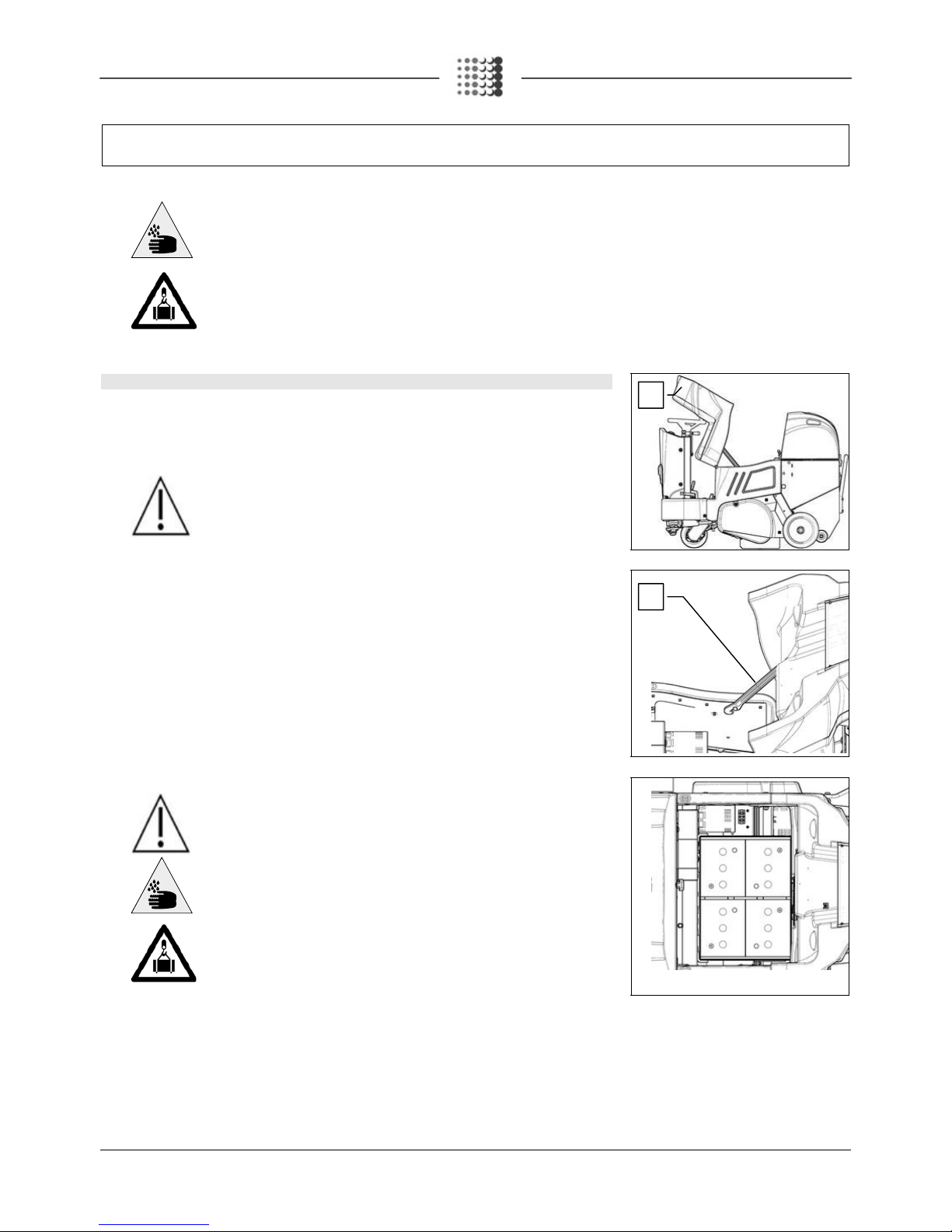

13 BATTERY MAINTENANCE AND DISPOSAL ................................................................................................................................................27H11
14 FITTING THE BATTERIES INTO THE MACHINE.......................................................................................................................................... 28H12

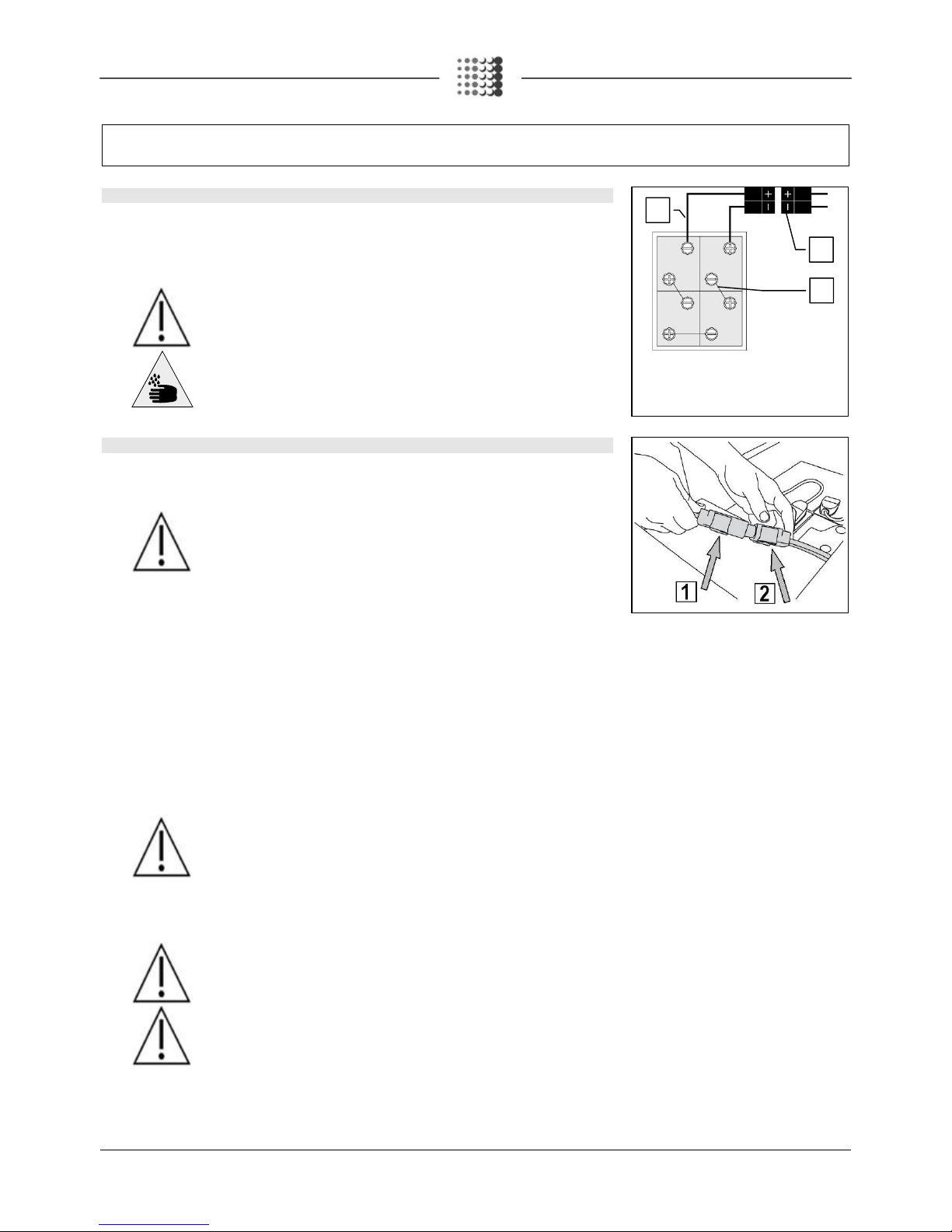

15 BATTERY CONNECTION AND BATTERY CONNECTORS............................................................................................................................ 29H13
16 BATTERY CHARGER CONNECTION (VERSIONS WITHOUT BC)................................................................................................................. 30H13
17 BATTERY CHARGER CONNECTION (VERSIONS WITH BC)........................................................................................................................ 31H14
18 BATTERY CHARGE LEVEL INDICATOR.....................................................................................................................................................32H15
19 WORKING FORWARD SPEED...................................................................................................................................................................33H15
20 REVERSE FUNCTION................................................................................................................................................................................34H15
21 SIDE BRUSH ASSEMBLY .......................................................................................................................................................................... 35H16
22 SERVICE BRAKE AND PARKING BRAKE ................................................................................................................................................... 36H16
23 FLASHING LIGHT (OPTIONAL)................................................................................................................................................................... 37H16
WORK.........................................................................................................................................................................................................38H17
24 PREPARING TO WORK............................................................................................................................................................................. 39H17
25 EMPTYING THE DEBRIS HOPPER (MANUAL MOVEMENT)......................................................................................................................... 40H18
26 EMPTYING THE DEBRIS HOPPER (MANUAL MOVEMENT)......................................................................................................................... 41H19
AT THE END OF THE WORK......................................................................................................................................................................42H21
27 AT THE END OF THE WORK (VERSIONS WITH MANUAL EMPTYING OF THE DEBRIS HOPPER)................................................................ 43H21
28 AT THE END OF THE WORK (VERSIONS WITH AUTOMATIC EMPTYING OF THE DEBRIS HOPPER)........................................................... 44H22
DAILY MAINTENANCE................................................................................................................................................................................45H24
29 CLEANING THE CENTRAL BRUSH ............................................................................................................................................................ 46H24
30 CLEANING THE SIDE BRUSH.................................................................................................................................................................... 47H25
WEEKLY MAINTENANCE...........................................................................................................................................................................48H26
31 CLEANING THE PANEL FILTER (FP VERSIONS) ........................................................................................................................................49H26
32 CLEANING THE CLOTH FILTER (FS versions)............................................................................................................................................. 50H27
33 CLEANING THE DEBRIS HOPPER (VERSIONS WITH MANUAL EMPTYING OF THE DEBRIS HOPPER)........................................................51H28
34 CLEANING THE DEBRIS HOPPER (VERSIONS WITH AUTOMATIC EMPTYING OF THE DEBRIS HOPPER).................................................. 52H28
35 SIDE BRUSH ADJUSTMENT...................................................................................................................................................................... 53H29
EXTRAORDINARY MAINTENANCE............................................................................................................................................................54H31
36 CENTRAL BRUSH REPLACEMENT............................................................................................................................................................ 55H31
37 CENTRAL BRUSH REPLACEMENT............................................................................................................................................................ 56H32
TROUBLESHOOTING.................................................................................................................................................................................57H33
38 THE MACHINE DOES NOT START............................................................................................................................................................. 58H33

4
39 ELECTRIC FUSES AND THERMAL CUT-OUTS...........................................................................................................................................59H33
40 THE MACHINE DOES NOT CLEAN WELL................................................................................................................................................... 60H33
41 THE MACHINE LIFTS DUST DURING OPERATION.....................................................................................................................................61H33
42 EXCESSIVE OR ALTERED NOISE OF THE CENTRAL BRUSH..................................................................................................................... 62H33
43 EXCESSIVE OR ALTERED NOISE OF THE SIDE BRUSH............................................................................................................................ 63H33
DISPOSAL...................................................................................................................................................................................................64H34
CHOOSING AND USING THE BRUSHES...................................................................................................................................................65H35
EC DECLARATION OF CONFORMITY.......................................................................................................................................................66H36
EC DECLARATION OF CONFORMITY.......................................................................................................................................................67H37

5
On consignment of the machine
When the machine is consigned to the customer, an immediate check
must be performed to ensure all the material mentioned in the shipping
documents has been received, and also to check the machine has not
suffered damage during transportation. If this is the case, the carrier
must ascertain the extent of the damage at once, informing our
customer service office. It is only by prompt action of this type that the
missing material can be obtained, and compensation for damage
successfully claimed.
Introductory comment
Even the best machines will only work well if used correctly and kept in
good working order. We therefore suggest you read this instruction
booklet carefully and read it again whenever difficulties arise while using
the machine. If necessary, remember that our assistance service
(organised in collaboration with our dealers) is always available for
advice or direct intervention.
Identification data
For technical assistance or to request replacement parts, always give
the model, the version and serial number written on the serial number
plate.
Technical description
FS700 and FS800 are ride-on sweeping machines, powered electrically
(with traction batteries) or with an internal combustion (endothermic)
engine, for the cleaning of both internal and external surfaces with tiled,
concrete or asphalt floors.
The machine must operate on dry surfaces, and if necessary can also
work on wet surfaces making sure the vacuum action is not active.
The machine features a central brush for the collection of brushed up
material, a side brush for cleaning edges and corners, a vacuum system
with filter to avoid raising dust, and a debris hopper that can be manually
removed by means of a mechanical leverage.
Intended use
The sweeping machine is designed to clean both inside and outside
surfaces with tiled, concrete and asphalt floors, for professional use in
industrial, commercial and public places. The machine is only suitable
for use in closed (or at least covered) places. The machine is not
suitable for use in the rain, or under water jets. It is FORBIDDEN to use
the machine for picking up dangerous dusts or inflammable liquids within
places with a potentially explosive atmosphere. In addition, it is not
suitable as a means of transport for people or objects.
Serial number plate
TECHNICAL DESCRIPTION UM FS700 B FS800 B FS800 B (Basic)
Working width without side brush mm 700 800 800
Working width with right side brush mm 846 946 946
Working width with left and right side brush mm 1050 1116 1116
Working capacity, up to m2/h 6300 6700 6700
Central brush Ø mm 280 280 280
Side brush Ø mm 400 400 400
Central brush rpm rpm. 505 505 505
Side brush rpm rpm. 65 65 65
Brush motor V/W 24/400 24/400 24/400
Traction motor V / W 24/400 24/400 24/400
Traction wheel Ø mm 220 220 220
Rear wheels Ø mm 300 300 300
Forward speed km/h 6 6 6
Maximum gradient % 10 10 10
Vacuum motor V/W 24/400 24/400 24/400
Filter shaker motor V/W 24/80 24/80 24/80
Filter surface area (fabric filter) m24 5 5
Filter surface area (paper filter) m25 6 6
Debris hopper volume l 60 70 70
Steering diameter mm 2400 2500 2500
Machine length mm 1600 1600 1600
Machine height mm 1310 1310 1310
Machine height with overhead guard mm 1925 1925 1925
Machine width mm 940 1078 1078
Battery compartment (l x L x h) mm 389x524x385 389x524x385 389x524x385
Rated battery voltage V 24 24 24
Battery weight (max) kg 120 120 120
Machine weight (empty and without batteries) kg 240 270 255
Machine weight in running order (machine + batteries + operator) kg 430 460 445
Noise level (in compliance with IEC 704/1) dB (A) - - -
Hand vibration level m/s2- - -
Body vibration level m/s2- - -

6
SYMBOLS USED ON THE MACHINE
Main switch symbol (key switch)
Used on the instrument panel, to indicate the key switch for machine operation on (I) or off (O)
Symbol denoting battery electric charging
Symbol denoting vacuum motor
Used on the instrument panel to indicate the green three-way switch, showing that the left-hand vacuum motor is in operation
Filter shaker symbol
Used on the instrument panel to indicate the green three-way switch, showing that the filter shaker in the panel filter unit is in
operation
Debris hopper lifting symbol
Is used on the instrument panel to indicate the yellow three-way momentary switch, which controls the movement of the debris
hopper
Debris hopper tipping symbol
Is used on the instrument panel to indicate the yellow three-position momentary switch, which controls the rotation of the
debris hopper
Debris hopper tipping symbol
Is used on the instrument panel to indicate the yellow three-way momentary switch, which controls the rotation-movement of
the debris hopper
Symbol denoting acoustic alarm
Used to indicate the acoustic alarm button
Parking brake symbol
Used to indicate the machines brake lever

7
SYMBOLS USED ON THE MACHINE
Symbol denoting treading ban
Used to indicate the area of the machine on which it is forbidden to tread or stand
Central/side brush(es) motion symbol (idle position)
Used to indicate the movement linkage of the central/side brush(es)
Central/side brush(es) motion symbol (working position)
Used to indicate the movement linkage of the central/side brush(es)
Indicates the maximum gradient
Indicates the risk of crushed hands

8
GENERAL SAFETY REGULATIONS
The regulations below must be carefully followed in order to avoid harm to the operator and damage to the machine.
WARNING:
•Read the labels on the machine carefully. Do not cover them for any reason and replace them immediately if they become damaged.
•The machine must be used exclusively by authorised and trained personnel.
•The machine is designed for dry use only.
•Do not use the machine on surfaces with an inclination greater than the one shown on the plate.
•The machine is not suitable for cleaning rough or uneven floors. Do not use the machine on slopes.
•In the event of danger, quickly intervene on the handle located on the battery connector.
•For all maintenance interventions, switch off the machine and disconnect the battery connector and/or the power supply cable.
•Children must be supervised to ensure they do not play with the device.
•During the working of the machine, pay attention to other people and especially to children.
•Only use the brushes supplied with the machine, or those specified in the "CHOOSING AND USING THE BRUSHES" paragraph of the instruction
manual. The use of other brushes could compromise safety levels.
WARNING:
•The machine is not suitable for use by children and persons with reduced physical, mental and sensory capabilities, or people who lack experience and
knowledge.
•The machine must not be used or stored outdoors, in damp conditions or directly exposed to rain.
•The storage temperature must be between -25°C and +55°C; do not store outdoors in damp conditions.
•Conditions of use: room temperature between 0°C and 40°C with relative humidity between 30 and 95%.
•The socket for the battery charger cable must have a prescribed earth connection.
•Adapt the speed to the adhesion conditions.
•Do not use the machine as a means of transport.
•The machine does not cause harmful vibrations.
•Do not use the machine in an explosive atmosphere.
•Do not use the device to collect dangerous powders.
•The machine is not suitable for cleaning carpets.
•Do not place any liquid containers on the machine.
•Avoid working with the brushes when the machine is standing still, so as not to damage the floor.
•In the event of a fire, use a powder extinguisher. Do not use water.
•Do not knock against shelving or scaffolding, where there is a danger of falling objects. The operator must always be equipped with the appropriate
safety devices (gloves, shoes, helmet, goggles, etc.).
•If the machine does not work properly, check this is not caused by failure to carry out routine maintenance. Otherwise, ask for intervention of the
authorised technical assistance centre.
•If you need to replace any components, request the ORIGINAL spare parts from an Authorised dealer and/or Retailer.
•Restore all electrical connections after any maintenance interventions.
•Before using the machine, check that all the hatches and covers are positioned as shown in this Use and Maintenance Manual.
•Do not remove any protection devices which require the use of tools in order to be removed.
•Do not wash the machine with direct water jets or with pressurised water, nor with corrosive substances.
•Have the machine checked by an authorised technical assistance centre every year.
•When disposing of consumable materials, observe the laws and regulations in force.
•When your machine has reached the end of its long working life, dispose of the materials it contains (especially oils, batteries and electronic
components) in an appropriate manner, taking into account that the machine itself was constructed using 100% recyclable materials.
•The batteries must be removed from the machine before its disposal. The batteries must be disposed of in a safe manner, fully observing the laws and
regulations in force.

9
MACHINE PREPARATION
1. HANDLING OF THE PACKED MACHINE
The machine is contained in specific packaging with a pallet for the handling with fork trucks. The
packages cannot be placed on top of each other.
The total mass of the machine with packaging is 320 kg (FS700 version without batteries)
The total mass of the machine with packaging is 350 kg (FS800 version without batteries)
The total mass of the machine with packaging is 335 kg (FS800 Basic version without batteries)
The dimensions of the packaging is as follows:
FS700 B – FS800 B – FS800 Basic
A: 1620mm
B: 1280mm
C: 2040mm
A
CB
2. HOW TO UNPACK THE MACHINE
1. Remove the outer packaging
2. The machine is fixed to the pallet with wedges which block the wheels
3. Remove the wedges
4. Use a chute to get the machine down from the pallet, pushing it backwards.
5. Keep the pallet for any future transport needs
WARNING: If the product is delivered in cardboard containers, handle the
packed product with suitable lifting means that comply with the legal
requirements
3. HOW TO MOVE THE MACHINE
1. Make sure the hopper is empty, otherwise empty it completely
2. Check that the central brush is lifted from the ground, if not lift it
3. Check that the side brush(es) are lifted from the ground, if not lift them
4. Place it on a pallet, using a chute
5. Make sure that the key switch is in the 0/OFF position, if not turn the key a quarter turn to the left
and remove it
6. Engage the parking brake
7. Secure the machine to the
p
allet usin
g
wooden wed
g
es
4. INSTRUMENT PANEL COMPONENTS
The instrument panel components are identified as follows:
1. Battery level / hour-counter display
2. Main key switch
3. Red warning light indicating that the parking brake is on
4. Three-way switch:
•front: vacuum motor ON
•middle: vacuum motor and filter shaker OFF
•rear: filter shaker (in the panel filter pre-assembly) ON
1
2
4
3

10
MACHINE PREPARATION
5. Three-way selector debris hopper lift-descent control:
•front position debris hopper in lifting phase
•intermediate position debris hopper movement not active
•rear position debris hopper in descent phase
6. Three-way selector debris hopper rotation control:
•front position debris hopper tilting, for emptying
•intermediate position debris hopper rotation not active
•rear position debris hopper returns to working position
5. STEERING COLUMN COMPONENTS
The steering column components are identified as follows:
7. Lifting lever:
•side brush (1SL version)
•side brushes (2SL version)
8. Central brush lifting lever
9. Horn button
6. FOOTBOARD FRONT-RIGHT COMPONENTS
The components at the front right of the footboard are identified as follows:
10. Accelerator pedal, forward – reverse
7. FOOTBOARD FRONT-LEFT COMPONENTS
The components at the front right of the footboard are identified as follows:
11. Brake pedal
12. Parking brake lever
8. FOOTBOARD REAR COMPONENTS
The components at the rear of the footboard are identified as follows:
13. Front flap lifting pedal
8
79
10
11 12
13
5
6
