GENERAL DESCRIPTION
The descriptions contained in this document are not binding. The company therefore reserves the right to make
any modications at any time to elements, details, or accessory supply, as considered necessary for reasons of
improvement or manufacturing/commercial requirements. The reproduction, even partial, of the text and drawings
contained in this document is prohibited by law.
The company reserves the right to make any technical and/or supply modications. The images are shown
as reference only, and are not binding as to the actual design and/or equipment.
DEFINITION OF LEVELS OF WARNING
DANGER: indicates an imminent dangerous situation that, unless avoided,
will result in death or serious injuries.
WARNING: Indicates a potentially dangerous situation that, unless avoided,
could cause death of serious injury.
ATTENTION: Indicates a potentially dangerous situation that, unless
avoided, could cause slight or moderate injuries.
N.B.: instructs the reader to pay particular attention to the topic that follows.
GENERAL SAFETY REGULATIONS
Before using the machine, please read the following document
carefully and follow the instructions contained herein, along
with the instructions in the document supplied with the machine
itself, "GENERAL SAFETY REGULATIONS" (document number
10083659).
Page 6
SYMBOLS USED IN THE MANUAL
Open book symbol with an "i":
Indicates the need to consult the instruction manual.
Open book symbol:
Tells the operator to read the user manual before using the device.
Covered place symbol:
The operations preceded by this symbol must always be carried out in a dry, covered area.
Information symbol:
Indicates additional information for the operator, to improve the use of the device.
Warning symbol:
Carefully read the sections preceded by this symbol meticulously following the instructions indicated
for the safety of the operator and the device.
Danger symbol (moving trolleys):
Indicates that the packed product should be handled with suitable trolleys that conform to legal
requirements.
Symbol indicating the compulsory use of protective gloves:
Indicates that the operator should always wear protective gloves, to avoid the risk of serious injury to
his hands from sharp objects.
Recycling symbol:
Tells the operator to carry out the operations in compliance with environmental regulations in force in
the place where the appliance is being used.
Disposal symbol:
Carefully read the sections marked with this symbol for disposing of the appliance.
TECHNICAL DESCRIPTION
The FSR7 is a ride-on sweeping machine powered by
batteries with an output voltage of 24V. It is designed to
clean tiled, cement or tarred ooring, both indoors and
outdoors.
The FSR7 must be used on dry surfaces, but can also
work on wet surfaces if necessary as long as the vacuum
is not activated.
This sweeping machine features a central brush for
collecting brushed-up material, one or two side brushes
for cleaning along edges and in corners, a vacuum
system with lter to avoid raising dust, and a debris
hopper that is moved manually by the operator.
The machine must be used only for this purpose.
Page 7
INTENDED USE
This machine is designed and built to clean both indoor and outdoor ooring surfaces in tile, cement and asphalt.
They are intended exclusively for professional use by a qualied operator in industrial, commercial and public
contexts, in guaranteed safe conditions.
ATTENTION: the sweeping machine is not designed to clean rugs or carpet oors. It is not suitable for use in
closed places and should be used in open but covered areas (it must not be used in the rain or underneath
jets of water).
IT IS FORBIDDEN: to use the sweeping machine in places with an explosive atmosphere or to collect
hazardous dust or inammable liquids. In addition, it must not be used for transporting people or objects.
SAFETY
Operator cooperation is paramount for accident prevention. No accident prevention programme can be eective
without the full cooperation of the person directly responsible for machine operation. The majority of occupational
accidents that happen either in the workplace or whilst moving are caused by failure to respect the most basic
safety rules. An attentive, careful operator is most eective guarantee against accidents and is fundamental in
order to implement any prevention programme.
REGULATIONS
All references to forwards and backwards, front and rear, right and left indicated in this manual should be
understood as referring to the operator in a driving position with his hands on the steering wheel.
Page 8
SERIAL NUMBER PLATE
111
210
39
48
57 6
The serial number plate is located near the driver's
seat, at the rear of the steering column, and indicates
the machine's general characteristics, including its
serial number. The serial number is a very important
piece of information and should always be provided
together with any request for assistance or when
purchasing spare parts. The serial number plate
contains the following information:
1. The weight of the batteries that power the
machine (expressed in kg).
2. The IP protection rating of the machine.
3. The value in Kg of the GVW (Gross Vehicle
Weight). See “TECHNICAL DATA” on page 16.
4. The machine ID code.
5. The machine serial number.
6. The machine ID name.
7. The value expressed in W of the nominal power
used by the machine. See “TECHNICAL DATA”
on page 16.
8. The value expressed in % of the maximum
gradeability during work. See “TECHNICAL DATA”
on page 16.
9. The year of machine manufacture.
10. The value expressed in V of the nominal voltage
used by the machine. See “TECHNICAL DATA”
on page 16.
11. The commercial name of the machine, and the
manufacturer's address.
Fill in the following table at the time of delivery and/
or installation, so it can be used as a future reference
when necessary.
MACHINE ID NAME
SERIAL NUMBER
DATE OF DELIVERY AND/
OR INSTALLATION
Page 9
MAIN MACHINE COMPONENTS

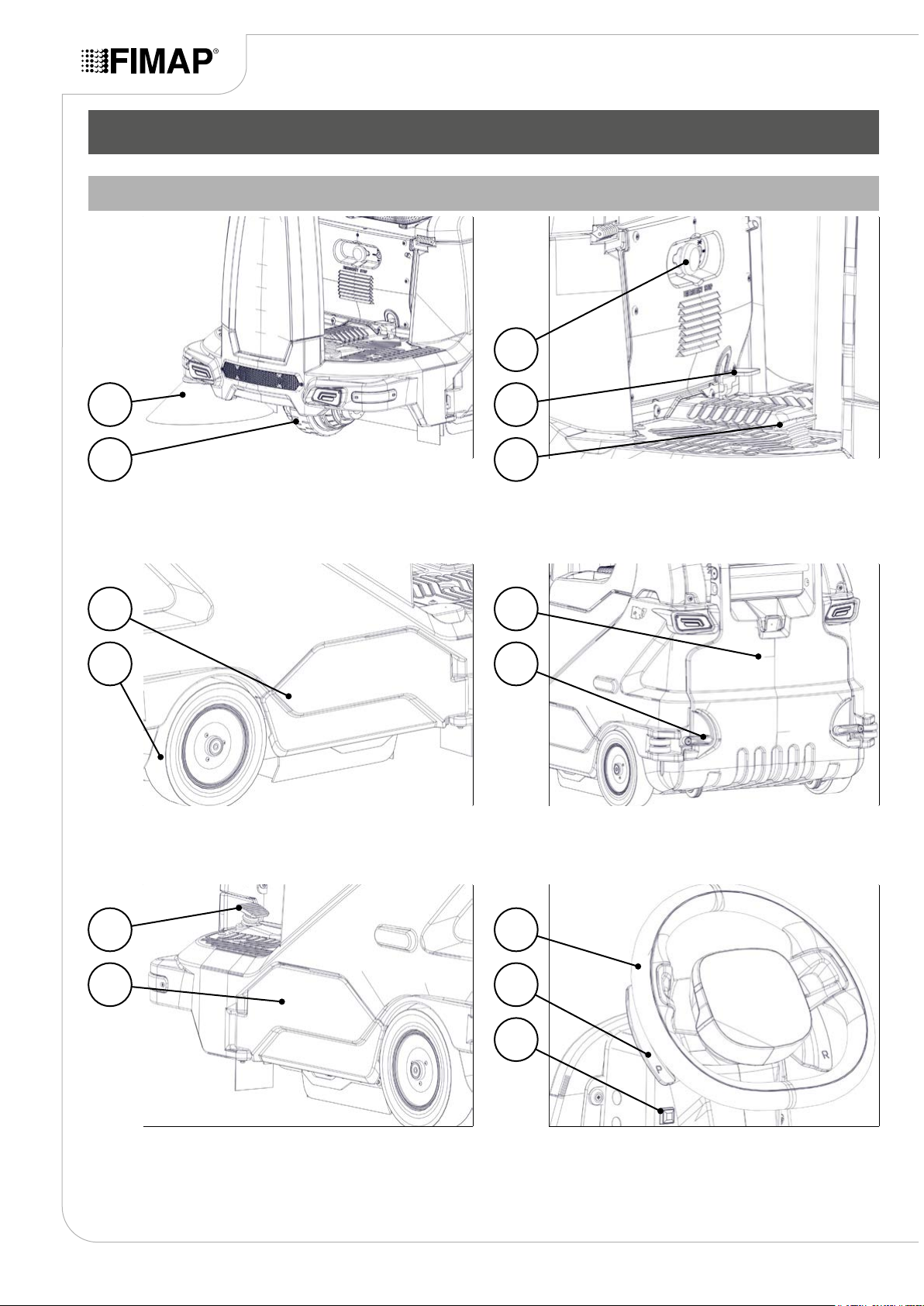

STANDARD COMPONENTS
Page 10
1 Right side brush
2Traction wheel
6 Right-hand maintenance carter
7Rear wheel
10 Service brake pedal
11 Left-hand maintenance carter
8 Debris hopper
9Debris hopper retainer lever
12 Steering wheel
13 Activation lever for extra-pressure
function (central brush)
14 Horn button
3 Battery cut-out button
4Front ap lifting pedal
5accelerator pedal
1
6
10
8
13
12
4
2
7
11
9
14
5
3
Page 11

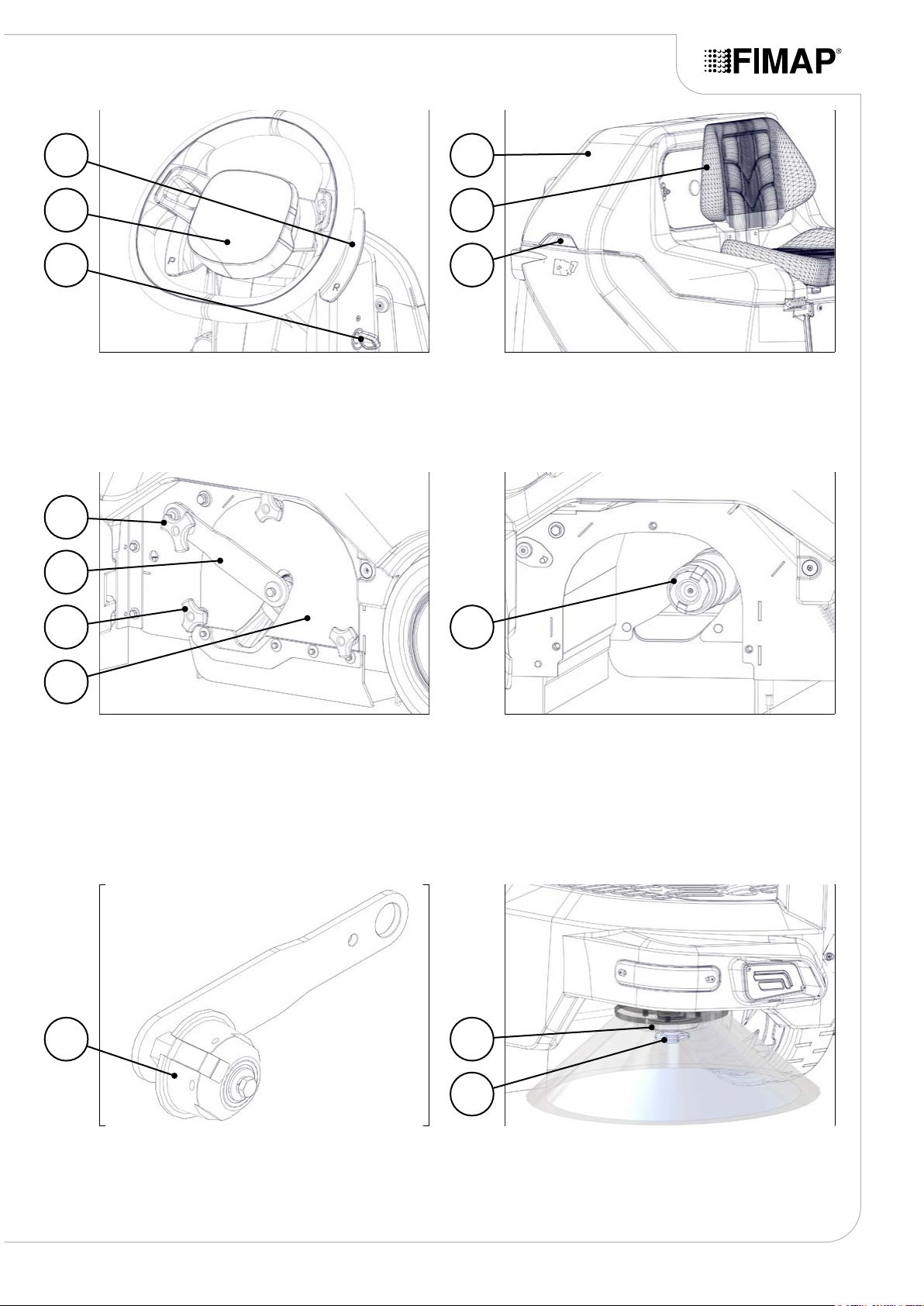

18 Upper body
19 Operator's seat
20 Upper body rotation handle
15 Reverse activation lever
16 Control display
17 Main machine switch
21 Locking knob for central brush lifting
lever
22 Central brush lifting lever
23 Locking knob for central brush side
inspection carters
24 Central brush side inspection carters
25 Central brush towing hook
26 Central brush idle hook 27 Side brush retainer plate
28 Side brush locking knob
1916
22
1815
21
2017
23 25
26 27
24
28
OPTIONAL COMPONENTS
Page 12
29 Vacuum compartment cover
30 Vacuum compartment cover locking
knob
31 Vacuum compartment cover rotation
handle
33 Battery compartment
34 Battery cable connector (version
without on-board battery charger)
32 Panel lter
30
34
29
33
32
31
35 Left side brush 36 Integrated vacuum cleaner kit
37 Blinking light
37
35
36
Page 13

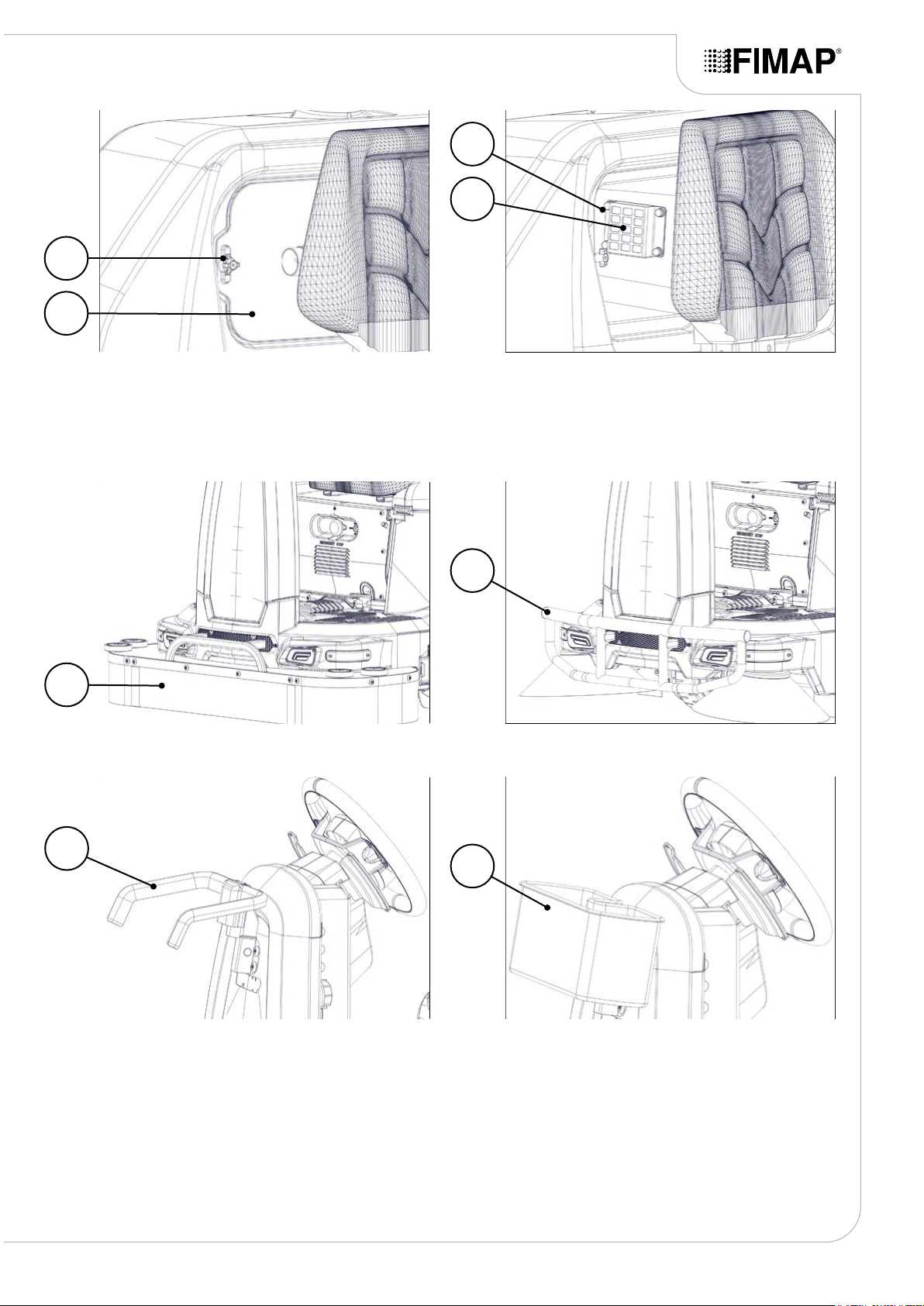

38
Locking knob for compartment cover of
the lter bag in the integrated vacuum
cleaner kit
39 Compartment cover of the lter bag in
the integrated vacuum cleaner kit
42 Front anti-dust skirt
44 Support for bag of the cleaning
accessory kit
40 Support for the motor inlet air lter in
the integrated vacuum cleaner kit
41 Motor inlet air lter in the integrated
vacuum cleaner kit
43 Front bumper kit
41
43
39
42
44
38
40
45 Support basin for bottles in the
cleaning accessory kit
45
TECHNICAL DATA
TECHNICAL DATA UM
[SI]
FSR7
PRO
Rated voltage
[IEC 60335-2-72; IEC 62885-9] V 24
Nominal input power
[IEC 60335-2-72; IEC 62885-9] KW 1,9
Working gradeability with GVW
[IEC 60335-2-72; IEC 62885-9] %12.5
Machine working weight (gross weight - GVW)
[IEC 60335-2-72; IEC 62885-9] kg 685
Weight during transport
[IEC 60335-2-72; IEC 62885-9] kg 420
Machine dimensions during working phase
(length; height width) mm
1610
1290
1020
Operator station sound pressure level (LpA)
[IEC 60335-2-72; IEC 62885-9; ISO 11201] dB (A) 69
Sound power level (LwA)
[IEC 60335-2-72; IEC 62885-9; ISO 3744] dB (A) 85,8
Uncertainty KpAdB (A) ±1.5
Hand-arm vibrations
[IEC 60335-2-72; IEC 62885-9; ISO 5349-1] m/s21,34
Whole-body vibrations
[IEC 60335-2-72; IEC 62885-9; ISO 2631-1] m/s20.3
Vibration measurement uncertainty ±4%
TECHNICAL DATA UM
[SIB]
FSR7
PRO
Rated voltage
[IEC 60335-2-72; IEC 62885-9] V 24
Nominal input power
[IEC 60335-2-72; IEC 62885-9] KW 1,9
Working gradeability with GVW
[IEC 60335-2-72; IEC 62885-9] %12.5
Machine working weight (gross weight - GVW)
[IEC 60335-2-72; IEC 62885-9] lb 1510,17
Weight during transport
[IEC 60335-2-72; IEC 62885-9] lb 925,94
Machine dimensions during working phase
(length; height width) in
63,38
50,78
40,15
Operator station sound pressure level (LpA)
[IEC 60335-2-72; IEC 62885-9; ISO 11201] dB (A) 69
Sound power level (LwA)
[IEC 60335-2-72; IEC 62885-9; ISO 3744] dB (A) 85,8
Uncertainty KpAdB (A) ±1.5
Hand-arm vibrations
[IEC 60335-2-72; IEC 62885-9; ISO 5349-1] m/s21,34
Whole-body vibrations
[IEC 60335-2-72; IEC 62885-9; ISO 2631-1] m/s20.3
Vibration measurement uncertainty ±4%
N.B.: for all other technical data, contact the FIMAP service centre of reference or the one closest to you, or
visit the website www.map.com.
Page 16
SYMBOLS USED ON THE MACHINE
Page 17

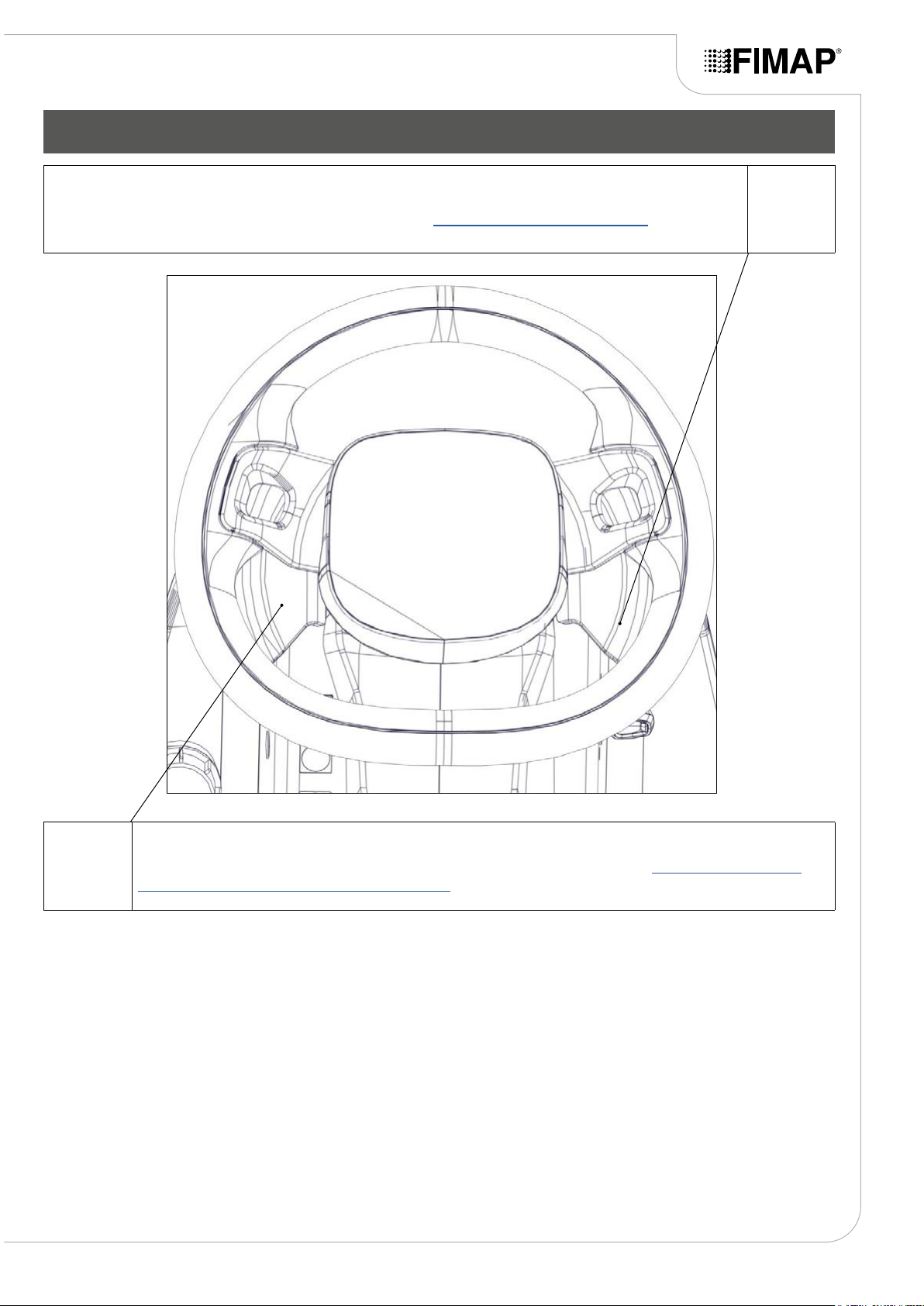

Reverse gear activation/deactivation lever position symbol:
applied to the reverse activation/deactivation lever. See “REVERSE GEAR” on page 56.R
PExtra-pressure activation/deactivation lever position symbol:
applied to the brush head extra-pressure activation/deactivation lever. See “EXTRA PRESSURE
FUNCTION (CENTRAL BRUSH)” on page 53.

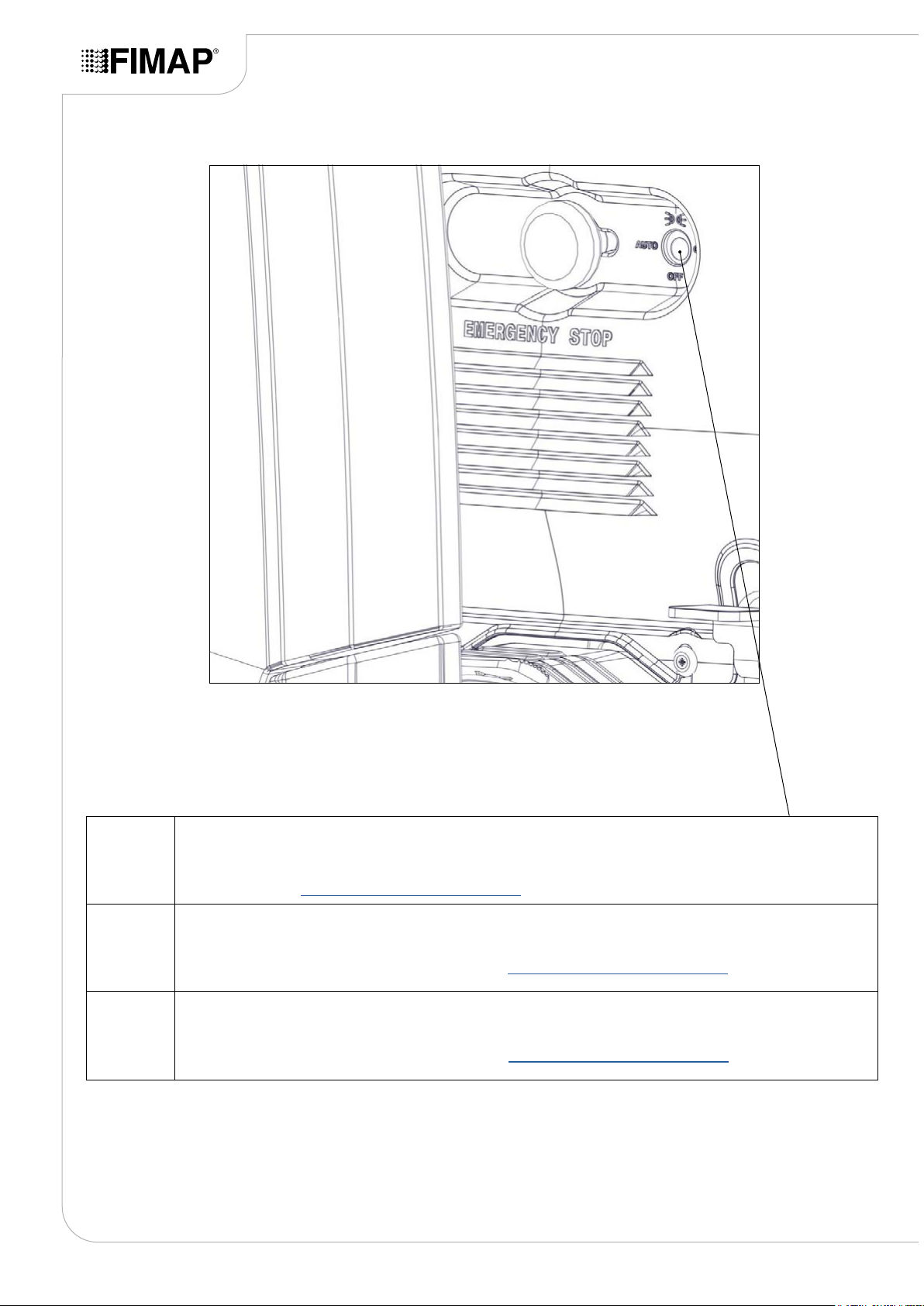

AUTO
“AUTO” symbol on blinking light selector lever:
applied to the carter of the electric system panel, to show where to position the blinking light
control lever so the LEDs switch on automatically when the microswitches that command them are
deactivated. See “SERVICE LIGHTS” on page 57.
OFF
“OFF” symbol on blinking light selector lever:
applied to the carter of the electric system panel, to show where to position the blinking light control
lever so the LEDs are always switched o. See “SERVICE LIGHTS” on page 57.
ON
“ON” symbol on blinking light selector lever:
applied to the carter of the electric system panel, to show where to position the blinking light control
lever so the LEDs are always switched on. See “SERVICE LIGHTS” on page 57.
Page 18
Other manuals for FSR7 PRO
1
Table of contents
Other Fimap Blower manuals
