Finero FST-160 User manual

User Manual
Power Supply Unit FST-160
Generalvertretung Deutschland:
TESTEC Elektronik GmbH
Westerbachstr. 58
0489 Frankfurt am Main
Telefon: [phone]
Telefax: [phone]
e-mail: [e-mail]
Internet: www.testec.de

FST-160 POWER SUPPLY UNIT 2751
USER MANUAL
22.1.2010 12:48 PM AT
UserManual FST-160 PowerSupplyUnit 100122EN ver1.doc
1/12
------------------------------------------------------------------
Finero Oy –The Quality Control Company Tel. [phone]
Haltonintie 5, FIN-47400 KAUSALA, FINLAND Fax [phone]
www.qacontrol.com [email protected]
TABLE OF CONTENTS
1 TECHNICAL INFORMATION......................................................................................................4
2 GENERAL ................................................................................................................................ 5
2.1 Device..........................................................................................................................................................................................5
2.2 Construction.............................................................................................................................................................................5
2.4 Development............................................................................................................................................................................5
2.5 Accessories ...............................................................................................................................................................................5
3 SAFETY PRECAUTIONS............................................................................................................. 6
3.1 General........................................................................................................................................................................................6
4 INSTALLATION ........................................................................................................................ 7
4.1 General........................................................................................................................................................................................7
4.2 Mounting into 19” module –rack or case .....................................................................................................................7
4.3 Connectors................................................................................................................................................................................8
4.4 Mains supply ............................................................................................................................................................................8
5 OPERATION ............................................................................................................................ 9
5.1 General........................................................................................................................................................................................9
6 MALFUNCTIONS.................................................................................................................... 10
6.1 No indicator is lit................................................................................................................................................................. 10
6.2 Tester cannot be powered............................................................................................................................................... 10
7 WARRANTY .......................................................................................................................... 11
WIRING DIAGRAM................................................................................................................... 12

FST-160 POWER SUPPLY UNIT 2751
USER MANUAL
22.1.2010 12:48 PM AT
UserManual FST-160 PowerSupplyUnit 100122EN ver1.doc
2/12
------------------------------------------------------------------
Finero Oy –The Quality Control Company Tel. [phone]
Haltonintie 5, FIN-47400 KAUSALA, FINLAND Fax [phone]
www.qacontrol.com [email protected]
Dear Customer,
Thank you for purchasing Finero test and measurement equipment. Finero is obliged to
provide you with the best on the market available test and measurement equipment. The 30
years of Finero experience in most demanding production applications is made available to
you in this piece of equipment.
We are confident that this equipment will support your endeavors to keep up the good quality
of your production.
If you have any comments about Finero products, software or services I would like to hear of
them.
Yours truly,
Risto Vuolle
Chief Executive Officer
Finero Inc.
Kausala, Finland

FST-160 POWER SUPPLY UNIT 2751
USER MANUAL
22.1.2010 12:48 PM AT
UserManual FST-160 PowerSupplyUnit 100122EN ver1.doc
3/12
------------------------------------------------------------------
Finero Oy –The Quality Control Company Tel. [phone]
Haltonintie 5, FIN-47400 KAUSALA, FINLAND Fax [phone]
www.qacontrol.com [email protected]
All information is subject to changes without prior notice.
DELIVERY SCOPE LIST
Although Finero packages the equipment with utmost care you should check the package
regarding any delivery damages. If the equipment is damaged you should contact your insur-
ance company directly and inform Finero as well about the matter. Please include photos if
possible.
The package should include in minimum following documents and materials:
FST-160 1 pc
Mains cable 1 pc
User Manual 1 pc

FST-160 POWER SUPPLY UNIT 2751
USER MANUAL
22.1.2010 12:48 PM AT
UserManual FST-160 PowerSupplyUnit 100122EN ver1.doc
4/12
------------------------------------------------------------------
Finero Oy –The Quality Control Company Tel. [phone]
Haltonintie 5, FIN-47400 KAUSALA, FINLAND Fax [phone]
www.qacontrol.com [email protected]
1 TECHNICAL INFORMATION
Type : Power supply unit FST-160
Serial number : See the back of the device
Size : 483x148x410 (width, height, depth)
Designed to 19”-eurorack, height 3U 133mm without legs
Weight : 7-20 kg, depends configuration
Operation voltage : 230VAC ( 10% ) 50Hz 1~phase
Operation power : n. 1400VA, depends configuration
Connection : Cable plug , equipment earth
Main fuses : 6,3A slow 5x20mm glass fuses inside of power connector,
depends configuration
Environment temperature : +5°C...+35°C
Environment conditions : Dry and no dusty
Outputs : 4 pcs 230V sockets
2 pcs 230V sockets with filtering (max 3A)

FST-160 POWER SUPPLY UNIT 2751
USER MANUAL
22.1.2010 12:48 PM AT
UserManual FST-160 PowerSupplyUnit 100122EN ver1.doc
5/12
------------------------------------------------------------------
Finero Oy –The Quality Control Company Tel. [phone]
Haltonintie 5, FIN-47400 KAUSALA, FINLAND Fax [phone]
www.qacontrol.com [email protected]
2 GENERAL
2.1 Device
Power unit are use to connection mains voltage to testers and computers or some other
devices. There are emergency stop button and socket to external emergency circuit. External
components can be example emergency stop buttons, door switches, fence switches or limit
switches. There can be some other customer configuration, example powers, meters, indica-
tors or relays.
2.2 Construction
The Tester is built in a 19" frame having high of 3U. The installation depth is about 370 mm.
Also front panel components are about 40mm. There are handles of tester both sides and legs
below tester. Legs must be take off if tester assembled to 19” rack.
2.4 Development
Due continuous development we reserve the right to make technical modifications to our
products without notice. Device's activity can deviate to some degree in this instruction from
the said resulting customized or other changes.
2.5 Accessories
There are available different accessories, systems and calibrators for test device. Please make
contact to us for more solutions.

FST-160 POWER SUPPLY UNIT 2751
USER MANUAL
22.1.2010 12:48 PM AT
UserManual FST-160 PowerSupplyUnit 100122EN ver1.doc
6/12
------------------------------------------------------------------
Finero Oy –The Quality Control Company Tel. [phone]
Haltonintie 5, FIN-47400 KAUSALA, FINLAND Fax [phone]
www.qacontrol.com [email protected]
3 SAFETY PRECAUTIONS
3.1 General
The operator should study carefully the instruction manuals and operation of the Tester as
well as testing instructions for the product to be tested before starting any tests. As safety
precaution the operator should be aware of emergency first aid actions. Cables and connec-
tors must be enough voltage and current strong.

FST-160 POWER SUPPLY UNIT 2751
USER MANUAL
22.1.2010 12:48 PM AT
UserManual FST-160 PowerSupplyUnit 100122EN ver1.doc
7/12
------------------------------------------------------------------
Finero Oy –The Quality Control Company Tel. [phone]
Haltonintie 5, FIN-47400 KAUSALA, FINLAND Fax [phone]
www.qacontrol.com [email protected]
4 INSTALLATION
4.1 General
The Tester is designed for standard 19" rack or case. The Tester height is 3U (133 mm). Depth
is about 370 mm including rear connectors. The handles mounted on the front panel are
elevated about 40 mm from the panel. The Tester is not allowed to carry from the handles but
by having a stable hold in the frame. The Tester can be used in its own case only in dry and
clean environment but care must be taken nothing goes into the case through ventilation
openings. The ventilation, however, should not be prevented.
4.2 Mounting into 19” module –rack or case
When installed into a rack or a similar case it is mandatory to use mounting rails due to the
weight of the device. The holes in the front panel are intended for locking the device in its
place not for backing the whole device. If there are legs below of tester, they must take off
before installation to 19” rack. Care must be taken of the air circulation in the rack in order to
avoid temperature rise above +35°C.

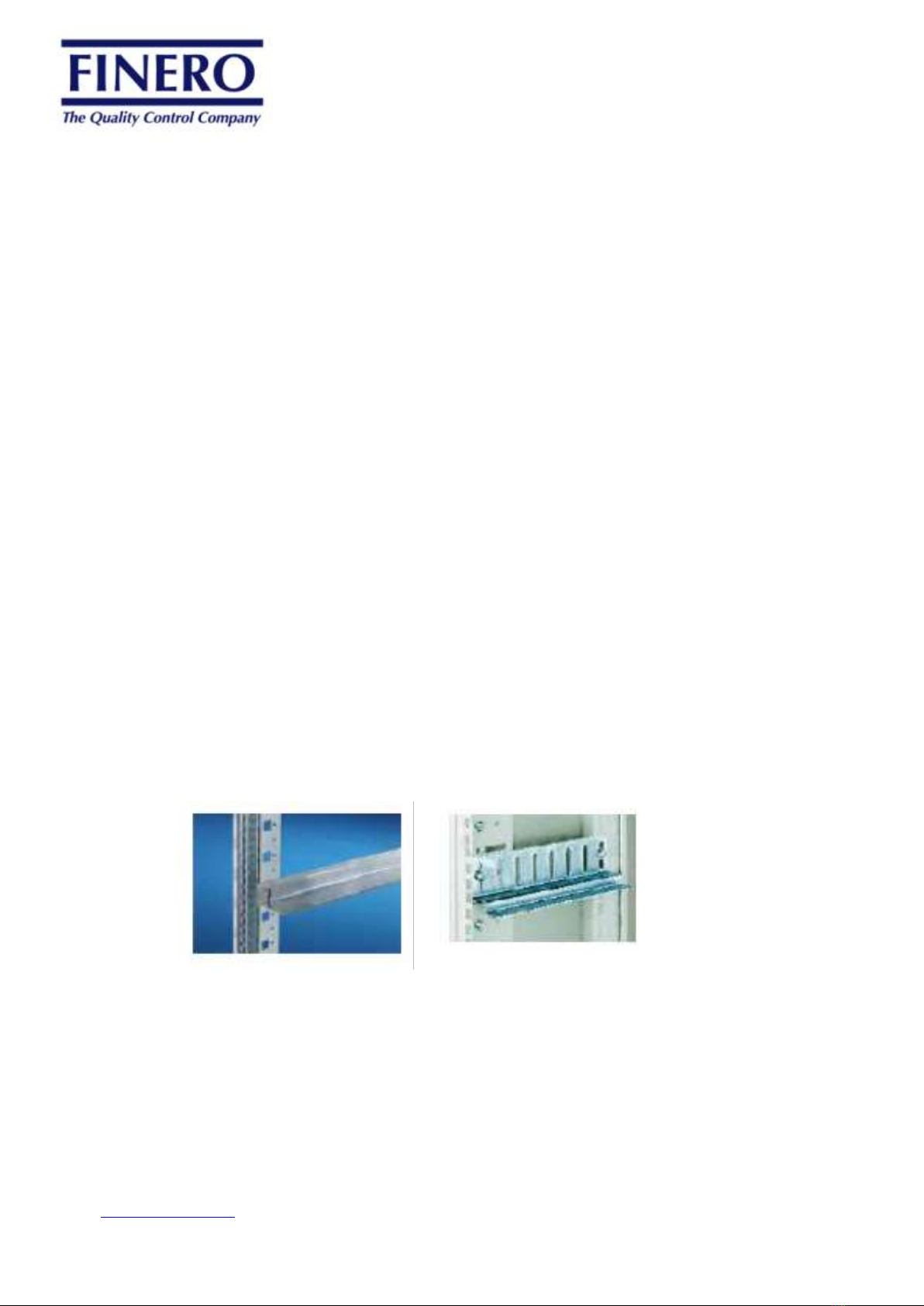

Here are some examples of how build the support for rack installation.

FST-160 POWER SUPPLY UNIT 2751
USER MANUAL
22.1.2010 12:48 PM AT
UserManual FST-160 PowerSupplyUnit 100122EN ver1.doc
8/12
------------------------------------------------------------------
Finero Oy –The Quality Control Company Tel. [phone]
Haltonintie 5, FIN-47400 KAUSALA, FINLAND Fax [phone]
www.qacontrol.com [email protected]
4.3 Connectors
All other connectors are done with customer configuration. Wiring diagram are shown later in
this manual. Make external connections with diagram and use suitable cables and connectors.
External emergency circuit are done with 230V cables and connectors.
4.4 Mains supply
The Tester is designed for 230 VAC 50 Hz mains. Connect the Tester to the mains supply in
following order:
- Check the position of the front panel POWER switch is 0.
- Connect possible the control and high voltage cables to the Tester.
- Plug the mains cord to the Tester.
- Plug the mains cord to a mains outlet.

FST-160 POWER SUPPLY UNIT 2751
USER MANUAL
22.1.2010 12:48 PM AT
UserManual FST-160 PowerSupplyUnit 100122EN ver1.doc
9/12
------------------------------------------------------------------
Finero Oy –The Quality Control Company Tel. [phone]
Haltonintie 5, FIN-47400 KAUSALA, FINLAND Fax [phone]
www.qacontrol.com [email protected]
5 OPERATION
5.1 General
Check emergency stop button and external emergency circuit. Then turn 0-1-Start switch
position 1, now filtered socket are powered. Turn switch for a while to Start-position to
connected power to testers and same time indicator in switch are lighting. Switch can return
to position 1. Power are connected off, when turn switch to position 0. Emergency stop button
breaking power from tester sockets, not from filtered sockets. Button must return before try
starting power again.

FST-160 POWER SUPPLY UNIT 2751
USER MANUAL
22.1.2010 12:48 PM AT
UserManual FST-160 PowerSupplyUnit 100122EN ver1.doc
10/12
------------------------------------------------------------------
Finero Oy –The Quality Control Company Tel. [phone]
Haltonintie 5, FIN-47400 KAUSALA, FINLAND Fax [phone]
www.qacontrol.com [email protected]
6 MALFUNCTIONS
6.1 No indicator is lit
Check the power cord connectors are properly plugged at both ends
Check the voltage in the mains socket.
Check the main fuses (F1 and F2) of the Tester. The fuses are located in the fuse box below the
power cord connector. The box can be opened by removing first the mains cord and then
pulling the fuse box about 10 mm outwards. The fuses will be raised slightly. Check the fuse
by a multimeter and replace with the similar one if necessary.
6.2 Tester cannot be powered
Check emergency stop button and external emergency circuit.
If the above remedies do not help, contact the Tester service.

FST-160 POWER SUPPLY UNIT 2751
USER MANUAL
22.1.2010 12:48 PM AT
UserManual FST-160 PowerSupplyUnit 100122EN ver1.doc
11/12
------------------------------------------------------------------
Finero Oy –The Quality Control Company Tel. [phone]
Haltonintie 5, FIN-47400 KAUSALA, FINLAND Fax [phone]
www.qacontrol.com [email protected]
7 WARRANTY
The warranty period is one year from the date of delivery. The warranty includes free repair
of construction, manufacture and raw material faults and the damages caused by them. Dam-
ages to other devices are not in this warranty.
The warranty does not include the faults caused by:
- transportation
- overload
- user irresponsibility, negligence of operation instruction, maintenance or ser-
vice
- supply voltage variation (max. allowed ± 10%) f.ex. caused by thunder
- ambient temperature or moisture
- repairs and modifications made by the other part than Finero Oy
- the repair of faults insignificant for operation as surface scratches
- change of the parts wearing in normal use as indicators
Due to continuous development of the products warranty does not include updating of fea-
tures.
When the warranty repair is booked the customer is required to inform type and serial num-
ber of the equipment and description of the malfunction as detailed as possible. The repair
shall be carried out in reasonable time during normal working hours. If immediate repair is
demanded or done out of normal working hours the extra cost may be born to the customer
account. The warranty repair are done primarily at the manufactures premises.

FST-160 POWER SUPPLY UNIT 2751
USER MANUAL
22.1.2010 12:48 PM AT
UserManual FST-160 PowerSupplyUnit 100122EN ver1.doc
12/12
------------------------------------------------------------------
Finero Oy –The Quality Control Company Tel. [phone]
Haltonintie 5, FIN-47400 KAUSALA, FINLAND Fax [phone]
www.qacontrol.com [email protected]
WIRING DIAGRAM
