Pulsar GREEN POWER CCTV POE084824B User manual

POE084824B
v.1.0
PoE 54V/8x0,3A/4x7Ah
PoE buffer power supply for up to 8 IP camera.
EN*
Edition: 4 from 25.05.2015
Supersedes the edition: 3 from 15.05.2014
GREENPOWERCCTV
PoE

www.pulsar.pl POE084824B GREEN POWER CCTV PoE
2
PSU features:
DC 54V uninterruptible power supply to 8 cameras IP
battery housing: 4x7Ah/12V
Wide range of AC supply voltage: 88÷264V
High efficiency: 84%
battery charging and maintenance control
deep discharge battery protection (UVP)
battery charging current: 0,2A
battery output protection against short circuit and
reverse connection
designed for 10Mbit/s and 100Mbit/s network
Voltage control at the AUX1 ÷ AUX8 outputs
FPS technical output –indication of the output
fuse activation–relay and OC type
LED optical indication
protections:
SCP short-circuit protection
OVP overvoltage protection
Surge protection
Antisabotage protection
OLP overload protection
Mounting plate for mounting the network switch
- Ethernet Switch / Hub
warranty –2 year from the production date

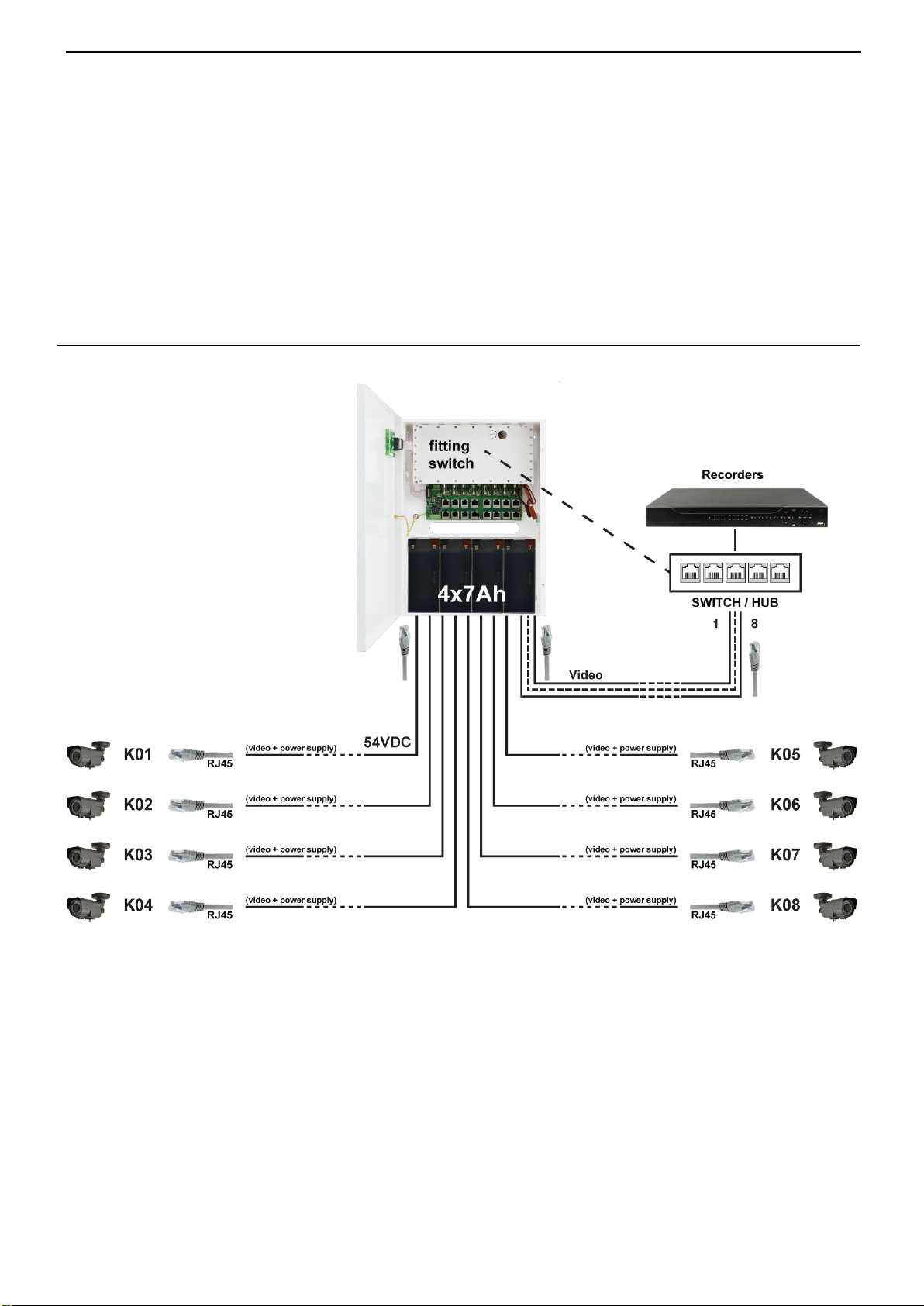

Example of power supply of up 8 IP cameras.
54V DC/8 x 0,3A
TABLE OF CONTENTS:
1. Technical description.
1.1. General description
1.2. Block diagram
1.3. Description of components and connectors of the PSU
1.4. Technical parameters
2. Installation.
2.1. Requirements
2.2. Installation procedure
3. Power supply operation indication.
3.1. Optical indication
3.2. Technical outputs
4. Service and operation.
4.1. Overload or short-circuit of the power supply output
4.2. Battery operation
4.3. Maintenance

www.pulsar.pl POE084824B GREEN POWER CCTV PoE
3
1. Technical description.
1.1. General description.
The PSU is designed for supply of up to 8 webcams requiring stabilized voltage of 48V DC(+/-15%). The PSU
supplies voltage of 54V DC and total current capacity of I=8x0,3A+0,2A Battery charging*. In case of mains power loss,
the unit will instantly switch to battery operation. There are 8 power supply outputs, independently protected by melting
fuses or PTC polymer fuses. Failure (short circuit) in the output circuit will activate the melting fuse or PTC fuse and
disconnect the circuit from DC power (+ U). Fuse failure is indicated by switching off the corresponding LEDs: L1 for
AUX1, etc. In addition, the FPS output (hi-Z state) and LFPS LED are activated and the relay contacts change their
position. The PSU is housed in a metal enclosure with signaling panel equipped with a microswitch indicating door
opening (front cover). The power is carried over the spare pairs (4/5 & 7/8), which, according to the Ethernet network
standard, are not used for data transmission (data transmission uses 1/2 and 3/6 data pairs).
The PSU can not be used in Gigabit Ethernet networks, where all twisted pairs are involved in the
transmission of data!
During normal operation, the total current drawn by the device should not exceed I = 8x0,3A*.
Maximum battery charging current is 0,2 A. Total current of the receivers + battery is max 2,6A.
1.2. Block diagram.
Fig. 1. Block iagram of the PSU.
1.3. The description of components and connectors of the PSU.
Table 1.
Component No.
[Fig. 2]
Description
[1], [10]
LED optical indication:
green LIN –indication of voltage at the IN input
red LAC –AC voltage indication
red LFPS –FPS failure indication
[2]
Connector:
IN –power supply of the module (factory setting)
AC –230V mains supply indication input
[3]
F1 ÷ F8 fuses in the AUX1 ÷ AUX8 (+), F500mA circuits
[4]
Jumper to select melting fuse or PTC polymer fuse
[5]
Green LED L1 ÷ L8 - voltage indication at the AUX outputs (during normal operation,
these LEDs are on)
[6]
Network outputs (Ethernet + power supply) –for camera connection.
[7]
Network outputs (Ethernet)
[8]
FPS –technical output indicating failure –OC type
[9]
FPS –technical output indicating failure –relay type
*See diagram 1

www.pulsar.pl POE084824B GREEN POWER CCTV PoE
4
[11]
Optional, external optical indication connector (factory setting)
[12]
PE –grounding the shield of the RJ45 connectors (factory setting)
Table 1. The description of components of the PoE module.
Fig. 2. Components arrangement.
Fig. 3. The view of the PSU.
Component No.
[Fig. 3]
Description
[1]
The module of the switch mode PSU
[2]
LED light indicating correct operation of the switch mode PSU
[3]
V1 ADJ potentiometer –regulation of the power supply output voltage
[4]
PoE module
[5]
Connectors for connecting the batteries: +BAT = red, - BAT = black

www.pulsar.pl POE084824B GREEN POWER CCTV PoE
5
W
H
D
[6]
TAMPER –microswitch (contacts) of antisabotage protection (NC)
[7]
Plate for mounting the network switch (Ethernet switch / hub)
Tab. 2. Components of the PSU (see Fig. 3).
1.4 Technical parameters.
- electrical parameters (Table 3)
- mechanical parameters (Table 4)
- safety of use (Table 5)
- operation parameters (Table 6)
Electrical parameters (Table 3).
Mains supply
88÷264V AC
Current consumption
1,5A@230V AC typ.
PSU’s power
140,3W max.
Efficiency
84%
Output voltage
44V ÷ 54V DC – buffer operation
37V ÷54V DC –battery operation
The adjustment range of the output voltage
48÷58V DC
Output current tAMB<30°C
8 x 0,3A –see diagram 1
Output current tAMB=40°C
8 x 0,21A –see diagram 1
Ripple voltage
240 mV p-p max.
Battery charging current
0,16A
Current consumption by the PSU
0,2A max. @ 4x7Ah (± 5%)
Short-circuit protection SCP
PoE MODULE
8 x F 0,5A or 8 x PTC 0,5A (jumper selectable)
PSU MODULE
105% ÷ 150% of PSU power, electronic current limiting
Overload protection OLP
105% ÷ 150% of PSU power, electronic current limiting
Battery circuit protection SCP and reverse
polarity connection
melting fuse
Overvoltage protection OVP
62,1÷72,9V DC
Deep discharge battery protection UVP
U<37
V (± 5%) – disconnecting the battery terminal
Surge protection
8 x varistor
Antisabotage protection:
- TAMPER output indicating enclosure opening
- microswitch, NC contacts (enclosure closed),
0,5A@50V DC (max.)
Optical indication of operation:
YES –LED lights
Technical outputs:
- FPS technical output indicating output fuse
activation
- OC type, 50mA max.
Normal operation: L state (0V),
failure: H state (hi-Z), (automatic return once the normal
operation is restored)
- relay type: 1A@ 30VDC/50VAC, delay time: approximately
10 seconds
F1 ÷ F8 fuses
F 0,5A or PTC 0,5A
Mechanical parameters (Table 4).
Enclosure dimensions
300 x 407 x 126 mm (WxHxD)
Mounting
See Fig. 3
Battery housing:
4x7Ah/12V (SLA) max.
250x165x105mm (WxHxD) max
Net weight
5,1kg / 5,4kg
Enclosure
DC01 steel plate, 1,0mm, RAL 9003
Closing
Cylindrical screw x 2 (at the front) lock assembly possible
Terminals
Switch mode power supply: Φ0,4-2,5 (AWG 26-10)
PoE module: Φ0,5-2,1 (AWG 24-12)
AUX1...8 outputs: RJ45 8pin
TAMPER output: Φ0,8
Notes
The enclosure has a 15mm distance from the mounting surface so the cables can
be led.

www.pulsar.pl POE084824B GREEN POWER CCTV PoE
6
Safety of use (Table 5).
Protection class PN-EN 60950-1:2007
I (first)
Protection grade PN-EN 60529: 2002 (U)
IP20
Insulation electrical strength:
- between input (network) circuit and the output circuits of the PSU (I/P-O/P)
- between input circuit and PE protection circuit (I/P-FG)
- between output circuit and PE protection circuit (O/P-FG)
3000V/AC min.
1500V/AC min.
500V/AC min.
Insulation resistance:
- between input circuit and output or protection circuit
100 MΩ, 500V/DC
Operation parameters (Table 6).
Operating temperature
-10ºC...+40ºC (see Figure1)
Storing temperature
-20ºC...+60ºC
Relative humidity
20%...90%, no condensation
Vibrations during operation
unacceptable
Surges during operation
unacceptable
Direct insolation
unacceptable
Vibrations and surges during transport
According to the PN-83/T-42106 standard
Diagram 1. Maximum permissible output current depending on ambient temperature.
2. Installation.
2.1. Requirements.
The buffer PSU should be mounted by a qualified installer, holding relevant permits and licenses (applicable
and required for a given country) for 230V/AC and low-voltage installations. The unit should be mounted in
confined spaces, in accordance with the 2nd environmental class, with normal relative humidity (RH=90%
maximum, no condensation) and temperature range from -10°C up to +40°C. The power supply should operate in a
vertical position in order to provide free and convectional air flow through ventilating holes of the enclosure.
During normal operation, the total current drawn by the device should not exceed
I = 8x0,3A*. Maximum battery charging current is 0,2A. Total current of the receivers
+ battery is max 2,6A.
The power supply is designed for a continuous operation and is not equipped with a
power-switch. Therefore, an appropriate overload protection in the power supply circuit should be provided. Moreover,
the user should be informed how to disconnect the power supply unit from the mains supply (usually by assigning an
appropriate fuse in the fuse box). The electrical system shall be made in accordance with applicable standards and
regulations.
The PSU is designed for 10Mbit/s and 100Mbit/s Ethernet network (so-called Fast Ethernet). However, it can
not be used for a 1000 Mbit/s network (so-called Gigabit Ethernet). Connections between the power supply and the
camera can be done using UTP-3 cable (networks with data-rates up to 10 Mbit/s) or UTP-5 cable. Due to the lower
resistance wiring, it is recommended (especially at large distances between the power supply and receivers) to use UTP-
5 cable also for networks with data-rates up to 10 Mbit/s.
*See diagram 1

www.pulsar.pl POE084824B GREEN POWER CCTV PoE
7
2.2. Installation procedure.
1. Before installation, cut off the voltage in the 230V power-supply circuit.
2. Mount the PSU in a selected location and lead the connecting cables.
3. If required, mount the switch network (Ethernet Switch / Hub) on the mounting plate (element 6, Figure 3) using cable
ties supplied with the PSU. An example of mounting the Ethernet switch is shown in Figure 4:

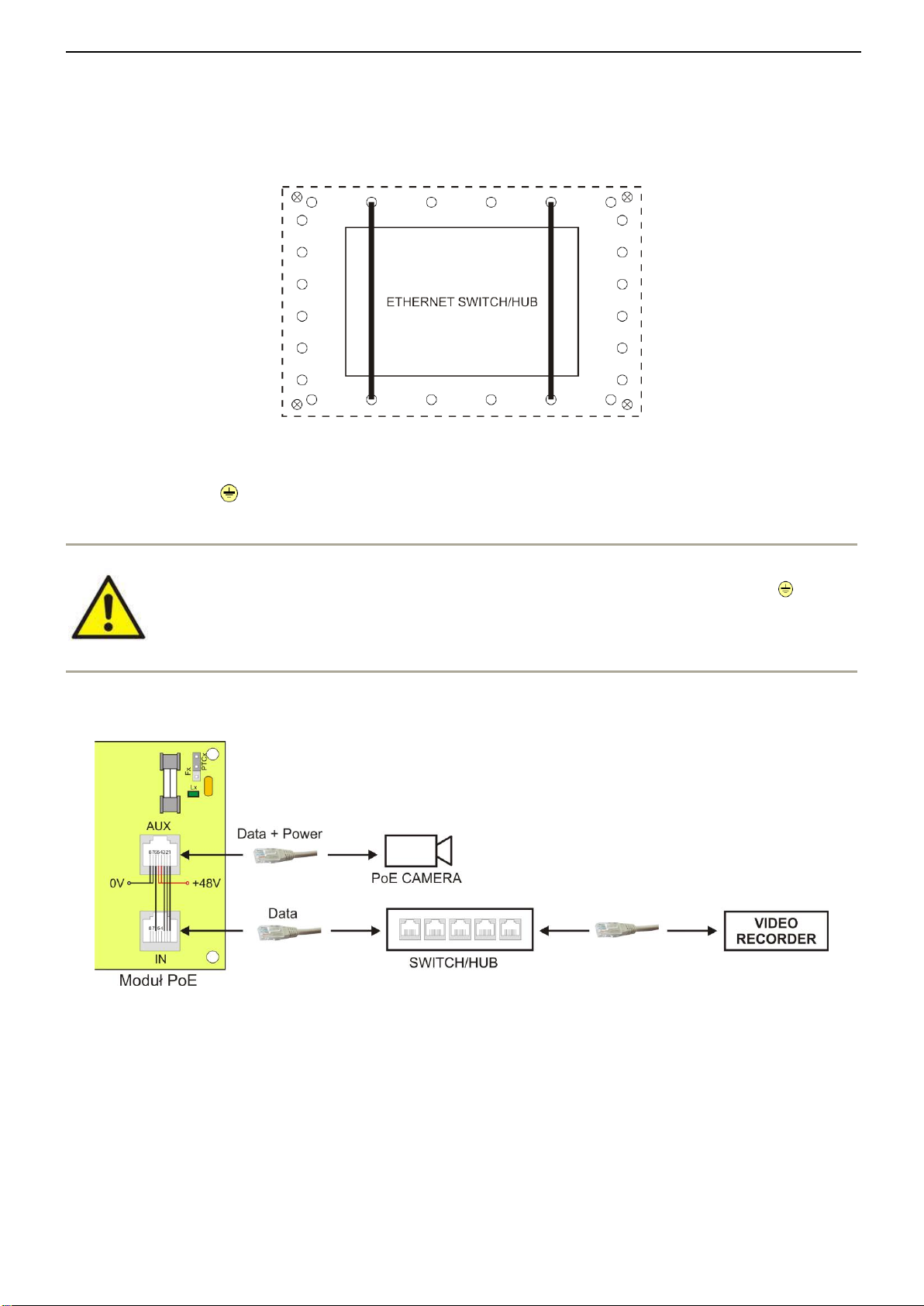

Figure 4. An example of mounting the Ethernet switch.
4. Connect the power cables (230V AC) to L-N terminals of the PSU. Connect the ground wire to the terminal marked
with grounding symbol: . Use a three-core cable (with a yellow and green PE protection wire) to make the connection.
The power cables should be connected to the appropriate terminals on the connection board through the bushing.
The shock protection circuit shall be done with a particular care: the yellow and green wire
coat of the power cable should be connected to the terminal marked with the symbol
in the PSU enclosure. Operation of the PSU without the properly made and fully operational
shock protection circuit is UNACCEPTABLE! It can cause damage to the equipment or an
electric shock.
5. Connect the network cables (Ethernet) to the PoE module: supply voltage is present only at the AUX sockets and the
cameras should be connected to them. Pin assignment of the AUX and IN sockets is shown in the Figure 5:
Fig. 5. Connection of cameras and network devices to the IN and AUX terminals.
6. Use the F1/PTC1 ÷ F8/PTC8 jumpers to select the type of short circuit / overload protection of individual circuits.
Jumper in the Fx position –melting fuse activation, PTCx –PTC fuse activation.
7. If needed, the following technical connections can be made:
- FPS technical output of the PSU status –indicates the voltage loss at any of the outputs (AUX1 ÷ AUX8).
- TAMPER indicating enclosure opening.
8. Check the power supply output voltage:
- output voltage of the unloaded power supply without a battery should amount to U=54V DC.
9. Connect the batteries in series according to the color markings:
- battery output (+V): BAT+ cable/ red

www.pulsar.pl POE084824B GREEN POWER CCTV PoE
8
- battery output (0V): BAT- cable / black
10. Check the optical indication of the PSU status: green LED light on the PoE module.
11. Close the cover after installing and checking the operation of the power supply.
3. Power supply operation indication.
3.1.Optical indication.
The PSU has 11 LED lights at the front panel:
RED LED:
on –The PSU supplied with 230V AC voltage
off –no 230V AC mains supply
RED LED:
on –DC voltage at the output of the switch mode PSU
off –no DC voltage at the output of the switch mode PSU
RED LED:
on –fuse failure at one of the AUX1…AUX8 outputs
off –no failure
GREEN LED:
on –DC voltage at the AUX1…AUX8 output
off –no DC voltage at the AUX1…AUX8 output
Additionally, the PSU is fitted with LED lights inside the enclosure –see Fig. 2 and 3:
- LAC red LED (Fig. 2, component 1) is permanently illuminated during normal operation (AC power ON).
No AC power is indicated by turning off the LAC LED.
- LIN green LED (Fig. 2, component 1) indicates DC voltage at the PoE module input. During normal operation (DC
supply) the LED is permanently illuminated. No DC no DC voltage at the module input is indicated by turning off the LIN
LED.
- LFPS red LED (Fig. 2, component 10) is not illuminated during normal operation (no failure). In case of activation of the
short circuit / overload protection at any output, the LED is permanently illuminated.
- L1 ÷ L8 green LEDs (Fig. 2, component 5) indicate voltage at the individual outputs of the module (L1 for AUX 1 etc.).
Activation of the short circuit / overload protection of a given circuit is indicated by turning off one of the Lx LEDs.
3.2. Technical outputs.
The PSU has the following indication outputs:
FPS –technical output of the PSU status:
- OC type output indicating failure (short-circuit, overload). During normal operation, shorted to ground –L state
(0V). In case of power loss, the FPS technical output is switched into hi-Z state (high impedance) at least at one of
the AUX outputs.
Fig. 6. Electrical diagram of the OC output.
- relay output. In case of failure, relay contacts are switched automatically.
Fig. 7. Electrical diagram of the relay output.

www.pulsar.pl POE084824B GREEN POWER CCTV PoE
9
CAUTION! The arrangement of contacts at the figure 7 shows a potential-free status of the relay,
which is equivalent to a state with no voltage at any of the AUX1 ÷ AUX8 outputs.
TAMPER –output indicating enclosure opening:- volt free contact input indicating the status of the
power supply doors, PSU closed: contacts closed (NC), PSU open: contacts open (NO).
4. Service and operation.
4.1.Overload or short-circuit of the power supply output.
The AUX1÷ AUX8 outputs of the PSU are protected against short-circuit and overload by melting fuse
inserts or PTC polymer fuses. (The Fx / PTCx jumper position determines which fuse is used). If the power supply
load current exceeds Imax. (110% ÷ 150% @ 25°C of the PSU power), the output voltage is automatically
disconnected, which is indicated by turning off the green LED.
If the PTC polymer fuses are used, disconnect the load from the power supply output for approximately 1
minute to restore output voltage. (the time needed to cool down the PTC fuse). In case of melting fuse activation, it
should be replaced with a fuse of the same type and of the same rated current.
4.2. Battery operation
In case of mains power loss, the unit will instantly switch to battery operation.
The power supply is equipped with a discharged battery disconnection system. If
the battery voltage has dropped below 39V during the battery operation, the battery will be
disconnected.
4.3.Maintenance.
All maintenance procedures can be performed after disconnecting the power supply from the power
network. The PSU does not require any specific maintenance; however, its interior should be cleaned with
compressed air if used in dusty conditions. The battery status should be checked periodically. (battery capacity
loss, too high internal resistance) batteries should be replaced. In case of fuse replacement, use only compatible
replacement parts

www.pulsar.pl POE084824B GREEN POWER CCTV PoE
10
WEEE LABEL
Waste electrical and electronic equipment must not be disposed of with normal household
waste. According to the European Union WEEE Directive, waste electrical and electronic
equipment should be disposed of separately from normal household waste.
CAUTION! The power supply unit is adapted for cooperation with the sealed lead-acid batteries (SLA). After the operation period they must
not be thrown but recycled according to the applicable law.
GENERAL WARRANTY CONDITIONS
1. Pulsar (manufacturer) grants a two-year quality warranty for the equipment, starting from the production date.
2. The warranty includes free-of-charge repair or replacement with an appropriate equivalent (selected by the manufacturer) if the
malfunction is due to the manufacturer. It includes manufacturing or material defects, provided that such defects have been reported
within the warranty period (point.1).
3. The equipment subjected to warranty should be brought to the place of purchase or directly to the main office of the manufacturer.
4. The warranty applies to complete equipment, accompanied by a properly filled warranty claim with a description of the defect.
5. Should the claim be accepted, the manufacturer is obliged to provide warranty repairs, at the earliest convenience, however not later
that within 14 days from the delivery to the service centre of the manufacturer.
6. The repair period mentioned in point 5 may be prolonged, if there are no technical possibilities to carry out the repairs, or if the
equipment has been conditionally accepted, due to the breaking warranty terms by the claimant.
7. All the services are carried out at the service centre of the manufacturer, exclusively.
8. The warranty does not cover the defects of the equipment, resulting from:
- reasons beyond the manufacturer's control,
- mechanical damage,
- improper storage and transport,
- use that violates the operation manual or equipment’s intended use
- fortuitous events, including lightning discharges, power failures, fire, flood, high temperatures and chemical agents,
- improper installation and configuration (failure to follow instruction).
9. The warranty is void in case of construction changes and repairs carried out by any unauthorized service center or in case of damage
or modifications to warranty stickers and serial numbers.
10. The liability of the manufacturer towards the buyer is limited to the value of the equipment determined according to the wholesale
prices suggested by the manufacturer on the day of purchase.
11. The manufacturer takes no responsibility for the defects that result from the damaging, malfunctioning or inability to operate the
equipment especially when resulting from failure to comply with the recommendations and requirements contained in the manual.
Pulsar
Siedlec 150, 32-744 Łapczyca, Poland
Tel. [phone], Fax. [phone]
E-mail: [e-mail], [email protected]
http:// www.pulsar.pl, www.zasilacze.pl
