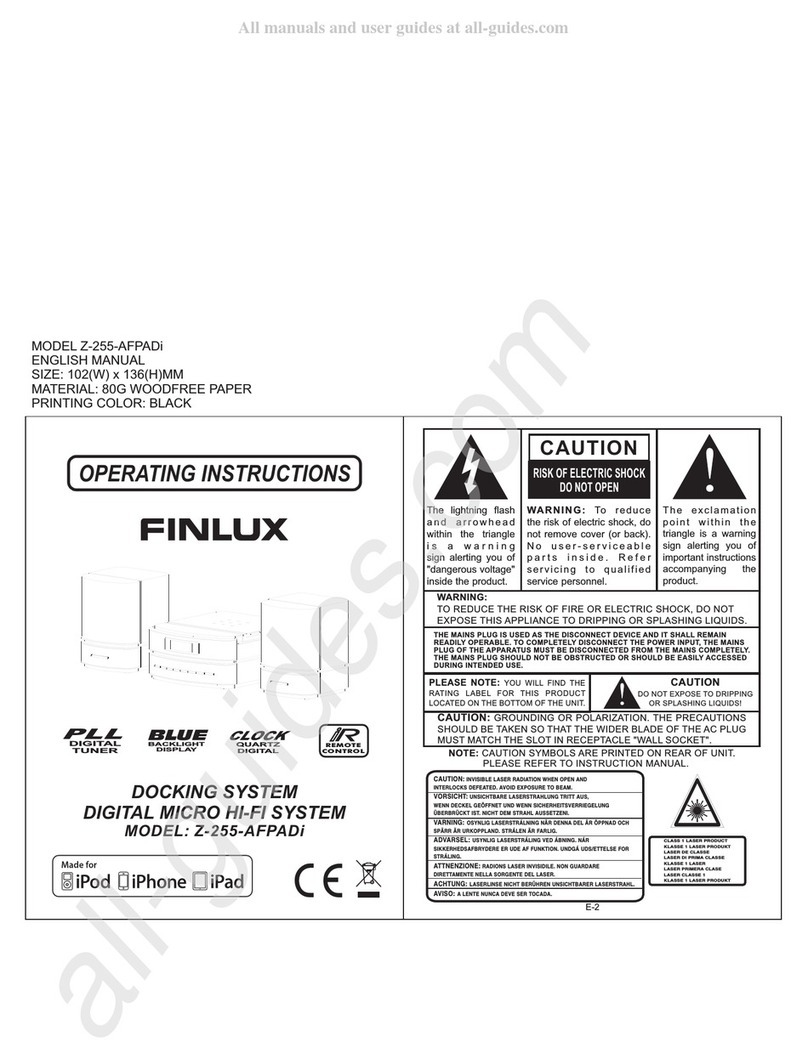

Finlux Z-255-AFPADI User manual

DOCKING SYSTEM
DIGITAL MICRO HI-FI SYSTEM
OPERATING INSTRUCTIONS
MODEL: Z-255-AFPADi
WARNING: To reduce
the risk of electric shock, do
not remove cover (or back).
No user-serviceable
parts inside. Refer
servicing to qualified
service personnel.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The exclamation
point within the
triangle is a warning
sign alerting you of
important instructions
accompanying the
product.
The lightning flash
and arrowhead
within the triangle
is a warning
sign alerting you of
"dangerous voltage"
inside the product.
CAUTION
DO NOT EXPOSE TO DRIPPING
OR SPLASHING LIQUIDS!
NOTE: CAUTION SYMBOLS ARE PRINTED ON REAR OF UNIT.
PLEASE REFER TO INSTRUCTION MANUAL.
E-2
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LASER DE CLASSE
LASER DI PRIMA CLASSE
KLASSE 1 LASER
LASER PRIMERA CLASE
LASER CLASSE 1
KLASSE 1 LASER PRODUKT
CAUTION:
VORSICHT:
VARNING:
ADVARSEL:
ATTNENZIONE:
ACHTUNG:
AVISO:
INVISIBLE LASER RADIATION WHEN OPEN AND
INTERLOCKS DEFEATED. AVOID EXPOSURE TO BEAM.
UNSICHTBARE LASERSTRAHLUNG TRITT AUS,
WENN DECKEL GEÖFFNET UND WENN SICHERHEITSVERRIEGELUNG
ÜBERBRÜCKT IST. NICHT DEM STRAHL AUSSETZENI.
OSYNLIG LASERSTRÁLNING NÄR DENNA DEL ÄR ÖPPNAD OCH
SPÄRR ÄR URKOPPLAND. STRÁLEN ÄR FARLIG.
USYNLIG LASERSTRÁLING VED ÁBNING. NÁR
SIKKERHEDSAFBRYDERE ER UDE AF FUNKTION. UNDGÁ UDS/ETTELSE FOR
STRÁLING.
RADIONS LASER INVISIDILE. NON GUARDARE
DIRETTAMENTE NELLA SORGENTE DEL LASER.
LASERLINSE NICHT BERÜHREN UNSICHTBARER LASERSTRAHL.
A LENTE NUNCA DEVE SER TOCADA.
PLEASE NOTE: YOU WILL FIND THE
RATING LABEL FOR THIS PRODUCT
LOCATED ON THE BOTTOM OF THE UNIT.
CAUTION: GROUNDING OR POLARIZATION. THE PRECAUTIONS
SHOULD BE TAKEN SO THAT THE WIDER BLADE OF THE AC PLUG
MUST MATCH THE SLOT IN RECEPTACLE "WALL SOCKET".
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO DRIPPING OR SPLASHING LIQUIDS.
THE MAINS PLUG IS USED AS THE DISCONNECT DEVICE AND IT SHALL REMAIN
READILY OPERABLE. TO COMPLETELY DISCONNECT THE POWER INPUT, THE MAINS
PLUG OF THE APPARATUS MUST BE DISCONNECTED FROM THE MAINS COMPLETELY.
THE MAINS PLUG SHOULD NOT BE OBSTRUCTED OR SHOULD BE EASILY ACCESSED
DURING INTENDED USE.
REMOTE
CONTROL
PLL
DIGITAL
TUNER
CLOCK
QUARTZ
DIGITAL
BLUE
BACKLIGHT
DISPLAY
MODEL Z-255-AFPADi
ENGLISH MANUAL
SIZE: 102(W) x 136(H)MM
MATERIAL: 80G WOODFREE PAPER
PRINTING COLOR: BLACK

E-3
LOCATION OF CONTROLS
1. CD DOOR
2. DOCKING DOOR
3. DOCKING ADAPTOR
4. SPEAKER (LEFT)
5. LCD DISPLAY
6. ON/ STANDBY KEY
7. BACK/ TUNE DOWN KEY
8. NEXT/ TUNE UP KEY
9. STOP/ CLOCK SET KEY
10. PLAY/ PAUSE/ FM MODE KEY
11. FUNCTION KEY
12. VOLUME DOWN (-)/ MEM - KEY
13. VOLUME UP (+)/ MEM + KEY
14. REMOTE CONTROL SENSOR
15. SPEAKER (RIGHT)
16. FM ANTENNA
17. VIDEO OUT SOCKET
18. SPEAKER OUTPUT SOCKET
(LEFT & RIGHT)
19. AUX IN SOCKET
20. DC JACK SOCKET
E-4
POWER SUPPLY
PREPARATION OF REMOTE CONTROL
-
- REMOVE (GENTLY PULL OUT) THE PLASTIC "TAB" FROM THE BATTERY
COMPARTMENT AT THE REAR OF THE REMOTE CONTROL.
- TEST THE REMOTE CONTROL BY PRESSING THE ON/ STANDBY KEY TO
CHECK THAT THE UNIT SWITCHES ON PROPERLY USING THE REMOTE CONTROL.
THE REMOTE CONTROL UNIT CAN BE FOUND THE BATTERY COMPARTMENT
UNDER THE UNIT.
REMOTE CONTROL:
1. ON/ STANDBY KEY
2. EQ KEY
3. FUNCTION KEY
4. BACK/ TUNE DOWN KEY
5. PLAY/ PAUSE/ FM MODE KEY
6. NEXT/ TUNE UP KEY
7. REPEAT/ SLEEP KEY
8. STOP/ CLOCK SET KEY
9. VOLUME + / MEM + KEY
10. SNOOZE/ TIMER KEY
11. MEM/ PROG. KEY
12. VOLUME - / MEM - KEY
13. BATTERY COMPARTMENT
123
4
7
10
5
8
11
6
9
12
13
WHEN THE POWER IS THE ENTIRE DIGITAL DISPLAY WILL LIGHT UP WITH
A BACK-LIGHT. THIS INDICATES THE HI-FI IS SWITCHED .
"ON"
"BLUE" "ON"
IMPORTANT : HOW TO TELL IF POWER IS "ON" ?
AC OPERATION (EXTERNAL AC-DC POWER ADAPTOR)
- THIS SET IS EQUIPPED WITH A "DC-JACK" CAPABLE OF ACCEPTING
AC-ADAPTORS WITH A RATING OF DC = 7V, 2.5A, AND WITH A PLUG
WITH THE FOLLOWING POLARITIES AS SHOWN (CENTER POSITIVE) :
- PLEASE USE ONLY THE SUPPLIED AC-ADAPTOR TO OPERATE THE UNIT.
USE OF OTHER ADAPTORS MAY DAMAGE THE UNIT OR CAUSE IT TO MALFUNCTION.
- PLUG THE TAIL END OF THE AC-ADAPTOR INTO THE DC-JACK (SOCKET)
ON THE UNDERNEATH OF THE MAIN UNIT.
- MAKE SURE THE VOLTAGE OF THE AC ADAPTOR OPERATES AT THE SAME VOLTAGE
AS YOUR LOCAL HOUSEHOLD VOLTAGE.
- INSERT THE PLUG AT THE END OF THE POWER CORD INTO THE WALL AC SOCKET.
- PRESS THE "ON/ STANDBY" KEY TO SWITCH ON THE UNIT.
- THIS UNIT IS DESIGNED TO OPERATE WITHOUT EVER BEING TOTALLY POWERED "OFF".
IT WILL EITHER BE "ON" OR IN "STANDBY MODE".
- IN STANDBY MODE, THE BLUE BACK-LIGHT OF THE DIGITAL DISPLAY WILL BE DIMMED
BUT THE DISPLAY WILL SHOW THE CURRENT TIME (CLOCK FUNCTION).
- ANYTIME DURING STANDBY MODE, YOU CAN SWITCH "ON" THE UNIT BY PRESSING
THE "ON/ STANDBY" KEY (ON REMOTE CONTROL OR FRONT PANEL OF THE MAIN UNIT).
- SAVE ENERGY BY SWITCHING THE SYSTEM TO "STANDBY" MODE.
-
+
678910 11 12 13 14
15
4
16
18 19 20
1
3
2
5
17
CONNECTION OF SPEAKER BOXES
- UNWRAP THE SPEAKER-CORDS OF BOTH SPEAKER-BOXES AND INSERT THE
LEFT/RIGHT PLUGS INTO SOCKETS IN THE REAR OF MAIN UNIT.
- PLACE THE SPEAKER BOXES AS FAR APART AS POSSIBLE FOR BEST SOUND
EFFECT.

E-6
DIGITAL CLOCK FUNCTION
- THE SET HAS A BUILT-IN DIGITAL CLOCK, WHICH IS DISPLAYED WHEN
THE SET IS IN "STANDBY MODE". (THE DISPLAY WILL CONTINUOUSLY SHOW
THE CURRENT TIME). IN THIS SITUATION THE BLUE BACKLIGHT IS NORMALLY
DIMMED (TO SAVE ELECTRICITY).
HOW TO SET CORRECT TIME:
E-5
*NOTE:
THAT WHEN THE DIGITAL CLOCK IS NOT SET, THE DIGITAL CLOCK DISPLAY SHALL
CONTINUOUSLY FLASH TO INDICATE THAT THE CORRECT TIME HAS NOT YET BEEN SET.
SWITCH UNIT TO "STAND-BY" MODE
PRESS & HOLD FOR 3 SECONDS
DISPLAY SHOWS HOUR OR HOUR (FLASHING)
CLOCK SET
12 24
PRESS TO SELECT 12-HOUR
OR 24-HOUR CLOCK DISPLAY SYSTEM & PRESS TO CONFIRM
YOUR SELECTION
CLOCK SET
PRESS REPEATEDLY TO SET
THE CORRECT IN THE DISPLAY & PRESS TO CONFIRMHOUR CLOCK SET
PRESS REPEATEDLY TO SET
THE CORRECT IN THE DISPLAY & PRESS TO CONFIRMMINUTE CLOCK SET
CORRECT TIME IS NOW SET & WILL BE SHOWN IN THE DISPLAY!
OR TUNE DOWN
TUNE UP
OR TUNE DOWN
TUNE UP
OR TUNE DOWN
TUNE UP
90
MINS
80
MINS
70
MINS
60
MINS
50
MINS OFF*
40
MINS
30
MINS
20
MINS
10
MINS
- THIS SET HAS A SPECIAL SLEEP TIMER FUNCTION WHICH CAN AUTOMATICALLY
SWITCH OFF THE UNIT. THIS IS USEFUL FOR SLEEPING TO MUSIC AT NIGHT.
- AT ANY TIME WHILE THE UNIT IS OPERATING, PRESS & HOLD THE SLEEP KEY UNTIL
THE “ZZZ” ICON & “SLEEP _ _ ” TEXT ARE DISPLAYED. PRESS KEY
(ON REMOTE CONTROL) REPEATEDLY TO CHOOSE THE AUTOMATIC POWER OFF
TIME.
(*OFF MEANS SLEEP TIMER IS DEACTIVATED)
SLEEP
AUTOMATIC POWER OFF SLEEP FUNCTION
AUTOMATIC POWER ON/OFF TIMER FUNCTION
HOW TO SET TIMER
- THIS SET HAS A TIMER FUNCTION TO ENABLE YOU TO PROGRAM THE UNIT TO
AUTOMATICALLY SWITCH ON OR OFF AT PRESET TIMES. THIS IS USEFUL AS A MORNING
ALARM CLOCK :
"" " "
1. ON “STANDBY” MODE, PRESS AND HOLD TIMER KEY (ON REMOTE CONTROL). THE
“TIMER ON” SYMBOL APPEARS IN THE DISPLAY.
2. PRESS TO ADJUST THE HOUR OF THE DESIRED "ON"
TIME AND THEN PRESS TIMER KEY TO CONFIRM.
3. PRESS TO ADJUST THE MINUTES OF THE DESIRED
"ON" TIME AND THEN PRESS TIMER TO CONFIRM.
4. NOW THE WORDING IN THE DISPLAY CHANGES TO SHOW .
5. PRESS TO ADJUST THE HOUR OF THE
DESIRED "OFF" TIME AND THEN PRESS TIMER TO CONFIRM.
6. PRESS TO ADJUST THE MINUTES OF THE DESIRED
"OFF" TIME AND THEN PRESS TIMER TO CONFIRM.
7. NOW THE DISPLAY WILL INDICATE THE "WAKE UP MODE" (iPod/ iPhone/ iPad, RADIO or CD).
PRESS TO CHOOSE THE DESIRED MODE & PRESS TIMER TO CONFIRM.
8. THE DISPLAY THEN SHOWS THE "WAKE UP VOLUME LEVEL" (LOUDNESS).
PRESS TO DECREASE OR INCREASE THE VOLUME
LEVEL TO BE USED FOR THE MUSIC TO BE PLAYED WHEN THE TIMER SWITCHES ON
THE UNIT AT THE PRE-SET TIME.
9. PRESS TIMER TO CONFIRM.
TUNE UP OR TUNE DOWN
TUNE UP OR TUNE DOWN
"TIMER OFF"
TUNE UP OR TUNE DOWN KEYS
TUNE UP OR TUNE DOWN
TUNE UP
TUNE UP OR TUNE DOWN
(NOTE : THE AUTOMATIC ON/OFF TIMER WILL SWITCH ON THE UNIT AS IF YOU HAVE
MANUALLY PRESSED THE "ON/ STANDBY KEY. IF YOU HAVE SELECTED "WAKE TO RADIO",
THE EXACT PRESET RADIO BAND & STATION WILL BECOME ACTIVATED WHEN POWER
SWITCHES ON).
"
10. FINALLY THE UNIT WILL RETURN TO THE NORMAL DISPLAY, EXCEPT THAT THE
SYMBOL WILL BE SHOWN, TO INDICATE THAT YOU HAVE PROGRAMMED A ON/OFF
ALARM SETTING.
11. IN CASE YOU WISH TO DISABLE THE TIMER, PRESS THE TIMER KEY ONCE,
& THE SYMBOL WILL DISAPPEARS.

E-7
OPERATION OF RADIO
- PRESS THE "ON/STANDBY" KEY ONCE TO SWITCH ON THE UNIT.
- PRESS THE KEY REPEATEDLY UNTIL THE DISPLAY SHOWS THE RADIO
FREQUENCY.
- TO IMPROVE FM-RADIO RECEPTION, FULLY EXTEND THE FM-ANTENNA WIRE
AND ADJUST IT'S POSITION.
- USE THE FM MODE KEY TO SELECT THE DESIRED MODE ( .
IN SOME CASES, WHERE RECEPTION IS POOR, IT MAY BE ADVISABLE TO SELECT
“MONO” MODE, TO IMPROVE CLARITY OF THE RADIO SIGNAL.
FM MONO/STEREO)
MANUAL FREQUENCY ADJUSTMENT (SCAN MODE)
- PRESS (AND IMMEDIATELY RELEASE) THE
TO "SCAN" (MANUALLY ADJUST) THE RADIO FREQUENCY "UP" OR "DOWN"
BY 1-STEP AT A TIME.
- THE RADIO DIGITAL DISPLAY WILL INDICATE THE EXACT FREQUENCY AT EACH
STEP’S POSITION.
- WHEN A DESIRED FREQUENCY OR STATION IS REACHED. IT CAN BE SAVED
INTO ONE OF THE "MEMORY" POSITIONS. (SEE "RADIO MEMORY" SECTION).
TUNE UP OR TUNE DOWN
KEYS
AUTOMATIC FREQUENCY ADJUSTMENT (SEEK MODE)
- PRESS AND HOLD (FOR 2 SECONDS) THE
KEYS TO "SEEK" (AUTOMATICALLY ADJUST) THE RADIO FREQUENCY "UP" OR
"DOWN" TO THE NEXT AVAILABLE RADIO STATION.
- THE RADIO DIGITAL DISPLAY WILL INDICATE THE EXACT FREQUENCY OF THE
NEXT STATION THAT IS FOUND.
- WHEN A DESIRED STATION IS REACHED. IT CAN BE SAVED INTO ONE OF THE
"MEMORY" POSITIONS. (SEE "RADIO MEMORY" SECTION).
TUNE UP OR TUNE DOWN
FUNCTION
RADIO MEMORY (STATION PRESET MEMORY STORAGE)
- AT ANY TIME, THE CURRENTLY DISPLAYED STATION OR FREQUENCY CAN BE
STORED INTO ONE OF THE MEMORY POSITION.
- PRESS KEY ONCE.
- PRESS THE OR KEY TO SELECT THE DESIRED MEMORY POSITION
TO SAVE THE RADIO STATION.
-
- TO CLEAR THE MEMORY OF ANY POSITION, SIMPLY SAVE A NEW STATION TO
THE SAME MEMORY POSITION.
(ON REMOTE CONTROL)
- PRESS KEY ONCE TO SAVE THE SELECTED STATION INTO THE
SELECTED MEMORY POSITION.
TO RECALL A STATION IN MEMORY, PRESS & HOLD FOR 3 SECONDS,
PRESS OR KEY TO SELECT DESIRED MEMORY STATION. (THERE
ARE 30 MEMORY POSITIONS FOR FM BAND). THEN PRESS THE FUNCTION KEY
AGAIN TO HAVE THE KEYS CONTROL THE VOLUME OF THE UNIT ONCE AGAIN.
MEM/ PROG.
ELECTRONIC VOLUME CONTROL
- THIS UNIT USES AN ELECTRONIC VOLUME CONTROL .
- TO INCREASE OR DECREASE THE LOUDNESS OF UNIT, PRESS
THE VOLUME UP (VOL +) OR VOLUME DOWN (VOL -) KEYS RESPECTIVELY.
- RELEASE THE KEY WHEN VOLUME LEVEL IS AT THE DESIRED LOUDNESS.
- SOMETIMES, ESPECIALLY DURING LISTENING TO THE RADIO, YOU MAY NOTICE
A "CLICK-CLICK-CLICK" (REPEATING) SOUND WHEN YOU ARE INCREASING OR
DECREASING THE VOLUME. THIS IS A NORMAL CONDITION & THE SOUND WILL
DISAPPEAR WHEN YOU RELEASE THE VOLUME KEY (WHEN YOU REACH THE
DESIRED VOLUME LEVEL).
(PUSH BUTTON TYPE)
- TURN ON BOTH THE UNIT AND THE iPod/ iPhone .
- PRESS THE KEY REPEATEDLY UNTIL THE DISPLAY SHOWS iPod .
- THE UNIT WILL AUTOMATICALLY START PLAYBACK OF THE SONGS.
- THE iPod DISPLAY WILL INDICATE THE INFORMATION OF THE CURRENT
SONG (TRACK).
/ iPhone
/iPad
""
/iPad
- AT ANYTIME DURING PLAYBACK, PRESS THE PLAY/ PAUSE KEY
TO PAUSE OPERATION OF THE UNIT. PRESS PLAY/ PAUSE KEY TO RESUME
OPERATION AT THE SAME TRACK & POSITION.
- AT ANYTIME DURING PLAYBACK, PRESS & HOLD THE PLAY/ PAUSE KEY
TO STOP PLAYBACK OF UNIT.
- AT ANYTIME DURING PLAYBACK, PRESS AND RELEASE THE
KEYS TO SKIP FORWARD OR BACKWARDS BY ONE TRACK,
AS DESIRED.
TUNE UP OR
TUNE DOWN
- ANY ANYTIME DURING PLAYBACK, PRESS AND HOLD THE
KEYS ON UNIT TO FAST-FORWARD (CUE) OR FAST-REVERSE
(REVIEW) THE SPECIFIC TRACK, WHICH IS CURRENTLY PLAYING.
TUNE UP OR
TUNE DOWN
/iPad
/iPad
/iPad
/iPad
/iPad
PLAY/ PAUSE
/iPad
- YOU CAN OPERATE THE iPod USING EITHER THE SET, REMOTE CONTROL
OR DIRECTLY WITH THE iPod ITSELF.
- WHEN THE iPod HAS BEEN CONNECTED WITH THE UNIT, IT WILL START
CHARGING THE BATTERY OF THE iPod .
/ iPhone
/ iPhone
/ iPhone
/ iPhone
- NEVER REMOVE (OR UNPLUG) THE iPod/ iPhone FROM THE SET DURING
PLAYBACK, ALWAYS PRESS & HOLD FOR 2 SECONDS THE KEY
FIRST AND THEN PRESS THE KEY TO SWITCH TO ANOTHER SOURCE
(EG. "RADIO" OR "AUX") BEFORE REMOVING OR UNPLUGGING THE iPod/ iPhone ,
TO PREVENT DAMAGE TO YOUR SONG FILES OR MEMORY DEVICES.
REPEAT PLAYBACK FUNCTION (iPod/ iPhone/ iPad)
- AT ANYTIME DURING iPod/ iPhone/ iPad PLAYBACK:
- PRESS THE KEY ON REMOTE CONTROL OR
PRESS THE FOLLOWING SYMBOLS ON THE iPod/ iPhone SCREEN:
= TO REPEAT THE CURRENT TRACK
/iPad
= TO REPEAT ALL TRACKS
“Made for iPod,” “Made for iPhone,” and “ mean that an electronic accessory has
been designed to connect specifically to iPod, iPhone, or iPad, respectively, and has been certified
by the developer to meet Apple performance standards. Apple is not responsible for the operation
of this device or its compliance with safety and regulatory standards.
Made for iPad,”
Please note that the use
of this accessory with iPod, iPhone, or iPad may affect wireless performance.
E-8
FUNCTION
FUNCTION
REPEAT
OPERATION WITH THE iPod/ iPhone/ iPad
THIS UNIT IS DESIGNED TO ALLOW YOU TO CONNECT AN WITHOUT THE
NEED FOR DOCK CONNECTORS. THE DESIGN OF THE UNIT HAS BEEN STRUCTURED
TO PROVIDE SUPPORT TO TE CONNECTOR UNDER NORMAL USAGE WITHOUT EXCESSIVE
PRESSURE ON THE WHEN CONTROLLING PLAYBACK USING
THE SCREEN.
iPod/ iPhone/ iPad
iPod/ iPhone
iPod/ iPhone
/iPad
/iPad
FUNCTION
MEM + MEM -
MEM/ PROG.
MEM + MEM -

E-9
INSERTION & REMOVAL OF DISCS
- WHEN OPENING THE CD-DOOR, ALWAYS ENSURE THE DISC IS NOT IN MOTION
(NOT SPINNING) WHEN YOU OPEN THE CD-DOOR. ALWAYS PRESS
KEY TO STOP THE DISC SPINNING FIRST.
STOP
- PLACE A CD INTO THE COMPARTMENT WITH THE LABEL-SIDE (PRINTED SIDE
OF DISC) FACING UPWARDS. PRESS DOWN IN THE CENTER PART OF DISC UNTIL
THE DISC "LOCKS" ONTO THE CENTER SPINDLE.
- WHEN THE CD HAS BEEN PLACED ONTO THE CENTER SPINDLE, GENTLY
LOWER THE CD-DOOR DOWNWARDS UNTIL IT LOCKS SHUT.
- THE CD IS NOW READY TO BE PLAYED.
- TO REMOVE A DISC, FOLLOW THE SAME PROCEDURE AS DESCRIBED ABOVE,
EXCEPT TO REMOVE THE CD INSTEAD OF INSERTING IT INTO THE
COMPARTMENT, BY PLACING ONE FINGER AT THE MIDDLE OF DISC
(CENTER SPINDLE) & THE OTHER AT THE EDGE OF THE DISC & GENTLY
PULLING UPWARDS.
- IMPORTANT : ALWAYS HOLD A CD BY ITS EDGES. AVOID GETTING ANY
FINGER PRINTS, SMUDGES OR DIRT ONTO THE SURFACE OF A DISC. IN CASE
THIS HAPPENS, USE A SPECIAL CD-CLEANING CLOTH OR CLEANING KIT TO
REMOVE THE DIRT OR SMUDGES.
NORMAL CD OPERATION
- TURN THE UNIT ON BY PRESS THE STANDBY/ ON KEY.
- INSERT A CD AS DESCRIBED.
- PRESS THE KEY UNTIL DISPLAY SHOW "CD".
- THE CD WILL SPIN MOMENTARILY AND THE DISPLAY SHOW THE TOTAL NUMBER
OF TRACKS (SONG) OF THE DISC.
- PRESS THE KEY, THE FIRST TRACK (SONG) WILL START
PLAYING. THE DISPLAY WILL INDICATE THE CURRENT TRACK NO. ("01" IF IT IS
THE FIRST TRACK).
PLAY/ PAUSE
FUNCTION
VIDEO OUT (iPod/ iPhone/ iPad)
- YOU CAN CONNECT THE iPod/ iPhone/ iPad VIDEO OUT SOCKETS TO THE VIDEO INPUT
TERMINAL OF YOUR TV TO WATCH VIDEO PROGRAMS ON YOUR iPod/ iPhone/ iPad
ON YOUR TV SCREEN.
- THIS UNIT IS ABLE TO SHUFFLE ALL SONGS ON AN iPod/ iPhone AND PLAY THEM
BACK IN "RANDOM" ORDER.
- TO ACTIVATE THIS FUNCTION, SELECT THE SHUFFLE ICON " "
(ON THE iPod/ iPhone ).
- THE " " SYMBOL WILL BE DISPLAYED ON THE iPod SCREEN &
THE SONGS WILL BE PLAYED IN RANDOM ORDER.
/iPad
/iPad
/iPad
SHUFFLE / iPhone
SHUFFLE (RANDOM) PLAYBACK FUNCTION (iPod/ iPhone/ iPad)
E-10
- AT ANYTIME DURING PLAYBACK, PRESS THE KEY TO
PAUSE OPERATION OF THE UNIT. PRESS THE
TO RESUME OPERATION AT THE SAME TRACK & POSITION.
PLAY/ PAUSE
PLAY/ PAUSE KEY AGAIN
- AT ANYTIME DURING PLAYBACK, "PRESS AND HOLD"
TO FAST-REVERSE (REVIEW) OR FAST-FORWARD (CUE)
THE SPECIFIC TRACK, WHICH IS CURRENTLY PLAYING.
THE TUNE DOWN
OR TUNE UP KEYS
- AFTER EACH TRACK NUMBER, REMEMBER TO PRESS THE KEY.
MEM
PLAY/ PAUSE
STOP
- AFTER A MAXIMUM OF SONGS (OR LESS) HAVE BEEN SELECTED AS DESCRIBED
ABOVE.
- ALSO, THE SYMBOL WILL REMAIN "ON" TO INDICATE THAT YOU HAVE SAVED
A PROGRAM-MEMORY (SEQUENCE).
- PRESSING WILL NOW PLAY BACK THE "SAVED SEQUENCE" IN
THE PROGRAM MEMORY.
- TO CLEAR (CANCEL) THE ENTIRE PROGRAM WHICH IS STORED IN THE MEMORY,
SIMPLY PRESS TWICE, OR SWITCH "OFF" THE SET.
""
PROGRAM FUNCTION
- THE CD PLAYER CAN BE PROGRAMMED TO PLAY ANY SEQUENCE OF UP TO
20 TRACKS FOR AUDIO-CD, AS DESIRED.
- ALWAYS PRESS THE KEY BEFORE STARTING THE PROGRAMMING.
STOP
- PRESS THE KEY ,THE DISPLAY WILL SHOW "01" AND THE "MEM”
SYMBOL WILL FLASH, TO INDICATE THAT THE SET IS NOW IN
"MEMORY PROGRAMMING MODE”, AT THE FIRST MEMORY POSITION.
- REPEAT THE PREVIOUS 2 STEPS, EACH TIME SELECTING ANY TRACK NUMBER
OF YOUR CHOICE TO BE STORED IN THE SUCCESSIVE MEMORY (PROGRAM)
POSITIONS.
- WHEN YOU PRESS THE DISPLAY WILL ADVANCE TO
THE NEXT MEMORY POSITION (eg. "02").
THE KEY
- PRESS THE TUNE UP OR TUNE DOWN KEYS TO SELECT THE TRACK
(SONG) NUMBER YOU WISH TO BE STORED IN THE FIRST MEMORY (PROGRAM)
POSITION, AND PRESS THE KEY TO
CONFIRM YOUR SELECTION.
(ON REMOTE CONTROL)
MEM/ PROG.
MEM/ PROG.
MEM/ PROG.
MEM/ PROG.
- AT ANYTIME DURING PLAYBACK, PRESS THE STOP KEY TO STOP
OPERATION OF THE SET. THIS WILL RESET THE CD PLAYER TO THE FIRST
TRACK (IF YOU PRESS PLAY AFTER STOP, THE FIRST TRACK WILL ALWAYS
START PLAYING).
- AT ANYTIME DURING PLAYBACK, "PRESS AND RELEASE" THE TUNE DOWN
OR KEYS TO SKIP BACKWARDS OR FORWARDS BY ONE TRACK,
AS DESIRED.
TUNE UP
MUSIC EQUALIZER
- ANYTIME DURING PLAYBACK, PRESS THE KEY (ON REMOTE CONTROL)
REPEATEDLY TO CHOOSE THE DESIRED SOUND EFFECT ACCORDING TO THE
MUSIC YOU ARE LISTENING TO :
EQ
ROCK JAZZ
POP
CLASSIC
OFF

E-11
PLAY MODE FUNCTION
- AT ANYTIME DURING PLAYBACK:
- PRESS KEY REPEATEDLY TO SELECT THE FOLLOWING
OPTIONS:
1. REPEAT: TO REPEAT THE CURRENT TRACK (DISPLAY SHOWS " ")
2. REPEAT ALL: TO REPEAT ALL TRACK (DISPLAY SHOWS " ALL ")
USING THE AUDIO LINE IN CONNECTION (AUX-INPUT)
- YOU CAN CONNECT THE AUDIO OUTPUT OF AN EXTERNAL DEVICE SUCH AS A MP3
PLAYER OR A TV TO THIS UNIT, TO LISTEN TO THE SOUND OF THAT DEVICE
THROUGH THE HIGH QUALITY AMPLIFIER OF THIS MUSIC SYSTEM.
- TO CONNECT THE EXTERNAL DEVICE PLEASE USE A STANDARD STEREO
HEADPHONE (3.5MM TO 3.5MM PLUGS) CABLE TO CONNECT THE
"HEADPHONE-OUT OR AUDIO LINE-OUT" OF THE DEVICE TO THE AUX-INPUT SOCKET
OF THIS UNIT.
- PRESS THE KEY TO "AUX".
- SWITCH ON THE UNIT AND THE EXTERNAL DEVICE (eg. MP3-PLAYER OR TV).
- START PLAYBACK OF THE EXTERNAL DEVICE AND ADJUST THE VOLUME CONTROL
OF THE MAIN UNIT TO THE DESIRED LEVEL.
- REMEMBER TO SWITCH OFF THE UNIT WHEN YOU ARE FINISHED USING THE
EXTERNAL DEVICE.
SPECIFICATIONS
FUNCTION
E-12
WHEN ELECTROSTATIC DISCHARGE (ESD) OCCURS AT THE FRONT SURFACE
(WHETHER METAL OR PLASTIC) OR NEAR ANY PART OR ANY BUTTON OF THIS
UNIT, OR AT THE USB PORT AND/ OR SD-CARD SLOTS (IF THEY EXIST ON THIS
PRODUCT), THERE MAY BE A POSSIBILITY THAT THE PRODUCT MAY STOP
OPERATION AND/ OR SHUT DOWN IMMEDIATELY. THIS IS A NORMAL CONDITION
AND INTENDED TO PROTECT THE UNIT AND INTERNAL COMPONENTS AGAINST
DAMAGE.
IN SUCH A CASE, PLEASE RESET THE UNIT (BY DISCONNECTING AND
RECONNECTING AC-POWER SOURCE) TO REVERT THE UNIT TO NORMAL
OPERATION.
ELECTROSTATIC DISCHARGE (ESD) PRECAUTION
BATTERY SHOULD NOT BE EXPOSED TO EXCESSIVE HEAT SUCH AS SUNSHINE,
FIRE OR THE LIKE.
THE APPARATUS SHOULD NOT BE EXPOSED TO DRIPPING OR SPLASHING AND
NO OBJECTS FILLED WITH LIQUIDS SHOULD BE PLACED ON THE APPARATUS.
THE MARKING AND RATING LABEL IS LOCATED AT REAR ENCLOSURE OF
THE APPARATUS.
THE MAINS PLUG IS USED AS THE DISCONNECT DEVICE AND IT SHALL
REMAIN READILY OPERABLE. TO BE COMPLETELY DISCONNECTED THE
POWER INPUT, THE MAINS PLUG OF THE APPARATUS SHALL BE
DISCONNECTED FROM THE MAINS COMPLETELY. THE MAINS PLUG
SHOULD NOT BE OBSTRUCTED OR SHOULD BE EASILY ACCESSED
DURING INTENDED USE.
UNDER THE INFLUENCE OF ELECTROSTATIC PHENOMENON,
THE PRODUCT MAY MALFUNCTION AND USER TO POWER RESET.
EXCESSIVE SOUND PRESSURE FROM EARPHONES AND HEADPHONES CAN
CAUSE HEARING LOSS.
CAUTION
DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY
WITH THE SAME OR EQUIVALENT TYPE.
POWER SUPPLY : ............... DC 7V, 2.5A THOUGH BUILT-IN DC JACK
EXTERNAL AC-DC POWER ADAPTOR 100V-240V ~ 50/60Hz
SPEAKER : ........................... 3" x 2
FREQUENCY : ..................... FM 87.5 - 108 MHz
REPEAT

COVER E-2 E-3
E-4 E-5 E-6
E-7 E-8 E-9
E-10 E-11 E-12
FRONT VIEW BACK VIEW
MODEL Z-255-AFPADi
ENGLISH MANUAL PLAN
MATERIAL: 80G WOODFREE PAPER
PRINTING COLOR: BLACK
