Finn MBH6 User manual

MBH6 MR1108 Rev.A
MBH6 Material Blower
Operator Instructions and Parts Manual
Item A2548-001 Serial No. _____________
9281 LeSaint Drive • Fairfield, Ohio 45014
Phone [phone] • Fax [phone]
Sales: 1-800-543-7166
Activate
Activate
Your Warranty
Your Warranty
By Registering
By Registering
TODAY!!!
TODAY!!!

FOR OFFICE USE ONLY
DATE UPDATE DESCRIPTION CODE
08/30/19 Initial release MR0830
11/08/19 Revision A: Part number corrections and hose reel update MR1108

What should you do if you need repairs or parts under Warranty?
How to get parts and or repairs done under warranty:
Notify YOUR DEALER immediately when you discover a faulty material, workmanship, or
faulty component. Do not wait weeks or months to get it reported. Be sure to tell the dealer
that this is a failure that occurred under warranty.
NOTE: Warranty work must be done by a Finn Authorized Dealer in order to be covered
by the Finn Warranty Program, unless otherwise approved by the Finn Warranty
Administrator.
Instructions to Dealer on processing warranty work:
Initiating a claim
1. Be sure to have the model, serial number and number of hours on unit.
2. A description of the problem as understood at the time.
3. Call Finn’s Warranty Administrator to secure warranty claim authorization number.
4. Confirm with Warranty Administrator that the unit is eligible for warranty coverage.
5. Any parts needed for the repair work should be placed with the Warranty Administrator
instead of the parts department. These will be shipped to you at no charge pending the
outcome of the investigation.
6. Labor hours must coincide with the published “Labor Schedule” or estimate approved
by the Finn Warranty Administrator.
7. Once work is done, a Finn Warranty Claim Form must be filled out and emailed along
with any related receipts or invoices to the Warranty Administrator. We ask that this is
done ASAP after work is completed.
Faulty or failed parts:
IF Finn wants you to return failed parts, you will receive a return shipping label in the
package with new parts. On that Label will be marked a return authorization number. (Which
is the same number as you claim number.)
Please also mark the outside of the package that you are shipping back (using a marker)
with the claim/return number. THESE PARTS MUST BE RETURNED WITHIN 10 DAYS!
Failure to do so can void warranty coverage.
NOTE: Further information and related forms can be found on the Finn Web site in the
Dealer Portal warranty section.
ACTIVATE YOUR FINN EQUIPMENT WARRANTY
It is the responsibility of the Finn Dealer to register your Finn Equipment shortly after the
equipment start-up and operation overview at which time you will be asked to sign offon
the WARRANTY VALIDATION FORM.
Be sure to confirm with your sales representative that this has been done.
This registration process activates the Finn Limited Warranty.

Safety First . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Safety Summary Section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 7
Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
The FINN Material Blower and Its Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
How the Material Blower Works . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Mounting the Material Blower. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Truck Mounting/ Loading Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 15
Selecting a Mulching Material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Pre-Start Equipment Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Control Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 - 21
Blower Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 - 24
Control Panel Guide and System Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 - 60
Starting Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Menu Navigation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Start-Up Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 - 26
Running Unit Without Radio Remote . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 - 29
Running Unit With Radio Remote . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 - 31
Options Screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 - 60
Dust Suppression . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 - 36
Floor Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
USB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Hose Reel Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 - 45
Radio Remote Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46 - 49
Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
About . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Regeneration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52 - 60
Crew Members and their Duties. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
The Material-Feed System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61 - 65
Material-Handling Group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Hydraulic System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Description of Valve Systems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62 - 63
A. Airlock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
B. Floor (Drag Conveyor)/ Feed Roll . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
C. Hose Reel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Hydraulic Control System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Radio Remote Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Mulching with the Material Blower . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Material Blower Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66 - 67
A. Consistent Hose Shock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
B. Excessive Auto-Reversing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
C. Regularly Tripping The Blower Relief . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
D. Material Metering Gate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Clearing a Blockage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
INDEX
Continued to next page.

Troubleshooting Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70 - 71
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72 - 75
Daily - After Every 4 to 8 Hours of Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Weekly - After Every 50 Hours of Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72 - 73
After First 100 Hours of Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Every 3 Months or 3,000 Miles (4,800 km) - Trailer Units . . . . . . . . . . . . . . . . . . . . . . . 74
Every 12 Months or 12,000 Miles (19,300 km) - Trailer Units . . . . . . . . . . . . . . . . . . . . 74
Floor Chain Adjustment - Every 500 Hours . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Winter Shutdown and Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Lubrication Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76 - 77
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78 - 79
Parts Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81 - 127
MBH6 Truckmount Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82 - 83
Engine. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84 - 85
Air Intake and Exhaust System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86 - 87
Engine to Blower Coupling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88 - 89
Radiator Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90 - 91
Airlock Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92 - 93
Blower and Air Piping System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94 - 95
Feed Roll Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96 - 97
Floor Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98 - 99
Canopy Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100 - 101
Metering Door Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102 - 103
Dust Suppression System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104 - 105
Tarp Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106 - 107
Hydraulic Manifold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108 - 109
Hydraulics System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .110 - 113
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .114 - 115
Electrical Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .116 - 117
Wiring Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Control Panel Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .118 - 119
Battery Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Hose Reel Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Tool Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Discharge Hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Spring Mount Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Decals. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124 - 127
INDEX

1
SAFETY FIRST
With any piece of equipment, new or used, the most important
part of its operation is SAFETY!
FINN Corporation encourages you and your employees to
familiarize yourselves with your new equipment and stresses
safe operation.
The first five pages of this manual are a summary of the main
safety aspects associated with this unit. Be sure to read and
understand completely before operating the machine.
The symbols below are used throughout the
operation and maintenance sections of this manual
to call attention to safety procedures.
Danger indicates an imminently
hazardous situation which, if not
avoided, WILL result in death or
serious injury.
Warning indicates a potentially
hazardous situation which, if not
avoided, COULD result in death or
serious injury.
Caution indicates a potentially
hazardous situation which, if not
avoided, MAY result in minor or
moderate injury.
Notice indicates important
information, that if not followed,
MAY cause damage to equipment.
NOTE: This is helpful information.
CALIFORNIA PROPOSITION 65
The engine exhaust and some of its constituents are
known to the State of California to cause cancer, birth
defects, and other reproductive harm. Wear protective equipment.
Battery posts, terminals, and related accessories contain lead
and lead compounds, chemicals known to the State of California to
cause cancer and reproductive harm. Wash hands after handling.

2
MATERIAL BLOWER SAFETY SUMMARY SECTION
It is important that all operators of this machine are familiar with all the safety aspects
mentioned below before operating the machine. Always keep a copy of this manual with
the machine. It is the responsibility of the operator of the machine to fully understand this
safety section. Remember that YOU are the key to safety. Good safety practices protect
not only you but also the people working with and around you. Keep in mind that this safety
sheet is written for this type of machine only. Practice all other usual and customary safe
working precautions; and above all, remember that safety is up to you.
I. PRE-START EQUIPMENT CHECK
(equipment check is to be made with the
engine off)
1. If you have a chassis-mounted unit, check devices
securing unit to the truck or trailer frame.
If the unit is a trailer unit, check
hitch and hitch bolts, lights, brakes,
and all safety components. Verify
that the hitch ball or pintle hook is
the correct size for the coupler.
2. Verify that all guards are in place.
3. By carefully looking into the blower hopper and
transition, inspect for and remove any foreign
objects. Follow Occupational Safety and Health
Administration (OSHA) lockout/tagout procedure
(29 CFR 1910.147)
4. Inspect all hydraulic hoses and tubes for cracks,
bulges, or damage. If hose is cracked, bulging, or
damaged, replace immediately.
5. Inspect the material discharge hose and
connections for cracks or damage. If cracks
or damage are found, replace affected part
immediately.
II. MACHINE OPERATION
1. Always wear safety goggles when
operating and/or feeding the
machine. Other safety attire, such
as safety shoes, ear protection,
gloves, hard hats, dust masks,
etc., should be worn as required
by warning decals on machine,
operator’s manuals, or job site requirements.
Remove rings, watches, etc. Avoid wearing loose-
fitting clothing that may get caught in rotating
machinery.
2. Do not override or tamper with the safety-shutdown
switches on the airlock door or discharge. If
switches fail, use OSHA lockout/tagout procedure
(29 CFR 1910.147) until switches are repaired or
replaced.
3. Do not operate the machine without
all guards in place.
4. Never attempt to connect, or disconnect the
discharge hose while the engine is running.
5. Make sure that no one is working
in or on the machine. Make sure
the discharge area is clear of
all persons, animals, etc. Signal
visually or audibly that all is clear
before starting the engine. Keep
unauthorized personnel away from
the machine and discharge hose at all times.
6. The driver of the towing vehicle is responsible for
the safety of the operator(s) and feeder(s) of the
machine. Make sure the driver is aware of and
avoids all possible hazards, such as tree limbs, low
power lines, etc.
7. Do not allow anyone to ride on the trailer or any
other part of the unit for any reason.

3
15. When leaving the blower unattended for any
reason, be sure to:
A. Shut off the material feed system using the
FLOOR controls on the control panel or
MATERIAL controls on the remote.
B. Shut off vehicle engine and blower engine.
C. Place transmission of the vehicle in
“NEUTRAL” or “PARK”.
D. Set parking brake firmly.
E. Remove keys from blower unit.
F. Lock vehicle cab and take all keys with you.
G. If parked on a steep grade, block the wheels.
These actions are recommended to avoid
unauthorized use, runaway, vandalism, theft, and
unexpected operation when the equipment is
unattended.
16. Do not read, eat or otherwise lose or lessen your
attention in any manner while operating the blower.
Operating this equipment is a full-time job.
17. Be careful in getting on and off
the blower, especially in wet, icy,
snowy, or muddy conditions. Clean
mud, snow, or ice from steps,
fenders, and footwear.
18. All personnel operating in/or around
the machine must be aware that
the blower can be controlled via
remote control. For safety reasons
and to prevent accidental starting,
always keep the Emergency Stop
(e-stop) button depressed on the
remote control hand held unit when unit is not being
used.
19. Be careful when operating the tarp
near power lines. Raising the tarp
into power lines may cause severe
electrical shock. Always have the
tarp either fully open or retracted
when transporting the machine.
20. Turn slowly and travel carefully on rough surfaces
and side slopes, especially with a loaded unit.
8. Never operate machine in an
enclosed area without venting
the engine exhaust of both the
equipment and vehicle on which
the equipment is mounted. Deadly
carbon monoxide fumes can
accumulate.
9. Never operate this or any other machinery when
fatigued, tired, under the influence of alcohol,
illegal drugs, or medication. You must be in good
physical condition and mentally alert to operate this
machine.
10. Never modify the machine. Never remove any part
of the machine (except for service and then reinstall
before operating).
11. During application through the hose, high pressure
can be exerted at the end of the hose. Hose-holding
personnel must establish good footing. The operator
should only increase the engine RPM which
increases the volume of air in the hose only after
hose-holding personnel are firmly positioned and
have firm control of the hose. Additional personnel
to direct hose may be necessary if working on
slopes. The proper technique for grasping the hose
used by hose-holding personnel is to route and
firmly grasp the hose over the shoulder or under
both arms. Never route/hold the hose so it goes
between the legs. If the hose-holding personnel
finds that it is uncomfortable for him to handle the
hose by himself, additional hose holders should be
positioned at the end of the hose.
12. The blower discharges material at
pressures and velocities that can
cause severe bodily injury. Do not
aim discharge at people, animals,
etc. Only aim the discharge at the
intended discharge area. Unless
properly protected, do not place
hand into the discharge stream.
13. Do not open any doors or access
panels while machine is in
operation. Severe injury may result
from rotating parts.
14. Do not attempt to pull anything
out of the blower hopper while
machine is in operation. Shut
down and lockout the engine
using the OSHA lockout/tagout
procedure (29 CFR 1910.147)
before removing any foreign objects. Signal visually
and audibly that all is clear before operating the
machine.

4
6. It is recommended that only authorized, genuine
FINN replacement parts be used on the machine.
7. Do not use ether cold start fluid,
if engine is equipped with glow
plug-type preheater, or other intake
manifold-type preheater. It could
cause an explosion or fire and
severe injury or death.
8. Diesel fuel or hydraulic fluid under
pressure can penetrate the skin or
eyes and cause injury, blindness,
or death. To check for such leaks,
use a piece of cardboard or wood
instead of your hand. Pressure
may build up in the hydraulic system; use caution
when removing the cap.
9. Some parts and assemblies are
quite heavy. Before attempting
to unfasten any heavy part or
assembly, arrange to support it by
means of a hoist by blocking or by
use of an adequate arrangement to
prevent it from falling, tipping, swinging, or moving
in any manner. Failure to do so could result in
component damage, or physical injury to someone.
10. If repairs require use of a torch or electric welder,
be sure that all flammable and combustible
materials are removed. Fuel or oil reservoirs
must be emptied, steam-cleaned, and filled with
clean water before any cutting or welding on them
is attempted. Do NOT weld or cut on any tank
containing oil, gasoline, fumes, other flammable
material, or on any container of which the previous
contents were unknown.
11. Do not pressure wash this unit.
Do not pressure wash around any
control boxes, radio remotes or
control panels. Pressure washing
this unit can cause damage to the
electrical systems and components
and also cause the unit to not function. Pressure
washing injects water into sensitive electrical
components. To clean the unit, use a method that
controls the amount of water that is applied to the
surface of the unit.
III. MAINTENANCE
1. Before servicing the machine, turn
off engine and allow all moving
parts to stop. To prevent accidental
starting, disconnect battery
cables. Tag the engine operating
area to show that the machine
is being serviced. Use lockout/tagout procedure
(OSHA 29 CFR 1910.147).
2. Take extreme care when adjusting
or replacing knives. Knife edges
are very sharp and can cause
severe bodily injury.
3. Radiator maintenance: Liquid
cooling systems build up pressure
as the engine gets hot. Before
removing radiator cap, stop the
engine and let the system cool.
Remove radiator cap only after the
coolant is cool.
4. Battery maintenance: Lead-acid
batteries contain sulfuric acid,
which will damage eyes or skin
on contact. Always wear a face
shield to avoid getting acid in the
eyes. If acid contacts the eyes,
flush immediately with clean water and get medical
attention. Wear rubber gloves and protective
clothing to keep acid off skin. Lead-acid batteries
produce flammable and explosive gasses. Keep
arcs, sparks, flames, and lighted tobacco away.
5. Filling of fuel: Never fill the tank
with the engine running, while
smoking, or when near an open
flame. Never smoke while handling
fuel or working on the fuel system.
The fumes in an empty fuel
container are explosive. Never cut or weld on or
near fuel lines, tanks or containers. Move at least
10 ft. (3 m) away from fueling point before starting
engine. Wipe off any spilled fuel and let dry before
starting engine.
IMPORTANT: Be careful not to allow fuel, lubricant,
hydraulic fluid, or cooling fluids to contaminate the
surrounding environment. Collect all fluids and
dispose of them properly.

5
COMMON SAFETY SYMBOLS
Hazard/
Attention
Electrical
Shock Hazard
Hearing
Hazard
Arc Flash
Hazard or
Explosion
Hazard
Electrocution
Hazard Fire Hazard
Body
Entanglement
Hazard
Electrostatic
Discharge
Hazard
Fumes/ Dust
Hazard
Burn Hazard
Electrostatic
Sensitive Area
Hazard
Pinch Point/
Entanglement
Hazard
Carbon
Dioxide
Hazard
Explosive or
High Pressure
Hazard
Grounding
Required
Hazard
Corrosive
Hazard
Explosive
Material
Hazard
Crush Hazard
Cut/ Crush
Hazard
Vision Damage
Hazard
Crush/ Pinch-
point Hazard
Cut/ Sever
Hazard
Vision and
Hearing
Damage
Hazard
Crush/
Entrapment
Hazard
Sever/ Reach
Hazard
Vision,
Hearing and
Respiratory
Damage
Hazard
High Voltage
Hazard

6
COMMON SAFETY SYMBOLS
Heavy Object
Hazard
Skin Puncture
Hazard
Vision
Protection
Required
Hot Surface
Hazard
Splash/ Spray
Hazard
Hearing
Protection
Required
Loose Clothing
Entanglement
Hazard
Stumble
Hazard
Vision, Hearing
and Head
Protection
Required
Pinch Point/
Moving Belt
Hazard
Trip Hazard
Breathing,
Vision, Hearing
and Head
Protection
Required
Poison
Hazard
Watch Head/
Overhead
Hazard
Foot
Protection
Required
Radio
Frequency
Hazard
Fall/ Loss
of Balance
Hazard
Lockout/
Tagout
Procedure
Required
Remote Start
Hazard
Mandatory
Operator
Action
Required
Gloves
Required
Sever by
Rotating Parts
Hazard
Read Manual Trailer Safety
Rotating Shaft
Hazard
Breathing
Protection
Required
Lift Point

7
Do Not Ride
on Moving
Vehicle
Do Not
Remove
Guards
Do Not
Obstruct
or Block
Do Not Spray
Power Lines Do Not Touch Do Not Pressure Wash
COMMON SAFETY SYMBOLS
SAFETY DECAL EXAMPLES

8
INTRODUCTION
The FINN Corporation would like to thank you for your latest FINN purchase. In our efforts to
maintain a quality and growing relationship with every customer, we would like to encourage you
to contact us for help with service, genuine replacement parts, or for any other information you
may require.
THE FINN MATERIAL BLOWER AND ITS FUNCTION
The FINN Material Blower is an apparatus for conveying and discharging bulk materials, such as
bark mulch, at a fast and uniform rate utilizing a minimum amount of manpower. The product to
be used is generally composted and processed, then used as a soil amendment, a ground cover
for erosion and weed control, or for decorative purposes on landscaping (bark mulch).
This manual is intended to provide step-by-step instructions on the operation, care, and
maintenance of the Material Blower. In addition, it contains illustrations and a complete list of
parts and components for easy identification.
HOW THE MATERIAL BLOWER WORKS
The bulk material is loaded into the hopper by a loader or by a feed elevator. Located at the
bottom of the hopper is a drag chain conveyor that conveys the bulk material to an opening, in
the rear of the hopper, containing a feed roll. The feed roll and drag chain conveyor feed the bulk
material into an airlock. The airlock is specifically designed and built to handle tough, fibrous
material. The function of the airlock is to take the bulk material into open pockets exposed to the
outside air and to convey it to an area where the pocket is closed off. At that point a high volume/
low pressure air stream, created by the blower, is channeled through the pocket, carrying the
material out of the airlock and through the hose for discharge.
For best results and to ensure safe operation and long life of the
equipment, please read and follow all instructions carefully.
OPERATION AND MAINTENANCE MANUAL
FOR FINN MATERIAL BLOWER

9
MOUNTING THE MATERIAL BLOWER
A complete mounting kit is provided with the unit.
Before selecting a chassis for the Material Blower, carefully review this manual and consider the
following:
A. Never exceed either the Gross Axle Weight Rating (GAWR) or the Gross Vehicle Weight
Rating (GVWR) for the chassis.
B. Install the Material Blower only onto a vehicle with cab-to-axle dimension sufficient to fully
support the Material Blower frame length.
C. Position the Material Blower such that the required clearance zones are maintained.
Once the proper carrier has been selected, the blower must be securely mounted onto it.
The FINN Material Blower should be mounted by a qualified truck body
installer. Failure to comply could result in personal injury. Failure to
comply could also result in product or property damage.
Install/Mount the FINN Material Blower in compliance with the vehicle
ratings, machine mounting requirements and applicable laws. Failure
to do so could result in personal or property damage.
The mounting of the blower to the truck must allow for tire clearance
as well as frame twist.
Follow mounting instructions given in the Truck Mounting / Loading Information section. Consult
truck manufacturer for proper truck sizing and mounting recommendations. If mounting conditions
require deviation from these instructions, consult the factory.

10
TRUCK MOUNTING/LOADING INFORMATION
MINIMUM CLEARANCE
FROM BACK OF CAB
MINIMUM CLEARANCE
FROM BACK OF CAB
149
98
C.L. CHASSIS
126
11 MIN.
27
47
66
108
TRUCK RAIL MOUNT
CLEARANCE ZONES
15.5
22.5
31.5
CG Y
CG X
< FRONT REAR >
CG Z

11
TRUCK MOUNTING/LOADING INFORMATION (CONTINUED)
DESCRIPTION CG X CG Y CG Z WEIGHT
MBH6 (No Material) 82.5 in. 9 in. 18.75 in. 7,169 lbs.
MBH6 (Full, 6 yard)*74 in. 3 in. 26 in. 12,275 lbs.
Maximum Capacity Rating - - - 5,106 lbs.
*Assumes six (6) yards of mulch weighing 851 lbs./cu. yd.
NOTE: All dimensions are in inches; drawings are not to scale.
MUD FLAPS

12

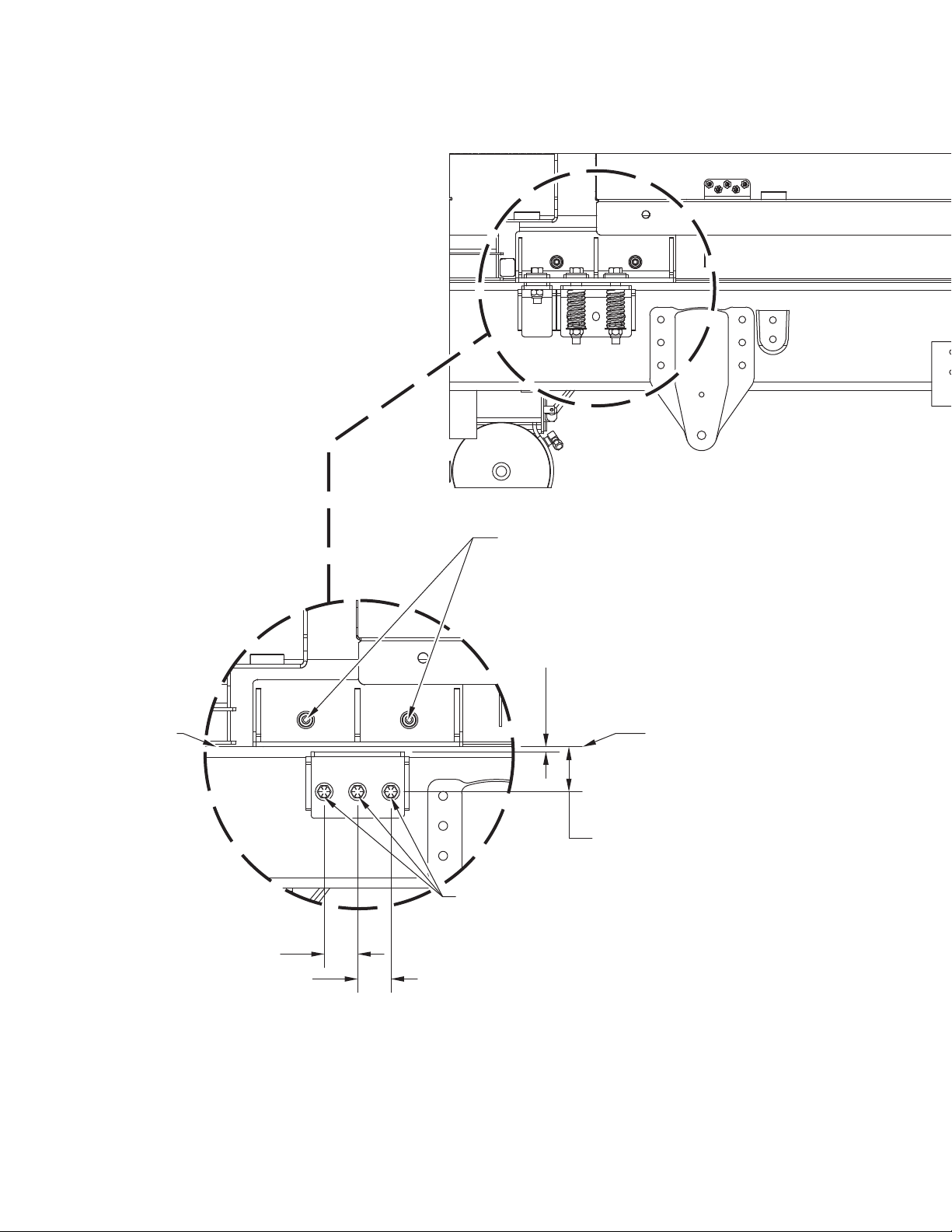

TRUCK MOUNTING/LOADING INFORMATION (CONTINUED)
HOPPER
BASE
2.50 in. (63.5mm)
3.37 in. (85.6mm)
0.37 in. (9.4mm) GAP
ITEMS PRE-INSTALLED
AT FACTORY
MATCH THROUGH HOLES:
DRILL 11/16 in. (17.5mm) THROUGH
BOLT (3X, BOTH SIDES)
ZINC PLATED HARDWARE
M16 x 2 CLASS 10.9 -or-
5/8 - 11 (UNC) GRD 8
(OR EQUAL)
TORQUE TO 212 ft./lb. (287 N-m)
---------------
---------------
DO NOT WELD TO CHASSIS
---------------
TOP OF
FRAME RAIL
2.50 in. (63.5mm)
< FRONT
SPRING MOUNT

13
TRUCK MOUNTING/LOADING INFORMATION (CONTINUED)
2.50 in. (63.5mm)
1.75 in. (44.45mm)
ITEMS PRE-INSTALLED
AT FACTORY
HOPPER BODY
TRUCK CHASSIS
FRAME RAILS
---------------
ZINC PLATED HARDWARE
M16 x 2 CLASS 10.9 -or-
5/8 - 11 (UNC) GRD 8
(OR EQUAL)
---------------
TORQUE TO 212 ft./lb. (287 N-m)
DO NOT WELD TO CHASSIS
---------------
TOP OF
FRAME RAIL
3.75 in. (95.3mm)
MATCH THROUGH HOLES:
DRILL 11/16 in. (17.5mm) THROUGH
BOLT (4X, BOTH SIDES)
REAR >
FIXED MOUNT

14
OPTIONAL LOCATION FOR
SIDE SHIFT MOUNTS
FRONT SPRING MOUNTS
OPTIONAL LOCATION FOR
SIDE SHIFT MOUNTS
OPTIONAL LOCATION FOR
SIDE SHIFT MOUNTS
TRUCK MOUNTING/LOADING INFORMATION (CONTINUED)

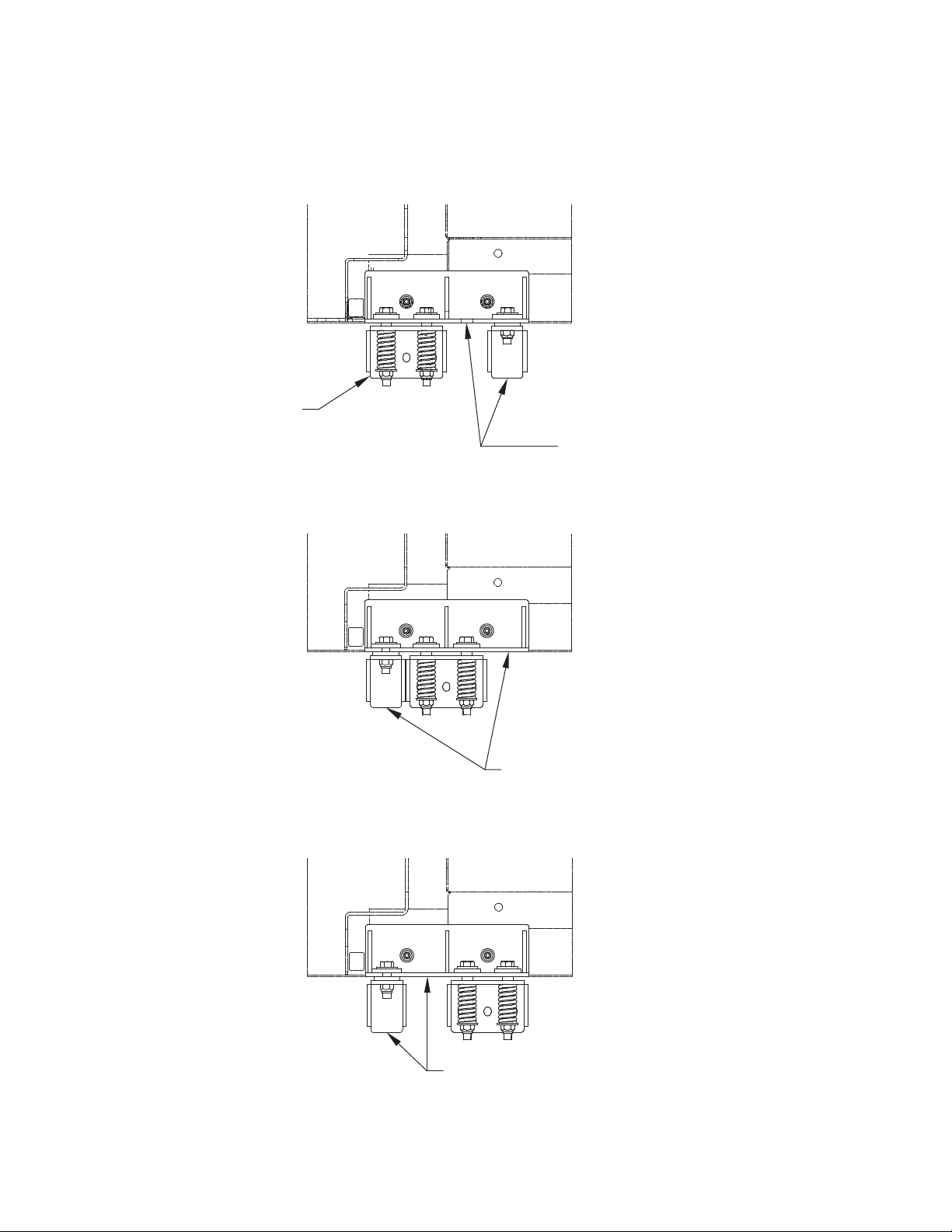

The front spring mounts must be configured as shown below in located in 1 of the 3 options
shown below. The single side shift mount must be located in one of the available two open slots.
