Fired Up Corporation Adam User manual

FUI0013_010917
USE & CARE MANUAL
This product is only suitable for well insulated
spaces or occasional use.
INSTRUCTION MANUAL
*This manual is used for a variety of products. Please make sure you follow the appropriate
product guidelines. Illustrations are for reference only.
Electric Stoves*
www.firedupcorporation.com/manual

02
SECTION 01
Read ALL the instructions before use.
This manual is used for many different products. Please
make sure you follow the appropriate product
guidelines. Please refer to the front page for reference.
These instructions are for your safety. Please read
through them thoroughly before use and retain for
future reference. Failure to follow them could cause
injury and/or property damage.
CONTENTS
SECTION 01
Cautions 03-06
Introduction 07
Handling 07
Unpacking 07
Care 07
SECTION 02
Attaching the feet 08
Operation 08-09
SECTION 03
Plug replacement 09
Technical parameters 10
Specification 11
Conformity & Environment 11
Guarantee & Contacts 12

03
SECTION 01
CAUTIONS
DO’S
• Read ALL the instructions before using this product.
• Only use this product for its intended use as
described in this manual.
• Always use the product in accordance with this
guide. If in doubt obtain expert advice.
• Always check your mains supply is the same as that
indicated on the product before connecting.
• Always make sure the electrical socket is accessible.
• Always disconnect the heater from the electrical supply
before carrying out cleaning or maintenance. To
disconnect the heater, switch controls to OFF then
remove plug from the outlet.
• Ensure the floor space is flat and even.

04
SECTION 01
DON’TS
• Never leave children unsupervised in a room where
the fire is ON and unguarded.
• Never obstruct or cover the fan outlet or force items
into fire openings.
• Never use the product anywhere where water is in use,
i.e. bathrooms, ktchens, shower rooms, and
swimming pool etc.
• Never use aerosols or steam cleaners on or around the
fire.
• Never route the supply cord under carpeting and
never cover the cord with throw rugs, runners, etc.
Arrange the cord away from traffic areas and where it
will not be tripped over.
• Never place the heater close to curtains or
combustible materials. Keep furniture, bedding,
papers, clothes, curtains, etc. at least 1m away from
the front of the heater and keep away from the sides
and rear.
• Never use the product to dry clothes etc.
• Never sit or stand on the product.
• Never lean or put weight on the product.
• Do not use outdoors.
• Do not sit the product on deep pile carpets or rugs.

Avoid the use of an extension cord which may
overheat and cause risk of fire. If an extension cord is
necessary, it must be rated above the maximum rated
power of the appliance. Care must be taken to
arrange the cord so that it cannot be pulled or be
tripped over.
IMPORTANT!
• This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision
or instruction concerning use of the appliance in a
safe way and understand the hazards involved.
• Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made
by children without supervision.
• If the supply cord is damaged, it must be replaced
by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
WARNING: In order to avoid overheating,
DO NOT COVER THE HEATER
• The heater must not be located immediately below a
socket outlet.
• Children of less than 3 years should be kept away
unless continuously supervised.
• Please note the LED bulb in the appliance is non
replaceable, do not attempt to replace it.
05
SECTION 01

• Children aged from 3 years and less than 8 years shall
only switch on/off the appliance provided that it has
been placed or installed in its intended normal
operating position and they have been given
supervision or instruction concerning use of the
appliance in a safe way and understand the hazards
involved. Children aged from 3 years and less than 8
years shall not plug in, regulate and clean the
appliance or perform user maintenance.
• CAUTION — Some parts of this product can become
very hot and cause burns. Particular attention has to
be given where children and vulnerable people are
present.
• This heater is hot when in use. To avoid burns, do not
touch hot surfaces such as surfaces around the grille
in front of the heater. Never let bare skin touch hot
surfaces.
• Do not use this heater in the immediate surroundings
of a bath, a shower or a swimming pool.
Note: When the heater is turned on for the first time or
when it has not been used for some time, it may
release a slight, harmless odour. This odour is a
normal occurrence caused by the initial heating
of the internal heating elements and will
disappear with use.
06
SECTION 01

INTRODUCTION
Thank you for choosing this product. It is designed to meet the most stringent quality,
performance, and safety requirements. This guide aims to improve your understand-
ing and appreciation of your new product by providing simple and informative
instructions.
HANDLING
Before continuing any further with the installation of this product please read the
following:
• When lifting always keep your back straight. Bend your legs and not your back.
• Avoid twisting at the waist. It is better to reposition your feet.
• Avoid upper body / top heavy bending. Always bend from the knees rather than
the waist.
• Do not lean forward or sideways whilst handling the product.
• Always grip with the palm of the hand. Do not use the tips of fingers for support.
• Always keep the product as close to the body as possible. This will prevent
unnecessary and undue strain on the body.
• Use gloves to provide additional grip.
• Always use assistance if required.
UNPACKING
The unit is supplied in a single package carton. Carefully unpack the product using
the following procedure:
• Carefully lift the parts out of the box
• Carefully remove the protective wrapping from the parts
• Locate the instruction manual and put aside
• Carefully remove the product from its box and put aside
07
SECTION 01
CARE
• Brushed stainless steel can be cleaned using a cloth and propriety cleaner.
• Fires with a glass screen can be cleaned using a cloth and propriety cleaner.
• Other features (non-silver) can be cleaned using a damp cloth.
• If the supply cord is damaged, it must be replaced by a suitably qualified person.
• The area around the fire should be kept free from animal hair, lint and other
extraneous material that may be drawn into the workings of the appliance
which could affect its performance.

08
SECTION 02
SWITCHES
THERMOSTAT
OPERATION
The control panel can be located
to the right of the stove.
*Styles may vary
Switches
Use the following sequence to operate. The grey represents a ‘pressed switch.’
A switch is in the ON position when the side with the markings on (e.g. I or II) is 'pressed in’.
On/Off 1kW Heat setting 2kW Heat setting
ATTACHING THE FEET
The feet are simply attached with 3 x screws per foot.

09
SECTION 03

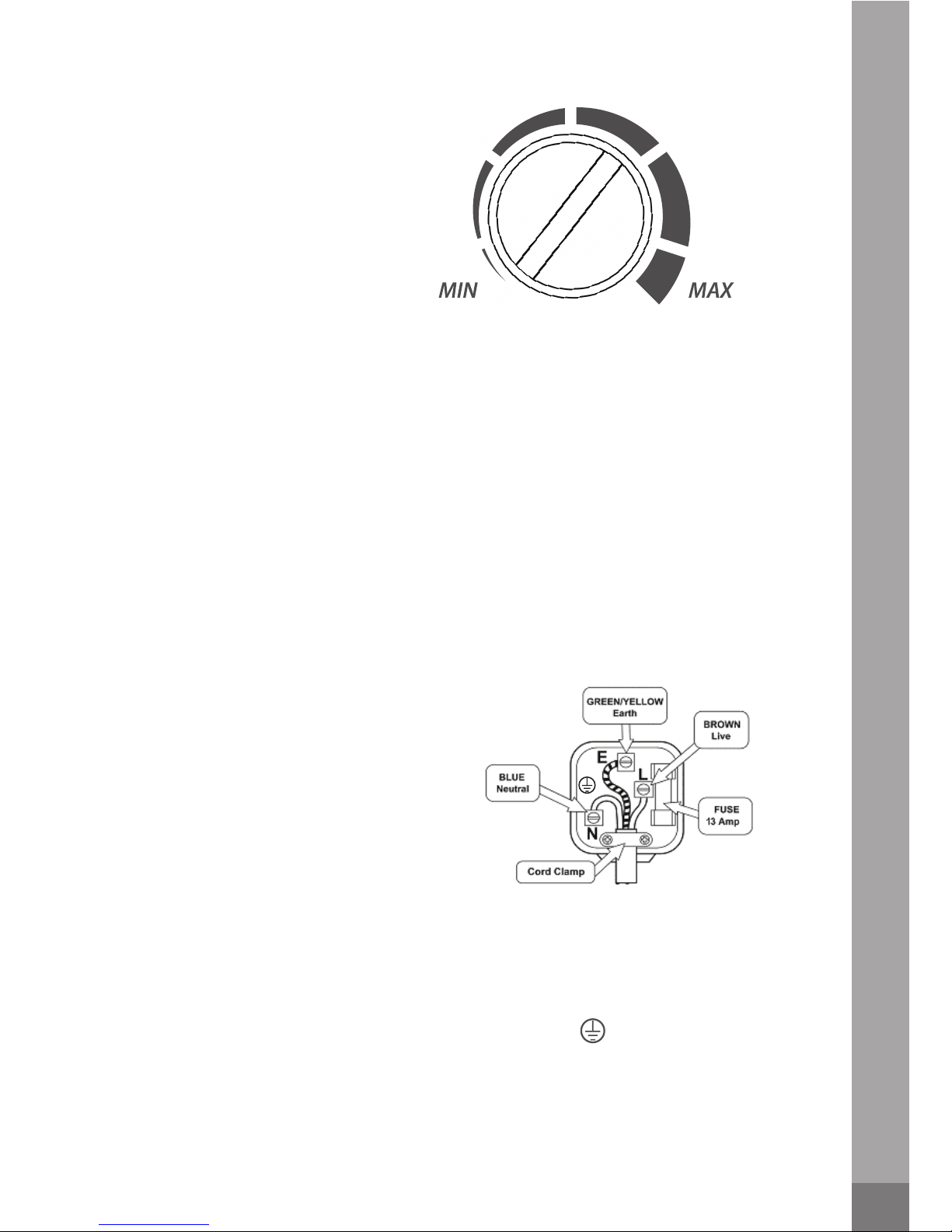

THERMOSTAT
The thermostat is designed to
maintain a comfortable room
temperature.
To set, switch the heat on and turn
the THERMOSTAT to MAX. When
the desired temperature is reached,
slowly turn the THERMOSTAT towards
LOW until the heat turns off.
Please note that the appliance can only be switched on when the thermostat
setting is higher then the room temperature.
PLUG REPLACEMENT
(for products fitted with BS plug)
This appliance is supplied with a BS1363 3 pin plug fitted with a 13 Amp fuse. Should
the fuse require replacement, it must be replaced with a fuse rated at 13 Amp and
approved to BS1362.
In the event the mains plug has to be removed/replaced for any reason, please
note:
The wires in the mains lead on this appliance are coloured in accordance with the
following code:
THIS APPLIANCE MUST BE EARTHED
As the colours may not correspond with the markings identifying the terminals in your
plug proceed as follows.
• The green and yellow earth wire must be connected to the terminal in the plug
which is marked with the letter E or with the earth symbol
• The blue wire must be connected to the terminal marked N
• The brown wire must be connected to the terminal marked L
Important - any cut off plug should be disposed of safely to prevent hazard. There is
a danger of electric shock if a cut off plug is inserted into a socket outlet.
Earth
Neutral
Live
Green and Yellow -
Blue -
Brown -

10
SECTION 03
Table 2
Information requirements for electric local space heaters
Model identifier(s):
Item Symbol Value Unit Item Unit
Heat output Type of heat input, for electric storage local space heaters
only (select one)
Nominal heat out
put
Pnom x,x kW manual heat charge control, with integrated ther
mostat
[yes/no]
Minimum heat
output (indicative)
Pmin [x,x/N.A.] kW manual heat charge control with room and/or
outdoor temperature feedback
[yes/no]
Maximum contin
uous heat output
Pmax,c x,x kW electronic heat charge control with room and/or
outdoor temperature feedback
[yes/no]
Auxiliary electri
city consumption
fan assisted heat output [yes/no]
At nominal heat
output
elmax x,xxx kW Type of heat output/room temperature control (select
one)
At minimum heat
output
elmin x,xxx kW single stage heat output and no room tempera
ture control
[yes/no]
In standby mode elSB x,xxx kW Two or more manual stages, no room tempera
ture control
[yes/no]
with mechanic thermostat room temperature
control
[yes/no]
with electronic room temperature control [yes/no]
electronic room temperature control plus day
timer
[yes/no]
electronic room temperature control plus week
timer
[yes/no]
Other control options (multiple selections possible)
room temperature control, with presence detec
tion
[yes/no]
room temperature control, with open window
detection
[yes/no]
with distance control option [yes/no]
with adaptive start control [yes/no]
with working time limitation [yes/no]
with black bulb sensor [yes/no]
Contact details Name and address of the manufacturer or its authorised representative.
21.7.2015L 193/88 Official Journal of the European Union
EN
EFS0043
1.8
0.9
1.8
N/A
N/A
0
See back page
TECHNICAL PARAMETERS
The seasonal space heating energy efficiency of all local space heaters except commercial local space heaters ηS (%): 36

11
SECTION 03
SPECIFICATION
Supply Voltage - 220-240V~50Hz
Rated Power - 1800 - 2000W
Fuse Rating - 13 Amp
Lighting - 3W LED Array (non serviceable)*
Class - 1
CONFORMITY WITH DIRECTIVES
Conforms with relevant European Directives
ENVIRONMENTAL PROTECTION
• (WEEE) Waste Electrical and Electronic Equipment
Waste electrical products should not be disposed of with household waste. Please
recycle where facilities exist. Check with your Local Authority or retailer for recycling
advice.
• This appliance complies with the RoHS directive which restricts the use of certain
hazardous substances in electrical and electronic equipment.
This directive bans the placing on the EU market of new electrical and electronic
equipment containing more than agreed levels of lead, cadmium, mercury,
exavalent chromium, polybrominated biphenyl (PBB) and polybrominated diphenyl
ether (PBDE) flame retardants.

12
SECTION 03
GUARANTEE
For your convenience, you are not required to complete a form and return it to us in
order to validate your guarantee. However, please ensure that you retain your
receipt which will act as both proof of purchase and a guarantee validation
document. We recommend that you attach your receipt to this documentation.
Your product carries a 12 month guarantee from the date that the original purchaser
receives it. If your product fails to operate to its specification due to faulty workman-
ship or materials during the guarantee period, we will either repair or replace the
product. We will use our discretion to determine whether to offer a repair or provide
a replacement. The product will not be covered by the guarantee if it has been
misused, transformed, modified or altered in any way.
If your product fails within the guarantee period please ensure that you have all
necessary documentation available including proof or purchase (receipt or invoice
with serial number, location and date of purchase) in addition to all original undam-
aged packaging and leaflets etc. It is strongly recommended that you inspect your
product carefully before it is used or installed. For full details of your product you
should refer to the instruction manual which accompanies the product. You are
strongly advised to read this manual carefully in its entirety and to retain it for future
reference.
This product guarantee does not affect your statutory rights.
CUSTOMER HELPLINE
03300 882 069
[email protected]
AFFIX RECEIPT OR PROOF
OF PURCHASE HERE
www.firedupcorporation.com
Fired Up Corporation Ltd.
Fired Up Buildings
St Thomas Road
Huddersfield
HD1 3LF
United Kingdom
