FIREGAS FGS-USF27B75CC User manual

FGS-USF27B75CC

21
Introduction
Thank you for choosing this cooker hood.
This instruction manual is designed to provide you with all required
instructions related to the installation, use and maintenance of the
appliance.
In order to operate the unit correctly and safely, please read this
instruction manual carefully before installation and usage.
Accessible parts may become hot when used with cooking appliance.
CAUTION:
Never let the children operate the machine.
Clean the cooker hood according to the instruction manual and keep the
unit from danger of burning. There is a fire risk if cleaning is not carried
out in accordance with the instructions.
Please keep the kitchen room a good convection before connecting this
appliance; Please check that the power supply cord is undamaged. A
damaged supply cord must be replaced by qualified service personnel only.
Regulations concerning the discharge of air have to be fulfilled.
This appliance can be used by children aged from 8 years and above
also the persons with reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not be made by
children without supervision.
The cooker hood is for home use only, not suitable for barbecue,
roast shop and other commercial purpose.
If the supply cord is damaged, it must be replaced by the manufacturer,
its service agent or similarly qualified persons in order to avoid a hazard.
Electrical Shock Hazard
Only plug this unit into a properly earthed outlet.
If you have doubts, seek advice from a suitably qualified engineer.
................................................ ........ 2
................................... 2
...........
...................................................
...........................................................
........................................................... 6
............................. 6-7 ...........................................................
Installation .........
.............. 8 ...........................................................
Operation
....................................................
Introduction
Safety Precaution
Air Outlet Installation Method
................ 4-5
Installation Instructions
....
CONTENT
Safety Precaution
.................................................................... 3-4
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
9
10
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
Maintenance
Trouble-Shooting
.............. 10 ...........................................................
Environmental Protection
...........
............
...................
...........
......................
.................................................
..........................................
.................................
.................

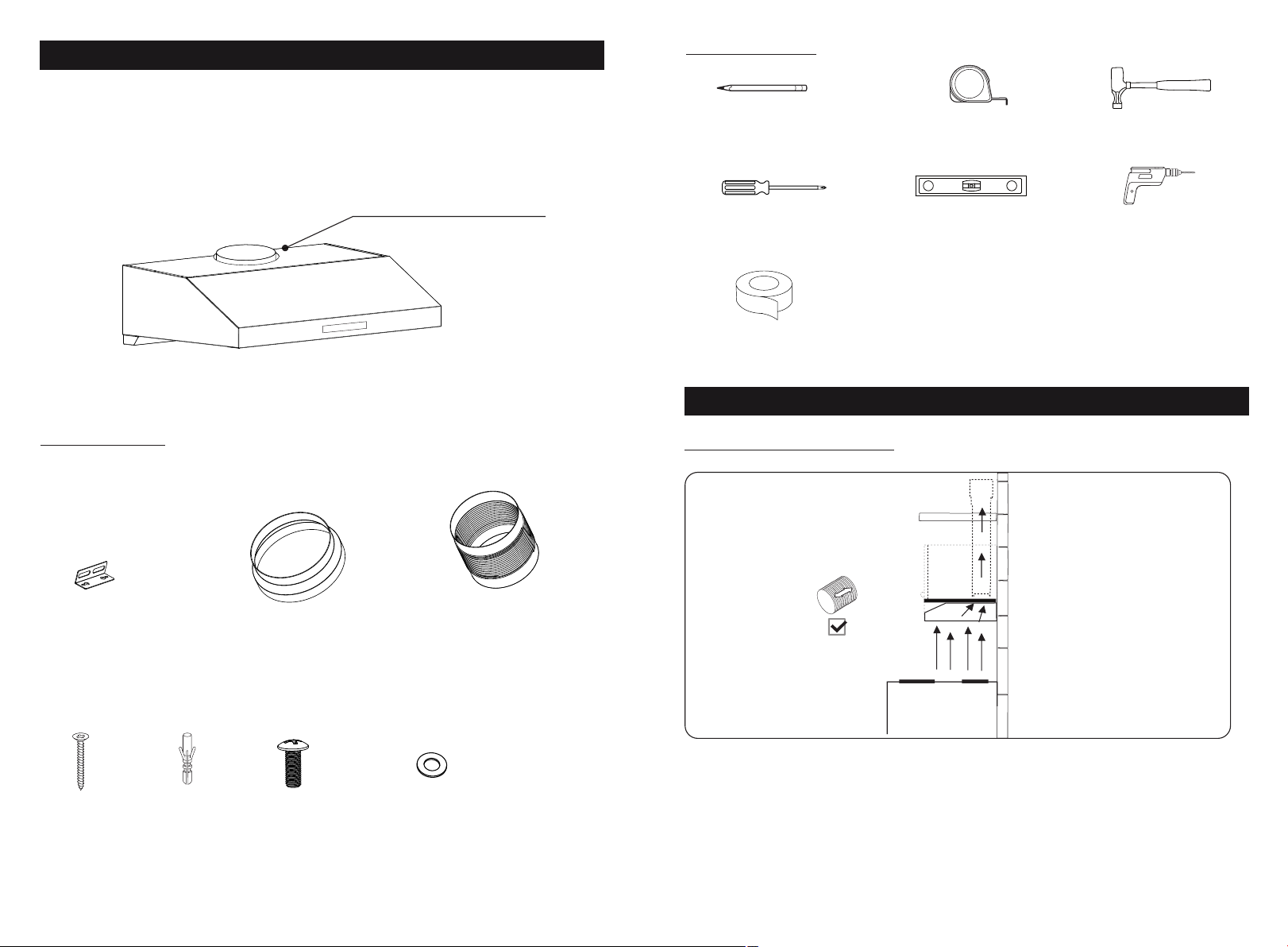

Parts Diagram
........................................

St4×30
×10
φ8×35
×10
Measuring tape
Screwdriver
Pencil Hammer
Electric drill Level
43
Parts Diagram
Parts Supplied
Duct Tape
ToolsRequired
Core Unit
Prepare for installation:
DUCTED OPTION
If you have an outlet to the outside, your cooker hood can be connected
as above picture by means of a pipe (with an interior diameter of 150mm).
Installation Instructions
×6
M5×10
×6
Washer
Mounting bracket Pipe7" change to 6" Adapter

65
Before installation, turn the unit off and unplug it from the outlet.
Note: The power cord is 1.1 meters . It is not recommended that user
replace the power cord or cut the power cord.
Installation Requirements
Note No open flames directly approach to the range hood.
The cooker hood should be placed at a distance of 25.6"~30"
above the cooktop for the best effect.
25.6"-30"
φ150
Installation method for 150mm
diameter pipe: insert the one-way
-value as the pic and fix the duct.
Attention: The bump of the one-
way-value must be upward.
The pipe near the air outlet need
to be fully extended.
Air Outlet Installation Method
Installation
Note
Please connect the power supply to test and confirm that the
power is on before installing this under cabinet range hood.
Refer to the installation instructions:

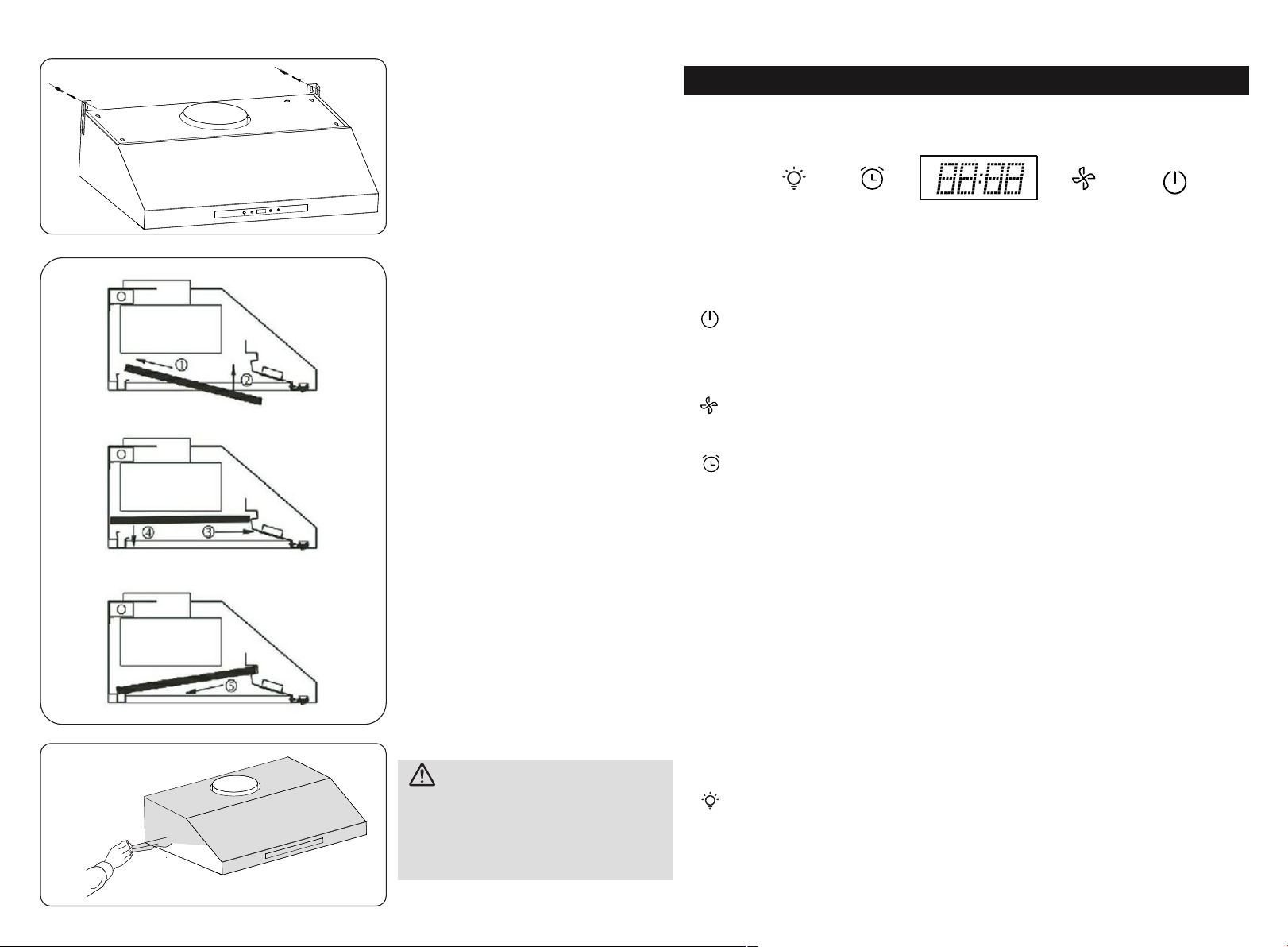

Connect the hooks, gaskets
and screws to the unit by
screwdriver.
Adapter

87
Operation
Screw the anchor screws to
suitable location, then hook on,
lock screws.
1. Angle baffle filter toward
back of hood.
2. Push baffle filter up until
almost level.
3. Slide forward into recess
behind the front of the hood.
4. Lower baffle filter.
5. Slide back until it fits into
resting positions.
Install baffle filters:
Please remove the white/blue
protective film on the rangehood.
BEFORE USE
CAUTION:
Touch control
During activated mode, press speed button to operate the machine
from 1st speed - 2nd speed - 3rd speed - Stop.
a,Delay function: When machine is running, press timer button to
access into delay function.Choose the time and without any operation
for 10s, the machine will start the count down and will be off after
count down is finishing.
Delay timer setting: Default time is 3 mins.When the delay button is
flashing, press this button to increase minutes.(Delay timer can be
set from 1-60mins)
Count down mode:The timer button illuminates in blue and the
machine will create “Bi”sound at the last 3 sec to finish the count
down.If you want to stop the count down, press this button again to
exit this mode.
During standby mode, press the ON/OFF button for 0.5 sec to
access activated mode.In activated mode, this button is illuminated
and speed button can be operated. Press ON/OFF button again can
access into standby mode.
Connect to the power, it access into standby mode with “Bi”sound.
LED screen shows time in blue color and only light button can be
operated . In activated mode, all icons are not illuminated.
b, Timer setting function: During standby or activated mode, press
this button for 1s to access into timer setting function with the LED
screen timer flashing. Press timer button to increase hour and press
light button to increase min. After setting, press this button again or
wait for 10 sec without any operation to settle down the timer.
Press light button to control light ON or OFF.

109

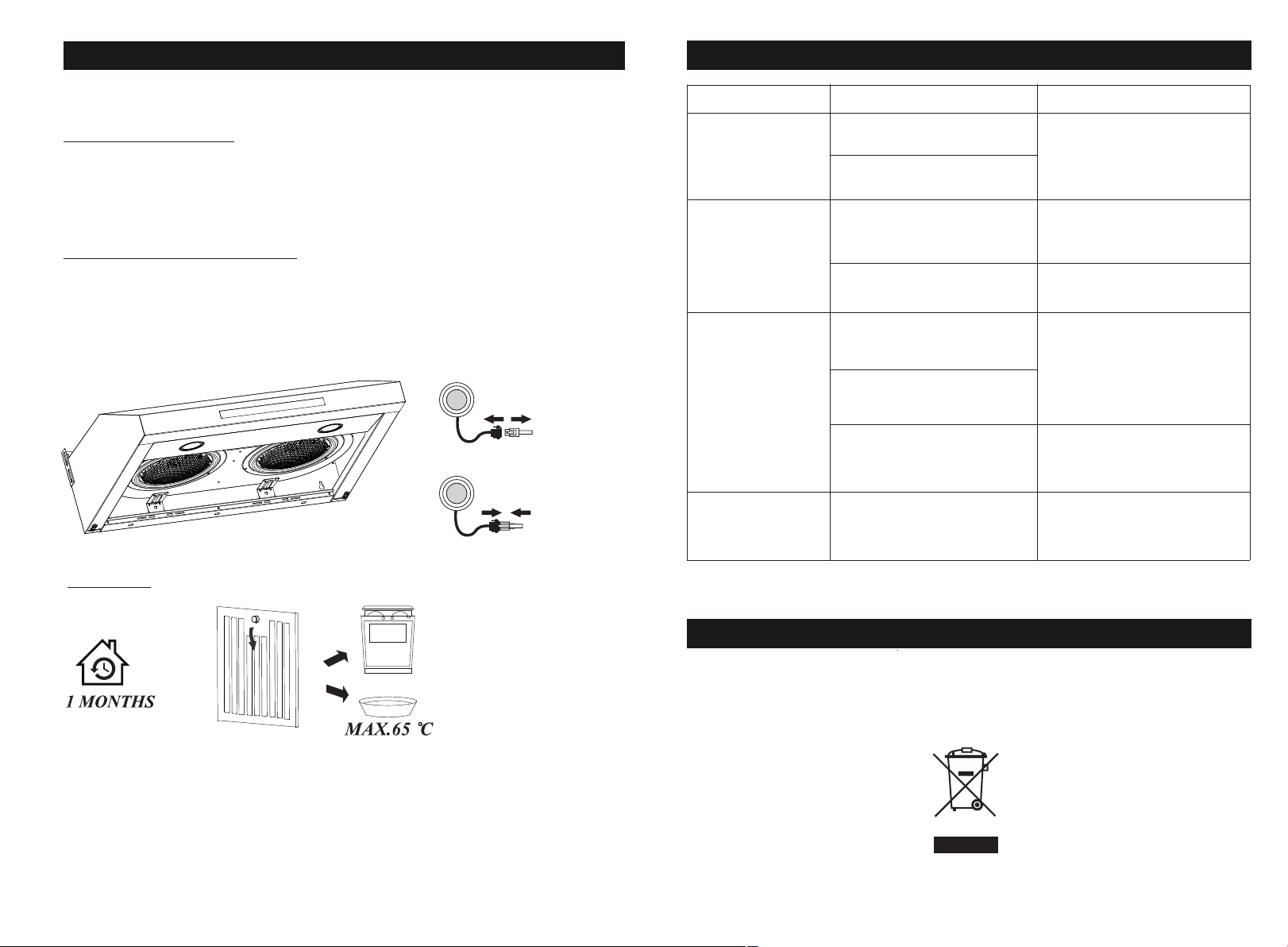

Before cleaning switch the unit off and pull out the plug.
I. Regular Cleaning
Use a soft cloth moistened with hand-warm mildly soapy water
or household cleaning detergent. Never use metal pads, chemical,
abrasive material or stiff brush to clean the unit.
II. LED Light Replacement
Switch the unit off and unplug the appliance.
Maintenance
III. Filter
CAUTION: LAMP UNIT MAY BE HOT!
WAIT UNTIL THE UNIT IS COOL. BEFORE attempting to replace
the LED lamps make sure the unit is powered off and UNPLUGGED.
Filters: To avoid fires, clean thoroughly once a month
or wheneverthe display pilot lights up (if fitted). To do so,remove
the filters and soak inhot water and detergent for an hour.If using
a dishwasher,position the filters vertically to improve the cleaning
process.
Fault Cause Solution
Waste electrical products should not be disposed of with household waste.
Please recycle where facilities exist.
Check with your Local Authority or retailer for recycling advice.
The fan blade is jammed.
The motor is damaged.
Light is burnt out.
Power cord is loose.
Light on,but fan
does not work
Both light and fan
do not work
Serious Vibration
of the unit
Suction
performance not
good
Too far distance
between the unit
and the cooktop.
The unit is not hung
properly on the bracket.
The fan motor is not
fixed tightly.
The fan blade is
damaged.
Switch off the unit and
repair by qualified
service personnel only.
Replace the LED light
with correct rating.
Plug into the power
supply again.
Switch off the unit and
repair by qualified
service personnel only.
Take down the unit and
check whether the bracket
is in proper location.
Readjust the distance
between 25.6"-30"
Environmental Protection
Trouble-Shooting
