Firenzo KOMPACT RU Specifications

INSTALLATION AND OPERATOR’S HANDBOOK
FOR THE FIRENZO INSERT KOMPACT FIRES
Please read this booklet for the safe installation and operation of your:
kompact
kompact kompact
kompact
ru
ruru
ru
THE KOMPACT RU MODEL IS FOR
INSTALLATION ON PROPERTIES OF
2 HECTACRES OR MORE
The Appliance and Flue System must be installed in accordance
with AS/NZS2918:2001. Consult with the Building Authority having
jurisdiction to obtain a permit prior to commencing
the installation. Failure to follow these instructions may also void
your fire insurance and warranty.

Kompact RU Installation
2
This unit has been tested to Appendix E & B of the joint Australia/New Zealand
Standard 2918:2001.
Please leave this manual with the owner after installation.
INDEX
PAGE: ITEM:
3 1 Warnings
4/5 2 Floor Protector Requirements
6/7 3 Pre-Installation, Mantel & Side Clearances
7 4 Assembly Instructions
8 5 Insert Flue System for Masonry Fireplace
9 Minimum Height of Flue Outlet
10/11 6 Typical Installation Requirements
7 Fascia Dimensions, Assembly & Installation
Page 12/13 Diva Fascia Dimensions & Install

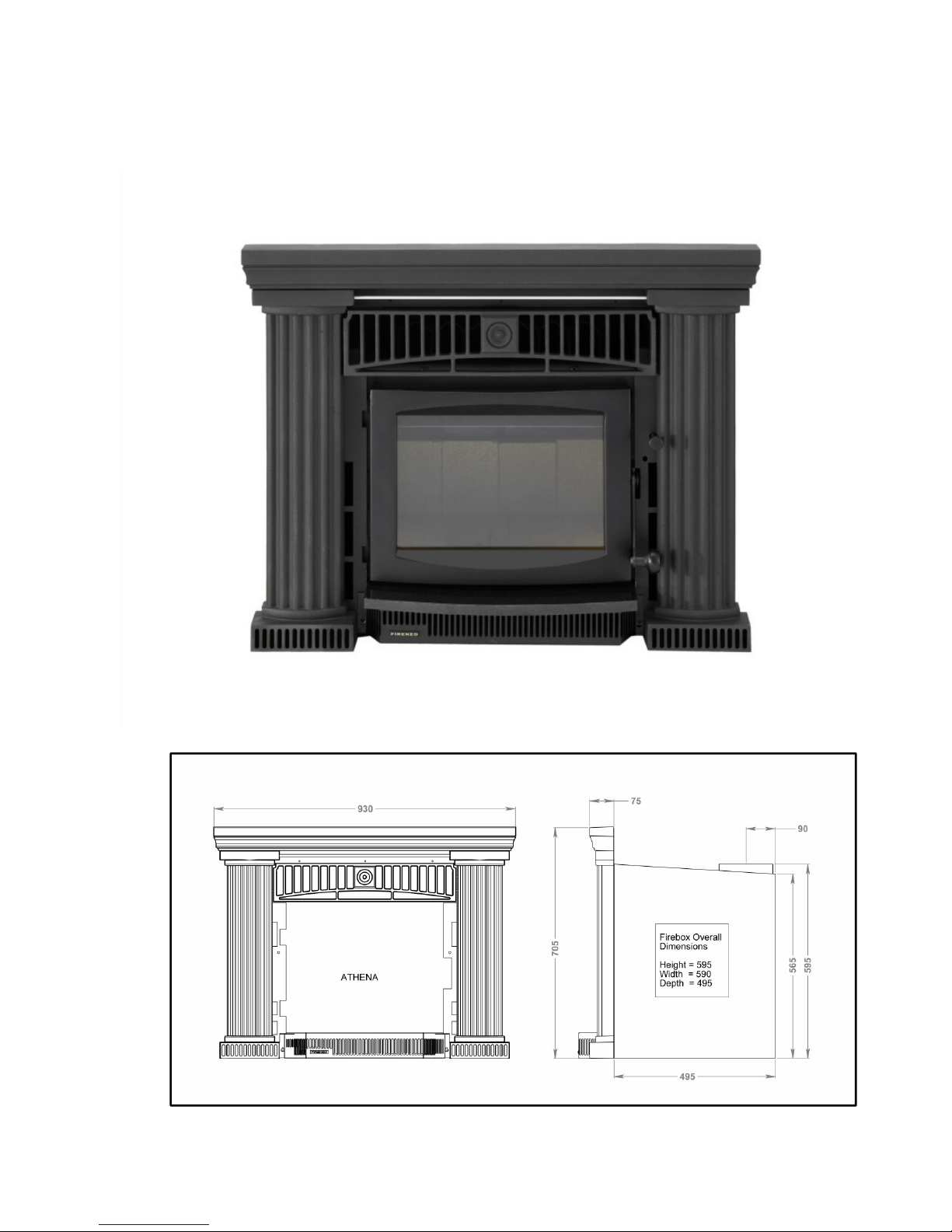

Page 14/15 Athena Fascia Dimensions & Install

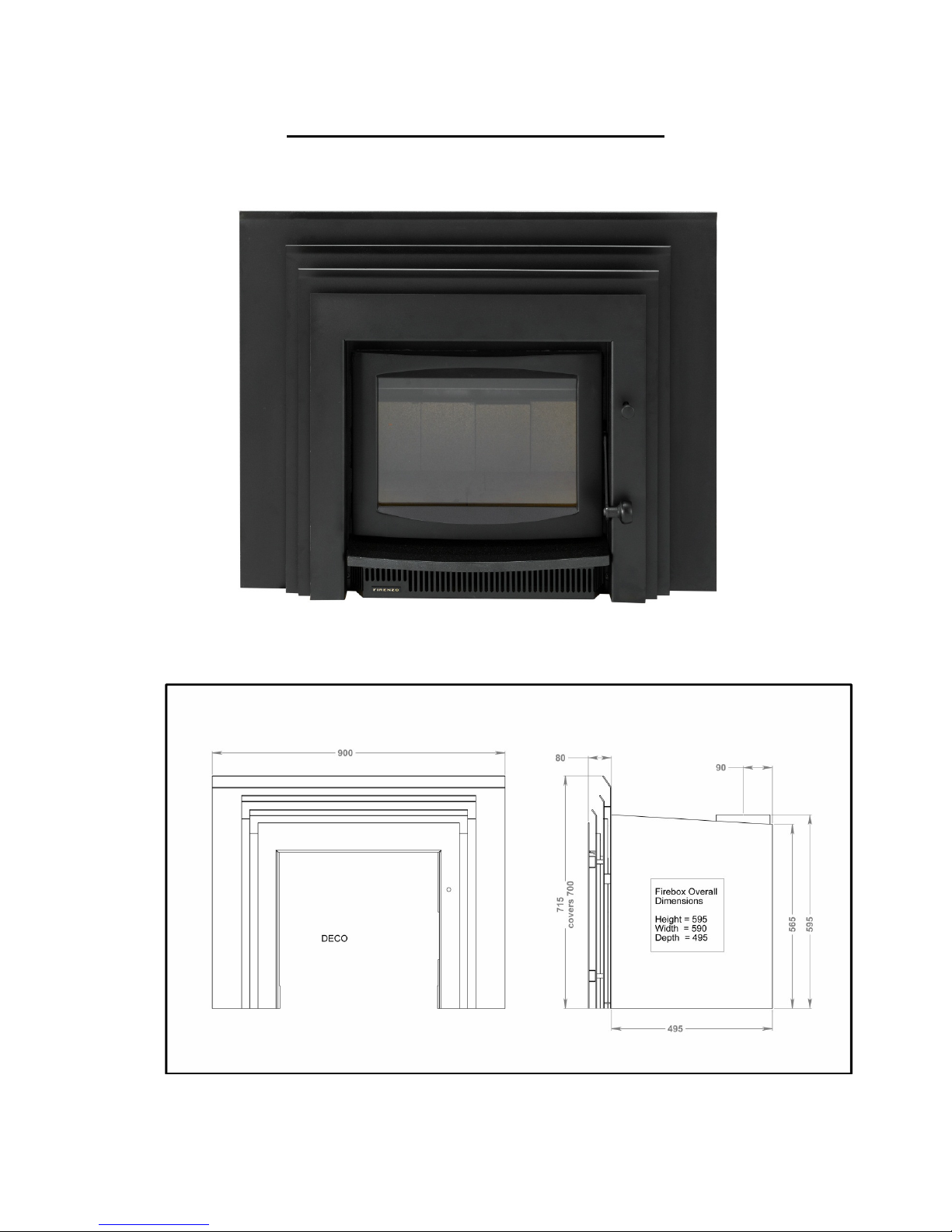

Page 16/17 Deco Fascia Dimensions & Install

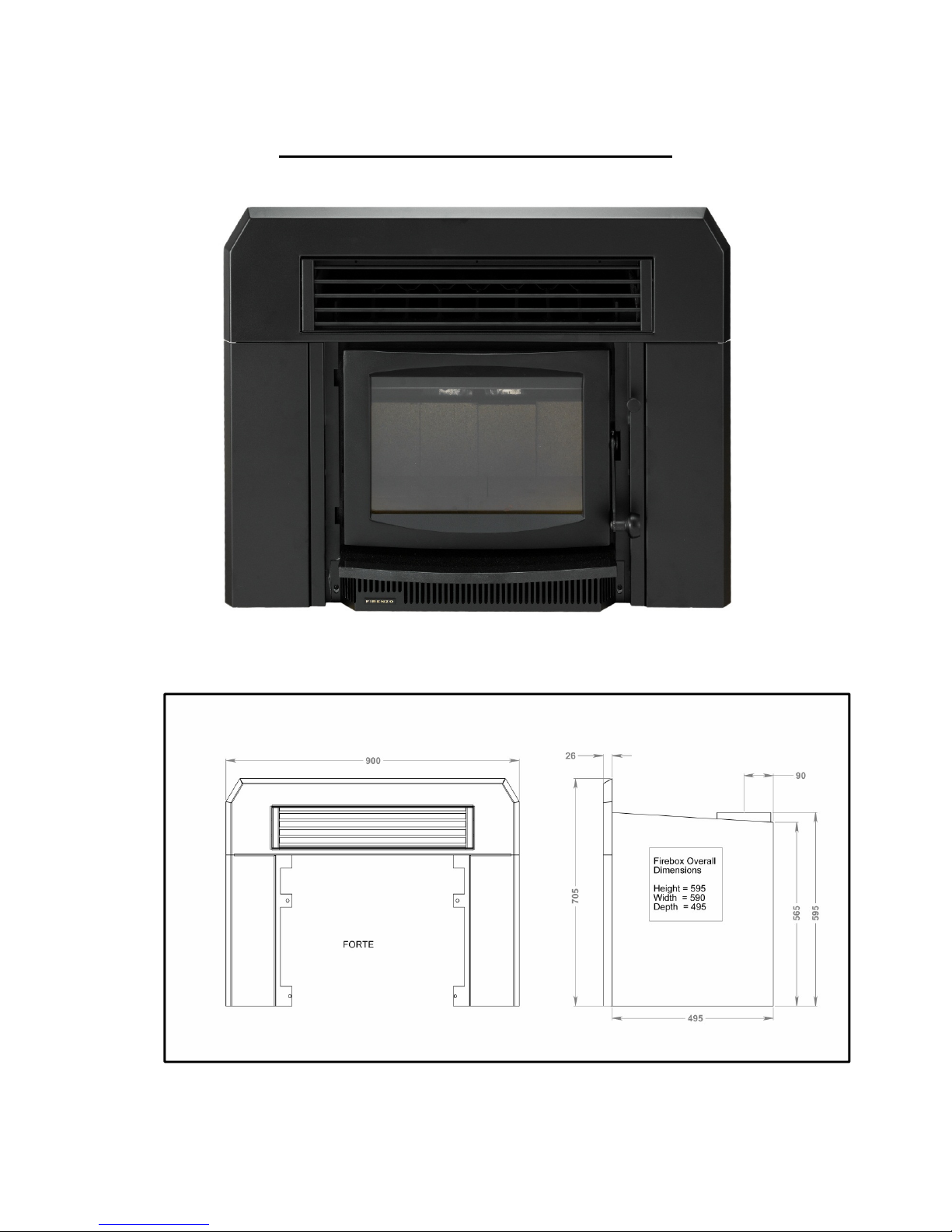

Page 18/19 Forte Fascia Dimensions & Install

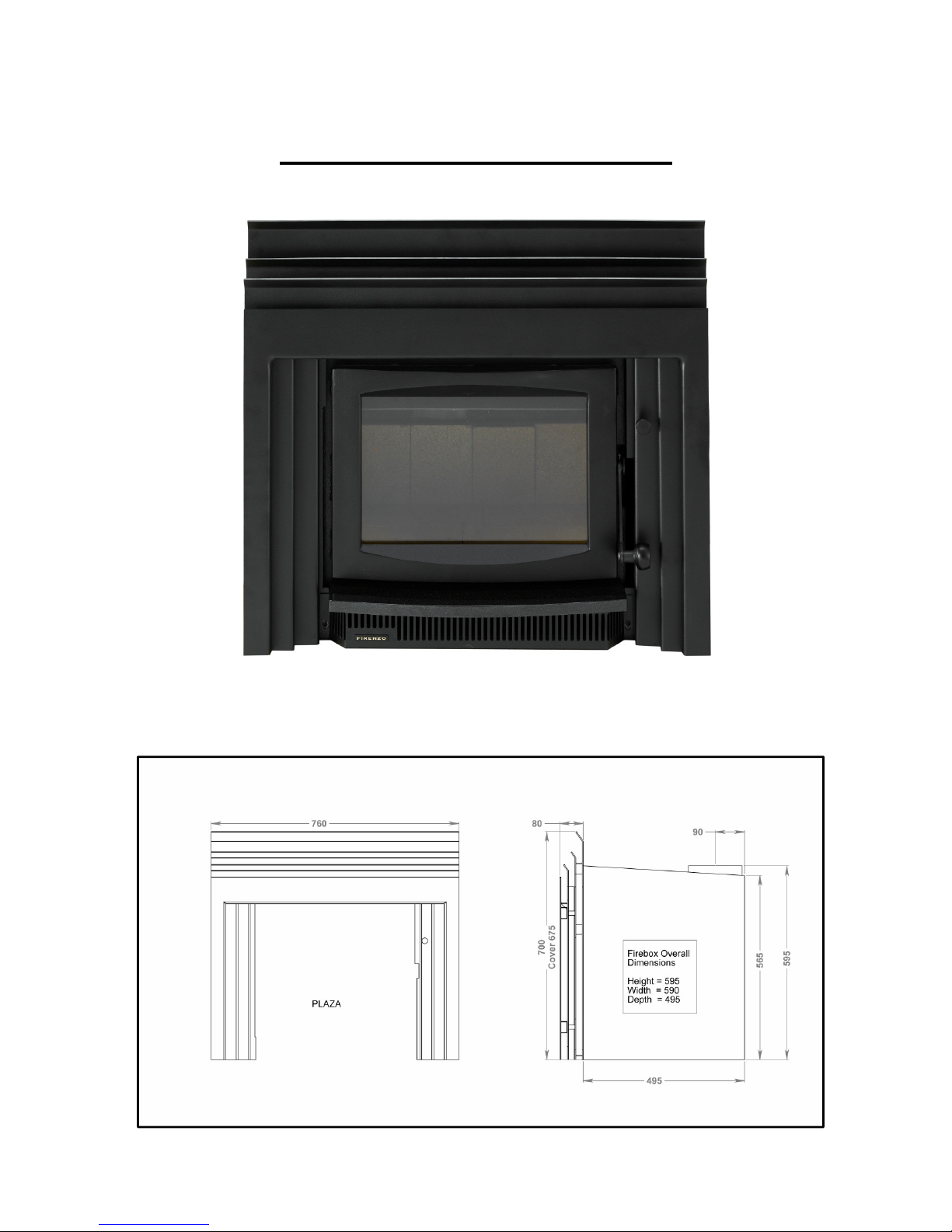

Page 20/21 Plaza Fascia Dimensions & Install
Edited 5/7/12

Kompact RU Installation
3
1. WARNINGS
THIS APPLIANCE SHOULD BE MAINTAINED AND OPERATED AT ALL TIMES
IN ACCORDANCE WITH THESE INSTRUCTIONS.
The Kompact RU is tested to N.Z. Standards AS/NZS 2918:2001.
If this heater is incorrectly installed a house fire may result. For your safety follow the
installation instructions carefully.
Do NOT connect the heater to a chimney serving another appliance.
Although the exterior of the heater may appear cool, contact with the unit may cause
burns; warn children and others of the possibility of injury should they touch the heater.
Do NOT dry clothing or unseasoned wood directly in contact with the heater.
Keep all household combustible materials at least 600mm away from front of the heater.
This includes clothing, furniture, wood, newspaper, plastic, matches, etc.
DO NOT USE FLAMMABLE LIQUIDS OR AEROSOLS IN THE VICINITY OF
THIS APPLIANCE WHEN IT IS OPERATING.
Use caution when reloading with fuel. Do NOT attempt to load fuel into the heater
when the fire inside the stove is at or near its peak.
Do NOT burn large quantities of paper or combustible material that would create an
extremely hot/quick fire.
Do NOT burn highly coloured paper or brochures (junk mail).
USE ONLY DRY WOOD. AVOID BURNING WET OR GREEN WOOD.
THE USE OF SOME TYPES OF PRESERVATIVE TREATED WOOD AS A FUEL
CAN BE HAZARDOUS.
TIMBER TREATED WITH COPPER CHROMIUM AND ARSENIC TYPE
PRESERVATIVES WILL LEAVE TOXIC RESIDUES IN THE ASH, FIREBOX OR
WITHIN THE FLUE; TIMBER OFFCUTS FROM BUILDING CONSTRUCTION
WILL OFTEN CONTAIN BORIC SALTS. THE COMBUSTION OF THIS
MATERIAL OVER PROLONGED PERIODS CAN PRODUCE ADVERSE EFFECTS
ON REFACTORY LINING IN SOLID FUEL APPLIANCES. EMISSION OF
POISONOUS GASES CAN ALSO BE EXPERIENCED WITH THE BURNING OF
TREATED WOOD.
Driftwood with salt content will also cause rapid deterioration of the heater and should
not be used.

Kompact RU Installation
4
2. FLOOR PROTECTOR REQUIREMENTS
AS/NZ2918 Section 3.3 states that if the heater is to be placed on or within 500mm of
heat sensitive materials in the floor, then a floor protector will be required. This floor
protector shall extend under the heater and not less than 300mm beyond the front of the
fuel loading or ash removal openings. The width of the floor protector shall be not less
than the width of the appliance and shall extend not less than 200mm from each side of
the fuel loading or ash removal openings unless it forms an abutment with a wall or
heatshield at a lesser distance.
The heater and floor protector must be fixed to the floor for seismic restraint. Anchor
points for the heater are provided through the 2 front feet of the unit.

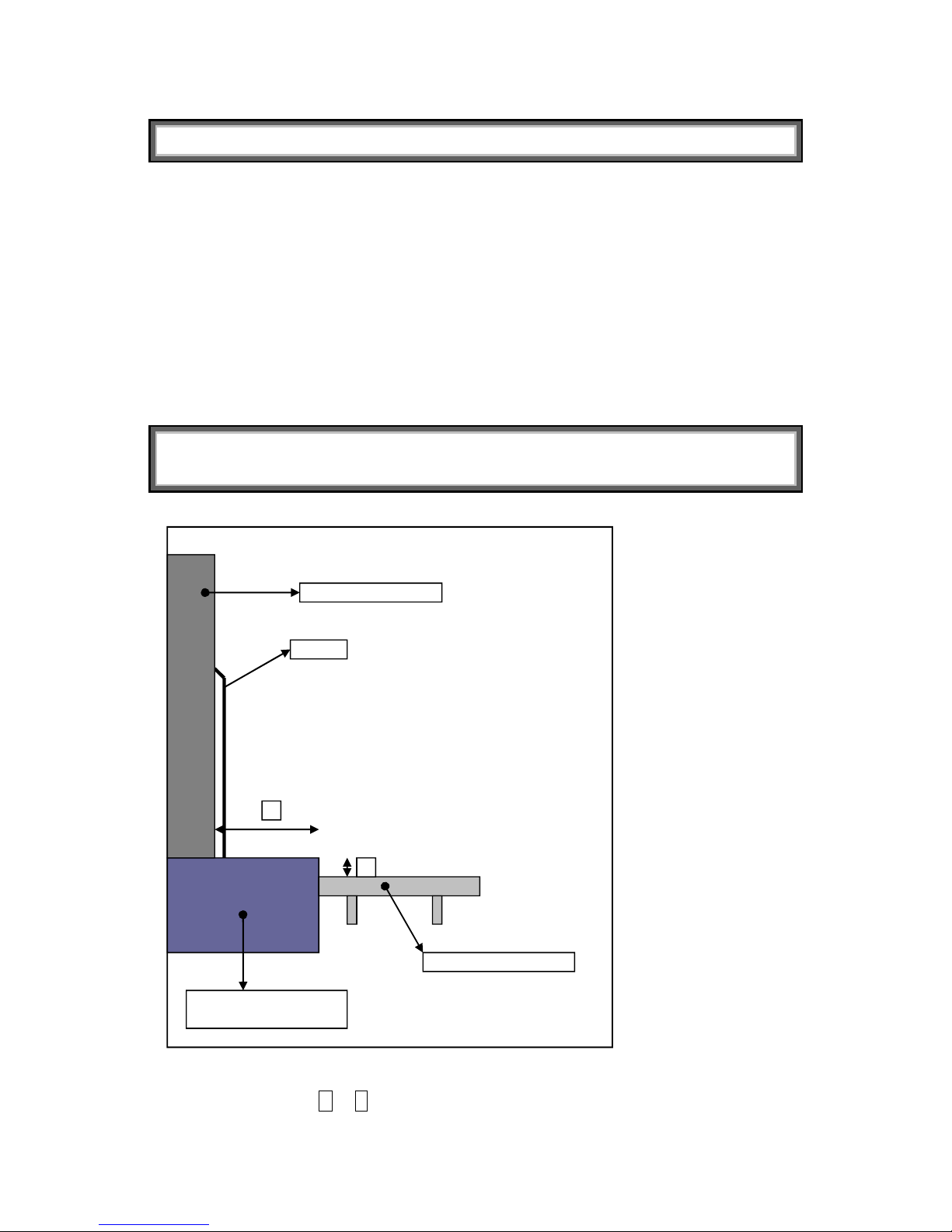

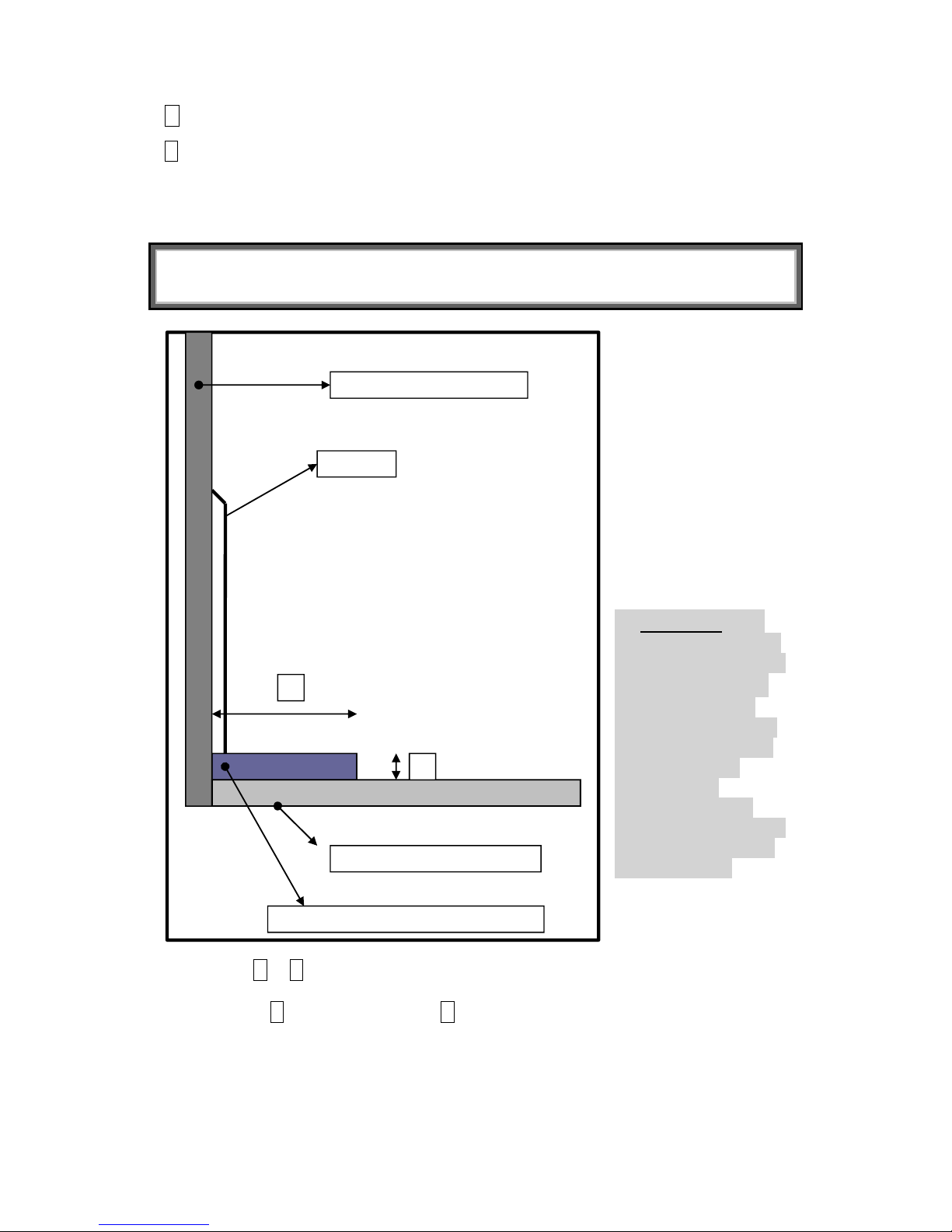

2A FLOOR PROTECTOR REQUIREMENTS
SOLID CONCRETE FLOOR
If the heater is to be installed onto a SOLID concrete floor protector (hearth) that has no
heat sensitive materials in its construction it must meet the following MINIMIUM
dimension as marked A & B from the above diagram:
HEAT SENSITIVE FLOOR
SOLID CONCRETE FLOOR
PROTECTOR/HEARTH
FIRE BREAST / WALL
A
FASCIA
B

Kompact RU Installation
5
A 300mm from breast of fire to outer edge of concrete floor protector (hearth)
B 30mm from heat sensitive floor to upper edge of concrete floor protector (hearth)
The minimum width of floor protector must be 820mm and/or 410mm from the centre
of the heater.
2B FLOOR PROTECTOR REQUIREMENTS
HEAT SENSITIVE FLOORS
An Insulated Floor
Protector (Hearth) must
consist of a minimum of
20mm of Insulation
board (Micore 160,
Supalux, Promatech H,
Eterpan LD or product
of similar thermal
resistance) and
tiles/slate or similar
with sealed joints on top
surface to protect from
spilt ash/embers.
Dimensions A & B from above diagram must meet the following schedule:
B HEIGHT (mm) A FROM FIRE BREAST
Level 500
30mm 376
40mm 355
50mm 300
Minimum width of floor protector must be 820mm and/or 410mm from centre of heater.
HEAT SENSITIV
E FLOOR
INSULATED FLOOR PROTECTOR
FIRE BREAST /
WALL
A
FASCIA
B

Kompact RU Installation
6
3. PRE – INSTALLATION
Before installing your Firenzo Kompact it is important to check the condition of your
masonry chimney. Ensure any cracks are sealed, loose masonry repaired and the
chimney swept.
Check the dimensions of your fireplace opening are adequate to accept the new heater.
Existing linings may need to be removed.
The heater must be installed on a level non-combustible base.

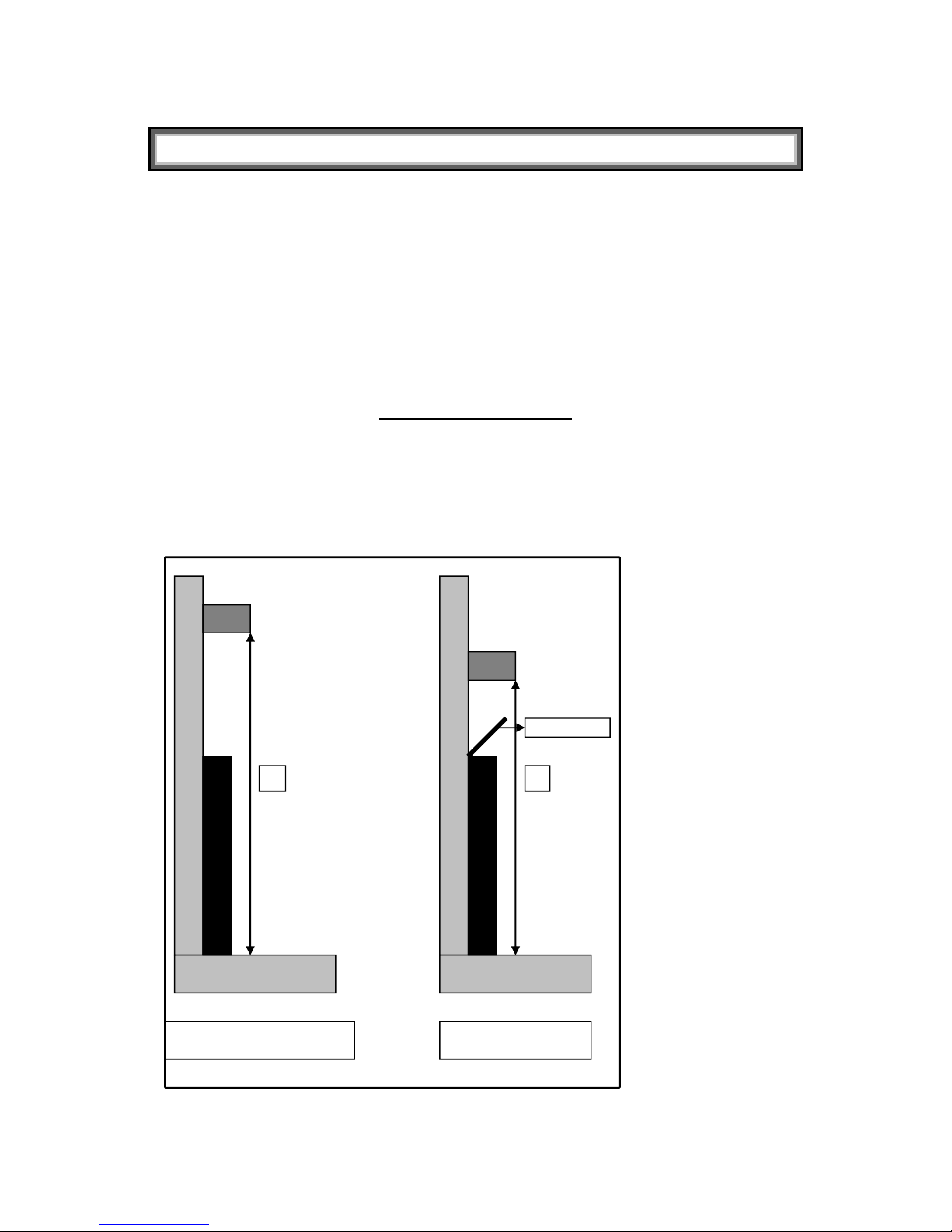

MANTEL CLEARANCE
If the mantel shelf on your masonry fireplace is of a combustible material the minimum
distance from the floor protector is as follows. This may be reduced if a Firenzo Kompact
deflector is fitted.
UNPROTECTED MANTEL
MINIMUM CLEARANCE
FIRENZO HEAT
DEFLECTOR FITTED
DEFLECTOR
A B

Kompact RU Installation
7
A Unprotected B With Firenzo Deflector
Kompact Diva 975 N/A
Kompact Forte 975 915
Kompact Athena 1100 915
Kompact Deco 1225 915
Kompact Plaza 1225 915
SIDE PILLAR CLEARANCE
The minimum clearance from the side of the fascia to any heat sensitive material must be
5mm providing the material does NOT protrude more than 150mm.
4. ASSEMBLY INSTRUCTIONS
1 Carefully remove all packaging.
2 The firebox front when installed must be flush with the finished fireplace surround
and on a level base of the same height as the finished floor protector. This may be
achieved by using a concrete mix to level the base.
3 Slide the firebox into the opening so that the outer casing return folds are flush
with the finished fireplace surround.
4 DUE TO NEW ZEALAND BEING AN EARTHQUAKE PRONE COUNTRY, IT
IS IMPORTANT TO ANCHOR THE INSERT DOWN IN CASE OF EARTH
MOVEMENT. Restraint points are provided through the fires two front legs.
5 Install Flue as per instructions on page 8 and 9.
6 Now that the firebox and flue are in position, place 25mm white kaowool
blanket (supplied) on top of casing.
7 As this fire sources its combustion air from the chimney cavity/enclosure, the fire
MUST be sealed around the front between the casing and the masonry. This is
achieved by packing the yellow ISB insulation supplied between the casing and the
masonry at the FRONT ONLY to maximum depth of 80mm. As shown in section 6,
page 10 diagrams.
8 Assemble and fit the fascia as per instructions on the relevant pages 11-15.

Kompact RU Installation
8

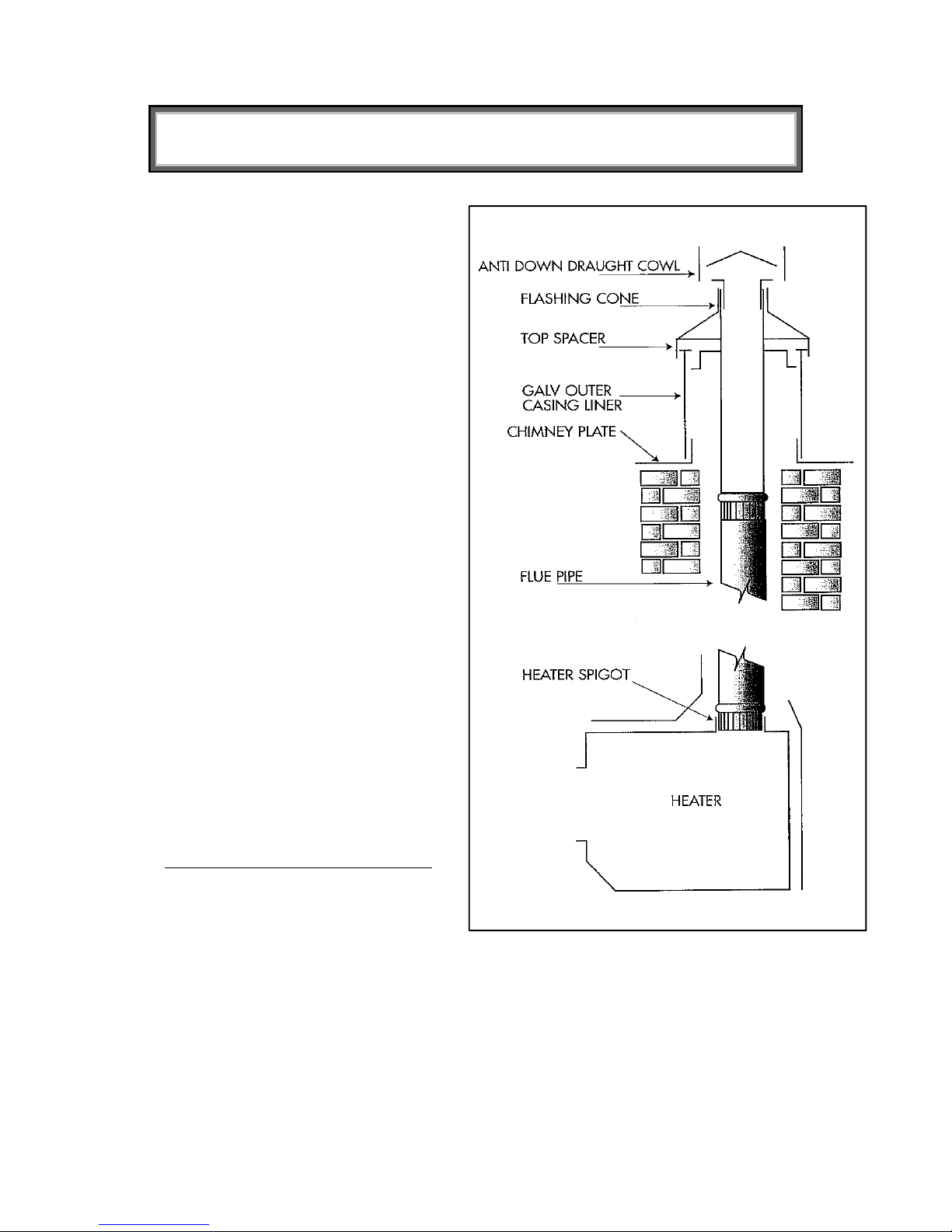

5. INSERT FLUE SYSTEM
For Installation in a Masonry Fireplace
WARNING; The appliance and flue
system must be installed in accordance
with AS/NZS 2918:2001 and the
appropriate requirements of the relevant
building code or codes.
1. Position heater in fireplace. Extend
plumb line from top of chimney, ensuring
heater spigot is in line with top of
chimney. If not, flue pipe offsets will be
required.
2. Assemble flue pipes ensuring all seams
are in line and assembly is straight and
tight with crimped ends pointing
downwards.
Secure flue pipes with at least 3 stainless
steel or monel rivets and seal.
3. Fasten chimney plate supplied onto the
chimney top. The chimney plate must be
weather sealed with silicone or mortar.
4. Install chimney liner on top of the
chimney plate.
5. Ensure flue pipe is extended over the
chimney liner by 180mm. Secure top
spacer bracket to the flue pipe and ensure
slots fit snugly inside the chimney liner.
6. Slide flashing cone over top of flue,
until it rests firmly over top spacer.
Ensure ventilation gap is not closed off.
Secure with pop rivets or self-tapping
screws.
7. Fit anti-down draught cowl. Do not
secure as it must be removed for cleaning.
CAUTION: Mixing of flue system components from different sources or modifying the
dimensional specifications of components may result in hazardous conditions. Where such
action is considered the flue manufacturer should be consulted in the first instance.
Refer also to notes on page 9 regarding height of flue system outlet.

Kompact RU Installation
9

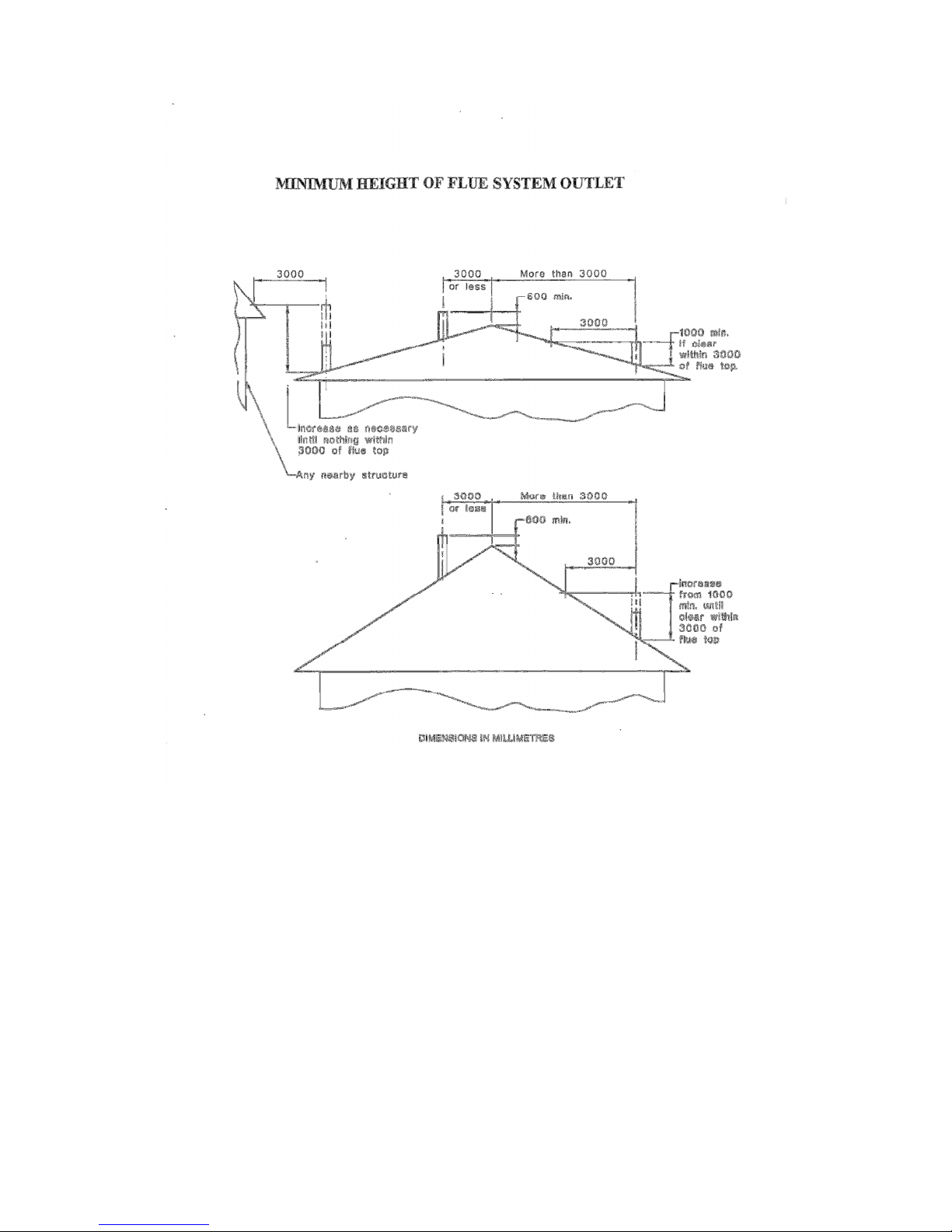

NOTES:
1. The flue pipe shall extend not less than 4.6m above the top of the floor protector.
2. The flue cowl must be at least 600mm above the highest point of the roof if within 3
metres of it, or 1 metre above the roof penetration if more than 3 metres from the ridge.
3. No part of the building, or any adjacent building may be in or above a circular area
of a horizontal radius of 3 metres from the flue exit.

Kompact RU Installation
10

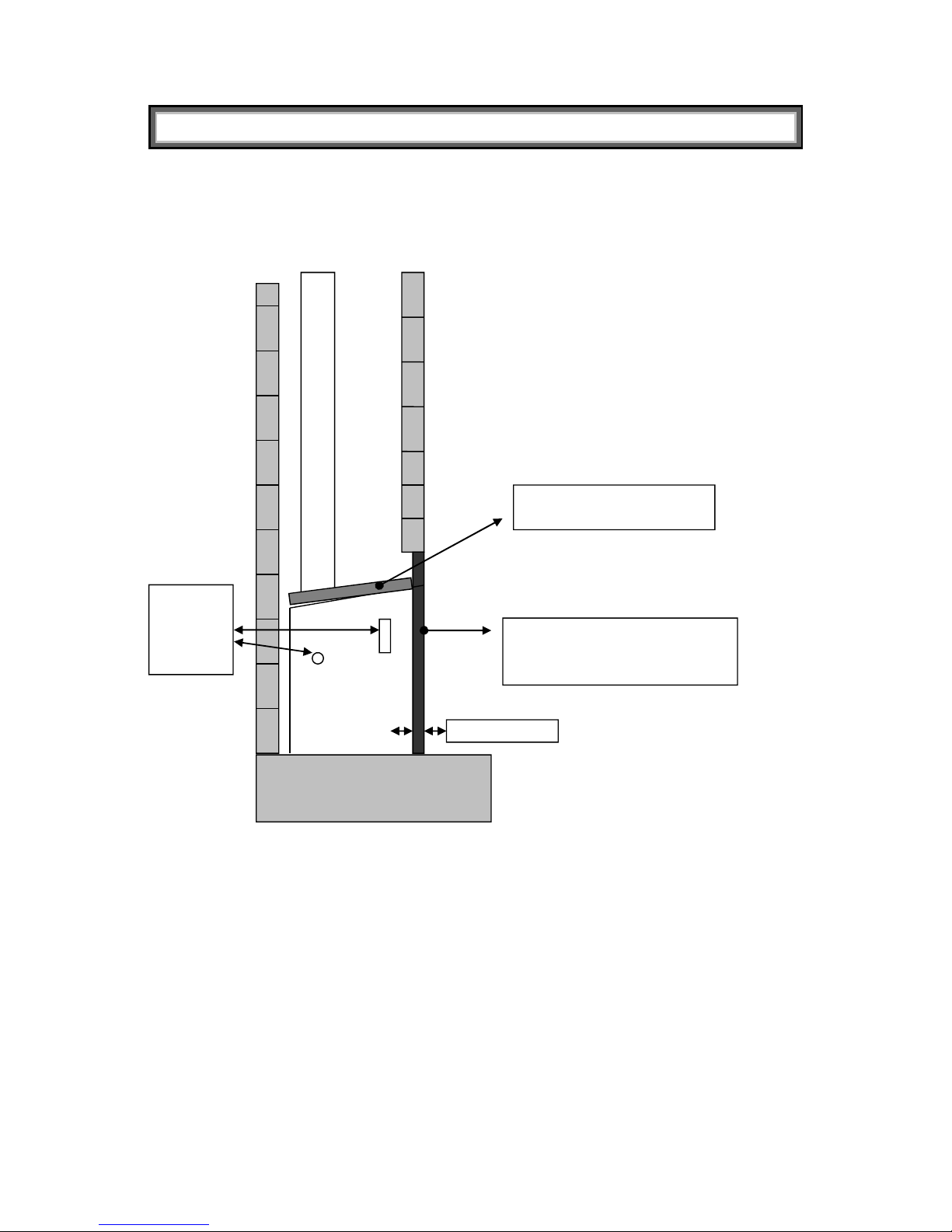

WHITE KAOWOOL BLANKET
PLACED ON TOP OF HEATER
YELLOW I.S.B INSULATION
PACKED BETWEEN HEATER
CANOPY AND MASONRY
ENCLOSURE MAX DEPTH OF 80mm
80mm MAX

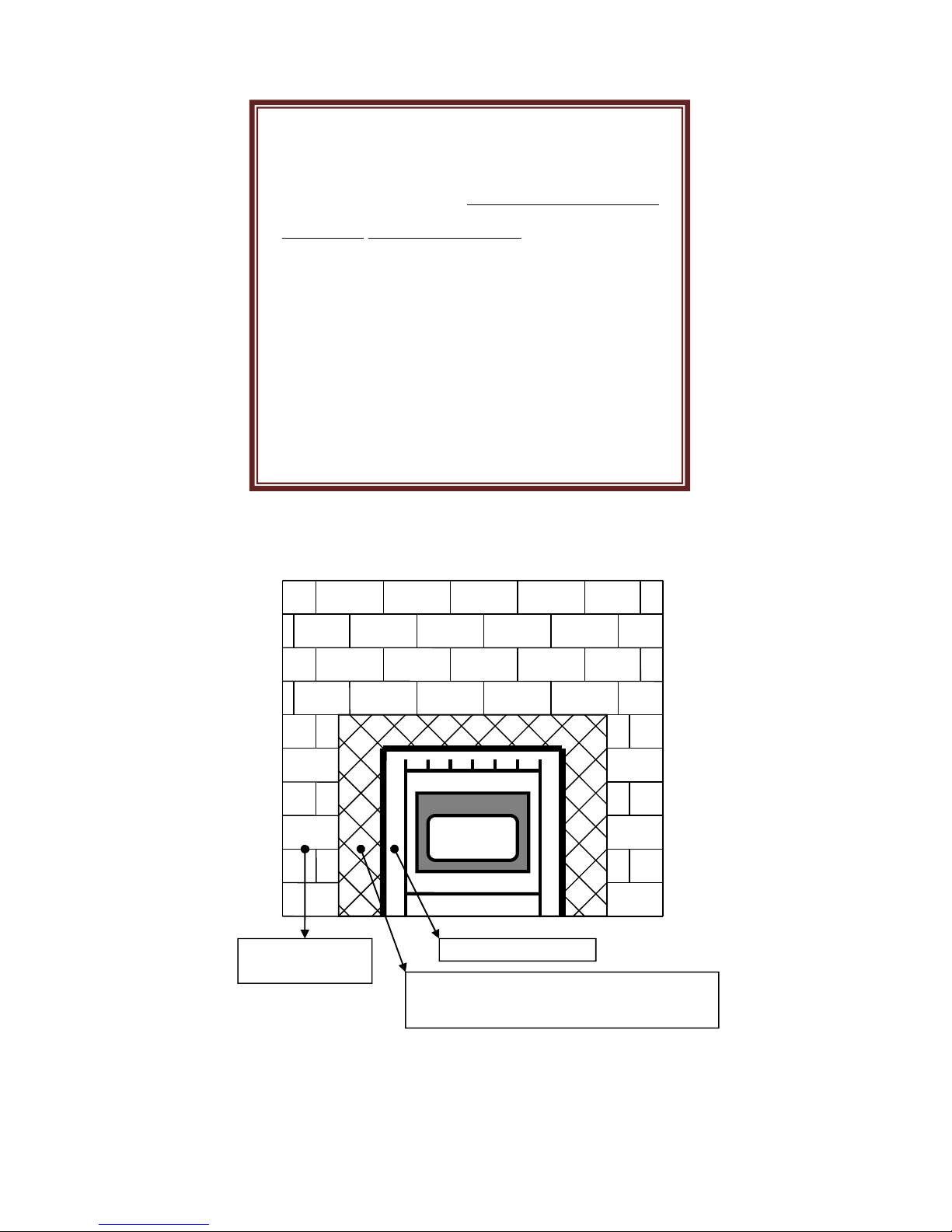

6. TYPICAL INSTALLATION REQUIREMENTS
AIRPORTS
INTO
HEATER
DO NOT
BLOCK

Kompact RU Installation
11
FIRE BOX IN CANOPY
I.S.B INSULATION (YELLOW) PACKED
BETWEEN HEATER AND BRICK / MASONARY
ENCLOSURE
BRICK / MASONRY
ENCLOSURE
As this fire sources its combustion air from the
chimney cavity, the fire must be sealed using the
yellow ISB insulation provided around the front
of the casing and masonry enclosure at the
FRON ONLY to a maximum depth of 80mm.
UNDER NO CIRCUMS ANCES SHOULD HE AIR
SUPPLY IN O HE AIRPOR S ON HE SIDE OF
HE HEA ER BE RES RIC ED

Kompact RU Installation
12

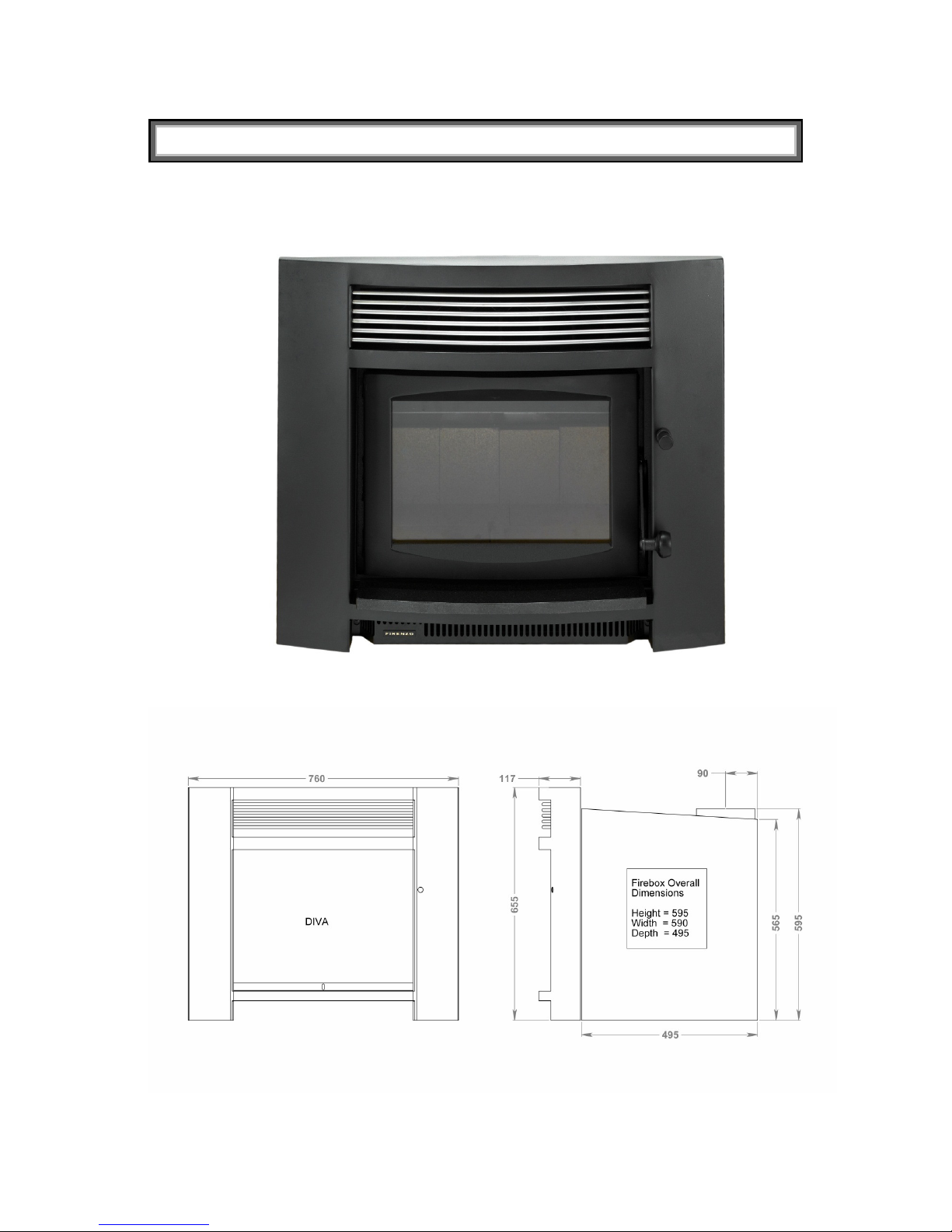

7. FASCIA DIMENSONS, ASSEMBLY & INSTALLATION
KOMPACT WITH DIVA FASCIA

Kompact RU Installation
13

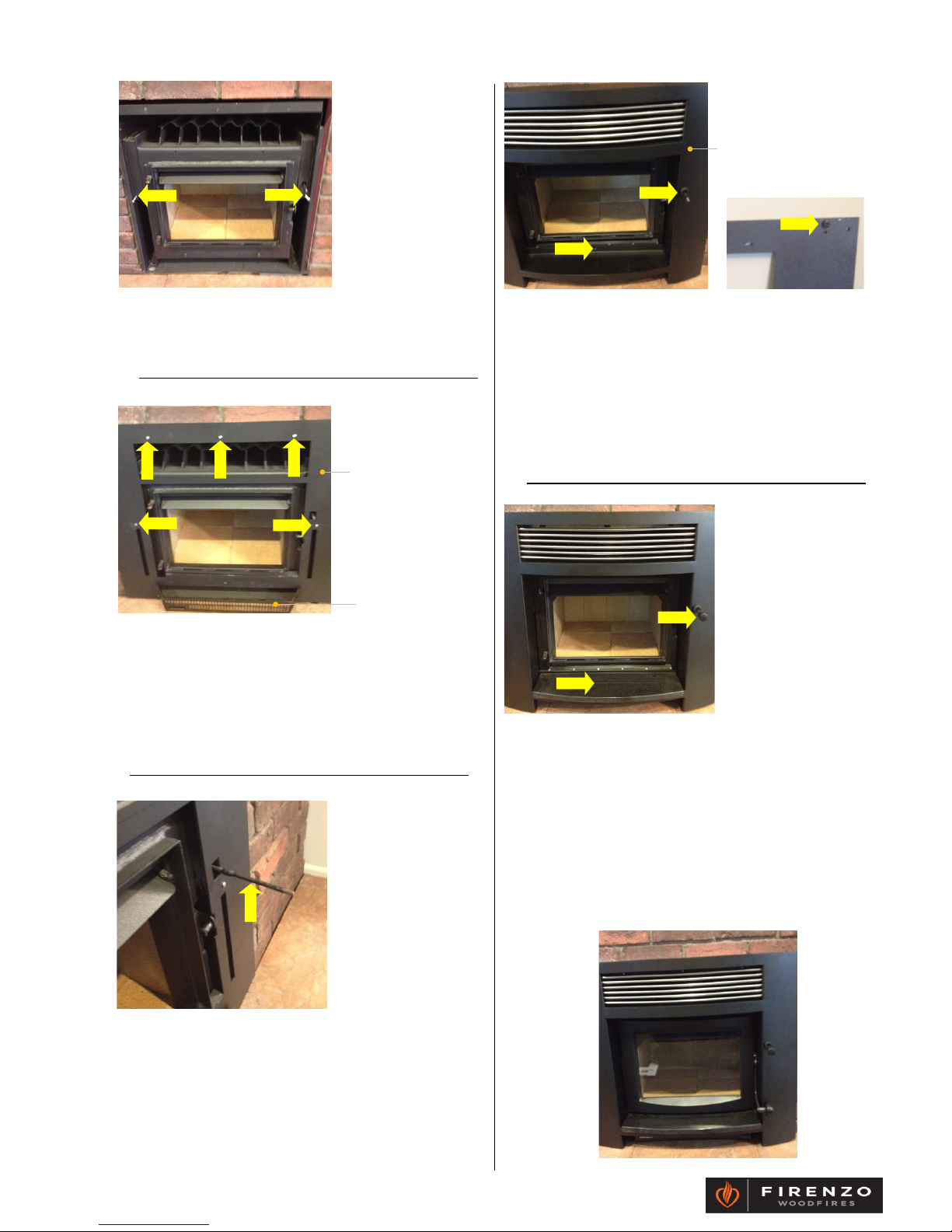

Assembly and Installation Instructions: KOMPACT with DIVA Fascia
3. Add the extension (3) (provided in the
fascia pack) to the air control rod
3
3
5. Fit the air control knob (7).
Fit the granite ashlip (8) (provided) by securing
it to the bottom support plate by inserting the
locking pin on the support plate into the hole on
the bottom of the granite ashlip.
Finally fit the door. Locate the hinges correctly
by angling the door at approximately 45
degrees.
8
7
5
1. Remove door. Then remove the two 50mm
screws (1) located one on each side of the door
opening.
1
1
1
2. Place the backplate with bottom grill attached
against the canopy (lips facing inwards) and
replace the 50mm screws (1) in the outer clips on
the firebox.
Secure the top of the backplate with the three
15mm self tapping screws (2) (provided in the
fascia pack).
1
2
2
2
2
Backplate
Grill
1
4. Place the Diva fascia against the backplate,
guiding the extension to the air control rod into
the ‘boss’ (4) (the control rod hole in the fascia).
Next lift, then lower in place over the pre-fitted
screws (5) at the top of the backplate.
Secure the lower part of the fascia with the
single 15mm screw below the door opening (6).
5
4
4
Diva fascia
6

Kompact RU Installation
14
KOMPACT WITH ATHENA FASCIA

Kompact RU Installation
15
Assembly and Installation Instructions: KOMPACT with ATHENA Fascia
3
3. Remove the granite ashlip from the fascia box
and fit below the door opening using the two
locator screws at the bottom of the firebox (Screws
for granite ashlip (5) see illustration 2).
These two screws protrude by 5mm to enable the
ashlip to be lifted up and over the screw heads and
then screw up tight.
Athena ashlip

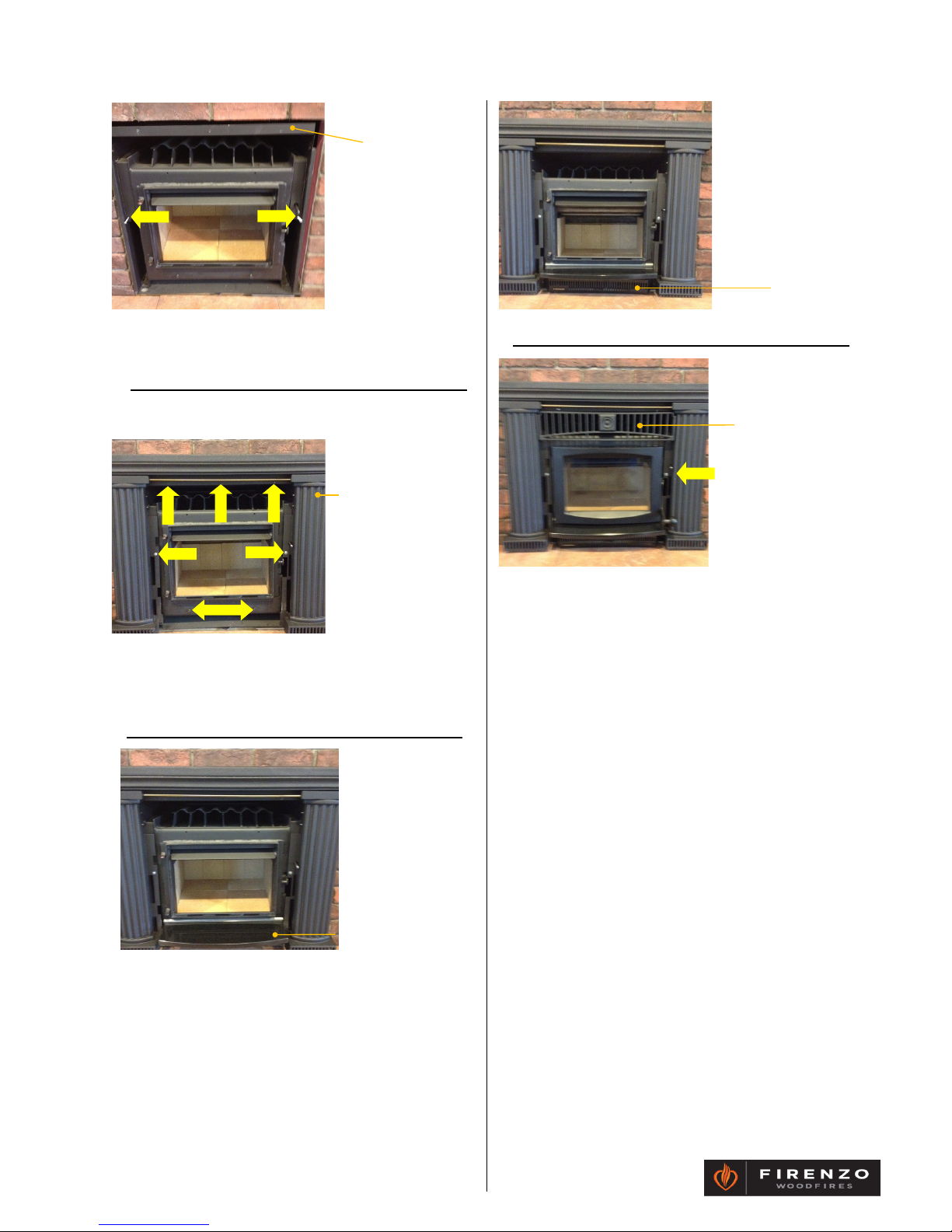

1. Remove all items from packaging and separate.
Remove door. Then remove the two 50mm screws
(1) located one on each side of the door opening.
1
1
1
Canopy
2. Position the Athena fascia against the canopy and
fix the 50mm screws (3) to the outer clips.
Secure the top of the fascia with the three 15mm self
tapping screws (4) (provided in the fascia pack).
2
Athena fascia without top grill
3
3
4
4
4
5
5
5. Fit the top grill (cast iron).
Fit the air control knob (6).
Finally fit the door. Locate the hinges correctly by
angling the door at approximately 45 degrees.
Top cast iron grill
6
4. Fit the bottom grill.
4
Bottom grill

Kompact RU Installation
16
KOMPACT WITH DECO FASCIA

Kompact RU Installation
17

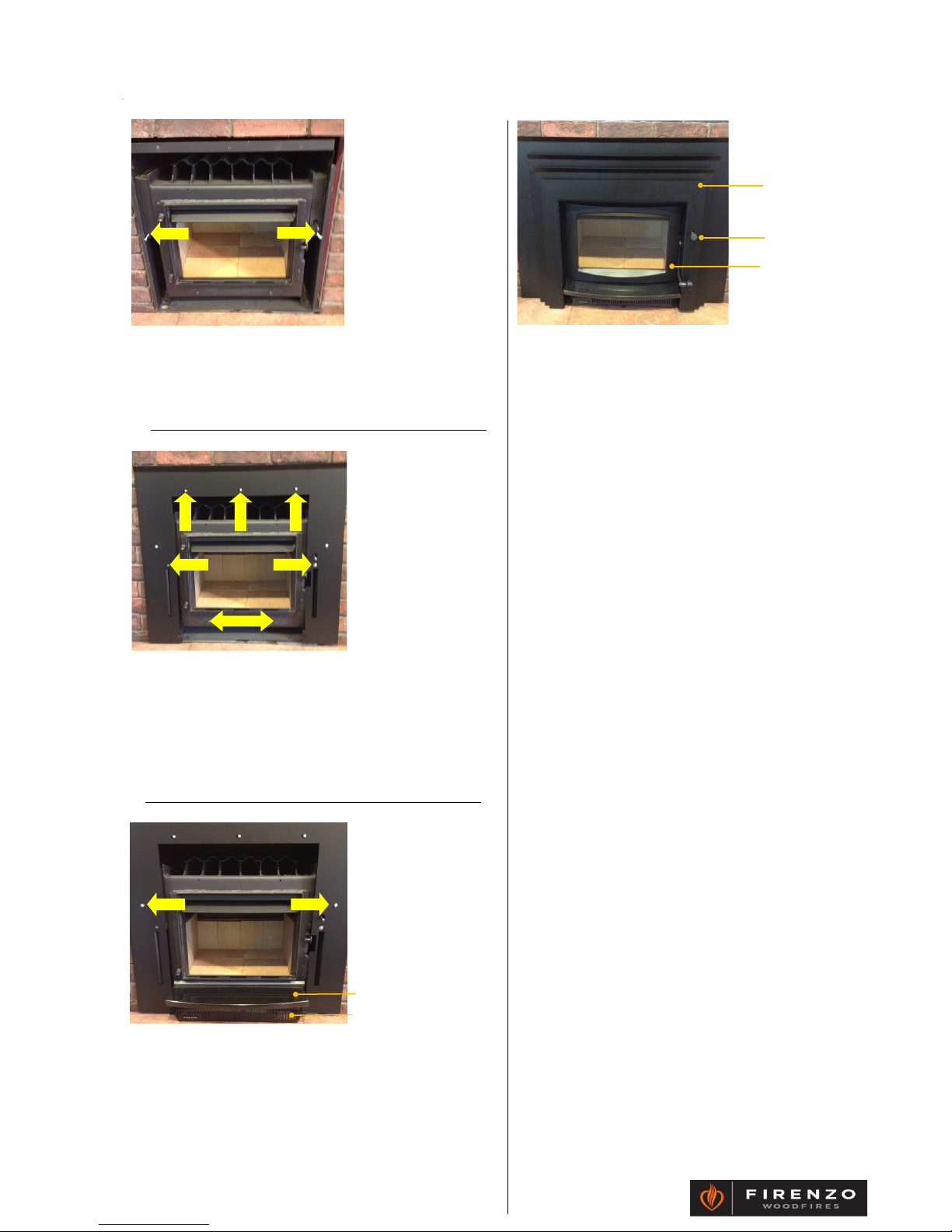

1. Remove all items from packaging and
separate.
Remove door. Then remove the two 50mm
screws (1) l
ocated one on each side of the door
1
1
Assembly and Installation Instructions: KOMPACT with DECO Fascia
Fascia
1
2. Place the single back plate of the fascia
against the firebox.
Replace the 50mm screws (2) in the outer clips
of the fire box securing the backplate.
Secure the top of the backplate with the three
15mm self tapping screws (3).
2
2
2
3
3
3
4
4. Place the keyhole brackets on the 3 plate
Deco fascia over the protruding screws on the
back plate (Screws (5) illustration 3).
Fit the air control extension rod and the air
control knob.
Finally fit the door. Locate the hinges correctly
by angling the door at approximately 45
degrees.
4
3. Remove the granite ashlip from the fascia
box and fit below the door opening using the
two locator screws at the bottom of the firebox
(Screws for granite ashlip (4) see illustration
2).
These two screws protrude by 5mm to enable
the ashlip to be lifted up and over the screw
heads and then screw up tight.
Attach the bottom grill
3
Granite ashlip
5
Bottom grill
5
3 plate Deco fascia
Air control rod and knob
Deco door

Kompact RU Installation
18
KOMPACT WITH FORTE FASCIA

Kompact RU Installation
19
Assembly and Installation Instructions: KOMPACT with FORTE
Fascia
3. Refit the top grill.
Remove the granite ashlip from the fascia box
and fit below the door opening using the two
locator screws at the bottom of the firebox
(Screws for granite ashlip (5) see illustration
2).
These two screws protrude by 5mm to enable
the ashlip to be lifted up and over the
__________________________________________________
__
3
Forte top grill
Forte ashlip
4. Fit the air control knob (6).
Fit the bottom grill.
Finally fit the door. Locate the hinges correctly
by angling the door at approximately 45
degrees.
4
6
Bottom grill

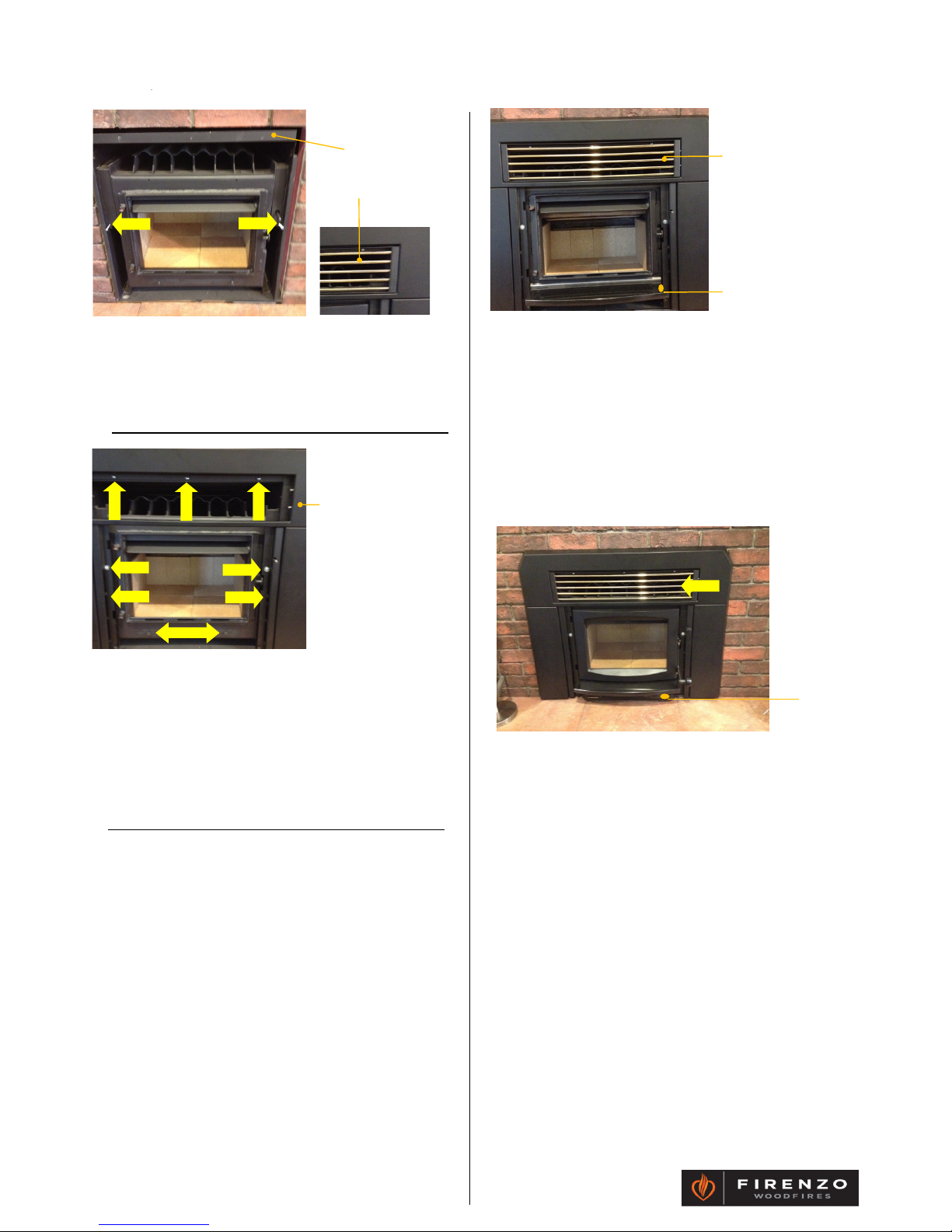

1. Remove all items from packaging and separate by
releasing the bottom grill screws
Remove door. Then remove the two 50mm screws
(1) located one on each side of the door opening.
Remove the top grill from the Forte fascia.
1
1
1
Top grill
Canopy
2. Position the Forte fascia against the canopy
Position the infills (2) on each side of the door
opening taking care to position the air control
rod through the ‘boss’.
Replace the 50mm screws (3) in the outer clips
of the fire box securing the fascia and the infills
Secure the top of the fascia with the three
15mm self tapping screws (4) (provided in the
fascia pack)
.
2
Forte fascia without top grill
2
2
3
3
4
4
4
5

Kompact RU Installation
20
KOMPACT WITH PLAZA FASCIA
