FISCHBEIN 10.400 Technical reference manual

DAVE FISCHBEIN COMPANY
2700 -30TH AVENUE SOUTH
MINNEAPOLIS, MINN. 55406
[phone]
FISCHBEIN BAG CLOSER
INSTRUCTIONS
AND PARTS MANUAL
SEWING HEAD:
MO.DEL NO. 10,400
------
SERIAL NO.
'CONVEYOR:
MODEL NO.
SERIAL NO.
DRAWINGS INCLUDED:
___ ttooo PEDESTAL
___ 4100 OVERARM ASSEMBLY
___ tt380 INFEED
______ 2700 INFEED
___ 1850 SOLENOID PUSHER
___ 1725 AIR PUSHER.
___ 3900 PULLER
___ tt72S CLUTCH/BRAKE
___ 06000 CONVEYOR
___ 1970 PNEUMATICS
___ 1971 PNEUMATICS
___ RI P CORD/F ILLER COR:J ATTACHt·1ENT
___ ELECTRICAL SPECS
..

,

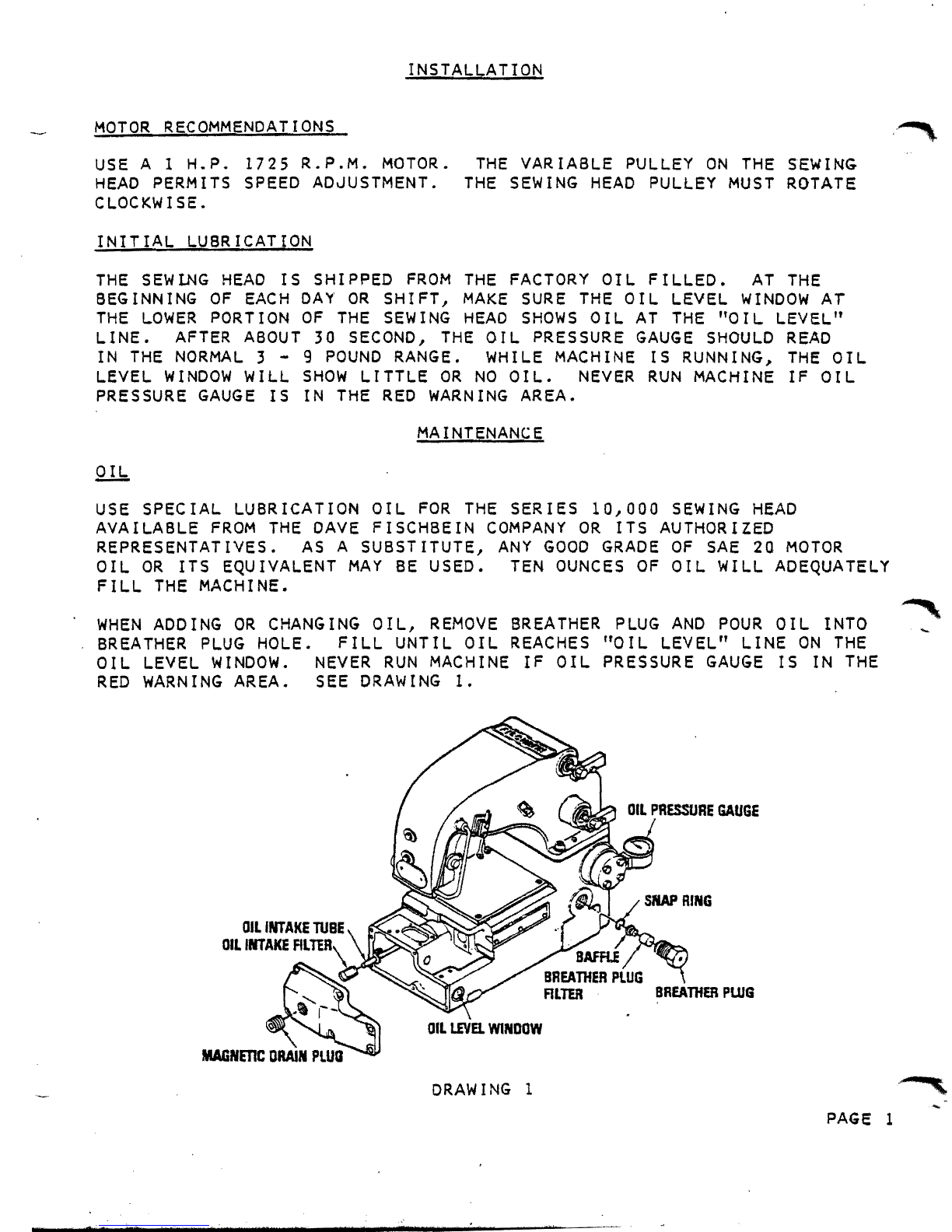

INSTALLATION
MOTOR RECOMMENDAT I ONS~
USE A 1 H.P. 1725 R.P.M. MOTOR. THE VARIABLE PULLEY ON THE SEWING
HEAD PERMITS SPEED ADJUSTMENT. THE SEWING HEAD PULLEY MUST ROTATE
CLOCKW ISE.
INITIAL
LUBRICATION
THE SEWING HEAD IS SHIPPED FROM THE FACTORY OIL FILLED. AT THE
BEGINNING OF EACH DAY OR SHIFT, MAKE SURE THE OIL LEVEL WINDOW AT
THE LOWER PORTION OF THE SEWING HEAD SHOWS OIL AT THE "OIL LEVEL
It
LINE. AFTER ABOUT 30 SECOND, THE OIL PRESSURE GAUGE SHOULD READ
IN THE NORMAL 3 - 9 POUND RANGE. WHILE MACHINE IS RUNNING, THE OIL
LEVEL WINDOW WILL SHOW LITTLE OR NO OIL. NEVER RUN MACHINE IF OIL
PRESSURE GAUGE IS IN THE REO WARNING AREA.
MAINTENANCE
ill
USE SPECIAL LUBRICATION OIL FOR THE SERIES 10,000 SEWING HEAD
AVAILABLE FROM THE DAVE FISCHBEIN COMPANY OR ITS AUTHORIZED
REPRESENTATIVES. AS A SUBSTITUTE, ANY GOOD GRADE OF SAE 20 MOTOR
OIL OR ITS EQUIVALENT MAY BE USED. TEN OUNCES OF OIL WILL ADEQUATELY
FILL THE MACHINE.
WHEN ADDING OR CHANGING OIL, REMOVE BREATHER PLUG AND POUR OIL INTO
BREATHER PLUG HOLE. FILL UNTIL OIL REACHES nOlL LEVEL" LINE ON THE
OIL LEVEL WINDOW. NEVER RUN MACHINE IF OIL PRESSURE GAUGE IS IN THE
RED WARNING AREA. SEE DRAWING 1.
DRAWING 1
PAGE 1

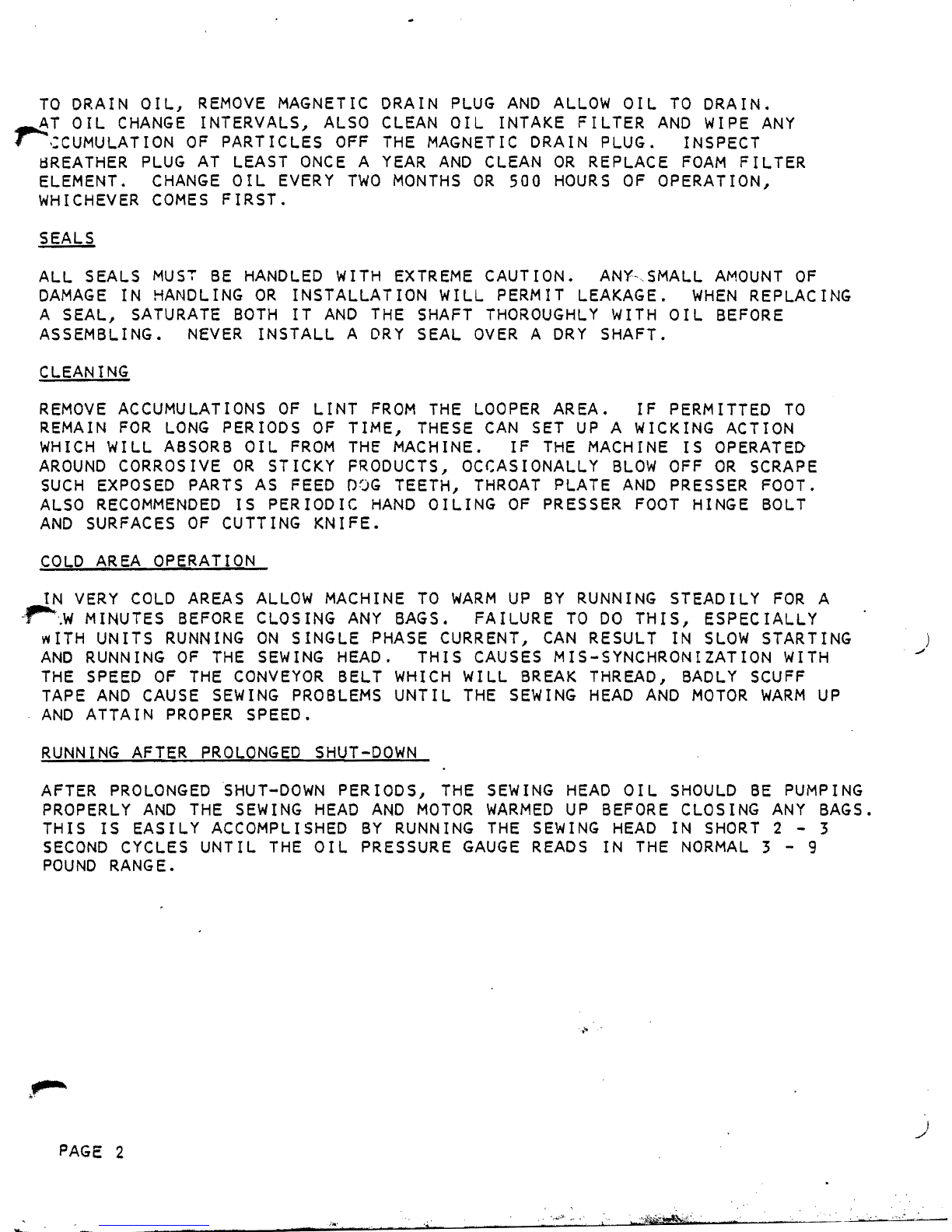

TO DRAIN OIL, REMOVE MAGNETIC DRAIN PLUG AND ALLOW OIL TO DRAIN.
~T OIL CHANGE INTERVALS, ALSO CLEAN OIL INTAKE FILTER AND WIPE ANY
# ~CUMULATION OF PARTICLES OFF THE MAGNETIC DRAIN PLUG. INSPECT
~REATHER PLUG AT LEAST ONCE A YEAR AND CLEAN OR REPLACE FOAM FILTER
ELEMENT. CHANGE OIL EVERY TWO MONTHS OR 500 HOURS OF OPERATION,
WHICHEVER COMES FIRST.
SEALS
ALL SEALS MUST BE HANDLED WITH EXTREME CAUTION. ANY-,SMALL AMOUNT OF
DAMAGE IN HANDLING OR INSTALLATION WILL PERMIT LEAKAGE. WHEN REPLACING
A SEAL, SATURATE BOTH IT AND THE SHAFT THOROUGHLY WITH OIL BEFORE
ASSEMBLING. NEVER INSTALL A DRY SEAL OVER A DRY SHAFT.
CLEANING
REMOVE ACCUMULATIONS OF LINT FROM THE LOOPER AREA. IF PERMITTED TO
REMAIN FOR LONG PERIODS OF TIME, THESE CAN SET UP A WICKING ACTION
WHICH WILL ABSORB OIL FROM THE MACHINE. IF THE MACHINE IS OPERATED
AROUND CORROSIVE OR STICKY FRODUCTS, OCCASIONALLY BLOW OFF OR SCRAPE
SUCH EXPOSED PARTS AS FEED DOG TEETH, THROAT PLATE AND PRESSER FOOT.
ALSO RECOMMENDED IS PERIODIC HAND OILING OF PRESSER FOOT HINGE BOLT
AND SURFACES OF CUTTING KNIFE.
COLD AREA OPERATION
IN VERY COLD AREAS ALLOW MACHINE TO WARM UP BY RUNNING STEADILY FOR A
~f""".W MINUTES BEFORE CLOSING ANY BAGS. FAILURE TO DO THIS, ESPECIALLY
~ITH UNITS RUNNING ON SINGLE PHASE CURRENT, CAN RESULT IN SLOW STARTING
AND RUNNING OF THE SEWING HEAD. THIS CAUSES MIS-SYNCHRONIZATION WITH
THE SPEED OF THE CONVEYOR BELT WHICH WILL BREAK THREAD, BADLY SCUFF
TAPE AND CAUSE SEWING PROBLEMS UNTIL THE SEWING HEAD AND MOTOR WARM UP
AND ATTAIN PROPER SPEED.
RUNNING AFTER PROLONGED SHUT-DOWN
AFTER PROLONGED SHUT-DOWN PERIODS, THE SEWING HEAD OIL SHOULD BE PUMPING
PROPERLY AND THE SEWING HEAD AND MOTOR WARMED UP BEFORE CLOSING ANY BAGS.
THIS IS EASILY ACCOMPLISHED BY RUNNING THE SEWING HEAD IN SHORT 2 - 3
SECOND CYCLES UNTIL THE OIL PRESSURE GAUGE READS IN THE NORMAL 3 - 9
POUND RANG E.
PAGE 2
-, '
'j'
)
, -"

ADJUSTMENTS
THREADING
FOLLOW THE THREADING DIAGRAM FOR PROPER THREADING. BE SURE LOOPER ~
THREAD PASSES THROUGH BOTH HOLES OF THE LOOPER.
NEEDLE THREAD TENSION
NEEDLE THREAD PUll. -OFF
LOOPER THREAD TENSION
THREADING DIAGRAM
DRAWING 2
TENSIONS
THE LOOPER TENSION MUST BE VERY LIGHT, BARELY DISCERNIBLE WHEN PULLING
THREAD BY HAND. THE NEEDLE THREAD TENSION SHOULD BE VERY FIRM AND
PUT A NOTICEABLE DRAG ON THE THREAD. THE TENSION ASSEMBLY LOCATED ON
THE NEEDLE LEVER MUST PUT ONLY LIGHT PRESSURE, ABOUT THE SAME AS THE
LOOPER TENSION, ON THE THREAD.
NEEDLE REPLACEMENT
BE SURE NEW NEEDLE IS INSERTED INTO THE NEEDLE CHUCK AS FAR AS IT WILL
GO. LOCK NEEDLE SET SCREW AGAINST FLAT OF NEEDLE SHANK. CAUTION:
USE THE SMALL NEEDLE WRENCH PROVIDED WITH THE MACHINE. EXCESSIVE
PRESSURE ON THE NEEDLE SET SCREW CAN DAMAGE SCREW OR NEEDLE CHUCK.
.---,
PAGE !J

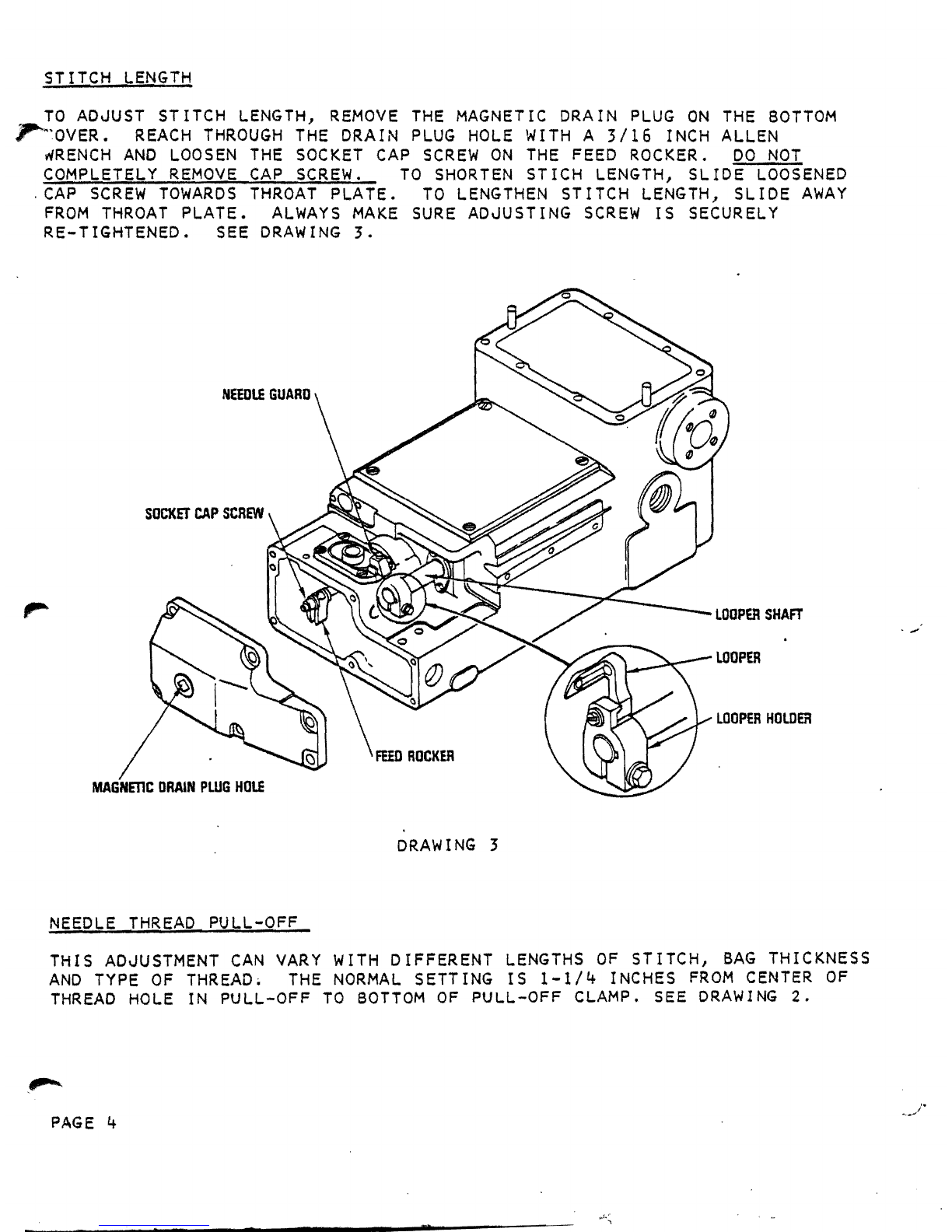

ST ITCH LENGTH
TO ADJUST STITCH LENGTH
7
REMOVE THE MAGNETIC DRAIN PLUG ON THE BOTTOM
r·~OVER. REACH THROUGH THE DRAIN PLUG HOLE WITH A 3/16 INCH ALLEN
~RENCH AND LOOSEN THE SOCKET CAP SCREW ON THE FEED ROCKER. DO NOT
COMPLETELY REMOVE CAP SCREW. TO SHORTEN STICH LENGTH, SLIDE LOOSENED
.CAP SCREW TOWARDS THROAT PLATE. TO LENGTHEN STITCH LENGTH
7
SLIDE AWAY
FROM THROAT PLATE. ALWAYS MAKE SURE ADJUSTING SCREW IS SECURELY
RE-TIGHTENED. SEE DRAWING 3.
NEEDLE GUARD
LOUPeH SHAFT
LOOPER HOLDER
DRAWING 3
NEEDLE THREAD PULL-OFF
THIS ADJUSTMENT CAN VARY WITH DIFFERENT LENGTHS OF STITCH, BAG THICKNESS
AND TYPE OF THREAD. THE NORMAL SETTING IS 1-1/4 INCHES FROM CENTER OF
THREAD HOLE IN PULL-OFF TO BOTTOM OF PULL-OFF CLAMP. SEE DRAWING 2.
PAGE 4
= m

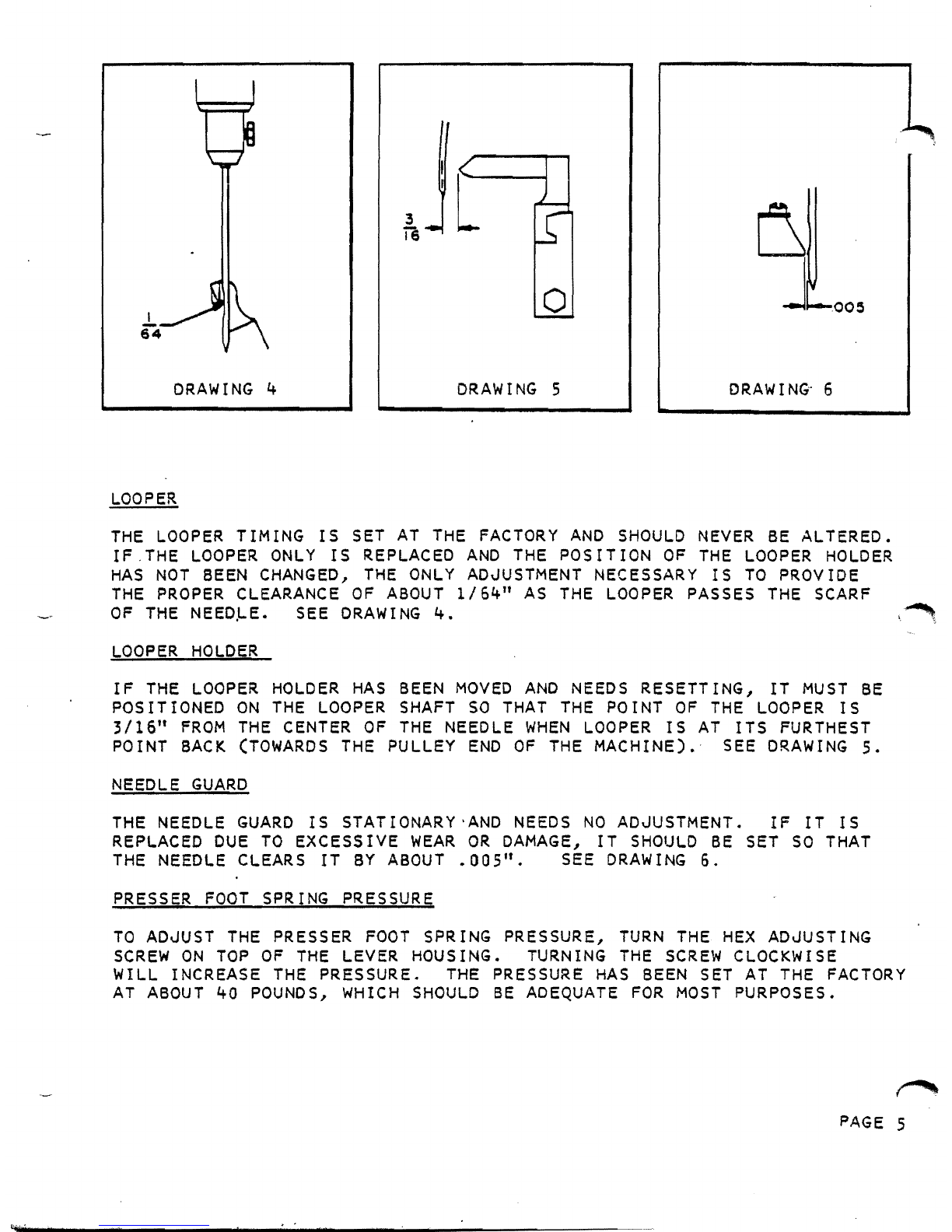

DRAWING Lt
LOOPER
3
i6
[
DRAWING 5 DRAWING- 6
THE LOOPER TIMING IS SET AT THE FACTORY AND SHOULD NEVER BE ALTERED.
IF.THE LOOPER ONLY IS REPLACED AND THE POSITION OF THE LOOPER HOLDER
HAS NOT BEEN CHANGED, THE ONLY ADJUSTMENT NECESSARY IS TO PROVIDE
THE PROPER CLEARANCE OF ABOUT 1/6Lt
11
AS THE LOOPER PASSES THE SCARF
OF THE NEED~E. SEE DRAWING Lt.
LOOPER HOLDER
IF THE LOOPER HOLDER HAS BEEN MOVED AND NEEDS RESETTING, IT MUST BE
POSITIONED ON THE LOOPER SHAFT SO THAT THE POINT OF THE LOOPER IS
3/16" FROM THE CENTER OF THE NEEDLE WHEN LOOPER IS AT ITS FURTHEST
POINT BACK (TOWARDS THE PULLEY END OF THE MACHINE). SEE DRAWING 5.
NEEDLE GUARD
THE NEEDLE GUARD IS STATIONARY-AND NEEDS NO ADJUSTMENT. IF IT IS
REPLACED DUE TO EXCESSIVE WEAR OR DAMAGE, IT SHOULD BE SET SO THAT
THE NEEDLE CLEARS IT BY ABOUT .005". SEE DRAWING 6.
PRESSER FOOT SPRING PRESSURE
TO ADJUST THE PRESSER FOOT SPRING PRESSURE, TURN THE HEX ADJUSTING
SCREW ON TOP OF THE LEVER HOUSING. TURNING THE SCREW CLOCKWISE
WILL INCREASE THE PRESSURE. THE PRESSURE HAS BEEN SET AT THE FACTORY
AT ABOUT LtO POUNDS, WHICH SHOULD BE ADEQUATE FOR MOST PURPOSES.
PAGE 5

FEED DOG HEIGHT
,.....THE TEETH OF THE FEED DOG SHOULD PROTRUDE 1/16" ABOVE THE THROAT
?LATE WHEN AT THEIR HIGHEST POINT. NO HEIGHT ADJUSTMENT OF THE
FEED DOG SHOULD BE NECESSARY WHEN REPLACING IT. HOWEVER~ IF THE
FEED DOG HAS BEEN RESHARPENED OR IS BEING RAISED TO COMPENSATE FOR
WORN TEETH (NOT RECOMMENDED PROCEDURES), IT WILL BE NECESSARY TO
LOOSEN THE FEED DOG CARRIER ROD CLAMP~ AND RAISE THE FEED DOG
CARRIER ROD TO RESTORE THE PROPER 1/16" HEIGHT OF THE FEED DOG
TEETH ABOVE THE THROAT PLATE. BE SURE TO ALIGN THE FEED DOG
PROPERLY IN THE SLOTS OF THE THROAT PLATE BEFORE SECURELY LOCKING
THE FEED DOG CARRIER ROD.
TAPE/THREAD CLIPPER ADJUSTMENT
NOTE 1: ANY TIME AN ADJUSTMENT OR REPLACEMENT IS MADE TO THE
CLIPPER KNIVES~ FEED DOG OR THROAT PLATE, LOCK NUT itA" MUST BE
LOOSENED SO SET SCREW "B" CAN BE TURNED CLOCKWISE UNTIL THE
STATIONARY BLADE AND THE MOVING BLADE SEPARATE. SEE DRAWING 8.
NOTE 2: TO ADJUST THE STATIONARY BLADE~ FIRST REMOVE THE FENCE
FROM THE THROAT PLATE AND LOOSEN SCREW nC
It
• ADJUST THE STATIONARY
BLADE SO THAT IT IS PARALLEL TO THE MOVING BLADE ACROSS THE FULL
SURFACE OF THE BLADES. THIS WILL ALLOW GOOD SHEARING ACTION.
SEE DRAWING 8.
NOTE 3: WHEN THE CLIPPER AIR IS ON AND THE KNIFE IS AT ITS HIGHEST
,....."POINT, THE EXTENSION ON THE MOVING BLADE SHOULD BE FLUSH WITH THE
. BOTTOM OF THE THROAT PLATE. SEE DRAWING 7.
AFTER MAKING ANY ADJUSTMENTS OR REPLACEMENTS, BE SURE SET SCREW nB"
HAS BEEN TURNED COUNTER-C~OCKWISE UNTIL STATIONARY BLADE AND MOVING
BLADE HAVE MADE FIRM CONTACT AND LOCK NUT "A" HAS BEEN RETIGHTENED.
HOTEl
_~-4--F£Na
SHNOTEZ
/ '--"
STAllOIiIAIIY SUOE MOVING BUllE
MOYlII6 BlADE
DRAWING 7
DRAWING 8
PAGE 6

TROUBLE SHOOTER
FOR FISCHBEIN MODEL 10,400 BAG CLOSER
I. SEWING HEAD
A. SYNCHRONIZATION
THE SEWING HEAD MUST BE SYNCHRONIZED WITH THE
CONVEYOR BELT. THE HEAD SHOULD RUN ABOUT 5-10%
FASTER THAN CONVEYOR. IF POWER IN-FEED AND TOP
TRIMMER IS USED, IT MUST BE SYNCHRONIZED WITH
THE CONVEYOR. ALL CONVEYOR MODELS ARE PROPERLY
SYNCHRONIZED AT THE FACTORY, BUT DIFFERENCES IN
VOLTAGE BETWEEN FACTORY AND CUSTOMER PLANT MIGHT
MAKE MINOR ADJUSTMENTS NECESSARY.
B. OIL IN SEWING HEAD
1. CHECK OIL LEVEL DAILY. DO NOT ALLOW MACHINE TO
RUN LOW.
2. REMOVE ACCUMULATIONS OF LINT AND DIRT FROM
LOOPER AREA. IF PERMITTED TO REMAIN FOR LONG
PERIODS OF TIME, THESE CAN SET UP A WICKING
ACTION WHICH WILL ABSORB OIL FROM THE MACHINE.
C. THREAD BREAKAGE OR SKIPPING STITCHES
1. CHECK TO BE SURE NOTHING IS INTERFERING WITH
THE FREE PASSAGE OF THE THREAD FROM THE CONES
ALL THE WAY TO THE NEEDLE AND LOOPER.
2. CHECK TO BE SURE BOTH NEEDLE AND LOOPER ARE
THREADED PROPERLY. SEE FIG. 2. USE TWEEZERS
SUPPLIED WITH MACHINE TO THREAD TO? (OR BACK)
END OF THE LOOPER.
3.
CHECK
THE NEEDLE THREAD PULL-OFF.
SEE PAGE
4.
4.
CHECK
TENSION OF BOTH THREAD.
SEE PAGE 3.
5.
REPLACE NEEDLE. SEE PAGE 3.
6.
CHECK CONDITION OF LOOPER. IF IT IS ROUGH
OR
HAS SOME NICKS, REPLACE IT. SEE PAGE 5.
7.
CHECK CONDITION OF THROAT PLATE. IF IT IS
ROUGH
OR HAS NICKS,
SMOOTH IT OUT OR REPLACE IT.
PAGE 7.
,-

D. UNEVEN STITCH LENGTH OR POOR FEEDING (SHORT STITCHES)
1. CHECK SHARPNESS OF FEED DOG. IF DULL, REPLACE IT.
2. CHECK PRESSURE ON PRESSER FOOT. IT SHOULD BE
APPROXIMATELY 40 LBS. SEE PAGE 5.
3. CHECK TO BE SURE TAPE IS ON REEL HOLDER PROPERLY
AND THAT THERE IS NO BIND BETWEEN THE REEL HOLDER
AND THE FOLDER.
E. EXCESSIVE NEEDLE DAMAGE
1. SEWING MAY BE TOO CLOSE TO CONTENTS OF BAG.
2. CHECK ALIGNMENT OF NEEDLE SLOT IN PRESSER FOOT
TO BE SURE NEEDLE DOES NOT RUB.
3. CHECK PRESSER FOOT PRESSURE. SEE PAGE 5.
4. CHECK SYNCHRONIZATION. SEE PAGE 7.
II. PNEUMATIC CONTROLS
A. THE CLUTCH BRAKE ON THE SEWING HEAD MOTOR AND THE TAPE
CUTTING KNIFE ASSEMBLY ARE BOTH PNEUMATICALLY OPERATED.
. II I. TAPE
1. REGULATOR FOR CLUTCH BRAKE SHOULD BE 60 P.S.I.
MAXIMUM.
2. REGULATOR FOR TAPE CLIPPER SHOULD BE 90 P.S.I.
MINIMUM. .
3. SEE MANUFACTURER'S INSTRUCTION SHEETS FURNISHED
WITH MACHINE FOR PROPER MAINTENANCE AND OPERATION
OF THE TWO FILTER/LUBRICATOR ASSEMBLIES •
A. SCUFFING
PAGE 8.
1. TAPE REEL DRAG SPRING (PART NO. A4807) TOO TIGHT.
2. TAPE MAY BE TOO WIDE FOR FOLDER.
3. FEED DOG DULL.
4. FOLDER MISALIGNED WITH SEWING HEAD.
5. TAPE REEL MISALIGNED WITH FOLDER.
6. CHECK STARTING POSITION OF CLUTCH ACTUATOR
LEVERS, A-1930 & A-1931.

B. UNEVEN TAPING (MORE THAN 1/8")
1. TAPE IMPROPERLY IN FOLDER.
2. TAPE TOO NARROW FOR FOLDER.
3. FOLDER BLADES (PART NO. 10451) MISADJUSTED.
C. WRINKLING OF TAPE
1. FOLDER MISALIGNED WITH SEWING HEAD.
2. TAPE FENCE GUIDE (PART NO. 10449) TOO FAR
FROM PRESSER FOOT.
3. BOTTOM SURFACE OF PRESSER FOOT ROUGH OR
STICKY.
4. CHECK STARTING POSITION OF CLUTCH ACTUATOR
LEVERS, A-1930 g A-1931.
"...........
PAGE 9. -

.......
"""
PAGE 10

) j .. ~
ITEM
NO.
1
2
3
4
5
6
7
S
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
PART
NO.
10111
10022
FI032114
FI03258
10170
NH1420
WF14
WN14 /lWS)"
10093
10016
H103212
WN8
1/208
10112
10097
H103212
/1208
10164
H103234
10098
B632316
10116
10121
10179
1013~
10227
10226
HI0321
10094
10001
10095
10100
HI03212
10438
H103258
10484
10182
10485
BI03214
10449
F83212
10446
-10434
NH832
B103238
WN8
H103212
WN8
1/208
10442
10441

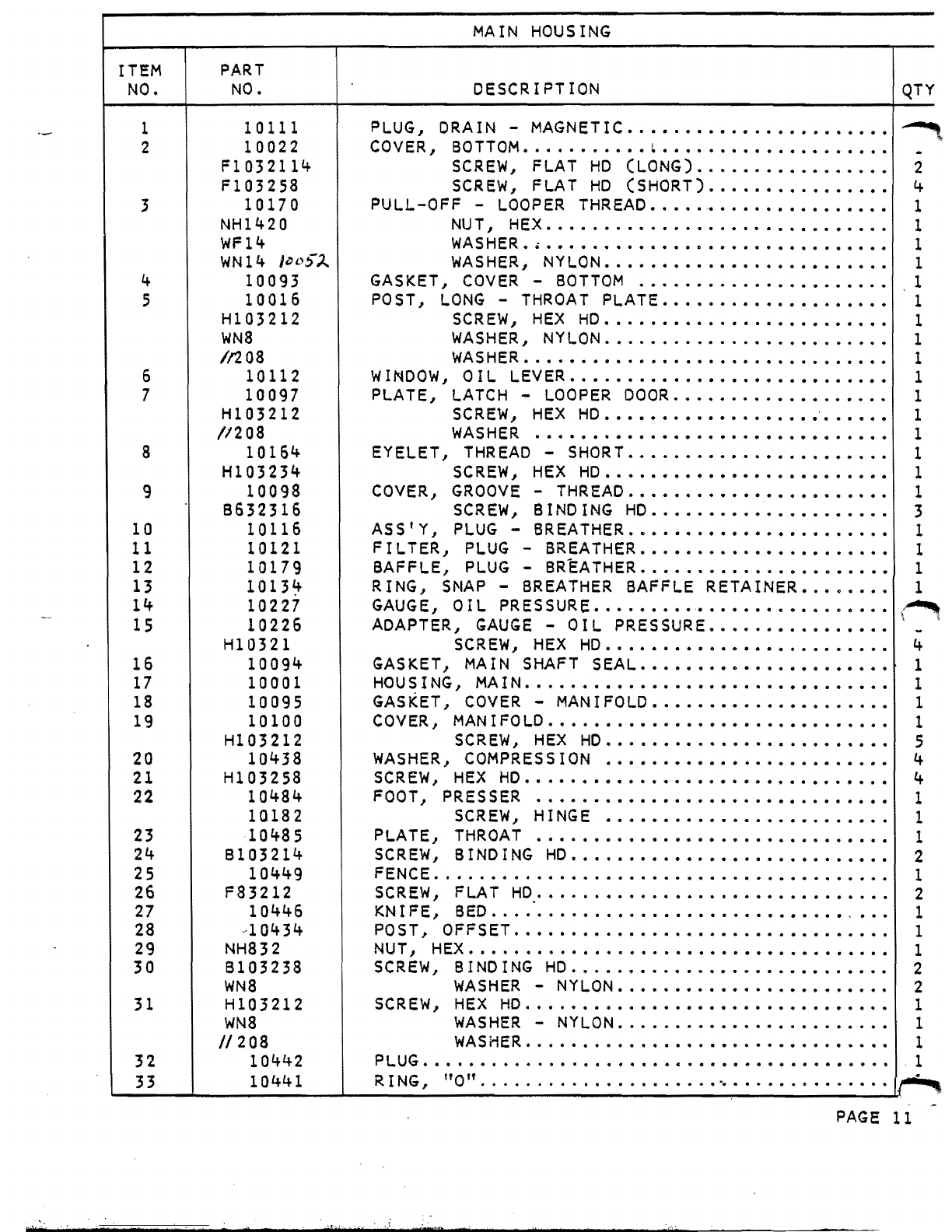

MAIN HOUSING
DESCRIPTION
QTY
PLUG ... DRAIN - MAGNETIC ..........•............ ~
COVER J BOTTOM •.. ..•••••• ~ .................... ...
SCREW ... FLAT HD (LONG) ................ .
SCREW ... FLAT HD (SHORT) ............... .
PULL-OFF - LOOPER THREAD .....•...............
NUT, HEX ............................... .
WASHER ................ fI ••••••••••••••••
WASHER
J NyLON
•••••••••••••••••••••••••
GASKET ... COVER - BOTTOM ...............•......
POST ... LONG - THROAT PLATE ................... .
SCREW" HEX HO ......................... .
WASHER... NY LON ........................ .
WASHER ............................................... ..
WINDOW ... OIL LEVER ............•...••..••......
PLATE ... LATCH - LOOPER DOOR ............•..•...
SCREW, HEX HD ............................... .
WASHER ...................................... .
EYELET, THREAD - SHORT .......•.•..••.•.•••...
SCREW" HEX HD ............................ .
COVER, GROOVE - THREAD .•......•..••........•.
SCREW, BINDING HD ..•..•.•.•......•....
ASS'Y ... PLUG - BREATHER .•..•..•.•••.••.......•
FILTER, PLUG - BREATHER ...•.......•..........
BAFFLE, PLUG - BREATHER ..................... .
RING,
SNAP - BREATHER BAFFLE RETAINER ....... .
GAUGE ... OIL PRESSURE .......•.•.............•..
ADAPTER ... GAUGE -OIL PRESSURE ......•...•.•...
2
4
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
3
1
1
1
1
, ........
\ '1
SCREW, HEX HD ........•..••.••......... 4
GASKET, MAIN SHAFT SEAL .......•...•...•..•... 1
HO US I NG.I MA IN.. • .. • . • .. • .. . . • .. .. . • • • • • .. . .. • • • • • • • • • 1
GASKET ... COVER - MANIFOLD •....•.•....•.•...... 1
COVER, MANIFOLD.............................. 1
SCReWI H EX HD......................... S
WASHER, COMPRESSION ...•....•.••...•...•.•... 4
SCREW., HEX HO .......•.........•.•.•......•... 4
FOOT 1 PRESSER ...••..•••.•...•..•.•••..••..•• 1
SCREW, HINGE •..•••...•.•..........•.. 1
PLATE" THROAT ........•...•..•...........•... 1
SCREW ... BINDING HD .........•..........•....... 2
FENCE......................................... 1
SCREW, FLAT HO.................................. 2
KN I FE I B ED . . . . . . . . . . . . . . . . . . . . . . . . . . • . . . • ' . . . 1
POST I OFFSET................................... 1
NUT, HEX •.•....•••.•. a ••••••••• e ••••••••••••• 1
SCREW, BINDING HD............................ 2
WASHER - NyLON............................. 2
SCREW1 HEX HO.................................. 1
WASHER - NYLON ........................ 1
WASHER.................................... 1
PLUG. . . . . . .. . . .. . . . . . . . . • • • • c • • • • • • • • • • • • • • .. • ... . 1
RING, "Olf ...................................... ~
PAGE 11

PAGE 12

IT~M
PART
NO. NO.
1 10142
2
101Gl
H103278
WF10
3 ,10188
551032516
4 -10123
B103238
5
10146
6 ,10013
7
10145
H103234
1-178
8
10144
9 10171
10
10172
H103234
11
10164
HI03234
12 NH1428L
13
10114
14 10008
15
10120
16
10007
17
10115
18
,120
19 10010
20
10165
H103234
21
H3824134
WF38
22 10002
SC51G181
WSS16
23 10143
55142038
24 SC 5161858
25 10187
26
10186
27
10139
55142014
28
10141
SC142034
4·
..
-'

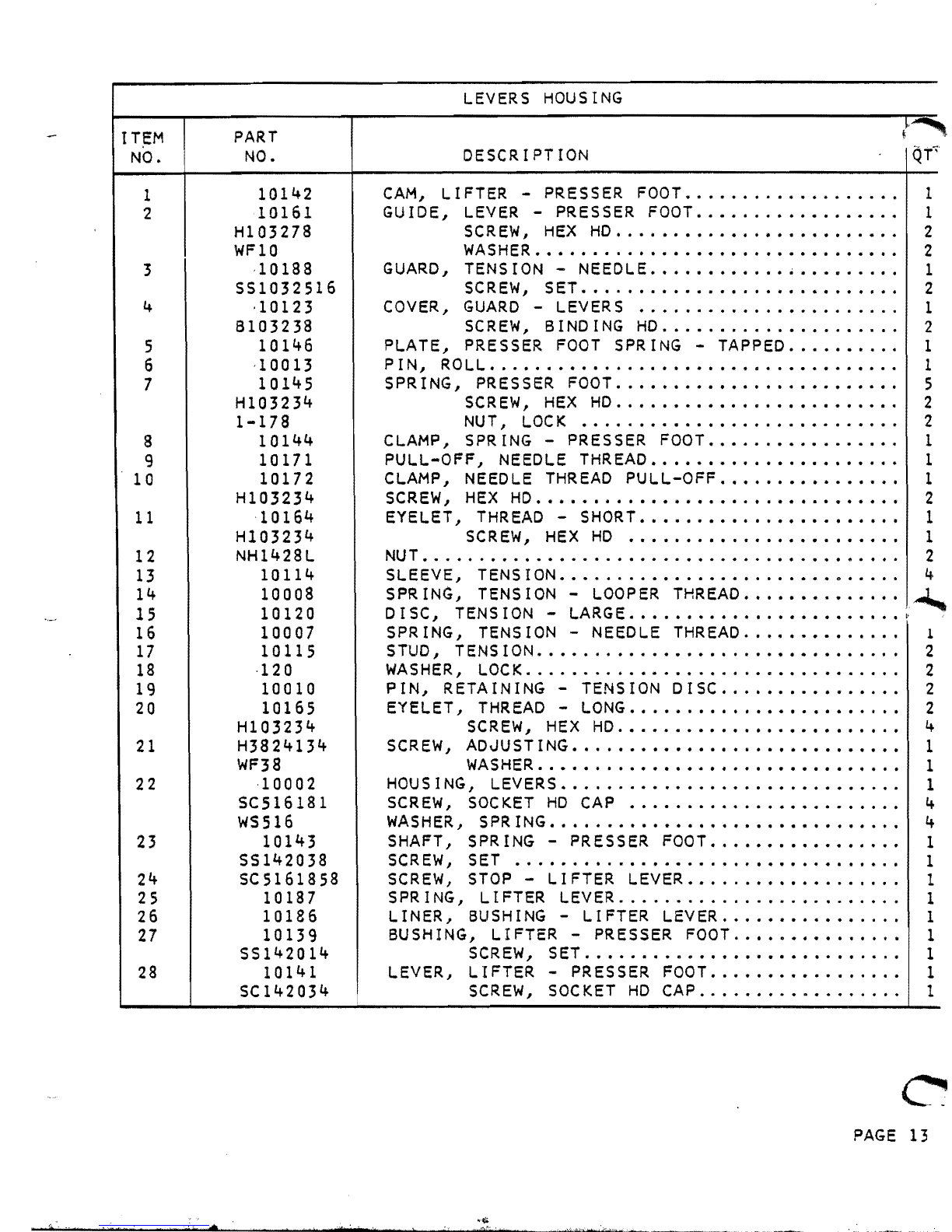

LEVERS HOUSING
DESCRIPTION
CAM, LIFTER - PRESSER FOOT ................... 1
GUIDE, LEVER - PRESSER FOOT .................. 1
S CREW, HEX HD......................... 2
WASHER. • • • • . . . • • • • • . • • • • • • • • • • • • • • • • . • 2
GUARD, TENSION - NEEDLE ............ ~ ......... 1
SCREW
J
SET............................ 2
COVER, GUARD - LEVERS .............•......... 1
SCREW, BINDING HD ..................... 2
PLATE,
PRESSER FOOT SPRING - TAPPED .......... 1
PIN" ROLL ............................. «....... 1
SPRING, PRESSER FOOT ......................... 5
SCREW" HEX HO .•••••••••.• " ••••.••••••• 2
NU TI LOC K ••.•..•••••••.••.•.••...•••• 2
CLAMP, SPRING - PRESSER FOOT .......•......... 1
PULL-OFF,
NEEDLE THREAD ...................... 1
CLAMP, NEEDLE THREAD PULL-OFF................ 1
SCREW" HEX HD................................ 2
EYELET, THREAD - SHORT .............•......... 1
S CREW, HEX HD •......••..••.•••...•••• 1
NU T • « • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • • & • • • • 2
SLEEVE, TENS I ON. . . . . . . . . . . . . . . . . . . . . . • . • . . . . . 4
SPRING,
TENSION - LOOPER THREAD ......•....... ~
DISC, TEN S ION - LA RGE. . . . . . . . . . . . . . . . . . . . . . . . ,
SPRING,
TENSION - NEEDLE THREAD.............. 1
5 TL~ 0 J TENS ION. • • • • • • • • « • • • • • • • • • • • • • • • • • • • • •• 2
WASHER" LOCK ....••••••••.••.••••• II • • • • • • • • • • • 2
PIN, RETAINING - TENSION DISC .........•...... 2
EYELET, THREAD - LONG .............•.......... 2
SCREW, HEX HD......................... 4
SCREW, ADJUSTING............................. 1
WASHER.. .. • .. • .. • • .. • .. • • • .. • • .. • • .. .. • • .. .. • • • • .. .. 1
HOUS lNG, LEVERS.............................. 1
SCREW, SOCKET HD CAP .............•.......... 4
WASHER, SPRING ................................................. 4
SHAFT, SPRING - PRESSER FOOT... .............. 1
SCREW, SET.......................................................... 1
SCREW, STOP -LIFTER LEVER ................... 1
SPRING, LIFTER LEVER......................... 1
LINER,
BUSHING -LIFTER LEVER................ 1
BUSHING, LIFTER - PRESSER FOOT............... 1
SCREW, SET............................ 1
LEVER, LIFTER - PRESSER FOOT................. 1
SCREW, SOCKET HD CAP .................. 1
PAGE 13
'Ii>
@" ,

j'
PAGE 14
~
~~~ ____________ ~ __ tt.~ ______ ~_
-...,. -
,

1
2
'+
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
2'+
25
26
27
28
29
30
31
32
33
34
35
36

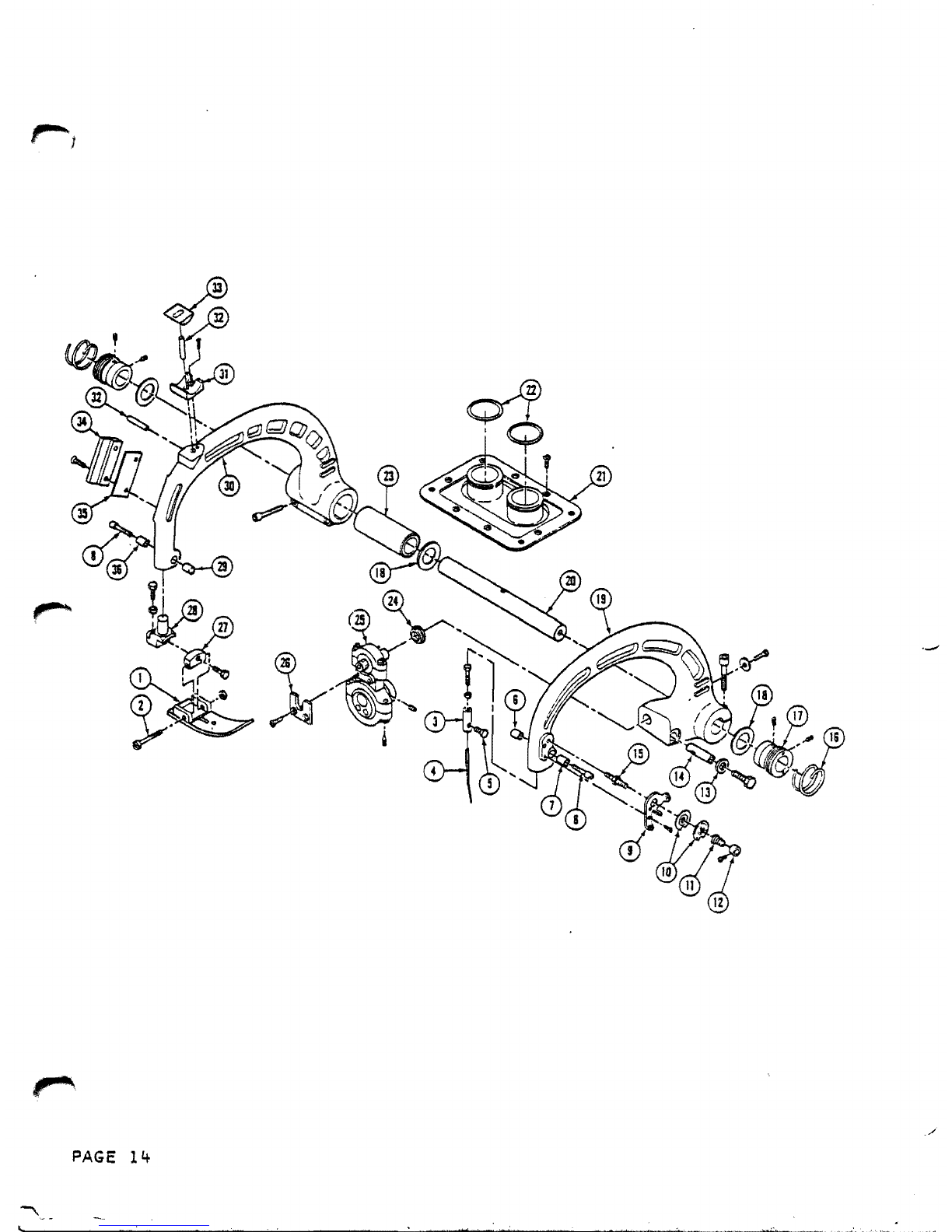

NEEDLE & PRESSER FOOT LEVER ASSEMBLIES
PART
NO.
10484
10182
~I/H/~oZ.
10031
H103234
,"'.
~ ,.Iw ... !.U-1,,"'If v."'.,
C-100-S
10011
10212
10211
SC63234
10166
F54038
10119
10009
10181
B632316
10231
H10321Z.
10232
10113
10023
1002S
SS1032316
SS103238~
n129
10003
5C1'+20114
10026
10137
FI03238
10128
10028
10159
10047
SS142038CP
SS142014
H103238
WSI0
10048
F103238
- 10156
H103234
10155
H103234 I.
~,v'JfI0.3 ....
10214
10004
SC1420114
10189
F63212
10193
10190
10163
Fl03258
10162
10213
PRES SER FOOT ............................•...
BOLT, HINGING - PRESSER FOOT .......•........
NUT •••.••..•.•.••• •" ••.••.••.•••••••..
CHUCK, NEEDLE ..•..................•.••......
SCREW, HEX HO ........................ .
NU T I HEX HD .......................... .
NEEDLE ........ '" .•. ••.•••.••••••..••••.•.•••.•
SCREW, CLAMP - NEEDLE ..............•..•.....
PLUG, CLAMP - TAPPED (NEEDLE LEVER) ........ .
PLUG, CLAMP DRILLED (NEEDLE LEVER) ......... .
SCREW, SOCKET HD CAP ...•.........•..........
GU IDE, THREAD - NEEDLE LEVER ...•...•.•......
SCREW, FLAT HO ••...•..•..••.•••••.••••••••••
DISC., TENSION - SMALL .....•.•••.....••.....
SPR lNG, TENS ION - NEEDLE LEVER ......•.••...•
COLLAR, TENSION - NEEDLE LEVER •.•.•.•.••..••
SCREW, BIND ING HD .....•.••...•......••....•..
W~SHER, HEAVY - NEEDLE LEVER ........•.•.•...
SCREW, HEX HD •...•.•......•.......•..
ROD, CLAMP - NEEDLE LEVER •............•.•.•.
STUD, TENSION - NEEDLE LEVER .....••.......•.
INSERT, THREAD - LEVERS SHAFT BUSHING •...•.•
BUSHING, SHAFT - LEVERS •.....••...•••...•.•.
SCREW, SET (SHORT) ....••......•••..•.
SCREW, SET (LONG) ••..........•.•..•..
WASHER, THRUST ..•••..•.•.•..••••••••...••.••
LEVER, NEEDLE .•.........•.••.....••..•.•..••
SCREW, SOCKET HD CAP ..•.•....•.•....•
SHAFT, LEVERS .•..••.•••.•.••.•.•....• , ••••.•
SEA L, LEV ER S. . . . . . . . . . . . • . . . . . . . . . • . • . . . . . • .
SCREW, FLAT HD .•...........•.........•......
SPRING, GARTER - LEVERS SEAL ...........••.•.
BUSHING, LEVER - PRESSER FOOT •.•..•...•.•...
SPACER, STUD - BALL ....•.•.....•..•.........
ROD, CONNECTING - NEEDLE DRIVE .....•........
SCREW, SET - CONE POINT ............ ..
SCREW, SET ..•••••••..••••.••••••.•••.
SCREW, HEX HD ..••.........•••••..•...
WASHER, SPRING •...•......•.•..•...•..
RESTRAINER, ROD - CONNECTING .•...•.•...•...•
SCREW, FLAT HD ••...•...•...•••.•.•.•.
BLOCK, HINGE - PRESSER FOOT .•..•...•.••••...
SCREW, HEX HD •••••.••••••••••••••••••
SHANK, PRESSER FOOT .....................•.•.
SCR EW -' HEX HD ....................... .
NUT, HEX ............ 0 ••••••••••••••••
PLUG, CLAMP-TAPPED (PRESSER FOOT) •.•...•....
LEVER, PRESSER FOOT ....•..•••.•...•.•••.••.•
SCREW, SOCKET HD CAP ....•............
CRADLE, PAD-PRESSER FOOT SPRING .••...••..•..
SCREW, FLAT HD •.•...•..•......•...••.
PIN, ROLL •.••.••••.•.•.•.......•••.•••.•••••
1
1
1
1
1
1
1
1
1
1
1
1
2
2
1
1
1
1
1
1
1
2
2
2
2
3
1
2
1
1
4
2
1
1
1
1
1
1
1
1
2
1
1
1
1
1
1
1
2
1
1
2
PAD, SPRING - PRESSER FOOT.......... ......•. 1
CLAMP, BEARING - SHEET...................... 1
SCREW, FLAT HD. .•........... ..... ..•. 2
SHEET, BEARING-PRESSER FOOT LEVER GUIDE..... 1
PLUG, CLAMP-DRILLED (PRESSER FOOT) .......... I 1
PAGE 15

-'
F'AGE 16

ITEM
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13'" .
14
15
16
17
18
19
20
PART
NO.

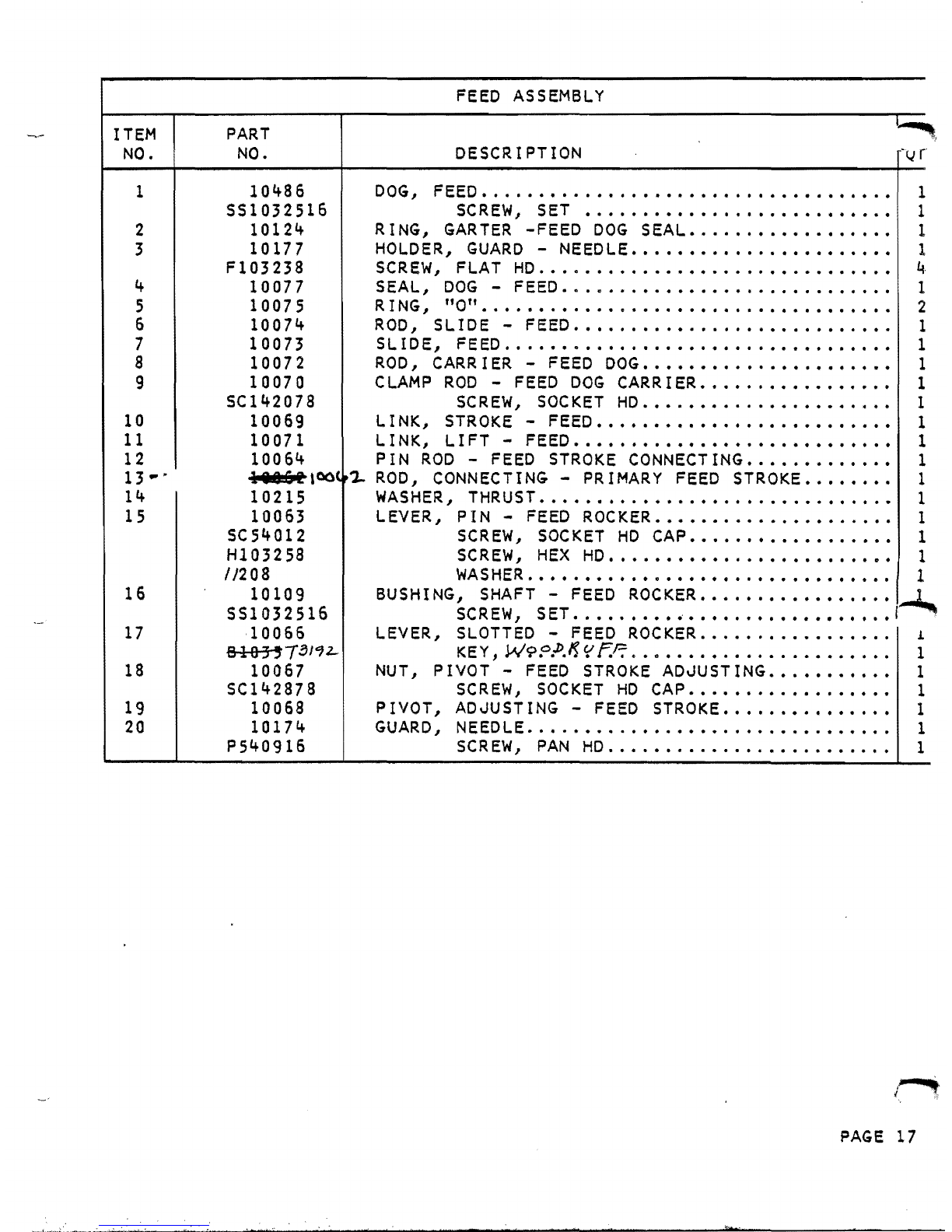

FEED ASSEMBLY
DESCRIPTION
10486 DOG, FEED •...•.•....•.........•.•....•.• it ••••
SS1032516 SCREW., SET ......................••..•
10124 RING., GARTER -FEED DOG SEAL ................. .
10177 HOLDER., GUARD - NEEDLE ....••................•
Fl03238 SCREW., FLAT HD .............••...•..•.....•.••
10077 SEAL., DOG - FEED .......•..•...••........••...
10075 RING, "0" ..•.••.•.....•.•.•.•.•...........••.
10074 ROD., SLIDE - FEED ........................... .
10a73 SLID E,I FEED..................................
10072 ROD., CARRIER - FEED DOG ...•••......••.•..••••
10070 CLAMP ROD - FEED DOG CARRIER •..••..•....•••••
SC142078 SCREW., SOCKET HD .••.••.....•....•...••
10069 LINK., STROKE - FEED ...•.•••....•.........•...
10071 LINK, LIFT - FEED ..••..•..••.•••.•...••••••..
10064 PIN ROD - FEED STROKE CONNECTING .....•....•.•
130&e,CO( ~ ROD, CONNECTING - PRIMARY FEED STROKE ....•••.
10215 WASHER., THRUST .•..••.•.••••....••..•.•.••.•.•
10063 LEVER., PIN - FEED ROCKER .•.•...••...•.••.....
SC54012 SCREW., SOCKET HD CAP •..•..••.••••..••.
HI03258 SCREW, HEX HD •••....••••.......•..•••.
11208 WASHER ••••••••••• " ••••••••••••••••••••
1
1
1
1
4
1
2
1
I
1
1
1
I
1
I
1
1
1
1
1
1
10109
S51032516
10066
BUSHING., SHAFT - FEED ROCKER ....•....•......• ~
SCREW, SET ......••• •' •..•.••.••••••••.• 1
B1a3.,7.3'-,2-
10067
SC142878
10068
10174
P540916
LEVER, SLOTTED - FEED ROCKER .............••..
KEY, W9PI>.~ f.( F.'7 41 ...................... .
NUT., PIVOT - FEED STROKE ADJUSTING ...•.•.••••
SCREW, SOCKET HD CAP .................•
PIVOT., ADJUST ING - FEED STROKE ......•......••
GUARD" NEEDLE •.•.••••.••••••••.•••••••.••••••
SCREW, PAN HD ......................... .
PAGE 17
J.
I
1
I
1
I
I

IT:M
NO.
1
2
3
4
5
6
7
8
PAGE 18
PART
NO.
10060
10208
P540916
WF5
10059
HIO,234
/1208
1007 6 IS it) '(
H103212
10058 1)/:0:;
81 e35 731 " 2-
10055
10173
SCI03212
WFI0S
10056
551032516
10150
SS103258-CPL
SS103212L
LOOPER ASSEMBLY
DESCRIPTION
LOOPER (TWO THREAD) .......•.......... ~ ..... .
LOOPER (SINGLE THREAD) ....................•.
SCREW, PAN HD ...........•..........•.
WASHER ............................................... ..
HOLDER, LOOPER., ............................ .
SCREW~ HEX HO ............... " .. """ ........ " .. ",, .... ..
WASHER ........................ " ...... " .... " " " .. " .. " .. " .... ..
ASS
'Y
SEAL - LOOPER SHAFT .................. .
SCREW, HEX HD ...................................... "".
GASKET, SEAL - LOOPER SHAFT ................ .
KEY, I(£Ip.Q ().te. "F.T;" " " . . . " . . . .. " .. . . " . . . " .. .. . .. .. ". . ..
SHAFT.} LOOPER" ....... " ............ " ............ " .... .
ASS'Y, PIVOT - LOOPER ...................... .
SCREW, SOCKET HD CAP ............... .
WASHER .......................................... .
BUSHING, SHAFT - LOOPER .................... .
SCREW, SET .......................... .
ASSTy CAM - LOOPER ......................... .
SCREW, SET - CONE PO INT ............ ..
SCREH, SET .......................... .
r gi "
QTY.
1
1
1 .
1
1
1
1
1
2
1
1
1
1
2
1
1
1
1
1
1

ITEM
NO.
1
2
3
7
8
9
10
11
12
13
14
15
16
PART
NO.
MAIN SHAFT ASSEMBLY
DESCRIPTION
10045
SHAFT, MA IN ..•..............................
10125 PLUG, PIPE - MAIN SHAFT ...•...•..••........•
10044 BUSHING, MAIN SHAFT - NEEDLE END ..........•.
SS1032516 SCREW, SET ..........•.••.••...•.....•
T-3129 WASHER, THRUST .••..•.•......•..•...•........
.-He62 'o()~OD, CONNECTING - PRIMARY FEED STROKE ...... .
10061 ECCENTRIC, STROKE - FEED •..•.....•..••••....
SS142038 SCREW, SET ....•••...•.•........•.•...
SS142038-CP SCREW, SET - CONE POINT .....•...••.•.
10158 COLLAR, LOCK - MAIN SHAFT ................. ..
SCI03258 SCREW, SOCKET HD CAP ......•........•.
10043 BUSHING, MAIN SHAFT - DRIVE END ..•..........
S51 032 51 6 SC R EW , SET ......................•....
10094 GASKET, MAIN SHAFT SEAL .................... .
10035 ASS'Y, SEAL - MAIN SHAFT .......•..••........
H103212 SCREW, HEX HD ....................... .
10038 HUB, PULLEY - DR IVE ........................ .
SS142038 SCREW, SET ............•........••....
10199 PULLEY, ADJUSTABLE .....••.....•••..•....•...
SS142038 SCREW, SET ...........••..•.....•.•...
FI03258 SCREW, FLAT HD ...................... .
10064 PIN, ROO - FEED STROKE CONNECTING .......... .
10 084 RING, ftO rt , ••••••••• 6 •••••••••• ••••••••••••••
10085 BRACKET, PIVOT - KNIFE .............•....•...
H103212 SCREW, HEX HD .........••........•....
B=16JSr..i11z. KEY" W()P.Rl<.I-.F.r. ••••...•••....••••.•••..••..
QTY.
1
1
1
1
2
1
1
1
1
1
1
1
1
1
1
4
1
2
1
2
3
1
1
1
1+
1
PAGE 19
