FISCHER EU05 User manual
Operating manual
EU05
Transmitter PC Interface
09005821 BA_EN_EU05 ST4-A 11/15
*09005821*
| Masthead FISCHER Mess- und Regeltechnik GmbH
2 / 16 BA_EN_EU05_ST4-A
Masthead
Manufacturer: FISCHER Mess- und Regeltechnik GmbH
Bielefelderstr. 37a
32107 Bad Salzuflen
Telefon: +49 5222 974 0
Telefax: +49 5222 7170
eMail: [email protected]
web: www.fischermesstechnik.de
Technical editorial team: Documentation representative: S. Richter
Technical editor: R.Kleemann
All rights, also those to the translation, reserved. No part of these instructions
may be reproduced or processed, duplicated or distributed using electronic sys-
tems or any other form (print, photocopy, microfilm or another process) without
the written consent of the company Fischer Mess- und Regeltechnik GmbH,
Bad Salzuflen.
Reproduction for internal use is expressly allowed.
Brand names and procedures are used for information purposes only and do
not take the respective patent situation into account. Great care was taken
when compiling the texts and illustrations; nevertheless, errors cannot be ruled
out. The company FISCHER Mess- und Regeltechnik GmbH will not accept any
legal responsibility or liability for this.
Subject to technical amendments.
© FISCHER Mess- und Regeltechnik GmbH 2015
Version history
Rev. ST4-A 11/15 Version 1 (first edition)
FISCHER Mess- und Regeltechnik GmbH Table of Content
BA_EN_EU05_ST4-A iii
Table of Content
1 Safety guidelines........................................................................................................................................... 4
1.1 General....................................................................................................................................................4
1.2 Personnel Qualification ...........................................................................................................................4
1.3 Risks due to Non-Observance of Safety Instructions..............................................................................4
1.4 Safety Instructions for the Operating Company and the Operator ..........................................................4
1.5 Unauthorised Modification.......................................................................................................................4
1.6 Inadmissible Modes of Operation............................................................................................................4
1.7 Safe working practices for maintenance and installation work................................................................ 5
1.8 Pictogram explanation.............................................................................................................................5
2 Product and functional description............................................................................................................. 6
2.1 Delivery scope.........................................................................................................................................6
2.2 Product overview.....................................................................................................................................6
2.3 Use as intended ......................................................................................................................................7
3 Commissioning ............................................................................................................................................. 8
3.1 Design and mode of operation ................................................................................................................8
3.2 Electrical connection ...............................................................................................................................8
3.3 Operation.................................................................................................................................................9
4 Servicing ...................................................................................................................................................... 10
4.1 Maintenance..........................................................................................................................................10
4.2 Transport ...............................................................................................................................................10
4.3 Service ..................................................................................................................................................10
4.4 Disposal.................................................................................................................................................10
5 Technical data ............................................................................................................................................. 11
5.1 Auxiliary energy ....................................................................................................................................11
5.2 Application conditions............................................................................................................................11
5.3 Interfaces...............................................................................................................................................11
5.4 Construction design...............................................................................................................................12
6 Order Codes ................................................................................................................................................ 13
6.1 Accessories ...........................................................................................................................................13
7 Attachments ................................................................................................................................................ 14
7.1 EC Declarations of conformity...............................................................................................................14
1 | Safety guidelines FISCHER Mess- und Regeltechnik GmbH
4 / 16 BA_EN_EU05_ST4-A
1 Safety guidelines
1.1 General
WARNING This operating manual contains instructions fundamental to the installation, op-
eration and maintenance of the device that must be observed unconditionally. It
must be read by the assembler, operator and the specialized personnel in
charge of the instrument before it is installed and put into operation.
This operating manual is an integral part of the product and therefore needs to
be kept close to the instrument in a place that is accessible at all times to the
responsible personnel.
The following sections, in particular instructions about the assembly, commis-
sioning and maintenance, contain important information, non-observance of
which could pose a threat to humans, animals, the environment and property.
The instrument described in these operating instructions is designed and manu-
factured in line with the state of the art and good engineering practice.
1.2 Personnel Qualification
The instrument may only be installed and commissioned by specialized person-
nel familiar with the installation, commissioning and operation of this product.
Specialized personnel are persons who can assess the work they have been
assigned and recognize potential dangers by virtue of their specialized training,
their skills and experience and their knowledge of the pertinent standards.
1.3 Risks due to Non-Observance of Safety Instructions
Non-observance of these safety instructions, the intended use of the device or
the limit values given in the technical specifications can be hazardous or cause
harm to persons, the environment or the plant itself.
The supplier of the equipment will not be liable for damage claims if this should
happen.
1.4 Safety Instructions for the Operating Company and the Operator
The safety instructions governing correct operation of theinstrument must be
observed. The operating company must make them available to the installation,
maintenance, inspection and operating personnel.
Dangers arising from electrical components, energy discharged by the medium,
escaping medium and incorrect installation of the device must be eliminated.
See the information in the applicable national and international regulations.
Please observe the information about certification and approvals in the Tech-
nical Data section.
1.5 Unauthorised Modification
Modifications of or other technical alterations to the instrument by the customer
are not permitted. This also applies to replacement parts. Only the manufac-
turer is authorised to make any modifications or changes.
1.6 Inadmissible Modes of Operation
The operational safety of this instrument can only be guaranteed if it is used as
intended. The instrument model must be suitable for the medium used in the
system. The limit values given in the technical data may not be exceeded.
The manufacturer is not liable for damage resulting from improper or incorrect
use.
FISCHER Mess- und Regeltechnik GmbH Safety guidelines | 1
BA_EN_EU05_ST4-A 5 / 16
1.7 Safe working practices for maintenance and installation work
The safety instructions given in this operating manual, any nationally applicable
regulations on accident prevention and any of the operating company's internal
work, operating and safety guidelines must be observed.
The operating company is responsible for ensuring that all required mainten-
ance, inspection and installation work is carried out by qualified specialized per-
sonnel.
1.8 Pictogram explanation
DANGER Type and source of danger
This indicates a direct dangerous situation that could lead to death or serious
injury (highest danger level).
a) Avoid danger by observing the valid safety regulations.
WARNING Type and source of danger
This indicates a potentially dangerous situation that could lead to death or ser-
ious injury (medium danger level).
a) Avoid danger by observing the valid safety regulations.
CAUTION Type and source of danger
This indicates a potentially dangerous situation that could lead to slight or seri-
ous injury, damage or environmental pollution (low danger level).
a) Avoid danger by observing the valid safety regulations.
NOTICE Note / advice
This indicates useful information of advice for efficient and smooth operation.
2 | Product and functional description FISCHER Mess- und Regeltechnik GmbH
6 / 16 BA_EN_EU05_ST4-A
2 Product and functional description
2.1 Delivery scope
▪ Transmitter PC Interface EU05
▪ Programming cable
▪ USB cable
▪ Plug power supply unit
▪ CD ROM with PC software
– FernPara
– TransPara
– Transmitter Programmer
▪ Operating Instructions
2.2 Product overview
Power supply Programming cable
USB port
Status LED
Data transfer
Status LED
charge control
Status LED
auxiliary energy
Illustration1: Product overview
FISCHER Mess- und Regeltechnik GmbH Product and functional description | 2
BA_EN_EU05_ST4-A 7 / 16
2.3 Use as intended
The EU05 unit is a Transmitter PC Interface that allows comunication between
various devices (transmitters) of the company FISCHER Mess- und Regeltech-
nik GmbH and a conventional PC. It is designed for use in industrial environ-
ments.
The following units from the company FISCHER Mess- und Regeltechnik
GmbH can be connected to the EU05. The list is sorted according to unit type
and required PC software.
Units with LED displays and FernPara software
DE31 Digital differential pressure transmitter / switch
DE38 Digital differential pressure transmitter / switch
DE39 Digital differential pressure transmitter
DE44 Digital two-channel differential pressure switch / transmitter
DE45 Digital differential pressure switch / transmitter
DE46 Digital differential pressure switch / transmitter
EA14D Differential pressure analysis unit
EA14M Pressure analysis unit
EA14F Filling level analysis unit
Units with LC displays and TransPara software
DE24 Digital differential pressure switch / transmitter for panel installa-
tion
DE39 Digital differential pressure transmitter
DE44 Digital two-channel differential pressure switch / transmitter
DE45 Digital differential pressure switch / transmitter
DE46 Digital differential pressure switch / transmitter
EA14A Measuring value display for panel installation
EA14D Differential pressure analysis unit
EA14M Pressure analysis unit
EA14F Filling level analysis unit
FT61 Moisture and temperature transmitter
3 | Commissioning FISCHER Mess- und Regeltechnik GmbH
8 / 16 BA_EN_EU05_ST4-A
3 Commissioning
3.1 Design and mode of operation
The EU05 unit is a Transmitter PC Interface that allows communication
between transmitters(1) and PCs. It is connected to the PC via the USB inter-
face. The transmitter is connected via the M12 programming cable.
There are several ways of supplying power to the EU05:
1. For transmitters with a 3-wire connection, the power comes from the system
power supply. A special adapter cable (see accessories) is required for
some transmitters.
2. Optionally, the EU05 can be supplied with an installed NiMH battery that
supply power to the unit. In this way, the unit can also be used in a mobile
'on-site' manner.
3. A power supply unit with a plug included in the delivery can be used for the
power supply to the EU05. This also serves as a charger for the optionally
installed NiMH battery.
The power is supplied to the connected transmitter via the EU05 and only when
connected to an USB interface.
The 'remote' configuration of the connected transmitter is realised with a special
PC software depending on the type. Please see the list in the section 'Intended
use'‘ [}7] for the software required for your transmitter type. You can download
the latest software for free from our website (www.fischermesstechnik.de).

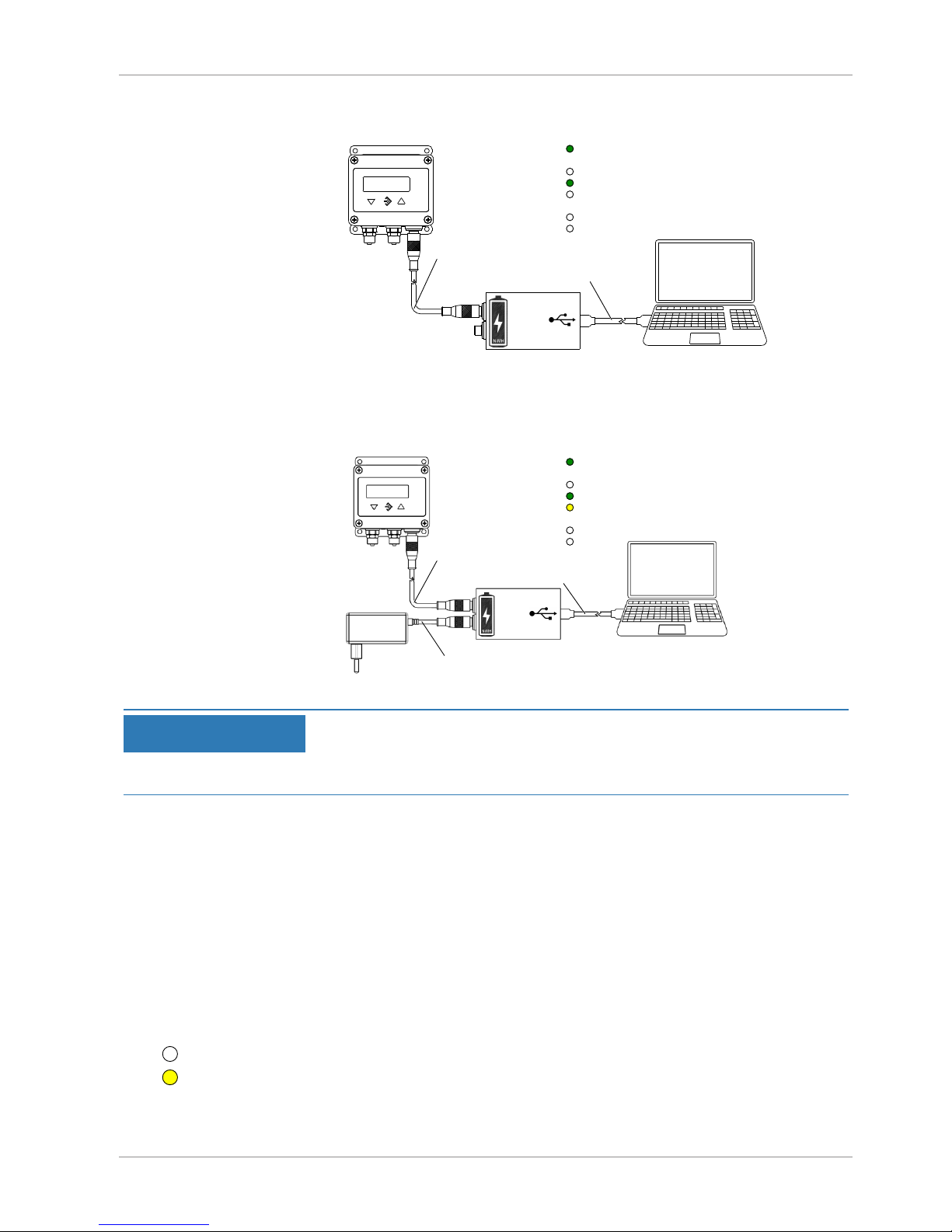

3.2 Electrical connection
The unit is connected to the power supply as shown in the following illustra-
tions. Proceed as follows:
a) Disconnect the system power cable on the transmitter (plug 1).
b) Connect the programming cable here.
c) Connect the power supply to the EU05 (not applicable if batteries are used).
d) Connect the EU05 to the USB interface of the PC.
ðThe status LEDs shine as shown below and the unit is operational.
System power supply
Transmitter
EU05
System power cable
USB cable
Programming cable
PC
Status LED
Output Voltage
Error
Ready
Charge
Transmit
Receive
(1) In the following, the term 'transmitter' is used for all FISCHER units that can be connected to the EU05 for the intended purpose.
FISCHER Mess- und Regeltechnik GmbH Commissioning | 3
BA_EN_EU05_ST4-A 9 / 16
Battery power supply
Transmitter
EU05
USB cable
Programming cable
PC
Status LED
Output Voltage
Error
Ready
Charge
Transmit
Receive
Power supply unit
Transmitter
EU05
Power supply unit
USB cable
Programming cable
PC
Status LED
Output Voltage
Error
Ready
Charge
Transmit
Receive
NOTICE Charge battery
If the EU05 is supplied via a power supply unit with a plug, the battery is
charged. This is shown on the status LED 'Charge'. The charging process is
also started, if the unit is not connected to other units.
3.3 Operation
The 'remote' configuration of the connected transmitter is realised with a special
PC software depending on the type. Please see the list in the section 'Intended
use'‘ [}7] for the software required for your transmitter type. All software is on
the supplied CD. You can download the latest software for free from our web-
site (www.fischermesstechnik.de). For information about the supported operat-
ing systems, please see the Technical data [}11].
After you have installed the required software on your PC, you will find detailed
descriptions about how to configure transmitters in the Help. A data connection
to the transmitter always needs to be created first. You will find the respective
sub-menus for the necessary settings under the menu item Options.
Transmit
Receive
Check the connection by exporting the parameters. You will find the required
function in the menu Data transfer. An active data transfer is indicated by the
status LED 'Transmit' and 'Receive'. Save the received data so you can restore
the original configuration if necessary. For a description of the parameters,
please see the user manual of your transmitter.
4 | Servicing FISCHER Mess- und Regeltechnik GmbH
10 / 16 BA_EN_EU05_ST4-A
4 Servicing
4.1 Maintenance
The instrument is maintenance-free. We recommend the following regular in-
spection to guarantee reliable operation and a long service life:
▪ Check the function in combination with downstream components.
▪ Check the electrical connections.
The exact test cycles need to be adapted to the operating and environmental
conditions. In combination with other devices, the operating instructions for the
other devices also need to be observed.
4.2 Transport
The measuring device must be protected against impacts. It should be trans-
ported in the original packaging or a suitable transport container.
4.3 Service
All defective or faulty devices should be sent directly to our repair department.
Please coordinate all shipments with our sales department.
Return the device in the original packaging or a suitable transport container.
4.4 Disposal
WARNING Incorrect disposal may pose a risk to the environment.
NOTICE!Take-back of old units with batteries
According to the Directive 2006/66/EC batteries may not be disposed of in
household waste. The battery is permanently installed in the unit and cannot be
replaced. Recycling is carried out by the manufacturer After the end of the ser-
vice life, return the unit to the manufacturer for this purpose.
Please help to protect the environment by always disposing of the work pieces
and packaging materials in compliance with the valid national waste and recyc-
ling guidelines or reuse them.
FISCHER Mess- und Regeltechnik GmbH Technical data | 5
BA_EN_EU05_ST4-A 11 / 16
5 Technical data
5.1 Auxiliary energy
The following data refers to the power supply via a power supply unit. However,
power can be supplied via an USB interface.
Rated Voltage 24 V AC/DC
Admissible operating voltage Ub12 … 30 V AC/DC
Power consumption ≤ 4 W
Electrical plug M12 flanged connector 5-pin coded
Optional NiMH battery 2200 mAh
Runtime in battery mode (+) approx. 4 hours.
(+) The runtime depends on the connected transmitter type.
5.2 Application conditions
Ambient temperature range 0 … +40 °C
Storage temperature range -10 … +50 °C
Max. humidity 80% rel. hum.
Protection class IP IP20
Supported operating systems Windows XP 32 Bit
Windows Vista 32 Bit
Windows 7 32/64 Bit
EMC Directive 2004/108/EC
DIN EN 61000-6-2
Correction 1:2011-06
EMC Part 6-2: Generic standards -
Immunity for industrial environments
DIN EN 61000-6-3
Correction 1:2012-11
EMC Part 6-3: Generic standards -
Emissions for residential, commercial
and light industry
RoHS Directive 2011/65/EU
DIN EN 50581:2013-02 Technical documentation for assess-
ment of electronic and electrical units
with respect to limitation of dangerous
substances
5.3 Interfaces
PC interface USB 2.0
Electrical plug USB bush type B
Transmitter connection
Electrical plug M12 coupling
5 | Technical data FISCHER Mess- und Regeltechnik GmbH
12 / 16 BA_EN_EU05_ST4-A
5.4 Construction design
Installation position User-defined
Dimensions (W x L x H) 101 x 195 x 44 mm
Weight approx. 450g
Materials
Housing ABS
5.4.1 Dimensional drawings
All dimensions in mm unless otherwise stated
101
195
44
Type plate
Illustration2: Dimensional picture
FISCHER Mess- und Regeltechnik GmbH Order Codes | 6
BA_EN_EU05_ST4-A 13 / 16
6 Order Codes
0E U 0 5
Type
Battery
0 0
1 2 3 4Code no.
[4] ←code
0Without battery
1With battery
6.1 Accessories
Order no. Description
06405132 Plug power supply unit
06411148 Programming cable (coupling / connector) 5-pin M12 1 m
04491089 USB 2.0 cable Type A/B 2 m
09005805 Transmitter configuration software CD ROM
7 | Attachments FISCHER Mess- und Regeltechnik GmbH
14 / 16 BA_EN_EU05_ST4-A
7 Attachments
7.1 EC Declarations of conformity
C
Transmitter PC Interface
EUOS
8
2015-03-30
&
CE
&
Illustration3: CE_DE_EU05
FISCHER Mess- und Regeltechnik GmbH Attachments | 7
BA_EN_EU05_ST4-A 15 / 16
7 | Attachments FISCHER Mess- und Regeltechnik GmbH
16 / 16 BA_EN_EU05_ST4-A
Table of contents
