Fisher & Paykel WA8060E User manual

WashSmart™ Eco, WashSmart™ and
QuickSmart™ washers
WA8060E, WA7060E, WA8060G,
WA7060G and WA7060M models
NZ AU SG ROW
INSTALLATION INSTRUCTIONS
USER GUIDE

1
CONTENTS
Introduction 3
Safety and warnings 4
Installation instructions 5
Before you do your first wash 11
Getting started quickly – WashSmart™ Eco washer 12
Getting started quickly – WashSmart™ washer 14
Getting started quickly – QuickSmart™ washer 16
Washer controls 18
Washer safety features 19
Eco-Active™ wash – WashSmart™ Eco washer only 20
Sorting 21
Loading 22
Detergent 23
Fabric softener 24
Wash cycles – WashSmart™ Eco washer 25
Wash cycles – WashSmart™ washer 26
Wash cycles – QuickSmart™ washer 27
Wash options 28
Customising wash cycles 33
Changing pre-set options 34
Caring for your washer 41
Before you call for service 43
Fault codes 45
Troubleshooting 46
Manufacturer’s Warranty 50
Customer Care 52
ImpORTANT!
SAVE THESE INSTRUCTIONS
The models shown in this user guide may
not be available in all markets and are
subject to change at any time. For current
details about model and specification
availability in your country, please go to
our website www.fisherpaykel.com or
contact your local Fisher & Paykel dealer.
Registration
Register your product with us so we can
provide you with the best service possible.
To register your product visit our website:
www.fisherpaykel.com

3
INTRODUCTION
Welcome to your Fisher & Paykel clothes washer
Thank you for buying a Fisher & Paykel washer. We are proud of this washer and trust it
will serve you well for many years.
At Fisher & Paykel we aim to provide innovative products that are simple to use,
ergonomic and kind to the environment. Thousands of tonnes of washing and over
80years of laundry experience have been programmed into your washer to help give
you the best possible performance.
Your washer has numerous wash cycles and options so you can perform every wash task
with ease and spend less time in the laundry. With the ability to select the most efficient
water level for each load, your Fisher & Paykel washer makes it kinder on your wallet
and the environment.
Please take the time to read these instructions carefully before you begin using your
washer. Following the advice in this user guide will ensure you get the performance you
expect from your washer and that you get the best possible wash results.
We hope you enjoy your new washer. We have certainly enjoyed designing it for you.

4
SAFETY AND WARNINGS
!WARNING!
Electric Shock Hazard
If you are using an extension cord or a portable electrical outlet device
(eg multi-socket outlet box), ensure that it is positioned so that it does
not come into contact with water or moisture.
Failure to do so may result in death or electrical shock.
IMPORTANT SAFETY INSTRUCTIONS
WARNING! When using this appliance always exercise basic safety precautions
including the following:
 This clothes washer is not intended for use by persons (including children) with
reduced physical, sensory, or mental capabilities, or lack of experience and
knowledge, unless they are supervised or given instructions on how to use the
clotheswasher by someone responsible for their safety, and they understand the
hazards involved.
 The clothes washer should only be used for washing and rinsing of textiles where
this is indicated on the care label.
 Keep children away from the clothes washer while it is in operation.
 Children should be supervised to ensure that they do not play with the appliance.
 Cleaning and user maintenance shall not be completed by children without
supervision.
 The only user removable parts of the clothes washer are the inlet hoses and
agitator. No other parts are designed to be removed by anyone other than a
Fisher&Paykel Authorised Repairer.
 The lid will be locked for stages of the cycle for safety reasons.
 Never force open the lid.
 When disposing of the clothes washer, it is recommended that the lid is taped down
to avoid children getting trapped inside, and that the electrical cable is cut off
close to the clothes washer.
 Do not add gasoline, dry-cleaning solvents, or other flammable or explosive
substances to the wash water. These substances give off vapours that could ignite
orexplode.
 Do not wash articles that have been previously cleaned in, washed in, soaked in,
or spotted with gasoline, dry-cleaning solvents, or other flammable or explosive
substances as they give off vapours that could ignite or explode.

5
INSTALLATION INSTRUCTIONS
Product and minimum clearance dimensions
FRONT VIEW PROFILE VIEW
A
B
D
F
C
G
EA
H
WA7060E
WA7060G
WA7060M
WA8060E
WA8060G
PRODUCT DIMENSIONS mm mm
AOverall height of product*
(to highest point on console)
1045 – 1075 1045 – 1075
BOverall width of product 600 600
CDepth of product 600 600
DHeight of product to top of lid* (closed) 950 –980 950 –980
EHeight of lid open*
(measured from bottom of product)
1350 – 1385 1350 – 1385
Standpipe height min. 850–1200 min. 850–1200
MINIMUM CLEARANCES mm mm
FMinimum cavity width 640 640
GMinimum depth clearance
(including inlet hoses, drain hose and bowed front)
660 660
HMinimum clearance to either side or wall# 20 20
MAXIMUM CAPACITY kg kg
7.0 8.0
* Includes adjustable mounted feet and the range of movement.
# Applies either side.
Note: maximum capacity may differ according to market.

6
INSTALLATION INSTRUCTIONS
Unpacking
To ensure the best performance from your new washer please follow the instructions below.
Removing the packaging
1Remove the outer packaging.
2Tilt the washer backwards and walk it off the
base packer one foot at a time (ensure the lid
is still taped down).
3Remove the base packer from under the
washer by tilting the washer backwards and
pulling the packer out the front.
4Remove the tape, lift the lid and remove the
bowl packer from the bowl.
5Remove the hoses and accessories.
6Keep the base packer and bowl packer in case
they are required for future transit.
ImpORTANT!
Please ensure that the base packer has been removed BEFORE OPERATING your
washer.
Location
ImpORTANT!
Install the washer on a solid and level floor surface ensuring it has at least 20mm
clearance on each side. The washer must not be installed on any textured floor
coverings (eg carpets, rugs).
In your washer you will find:
 1hose guide.
 2inlet hoses.
Drain hose
1Carefully pull the drain hose out from the back
of the washer by pulling the exposed part of the
hose downward and outward.
2To guide the drain hose over the tub or
standpipe the hose guide MUST be fitted to the
drain hose.
ImpORTANT!
To prevent siphoning the drain hose should
not extend more than 20mm from the end of
the guide. The height of the standpipe or tub
should be between 850–1200mm. The drain
hose can be trimmed to length.
3Place the drain hose in the tub or standpipe. Do
not fit the hose to a drain spigot. Drainage must
not be airtight in order to prevent siphoning.
Tilt washer backwards to remove packer
Pull hose
through
guide
Flex hose
guide apart
Standpipe 850–1200mm
(20mm)
maximum
Fitting the drain hose guide

7
INSTALLATION INSTRUCTIONS
Electrical connection
 This appliance must be supplied with a 220–240V, 50Hz, sinusoidal, 10Aelectrical
supply.
 Check the power cord for damage, making sure it is not squashed or twisted.
 A damaged power cord must be replaced by a Fisher & Paykel Authorised Repairer, in
order to avoid a hazard.
 The appliance must not be operated until it is repaired, as there is a risk of electric shock.
Draining
 Regularly check that your standpipe or tub is free from lint or other obstructions, which
may affect how your washer works or may cause flooding.
 In multi-storey apartments or any upper floor, the washer should be installed on a floor
equipped with a drain.
 Draining must comply with local by-laws.
Water supply
ImpORTANT!
Your cold water should not exceed 35°C and your hot water should not exceed 65°C.
Temperatures above these may cause the washer to fault or cause damage to the
washer.
 If you have an uncontrolled water heating source (eg a wet back or solar heating
system) you should fit a tempering valve. This will ensure the hot water temperature
remains within safe limits.
 Contact your registered plumber to select and install the tempering valve.
 Inlet water static pressure: Max.1MPa(150psi) Min.34KPa (5psi)
 Inlet water flow rate at tap: Min.6litres/min
ImpORTANT!
 This appliance must be installed in accordance with the installation instructions
before use.
 Provide accessibility to the plug or incorporate a switch in the fixed wiring in
accordance with the wiring rules to allow disconnection of the appliance from the
supply after installation.
 Do not operate this washer if it has been damaged during transport. Contact your
Fisher&Paykel dealer or Fisher&Paykel Authorised Repairer.

8
INSTALLATION INSTRUCTIONS
Inlet hoses
ImpORTANT!
WARNING: Failure to adhere to the following instructions
may result in a flood and damage to property.
 New hose sets provided with the washer shall be used to
connect the washer to the water supply.
 Old hose sets should not be used.
 We recommend replacing the inlet hoses every 5years.
 Hoses should be checked from time to time and replaced
ifany wear, cuts, bulges, kinks or leaks are found.
1Connect the straight ends of the inlet hoses to the taps (thereare washers fitted in
both ends). Connect the red connector hose to Hot, and the white connector hose
toCold.
2Connect the elbow ends of the inlet hoses to the corresponding washer inlet valves.
Inlet valves are marked on the back of the washer. Ensure the Hot valve is connected
to the hot tap and the Cold valve is connected to the cold tap.
H = Hot C = Cold
Cold water supply only:
If you only have a cold water supply, a blanking cap MUST be connected to the Hot
inlet valve. The cap prevents water leaking out of the hot valve. The cap is available
from your Fisher & Paykel dealer or Authorised Repairer, PartNo.388491P. This
appliance incorporates backflow protection complying with AS3500.1. No further
backflow protection is required for connection to the water supply.
Note: your washer does not have an internal heater to heat water.
Should you wish to use cold water only for all wash cycles, refer to ‘Customising wash
cycles’ on how to program your washer to remember your wash preferences.

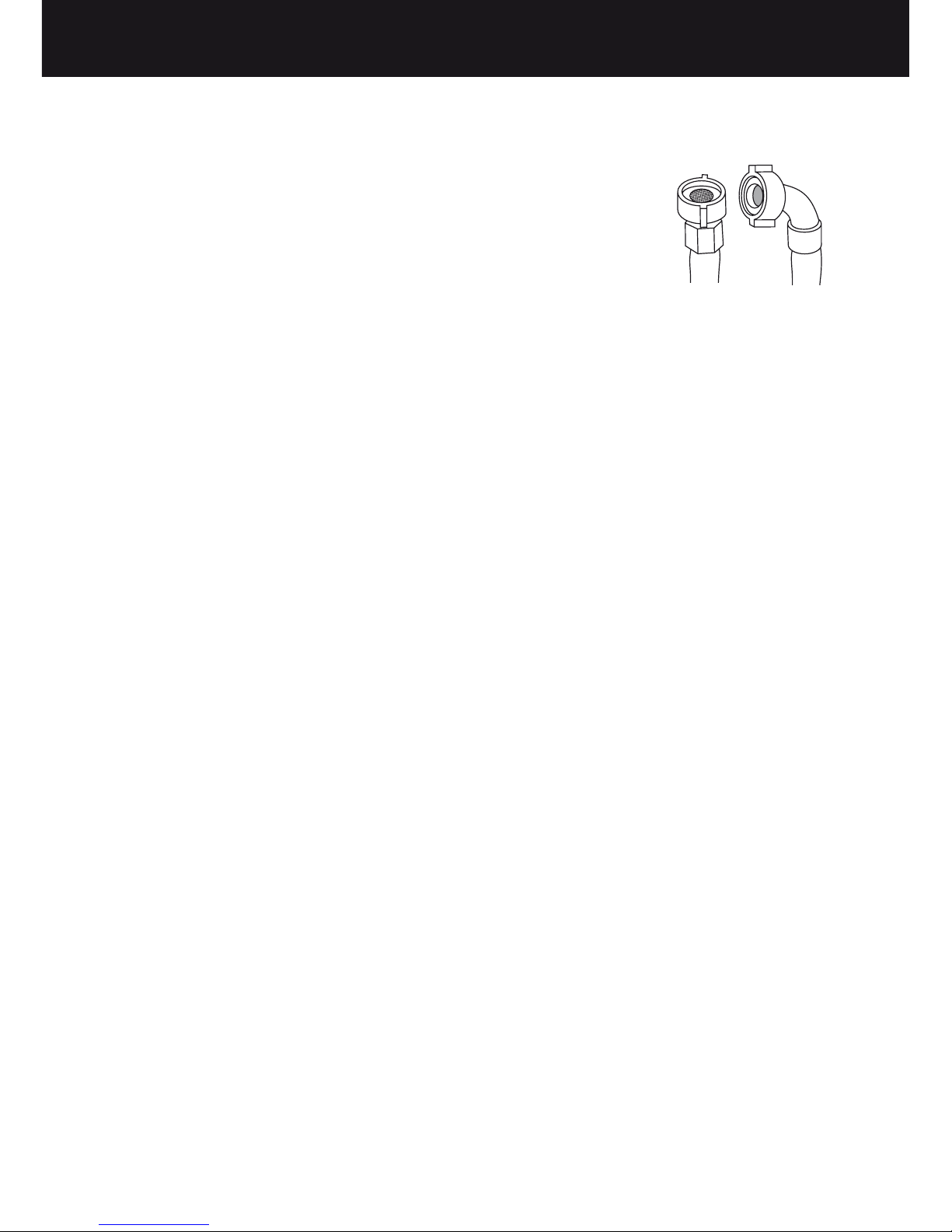

Elbow
(Washer) end
Straight
(Tap) end
Inlet hose ends

9
INSTALLATION INSTRUCTIONS
Levelling instructions
It is IMPORTANT to level the washer to ensure good spin performance.
A spirit level is provided with your washer. Use this to level your washer, always placing
it on a clean, flat surface. The washer is level when the bubble sits in the centre, within
the two lines.
Your washer is equipped with self-locking feet at the front to ensure they do not move
once you have levelled your washer. To adjust the feet, tilt the washer back and twist to
move them up or down.
Note: after levelling, the corners of the washer should be clear of the floor and the
washer must not rock in any direction.
1Move the washer to its final position using the
top corners to manoeuvre the product into place
(do not push on the centre front of the washer).
We recommend a minimum clearance of 20mm
each side and 40mm at the rear of the washer.
2Open the lid, place the spirit level at the centre
front of the top deck forward of the lid lock slot.
Level the washer from side to side by winding up
or down the front feet (Fig.1).
3With the lid closed, tilt the washer forward away
from the wall approximately 100mm (Fig.2), the
self-adjusting feet will release. Gently lower the
washer back down.
4Open the lid, place the spirit level at either the
right hand or left hand side of the top deck.
Level the washer from front to back using the
front feet only (Fig.3), winding both feet in or
out equally. Tilt the washer forward again and
lower back down (Fig.2).
5Re-check the washer is level. Move the spirit
level around to all positions once more, checking
the washer is level in all areas. Repeat step 4 if
necessary. Check the washer does not rock from
side to side, front to back, or corner to corner.
ImpORTANT!
 Keep your spirit level for the next time you
move or reposition your washer.
 If moving or transporting your washer in
the future, ensure you tape the lid down
beforehand.
Spirit
level
Fig.1 Levelling side to side
Wall
Floor
100 mm
Fig.2 Tilt washer forward
Spirit
level
Fig.3 Levelling from front to back

10
INSTALLATION INSTRUCTIONS
Completing your installation
 Turn on the water and check all hose connections for leaks. Make sure there are no kinks
in the hoses. Check the hose connections for leaks again after 24hours.
 Uncoil power cord, remove and discard the plastic pin cover, and plug into wall socket.
 Connect the appliance to an earthed outlet protected by a fuse of suitable capacity.
ImpORTANT!
Do not touch or operate the washer with wet hands or with bare feet.
Installation test cycle
Your washer must be correctly installed before use. Check the installation and operation
of the washer using the following procedure:
1Touch ‘Power’ to activate your washer.
2Touch both the and ‘Options’ buttons at the same time, and hold for three seconds.
3Touch to start the installation test cycle. The display will show and the lid will lock.
4The washer will beep to signal the end of the installation test cycle. If there are no
faults found, the washer will automatically turn off at the end of the installation test
cycle. Any faults will be displayed on the screen (refer to the back of this user guide
to help identify faults). If you need further assistance, please contact a Fisher&Paykel
Authorised Repairer or our Customer Care Centre. Refer to ‘Customer Care’ section for
contact details.
Note: WA7060M QuickSmart™ washer only – a manual check of the inlet hose
connections will be required as the installation test cycle will not verify if the hot and
cold inlet hoses are connected the correct way around.
ACCESSORIES AND SPARE PARTS
Available from your Fisher & Paykel dealer or a Fisher & Paykel Authorised Repairer.
Blanking Cap Part No. 388491P
Hose Inlet Long (2m) Part No. 422680P
Hose Inlet Large Bore Part No. 426123P
Drain Hose Extension Part No. 425627P
Power Cord If the power cord of your clothes washer is damaged it is
highly recommended that it is replaced by a Fisher & Paykel
Authorised Repairer in order to avoid a hazard, as it is not a
standard power cord.

11
BEFORE YOU DO YOUR FIRST WASH
You owe it to yourself and your washer to have your washer installed correctly.
Before you start, it is a good idea to go through the following checklist:
1Has the base packer been removed? Refer to page 6.
2Is the drain hose threaded through the ‘U bend’ (with no more than 20mm extended)
and hooked into your tub or standpipe? Refer to page 6.
3Is the hot hose connected to the Hot valve marked ‘H’? Is the cold hose connected to
the Cold valve marked ‘C’? Refer to page 8.
4Is the washer correctly levelled, feet are extended and cabinet corners are clear of the
floor? Refer to page 9.
5Have you performed the installation test cycle? Refer to page 10.
WashSmart™ washer and QuickSmart™ washer capacities
The table below outlines what is included in a 7kg and 8kg wash load (in accordance
with AS/NZS2040.1:2005).
WASH LOAD 7kg 8kg
Sheets (double) 2 3
Bath towels 6 4
Tablecloths 2 3
Shirts 3 5
T-Shirts 4 5
Pillowcases 4 5
Shorts 7 5
Washcloths 6 8
Handkerchiefs 4 6
Note: the above load composition is indicative only. We recommend for everyday
use that you separate out your sheets and towels and wash them separately on the
‘Regular’ cycle.

12
GETTING STARTED QUICKLY – WASHSMART™ ECO WASHER
Fabric softener
If you wish to use fabric softener, place it in the fabric
softener dispenser cup on the top of the agitator (refer
to the ‘Fabric Softener’ section).
ImpORTANT!
Fabric softener must not be used if you have selected
the ‘Quick’ cycle or the ‘Eco Rinse’ option (refer to the
‘Fabric softener’ section).
Before you start
 It is important to sort your clothes, particularly separating white/light colours from
darkcolours, as well as separating out sheets and towels. Refer to the ‘Sorting’ and
‘Loading’ sections.
 Wash new, highly coloured and dark coloured items separately to prevent dye transfer
onto other items.
 Sort lint givers and lint collectors (refer to the ‘Sorting’ section).
 Close bra clasps, do up zippers and check pockets.
 Place your clothes directly into the wash bowl.
 Place the load evenly around the agitator (refer to ‘Sorting’ and‘Loading’ sections).
 Remove fabric softener dispenser cup.
Detergent
 Follow the manufacturer’s instructions on the
detergent package.
 Use the size of the load as a guide to the amount of
detergent to use (refer to the ‘Detergent’ section).
 Pour the detergent down the centre of the
agitator stem.
 Replace the fabric softener dispenser cup (this
stops small articles falling down the centre of
theagitator).

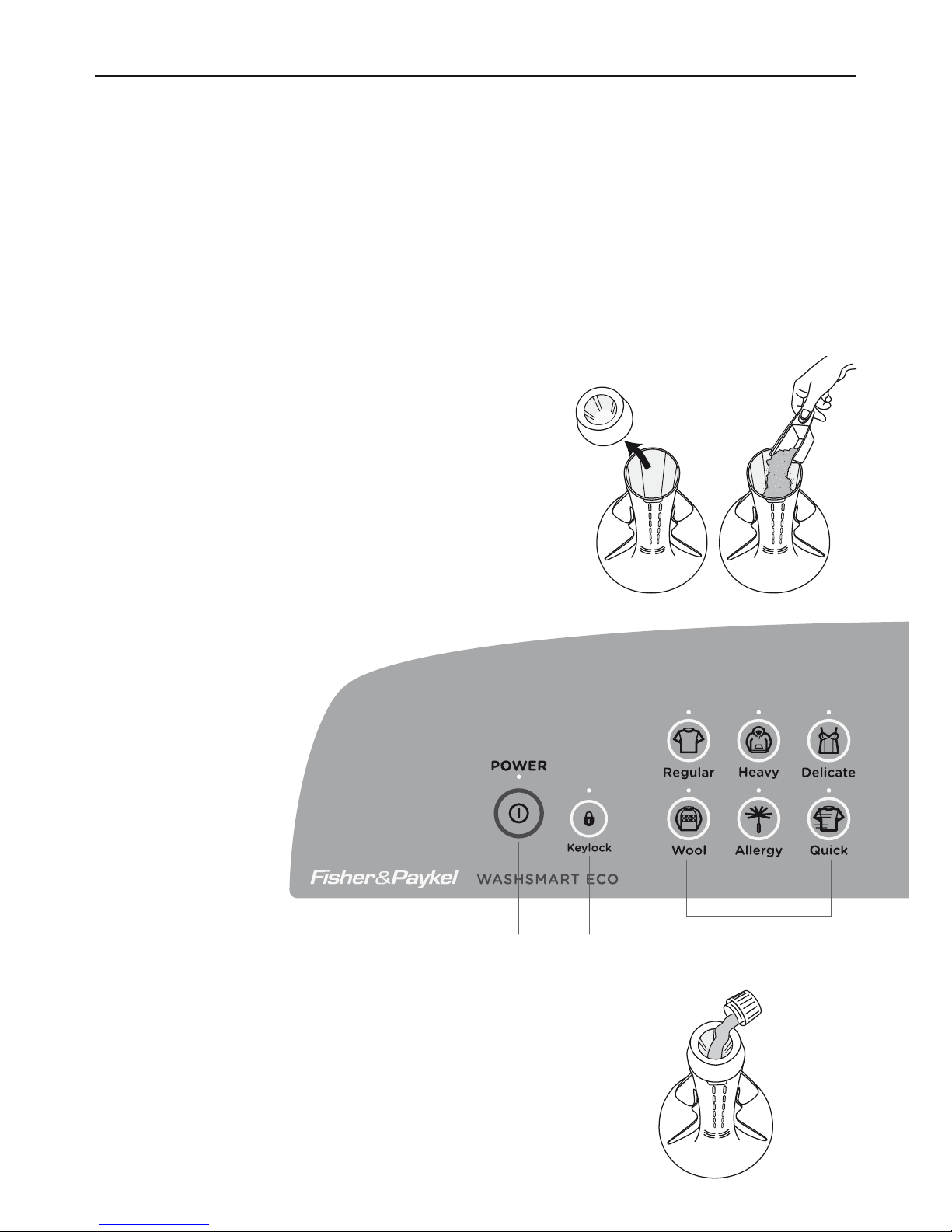

1 5 2
WashSmart™ Eco
washer control panel

13
GETTING STARTED QUICKLY – WASHSMART™ ECO WASHER
If you wish to stop your WashSmart™ Eco washer
 Touch .
During a spray rinse or spin, there will be a slight delay while the bowl slows to a stop
and the lid is unlocked.
ImpORTANT!
Failure to follow the advice in this guide may result in damage to your garments, and
your expectations of wash performance may not be met.
Using your washer
The buttons require only a gentle touch to activate.
1Touch ‘Power’ to activate your WashSmart™ Eco washer.
2Select your desired wash cycle by gently touching the wash cycle button of your
choice (refer to ‘Wash cycles’ section).
3Choose your wash options, egyou may want a ‘Warm’ wash temperature and a ‘Slow’
spin speed (refer to the ‘Wash options’ section).
4Touch to start the cycle. The washer will start to fill with water and select the
correct wash action for your load.
For best fabric and colour care, remove your clothes as soon as the cycle has finished.
5Use ‘Keylock’ mode to lock the buttons on the display, which prevents them from
being activated accidently by a washing basket or little fingers (refer to the ‘Washer
controls’ section).
6‘Delay Start’ allows you to delay the start of your wash by 5mins up to 18hours (refer
to the ‘Wash options’ section).
3 46

14
GETTING STARTED QUICKLY – WASHSMART™ WASHER
Fabric softener
If you wish to use fabric softener, place it in the fabric
softener dispenser cup on the top of the agitator (refer
to the ‘Fabric Softener’ section).
ImpORTANT!
Fabric softener must not be used if you have selected
the ‘Quick’ cycle or the ‘Eco Rinse’ option (refer to the
‘Fabric softener’ section).
Before you start
 It is important to sort your clothes, particularly separating white/light colours from
darkcolours, as well as separating out sheets and towels. Refer to the ‘Sorting’ and
‘Loading’ sections.
 Wash new, highly coloured and dark coloured items separately to prevent dye transfer
onto other items.
 Sort lint givers and lint collectors (refer to the ‘Sorting’ section).
 Close bra clasps, do up zippers and check pockets.
 Place your clothes directly into the wash bowl.
 Place the load evenly around the agitator (refer to ‘Sorting’ and‘Loading’ sections).
 Remove fabric softener dispenser cup.
Detergent
 Follow the manufacturer’s instructions on the
detergent package.
 Use the size of the load as a guide to the amount of
detergent to use (refer to the ‘Detergent’ section).
 Pour the detergent down the centre of the
agitator stem.
 Replace the fabric softener dispenser cup (this
stops small articles falling down the centre of
theagitator).
1 5 2
WashSmart™ washer
control panel

15
GETTING STARTED QUICKLY – WASHSMART™ WASHER
If you wish to stop your WashSmart™ washer
 Touch .
During a spray rinse or spin, there will be a slight delay while the bowl slows to a stop
and the lid is unlocked.
ImpORTANT!
Failure to follow the advice in this guide may result in damage to your garments, and
your expectations of wash performance may not be met.
Using your washer
The buttons require only a gentle touch to activate.
1Touch ‘Power’ to activate your WashSmart™ washer.
2Select your desired wash cycle by gently touching the wash cycle button of your
choice (refer to ‘Wash cycles’ section).
3Choose your wash options, egyou may want a ‘Warm’ wash temperature and a ‘Slow’
spin speed (refer to the ‘Wash options’ section).
4Touch to start the cycle. The washer will start to fill with water and select the
correct wash action for your load.
For best fabric and colour care, remove your clothes as soon as the cycle has finished.
5Use ‘Keylock’ mode to lock the buttons on the display, which prevents them from
being activated accidently by a washing basket or little fingers (refer to the ‘Washer
controls’ section).
6‘Delay Start’ allows you to delay the start of your wash by 5mins up to 18hours (refer
to the ‘Wash options’ section).
3 46

16
GETTING STARTED QUICKLY – QUICKSMART™ WASHER
Fabric softener
If you wish to use fabric softener, place it in the fabric
softener dispenser cup on the top of the agitator (refer
tothe ‘Fabric Softener’ section).
ImpORTANT!
Fabric softener must not be used if you have selected the
‘Eco Rinse’ option (refer to the ‘Fabric softener’ section).
Before you start
 It is important to sort your clothes, particularly separating white/light colours from
darkcolours, as well as separating out sheets and towels. Refer to the ‘Sorting’ and
‘Loading’ sections.
 Wash new, highly coloured and dark coloured items separately to prevent dye transfer
onto other items.
 Sort lint givers and lint collectors (refer to the ‘Sorting’ section).
 Close bra clasps, do up zippers and check pockets.
 Place your clothes directly into the wash bowl.
 Place the load evenly around the agitator (refer to ‘Sorting’ and‘Loading’ sections).
 Remove fabric softener dispenser cup.
Detergent
 Follow the manufacturer’s instructions on the
detergent package.
 Use the size of the load as a guide to the amount of
detergent to use (refer to the ‘Detergent’ section).
 Pour the detergent down the centre of the
agitator stem.
 Replace the fabric softener dispenser cup (this
stops small articles falling down the centre of
theagitator).
152
QuickSmart™ washer
control panel

17
GETTING STARTED QUICKLY – QUICKSMART™ WASHER
If you wish to stop your QuickSmart™ washer
 Touch .
During a spray rinse or spin, there will be a slight delay while the bowl slows to a stop
and the lid is unlocked.
ImpORTANT!
Failure to follow the advice in this guide may result in damage to your garments, and
your expectations of wash performance may not be met.
Using your washer
The buttons require only a gentle touch to activate.
1Touch ‘Power’ to activate your QuickSmart™ washer.
2Select your desired wash cycle by gently touching the wash cycle button of your
choice (refer to ‘Wash cycles’ section).
3Choose your wash options, egyou may want a ‘Warm’ wash temperature and a ‘Slow’
spin speed (refer to the ‘Wash options’ section).
4Touch to start the cycle. The washer will start to fill with water and select the
correct wash action for your load.
For best fabric and colour care, remove your clothes as soon as the cycle has finished.
5Use ‘Keylock’ mode to lock the buttons on the display, which prevents them from
being activated accidently by a washing basket or little fingers (refer to the ‘Washer
controls’ section).
34

18
WASHER CONTROLS
SmartTouch™ buttons
The smooth, easy clean buttons require only a gentle touch to activate. Use these to
power your washer on and off, start and pause your washer, select your cycle and wash
options, activate keylock and programme a delay start.
Digital display screen
The digital display screen provides feedback on how long the wash cycle has to go,
to keep you informed throughout the cycle. The screen also displays your ‘Delay Start’
selection, should you choose one (this option is not available on the QuickSmart™
washer model). The delayed time remaining will show on the screen until the washer
starts. The screen will also display messages to help you with the overall running of
your washer.
Time to go
Your washer will display how many minutes a wash cycle has remaining, so that you
can tell at a glance when your washing will be finished. Once you have selected your
wash cycle and options, the time the wash cycle will take to complete will be displayed.
Please be aware that actual cycle times may vary as they are influenced by a number of
factors, eg the flow rate of your water supply, the load size and cycle selection.
Keylock mode
Keylock can be used to lock the buttons on your washer when not in use. This will
avoid accidental button pushes from items left on the lid of the washer and also from
any little fingers.
To turn ‘Keylock’ mode ON or OFF:
 Touch and hold the button for 2 seconds.
Note: when activated, the light above the button is illuminated.
If ‘Keylock’ mode is activated:
 To turn your washer on, touch and hold the ‘Power’ button for 2 seconds. This will
activate the control panel. ‘Keylock’ mode will remain activated.
 To pause your washer at any time during the cycle, touch and hold the button for
2seconds, or touch the button twice in quick succession.
 To stop your washer or power off at any time, touch and hold the ‘Power’ button
for 2seconds or touch the ‘Power’ button twice in quick succession.
