Fisher & Paykel WashSmart WH1260P1 User manual

INSTALLATION GUIDE / USER GUIDE
NZ AU
FRONT LOADER
WASHING MACHINE
WH1260P1, WH1160P & WH1060P1

3
Safety and warnings 5
Installation guide 7
Before your first wash 17
Safety features 18
Control panel 20
Wash cycles 23
Detergent and softener 26
Wash preparation 29
Getting started quickly 30
Wash cycle options 32
Customising a wash cycle 38
Changing pre-set options 40
Caring for your washer 42
Before you call for service 48
Fault codes 50
Troubleshooting 51
Manufacturer’s warranty 56
Customer care 58
CONTENTS
Registration
To register your product visit our website: fisherpaykel.com/register

5
SAFETY AND WARNINGS
!WARNING!
Electric Shock Hazard
Failure to follow this advice may result in
electric shock or death.
• If you are using an extension cord or a portable
electrical outlet device (eg multi-socket outlet
box), ensure that it is positioned so that it does
not come into contact with water or moisture.
READ AND SAVE THIS GUIDE
When using your clothes washer, follow basic precautions, including thefollowing:
General
zThis product has been designed for personal, family or household use. This product is
not designed for any commercial use. Any commercial use will terminate this products
manufacturer’s warranty.
zA damaged power cord must be replaced by a Fisher & Paykel trained and supported
service technician or similarly qualified person in order to avoid a hazard. Do not use
the appliance until it has been repaired to avoid a risk of electric shock.
zDo not operate this machine if it has been damaged during transport. Contact your
Fisher & Paykel dealer or Fisher & Paykel trained and supported service technician.
zThis clothes washer is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of experience and
knowledge,unless they are supervised or given instructions on how to use the
washerby someone responsible for their safety.
zKeep children away from the washer while it is in operation.
zSupervise children to ensure they do not play with the washer or climb inside thedrum.
zThe washer should only be used for washing and rinsing of textiles where this
isindicated on the care label.
zDo not add petrol, dry-cleaning solvents, or other flammable or explosive substances to
the wash water. These substances give off vapours that could ignite or explode.
zDo not wash articles that have been previously cleaned in, washed in, soaked in,
or spotted with gasoline, dry-cleaning solvents, or other flammable or explosive
substances as they give off vapours that could ignite or explode.
zThe door will be locked from the start of the cycle until the cycle is complete for safety
reasons. It is possible to open the door during the cycle under certain conditions. Never
force the door open.
zDo not touch the door during a cycle as the door can become hot.
zWhen 90°C temperature is selected, the door glass will become hot. Do not touch the
glass part of the door. Keep children away from the washer.
zDo not touch or operate the machine with wet hands or with bare-feet.
zDo not open the detergent dispenser during the cycle as hot water may come outofit.
zEnsure the installation provides accessibility to the plug or incorporate a switch in the
fixed wiring in accordance with the wiring rules to allow disconnection of the appliance
from the supply after installation.

6
SAFETY AND WARNINGS
Installation
zFor guidance on how to install your product, please refer to installation instructions
contained in this document.
zInstall the washer on a solid and level floor surface ensuring it has at least 20mm
clearance on each side. The washer must not be installed on any textured floor
coverings (eg carpet, rugs).
zThis washer must not be installed or operated on a plinth.
Water supply requirements:
zInlet water pressure: Max. 1MPa (145psi), Min. 30kPa (4.5psi)
zInlet water flow rate: Min. 6litres/minute
zA pressure-reducing valve must be installed if pressure is higher than 1MPa.
zFor optimum wash performance check the supply pressure is within the
recommendedrange.
zNew hose sets provided with the washer should be used to connect the washer to the
water mains. Old hose sets should not be re-used.
zWe recommend the inlet hose(s) are changed every 5 years. WARNING: Failure to do
so may result in a flood and damage to property.
zThe hot water temperature should not exceed 65°C and the cold water temperature
not exceed35°C. Temperatures above these may cause the washer to fault or cause
damage to the washer.
MODEL CODE MAXIMUM CAPACITY* (KG)
WH1060P1 10
WH1160P3 11
WH1260P1 12
*Capacity refers to the maximum dry weight of items the washer can wash at any one time
zRead and follow the detergent manufacturers’ instructions carefully. Instructions on
how to use the detergent will be clearly indicated on the pack. Remember to store your
detergents out of the reach of children.
zDo not wash an electric blanket in your washer unless the care label specifically states
it is safe to do so.
zDo not wash curtains in this washer, as sunlight makes them brittle and they may
disintegrate during washing.
zThe only user-removable parts of the washer are the inlet hose(s) and dispenser. No
other parts are designed to be removed by anyone other than a Fisher&Paykel trained
and supported service technician
zDo not overload your washing machine beyond its rated capacity.
Disposal
zWhen disposing of the washer, it is recommended that the door is removed to
avoidchildren getting trapped inside, and that the electrical cable is cut off
close to thewasher.

7
INSTALLATION GUIDE
Accessories
Check if you received the following accessories with your Fisher&Paykel washer. Youwill
find them inside the drum or attached to the packaging.
z2 x Inlet hose(s) – WH1060P1, WH1260P1 models
z1 x Inlet hose – WH1160P3 models
z1 x Inlet valve cap – WH1060P1 & WH1260P1 models
z1 x Drain hose guide
z1 x Installation guide and user guide
z1 x Spanner
z1 x Installation leaflet (attached to the top of the washer)
Unpacking
Your washer is heavy, we recommend two people to remove the packaging.
To ensure the best performance from your new washer please follow the steps below before
using your washer.

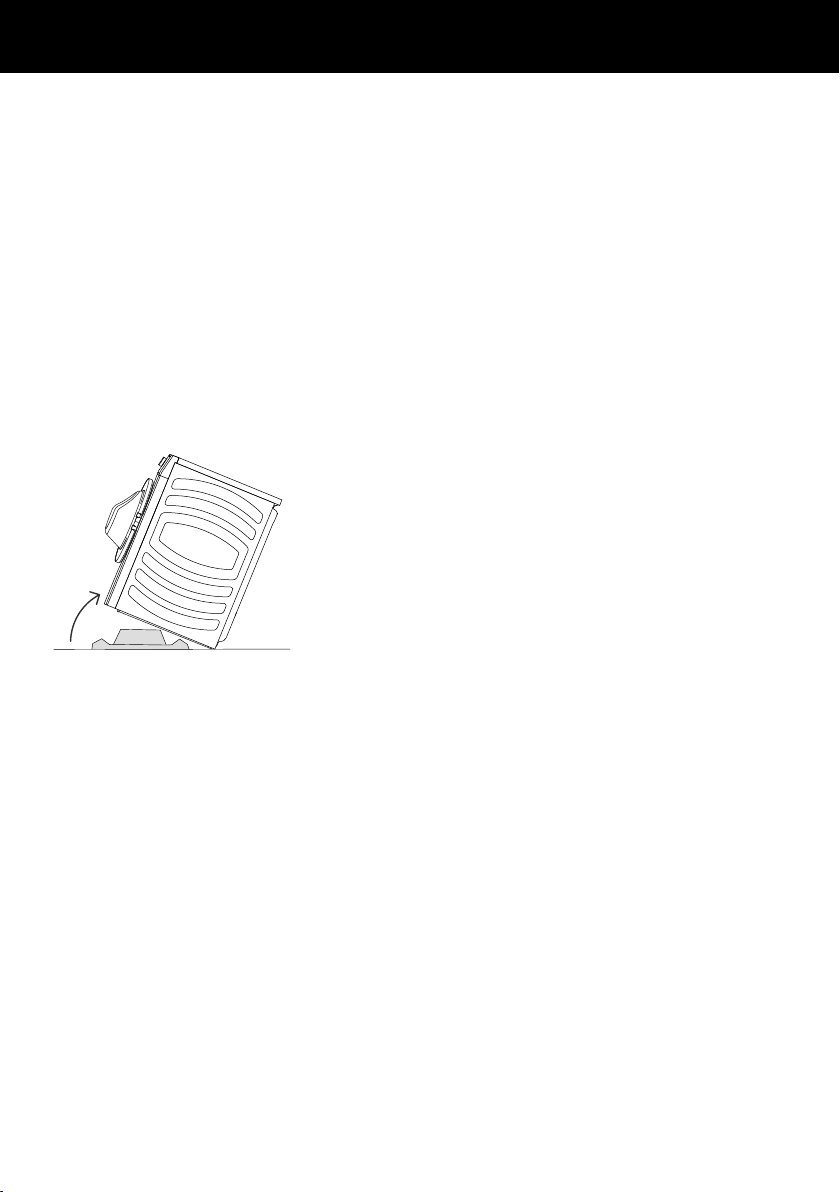

1 Remove the outer packaging including the
polystyrene packer and plastic wrapping.
2 Lift the washer off the base.
3 Remove all packaging and accessories from inside
the drum.
4 Dispose of all packaging sustainably, ensuring these
materials are kept out of the reach of children.

INSTALLATION GUIDE
8
Removing transit safety bolts
zThe clothes washer is fitted with transit safety bolts at the rear to avoid possible damage
to the internal components of the washer during transportation.
zThe four transit bolts must be removed prior to operation of the washer. Failure
to remove these will result in damage to the washer and compromise your
manufacturer’s warranty.
zThe transit bolts must be removed in order to use the power cord.

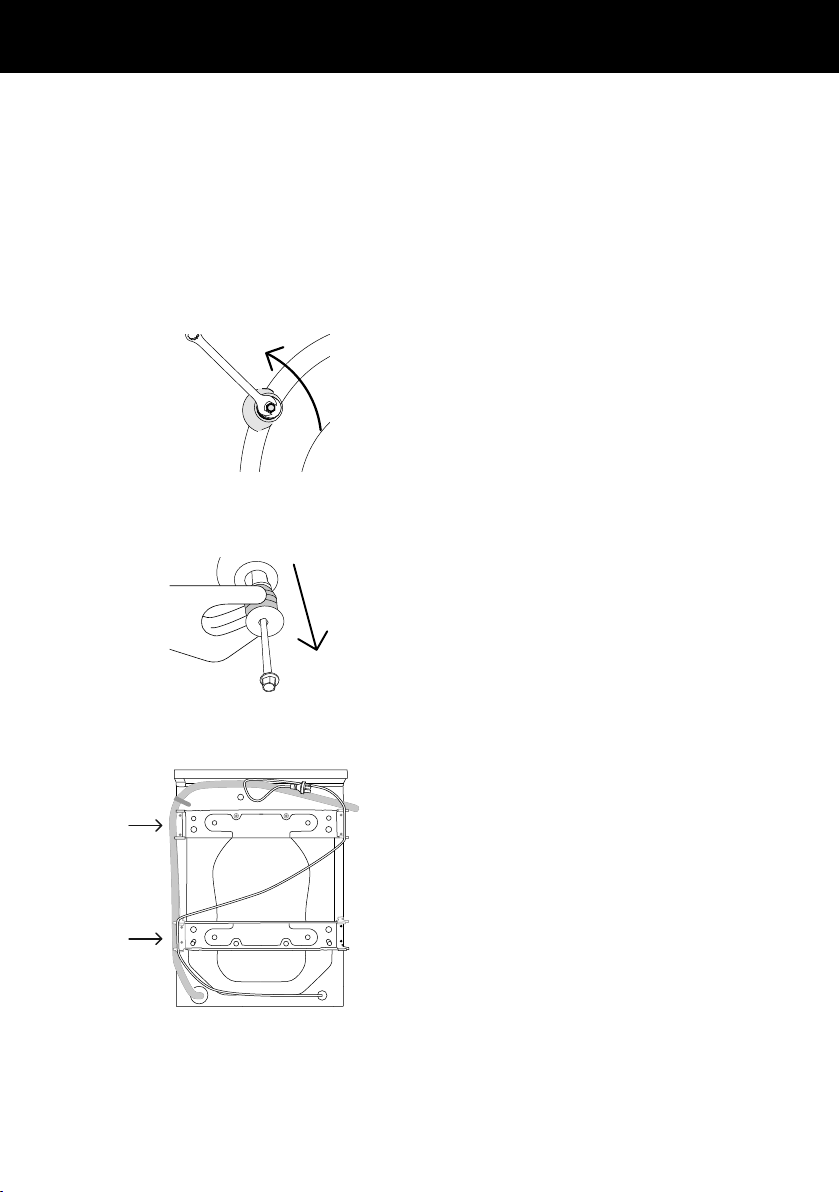

Removing the transit bolts
3Detach the drain hoses from the plastic
clasp, and remove the clasps on the side of
the transit braces.
To remove the bolt, grommet and
white plastic spacers, pull on the black
rubber grommets.
Use a spanner or socket to unscrew and
remove all four transit bolts at the back of
the washer.
1
2

INSTALLATION GUIDE
9
Cover the transit bolt holes with the plastic
plugs delivered with the washer. Push to clip
into place.
Remove the 10 transit brace screws from the
left and right sides, and near the centre of the
top brace.
Remove the braces.
4
5
Pull out the two transit rods located below
the two lower transit bolt holes.
Remove the yellow safety clip from the
power cord.
6
7

INSTALLATION GUIDE
10

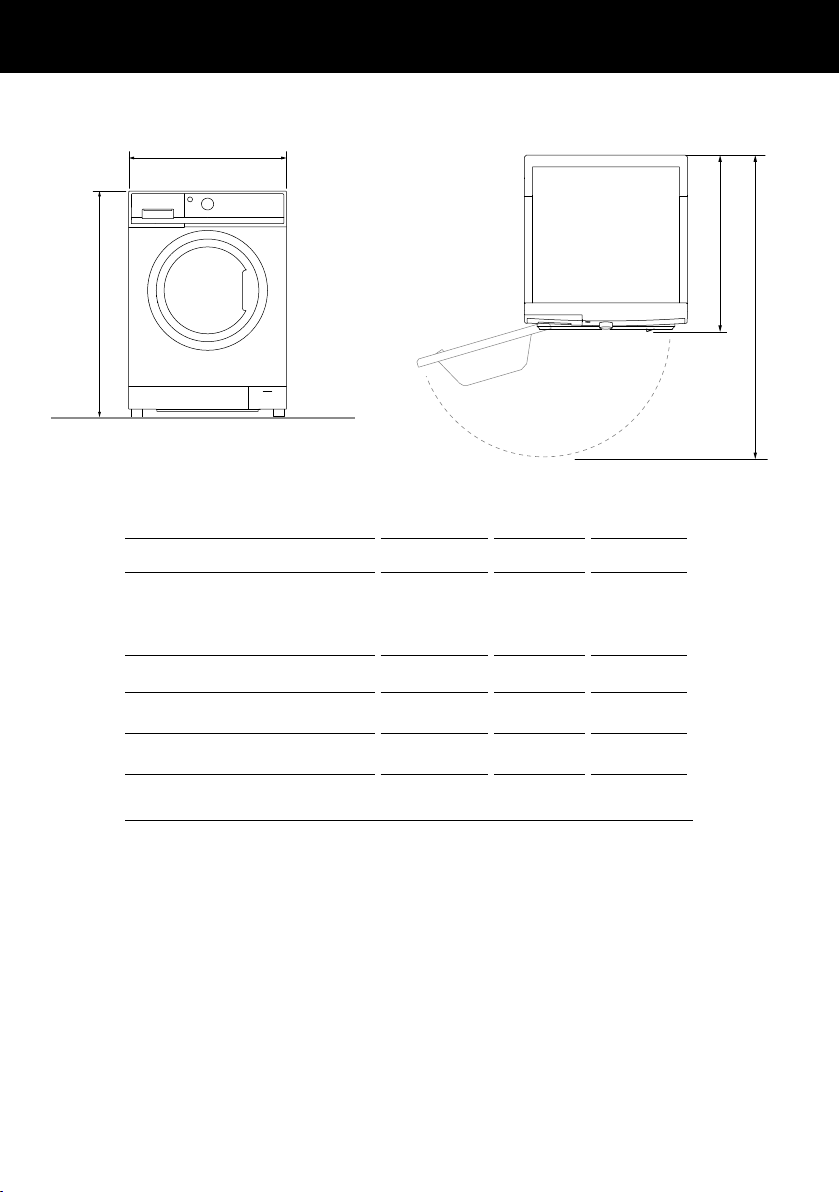

PRODUCT DIMENSIONS MM MM MM
A Overall height*
zMin
zMax
845
860
845
860
845
860
B Overall width 600 600 600
C Overall depth** 675 675 675
D Depth of open door 1080 1080 1080
Standpipe height min. 600 600 600
* Exact height is dependent on foot adjustment
** Including dial and door (when closed)
A
B
Product dimensions
FRONT PLAN
D
C

INSTALLATION GUIDE
11
b
a
c
CAVITY DIMENSIONS MM
A Minimum cavity height 865
B Minimum cavity width 640
C Minimum cavity depth
zFlush with front panel of the product*
zIn cupboard
655
715
* Front panel of the product
a
CLEARANCE DIMENSIONS MM
A Minimum washer door clearance to adjacent wall 355
B Minimum gap clearance to adjacent product or cabinetry* 20
* Applies to sides, top and rear
iSOMETRIC
b b
b
b
Cavity and clearance dimensions
c

INSTALLATION GUIDE
12
1
2
3
Move the washer into its final position
allowing for required clearances.
Level the washer side to side:
Place the level on the centre front of the
washer. Pull the washer out, loosen the lock
nut (using the spanner provided) and wind
the feet up or down until the washer is level
side to side.
Level the washer front to back:
Place the level on the left side, in line with
the centre of the washer. Adjust the front left
foot and then the right foot until the washer
is level.
There should be equal weight on both
front feet.
Using the spanner provided, tighten the
lock nuts against the base of the washer
tolockthe feet in position.
Move and centre the washer into its
final position within the cavity, using
adjacent walls as a guide and allowing
20mm clearance at the back and sides of
the washer.
Recheck the washer is level, front to back
and side to side. Repeat the above steps
if required.
Levelling the washer
It is IMPORTANT to level the washer. Having a level washer set up in its cavity will
ensure best performance for spinning, minimising noise, vibrations and wear and tear on
the washer.

INSTALLATION GUIDE
13
Inlet hose(s)
Failure to adhere to the following guidance may result in
a flood and damage to property. Only use the new hose
set(s) provided with your washer.
1 Connect the straight ends of the inlet hose(s) to the
tap(s), thereare washers fitted in both ends.
2 Connect the elbow ends to the corresponding washer
inlet valves. If present, the hot valve is coloured
orange to make this easier.
3 Tighten the inlet hose(s) ends by hand until the hose
seal just makes contact with the tap-sealing face.
Continue to tighten a further half-turn.
4 Make sure there are no kinks in the hose(s).
5 Turn the tap(s) on and check for leaks. Check for leaks
again after 24 hours.
Water supply
Water supply requirements
If you have an uncontrolled water heating source (eg a wet back or solar heating system)
you should fit a tempering valve. This will ensure the hot water temperature remains within
safe limits. Contact your registered plumber to select and install the tempering valve.
Your cold water should not exceed 35°C and your hot water should not exceed 65°C.
Temperatures above these may cause the washer to fault or cause damage to the washer.
Cold supply only
If you only have a cold water supply, you must connect the inlet valve cap (blanking cap)
provided with your washer to the hot inlet valve. The cap prevents water leaking out of
the hot valve. This appliance incorporates backflow protection complying with AS3500.1/
IEC61770. No further backflow protection is required for connection to the water supply.
Your washer has an internal heater to heat water. If you do not connect a hot water inlet
hose, your washer will automatically recognise there is no hot water supply and its internal
heater will heat the cold water to the selected cycle temperature.
SPECIFICATIONS WH1060P1, WH1160P, WH1260P
Inlet water static pressure Max. 1MPa (150psi),
Min. 30kPa (4.5psi)
Inlet water flow rate Min. 6 litres/minute

INSTALLATION GUIDE
14

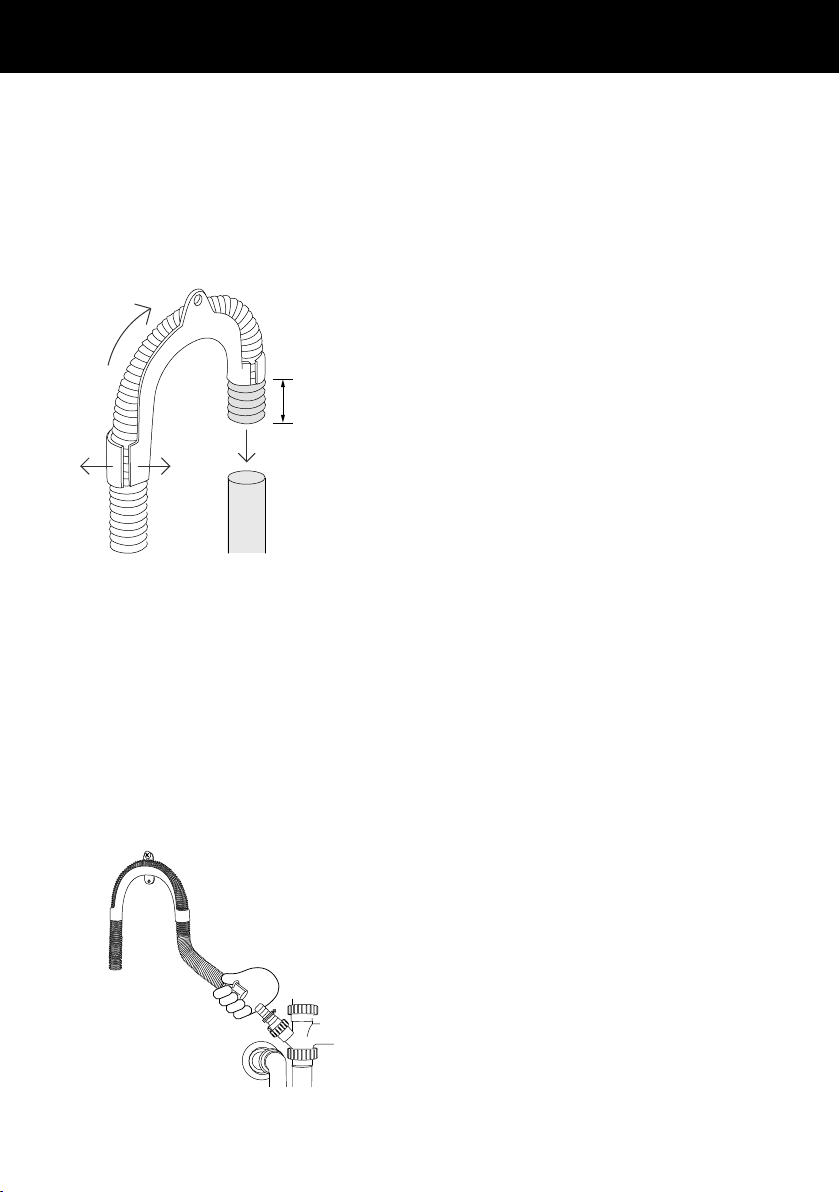

Draining
20 mm
max.
Place the drain hose in a tub or standpipe
Attach drain hose to spigot
In multi-storey apartments or any upper floor, the washer should be installed on a floor
equipped with a drain. Draining must comply with local by-laws.
1 Flex the guide apart and pull the hose
through the guide.
2 Ensure a maximum of 20mm of the hose
is left exposed at the end.
3 Secure the hose guide to prevent it
dislodging from the standpipe or tub.
If the drain hose is placed on the ground or if the tub or standpipe is less than 600mm
high, the washer will continuously drain (siphon) while being filled.
Tub or standpipe height should be a minimum of 600mm.
Regularly check that your tub or standpipe is free from lint or other obstructions. This may
affect operation or cause flooding.
The hose guide is used to hold the drain hose high enough to prevent continuous
draining (siphoning).
The hose guide is used to hold the drain hose over the tub or standpipe.
1 Flex the guide apart and pull the hose
through the guide.
2 Secure the hose guide to a wall or the
back wall of the cupboard using a screw.
3 Drill out the blanking insert from spigot to
ensure the washer can drain correctly.
4 Attach drain hose to spigot and secure
using a hose clamp.
5 Check for leaks.

INSTALLATION GUIDE
15
Complete your installation
zTurn on the water and check all hose connections for leaks. Make sure there are no kinks
in the hose(s). Check the hose connections for leaks again after 24hours.
zUncoil power cord, remove and discard the plastic pin cover, and plug into wall socket.
zConnect the appliance to an earthed outlet protected by a fuse of suitable capacity.
Test cycle
Your washer must be correctly installed before use. To check the installation and operation
of the washer follow the steps below:

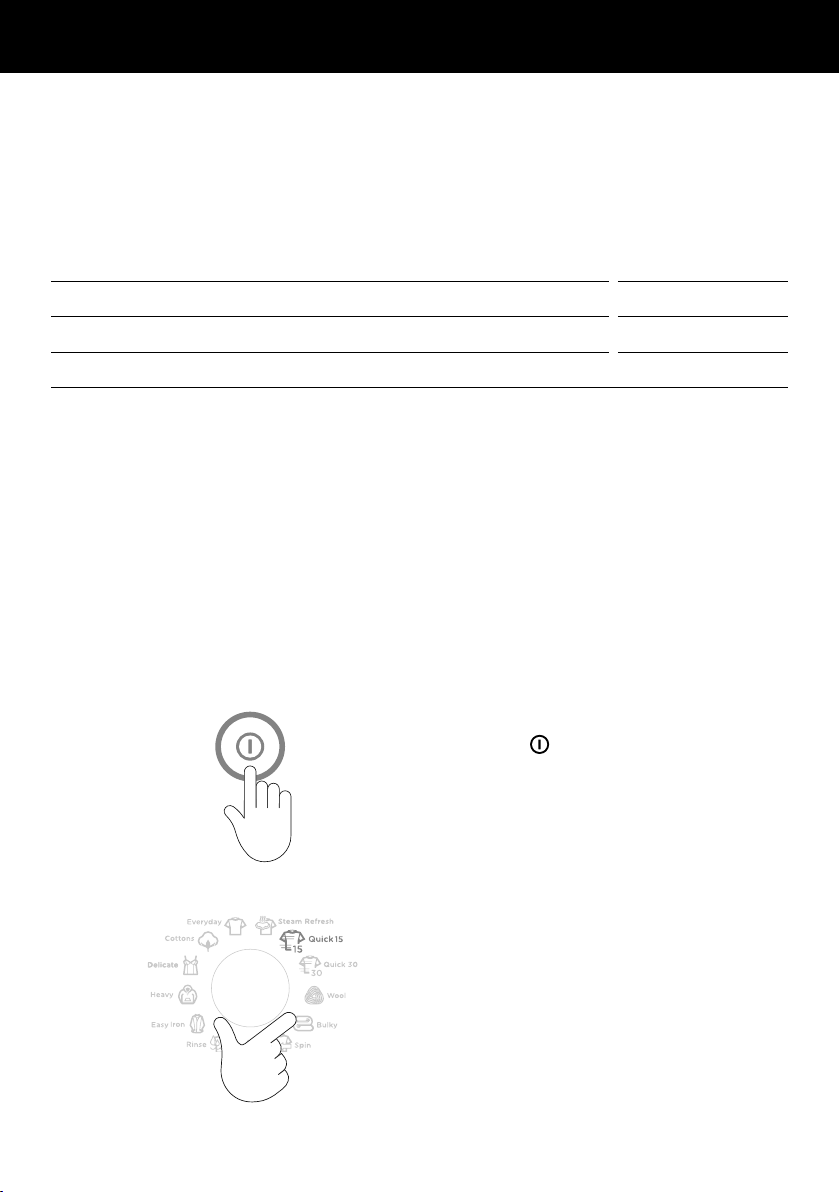

1Press POWER to activate your washer.
2Select a QUICK cycle. Ensure the drum is
empty and the door closed.
SPARE PARTS* PART NO.
Hose(s) inlet long (2m) 422680P
Hose(s) inlet large bore 426123P
*Available from your Fisher&Paykel dealer or a Fisher&Paykel trained and supported service technician
Spare Parts
Electrical connection
zThis appliance must be connected to a 220V–240V, 50Hz, sinusoidal, minimum 10A
electricalsupply.
zCheck the power cord for damage and make sure it is not squashed or twisted when
installing the washer.
zAlways remove the power cord from a socket by the plug, not by the cord.

INSTALLATION GUIDE
16
If there are any problems, you must address these before proceeding with normal use. The
washer will automatically turn off at the end of the cycle if there are no problems.

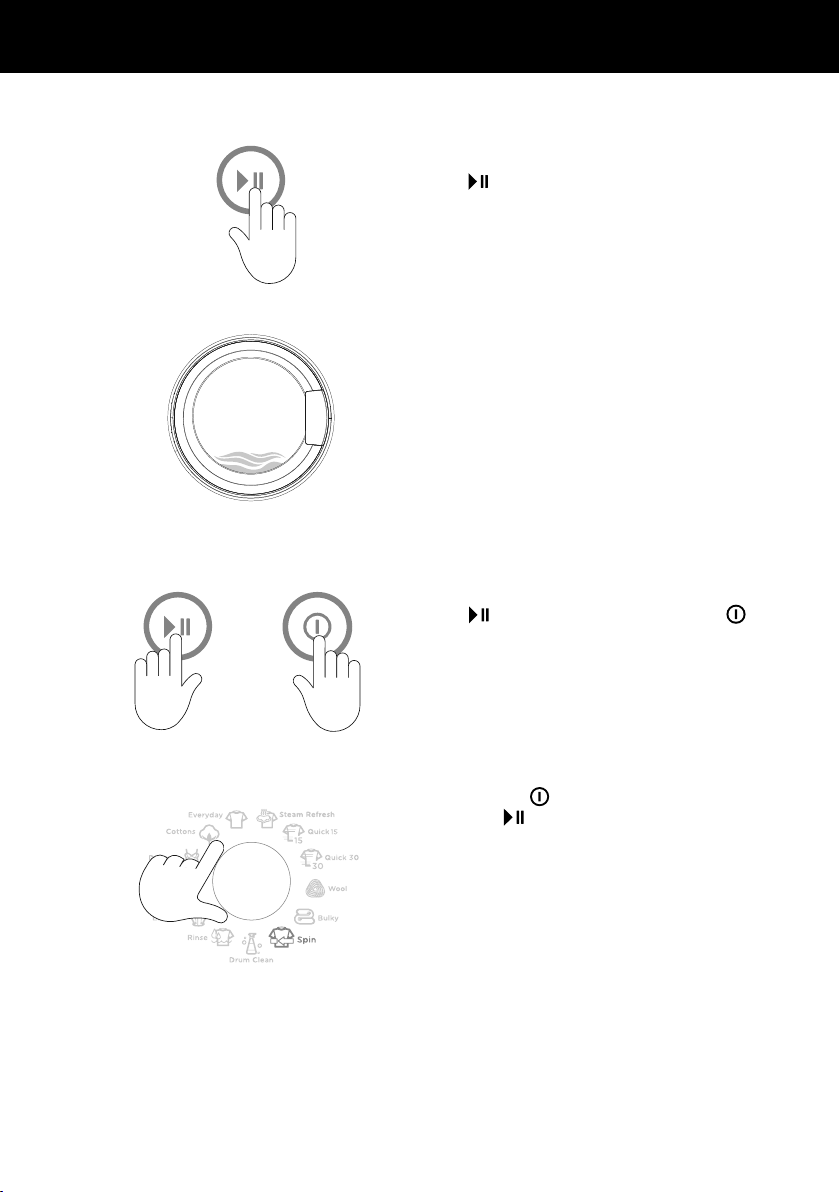

3Press to start.
4Wait until you see water in the bottom of
the drum.
Press to stop the cycle, then press
to turn the washer off.
Press POWER again, select the SPIN cycle
and press .
Check the drain hose is firmly secured to the
standpipe or tub, or spigot.
Observe that the washer pumps out the
water, and spins.
The washer will beep to signal the end of
the cycle. Any faults will be displayed on the
screen, refer to ‘Fault codes’.
5
6

17
BEFORE YOUR FIRST WASH
Check you have done everything you need to before you start your first wash:
Have the packaging and transit bolts and rods been removed?
Is the washer correctly levelled, feet are extended and cabinet corners are clear of
the floor?
Is the drain hose threaded through the hose guide ‘U bend’ (with no more than
20mm extended) and hooked into your standpipe or tub, or attached to a spigot?
Have the taps been turned on?
Is the hot hose connected to the hot valve marked ‘H’?
Is the cold hose connected to the cold valve marked ‘C’?
Have you performed the test cycle? Refer to ‘Installation guide’ page 15.
Has the power cord been connected to an appropriate power supply and the power
turned on?
Complete a DRUM CLEAN cycle with a half-load amount of detergent and
without a load in order to remove any residues remaining in the washer from the
manufacturing process.

18
SAFETY FEATURES
Add a Garment
The ADD A GARMENT function can be used to interrupt the cycle to add or remove a
garment at any time during the wash part of the cycle (provided the wash temperature
selected is lower than 60°C). Water in the washer will be drained to be a level where the
door can be opened, if necessary. Refer to ‘Wash cycle options’ for more information.
Door lock
The door of your washer will lock once you press and will stay locked until the washer
beeps at the end of the cycle, ensuring safety for you and your family while yourwasher is
operating.
To unlock the door during a cycle
You can open the door to add or remove
items during thewash simply by pressing
the button.
The door will remain locked if the
temperature insidethe washer is above 60°C
and/or the waterlevelis above the bottom
of the door seal (awarning will be displayed
inthese circumstances).
1
Your washer also has the following protective measures:
zFlood protection – turns off valves and turns pump on if a flood condition is detected.
zOut-of-balance protection – stops and redistributes the load if an unbalanced load
condition is sensed, and/or slows the spin speed to compensate.
zExcess suds protection – pauses to allow suds to break down before continuing the cycle.
Drum light (WH1160P3 only)
Your washer has a drum light to help assist you when loading and unloading your washer.
When you press POWER , the LED light in the drum will turn on, aftertwo minutes it will
automatically turn off. At the end of the cycle, the drum light will turn on again for five
minutes to help facilitate unloading.

19
SAFETY FEATURES
When power is restored, your washer will resume the interrupted wash cycle. If the cycle
doesn’t resume automatically, press POWER to restart your washer.
Opening the door during a power failure
If there is a power failure during a wash cycle your washer will stop and the door will
remain locked.
Locate thepump filter cover at the bottom
right of your washer.
Place a coin or key in the slot and tilt it
upwards to lever the cover open.
Pull the door release tab down from the ring.
Use a screwdriver tip, pen or key to get a
good grip.
1
2
3
Do not attempt to do this if the water level inthewasher is above the bottom of thedoor.

20
CONTROL PANEL
1Power Press to turn the washer ON/OFF.
2Keylock Press to disable all buttons on the control panel, except the
POWER . This prevents accidental button presses.
3SmartTouch™
Control Dial
Rotate to select your desired wash cycle.
zRed LED illuminates to indicate the selected wash cycle.
4Digital display
screen
Shows the following:
zTIME TO GO – the remaining time in the cycle that is
currently running.
zDelayed start time of wash cycle.
zNotifications if an error is detected or a warning is necessary.
5Progress
lights
Indicate the current status of the wash cycle.
zAll lights are illuminated at the start of the wash cycle.
zThe light of the current status flashes, and then turns off
oncecompleted.
6Delay Start
Less/More
Press MORE to increase andLESS to decrease the delay
start time.
7Wash Temp Press to increase or decrease wash water temperature.
8Spin Speed Press to increase or decrease spin speed.
9Soil Level Press to select the level of soil in your load.
!0 Wash Boost Press to select PRE WASH or RINSE+.
!1 Options Press to select ECO and/or WRINKLE FREE.
!2 Add a
Garment
Press to interrupt the wash part of the cycle to add or remove
a garment.
!3 Start/Pause Press to start or pause the selected wash cycle.
WH1060P1
!0 !1 !2
!3
23 6 7 8 9
1 5
4
