Fisher & Paykel ecosmart GWL11 Mounting instructions

New Zealand Australia USA Canada Europe Asia Pacific
GWL11
Installation instructions and
User guide
EN
Clothes Washer
Instructions d’installation
et mode d’emploi
FR
Lave-linge

2
Please Note: To obtain maximum efficiency, your Ecosmart washer has the ability to learn and
adapt to the local environment. This may take several wash cycles, therefore maximum energy
efficiency may not be achieved until a number of wash cycles have been completed. This
usually takes about 5 cycles.
As an ENERGY STAR® Partner Fisher & Paykel Limited has determined
that this product meets ENERGY STAR® guidelines for energy efficiency.
WARNING
Electric Shock Hazard
Read and follow the IMPORTANT SAFETY INSTRUCTIONS
outlined in this User Guide before operating this appliance,
pages 11–13.
Failure to do so can result in death, electric shock, fire or injury
to persons.
English Page 2 – 38
Français Page 40 – 67

3
EN
Contents
Installation Instructions 5
Important Safety Instructions 11
How to get Started 14
About your Ecosmart
How your Ecosmart Works 16
Lid Lock 17
Wash Cycles and Options
The Wash Progress Lights 17
The Wash Cycles, Wash Options 18
Softener Rinse, Soak, Time Saver 19
Water Levels 20
Spin Hold, Delay Start, Clothes Care Safeguards 21
Customizing the Wash Cycle, Favorite Cycle 22
Washing Bulky Items, Washing Woollens, Cold Water Washing 23
Before You Wash
Sorting and Loading 24
Bleach 25
Fabric Softener 25
Scrud 25
Changing Pre-Set Options
Option Adjustment Mode 26
Out of Balance Recovery Routine 28
Auto Water Fill Level 28
End of Cycle Beeps 29
Default Rinse Options 29
Volume of Water used in the Shower Rinse 29
Controlled Cold 29
Caring for your Ecosmart
Care and Cleaning 30
Products that might Damage your Ecosmart 31
Ecosmart Sounds and Beeps 31
Automatic Lint System 31
If your Ecosmart Beeps for Help 32
Service 33
Operating Problems 34
Wash Problems 35
Limited Warranty 36

4
Important!
It is important that the User Guide should be retained with the appliance for future
reference. Should the appliance be sold or transferred to another owner, always ensure
that the User Guide is left with the appliance in order that the new owner can familiarize
themselves with the appliance and the relevant warnings.
Congratulations on purchasing a new Fisher & Paykel washing machine. We are very proud of
our washers and trust they will serve you well for many years.
At Fisher & Paykel we aim to provide innovative products that are simple to use, ergonomic and
energy efficient. Thousands of tonnes of washing and 70 years of laundry experience have been
programmed into your washing machine to help give you the best possible performance.
We hope you enjoy your new washing machine,
we have certainly enjoyed designing it.

5
Important!
Observe all governing codes and ordinances.
Installation requirements
Location
Your washer must be installed on firm flooring to minimize vibration during spin cycles.
Concrete flooring is best, but wood base is sufficient providing the floor support meets FHA
standards.
Your washer should not be installed on rugs or exposed to the weather.
Plumbing
Water Temperature
Your cold water should not exceed 95˚F (35˚C) or your hot water exceed 150˚F (65˚C).
Temperatures above this may damage your washer.
Shut Off Valves
Both hot and cold shut-off valves (faucets) should be available in the laundry area.
Drain
Water may be drained into a standpipe or set tub. The standpipe must be 1
1
/ 2 ” (38mm)
minimum interior diameter and must be open to the atmosphere.
Electrical
This appliance must be supplied with 110V – 120V, 60Hz electrical supply and connected to an
individual, properly grounded branch circuit, protected by a 15 or 20 amp circuit breaker or time
delay fuse.
WARNING
Electric Shock Hazard
Read and follow the IMPORTANT SAFETY INSTRUCTIONS
outlined in this User Guide before operating this appliance,
pages 11–13.
Failure to do so can result in death, electric shock, fire or injury
to persons.
Installation Instructions
Before you begin – read these instructions completely and carefully.
EN

6
Installation Instructions

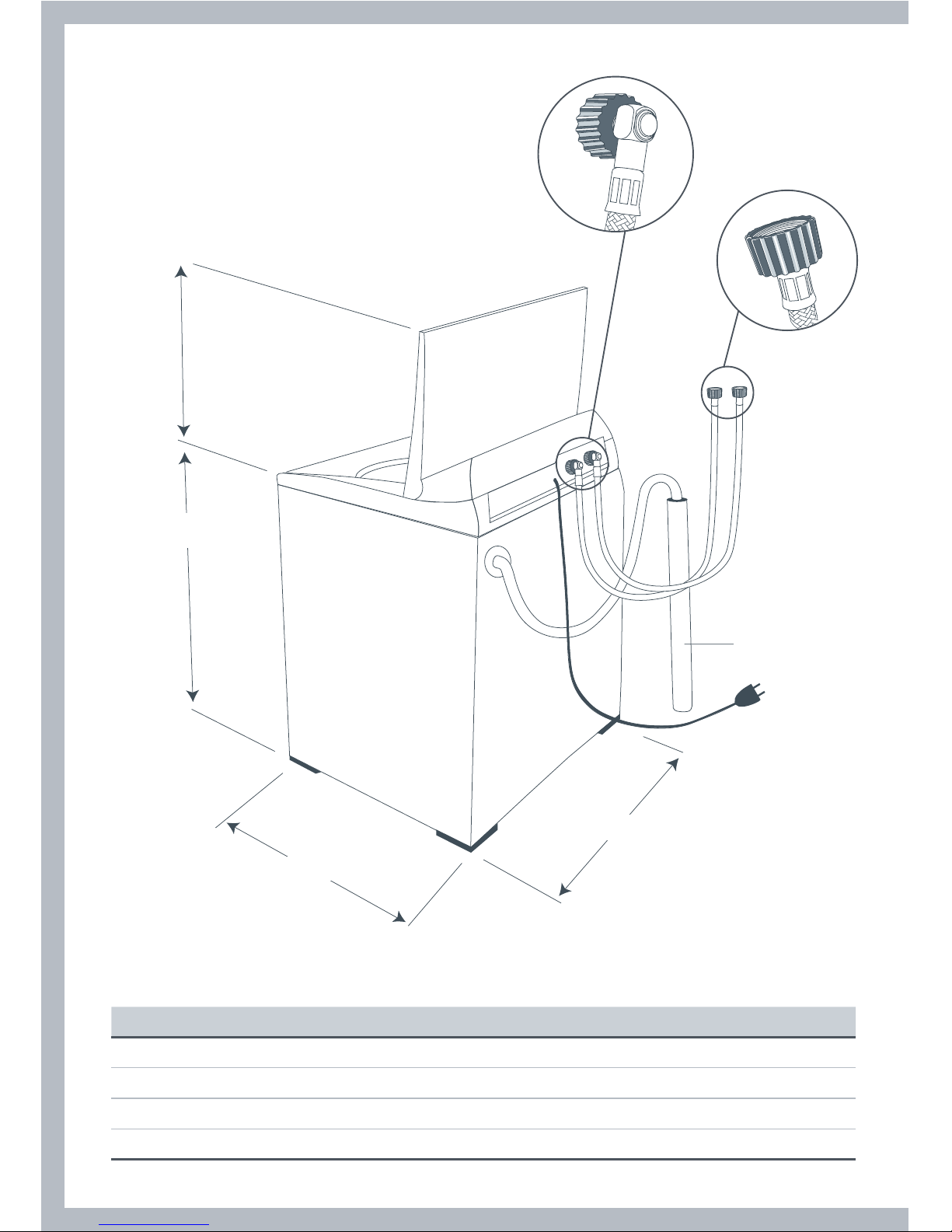

Specifications
Model All models
Depth 251/2” (650mm)
Width 251/2” (650mm)
Height to top of console 40”- 413/4” (1020-1060mm)
Height lid open 55”- 563/4” (1400-1440mm)
Inlet water pressure
Max 150 psi (1MPa)
Min 5 psi (34kPa )
Standpipe Height
33 1/2” to 78”
Height
Lid Clearance
Allow for
adjustable
feet
Depth
Width
Dimensions
Faucet end of hose
Washer end of hose

7
EN
Installation Instructions
Step 1
Remove Bottom Packer
1. Remove outer packaging.
2. Tilt the machine backwards and walk the machine off
the bottom packer. The plastic bottom packer can now
be removed.
CAUTION!
Operating the machine when the bottom packer is
in place can result in damage to the machine.
Step 2
Removing Basket Packer and Accessories
1. Lift the lid and remove cardboard basket packer from
the top of the washer basket.
2. Keep the bottom packer and basket packer in case
they are required for future transit.
3. Remove hoses, accessories and installation pack.
The installation pack contains the following:
4 rubber inserts for the leveling feet
1 drain hose guide
Step 3
Drain Hose
1. Carefully pull the drain hose out from the back of
the washer by pulling the exposed part of the hose
downwards and then out.
2. The hose guide is used to guide the drain hose over the
tub or standpipe. It MUST be fitted to the drain hose.
To prevent siphoning the drain hose should not extend
more than 3/4” (20mm) from the end of the guide.
If necessary, the drain hose can be trimmed to length.
3. Place the drain hose in the laundry tub or standpipe.
Note:
In multi-storey apartments or any upper floor installation,
the machine should be installed on a drained floor.
Check that the tub or standpipe is free from lint or
other obstructions before operating the washer.
In basement installation do not exceed a standpipe
height of (78”).
Basket packer
Pull hose
through guide
3/4”
(20mm)

8
Installation Instructions
Step 4
Inlet Hoses
1. Install hoses with the straight end (with filters)
fitted to the faucets.
2. Install elbow ends onto washing machine (inlet
valves are marked on the back of the machine
H=hot, C=cold)
Note: If there is a cold water supply only, an inlet
valve cap (available from Fisher & Paykel) MUST
be connected to the hot valve. The cap prevents
water leaking from the hot valve.
Step 5
Leveling the Washer
1. Insert the four rubber leveling feet inserts into the
feet on the base of the washer. (See diagram 1).
2. Move the washer into its final position. We suggest
a minimum clearance of 1” (25mm) on each side for
ease of installation. (See diagram 2).
3. Turn on water and check hose connections for leaks.
Check that there are no kinks in the hoses.
4. It is IMPORTANT to level the washer to ensure
proper performance during spin.
Adjust the feet by unscrewing/screwing to make
sure the washer is level and cannot rock.
5. Use the walls and adjacent counter tops as a sight
guide to check to see if washer appears level.
Readjust the feet if necessary.
6. Open the lid and check the washer basket to see
that it sits slightly forward of centre. (See diagram 3).
Diagram 3
Correct
adjustment
Incorrect
adjustment
Diagram 1
Adjustable feet
Rubber insert
1” (25mm) 1” (25mm)
Diagram 2
1. Faucet
end of
hose
2. Washer
end of
hose

9
EN
Installation Instructions

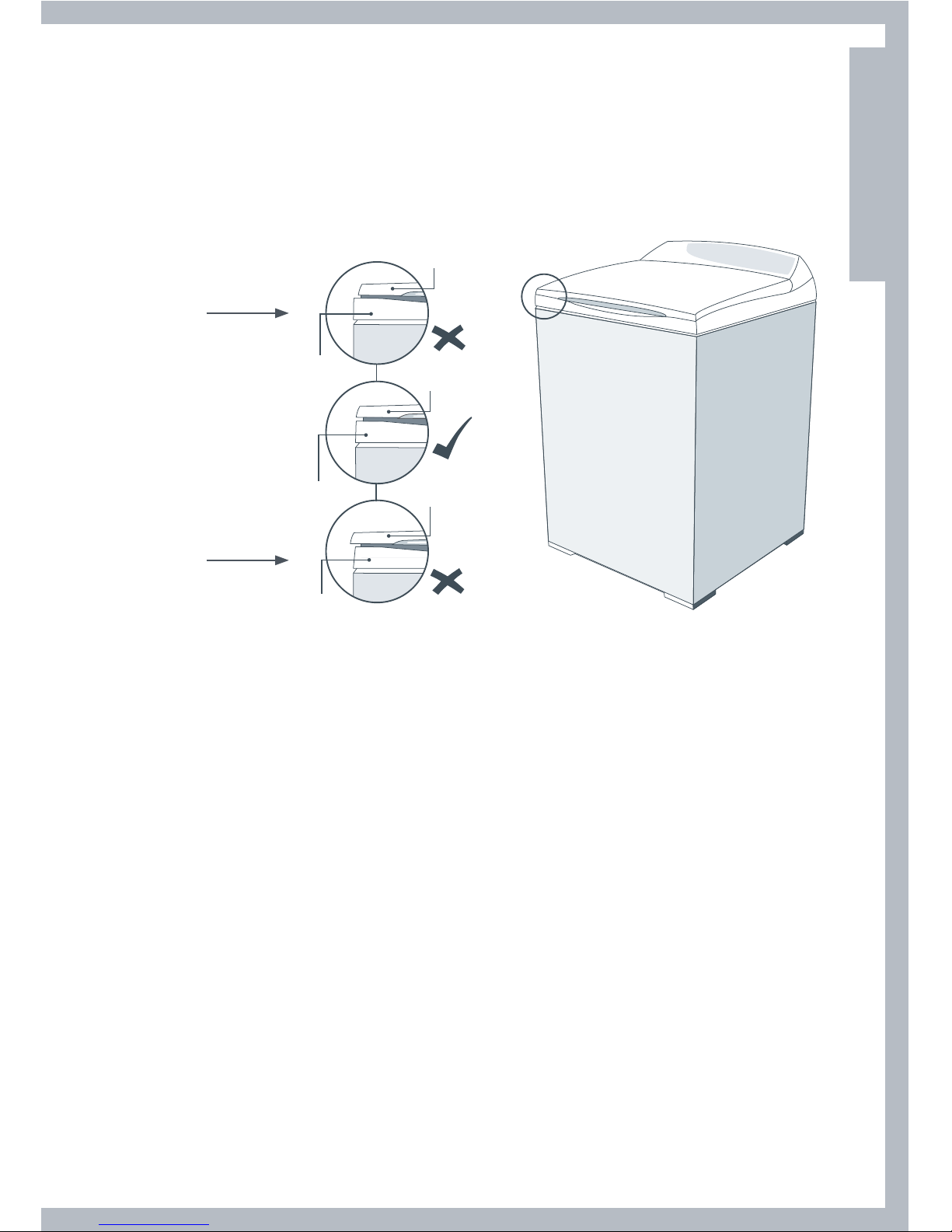

8. Close the lid. Visually check that the lid and topdeck are aligned. If not aligned, adjust the feet
again until the lid and topdeck match.
Step 6
Operation
1. Turn faucets on. Check for leaks, noise, vibration, correct water temperatures and proper
operation in spin. Check that the lid locks during spin.
2. Turn hot and cold water faucets off when washer is not in use.
Special Instructions
1. The washer may give warning signals when low water pressure, or drain problems are
encountered. See ‘If your Ecosmart beeps for help’ (page 32).
If further help is needed concerning this appliance, refer to Service, page 33.
Lid Alignment
Lid
Lid
Lid
Topdeck
Topdeck
Topdeck
Wind left foot down
(out) to correct
Wind right foot down
(out) to correct

10
Installation Instructions
Special Requirements for Alcove or Closet Installation
The minimum ventilation clearance between the washer and adjacent walls or other surfaces is:
1” (25mm) minimum either side and front
3” (75mm) minimum rear
Consideration must be given to providing
adequate clearance for installation and servicing.
The minimum vertical space required from floor
to overhead shelves, cabinets, ceilings etc is 59”
(1500mm).

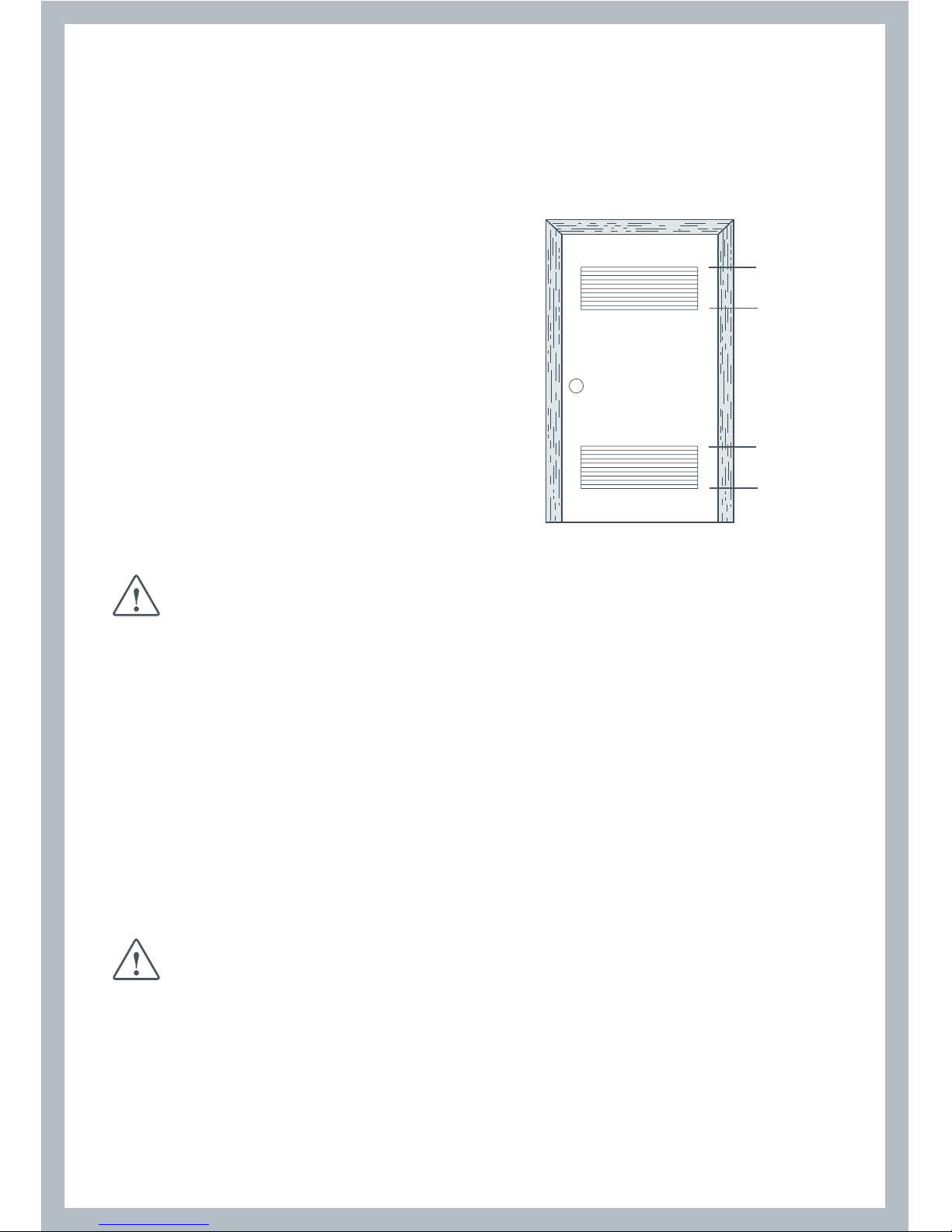

Closet doors must be louvered or otherwise
ventilated and have at least 60 square inches open
area for a washer only, or if the closet contains both
a washer and dryer, doors must contain at least 120
square inches of open area equally distributed.
CAUTION!
Do not install this appliance in a closet with a solid door.
Mobile Home Installation
Installation must conform to the STANDARD FOR MOBILE HOMES, ANSI A119.1 and NATIONAL
MOBILE HOME CONSTRUCTION & SAFETY STANDARDS ACT OF 1974 (PL93-383).
Grounding Instructions
This appliance must be grounded. In the event of malfunction or break down, grounding will
reduce the risk of electric shock by providing a path of least resistance for electric current. This
appliance is equipped with a cord that has an equipment-grounding conductor and a grounding
plug. The plug must be plugged into an appropriate outlet that is properly installed and
grounded in accordance with all local codes and ordinances.
WARNING!
Improper connection of an equipment-grounding conductor can result in a risk of electric shock.
Check with a qualified electrician or serviceman if you are in doubt as to whether the appliance is
properly grounded.
Do not modify the plug provided with the appliance – if it will not fit the outlet, have a proper
outlet installed by a qualified electrician.
Specification subject to change without notice.
Louvered door
Washer & Dryer
60 Sq. In
(388 Sq. cm)
60 Sq. In
(388 Sq. cm)
