Fisher PC-20S00M User manual

Important Safety Tips . . . . . . . . . . . . . . . . . . . . 2
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Basic Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

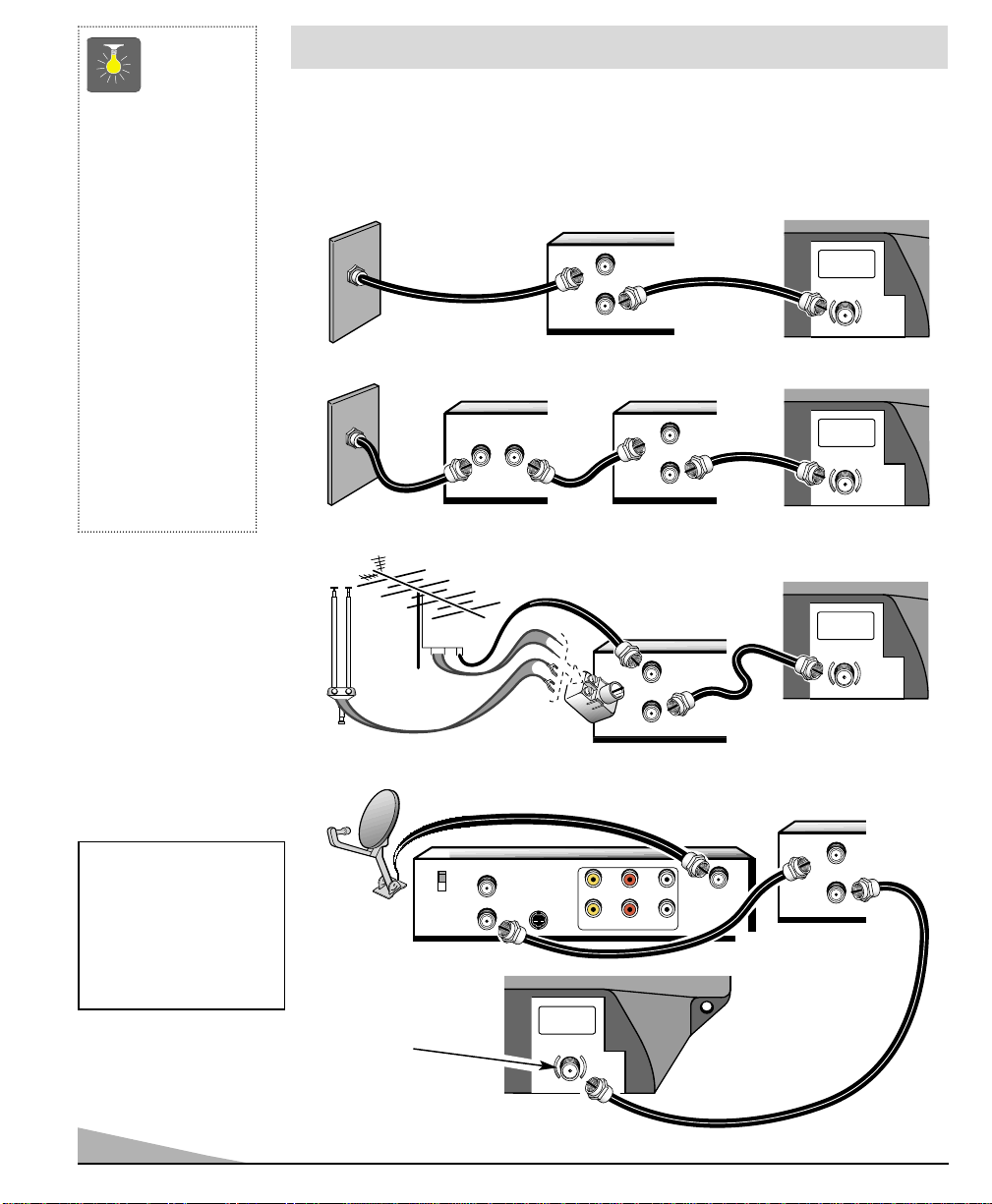

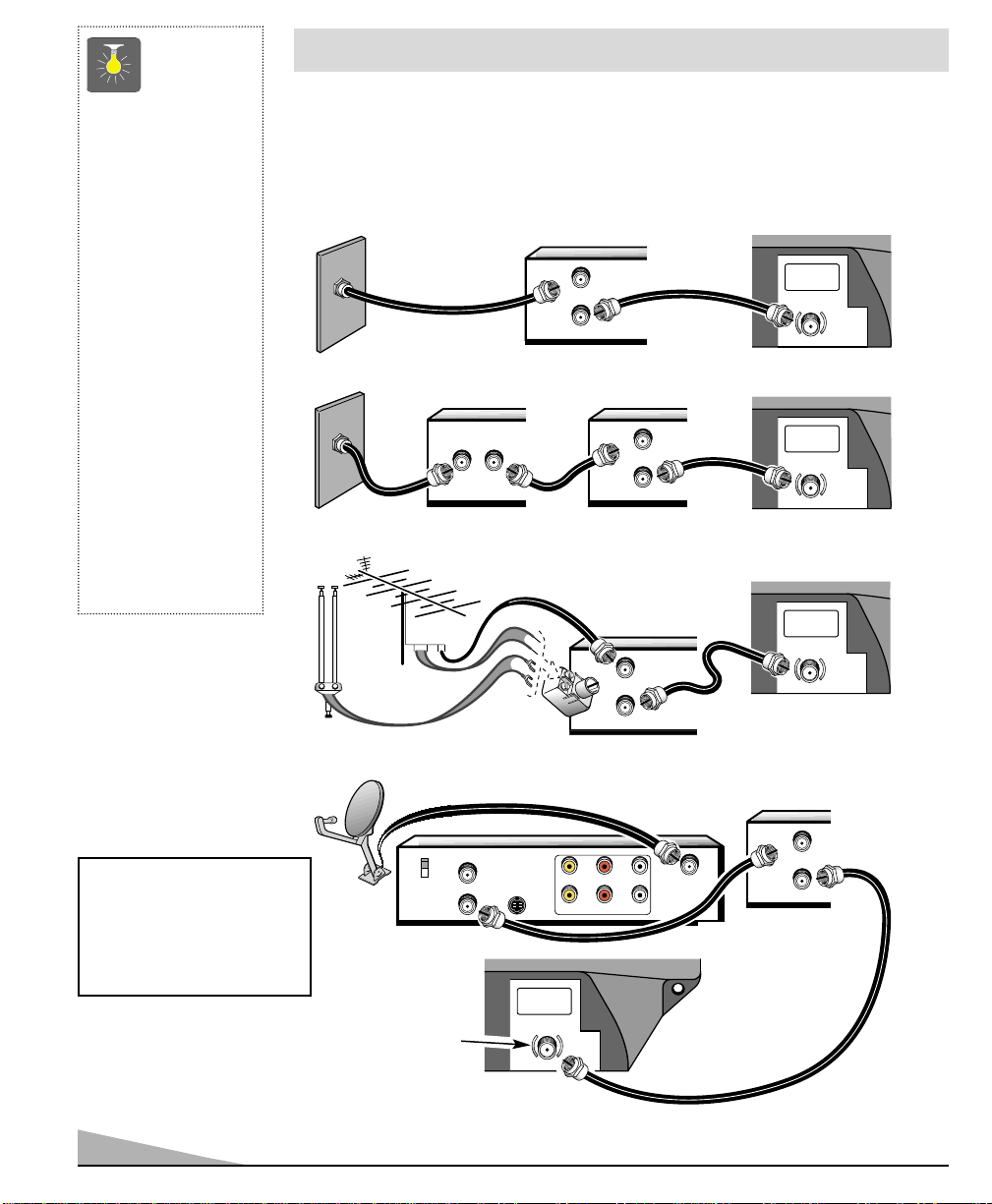

Basic Hookup Methods . . . . . . . . . . . . . . . . . . . 4

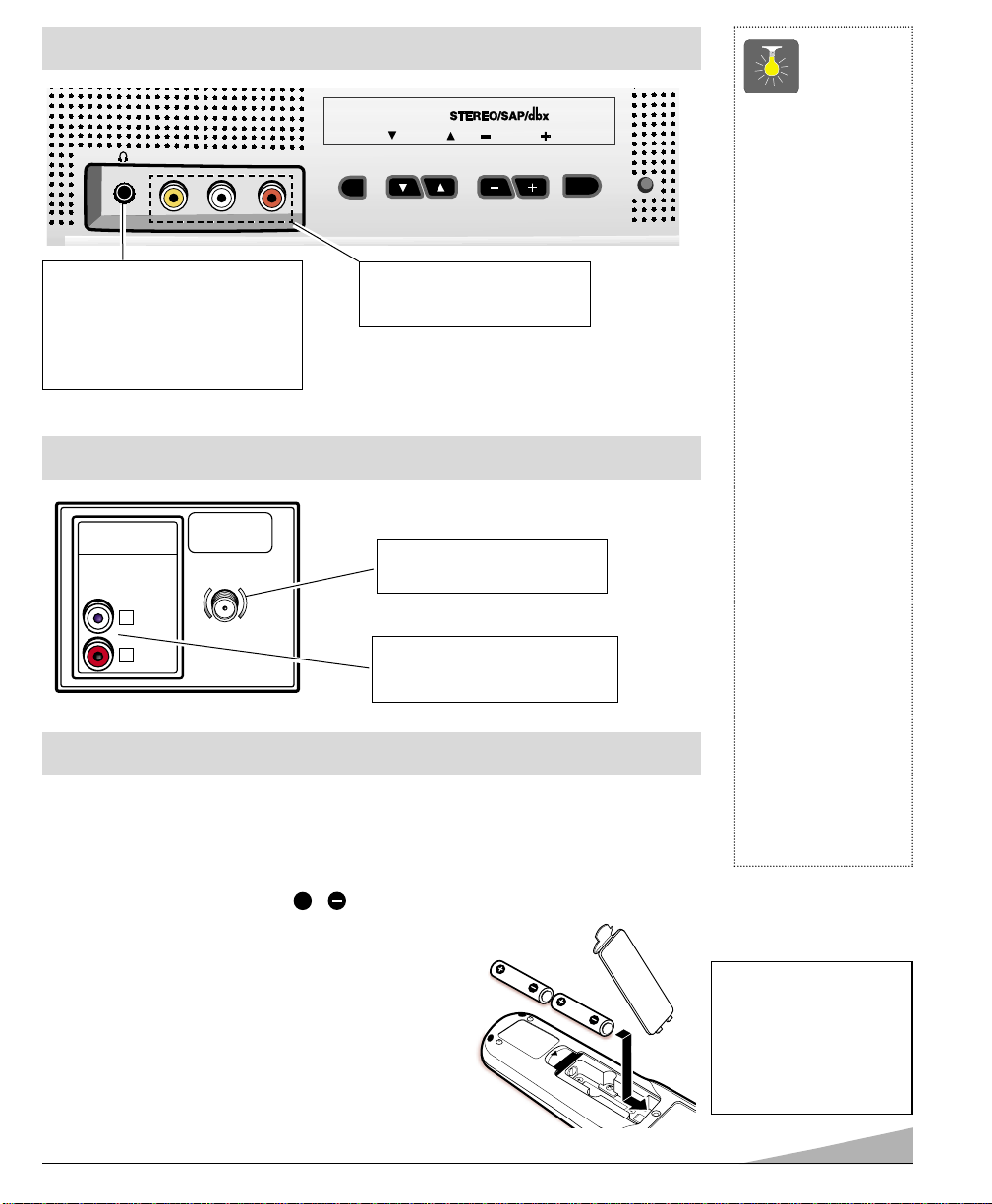

Front Control Panel . . . . . . . . . . . . . . . . . . . . . . 5
Back Control Panel . . . . . . . . . . . . . . . . . . . . . . 5
Remote Control . . . . . . . . . . . . . . . . . . . . . . 5 ~ 6

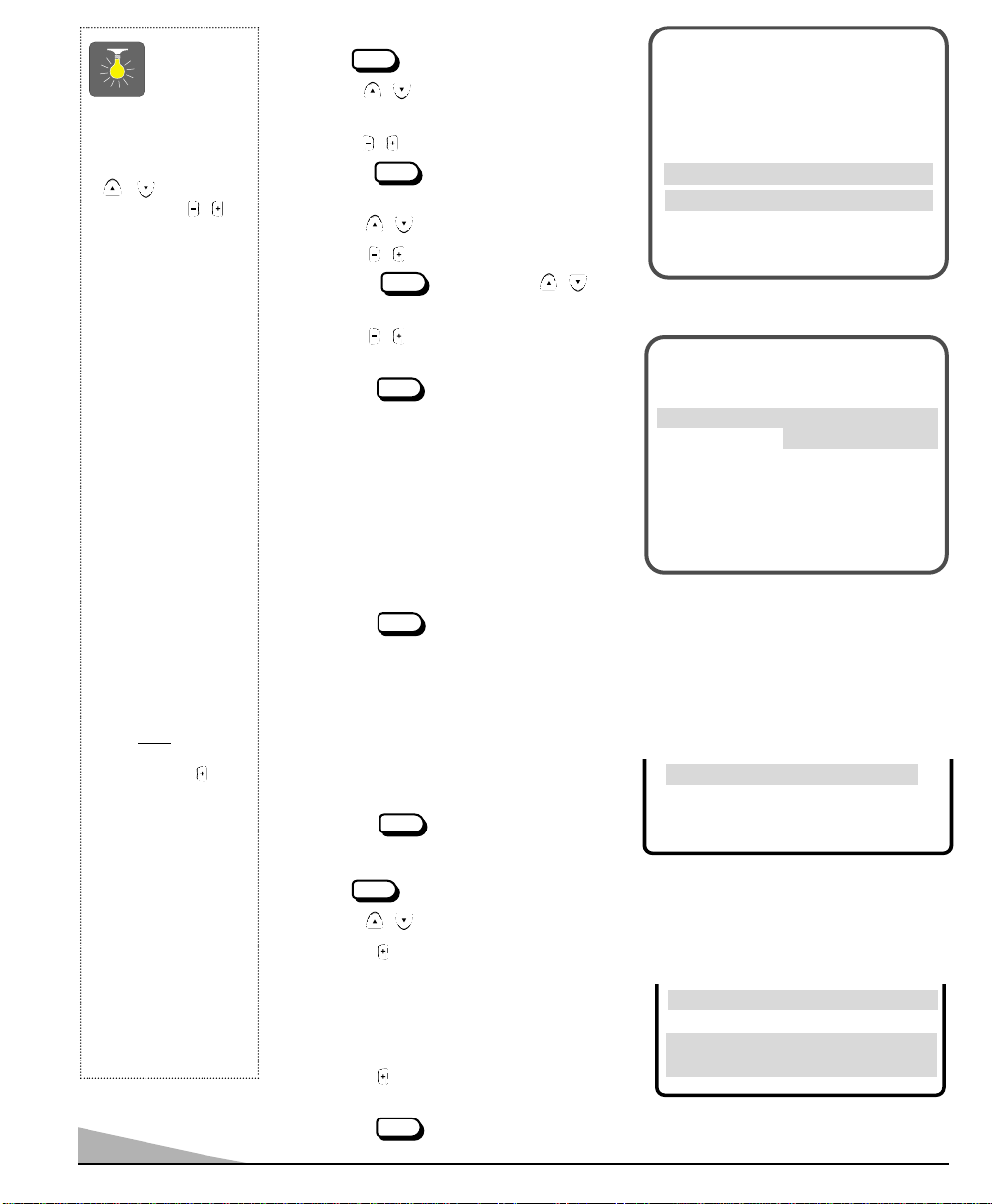

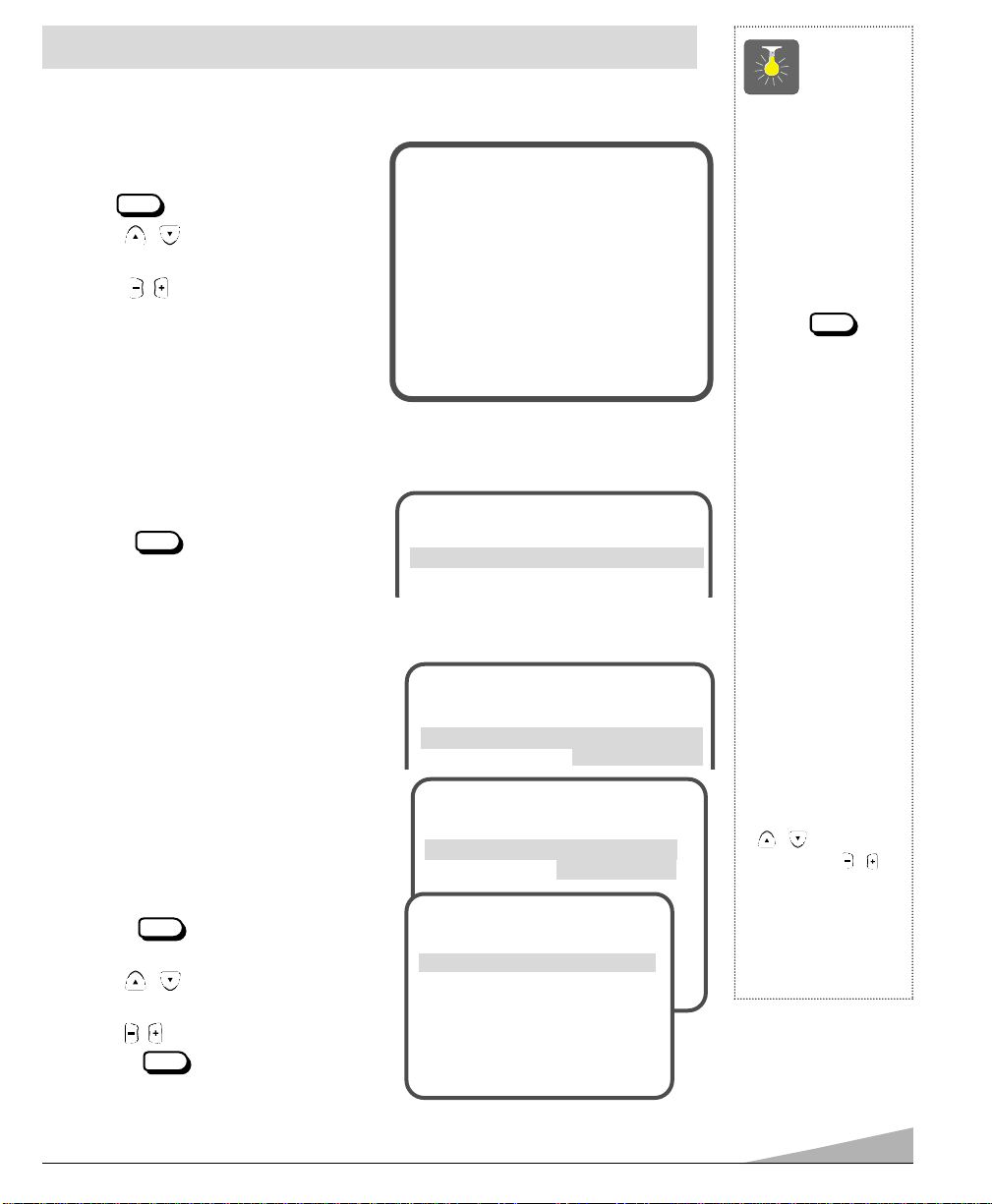

TV Adjustment and Setup . . . . . . . . . . . . . 7 ~ 9

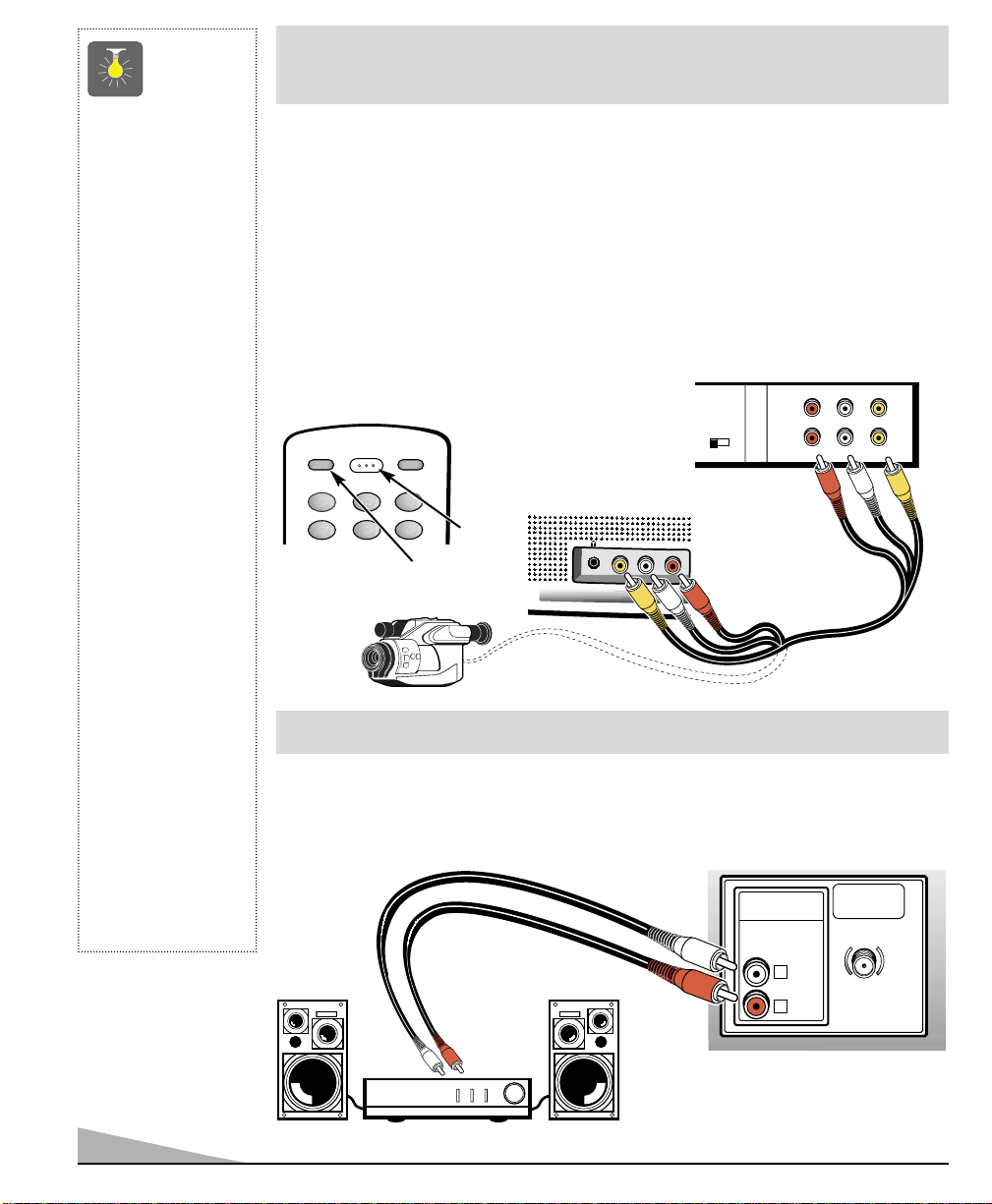

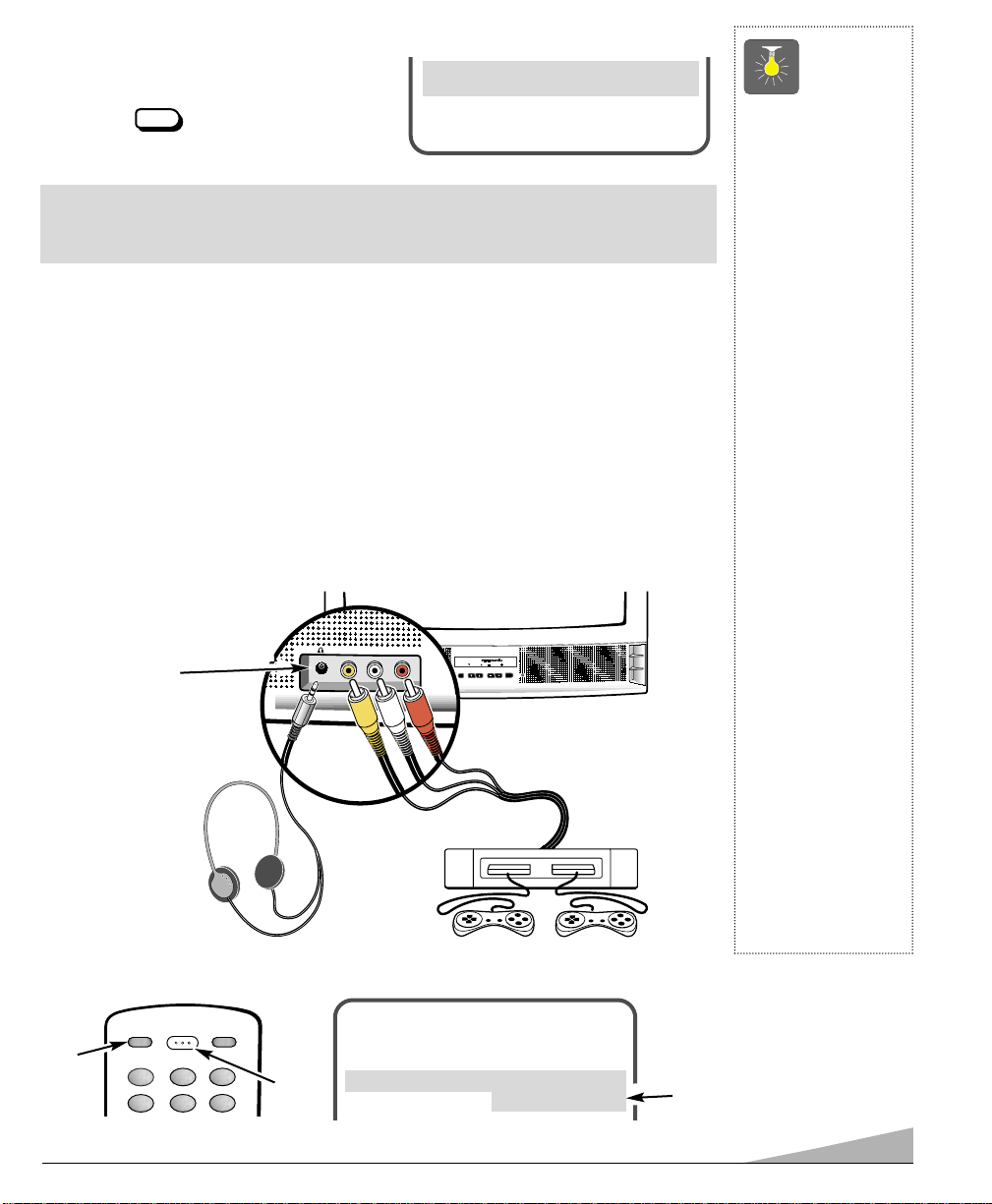

Using the Front Audio/Video Input Jacks . . 9 ~ 10
Using the Audio Out Jacks . . . . . . . . . . . . . . . 10

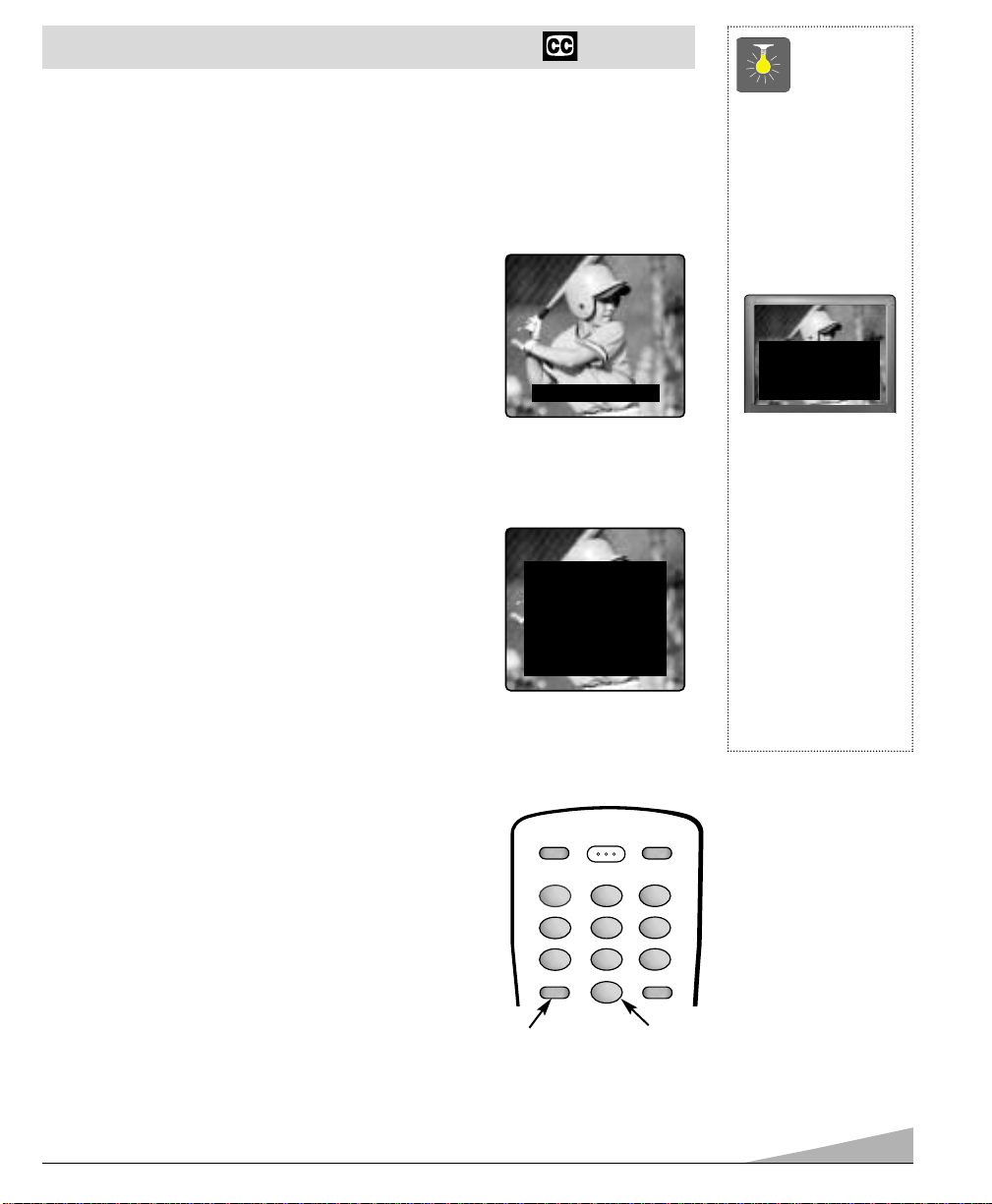

Closed-Captioning . . . . . . . . . . . . . . . . . . . . . 11
V-Guide Information . . . . . . . . . . . . . . . . . . . . 12
V-Guide Operation
(Parental Control) . . . . . . . . . . . . . . . . . 12 ~ 13

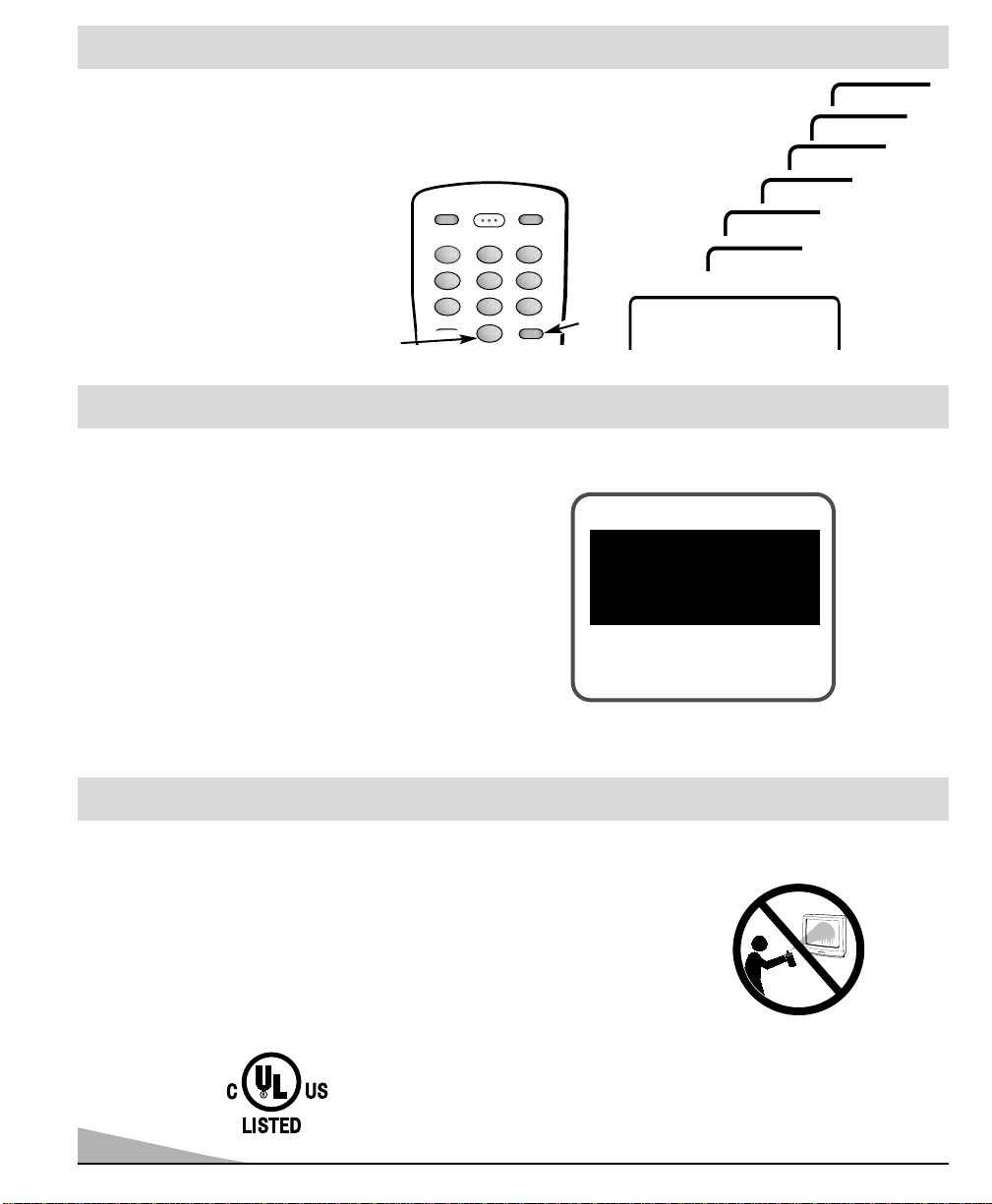

Setting the Sleep Timer . . . . . . . . . . . . . . . . . 14
Resetting the TV . . . . . . . . . . . . . . . . . . . . . . . 14
Care and Cleaning . . . . . . . . . . . . . . . . . . . . . 14
Helpful Hints–Problems/Solutions . . . . . . . . . 15
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
ESPAÑOL . . . . . . . . . . . . . . . . . . . . . . . . 17 ~ 32
Contenido . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

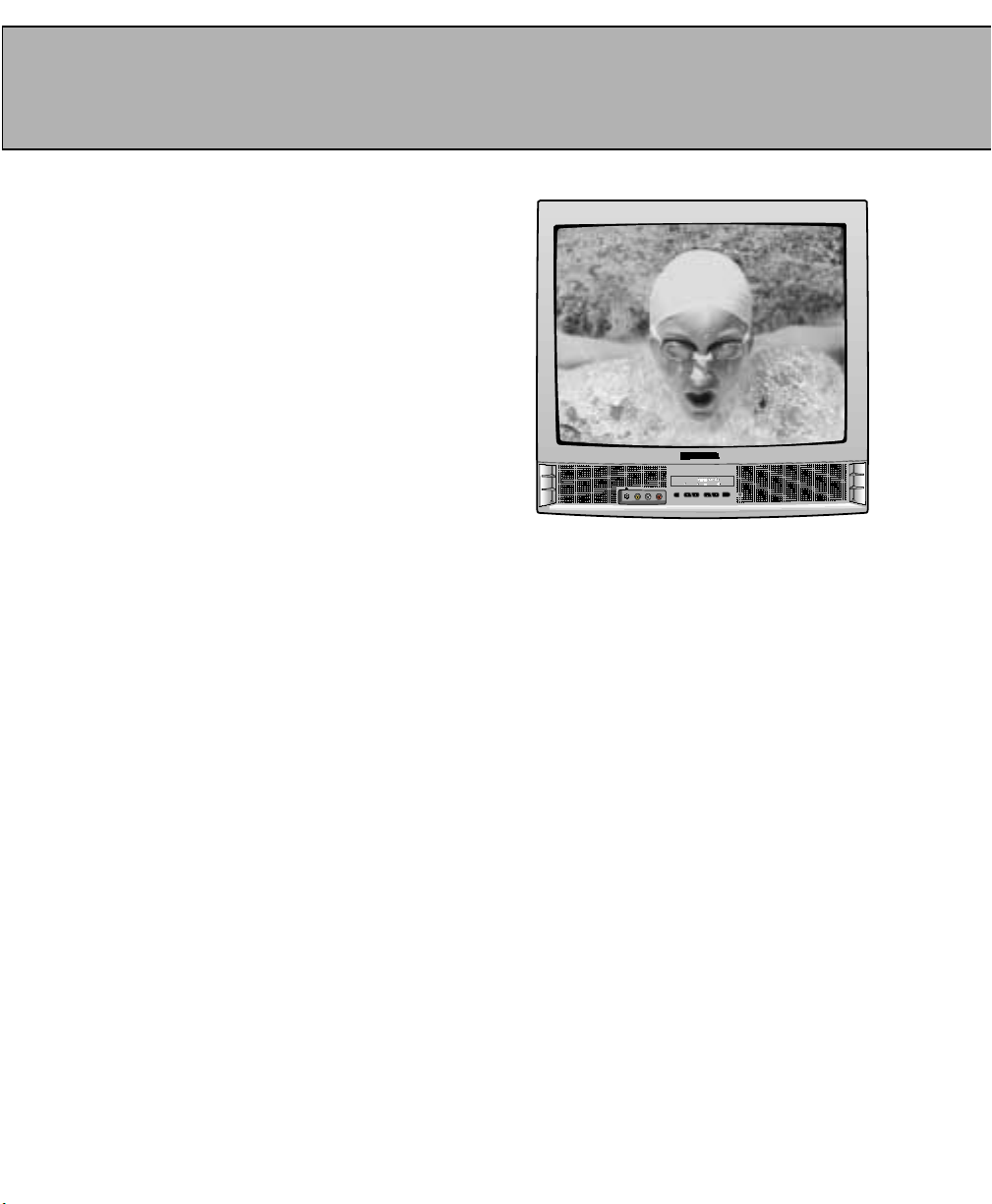

TV screen image / Imagen de la Pantalla del Televisor
© 2000 PhotoDisc, Inc.
Welcome to the World of FISHER
Thank you for purchasing a Fsher Color Television. You made an excellent choice for Performance, Reliability,
and Value. The TV is designed with easy on-screen setup instructions and operating features. To meet the
growing needs of our customers, this television has a “V-Chip” for parental controlled viewing.
PC-20S00M
Color TV Owner’s Manual
Color TV Manual del Propietario
VIDEO IN L - AUDIO - R
MTS
MENUMENU CHANNELCHANNEL VOLUMEVOLUME POWERPOWER
MTS
MENUMENU CHANNELCHANNEL VOLUMEVOLUME POWERPOWER
FGH
Printed in U.S.A. SMC, May, 2000 / Impreso en U.S.A. SMC, Mayo, 2000
Part No. / No. de Parte : 1AA6P1P2127––
Service Code/Código de Servicio : 610 282 3462
FGH
CONTENTS

2
Positioning the appliance
1. Do not place your appliance on an unstable cart, stand, shelf or table.
Serious injury to an individual, and damage to the appliance, may result
if it should fall. Your salesperson can recommend
approved carts and stands or shelf and wall mounting
instructions. An appliance and cart combination should
be moved with care. Quick stops, excessive force, and
uneven surfaces may cause the appliance and cart
combination to overturn.
2. Slots and openings in the cabinet and in the back or bottom are
provided for ventilation. To ensure reliable operation of the appliance
and to protect it from overheating, these openings must not be blocked
or covered. The openings should never be covered with a cloth or other
material, and the bottom openings should not be blocked by placing the
unit on a bed, sofa, rug, or other similar surface. This appliance should
never be placed near or over a radiator or heat register. This appliance
should not be placed in a built-in installation such as a bookcase unless
proper ventilation is provided.
3. Do not expose the appliance to rain or use near water . . . for example,
near a bathtub, swimming pool, kitchen sink, in a wet basement, etc.
Hooking Up Outdoor Antenna
LIGHTNING PROTECTION FOR YOUR ANTENNA AND SET AS PER
NATIONAL ELECTRICAL CODE INSTRUCTIONS.
4. If an outside antenna is connected to the receiver, be sure the antenna
system is grounded so as to provide some protection against voltage
surges and built up static charges. Article 810 of the National Electrical
Code, ANSI/NFPA 70, provides information with respect to proper
grounding of the mast and supporting structure, grounding of the lead
in wire to an antenna discharge unit, size of grounding conductors,
location of antenna discharge unit, connection to grounding electrodes,
and requirements for the grounding electrode.
An outside antenna system should not be located in the vicinity of over-
head power lines or other electric light or power circuits, or where it
can fall into such power lines or circuits. When installing an outside
antenna system extreme care should be taken to keep from touching
such power lines or circuits as contact with them might be fatal.
Plug in the power cord
5. The design of many appliances does not require a polarized AC line
plug (one blade wider than the other). However, if your appliance is
equipped with a polarized AC line plug, it is a safety feature which
prevents the plug being inserted incorrectly. If you have
difficulty inserting the plug, try reversing it. If the plug
still does not fit fully into the outlet, contact your electri-
cian to replace your obsolete outlet. Do not defeat the
safety purpose of this polarized plug.
6. Do not allow anything to rest on the power cord. Do not locate the
appliance where the cord will be abused by persons walking on it.
Cleaning
7. Before cleaning, unplug the unit from the wall outlet. Do not apply
liquid cleaners or aerosol cleaners directly to the unit. Use a dry cloth
for cleaning.
Service & Repair
8. Unplug the appliance from the wall outlet and refer servicing to
qualified service personnel under the following conditions:
A. If the power cord or plug is damaged or frayed.
B. If liquid has been spilled into the appliance.
C. If the appliance has been exposed to rain or water.
D. If the appliance has been dropped or the cabinet has been damaged.
E. If the appliance exhibits a distinct change in performance.
F. If the appliance does not operate normally by following the operat-
ing instructions, adjust only those controls that are covered in the
operating instructions. Improper adjustment of other controls may
result in damage and will often require extensive work by a qualified
technician to restore the appliance to normal operation.
9. Upon completion of any service or repair, request the service techni-
cian’s assurance that only Factory Authorized Replacement Parts that
have the same characteristics as the original parts were used, and that
routine safety checks have been performed to determine that the appli-
ance is in safe operating condition. Unauthorized substitutions may
result in fire, electrical shock, or other hazards.
10. Never add accessories that have not been specifically designed for use
with this appliance.
11. For added protection during a lightning storm, or when the set is left
unattended and unused for long periods of time, unplug it from the wall
outlet and disconnect the antenna. This will prevent damage to the set
due to lightning or power line surges.

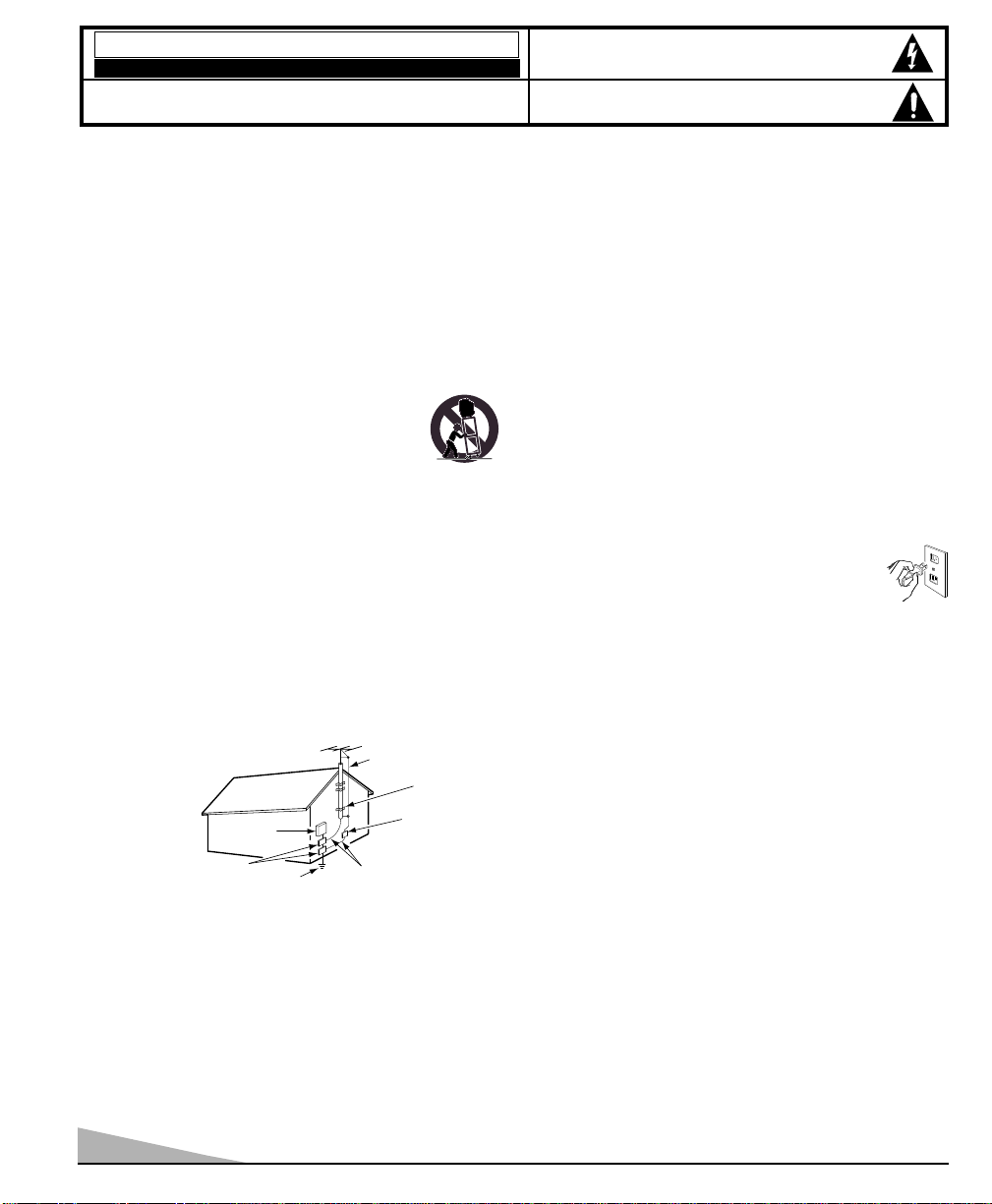

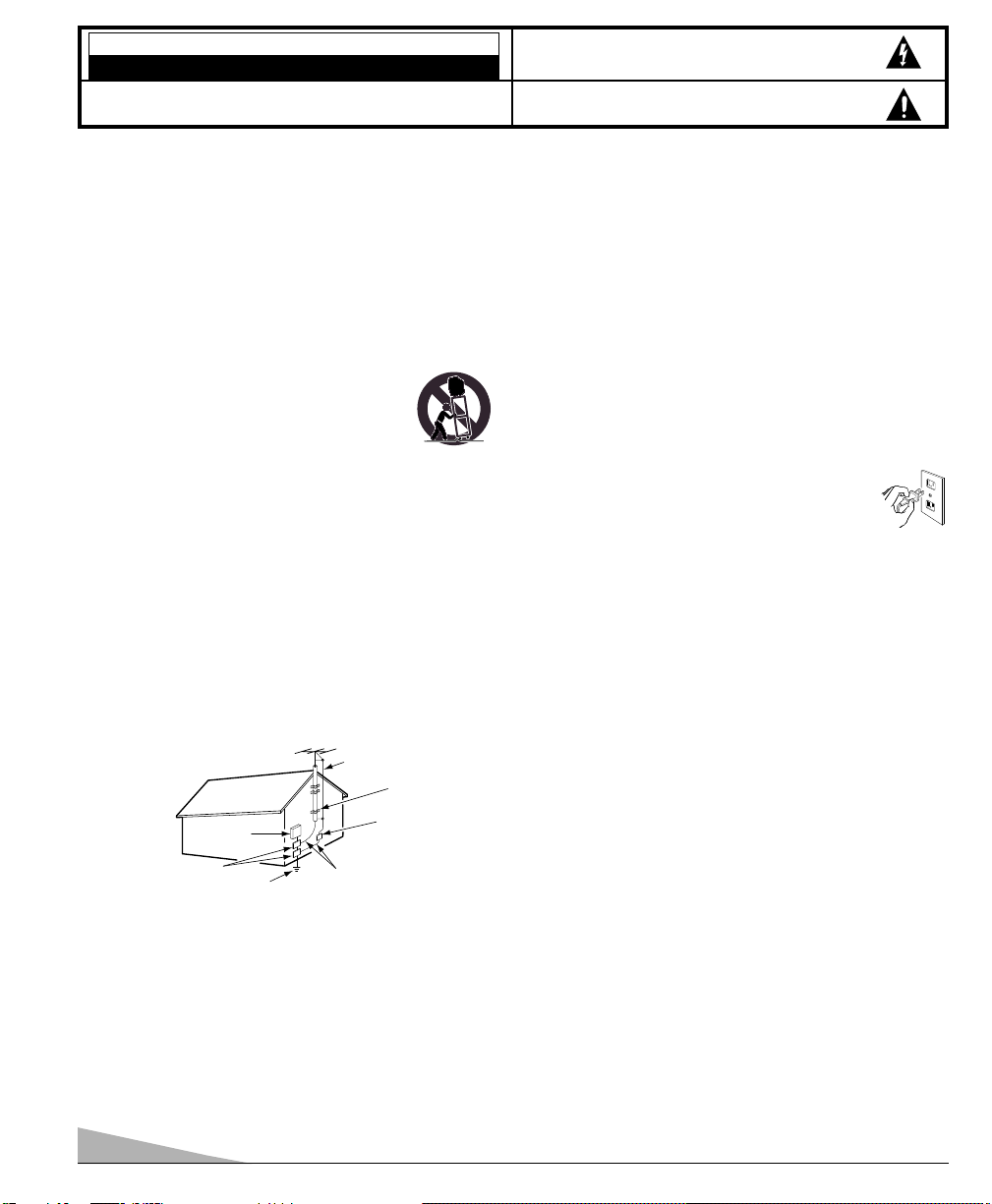

EXAMPLE OF ANTENNA GROUNDING ACCORDING TO NATIONAL
ELECTRICAL CODE, ANSI/NFPA 70
CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR
BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
THIS SYMBOL INDICATES THAT DANGEROUS VOLTAGE CONSTITUTING
A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT.
THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT OPERATING
AND MAINTENANCE INSTRUCTIONS IN THE LITERATURE ACCOMPANY-
ING THIS UNIT.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.
IMPORTANT SAFETY INSTRUCTIONS
CAUTION: PLEASE ADHERE TO ALL WARNINGS ON THE PRODUCT AND IN THE OPERATING INSTRUCTIONS. BEFORE
OPERATING THE PRODUCT, PLEASE READ ALL OF THE SAFETY AND OPERATING INSTRUCTIONS. RETAIN THIS
LITERATURE FOR REFERENCE. Follow all instructions...
“Note to CATV system installer:
This reminder is provided to call the CATV system installer’s attention to Article 820-40
of the NEC that provides guidelines for proper grounding and, in particular, specifies that
the cable ground shall be connected to the grounding system of the building, as close to
the point of cable entry as practical.”
NEC - NATIONAL ELECTRICAL CODE
ANTENNA
LEAD IN
WIRE
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)
GROUND
CLAMP
ELECTRIC
SERVICE
EQUIPMENT
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H)

3
◆Trilingual On-Screen Menu
◆Automatic Channel Search
◆Auto Shut Off
◆Closed-Captioning/Quikcap
◆Digital picture controls
with on-screen display
◆MTS stereo/dbx®/SAP
Decoder
◆Auto Flesh Tone
◆Front Surround Sound
◆Tone
◆Automatic adjustments for
picture/sound/video games
◆Front Audio/Video Input Jacks
◆Front Headphone Jack
◆Game Mode
◆Audio Out (Fixed) Jacks
◆V-Guide (Parental Control)
◆Sleep Timer (3 hours)
◆TV Reset
Automatic Fine Tuning
VHF and Cable Channels
181 Channel Tuning System
VHF Channels 2-13
UHF Channels 14-69
Cable TV (CATV) 1, 14-125

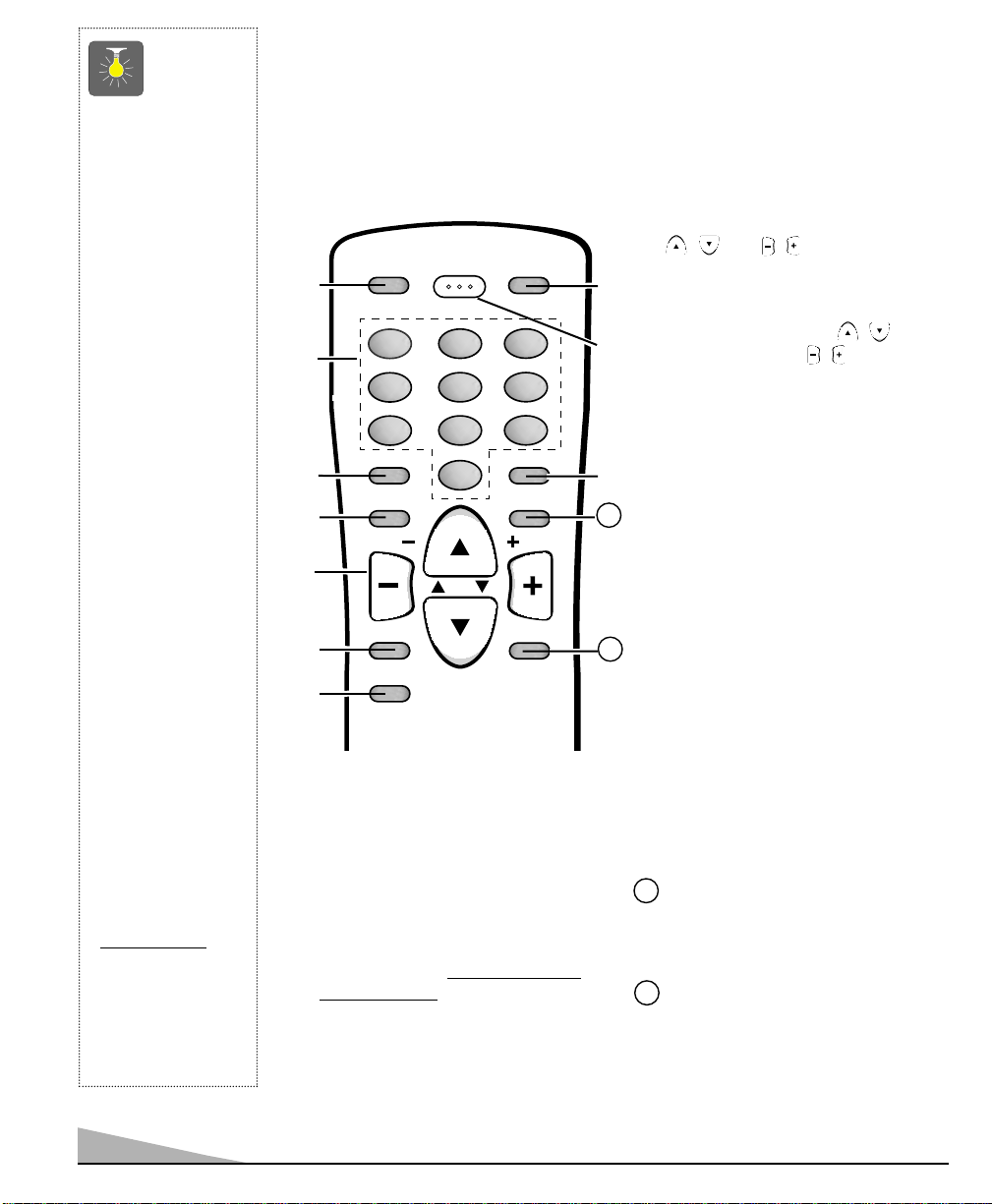

Remote Control
Large Glow-in-the-Dark basic
operating keys
Numbered Channel
Selection
Channel Scanning
Volume Mute
Power Recall
Display Sleep
Caption Reset
Menu V-Guide
Video Mode
MENU
VOL
RECALL
CAPTION SLEEP
RESET
POWER
MUTE DISPLAY
VOL
CH
1
4
70
8
5
23
6
9
V-GUIDE
UHF/VHF/CATV
75 Ω
MENU
Please wait
TV is searching
for your channels
VIDEO IN L - AUDIO - R
MTS
MENUMENU CHANNELCHANNEL VOLUMEVOLUME POWERPOWER
MTS
MENUMENU CHANNELCHANNEL VOLUMEVOLUME POWERPOWER
MTS
MENUMENU CHANNELCHANNEL VOLUMEVOLUME POWERPOWER
First
Please connect
cable system or
an antenna to the
terminal on the back
Then press the MENU key
VIDEO
MODE
FGH
❷❸
❹

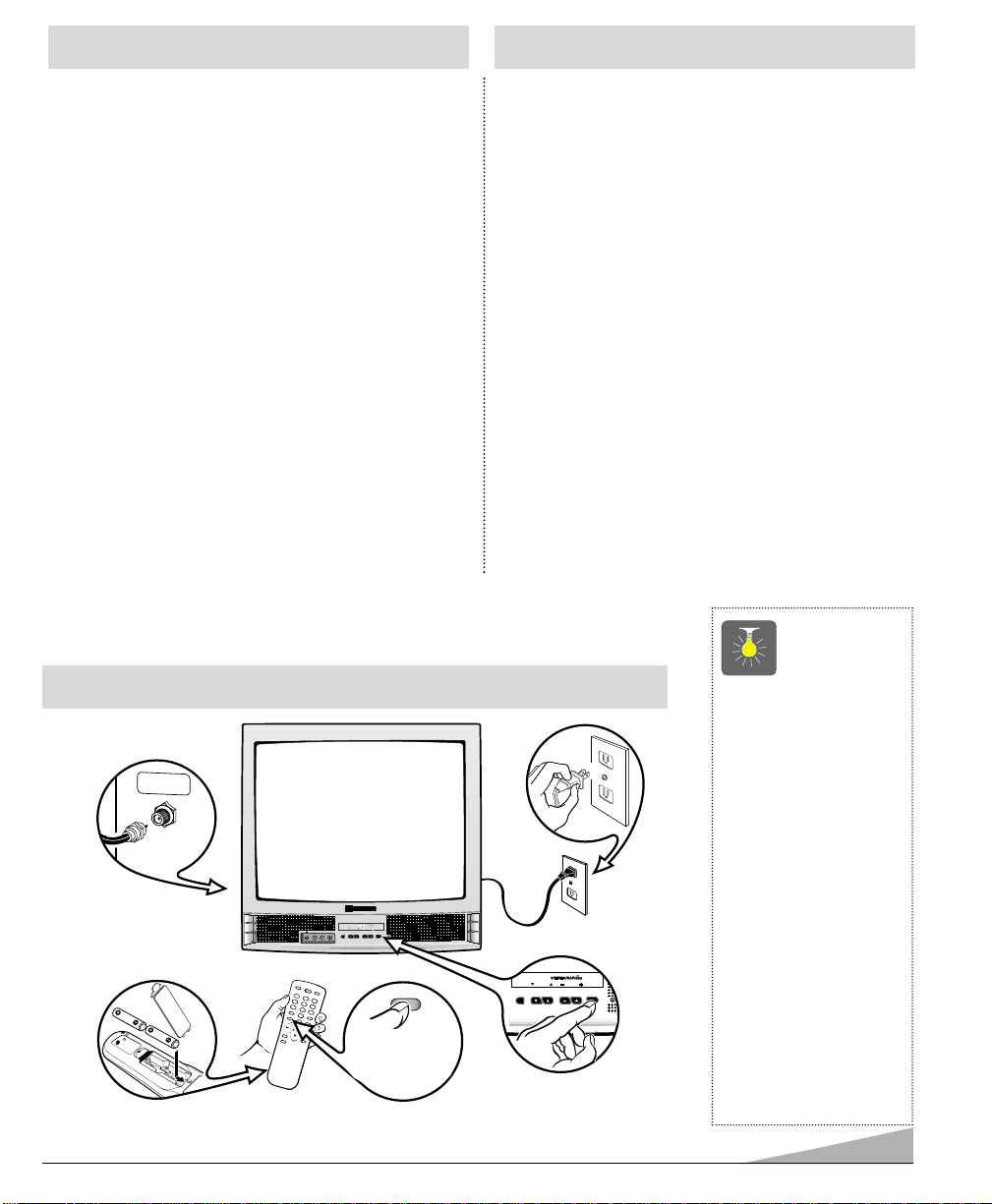

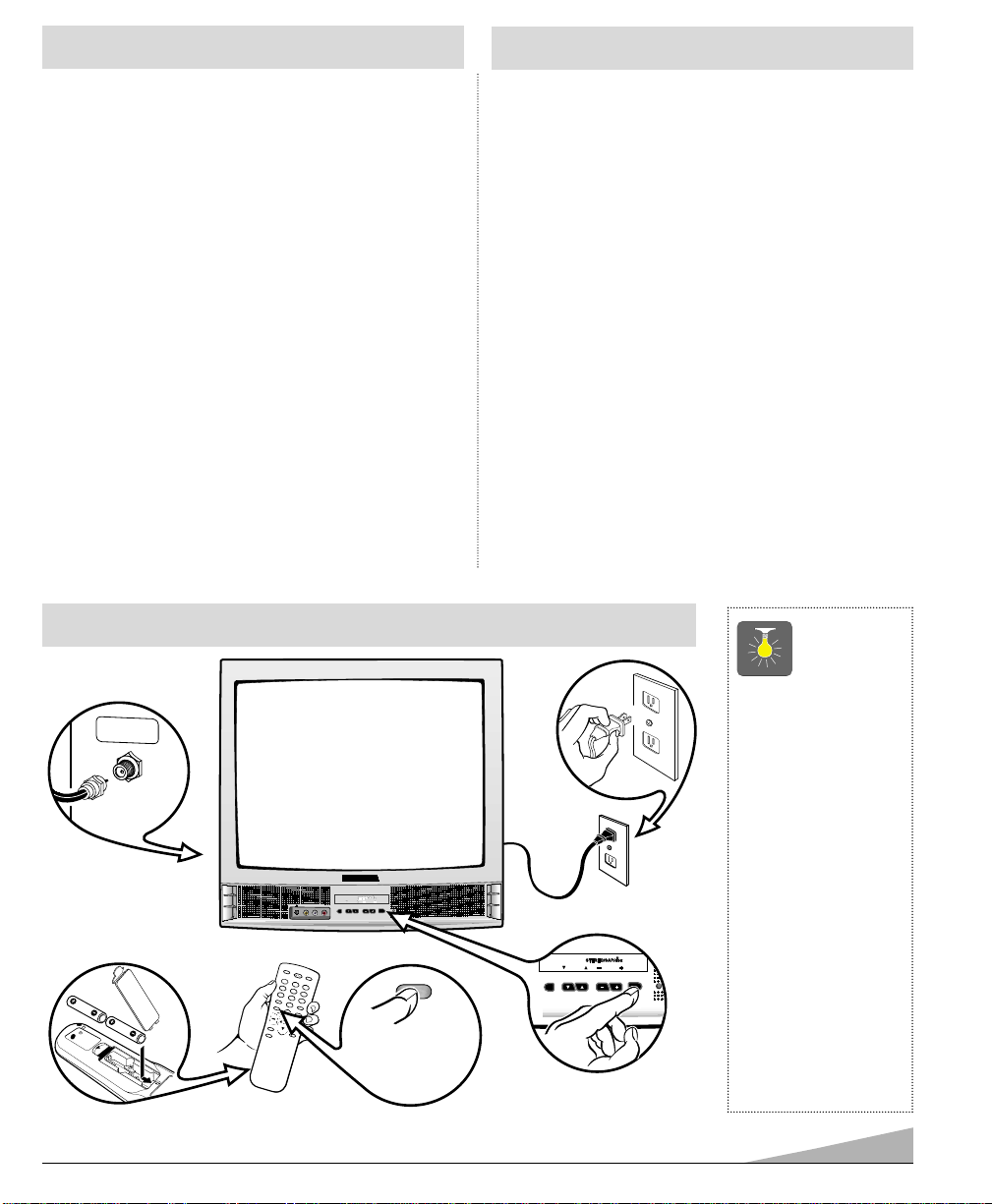

BASIC SETUP
❺
➊
(See Hookup
on page 4.)
(Install batteries, see page 5.)
(Switch on Power.)
SPECIFICATIONS
PICTURE RESOLUTION . . . . . . . . . 260 Lines
. . . . . . . . . . . . . . . . . . . . . . . . . . . Video Input: 260 Lines
ANTENNA INPUT . . . . . . . . . . . . . . UHF/VHF/CATV 75Ω
POWER REQUIREMENT . . . . . . . . . 120VAC 60Hz
POWER . . . . . . . . . . . . . . . . . . . . . 58 watts
HORIZONTAL DIM. (Width) . . . . . . . 19.2 in. (488mm)
VERTICAL DIM. (Height) . . . . . . . . 17.8 in. (452mm)
DEPTH DIM. (Thickness) . . . . . . . . 18.4 in. (468mm)
WEIGHT (LB.) (Approx.) . . . . . . . . 35.7 (16.2 Kg.)
SOUND . . . . . . . . . . . . . . . . . . . . . 2 Speakers, Size: 8 cm
AMPLIFIER . . . . . . . . . . . . . . . . . . Built-in with 1W/ch
FRONT HEADPHONE JACK . . . . . . . Stereo Output (mini plug)
FRONT A/V INPUT JACKS . . . . . . . Video Input
. . . . . . . . . . . . . . . . . . . . . . . . . . . Audio Input (R/L)
AUDIO OUTPUT JACKS . . . . . . . . . Fixed Audio Out (R/L)
CAUTION: FCC Regulations state that improper modifications or
unauthorized changes to this unit may void the user’s authority to
operate the unit.
dbx®is a registered trademark of
Carillon Electronics Corporation
QuickTips
■
Do not position the
TV in a confined
area. Allow normal
air circulation for
electronic parts.
■
Position your TV at
least 2 feet from
stereo speakers.
The magnets in the
speakers may affect
the picture quality.
However, all Fisher
STV model speakers
are stray field com-
pensated and may be
placed next to TV sets
without any special
precautions.
FEATURES
Because it’s products are subject to continuous improvement,
Fisher reserves the right to modify product design and specifica-
tions without notice and without incurring any obligation.

4
QuickTips
■
The TV will automati-
cally select the correct
Antenna mode for the
type of signal you
connect.
■
TV will switch off
automatically after 15
minutes if there is no
signal reception (cable
out or station not
broadcasting).
Exception—When the
Video mode is
selected, the TV will
not automatically
switch off when signal
reception has stopped
for 15 minutes.
++
IN FROM
SAT.
CATV IN
OUT TO TV S-VIDEO
CH3
CH4 R- -LAUDIOVIDEO
R- -LAUDIOVIDEO
FROM ANT.
OUT TO TV.
IN
OUT
FROM ANT.
OUT TO TV.
IN
OUT
FROM ANT.
OUT TO TV.
IN
OUT
UHF/VHF/CATV
75Ω
+
FROM ANT.
OUT TO TV.
IN
OUT
UHF/VHF/CATV
75Ω
UHF/VHF/CATV
75Ω
UHF/VHF/CATV
75Ω
IN OUT
RECEIVER VCR
Cable Box
TV BACK
❸
BASIC HOOKUP METHODS
Use one of these methods to connect a signal to your TV. Select 1a—if you have cable service
and a VCR, 1b—if you have a cable box and a VCR, 1c—if you have an outdoor or indoor
antenna and a VCR, or 1d—if you have a satellite dish and a VCR. Connect your cable or
antenna directly to the TV if you don’t have any optional accessories.
CATV FRANCHISE NOTE: Cable
companies, like public utilities,
are franchised by local govern-
ment authorities. To receive cable
programs, even with equipment
which is capable of receiving
cable channels, the consumer
must subscribe to the cable
company’s service.
❷
➊
d
➊
b
➊
a
75 OHM Terminal
Use the 75 ohm terminal to connect a
VCR, cable, cable box, outdoor/indoor
antenna or satellite receiver directly to
the TV.
Cable with VCR and TV
Cable with Cable Box, VCR and TV
Satellite Dish with Receiver, VCR and TV
➊
cOutdoor or Indoor Antenna with VCR and TV
❷
❷
VCR
VCR
VCR
❷
TV BACK
TV BACK
TV BACK
❸

5
FRONT PANEL
VIDEO IN L - AUDIO - R
MTS
MENUMENU CHANNELCHANNEL VOLUMEVOLUME POWERPOWER
Headphone Input Jacks
Use this jack to directly connect
headphones (not supplied) to the TV
when listening to TV programs,
video game sounds, or any external
equipment.
QuickTips
■
Front panel keys
work like the remote
control keys.
■
Make sure all cable
connectors are fully
seated on jacks.
See pages 9 and 10
before connecting
external video
equipment.
■
A solid Blue screen
with the word
Video displayed
means that the
Video/Game mode is
selected, but no
signal is being
detected at the Video
jack.
■
Be sure the
batteries are
installed correctly.
■
Point the remote
control toward the
TV. Objects between
the remote control
and the TV may
cause misoperation
of the remote control
function.
Audio/Video Input Jacks
Connect external video equip-
ment here (see pages 9 and 10).
AUDIO
OUTPUT
R
L
UHF/VHF/CATV
75Ω
REAR PANEL
REMOTE CONTROL
To familiarize yourself with this Remote Control, see page 6.
INSTALLING BATTERIES (2 AA not included)
1. Remove the battery cover by pressing the tab and tilting the cover upward. Insert
batteries. Make sure you match / signs on the batteries with marks inside the
remote control.
2. Replace battery cover. The remote control is ready!
Notes:
– Do not mix old batteries with new ones or mix different
types of batteries together.
– Remove the batteries if the remote control will not be
used for a month or more. Weak batteries may leak and
cause damage. (Normal battery life is roughly six
months.)
+
Audio Output Jacks
Connect external audio equipment
here (see page 10).
Cable / Antenna Input
Terminal (75 ohms)
IMPORTANT NOTE: Spent or
discharged batteries must be
recycled or disposed of prop-
erly in compliance with all
applicable laws. For detailed
information, contact your local
County Solid Waste Authority.

6
QuickTips
■
Point the remote
control toward the
TV. Objects between
the remote control
and the TV may
cause misoperation
of the remote control
function.
■
Make sure the
batteries have been
installed correctly.
■
Cannot select
channel with number
keys. Press “0”in
front of numbers
1 ~ 9. Example:
Channel “05.”
■
The “C” in front of
the channel number
indicates a Cable
channel.
■
Channel number
cannot be displayed
continuously when
captioning is on.
■ Adjusting the
volume level: Right
flashing arrow indi-
cates volume is
increasing and left
flashing arrow
indicates volume is
decreasing.
■
This remote control
has glow-in-the-dark
Power, Channel, and
Volume keys.
■
Using V-Guide
TV Parental Guide-
lines settings can
be changed only
by using the
Remote Control.
See pages 12 and 13.
➀Video Mode Key
Press to select the program source to
be displayed on the screen: TV signal
or signal from the equipment you have
connected to the A/V jacks.
➁Number Keys
Two keys must be pressed to select a
channel. Example: Press 0then 6to
select channel 6. For cable channels
100 through 125, press and hold the
1key until CC CC11 11–– –––– ––appears. Then press
the other two numbers.
➂Caption Key (See page 11.)
➃Menu Key
Use this key with the navigation keys
/ and / to adjust features
of the on-screen menu system
(see pages 7~9).
➄Channel Scanning (CH /)
and Volume (VOL /) Keys
Press to scan through the channels in
memory and to adjust the volume.
➅Mute Key
Press once to lower the volume. Press
again to restore.
Note: When using the audio out jacks,
this key will not mute the sound.
➆V-Guide Key (See pages 12 and 13.)
➇Reset Key
Press this key twice to restore factory
settings. The TV will automatically
start Channel Search and clear all
customized settings (see page 14).
➈Power Key
Press to turn TV on or off.
➉Sleep Key
Use this key with the “0” key to set the
Sleep Timer (see page 14).
Recall Key
Select a channel then select another
using the number keys. Press Recall
to switch between the channels.
Display Key
Press once to display the Channel
number. Press twice to display the
channel number continuously. Press
again to remove the display.
REMOTE CONTROL KEYS
Point towards TV
11
12
MENU
VOL
RECALL
CAPTION SLEEP
RESET
POWER
MUTE DISPLAY
VOL
CH
1
4
70
8
5
23
6
9
VIDEO
MODE
V-GUIDE
➀
➁
➂
➃
➄
➈
➉
➆
➇
➅
11
12
➠

7
QuickTips
■
Always follow on-
screen instructions.
■
The menu will
display on the
screen for approxi-
mately 20 seconds.
Press
again to redisplay.
■
Arrow ( ➧ ) indicates
current selection or
mode.
■
Under weak stereo
signal conditions,
you may receive
better quality sound
in the “Mono” posi-
tion.
■
All TV adjustments
are controlled
through the menu.
■
Press the RESET
key twice to clear
all settings. The TV
will automatically
start Channel
Search and clear all
customized settings.
■
Use the CHANNEL
/keys and the
VOLUME /
keys to navigate
through the menus
and to make selec-
tions from the
menus.
MENU
TV ADJUSTMENT AND SETUP
The on-screen menu system allows the viewer to program television features to their personal
preference. Adjustments can be made easily using the remote control.
HOW TO MAKE ADJUSTMENTS
1. Press key.
2. Use the / keys to h hi ig gh hl li ig gh ht tthe
desired feature.
3. Use the / keys to choose desired
option (
➧ indicates selected item).
Items with submenus require additional steps.
SETTING AUDIO MODE
Select desired sound setting, Stereo, Mono or SAP (secondary audio program). Stereo
and SAP can be received only if the television station is broadcasting the signal.
1. Choose SS SStt ttee eerr rree eeoo oo, MM MMoo oonn nnoo ooor SS SSAA AAPP PPfrom the
Audio options.
2. Press the key to exit.
Note: The TV will automatically reset to
stereo if unplugged or a power
interruption occurs.
ADJUSTING PICTURE/SOUND
For automatic picture settings:
Choose AA AAuu uutt ttoo oofrom the Picture/Sound
options.
To manually customize the picture:
1. Choose MM MMaa aann nnuu uuaa aall llfrom the Picture/Sound
options.
2. Press the key to open the submenu
controls.
3. Use the / keys to highlight the control
you want to adjust.
4. Use the / keys to make adjustments.
5. Press the key to exit.
MENU
MENU
MENU
MENU
▲▼ keys – + keys
Audio
➧ Stereo Mono SAP
Picture/Sound
➧ Auto Manual
Game
Antenna
➧ Cable VHF/UHF
CH. Search
➧ NO Start
CH. Scan Memory C 34 Added
Espanol
Menu Language
➧ English Francais
Press MENU key to exit
▲▼ keys – + keys
Picture/Sound
AA
AAuu uudd ddii iioo oo ➧
SS
SStt ttee eerr rree eeoo ooMono SAP
▲▼ keys – + keys
Audio
Antenna
PP
PPii iicc cctt ttuu uurr rree ee// //SS SSoo oouu uunn nndd dd ➧
AA
AAuu uutt ttoo ooManual
▲▼ keys – + keys
Audio
Antenna
Picture/Sound Submenu Controls
PP
PPii iicc cctt ttuu uurr rree ee// //SS SSoo oouu uunn nndd dd Auto ➧
MM
MMaa aann nnuu uuaa aall ll
▲▼ keys – + keys
Color
Contrast
Brightness
Sharpness
Tone
Surround
Press MENU key to exit
TT
TTii iinn nntt tt❙❙ ❙❙❙❙ ❙❙❙❙ ❙❙❙❙ ❙❙❙❙ ❙❙❙❙ ❙❙❙❙ ❙❙❙❙ ❙❙-- ---- ---- ---- ---- ---- --
➥
(Continued on page 8 customizing the Sound.)
Game
Game

8
RESETTING THE ANTENNA/CABLE MODE AND CHANNEL SEARCH
Resetting the Antenna/Cable Mode or CH. (Channel) Search is required only if additional
channels become available, such as moving to another city or having a cable service installed.
1. Choose SS SStt ttaa aarr rrtt ttfrom the Ch. Search menu
options.
2. Press the key to exit.
MENU
QuickTips
■
Use the CHANNEL
/keys and the
VOLUME /
keys to navigate
through the menus
and to make selec-
tions from the menus.
■
A solid Blue screen
with the word Video
displayed means that
the Video/Game mode
is selected, but no
signal is being
detected at the Video
jack.
■
When setting the
Antenna mode,
choose Cable if
your TV is con-
nected to a cable
system, otherwise
choose VHF/UHF.
■
Channels deleted
from scan memory
can be selected with
the number keys.
■
The channel number
area must be high-
lighted before
pressing the key
to add or delete.
■
Restoring deleted
channels, use the
on-screen menu to
manually add chan-
nels or start CH.
(Channel) Search
from the menu.
■
Press the RESET
key twice to clear all
customized settings
and restore your TV
to factory settings.
▲▼ keys – + keys
Audio
Antenna
CH. Search
CH. Scan Memory
Menu Language
Press MENU key to exit
▲▼ keys – + keys
Color
Tint
Contrast
Brightness
Sharpness
Press MENU key to exit
Picture/Sound Submenu Controls
TT
TToo oonn nnee eeLL LL-- ---- ---- ---- --■❙❙ ❙❙❙❙ ❙❙❙❙ ❙❙❙❙ ❙❙❙❙ ❙❙HH HH
SS
SSuu uurr rrrr rroo oouu uunn nndd dd OFF ➧
OO
OONN NN
PP
PPii iicc cctt ttuu uurr rree ee// //SS SSoo oouu uunn nndd dd Auto Manual
ADDING OR DELETING CHANNELS
1. Press key.
2. Use the / keys to highlight CC CCHH HH.. .. SS SScc ccaa aann nn MM MMee eemm mmoo oorr rryy yy.
3. Press the key to highlight the channel number entry area.
4. Enter the channel number (example): CC CC33 3344 44.
For cable channels above 99, press and hold
the 1key until CC CC11 11–– –––– ––appears. Then enter the
other two numbers.
5. Press the key to select option (example):
DD
DDee eell llee eett ttee ee.
6. Press the key to exit.
MENU
MENU
Menu Language
SS
SSee eell llee eecc cctt tt cc cchh hhaa aann nnnn nnee eell ll uu uuss ssii iinn nngg gg ▲▲ ▲▲▼▼ ▼▼,, ,, 00 00~~ ~~99 99 kk kkee eeyy yyss ss
PP
PPrr rree eess ssss ss MM MMEE EENN NNUU UU kk kkee eeyy yy tt ttoo oo ee eexx xxii iitt tt
CH. Scan Memory CC CC 33 3344 44 Deleted
To manually customize the sound:
1. Press key.
2. Use the / keys to highlight
PP
PPii iicc cctt ttuu uurr rree ee// //SS SSoo oouu uunn nndd dd.
3. Use the / keys to choose MM MMaa aann nnuu uuaa aall ll.
4. Press the key to open the controls
submenu.
5. Use the / keys to select TT TToo oonn nnee ee.
6. Use the / keys to adjust tone.
7. Press the key to exit or /
keys to choose SS SSuu uurr rrrr rroo oouu uunn nndd dd.
8. Use the / keys to switch Surround
sound ON or OFF.
9. Press the key to exit.
Note: Use the Surround feature to expand the
sound effect while receiving MTS stereo
signals as well as enhancing video games
sounds.
For automatic game settings
1. Choose G Ga am me efrom the Picture/Sound
menu options. The screen and sound will
automatically change to preset settings.
2. Press the key to exit.
MENU
MENU
MENU
MENU
MENU
Note: Select the game mode by pressing
Video Mode key on the remote
control.
CH. Scan Memory
Menu Language
Press MENU key to exit
CH. Search NO ➧
SS
SStt ttaa aarr rrtt tt
➧
GG
GGaa aamm mmee ee

9
QuickTips
■
Press the RESET
key twice to clear all
customized settings
and restore your TV
to factory settings.
■
Make sure all cable
connectors are fully
seated on jacks.
■
Always match cables
according to the
colors; RED for right
audio, WHITE for left
audio and YELLOW
for video.
■
A solid Blue screen
with the word
Video displayed
means that the
Video/Game mode is
selected, but no
signal is being
detected at the Video
jack.
■
Before using the
stereo headphones
jack, make sure the
sound is adjusted to
a comfortable
listening level.
■
If you are using the
headphones jacks,
the TV sound will be
heard through the
Headphones only.
USING THE FRONT AUDIO/VIDEO
INPUT JACKS
CONNECTING A VIDEO GAME
Switch off TV and video game before connecting cables.
1. Connect game Audio Output (R/L) to the TV Audio Input (R/L). Then connect game Video
Out to the TV Video In ❶.
2. Press POWER key ❷ to turn on the TV. Turn on external equipment also.
3. Press the VIDEO MODE key ❸on the remote control.
Optional
4. Choose GG GGaa aamm mmee eefrom the Picture/Sound menu options ❹. The TV will automatically
change the screen and sound for factory preset game settings.
Using the Stereo Headphones jack allows you to listen to the sound without disturbing others.
Simply insert the plug of your stereo headphones (not supplied) into the jack. This disconnects
the sound from the TV speakers.
VIDEO IN L - AUDIO - R
MTS
MENUMENU CHANNELCHANNEL VOLUMEVOLUME POWERPOWER
VIDEO IN L - AUDIO - R
FGH
❶
❹
Video Game
(See page 10 for
connecting a VCR and
stereo equipment.)
Headphones
Jack
Headphones
SELECTING THE DISPLAY LANGUAGE
1. Choose EE EEnn nngg ggll llii iiss sshh hh, Francais, or Espanol
from the Menu Language options.
2. Press the key to exit.
MENU
Press MENU key to exit
Espanol
MM
MMee eenn nnuu uu LL LLaa aann nngg gguu uuaa aagg ggee ee
➧
EE
EEnn nngg ggll llii iiss sshh hhFrancais
▲▼ keys – + keys
Audio
Antenna
PP
PPii iicc cctt ttuu uurr rree ee// //SS SSoo oouu uunn nndd dd Auto Auto Manual
➧
GG
GGaa aamm mmee ee
Remote Control TV On-Screen Menu
❷
RESET
POWER
1
45
23
6
VIDEO
MODE
❸

10
USING THE FRONT AUDIO/VIDEO
INPUT JACKS (Continued)
CONNECTING A VCR OR OTHER EXTERNAL EQUIPMENT
Switch off TV and external equipment before connecting cables.
1. Connect VCR Audio Out (R/L) and Video Out ❶to the TV Audio Input (R/L)
and Video Input ❷.
For Mono VCR (Single Audio Jack) only connect VCR Audio (L) Out to TV
Audio (L) Input.
2. Press POWER to turn on the TV. See ❸. Turn on external equipment also.
3. Press the VIDEO MODE key ❹to select program source: TV signal or signal
from the equipment you have connected to the A/V jacks. See ❹ and page 6 for remote
control operation.
CH3 CH4
IN
OUT
A/V JACKS
RF
CHANNEL R- -L
AUDIO VIDEO
R- -L
AUDIO VIDEO
VIDEO IN L-AUDIO-R
❶
Back View of
VCR
❷
Camcorder
QuickTips
■
Make sure all cable
connectors are fully
seated on jacks.
■
Always match cables
according to the
colors; RED for right
audio, WHITE for left
audio and YELLOW
for video.
■
A solid Blue screen
with the word
Video displayed
means that the
Video/Game mode is
selected, but no
signal is being
detected at the Video
jack.
■
Position your TV at
least 2 feet from
stereo speakers.
The magnets in the
speakers may affect
the picture quality.
However, all Fisher
STV model speakers
are stray field com-
pensated and may
be placed next to TV
sets without any
special precautions.
■
DO NOT connect
external speakers
directly to the TV.
USING THE AUDIO OUTPUT JACKS
CONNECT A STEREO AMPLIFIER TO AUDIO OUT JACKS
1. Connect the TV Audio Out (R/L) ❶to the Stereo Amplifier In (R/L) ❷.
2. Press POWER to turn on the TV ❸. Turn on external equipment also.
AUDIO
OUTPUT
R
L
UHF/VHF/CATV
75Ω
TV Front A/V
Input jacks
❶
❷Back of TV
Stereo Amplifier
RESET
POWER
1
45
23
6
VIDEO
MODE
❹❸
Remote Control

Caption1: This is the main mode used for program
captioning (words match the program you are watching).
Almost all broadcasters will use Caption1 to transmit
program captions. These captions are generally one or two
lines.
Caption2: This is an alternative mode for program caption-
ing. Caption2 may be used by the broadcaster to provide
captions in another language, such as, Spanish or French.
Text1: This mode is used to display large amounts of text.
This text will appear within a black box that may be nearly
as large as the TV screen. Text displayed in this manner
does not generally relate to the program. These captions
may be used by broadcasters to provide weather reports,
community bulletins, stock quotes, etc.
Text2: This is an alternative mode used to display large
amounts of text. The same types of information displayed in
Text1 can be displayed in Text2.
Quikcap: Quikcap allows captions to toggle on and off
with the MUTE function. For example, the phone rings;
you press the MUTE key on the remote control to block the
TV sound; the captions display automatically. When you
finish your conversation and press the MUTE key again to
restore the sound, the captions will disappear.
Quikcap displays program captions in the Caption1 mode.
SETTING CAPTIONS
1. Press the CAPTION key on the remote control.
2. Use the 0key to select OFF, Caption1, Caption2,
Text1, Text2, or Quikcap.
CLOSED-CAPTIONING
Captioning is textual information transmitted along with the picture and sound so it can be
displayed on the TV screen. Because different types of captions can be transmitted with the
TV signal, separate captioning modes are provided.The captioning modes recognized by this
model are: Caption1, Caption2, Text1, and Text2. Local broadcasters decide which caption
signals to transmit. They may not choose to provide captions or may provide captions in one
or all of the available modes.
11
TWO OUTS ANDTWO STRIKES
Caption1/ Caption2
TONIGHT: BECOMING MOSTLY
CLOUDY WITH A 40 PERCENT
CHANCE OF RAIN. COLDWITH
A LOW INTHE UPPER 30's WEST
WIND AROUND 20 MPH, SHIFT-
INGTO NORTHWEST AROUND
MIDNIGHT. FRIDAY: MOSTLY
CLOUDY AND COLDER WITH
A 50 PERCENT CHANCE OF
RAIN. HIGH INTHE MID 50's.
Text1/Text2
QuickTips
■
If Caption Text mode is
selected and no
captioned text is broad-
casted, a black box may
appear and remain on
the TV screen.
To remove this black
box, set captioning to
any mode other than
Text1 or Text2 or press
the RESET key to
cancel captioning and
customized settings.
■
When captioning
is turned on, the channel
display will not stay on
the screen. For these
displays to stay on the
screen you must set
Captioning to OFF.
CAPTION SLEEP
RESET
POWER
1
4
70
8
5
23
6
9
VIDEO
MODE
❶❷

QuickTips
■
Use the CHANNEL
/keys and the
VOLUME /keys
to navigate through
the menus and to
make selections from
the menus.
■
V-Guide feature is
accessible only from
the remote control.
■
The TV guidelines
rating icon appears
in the upper left hand
corner of your TV
screen.
■
The V-Guide display
remains on screen for
only 20 seconds. If it
disappears, press the
V-GUIDE key.
12
ABOUT MPAA AND TV PARENTAL
GUIDELINES
MPAA and TV Parental Guidelines are rating
systems that provide advance cautionary
information to parents about the content of
movie and television programming.
MPAA is a voluntary rating system used by
the movie industry. TV Parental Guidelines
are modeled after the MPAA ratings and were
designed to be simple to use, easy to under-
stand, and easy to find.
TV Parental Guidelines contain both age-based
and content-based information. This gives
parents discretionary ways of choosing
appropriate material for their children to view.
Content ratings are represented by the initials
D (Suggestive Dialog), L(Adult Language), S
(Sexual Situations), V (Violence), and
FV (Fantasy Violence). When programming
contains any or all of these conditions, these
letters become part of the icon that is
displayed on the TV screen.
A rating icon will appear in the upper left-
hand corner of the TV screen for fifteen
seconds at the beginning of a program and
should be repeated at the beginning of the
second hour of a long program. It may also
appear when returning from commercials.
There may be other instances when these icons
will be displayed as well. Parents are encour-
aged to become familiar with these icons and
their meanings.
WHERE CAN I FIND ADVANCE
NOTICE OF PROGRAM RATING
Publishers of programming guides have been
asked to include these ratings along with other
information they publish. You can expect
to find this information in newspapers,
magazines, and on-screen listings and guides.
TYPES OF PROGRAMS TO
RECEIVE RATING
The TV Parental Guidelines will apply to
various types of TV programming, including:
specials, mini-series, and movies. Sports, news,
weather, emergency bulletins, locally originated
programming, public
service announcements,
political, and religious
shows do not currently
carry guidelines.
C 34
Rating: TVPG-V
V-GUIDE INFORMATION
NOTE: THIS FEATURE IS DESIGNED TO COMPLY WITH THE UNITED STATES OF
AMERICA’S FCC V-CHIP REGULATIONS. THEREFORE, IT MAY NOT FUNC-
TION WITH BROADCASTS THAT ORIGINATE IN OTHER COUNTRIES.
With the introduction of “V-Chip” technology, it is now possible for Fisher
televisions to interpret MPAA and TV Parental Guidelines rating codes. When
these codes are detected, the TVwill automatically display or block the program,
depending upon choices you make when setting up the V-Guide system.
MENU
VOL
RECALL
CAPTION SLEEP
RESET
POWER
MUTE DISPLAY
VOL
CH
1
4
70
8
5
23
6
9
V-GUIDE
V
v
V-GUIDE OPERATION
Use this feature to supervise television viewing for children. This television can be set to automatically block programs with
content you deem as inappropriate for your children to view, including: suggestive dialog, adult language, sexual situations,
violence, and fantasy violence.
The ability of the television to block the reception of specific programming content depends upon several conditions:
1) The program must be rated, 2) Networks must broadcast the rating code data, 3) Cable companies must transmit the
rating code signal, and 4) The TV must be properly setup to decode the signal.
The TV guidelines rating icon appears at the upper left hand corner of your TV screen. (Continued on page 13.)

13
QuickTips
■
The TV will auto-
matically block (B)
ratings above or
unblock (U)ratings
below selection. For
example, if you
block rating R,
NC17 and Xwill be
blocked as well.
■
Blocking TVY7
does not block
higher ratings.
■
You can block a
content rating such
as TVPG-Vand still
be able to watch
TVPG programs
with ratings of S-L-D
provided TVPG is
unblocked (U).
■
To view Blocked (B)
programs, set
V-GUIDE to OFF,
or press the RESET
key twice to clear all
Blocked (B)ratings
and customized
settings.
■
When in the V-Guide
menu system, the
/keys allows
you to navigate
between the ratings
and the options
menu.
SETTING MPAA MOVIE RATING
1. Press the key on the remote control to display menu
2. Press the key to switch V-Guide OO OONN NN.
3. Press the key again. Then use the /
keys to highlight rating.
4. Press the key to BLOCK (B) or
UNBLOCK (U) selected rating. (➡ Arrow
indicates selection.)
5. Press the key to return to the V-Guide
Options menu.
SETTING AGE-BASED TV PARENTAL
GUIDELINES
6. Use the / keys to highlight
.
7. Press the key. Then use the / keys
to highlight rating.
8. Press the key to BLOCK (B) or
UNBLOCK (U) selected rating. (➡Arrow
indicates selection.)
SETTING CONTENT-BASED TV
PARENTAL GUIDELINES
9. Follow steps 6 and 7. Use the / keys
to highlight .
10. Press the key to display the Content
Option menu.
11. Use the / keys to highlight a category
(D-Suggestive Dialog, L-Adult Language,
S-Sexual Situations, V-Violence, FV-Fantasy
Violence).
12. Press the key. Then use the / keys
to highlight a rating.
13. Press the key to BLOCK (B) or
UNBLOCK (U) selected rating.
(➡ Arrow indicates selection.)
14. Press the key to exit; or press
the key to return to the Content Options
menu.
15. Repeat steps 11 through 13 to BLOCK (B)
or UNBLOCK (U) additional content
ratings, if desired.
TURNING OFF THE V-GUIDE
1. Press the key.
2. Use the / keys to select OFF.
V-GUIDE
V-GUIDE
MENU
MENU
Content
MENU
TV Parental Guidelines
MENU
V-GUIDE
V-GUIDE
MPAA Movie Ratings
TV Parental Guidelines
Press MENU key to BLOCK
Use ▲▼, – + keys to select
Press V-GUIDE key to exit
V-GUIDE
MPAA Movie Ratings
TV Parental Guidelines
Press MENU key to set
Use ▲▼, – + keys to select
Press V-GUIDE key to exit
TVMA B
TV14 B
TVPG B
➡T TV V- -G GB B
TVY7 U
TV-Y U
Content
TVMA B
TV14 B
TVPG B
TV-G B
TVY7 U
TV-Y U
➡C Co on nt te en nt t
D-Suggestive Dialog
L-Adult Language
S-Sexual Situations
V-Violence
FV-Fantasy Violence
➡T TV V1 14 4B B
TVPG B
Press MENU key to BLOCK
Use ▲▼, – + keys to select
Press V-GUIDE key to exit
V-GUIDE
MPAA Movie Ratings
TV Parental Guidelines
XB
NC17 B
➡R RB B
PG13 U
PG U
GU
Press MENU key to BLOCK
Use ▲▼, – + keys to select
Press V-GUIDE key to exit
Note: Networks and local
stations may or may
not include the
content ratings
portion of the TV
Parental Guidelines.

14
RESETTING THE TV
Press the RESET key to automatically reset the television to factory settings. These features will automatically reset:
•Picture/Sound Adjustments: Color, Tint, Contrast,
Brightness, Sharpness, Tone, and Surround
•Channel Memory
•Audio to Stereo
•Caption to OFF
•V-Guide to OFF
•Language to English
•Sleep Timer (if previously set)
•Game/Video to TV (if previously selected)
If desired, personal settings can be made again using the menu options.
Press RESET key
again to return
factory preset and
begin channel search
SETTING THE SLEEP TIMER
The Sleep Timer will switch off the TV automatically.
1. Press the SLEEP key.
2. Use the 0key to select the desired time
(from 30 minutes up to 3 hours).
Note: The Sleep Timer cancels when the
TV is turned off or if a power
failure occurs.
Sleep : 0:30
Use 0 key
Sleep : 1:00
Sleep : 1:30
➧
Sleep : 2:00
Sleep : 2:30
Sleep : 3:00
Sleep : Clear
❶
CAPTION SLEEP
RESET
POWER
1
4
70
8
5
23
6
9
VIDEO
MODE
❷
CARE AND CLEANING
The surface of the cabinet can be damaged if not properly maintained. Many common household aerosol sprays,
cleaning agents, solvents and polishes will cause permanent damage to the fine
surface.
1. Unplug the power cord before cleaning the television.
2. Clean the screen and cabinet with a soft dry cloth.
Note: NEVER spray liquids on the screen because they can run
down and drip onto the chassis. This may cause component
failure not covered under Warranty.
This symbol on the nameplate means the product is Listed by Underwriters’
Laboratories Inc. It is designed and manufactured to meet rigid U.L. safety
standards against risk of fire, casualty and electrical hazards.

15
●Press POWER key.
●The sleep timer may have been set.
●Unplug TV momentarily.
●Adjust antenna.
●Try a different channel.
●Select Auto from Picture/Sound on-
screen menu or press RESET key.
●Press RESET key.
●Switch OFF Captions (see page 11).
●Try a different channel.
●Adjust antenna.
●Select Auto from Picture/Sound on-
screen menu or press RESET key.
●Press VIDEO MODE key.
●Switch on external equipment.
●Try a different channel.
●Adjust Volume.
●Select Stereo from Audio on-screen
menu.
●Select SAP from Audio on-screen
menu.
●Select Cable from Antenna
on-screen menu; then start CH.
(channel) Search using the menu.
●Select VHF/UHF from Antenna
on-screen menu; then start CH.
(channel) Search using the menu.
●Select CH. Scan Memory and
manually add channels or start
CH. (channel) search.
●Press RESET key to clear setting.
●Set V-Guide to OFF or press the
RESET key.
●Select Caption1 or Caption2
(see page 11).
●Reselect your menu language
choice using the on-screen menu.
●Replace batteries.
●Aim remote control at front of TV.
HELPFUL HINTS - PROBLEMS/SOLUTIONS
BEFORE REQUESTING SERVICE CHECK THE FOLLOWING CHART.
TV turns off automatically.
No picture, poor picture.
Black box on screen.
Poor color or no color.
Blue Screen with Video
displayed.
No sound, poor sound.
No TV stereo sound.
No TV SAP sound.
No Cable channels
above number 13.
No UHF channels,
VHF OK.
Cannot select or scan
some channels.
No Captioning.
Menu System words seem
misspelled.
Remote Control will
not work.
Cabinet makes popping
sound.
●Check signal (Cable/Ant.)
connection.
●Power surge protection feature.
●Check antenna connections.
●May be station trouble.
●Brightness or Contrast misadjusted.
●Possible interference from house-
hold appliance.
●Caption Text Mode without display
information.
●Check if program is in color.
●Check antenna connections.
●Color or Tint misadjusted.
●May be station trouble.
●Check Audio/Video connections.
●Check external equipment.
●May be station trouble.
●May be MUTE function.
●Check Audio/Video connections.
●Check if station is broadcasting a
true MTS stereo signal.
●Check if station is broadcasting a
SAP signal.
●Cable Channel Indicator Cshould
appear next to channel number.
●Cable Channel Indicator Cshould
not appear next to channel number.
●Channel may be removed from
memory.
●Check antenna connections.
●V-Guide is set to block program-
ming (see pages 12 and 13).
●Check if station is broadcasting a
Closed-Caption signal.
●Check Caption Channel.
●Maybe a foreign language is
selected.
●Check batteries.
●Check if TV set is plugged in.
Problem: Check these Conditions: Try these Solutions:
●This is a normal condition during warm-up and cool
down of the plastic cabinet parts.

16
SANYO FISHER COMPANY
21605 Plummer Street
Chatsworth, CA 91311
FISHER Television Limited Warranty
OBLIGATIONS
To obtain Warranty service, television between the size of 13" ~ 27" (measured diagonally) must be delivered to and picked up from an authorized FISHER Service
Center at the user’s expense unless specifically stated otherwise in this warranty.
For 32" and above (measured diagonally), in-home service is available.
THIS WARRANTY IS VALID ONLY ON FISHER PRODUCTS PURCHASED AND USED IN THE UNITED STATES OF AMERICA, EXCLUDING ALL U.S. TERRITORIES
AND PROTECTORATES. THIS WARRANTY APPLIES ONLY TO THE ORIGINAL RETAIL USER, AND DOES NOT APPLY TO PRODUCTS USED FOR ANY INDUSTRIAL,
PROFESSIONAL OR COMMERCIAL PURPOSE. THE ORIGINAL DATED BILL OF SALE OR SALES SLIP MUST BE SUBMITTED TO THE AUTHORIZED FISHER
SERVICE CENTER AT THE TIME WARRANTY SERVICE IS REQUESTED.
The name and addresses of Authorized Fisher Service Centers may be obtained by calling the toll free number listed below.
Subject to the OBLIGATIONS set up above and the EXCLUSION AND CONDITIONS set out below, SANYO FISHER COMPANY (SFC) warrants
this FISHER product against defects in materials and workmanship for the periods of LABOR and PARTS specified below. SFC will repair or
replace (at its option) within a reasonable time the product and any of its parts which fail to conform to this warranty. Repair or replacement
of the product or its parts shall be the exclusive remedies available to user. The user is responsible for all other costs. Such costs may include,
but are not limited to all necessary or incidental costs incurred to install the repaired product. The warranty period commences on the date
the product was first purchased at retail.
EXCLUSIONS AND CONDITIONS
This warranty does not cover (A) the adjustment of customer-operated controls as explained in the appropriate model’s instruction manual, or (B) the repair of
any product whose serial number has been altered, defaced or removed.
This warranty shall not apply to the cabinet or cosmetic parts, antenna, knobs, batteries or image burns to projection or picture tubes caused by electronic devices
or games.
This warranty does not apply to uncrating, setup, installation, removal of the product for repair, or reinstallation of the product after repair.
This warranty does not apply to repairs or replacements necessitated by any cause beyond the control of SFC including, but not limited to, any malfunction, defect
or failure caused by or resulting from unauthorized service or parts, improper maintenance, operation contrary to furnished instructions, shipping or transit accidents,
modification or repair by the user, abuse, misuse, neglect, accident, incorrect line voltage, fire, flood or other Acts of God, or normal wear and tear.
The foregoing is in lieu of all other expressed warranties with respect to the television or installation, operation, repair or replacement of the television. SFC shall not
be responsible for the loss of use of the unit, inconvenience, loss or damage to personal property, whether direct or indirect and whether arising in tort or contract.
THE DURATION OF ANY WARRANTIES WHICH MAY BE IMPLIED BY LAW (INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS) IS LIMITED
TO THE TERM OF THIS WARRANTY. IN NO EVENT SHALL SFC BE LIABLE FOR SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING FROM
OWNERSHIP OR USE OF THIS PRODUCT, OR FOR ANY DELAY IN THE PERFORMANCE OF ITS OBLIGATIONS UNDER THIS WARRANTY DUE TO CAUSES
BEYOND ITS CONTROL. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS AND/OR DO NOT ALLOW THE
EXCLUSION OR LIMITATION OF CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS AND EXCLUSIONS MAY NOT APPLY TO YOU.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE.
For your protection in the event of theft or loss of this product, please fill in the information requested below and KEEP in a safe place for your own personal
records.
Model No. ________________________________________________ Serial No. ____________________________________________
(Located on back of unit.)
Date of Purchase___________________________________________ Purchase Price ________________________________________
Where Purchased ___________________________________________________________________________________________________
CUSTOMER INFORMATION PARTS ORDER INFORMATION
(Product operation, authorized service center (Accessories and/or parts not available
referral, service assistance or problem resolution) from an authorized dealer)
1-800-421-5013 1-800-726-9662
Weekdays 8:30 A.M. ~ 5:00 P.M. Pacific Time Weekdays 8:30 A.M. ~ 5:00 P.M. Pacific Time
LABOR PARTS PICTURE TUBE
90 DAYS 1 YEAR 2 YEARS

17
ESPAÑOL
Manual de Instrucciónes
Importantes Medidas de Seguridad . . . . . . . . 18
Características . . . . . . . . . . . . . . . . . . . . . . . . . 19
Especificaciones . . . . . . . . . . . . . . . . . . . . . . . 19
Ajustes Básicos . . . . . . . . . . . . . . . . . . . . . . . . 19
Métodos Básicos de Conexión . . . . . . . . . . . . 20
Panel Frontal . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Panel Posterior . . . . . . . . . . . . . . . . . . . . . . . . 21
Control Remoto . . . . . . . . . . . . . . . . . . . . . 21~22
Ajustes del TV . . . . . . . . . . . . . . . . . . . . . . 23~24
Usando Las Entradas Frontales
de Audio y Video . . . . . . . . . . . . . . . . . 25~26
Usando La Salida de Audio . . . . . . . . . . . . . . 26
Transmisión Captada . . . . . . . . . . . . . . . . . . . . 27
Informacíon de Guía-V . . . . . . . . . . . . . . . . . . 28
Operación de Guía-V
(Control Paternal) . . . . . . . . . . . . . . . . . 28~29
Ajustando el Cronómetro para Dormir . . . . . . 30
Reajustando La TV . . . . . . . . . . . . . . . . . . . . . 30
Cuidado y Limpieza . . . . . . . . . . . . . . . . . . . . . 30
Sugerencías Útiles
Problemas / Soluciones . . . . . . . . . . . . . . . 31
Garantía . . . . . . . . . . . . . . . . . Portada posterior
CONTENIDO
Bienvenido al Mundo FISHER
Gracías por comprar un Televisor a Color Fisher. Usted hizo una excelente selección por Funcionamiento,
Confiabilidad, y Precio.
El TV esta diseñado con instrucciones de fácil ajuste y operación en pantalla. Para reunir las necesidades de
nuestros clientes, el TV tiene el V-chip electrónico de control paternal, para tener un control de los progra-
mas vistos por menores.

18
PRECAUCION
RIESGO DE TOQUE ELECTRICO NO ABRIR!
PRECAUCION: PARA REDUCIR EL RIESGO DE TOQUE ELECTRICO, NO QUITE LA CUBIERTA (O
LA TAPA TRASERA). NO HAY PARTES ADENTRO QUE LAS PUEDA REPARAR EL USUARIO.
REFIERASE A PERSONAL CALIFICADO PARA REPARAR EL APARATO.
ESTE SIMBOLO INDICA QUE VOLTAJES PELIGROSOS QUE CONSTI-
TUYEN UN RIESGO DE TOQUE ELECTRICO ESTAN PRESENTES DENTRO
DE ESTA UNIDAD.
ESTE SIMBOLO INDICA QUE HAY INSTRUCCIONES IMPORTANTES DE
OPERACION Y MANTENIMIENTO EN LA LITERATURA QUE SE ANEXA A
ESTA UNIDAD.
ADVERTENCIA: PARA REDUCIR EL RIESGO DE FUEGO O TOQUE ELECTRICO, NO EXPONGA ESTE
APARATO A LLUVIA O HUMEDAD.
IMPORTANTES MEDIDAS DE SEGURIDAD
PRECAUCION: POR FAVOR SIGA TODAS LAS ADVERTENCIAS EN EL PRODUCTO Y EN LAS INSTRUCCIONES DE OPERA-
CION. ANTES DE OPERAR EL PRODUCTO, POR FAVOR LEA TODAS LAS INSTRUCCIONES DE OPERACION Y SEGURIDAD.
GUARDE ESTA LITERATURA PARA SU REFERENCIA. Siga todas las instrucciones. . .
Colocando el aparato
1. No coloque su aparato en carrito, pedestal, anaquel o mesa que sean
inestables. Heridas serias a un individuo, y avería al aparato, pueden resul-
tar si este cae. Su vendedor puede recomendar carritos y pedestales o
anaqueles e instrucciones para montaje en la pared. Una
combinación de aparato y carrito deberá de ser movida con
cuidado. Paradas rápidas, fuerza excesiva, y superficies
irregulares pueda causar que la combinación de aparato y
carrito se volteen y caigan.
2. Las ranuras y aperturas en el gabinete y en la parte trasera e inferior fueron
provistas para ventilación del aparato. Para asegurar una operación confi-
able del aparato y protejerlo de sobrecalentamiento, estas aperturas no
deberán de ser tapadas o cubiertas. Las aperturas nunca deberán de ser
cubiertas con un trapo u otro material, y las aperturas de la parte inferior
no deberán de ser tapadas poniendo la unidad en una cama, sofá, alfom-
bra, u otra superficie similar. Este aparato nunca deberá de ser puesto
cerca o sobre radiadores de calor. Este aparato nunca deberá de ser puesto
en instalaciones tales como libreros a no ser que haya una adequada venti-
lación en tales instalaciones.
3. No exponga el aparato a lluvia o a uso cerca de agua . . . por ejemplo, cerca
a una bañera, una alberca, un lavabo, en un sótano húmedo, etc.
Conectando la Antena Externa
PROTECCION EN CONTRA DE RAYOS ELECTRICOS PARA SU ANTENA Y APARATO DE
ACUERDO A LAS INSTRUCCIONES DEL CODIGO NACIONAL ELECTRICO (EUA).
4. Si una antena exterior es conectada al receptor, asegúrese que el sistema
de antena esté aterrizado para proveer alguna protección en contra de
impulsos de voltaje y la acumulación de cargas estáticas. El articulo 810 del
código nacional eléctrico de los Estados Unidos de América (National Elec-
trical Code, ANSI/NFPA 70), provee información con respecto al
aterrizamiento correcto del mástil y la estructura de soporte, el aterriza-
miento del alambre a la antena en una unidad de descarga, el tamaño de los
conductores de aterrizamiento, la localización de la unidad de descarga,
conexión a los electrodos de aterrizamiento, y requerimientos para los elec-
trodos de aterrizamiento.
Una antena exterior no deberá de ser localizada en la vecindad de líneas de
potencia que pasen por encima de otros circuitos de luz eléctrica o de
potencia, o en donde pueda caer sobre tales líneas de potencia o circuitos.
Cuando se instale un sistema de antena externa, se debe de tener cuidado
extremo en no tocar tales líneas de potencia o circuitos ya que contacto
con ellos puede llegar a ser fatal.
Conectando el cordon de potencia
5. El diseño de muchos aparatos eléctricos no requiere un conector de línea A.C.
polarizado (una hoja más grande que la otra). Sin embargo, si su aparato está
equipadoconunconectordelíneaA.C.polarizado,estaes una medida de seguri-
dad que previene que el conector sea insertado incorrectamente. Si usted tiene
dificultades al insertar el conector de A.C., trate de invertirlo. Si el conector
todavía no se puede insertar en el receptáculo de A.C., póngase en contacto con
un técnico electricista para que reemplaze su receptáculo obsoleto. No trate de
eliminar el propósito de seguridad de este conector polarizado.
6. No deje que nada descanse sobre el cordón de potencia. No
coloque el aparato en donde el cordón de potencia pueda ser
abusado por personas caminando sobre el.
Limpieza
7. Antes de limpiar, desconecte la unidad del receptáculo de la pared. No
aplique limpiadores líquidos o de aerosol directamente a la unidad. Use un
trapo húmedo para limpiar.
Servicio y Reparación
8. Desconecte el aparato del receptáculo de pared y refiera servicio a personal
de servicio eléctrico calificado bajo las siguientes condiciones:
A Si el cordón de potencia o el conector están averiados o raídos.
B. Si líquido ha sido derramado en el aparato.
C. Si el aparato ha sido expuesto a lluvia o agua.
D. Si el aparato ha sido tirado o el gabinete a sido averiado.
E. Si el aparato exhibe un cambio perceptible en funcionamiento.
F. Si el aparato no opera normalmente siguiendo las instrucciones de
operación, ajuste solamente aquellos controles que han sido cubiertos
en las instrucciones de operación. Ajuste impropio de otros controles
puede resultar en avería al aparato y posiblemente requiera de trabajo
extensivo por un técnico calificado para restaurar el aparato a su
operación normal.
9. Cuando se termine cualquier servicio o reparación, requiera del técnico de ser-
vicio confirmación de que solo Partes Autorizadas de Remplazo de Fabrica que
tengan las mismas características que las partes originales hayan sido usadas,
y que verificaciones de seguridad rutinarias hayan sido llevadas a cabo para
determinar que el aparato se encuentra en condiciones seguras de operación.
Substituciones no autorizadas pueden resultar en fuego, toque eléctrico u
otros peligros.
10. Nunca adicione accesorios que no han sido especificamente diseñados
para uso con este aparato.
11. Paraprotección adicional durante unatormentaeléctrica, o cuando elaparatoes
dejado sin atención ni uso durante largos periódos de tiempo, desconéctelo del
receptáculo de la pared y desconecte la antena. Esto evitará daños al aparato
debido a rayos o a cambios bruscos en el voltaje de línea.
EJEMPLO DE ATERRIZAMIENTO DE ANTENA DE ACUUERDO AL CODIGO
NACIONAL ELECTRICO (National Electrical Code, ANSI/NFPA 70)
CABLE DE ANTENA
GRAPA DE TIERRA
CODIGO NACIONAL ELECTRICO
CONDUCTORES DE TIERRA
(NEC SECCION 810-21)
UNIDAD DE
DESCARGA DE ANTENA
(NEC SECCION 810-20)
EQUIPO DE
SERVICIO
ELECTRICO
GRAPA DE TIERRA
TIERRA DE SERVICIO DE POTENCIA
ELECTRODO DEL SISTEMA
(NEC ART 250, PARTE H)
“Nota al instalador del sistema de cable CATV:
Este recordatorio es dado para llamar la atención del instalador del sistema de cale
CATV al Articulo 820-40 del NEC que provee guias para el aterrizamiento adecuado y,
en particular, especifica que la tierra del cable debéra de estar conectada al sistema la
tierra del edificio, tan cercano al punto de entrada del cable como sea practico.”

19
◆Menú en Pantalla Trilingüe
◆Búsqueda Automática de
Canales
◆Apagado Automático
◆Transmisión Captada /
Quikcap
◆Controles digitales de
Imagen desplegados
en Pantalla
◆MTS sonido estereofónico/
dbx®/sonido SAP
◆Tonos de piel por ajuste
Automático
◆Frontal Ambiente Sonido
◆Tono
◆Ajustes automáticos para
Imagen/Sonido/ Juegos
de video
◆Entradas frontales de
Audio/Video
◆Entrada frontal para audífonos
◆Modo de Juego
◆Salidas Fijas de Audio
◆V-Guide (Control Paternal)
◆Cronómetro para Dormir
(3 horas)
◆Reajuste de TV
SIstema de Sintonía de
181 Canales
VHF Canales 2-13
UHF Canales 14-69
Cable TV (CATV) 1, 14-125
Sintonía Fina Automática
VHF y Canales de Cable
Control Remoto
Teclas grandes, de funciones
básicas que se iluminan
en la oscuridad
Selección de Canales
Numerados
Búsqueda de Canales
Volume Mute
Power Recall
Display Sleep
Caption Reset
Menu V-Guide
Video Mode
CARACTERÍSTICAS
RESOLUCIÓN DE IMAGEN. . . . . . . . . 260 Líneas
Entrada de A/V : 260 Líneas
ENTRADA . . . . . . . . . . . . . . . . . . . . . . . . . UHF/VHF/CATV 75Ω
REQUERIMIENTOS DE CONSUMO . . . 120VAC 60Hz
CONSUMO . . . . . . . . . . . . . . . . . . . . 58 watts
DIMENSIÓN HORIZONTAL (Ancho) . . 19.2 in (488mm)
DIMENSIÓN VERTICAL (Alto) . . . . . . 17.8 in (452mm)
DIMENSIÓN EN PROFUNDIDAD
(Grosor) . . . . . . . . . . . . . . . 18.4 in (468mm)
PESO (Lbs.) (APROX.) . . . . . . . . . . . 35.7 (16.2 Kg.)
SONIDO . . . . . . . . . . . . . . . . . . . . . . 2 Bocinas, Tamaño: 8 cm
AMPLIFICADOR . . . . . . . . . . . . . . . . . . Interon 1W/canal
ENTRADA FRONTAL PARA
AUDÍFONOS. . . . . . . . . . . . . . . . . . . . . . Salida Estéreo
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . (mini conector)
ENTRADAS FRONTAL DE A/V . . . . . . Entrada de Video
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . Entrada de Audio (R/L)
SALIDAS DE AUDIO . . . . . . . . . . . . . Salida de Audio Fijo (R/L)
ESPECIFICACIONES
dbx®es una marca registrada de
Carillon Electronics Corporation
AJUSTES BÁSICOS
MENU
VOL
RECALL
CAPTION SLEEP
RESET
POWER
MUTE DISPLAY
VOL
CH
1
4
70
8
5
23
6
9
V-GUIDE
UHF/VHF/CATV
75 Ω
MENU
Please wait
TV is searching
for your channels
VIDEO IN L - AUDIO - R
MTS
MENUMENU CHANNELCHANNEL VOLUMEVOLUME POWERPOWER
MTS
MENUMENU CHANNELCHANNEL VOLUMEVOLUME POWERPOWER
MTS
MENU CHANNEL VOLUME POWER
First
Please connect
cable system or
an antenna to the
terminal on the back
Then press the MENU key
VIDEO
MODE
FGH
❷❸
❹
(Ver conexión vea
página 20.)
❺
➊Por favor espere TV
esta automáticamente
el búscando sus
canales
(Instalación de Baterías,
vea página 21.)
(Interruptor activado
para encender.)
Debido a que sus productos están subjetos a continuas mejoras,
Fisher se reserva el derecho de modificar el diseño y especifica-
ciones sin previo aviso o sin incurrir en ninguna obligación.
Consejos Rápidos
■
No se coloque el TV en
áreas confinadas.
Permita una circulación
normal de aire para las
partes eléctricas.
■
Coloque su televisor al
menos a 60 cm de las
bocinas de un sistema
estéreo. Los magnetos en
dichas bocinas pueden
afectar la calidad de
pureza de la imagen. Sin
embargo, todas las
bocinas del modelo
Fisher STV tienen com-
pensación de campo
magnético y podrán ser
colocadas al lado del
televisor sin ninguna
precaución especial.
PRECAUCION : Las Regulaciones de FCC declaran, que las modifica-
ciones no apropiadas o cambios no autorizados a esta unidad, pueden
anular la autoridad del usuario para operar la unidad.

20
Consejos Rápidos
■
El TV seleccionará el
modo correcto de
Antena, de acuerdo al
tipo de señal que Ud.
conecto.
■
El TV se apagará
automáticamente
despuès de 15
minutos, si no hay
recepción de señal (si
la estación de cable o
la estación de TV no
esta transmitiendo).
Excepciones—Cuando
el modo de Video este
seleccionado, el TV no
se apagará automática-
mente cuando la señal
de recepción ha sido
detenida por 15
minutos.
NOTA CONCESIÓN DE CATV : Compañás
de cable, como servicios públicos, son
concesionados por las autoridades de los
gobiernos locales. Para recibir progra-
mas de cable, cada equipo debe de ser
capaz de recibir canales de cable, para
recibir este servicio, el consumidor debe
de suscribirse a una compañía de cable.
MÉTODOS BÁSICOS DE CONEXIÓN
++
IN FROM
SAT.
CATV IN
OUT TO TV S-VIDEO
CH3
CH4 R- -LAUDIOVIDEO
R- -LAUDIOVIDEO
FROM ANT.
OUT TO TV.
IN
OUT
FROM ANT.
OUT TO TV.
IN
OUT
FROM ANT.
OUT TO TV.
IN
OUT
UHF/VHF/CATV
75Ω
+
FROM ANT.
OUT TO TV.
IN
OUT
UHF/VHF/CATV
75Ω
UHF/VHF/CATV
75Ω
UHF/VHF/CATV
75Ω
IN OUT
VCR
DECODIFICADOR DE CABLE
TV
❷
Use uno de los siguientes métodos para conectar una señal a su TV. 1a— Si Ud. tiene
servicio de cable y una VCR. 1b—Si Ud. tiene un decodificador de cable y una VCR,
1c—Si Ud. tiene una antena externa o interna y una VCR, 1d— Si Ud. tiene un receptor de
satélite y una VCR. Conecte su sistema de cable o antena directamente a la TV, si Ud. no
tiene accesorios opcionales.
➊Sistema de Cable con VCR y TV
❷
a
➊Antena Exterior o Interior a VCR a TV
c
➊Receptor de Satélite, VCR y TV
d
➊Sistema de Cable con Decodificador de Cable, VCR y TV
b
RECEPTOR
❷
❷
VCR
VCR
VCR
❸
Conector de 75 OHMS
Use un conector de 75 ohms
para conectar una VCR, sistema
de cable, antena externa /interna,
o, receptor satélite directamente
a la TV.
TV
TV
TV
❸
