Fisher PC-27S10 User manual

PC-27S10
CONTENTS
Important Safety Tips . . . . . . . . . . . . . . . . . 2
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Specifications . . . . . . . . . . . . . . . . . . . . . . . . 3
Basic Setup . . . . . . . . . . . . . . . . . . . . . . . . . 3
Basic Hookup Methods . . . . . . . . . . . . . . . . 4
Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Remote Control . . . . . . . . . . . . . . . . . . . 5 ~ 6
TV Adjustment and Setup . . . . . . . . . . . 7 ~ 8
Using Front Audio/ Video Input Jacks . . . . . 8
Using Rear Audio/ Video Input Jacks . . . . . 9
Using Audio Output Jacks . . . . . . . . . . . . . . 9
V-Guide Information . . . . . . . . . . . . . . . . . 10
V-Guide Operation (Parental Control) ..10~11
Closed-Captioning . . . . . . . . . . . . . . . . . . . 12
Setting the Sleep Timer . . . . . . . . . . . . . . . 13
Resetting the TV . . . . . . . . . . . . . . . . . . . . . 13
Care and Cleaning . . . . . . . . . . . . . . . . . . . 13
Troubleshooting . . . . . . . . . . . . . . . . . 14 ~ 15
Warranty and Service . . . . . . . . . . . . . . . . 16
Child Safety Matters . . . . . . . . . . . Back cover
ESPAÑOL . . . . . . . . . . . . . . . . . . . . . 17 ~ 35
Contenido . . . . . . . . . . . . . . . . . . . . . . . . . . 17 Printed in U.S.A. SMC, July 2001 / Impreso en U.S.A. SMC, Julio 2001
Part No. / No. de Parte : 1AA6P1P2610––
Service Code / Código de Servicio : 610 289 3151
MTS
MTS
STEREO
FGH
TV screen image / Imagen de la Pantalla
del Televisor © 2001 PhotoDisc, Inc.
“As an ENERGY STAR®Partner,
Fisher has determined that this
product meets the ENERGY STAR®
guidelines for energy efficiency.”
Color TV Owner’s Manual
Color TV Manual Del Propietario
FGH
To the Owner:
Thank you for purchasing a Fisher Color Television. You
made an excellent choice for Performance, Reliability, and
Value. The TVis designed with easy on-screen set-up instruc-
tions and operating features. To meet the growing needs of
our customers, this television has a “V-Chip” for parental
controlled viewing. Need assistance? Visit our web site at
www.fisherav.com.

2
Positioning the appliance
1. Do not place your appliance on an unstable cart, stand, shelf or table.
Serious injury to an individual, and damage to the appliance, may result
if it should fall. Your salesperson can recommend approved carts and
stands or shelf and wall mounting instructions. An appli-
ance and cart combination should be moved with care.
Quick stops, excessive force, and uneven surfaces may
cause the appliance and cart combination to overturn.
2. Slots and openings in the cabinet and in the back or bottom are
provided for ventilation. To ensure reliable operation of the appliance and
to protect it from overheating, these openings must not be blocked or
covered. The openings should never be covered with a cloth or other
material, and the bottom openings should not be blocked by placing the
unit on a bed, sofa, rug, or other similar surface. This appliance should
never be placed near or over a radiator or heat register. This appliance
should not be placed in a built-in installation such as a bookcase unless
proper ventilation is provided.
3. Do not expose the appliance to rain or use near water . . . for example,
near a bathtub, swimming pool, kitchen sink, in a wet basement, etc.
Hooking Up Outdoor Antenna
LIGHTNING PROTECTION FOR YOUR ANTENNA AND SET AS PER
NATIONAL ELECTRICAL CODE INSTRUCTIONS.
4. If an outside antenna is connected to the receiver, be sure the antenna
system is grounded so as to provide some protection against voltage
surges and built up static charges. Article 810 of the National Electrical
Code, ANSI/NFPA 70, provides information with respect to proper
grounding of the mast and supporting structure, grounding of the lead in
wire to an antenna discharge unit, size of grounding conductors,
location of antenna discharge unit, connection to grounding electrodes,
and requirements for the grounding electrode.
An outside antenna system should not be located in the vicinity of over-
head power lines or other electric light or power circuits, or where it can
fall into such power lines or circuits. When installing an outside antenna
system extreme care should be taken to keep from touching such power
lines or circuits as contact with them might be fatal.
Plug in the power cord
5. This product should be operated only from the type of power source indi-
cated on the marking label. If you are not sure of the type of power
supply to your home, consult your product dealer or local power
company. This product is equipped with a polarized alternating current
line plug (a plug having one blade wider than the other). This plug will fit
into the power outlet only one way. This is a safety feature. If you are
unable to insert the plug fully into the outlet, try reversing the plug. If the
plug should still fail to fit, contact your electrician to replace your obso-
lete outlet. Do not defeat the safety purpose of this polarized plug. Do not
overload wall outlets, extension cords, or integral convenience recepta-
cles as this can result in a risk of fire or electric shock.
6. Power-supply cords should be routed so that they are not likely to be
walked on or pinched by items placed upon or against them, paying par-
ticular attention to cords at plugs, convenience receptacles, and the point
where they exit from the product.
Cleaning
7. Before cleaning,unplugtheunit fromthe walloutlet. Donot applyliquid clean-
ers or aerosol cleaners directly to the unit. Use a damp cloth for cleaning.
Service & Repair
8. Unplug the appliance from the wall outlet and refer servicing to
qualified service personnel under the following conditions:
A. If the power cord or plug is damaged or frayed.
B. If liquid has been spilled into the appliance.
C. If the appliance has been exposed to rain or water.
D. If the appliance has been dropped or the cabinet has been damaged.
E. If the appliance exhibits a distinct change in performance.
F. If the appliance does not operate normally by following the operating
instructions, adjust only those controls that are covered in the oper-
ating instructions. Improper adjustment of other controls may result
in damage and will often require extensive work by a qualified tech-
nician to restore the appliance to normal operation.
9. Upon completion of any service or repair, request the service techni-
cian’s assurance that only Factory Authorized Replacement Parts that
have the same characteristics as the original parts were used, and that
routine safety checks have been performed to determine that the appli-
ance is in safe operating condition. Unauthorized substitutions may
result in fire, electrical shock, or other hazards.
10. Never add accessories that have not been specifically designed for use
with this appliance as they may cause hazards.
11. For added protection during a lightning storm, or when the set is left
unattended and unused for long periods of time, unplug it from the wall
outlet and disconnect the antenna. This will prevent damage to the set
due to lightning or power line surges.
12. Never push objects of any kind into this product through openings as
they may touch dangerous voltage points or short-out parts that could
result in a fire or electric shock. Never spill liquid of any kind on the
product.

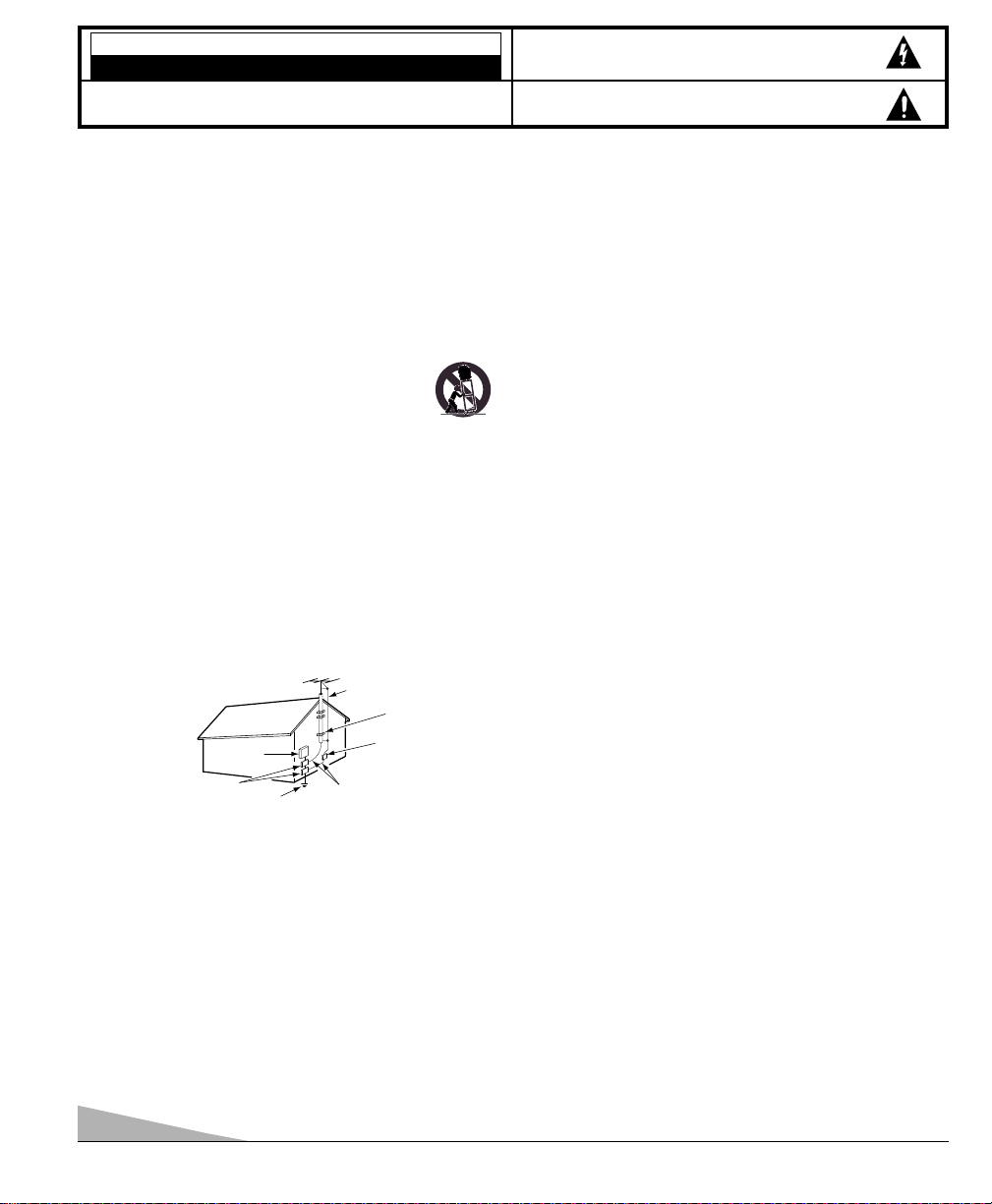

EXAMPLE OF ANTENNA GROUNDING ACCORDING TO NATIONAL
ELECTRICAL CODE, ANSI/NFPA 70
CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR
BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
THIS SYMBOL INDICATES THAT DANGEROUS VOLTAGE CONSTITUTING
A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT.
THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT OPERATING
AND MAINTENANCE INSTRUCTIONS IN THE LITERATURE ACCOMPANY-
ING THIS UNIT.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.
IMPORTANT SAFETY INSTRUCTIONS
CAUTION: PLEASE ADHERE TO ALL WARNINGS ON THE PRODUCT AND IN THE OPERATING INSTRUCTIONS. BEFORE
OPERATING THE PRODUCT, PLEASE READ ALL OF THE SAFETY AND OPERATING INSTRUCTIONS. RETAIN THIS
LITERATURE FOR REFERENCE. Follow all instructions...
“Note to CATV system installer:
This reminder is provided to call the CATV system installer’s attention to Article 820-40
of the NEC that provides guidelines for proper grounding and, in particular, specifies that
the cable ground shall be connected to the grounding system of the building, as close to
the point of cable entry as practical.”
NEC - NATIONAL ELECTRICAL CODE
ANTENNA
LEAD IN
WIRE
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)
GROUND
CLAMP
ELECTRIC
SERVICE
EQUIPMENT
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H)

3
◆Trilingual On-Screen Menu
◆Automatic Channel Search
◆Auto Shut Off
◆Closed-Captioning/Quikcap
◆Digital picture controls
with on-screen display
◆MTS stereo/dbx®/SAP
Decoder
◆Auto Flesh Tone
◆Color Enhancer
◆Factory preset adjustments
for picture/sound
◆Tone
◆V-Guide (Parental Control)
◆Front (AV1) and Rear (AV2)
Audio/Video Input Jacks
◆Audio Output Jacks (Fixed)
◆Sleep Timer (3 hours)
◆TV Reset
181 Channel Tuning System
VHF Channels 2-13
UHF Channels 14-69
Cable TV (CATV) 1, 14-125
Automatic Fine Tuning
VHF and Cable Channels

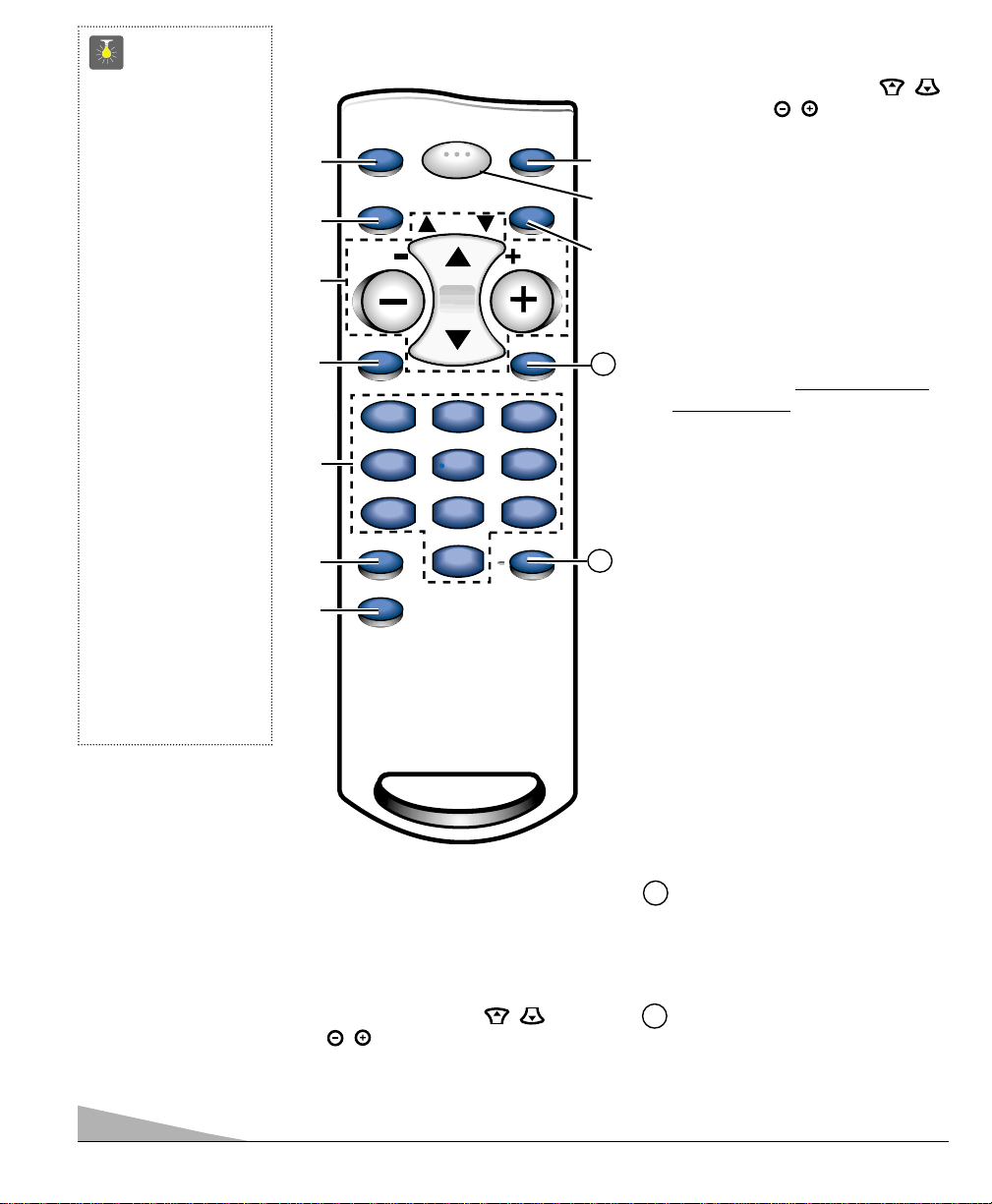

Remote Control
Large Glow-in-the-Dark
basic operating keys
Numbered Channel
Selection
Channel Scanning
Volume Mute
Power Recall
Display Sleep
Caption Reset
Menu V-Guide
Input
SPECIFICATIONS
PICTURE TUBE SIZE
(Measured Diagonally) . . . . . . . . . 27-Inch screen
PICTURE RESOLUTION . . . . . . . . . 260 Lines
Video Input . . . . . . . . . . 260 Lines
ANTENNA INPUT . . . . . . . . . . . . . . UHF/VHF/CATV 75Ω
POWER REQUIREMENT . . . . . . . . . 120VAC 60Hz
POWER . . . . . . . . . . . . . . . . . . . . . 86 watts
HORIZONTAL DIM. (Width) . . . . . . . 26.1 in. (664mm)
VERTICAL DIM. (Height) . . . . . . . . 23.2 in. (589mm)
DEPTH DIM. (Thickness) . . . . . . . . 20.5 in. (522mm)
WEIGHT (Approx.) . . . . . . . . . . . . . 66.7 lbs. (30.3 Kg.)
SOUND (2 Speakers) . . . . . . . . . . . Size: 8 cm
AMPLIFIER . . . . . . . . . . . . . . . . . . Built-in with 1W/ch
AUDIO/VIDEO INPUT JACKS . . . . . Video Input
(Front/Rear) . . . . . . . . . . . . . . . . . Audio Input (R/L)
AUDIO OUTPUT JACKS . . . . . . . . . Fixed Audio Output (R/L)
. . . . . . . . . . . . . . . . . . . . . . . . . . . (RCA Connectors)
dbx®is a registered trademark of
Carillon Electronics Corporation
CAUTION: FCC Regulations state that improper modifications or
unauthorized changes to this unit may void the user’s
authority to operate the unit.
GAME
(INPUT)
MENU
MUTE
SLEEP
V-GUIDE
DISPLAY
CAPTION
RECALL
RESET
CH
POWER
VOLVOL
123
456
789
0
UHF/VHF/CATV
75 Ω
Please wait
TV is searching
for your channels
MENU
First
Please connect
cable system or
an antenna to the
terminal on the back
Then press the MENU key
VIDEO IN L-AUDIO-R
MTS
MTS
STEREO
FGH
MTS
MTS
STEREO
❷❸
❹

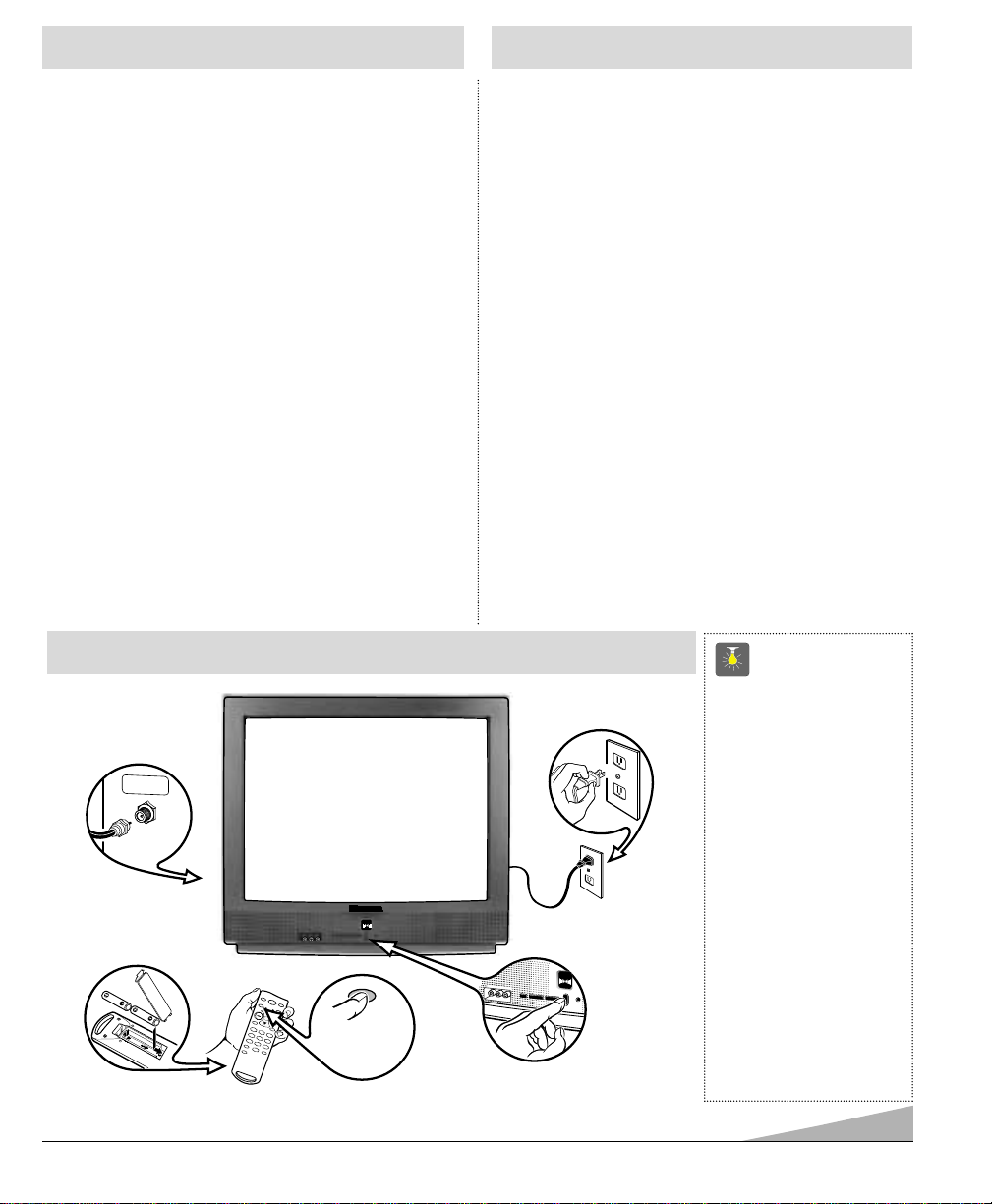

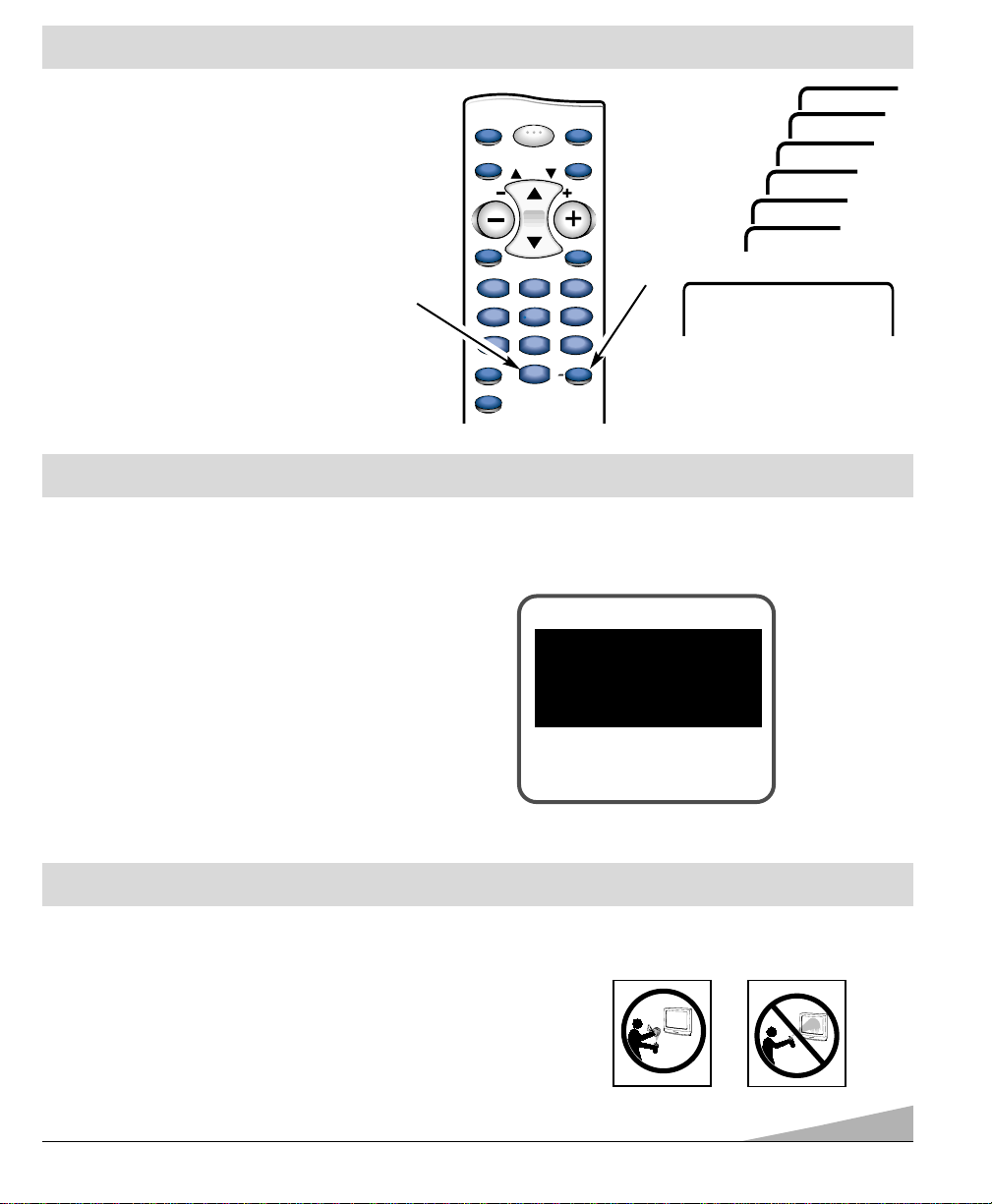

BASIC SETUP
(See Hookup
on page 4.)
❺
➊
(Install batteries, see page 5.) (Switch on Power.)
QuickTips
■
Do not position the TV
in a confined area.
Allow normal air circu-
lation for electronic
parts.
■
Position your TV at
least 2 feet from stereo
speakers. The magnets
in the speakers may
affect the picture
quality. However, all
Fisher STV model
speakers are stray field
compensated and may
be placed next to TV
sets without any special
precautions.
FEATURES
Because it’s products are subject to continuous improvement,
Fisher reserves the right to modify product design and specifica-
tions without notice and without incurring any obligation.

4
AUDIO VIDEO INPUT
AV2
(MON0)
L
R
L
R
VIDEO
AUDIO
UHF/VHF/CATV
75Ω
AUDIO
OUTPUT
AUDIO VIDEO INPUT
AV2
(MON0)
L
R
L
R
VIDEO
AUDIO
UHF/VHF/CATV
75Ω
AUDIO
OUTPUT
AUDIO VIDEO INPUT
AV2
(MON0)
L
R
L
R
VIDEO
AUDIO
UHF/VHF/CATV
75Ω
AUDIO
OUTPUT
AUDIO VIDEO INPUT
AV2
(MON0)
L
R
L
R
VIDEO
AUDIO
UHF/VHF/CATV
75Ω
AUDIO
OUTPUT
++
FROM ANT.
OUT TO TV.
IN
OUT
FROM ANT.
OUT TO TV.
IN
OUT
IN OUT
FROM ANT.
OUT TO TV.
IN
OUT
IN FROM
SAT.
CATV IN
OUT TO TV S-VIDEO
CH3
CH4 R- -LAUDIOVIDEO
R- -LAUDIOVIDEO
FROM ANT.
OUT TO TV.
IN
OUT
RECEIVER VCR
CABLE BOX
TV BACK
❸
CATV FRANCHISE NOTE:
Cable companies, like public
utilities, are franchised by local
government authorities. To
receive cable programs, even
with equipment which is
capable of receiving cable
channels, the consumer must
subscribe to the cable
company’s service. ❷
➊
d
➊
b
➊
a
75 OHM Terminal
Use the 75 ohm terminal
to connect a VCR, cable,
cable box, outdoor/
indoor antenna or satellite
receiver directly to the TV.
Cable with VCR and TV
Cable with Cable Box, VCR and TV
Satellite Dish with Receiver, VCR and TV
➊
cOutdoor or Indoor Antenna with VCR and TV
❷
❷
VCR
VCR
VCR ❷
TV BACK
TV BACK
TV BACK
❸
See page 9, Using the
Audio/Video jacks.
BASIC HOOKUP METHODS
Use one of these methods to connect a signal to your TV. Select 1a—if you have cable
service and a VCR, 1b—if you have a cable box and a VCR, 1c—if you have an outdoor or
indoor antenna and a VCR, or 1d—if you have a satellite dish and a VCR. Connect your
cable or antenna directly to the TV if you don’t have any optional accessories.
QuickTips
■
The TV will automat-
ically select the
correct Antenna
mode for the type of
signal you connect.
■
TV will switch off
automatically after
15 minutes if there is
no signal reception
(cable out or station
not broadcasting).
Exception—When the
Video mode is selected,
the TV will not auto-
matically switch off
when signal reception
has stopped for 15
minutes.

5
REAR PANEL
Audio/Video Input Jacks (AV2)
Connect external video equipment
here (see page 9).
Audio Output Jacks (Fixed)
Connect external audio
equipment here (see page 9).
AUDIO VIDEO INPUT
AV2
(MON0)
L
R
L
R
VIDEO
AUDIO
UHF/VHF/CATV
75Ω
AUDIO
OUTPUT
QuickTips
■
Make sure all cable
connectors are fully
seated on jacks.
See pages 8~9 before
connecting external
video equipment.
■
Cables are not
supplied for connect-
ing your external
equipment.
■
A solid Blue screen
with the word Video
displayed means that
the Video mode is
selected, but no signal
is being detected at
the Video jack.
Check connection,
and turn on external
equipment.
■
Be sure batteries are
installed correctly.
■
Point the remote
control toward the
equipment you want
to operate. Objects
between the remote
control and the equip-
ment may cause
misoperation of the
remote control
function.
REMOTE CONTROL
INSTALLING BATTERIES (2 AAA not included)
1. Remove the battery cover by pressing the tab and tilting the cover upward. Insert batteries.
Make sure you match / signs on the batteries with marks inside the remote control.
2. Replace battery cover. The remote control is ready!
Notes:
– Do not mix old batteries with new ones or mix different types of
batteries together.
– Remove the batteries if the remote control will not be used for a month
or more. Weak batteries may leak and cause damage.
+
IMPORTANT NOTE: Spent or discharged batteries must be recycled or dis-
posed of properly in compliance with all applicable laws. For detailed
information, contact your local County Solid Waste Authority.
FRONT PANEL
Audio/Video Input Jacks (AV1)
Connect external video equipment here (see page 8).
MTSMTS
STEREO
MENUMENU CHCH VOLVOL VOLVOL
POWER
VIDEO IN L- AUDIO -R
CHCH
MTSMTS
STEREO
Cable / Antenna Input
Terminal (75 ohms)

6
QuickTips
■
Make sure batteries
have been installed
correctly.
■
Cannot select channel
with number keys.
Press “0” in front of
numbers 1 ~ 9.
Example: Channel 05.
■
The “C” in front of the
channel number indi-
cates a Cable channel.
■
Adjusting the volume
level: Right flashing
arrow indicates
volume is increasing
and left flashing arrow
indicates volume is
decreasing.
■
Channel number will
not display continu-
ously when captioning
is on.
■
Using V-Guide TV
Parental Guidelines
settings can be
changed only by using
the Remote Control.
See pages 10 ~ 11.
REMOTE CONTROL KEYS
➀Input Key
Press to select the program source to
be displayed on the screen: TV signal
or signal from the equipment you
have connected to the A/V jacks.
➁Menu Key
Use this key with the / and
/keys to navigate and adjust
features of the on-screen menu system
(see pages 7 ~ 8).
➂Channel (CH) Scanning ( /)
and Volume ( / ) Keys
Press to scan through the channels in
memory and to adjust the volume.
➃Mute Key
Press once to minimize the volume.
Press again to restore.
Note: When using the audio out jacks
this key will not mute the sound.
➄Number Keys
Two keys must be pressed to select a
channel. Example: Press 0then 6to
select channel 6. For cable channels
100 through 125, press and hold the
1key until C1–– appears. Then press
the other two numbers.
➅Caption Key (See page 12.)
➆V-Guide Key (See pages 10 ~11.)
➇Reset Key
Press this key twice to restore factory
settings. The TV will automatically
start Channel Search and clear all
customized settings. (See page 13.)
➈Power Key
Press to turn TV on or off.
➉Recall Key
Select a channel then select another
channel using the number keys. Press
Recall to switch between the
channels.
Display Key
Press once to display the channel
number. Press twice to display the
channel number continuously. Press
again to remove the display.
Sleep Key
Use this key with the “0” key to set
the Sleep Timer (see page 13).
Point towards TV
11
12
INPUT
MENU
MUTE
SLEEP
V-GUIDE
DISPLAY
CAPTION
RECALL
RESET
CH
POWER
VOL VOL
123
456
789
0
456
789
0
123
➀
➁
➂
➃
➄
➇
➅
➈
➆
➉
12
11
➠

7
TV ADJUSTMENT AND SETUP
The on-screen menu provides the viewer with easy access to adjustments and settings. Just use
the keys on the remote control and follow the
instructions.
HOW TO MAKE ADJUSTMENTS
1. Press MENU key.
2. Use the / keys to highlight
the desired feature.
3. Use the /keys to choose desired
option (
➧ indicates selected item).
Items with submenus requires additional steps.
SETTING AUDIO MODE
Select desired sound setting, Stereo, Mono, or SAP (secondary audio program).
Note: Stereo and SAP must be part of the broadcast signal.
1. Choose Stereo, Mono, or SAP from the
Audio options.
2. Press the MENU key to exit.
Note: The TV will automatically reset to stereo
if unplugged or a power interruption occurs.
ADJUSTING PICTURE/SOUND
For automatic picture adjustment:
Choose Sports, Movie,orNews from
the Picture/Sound options.
Adjust the picture/sound manually:
1. Choose Manual from the Picture/Sound
options.
2. Press the MENU key to open the
picture/sound settings submenu.
3. Use the / keys to highlight the
picture or sound setting you want to
change.
4. Use the /keys to adjust settings.
5. Press the MENU key to exit.
QuickTips
■
Always follow
on-screen instructions.
■
All TV adjustments are
controlled through the
menu.
■
The menu will display
on the screen for
approximately 20
seconds. Press MENU
again to redisplay.
■
Under weak stereo
signal conditions, you
may receive better
quality sound in the
“Mono” position.
■
To expand your
viewing experience
select Sports, Movie,
or News to match the
program you are
watching.
■
Use the color enhancer
feature to highlight the
picture flesh tones and
color highlights.
Selecting warm will
deepen the picture red
tints and cool will
highlight the picture
blue tints.
■
When setting the
Antenna mode, choose
Cable if your TV is
connected to a cable
system, otherwise
choose VHF/UHF.
▲▼ keys – + keys
AA
AAuu uudd ddii iioo oo ➧
SS
SStt ttee eerr rree eeoo ooMono SAP
▲▼ keys – + keys
Audio
➧ Stereo Mono SAP
Picture/Sound
➧ Sports Movie
Auto Manual
Antenna
➧ Cable VHF/UHF
CH. Search
➧ NO Start
CH. Scan Memory C 34 Added
Espanol
Menu Language
➧ English Francais
Press MENU key for adjustment
▲▼ keys – + keys
Audio
Initial Channel
PP
PPii iicc cctt ttuu uurr rree ee// //SS SSoo oouu uunn nndd dd Sports Movie
News ➧
MM
MMaa aann nnuu uuaa aall ll
▲▼ keys – + keys
Color
Tint
Contrast
Brightness
Sharpness
Press MENU key to exit
TT
TToo oonn nnee eeLL LL-- ---- ---- ---- --■ ■❙❙ ❙❙❙❙ ❙❙❙❙ ❙❙❙❙ ❙❙❙❙ ❙❙❙❙ ❙❙HH HH
CC
CCoo ooll lloo oorr rr EE EEnn nnhh hhaa aann nncc ccee eerr rrNormal ➧
WW
WWaa aarr rrmm mm
➥
Cool

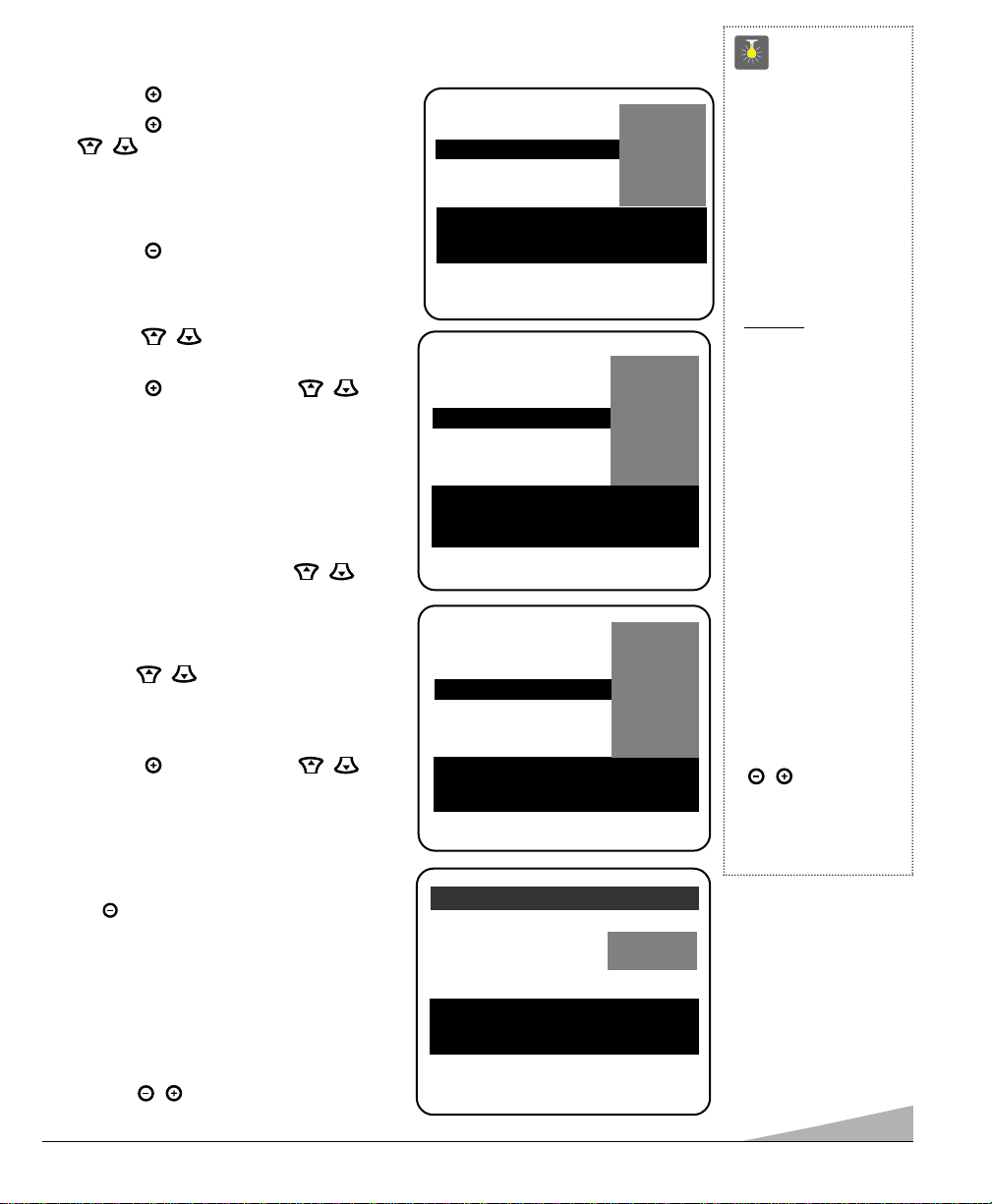

RESETTING THE ANTENNA/CABLE MODE AND CHANNEL SEARCH
Resetting the Antenna/Cable Mode or CH. (Channel)
Search is required only if additional channels
become available, such as moving to another city or
having a cable service installed.
1. Choose Start from the Ch. Search menu options.
CH.Scan Memory
Menu Language
Press MENU key to exit
CC
CCHH HH.. .. SS SSee eeaa aarr rrcc cchh hhNO ➧
SS
SStt ttaa aarr rrtt tt

8
QuickTips
■
Channels deleted
from scan memory
can be selected with
the number keys.
■
The channel number
area must be high-
lighted before
pressing the key
to add or delete.
■
Restoring deleted
channels, use the
on-screen menu to
manually add chan-
nels or start CH.
(Channel) Search
from the menu.
■
Make sure all cable
connectors are fully
seated on jacks.
■
A solid Blue screen
with the word Video
displayed means that
the Video is selected,
but no signal is being
detected at the Video
jack.
ADDING OR DELETING CHANNELS
1. Press MENU key.
2. Use the / keys to highlight CH. Scan Memory.
3. Press the key to highlight the channel number entry area.
4. Enter the channel number you want to add
or delete (example): C34.
For cable channels above 99, press and
hold the 1key until C1– – appears.
Then enter the other two numbers.
5. Press the key to change the present
setting. Example: Added will change to Deleted.
6. Press the MENU key to exit.
Menu Language
SS
SSee eell llee eecc cctt tt cc cchh hhaa aann nnnn nnee eell ll uu uuss ssii iinn nngg gg ▲▲ ▲▲▼▼ ▼▼,, ,, 00 00~~ ~~99 99 kk kkee eeyy yyss ss
PP
PPrr rree eess ssss ss MM MMEE EENN NNUU UU kk kkee eeyy yy tt ttoo oo ee eexx xxii iitt tt
CH. Scan Memory CC CC 33 3344 44 Deleted
SELECTING THE DISPLAY LANGUAGE
1. Choose English, Francais, or Espanol
from the Menu Language options.
2. Press the MENU key to exit. Press MENU key to exit
Espanol
MM
MMee eenn nnuu uu LL LLaa aann nngg gguu uuaa aagg ggee ee
➧
EE
EEnn nngg ggll llii iiss sshh hhFrancais

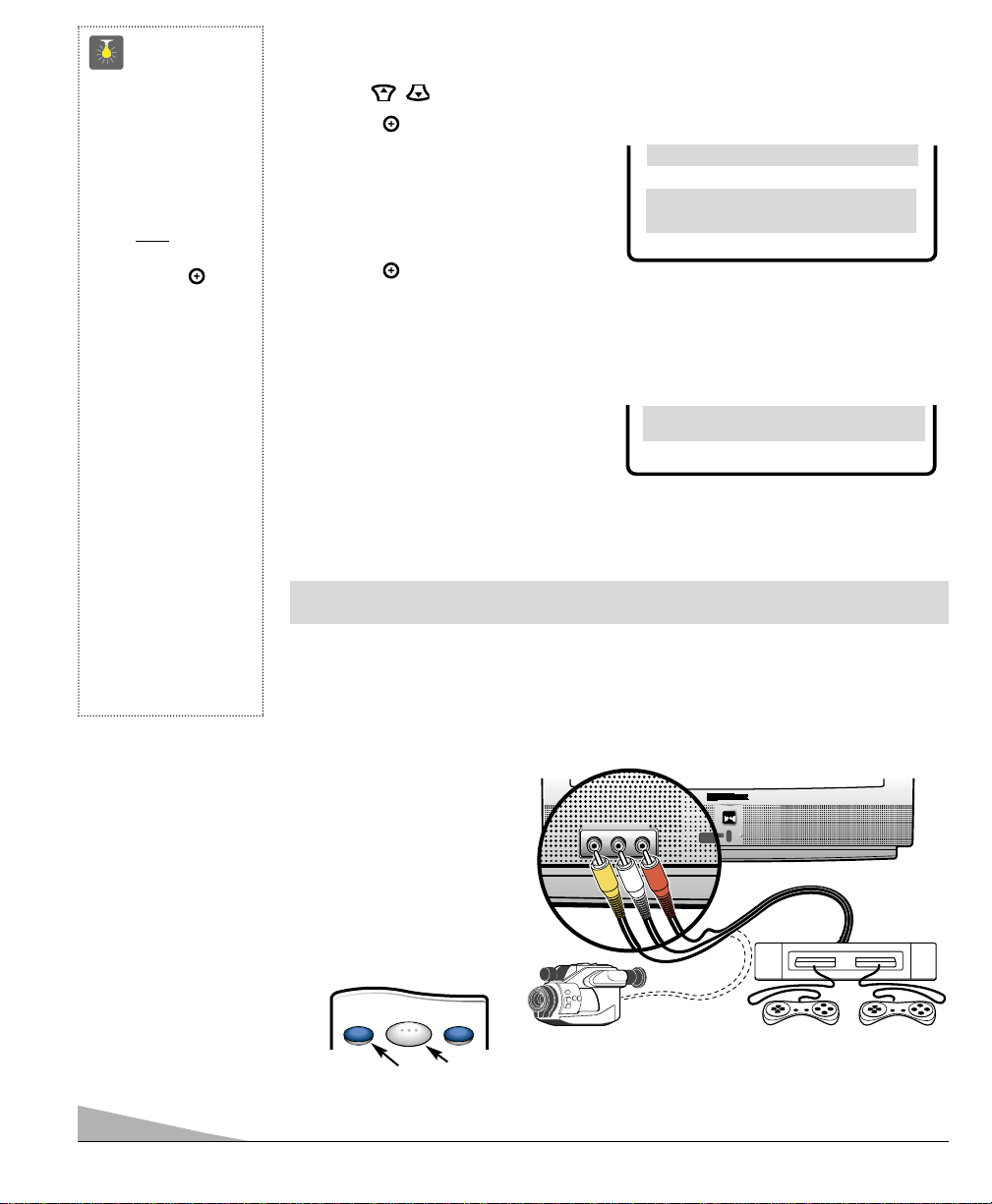

USING THE FRONT AUDIO/VIDEO INPUT JACKS
CONNECTING A VIDEO GAME OR OTHER EXTERNAL EQUIPMENT
Switch off TV and video game before connecting cables.
1. Connect game Audio Output
(R/L) to the TV Audio Input
(R/L). Then connect game
Video Out to the TV
Video In ❶.
2. Press POWER key ❷ to turn
on the TV. Turn on external
equipment also.
3. Press the INPUT key ❸on
the remote control.
MTS
MTS
STEREO
MENU
MENU
CH
CH
VOL
VOL
VOL
VOL
POWER
VIDEO IN L- AUDIO -R
CH
CH
MENU
MENU
VIDEO IN L- AUDIO -R
MTS
MTS
STEREO
FGH
❶VIDEO GAME
INPUT RESET
POWER
❷
❸
REMOTE CONTROL
CAMCORDER

9
QuickTips
■
Make sure all cable
connectors are fully
seated on jacks.
■
Always match cables
according to the
colors; RED for right
audio, WHITE for left
audio and YELLOW for
video.
■
A solid Blue screen
with the words Video
displayed means that
the Video mode is
selected, but no
signal is being
detected at the
Video jack.
■
Position your TV at
least 2 feet from
stereo speakers. The
magnets in the
speakers may affect
the picture quality.
However, all Fisher
STV model speakers
are stray field
compensated and
may be placed next
to TV sets without
any special
precautions.
■
Do not connect
external speakers
directly to the TV.
USING THE REAR AUDIO/VIDEO INPUT JACKS
CONNECTING A VCR OR OTHER EXTERNAL EQUIPMENT
Switch off TV and external equipment before connecting cables. (Cables are not supplied.)
1. Connect VCR or other equipment’s Audio Out (R/L) to the TV Audio Input (R/L) ❶.
For Mono VCR (Single Audio Jack) connect VCR Audio Out to TV
Audio (L) In.
2. Connect VCR or other equipment’s Video Out to the TV Video In ❷.
3. Press POWER ❸to turn on the TV. Turn on external equipment also.
4. Press the INPUT key ❹to select program source: TV signal or signal from the equip-
ment you have connected to the A/V jacks.
CH3 CH4
IN
OUT
A/V JACKS
RF
CHANNEL R- -L
AUDIO VIDEO
R- -LAUDIO VIDEO
AUDIO VIDEO INPUT
AV2
(MON0)
L
R
L
R
VIDEO
AUDIO
UHF/VHF/CATV
75Ω
AUDIO
OUTPUT
❶
BACK VIEW OF VCR
❷
INPUT
MENU RECALL
RESET
CH
POWER
❹❸
REMOTE CONTROL
USING THE AUDIO OUTPUT JACKS
CONNECTING A STEREO AMPLIFIER TO AUDIO OUT JACKS
1. Connect the TV Audio Out (R/L) ❶to the Stereo Amplifier In (R/L) ❷.
2. Press POWER to turn on the TV. Turn on external equipment also.
AUDIO VIDEO INPUT
AV2
(MON0)
L
R
L
R
VIDEO
AUDIO
UHF/VHF/CATV
75Ω
AUDIO
OUTPUT
TV A/V INPUT REAR JACKS
❶
❷BACK OF TV
STEREO AMPLIFIER

10
ABOUT MPAA AND TV PARENTAL GUIDELINES
MPAA and TV Parental Guidelines are rating systems that provide advance cautionary
information to parents about the content of movie and television programming.
MPAA is a voluntary rating system used by the movie industry. TV Parental Guidelines are
modeled after the MPAA ratings and were designed to be simple to use, easy to understand,
and easy to find.
TV Parental Guidelines contain both age-based and content-based information. This gives
parents discretionary ways of choosing appropriate material for their children to view.
Content ratings are represented by the initials D (Suggestive Dialog), L (Adult Language),
S (Sexual Situations), V (Violence), and FV (Fantasy Violence). When programming con-
tains any or all of these conditions, these letters become part of the icon that is displayed on
the TV screen.
A rating icon will generally appear in the upper left hand corner of the TV screen for about
fifteen seconds at the beginning of a program and should be repeated at the beginning of the
second hour of a long program. It may also appear when returning from commercials. There
may be other instances when these icons will be displayed as well. Parents are encouraged to
become familiar with these icons and their meanings.
WHERE CAN I FIND ADVANCE NOTICE OF PROGRAM RATING
Publishers of programming guides have been asked to include these ratings along with other infor-
mation they publish. You can expect to find this information in newspapers,
magazines, and on-screen listings and guides.
TYPES OF PROGRAMS TO RECEIVE RATING
The TV Parental Guidelines will apply to various types of TV programming, including: specials,
mini-series, and movies. Sports and news shows will not carry the guidelines.
C 34
Rating: TVPG-V
V-GUIDE OPERATION
Use this feature to supervise television viewing for young children. This television can be set to automatically block
programs with content you deem as inappropriate for your children to view, including: suggestive dialog, adult language,
sexual situations, violence, and fantasy violence.
The ability of the television to block the reception of specific programming content depends upon several conditions:
1) The program must be rated, 2) Networks must broadcast the rating code data, 3) Cable companies must transmit the
rating code signal, and 4) The TV must be properly setup to decode the signal.
The TV guidelines rating icon will generally appear at the upper left hand corner of your TV screen.
QuickTips
■
Use the CHANNEL
/and
VOLUME /keys
to navigate through
the menus and to
make selections from
the menus.
■
V-Guide feature is
accessible only from
the remote control.
■
The TV guidelines
rating icon will
generally appear in
the upper left hand
corner of your TV
screen.
■
The V-Guide display
remains on screen for
approximately 20
seconds. If it
disappears, press
the V-GUIDE key.
V-GUIDE INFORMATION
NOTE: THIS FEATURE IS DESIGNED TO COMPLY WITH THE UNITED STATES OF
AMERICA’S FCC V-CHIP REGULATIONS. THEREFORE, IT MAY NOT FUNC-
TION WITH BROADCASTS THAT ORIGINATE IN OTHER COUNTRIES.
With the introduction of “V-Chip” technology, it is now possible for Fisher
televisions to interpret MPAA and TV Parental Guidelines rating codes. When
these codes are detected, the TV will automatically display or block the program,
depending upon choices you make when setting up the V-Guide system.
MENU
MUTE
SLEEP
V-GUIDE
DISPLAY
CAPTION
RECALL
RESET
CH
POWER
VOL VOL
123
456
789
0
V
v

11
SETTING MPAA MOVIE RATING
1. Press the V-GUIDE key on the remote control to display menu.
2. Press the key to switch V-Guide ON.
3. Press the key again. Then use the
/ keys to highlight rating.
4. Press the MENU key to Block (B) or
Unblock (U) selected rating. (➡ Arrow
indicates selection.)
5. Press the key to return to the V-Guide
Options menu.
SETTING AGE-BASED GUIDELINES
6. Use the / keys to highlight TV
Parental Guidelines.
7. Press the key. Then use the /
keys to highlight rating.
8. Press the MENU key to Block (B) or
Unblock (U) selected rating.
(➡Arrow indicates selection.)
SETTING CONTENT-BASED
GUIDELINES
9. Follow steps 6 and 7. Use the /
keys to highlight Content.
10. Press the MENU key to display the Content
Option menu.
11. Use the / keys to highlight a category
(D-Suggestive Dialog, L-Adult Language,
S-Sexual Situations, V-Violence, FV-Fantasy
Violence).
12. Press the key. Then use the /
keys to highlight a rating.
13. Press the MENU key to Block (B) or
Unblock (U) selected rating.
(➡ Arrow indicates selection.)
14. Press the V-GUIDE key to exit; or press
the key to return to the Content Options
menu.
15. Repeat steps 11 through 13 to Block (B) or
Unblock (U) additional content ratings, if
desired.
TURNING OFF THE V-GUIDE
1. Press the V-GUIDE key.
2. Use the /keys to select OFF.
V-GUIDE
MPAA Movie Ratings
TV Parental Guidelines
V-GUIDE
MPAA Movie Ratings
TV Parental Guidelines
Press MENU key to set
Use ▲▼, – + keys to select
Press V-GUIDE key to exit
TVMA B
TV14 B
TVPG B
➡T TV V- -G GB B
TVY7 U
TV-Y U
Content
TVMA B
TV14 B
TVPG B
TV-G B
TVY7 U
TV-Y U
➡C Co on nt te en nt t
D-Suggestive Dialog
L-Adult Language
S-Sexual Situations
V-Violence
FV-Fantasy Violence
➡T TV V1 14 4B B
TVPG B
Press MENU key to BLOCK
Use ▲▼, – + keys to select
Press V-GUIDE key to exit
V-GUIDE
MPAA Movie Ratings
TV Parental Guidelines
Press MENU key to BLOCK
Use ▲▼, – + keys to select
Press V-GUIDE key to exit
Note: Networks and local
stations may or may
not include the
content ratings
portion of the TV
Parental Guidelines.
XB
NC17 B
➡R RB B
PG13 U
PG U
GU
QuickTips
■
The TV will automati-
cally block (B) ratings
above or unblock (U)
ratings below selec-
tion. For example, if
you block rating R,
NC17 and X will be
blocked as well.
■
Blocking TVY7
does not block higher
ratings.
■
You can block a
content rating such
as TVPG-V and
still be able to watch
TVPG programs with
ratings of S-L-D
provided TVPG is
unblocked (U).
■
To view Blocked (B)
programs, set
V-GUIDE to OFF, or
press the RESET key
twice to clear all
Blocked (B) ratings
and customized
settings.
■
When in the V-Guide
menu system, the
/keys allows
you to navigate
between the ratings
and the options menu.
Press MENU key to BLOCK
Use ▲▼, – + keys to select
Press V-GUIDE key to exit

12
INPUT
MENU
MUTE
SLEEP
V-GUIDE
DISPLAY
CAPTION
RECALL
RESET
CH
POWER
VOL VOL
123
456
789
0
456
789
0
123
❷
❶
Caption1: This is the main mode used for program
captioning (words match the program you are watching).
Almost all broadcasters will use Caption1 to transmit
program captions. These captions are generally one or
two lines.
Caption2: This is an alternative mode for program cap-
tioning. Caption2 may be used by the broadcaster to
provide captions in another language, such as, Spanish or
French.
Text1: This mode is used to display large amounts of text.
This text will appear within a black box that may be
nearly as large as the TV screen. Text displayed in this
manner does not generally relate to the program. These
captions may be used by broadcasters to provide weather
reports, community bulletins, stock quotes, etc.
Text2: This is an alternative mode used to display large
amounts of text. The same types of information displayed
in Text1 can be displayed in Text2.
Quikcap: Quikcap allows captions to toggle on and off
with the Mute function. For example, the phone rings; you
press the MUTE key on the remote control to block the
TV sound; the captions display automatically. When you
finish your conversation and press the MUTE key again to
restore the sound, the captions will disappear.
Quikcap displays program captions in the Caption1 mode.
SETTING CAPTIONS
1. Press the CAPTION key on the remote control.
2. Use the 0key to select OFF, Caption1, Caption2,
Text1, Text2, or Quikcap.
CLOSED-CAPTIONING
Captioning is textual information transmitted along with the picture and sound so it can be
displayed on the TV screen. Because different types of captions can be transmitted with
the TV signal, separate captioning modes are provided. The captioning modes recognized
by this model are: Caption1, Caption2, Text1, and Text2. Local broadcasters decide which
caption signals to transmit. They may not choose to provide captions or may provide
captions in one or all of the available modes.
TWO OUTS ANDTWO STRIKES
CAPTION1/ CAPTION2
TONIGHT: BECOMING MOSTLY
CLOUDY WITH A 40 PERCENT
CHANCE OF RAIN. COLDWITH
A LOW INTHE UPPER 30's WEST
WIND AROUND 20 MPH, SHIFT-
INGTO NORTHWEST AROUND
MIDNIGHT. FRIDAY: MOSTLY
CLOUDY AND COLDER WITH
A 50 PERCENT CHANCE OF
RAIN. HIGH INTHE MID 50's.
QuickTips
■
If Caption Text mode
is selected and no
captioned text is
broadcasted, a black
box may appear and
remain on the TV
screen.
To remove this black
box, set captioning to
any mode other than
Text1 or Text2 or
press the RESET key
to cancel captioning
and customized
settings.
■
When captioning
is turned on, the
channel display will
not stay on the
screen. For these
displays to stay on
the screen you must
set Captioning
to OFF.
TEXT1/ TEXT2

13
RESETTING THE TV
Press the RESET key to automatically reset the television to factory settings. These features will automatically reset:
•Picture/Sound Adjustments: Color, Tint, Contrast, Brightness, Sharpness, Color Enhancer, and Tone
•Channel Memory
•Audio to Stereo
•Caption to OFF
•V-Guide to OFF
•Language to English
•Sleep Timer (if previously set)
If desired, personal settings can be made again
using the menu options.
Press RESET key
again to return
factory preset and
begin channel search
CARE AND CLEANING
The surface of the cabinet can be damaged if not properly maintained. Many common household aerosol sprays,
cleaning agents, solvents and polishes will cause permanent damage to the fine surface.
1. Unplug the power cord before cleaning the television.
2. Clean the screen and cabinet with a soft dry cloth.
Note: Never spray liquids on the screen because they can run down and
drip onto the chassis. This may cause component failure not covered
under Warranty.
SETTING THE SLEEP TIMER
The Sleep Timer will switch off the TV automatically.
1. Press the SLEEP key.
2. Use the 0key to select the desired time
(from 30 minutes up to 3 hours).
Note: The Sleep Timer cancels when the TV is turned
off or if a power failure occurs.
Sleep : 0:30
Use 0 key
Sleep : 1:00
Sleep : 1:30
➧
Sleep : 2:00
Sleep : 2:30
Sleep : 3:00
Sleep : Clear
INPUT
MENU
MUTE
SLEEP
V-GUIDE
DISPLAY
CAPTION
RECALL
RESET
CH
POWER
VOL VOL
123
456
789
0
456
789
0
123
❷❶

14
No Picture or Poor Picture
Is picture ok?
Yes. Problem is with signal (station, cable, or satellite reception).
No. Turn off household/shop appliances such as, vacuum, blender, drill, etc.
Did picture improve?
Yes. Problem was interference from an appliance.
No. Adjust antenna direction/alignment. / Press the RESET key twice
(personalized settings will be reset to factory defaults).
Change Channels.
Is color better?
Yes. Problem is with program or signal (station, cable, or satellite reception).
No. Adjust antenna direction/alignment.
Did color improve?
Yes. Antenna was not adjusted properly for the channel you’re watching.
No. Press the RESET key twice (personalized settings will be reset
to factory defaults).
Was the connector loose or disconnected?
Yes. Problem could be auto shutdown due to loss of signal. (See page 4.)
No. Press the POWER key.
Did the TV come on?
Yes. Sleep Timer may have been set.
No. Unplug the TV for a few seconds. Reconnect and press POWER.
TV Turns off by itself
Check antenna
connection.
TROUBLESHOOTING
Before calling for assistance, please look for the condition that most closely resembles your problem
in the following charts, then follow the instructions for that condition. Visit our web site at
www.fisherav.com.
Poor color or no color
Change Channels.
Do you hear any sound now?
Yes. Mute function was activated or Volume was turned down.
No. Change Channels
Do you hear any sound now?
Yes. Problem is with program or signal (station, cable, or satellite reception).
No. Adjust antenna direction/alignment; check connections to AV jacks.
Did sound improve?
Yes. Antenna misadjusted or AV cables were not fully seated.
No. Select Mono sound from on-screen menu.
No sound, Poor Stereo sound
Press and hold
the Volume
key.

15
Did the black box disappear or disappear briefly then reappear?
Yes. TV station is broadcasting a Caption text signal without any textual data.
Press the RESET key twice (customized settings will be reset to factory defaults).
To retain customized settings, just turn captioning off (see page 12).
A Black box appears on the screen
Change Channels.
Yes. Set captioning on. Press the Caption key then press the 0 key to highlight Caption1.
No. Tune to a channel that is broadcasting a closed-captioned program.
No Captioning
Is the program
you are watching
closed-captioned?
Do you recognize the menu words now?
Yes. A language other than English was selected.
I don’t recognize words in the on-screen menu
Press the RESET
key twice
(personalized
settings will be
reset to factory
defaults).
Did the problem go away?
Yes. It may have been the channel scan memory or V-Guide settings.
Cannot select or scan some channels
Press the RESET
key twice
(personalized
settings will be
reset to factory
defaults).
The cabinet makes a popping sound
This is a normal condition during the warm-up and cool down of the plastic cabinet parts.
Did the Blue Screen disappear?
Yes. The TV was in the Video mode. (A Blue Screen will appear when the Video mode is
selected and there is no video signal being detected.) Your AV equipment may be
turned off or unplugged.
My TV screen is solid blue
Press the INPUT
key.
This symbol on the nameplate means the product is Listed by Under-
writers’ Laboratories Inc. It is designed and manufactured to meet rigid
U.L. safety standards against risk of fire, casualty and electrical hazards.

16
SANYO FISHER COMPANY
21605 Plummer Street
Chatsworth, CA 91311
FISHER Television Limited Warranty
OBLIGATIONS
To obtain Warranty service, television between the size of 13" ~ 27" (measured diagonally) must be delivered to and picked up from an authorized FISHER Service
Center at the user’s expense unless specifically stated otherwise in this warranty.
For 32" and above (measured diagonally), in-home service is available.
THIS WARRANTY IS VALID ONLY ON FISHER PRODUCTS PURCHASED AND USED IN THE UNITED STATES OF AMERICA, EXCLUDING ALL U.S. TERRITORIES
AND PROTECTORATES. THIS WARRANTY APPLIES ONLY TO THE ORIGINAL RETAIL USER, AND DOES NOT APPLY TO PRODUCTS USED FOR ANY INDUS-
TRIAL, PROFESSIONAL OR COMMERCIAL PURPOSE. THE ORIGINAL DATED BILL OF SALE OR SALES SLIP MUST BE SUBMITTED TO THE AUTHORIZED FISHER
SERVICE CENTER AT THE TIME WARRANTY SERVICE IS REQUESTED.
The name and addresses of Authorized Fisher Service Centers may be obtained by calling the toll free number listed below.
Subject to the OBLIGATIONS set up above and the EXCLUSION AND CONDITIONS set out below, SANYO FISHER COMPANY (SFC) warrants
this FISHER product against defects in materials and workmanship for the periods of LABOR and PARTS specified below. SFC will repair or
replace (at its option) within a reasonable time the product and any of its parts which fail to conform to this warranty. Repair or replacement
of the product or its parts shall be the exclusive remedies available to user. The user is responsible for all other costs. Such costs may include,
but are not limited to all necessary or incidental costs incurred to install the repaired product. The warranty period commences on the date
the product was first purchased at retail.
EXCLUSIONS AND CONDITIONS
This warranty does not cover (A) the adjustment of customer-operated controls as explained in the appropriate model’s instruction manual, or (B) the repair of
any product whose serial number has been altered, defaced or removed.
This warranty shall not apply to the cabinet or cosmetic parts, antenna, knobs, batteries or image burns to projection or picture tubes caused by electronic devices
or games.
This warranty does not apply to uncrating, setup, installation, removal of the product for repair, or reinstallation of the product after repair.
This warranty does not apply to repairs or replacements necessitated by any cause beyond the control of SFC including, but not limited to, any malfunction, defect
or failure caused by or resulting from unauthorized service or parts, improper maintenance, operation contrary to furnished instructions, shipping or transit accidents,
modification or repair by the user, abuse, misuse, neglect, accident, incorrect line voltage, fire, flood or other Acts of God, or normal wear and tear.
The foregoing is in lieu of all other expressed warranties with respect to the television or installation, operation, repair or replacement of the television. SFC shall not
be responsible for the loss of use of the unit, inconvenience, loss or damage to personal property, whether direct or indirect and whether arising in tort or contract.
THE DURATION OF ANY WARRANTIES WHICH MAY BE IMPLIED BY LAW (INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS) IS LIMITED
TO THE TERM OF THIS WARRANTY. IN NO EVENT SHALL SFC BE LIABLE FOR SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING FROM
OWNERSHIP OR USE OF THIS PRODUCT, OR FOR ANY DELAY IN THE PERFORMANCE OF ITS OBLIGATIONS UNDER THIS WARRANTY DUE TO CAUSES
BEYOND ITS CONTROL. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS AND/OR DO NOT ALLOW THE
EXCLUSION OR LIMITATION OF CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS AND EXCLUSIONS MAY NOT APPLY TO YOU.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE.
For your protection in the event of theft or loss of this product, please fill in the information requested below and KEEP in a safe place for your own personal
records.
Model No. ________________________________________________ Serial No. ____________________________________________
(Located on back of unit.)
Date of Purchase___________________________________________ Purchase Price ________________________________________
Where Purchased ___________________________________________________________________________________________________
CUSTOMER INFORMATION PARTS ORDER INFORMATION
(Product operation, authorized service center (Accessories and/or parts not available
referral, service assistance or problem resolution) from an authorized dealer)
1-800-421-5013 1-800-726-9662
Weekdays 8:30 A.M. ~ 5:00 P.M. Pacific Time Weekdays 8:30 A.M. ~ 5:00 P.M. Pacific Time
LABOR PARTS PICTURE TUBE
90 DAYS 1 YEAR 2 YEARS

17
ESPAÑOL
Manual de Instrucciónes
Importantes Medidas de Seguridad . . . . . . . . 18
Características . . . . . . . . . . . . . . . . . . . . . . . . .19
Especificaciones . . . . . . . . . . . . . . . . . . . . . . . 19
Ajustes Básicos . . . . . . . . . . . . . . . . . . . . . . . . 19
Métodos Básicos de Conexión . . . . . . . . . . . . 20
Panel Frontal . . . . . . . . . . . . . . . . . . . . . . . . . .21
Panel Posterior . . . . . . . . . . . . . . . . . . . . . . . . 21
Control Remoto . . . . . . . . . . . . . . . . . . . . .21~22
Ajustes del TV . . . . . . . . . . . . . . . . . . . . . . 23~24
Usando Las Entradas Frontales
de Audio/Video . . . . . . . . . . . . . . . . . . . . . . 25
Usando Las Entradas Posteriores
de Audio/Video . . . . . . . . . . . . . . . . . . . . . . 26
Usando Las Salidas
de Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Reajustando la TV . . . . . . . . . . . . . . . . . . . . . . 27
Transmisión Captada . . . . . . . . . . . . . . . . . . . 28
Informacíon de Guía-V . . . . . . . . . . . . . . . . . . 29
Operación de Guía-V (Control Paternal) . . 30~31
Ajustando el Cronómetro para Dormir . . . . . . 31
Solución de Problemas . . . . . . . . . . . . . . 32~34
Cuidado y Limpieza . . . . . . . . . . . . . . . . . . . . . 34
Garantía y Servicio . . . . . . . . . . . . . . . . . . . . . 35
“Como un Asociado de ENERGY STAR®,” Fisher, ha determinado
que este producto cumple con los lineamientos en eficiencia
energética de ENERGY STAR®.
CONTENIDO
A EL PROPIETARIO:
Gracías por comprar un Televisor a Color Fisher. Usted hizo una excelente selección por Funcionamiento,
Confiabilidad, yPrecio. El TV esta diseñado con instrucciones de fácil ajuste y operación en pantalla. Para
reunir las necesidades de nuestros clientes, el TV tiene el V-chip electrónico de control paternal, para tener
un control de los programas vistos por menores. ¿ Necesita ayuda? Visite nuestro sitio en internet en
www.fisherav.com.

18
PRECAUCION
RIESGO DE TOQUE ELECTRICO NO ABRIR!
PRECAUCION : PARA REDUCIR EL RIESGO DE TOQUE ELECTRICO, NO QUITE LA CUBIERTA (O
LA TAPA TRASERA). NO HAY PARTES ADENTRO QUE LAS PUEDA REPARAR EL USUARIO.
REFIERASE A PERSONAL CALIFICADO PARA REPARAR EL APARATO.
ESTE SIMBOLO INDICA QUE VOLTAJES PELIGROSOS QUE CONSTI-
TUYEN UN RIESGO DE TOQUE ELECTRICO ESTAN PRESENTES DENTRO
DE ESTA UNIDAD.
ESTE SIMBOLO INDICA QUE HAY INSTRUCCIONES IMPORTANTES DE
OPERACION Y MANTENIMIENTO EN LA LITERATURA QUE SE ANEXA A
ESTA UNIDAD.
ADVERTENCIA : PARA REDUCIR EL RIESGO DE FUEGO O TOQUE ELECTRICO, NO EXPONGA ESTE
APARATO A LLUVIA O HUMEDAD.
IMPORTANTES MEDIDAS DE SEGURIDAD
PRECAUCION : POR FAVOR SIGA TODAS LAS ADVERTENCIAS EN EL PRODUCTO Y EN LAS INSTRUCCIONES DE OPERA-
CION. ANTES DE OPERAR EL PRODUCTO, POR FAVOR LEA TODAS LAS INSTRUCCIONES DE OPERACION Y SEGURIDAD.
GUARDE ESTA LITERATURA PARA SU REFERENCIA. Siga todas las instrucciones. . .
Colocando el aparato
1. No coloque su aparato en carrito, pedestal, anaquel o mesa que sean in-
estables. Heridas serias a un individuo, y avería al aparato, pueden resultar
si este cae. Su vendedor puede recomendar carritos y pedestales o anaque-
les e instrucciones para montaje en la pared. Una combinación
de aparato y carrito deberá de ser movida con cuidado. Paradas
rápidas, fuerza excesiva, y superficies irregulares pueda causar
que la combinación de aparato y carrito se volteen y caigan.
2. Las ranuras y aperturas en el gabinete y en la parte trasera e inferior fueron
provistas para ventilación del aparato. Para asegurar una operación confiable
del aparato y protejerlo de sobrecalentamiento, estas aperturas no deberán de
ser tapadas o cubiertas. Las aperturas nunca deberán de ser cubiertas con un
trapo u otro material, y las aperturas de la parte inferior no deberán de ser
tapadas poniendo la unidad en una cama, sofá, alfombra, u otra superficie
similar. Este aparato nunca deberá de ser puesto cerca o sobre radiadores de
calor. Este aparato nunca deberá de ser puesto en instalaciones tales como
libreros a no ser que haya una adequada ventilación en tales instalaciones.
3. No exponga el aparato a lluvia o a uso cerca de agua . . . por ejemplo, cerca
a una bañera, una alberca, un lavabo, en un sótano húmedo, etc.
Conectando la Antena Externa
PROTECCION EN CONTRA DE RAYOS ELECTRICOS PARA SU ANTENA Y APARATO DE
ACUERDO A LAS INSTRUCCIONES DEL CODIGO NACIONAL ELECTRICO (EUA).
4. Si una antena exterior es conectada al receptor, asegúrese que el sistema de
antenaestéaterrizado paraproveeralguna protecciónencontra de impulsosde
voltaje y la acumulación de cargas estáticas. El articulo 810 del código nacional
eléctrico de los Estados Unidos de América (National Electrical Code,
ANSI/NFPA70),provee informaciónconrespecto alaterrizamientocorrecto del
mástil y la estructura de soporte, el aterrizamiento del alambre a la antena en
una unidad de descarga, el tamaño de los conductores de aterrizamiento, la
localización de la unidad de descarga, conexión a los electrodos de aterriza-
miento, y requerimientos para los electrodos de aterrizamiento.
Una antena exterior no deberá de ser localizada en la vecindad de líneas de
potencia que pasen por encima de otros circuitos de luz eléctrica o de potencia,
o en donde pueda caer sobre tales líneas de potencia o circuitos. Cuando se
instale un sistema de antena externa, se debe de tener cuidado extremo en no
tocar tales líneas de potencia o circuitos ya que contacto con ellos puede llegar
a ser fatal.
Conectando el cordon de potencia
5. Este producto debe ser operado solamente con el tipo de cordón de potencia
indicado en la etiqueta. Si usted no esta seguro del tipo de alimentación en su
casa, consulte a su distribuidor de este producto, o a la compañía de
suministro eléctrico. Este producto esta equipado con cordón de potencia
polarizado (una de las navajas de la clavija es más ancha, que la otra). Esta
clavija debe de ajustar en el toma corriente de una manera solamente. Esta
característicaesuna medida deseguridad.Si usted nopuede insertar la clavija
totalmente en el toma corriente, trate invirtiendo la clavija.Si la clavija continua
floja en el toma corriente, llame a su electricista, para reemplazar su toma
corriente obsoleto. No deshabilite el propósito de seguridad de la esta clavija
polarizada. No sobre cargue los toma corrientes de pared, extensiones
eléctricas, o receptáculos integrales, ya que esta condición puede resultaren
un riesgo de fuego o descarga eléctrica.
6. Los cordones de potencia deben ser direccionados de tal manera que no
puedan ser pisados o dañados con enseres colocados a un lado arriba del
cordón de potencia. ponga una particular atención a los cordones de potencia
y clavijas, receptáculos de toma corrientes, y el punto donde ellos salen del
producto.
Limpieza
7. Antes de limpiar, desconecte la unidad del receptáculo de la pared. No
aplique limpiadores líquidos o de aerosol directamente a la unidad. Use un
trapo húmedo para limpiar.
Servicio y Reparación
8. Desconecte el aparato del receptáculo de pared y refiera servicio a personal
de servicio eléctrico calificado bajo las siguientes condiciones :
A Si el cordón de potencia o el conector están averiados o raídos.
B. Si líquido ha sido derramado en el aparato.
C. Si el aparato ha sido expuesto a lluvia o agua.
D. Si el aparato ha sido tirado o el gabinete a sido averiado.
E. Si el aparato exhibe un cambio perceptible en funcionamiento.
F. Si el aparato no opera normalmente siguiendo las instrucciones de
operación, ajuste solamente aquellos controles que han sido cubiertos en
las instrucciones de operación. Ajuste impropio de otros controles puede
resultar en avería al aparato y posiblemente requiera de trabajo extensivo
por un técnico calificado para restaurar el aparato a su operación normal.
9. Cuando se termine cualquier servicio o reparación, requiera del técnico de ser-
vicio confirmación de que solo Partes Autorizadas de Remplazo de Fabrica que
tengan las mismas características que las partes originales hayan sido usadas,
y que verificaciones de seguridad rutinarias hayan sido llevadas a cabo para
determinar que el aparato se encuentra en condiciones seguras de operación.
Substituciones no autorizadas pueden resultar en fuego, toque eléctrico u
otros peligros.
10. Nunca adicione accesorios que no han sido especificamente diseñados
para uso con este aparato.
11. Para protecciónadicionaldurante unatormentaeléctrica, ocuandoel aparato
es dejado sin atención ni uso durante largos periódos de tiempo,
desconéctelo del receptáculo de la pared y desconecte la antena. Esto evitará
daños al aparato debido a rayos o a cambios bruscos en el voltaje de línea.
12. Nunca introduzca ningún tipo de objetos a través de las ranuras, ya que el
contacto con componentes de alto voltaje pueden poner corto dichas com-
ponentes que pueden resultar en incendios o descargas eléctricas, Nunca
derrame líquidos o cualquier tipo de productos.
EJEMPLO DE ATERRIZAMIENTO DE ANTENA DE ACUUERDO AL CODIGO
NACIONAL ELECTRICO (National Electrical Code, ANSI/NFPA 70)
CABLE DE ANTENA
GRAPA DE TIERRA
CODIGO NACIONAL ELECTRICO
CONDUCTORES DE TIERRA
(NEC SECCION 810-21)
UNIDAD DE
DESCARGA DE ANTENA
(NEC SECCION 810-20)
EQUIPO DE
SERVICIO
ELECTRICO
GRAPA DE TIERRA
TIERRA DE SERVICIO DE POTENCIA
ELECTRODO DEL SISTEMA
(NEC ART 250, PARTE H)
“Nota al instalador del sistema de cable CATV :
Este recordatorio es dado para llamar la atención del instalador del sistema de cale CATV
al Articulo 820-40 del NEC que provee guias para el aterrizamiento adecuado y, en particu-
lar, especifica que la tierra del cable debéra de estar conectada al sistema la tierra del
edificio, tan cercano al punto de entrada del cable como sea practico.”

19
◆Menú en Pantalla Trilingüe
◆Búsqueda Automática de
Canales
◆Apagado Automático
◆Transmisión Captada /
Quikcap
◆Controles digitales de
Imagen desplegados
en Pantalla
◆MTS sonido estereofónico/
dbx®/sonido SAP
◆Tonos de piel por ajuste
Automático
◆Resaltar Color
◆Ajustes de Fabrica para
Imagen/Sonido
◆Tono
◆V-Guide (Control Paternal)
◆Entradas de Audio/Video,
Frontal(AV1) y Posterior (AV2)
◆Salidas Fijas de Audio
◆Cronómetro para Dormir
(3 horas)
◆Reajuste de TV
Sistema de sintonía de
181 canales
VHF Canales 2~13
UHF Canales 14-69
Cable TV (CATV) 1, 14~125
Sintonía Fina Automática
VHF y Canales de Cable
Control Remoto
Teclas de operaciones
básicas grandes que se
iluminan en la Oscuridad
Selección de Canales
Numerados
Búsqueda de Canales
Volume Mute
Power Recall
Display Sleep
Caption Reset
V-Guide Menu
Entrada
CARACTERÍSTICAS
TAMAÑO DEL TUBO DE IMAGEN
(Medido Diagonalmente) . . . . . . . . . 27-pulgadas
RESOLUCIÓN DE IMAGEN. . . . . . . . . . . 260 Líneas
Entrada de Video . . . . . . . . . . . . . . . . 260 Líneas
ENTRADA . . . . . . . . . . . . . . . . . . . . . . . . . . . UHF/VHF/CATV 75Ω
FRECUENCIA DE OPERACION . . . . . . . . 60 Hz.
TENSION DE ALIMENTACION . . . . . . . . 120 V~
CONSUMO DE CORRIENTE . . . . . . . . . . 86 watts
DIMENSIÓN HORIZONTAL (Ancho) . . . . 26.1 in. (664mm)
DIMENSIÓN VERTICAL (Alto) . . . . . . . . 23.2 in. (589mm)
DIMENSIÓN EN PROFUNDIDAD (Grosor) . . 20.5 in. (522mm)
PESO (APROX.) . . . . . . . . . . . . . . . . . 66.7 lbs. (30.3 Kg.)
SONIDO (2 Bocinas) . . . . . . . . . . . . . . Tamaño 8 cm
AMPLIFICADOR . . . . . . . . . . . . . . . . . . . Interno 1W/canal
ENTRADAS DE A/V (Frontal/Posterior). . Entrada de Video
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Entrada de Audio (R/L)
SALIDAS DE AUDIO. . . . . . . . . . . . . . . . Salida de Audio Fijo (R/L)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (RCA Connectors)
ESPECIFICACIONES
AJUSTES BÁSICOS
GAME
(INPUT)
MENU
MUTE
SLEEP
V-GUIDE
DISPLAY
CAPTION
RECALL
RESET
CH
POWER
VOLVOL
123
456
789
0
UHF/VHF/CATV
75Ω
Please wait
TV is searching
for your channels
MENU
First
Please connect
cable system or
an antenna to the
terminal on the back
Then press the MENU key
VIDEO IN L-AUDIO-R
MTS
MTS
STEREO
FGH
MTS
MTS
STEREO
❷❸
❹
(Ver conexión en
la página 20.)
❺
➊
Por favor espere TV
esta automáticamente
el búscando sus
canales
Consejos Rápidos
■
No se coloque el TV en
áreas confinadas. Permita
una circulación normal de
aire para las partes eléc-
tricas.
■
Coloque su televisor al
menos a 60 cm de las
bocinas de un sistema
estéreo. Los magnetos en
dichas bocinas pueden
afectar la calidad de
pureza de la imagen. Sin
embargo, todas las
bocinas del modelo
Fisher STV tienen com-
pensación de campo
magnético y podrán ser
colocadas al lado del
televisor sin ninguna
precaución especial.
PRECAUCION : Las Regulaciones de FCC declaran, que las
modificaciones no apropiadas o cambios no autorizados a esta
unidad, pueden anular la autoridad del usuario para operar la unidad.
(Instalación de Baterías, vea página 21.)
(Interruptor activado
para encender.)
Debido a que sus productos están subjetos a continuas mejoras,
Fisher se reserva el derecho de modificar el diseño y specificaciones
sin previo aviso o sin incurrir en ninguna obligación.
dbx®es una marca registrada de
Carillon Electronics Corporation

20
Consejos Rápidos
■
El TV seleccionará el
modo correcto de Antena,
de acuerdo al tipo de
señal que Ud. conecto.
■
El TV se apagará
automáticamente despuès
de 15 minutos, si no hay
recepción de señal (si la
estación de cable o la
estación de TV no esta
transmitiendo).
Excepciones—Cuando el
modo de Video este selec-
cionado, el TV no se
apagará automáticamente
cuando la señal de recep-
ción ha sido detenida por
15 minutos.
AUDIO VIDEO INPUT
AV2
(MON0)
L
R
L
R
VIDEO
AUDIO
UHF/VHF/CATV
75Ω
AUDIO
OUTPUT
AUDIO VIDEO INPUT
AV2
(MON0)
L
R
L
R
VIDEO
AUDIO
UHF/VHF/CATV
75Ω
AUDIO
OUTPUT
AUDIO VIDEO INPUT
AV2
(MON0)
L
R
L
R
VIDEO
AUDIO
UHF/VHF/CATV
75Ω
AUDIO
OUTPUT
AUDIO VIDEO INPUT
AV2
(MON0)
L
R
L
R
VIDEO
AUDIO
UHF/VHF/CATV
75Ω
AUDIO
OUTPUT
++
FROM ANT.
OUT TO TV.
IN
OUT
FROM ANT.
OUT TO TV.
IN
OUT
IN OUT
FROM ANT.
OUT TO TV.
IN
OUT
IN FROM
SAT.
CATV IN
OUT TO TV S-VIDEO
CH3
CH4 R- -LAUDIOVIDEO
R- -LAUDIOVIDEO
FROM ANT.
OUT TO TV.
IN
OUT
VCR
DECODIFICADOR DE CABLE
TV
❷
❷
NOTA CONCESIÓN DE CATV :
Compañás de cable, como servi-
cios públicos, son concesionados
por las autoridades de los gobier-
nos locales. Para recibir programas
de cable, cada equipo debe de ser
capaz de recibir canales de cable,
para recibir este servicio, el con-
sumidor debe de suscribirse a una
compañía de cable.
RECEPTOR
❷
❷
VCR
VCR
VCR
❸
TV
TV
TV
❸
Ver página 26, Usando
las Entradas de
Audio/Video.
MÉTODOS BÁSICOS DE CONEXIÓN
Use uno de los siguientes métodos para conectar una señal a su TV. 1a— Si Ud. tiene
servicio de cable y una VCR. 1b—Si Ud. tiene un decodificador de cable y una VCR,
1c—Si Ud. tiene una antena externa o interna y una VCR, 1d— Si Ud. tiene un receptor
de satélite y una VCR. Conecte su sistema de cable o antena directamente a la TV, si
Ud. no tiene accesorios opcionales.
➊Sistema de Cable con VCR y TV
a
➊Antena Exterior o Interior a VCR a TV
c
➊Receptor de Satélite, VCR y TV
d
➊Sistema de Cable con Decodificador de Cable, VCR y TV
b
Conector de 75 OHMS
Use un conector de 75 ohms
para conectar una VCR,
sistema de cable, antena
externa/interna, o, receptor
satélite directamente a la TV.
