Fisherbrand Accu100 User manual

Accu100
Ultrapure Water System
With Remote Dispenser
USER MANUAL

www.eu.fishersci.com/fisherbrand 2
Notice
The Accu100 system is manufactured in a facility whose quality management system
is approved by an accredited registering body to the ISO9001 Quality System
Standards.
DECLARATION OF CONFORMITY
EUROPEAN UNION EC DIRECTIVES AND FCC RULES
We certify that these water systems are designed and manufactured in accordance
with the following European Council directives and FCC rules:
•The Essential Safety Requirements of EU Low Voltage Directive 2006/95/EC
Applied Codes and Standards.
•The Essential Safety Requirements of EU Electromagnetic Compatibility
Directive 2004/108/EC Applied Codes and Standards.
•The Requirements of FCC Part 15 Class B Rules.
FCC Part 15 Class B Directive 2006/95/EC
Directive 2004/108/EC

www.eu.fishersci.com/fisherbrand 3
This Manual is Applicable to the Following Accu100 Models
15409759 Accu100 UV Ultrapure Water System with Dispenser,
100-240 VAC

www.eu.fishersci.com/fisherbrand 4
Table of Contents
1 INTRODUCTION..................................................................................................... 5
1.1 Product Features.................................................................................................. 6
1.2 Main Applications.................................................................................................. 7
1.3 Specifications ....................................................................................................... 7
2 INSTALLATION....................................................................................................... 8
2.1 Preparation for Installation.................................................................................... 8
2.2 Items Included...................................................................................................... 8
2.3 Structure and Flow Diagrams............................................................................... 9
2.4 Installation .......................................................................................................... 12
3 SYSTEM START UP AND OPERATION............................................................... 17
3.1 Check List Prior to System Start Up................................................................... 17
3.2 system start up and Setting................................................................................ 18
3.3 Routine Operation .............................................................................................. 22
3.4 Volumetric Dispensing........................................................................................ 23
4 MAINTENANCE.................................................................................................... 24
4.1 Maintenance Menu and Settings........................................................................ 24
4.2 Messages for Maintenance................................................................................. 26
4.3 Replacing the Ultrapure Pack and the Final Filter .............................................. 28
4.4 Replacing the UV Lamp...................................................................................... 31
5 BASIC TROUBLESHOOTING.............................................................................. 34
6 PARTS AND ORDER INFORMATION.................................................................. 35
7 WARRANTY INFORMATION................................................................................ 37

www.eu.fishersci.com/fisherbrand 5
1 INTRODUCTION
This manual describes in detail about system performance characteristics,
installation, operation, and routine maintenance. Please read this manual
thoroughly for its instruction on installation, use and maintenance. Proper
installation and maintenance guarantee the continuous flow of high quality pure
water.
Please contact us or your local distributor if you encounter any issues during
installation and use. Professional engineers are fully trained to support you.
Safety Information
WARNING!
To avoid electrical shock, always:
1) Use with a properly grounded electrical outlet of correct voltage and current
handling capacity.
2) Replace fuses with those of the same type and rating.
3) Disconnect from the power supply prior to maintenance and service.
4) Refer servicing to qualified personnel.

www.eu.fishersci.com/fisherbrand 6
1.1 Product Features
The Accu100 Ultrapure Water System produces ultrapure water from reverse
osmosis (RO), distillation or deionized water. Ultrapure water from the Accu100
system meets or exceeds quality standards of ASTM, CAP, CLSI and ISO Type
I water standards.
The system has the following characteristics:
•Automatic system recirculation every hour to prevent bacteria from growing
inside the system
•Large-capacity purification cartridges contain uniquely formulated ion resin
and fine activated carbon to ensure long useful life and a low running cost
•A 0.2 µm final filter or an ultrafiltration filter (optional) removes any remaining
contaminants
•A dual UV lamp to kill bacteria and reduce organics to trace level
•Ultrapure water dispenser is integrated with a high-precision resistivity
sensor (conductivity cell constant 0.01cm
-1
).
•The color LCD on the dispenser displays water quality and other operation
parameters.
•Volumetric dispensing and calibration can be easily set up on the dispenser.
•Alarms when consumables reach the end of life
•Small compact footprint that occupies minimal space, and easy to move
around with an ergonomically designed handle
•CE marked and FCC certified

www.eu.fishersci.com/fisherbrand 7
1.2 Main Applications
Preparation of blanks, buffers and samples in GC/HPLC/AA/ICP-MS and other
advanced analytical techniques.
Preparation of media and reagents in cell culture/molecular biology/
nanotechnology research.
1.3 Specifications
Operating Voltage 100-240 V
Max. Power 55 W
System Dimensions
Width × height x depth
8 × 17 × 14 in
21 × 44 × 36 cm
Dispenser Dimensions
Diameter × height
9 × 29 in
22 × 74 cm
Water Production Rate 1 - 1.5 L/min
Resistivity of Ultrapure Water
(@25)18.2 MΩ.cm
TOC of Ultrapure Water < 5 ppb
Particles in Ultrapure Water
(> 0.2 µm)
< 1 /mL (with a 0.2 µm final filter or final
ultrafilter)
Microorganism <0. 1 cfu/mL (with a 0.2 µm final filter or final
ultrafilter)
Pyrogen Content < 0.001 EU/mL (with a final ultrafiltration)

www.eu.fishersci.com/fisherbrand 8
2 INSTALLATION
2.1 Preparation for Installation
2.1.1 Power Supply:
Power supply must be properly grounded
2.1.2 Feed Water:
20L of purified water
2.1.3 Tools Needed (Not Included):
Scissors or a box opener to open packages and cut water tubing
2.2 Items Included
The Accu100 system comes with the following items in the package. The
following items are packed separately. These items need to be installed at initial
set-up:
1) Main system
2) User Manual and Quality Certificate
3) Accessories Pack: power cord (3/8 in outer diameter); 1.5m PE tubing for
feed water connection (place one end to the feed water tank and the other
end to the Accu100 system)
Dispenser box contains the following items
1) Dispenser base
2) Swing arm extension
3) Dispenser head
4) Link bundle

www.eu.fishersci.com/fisherbrand 9

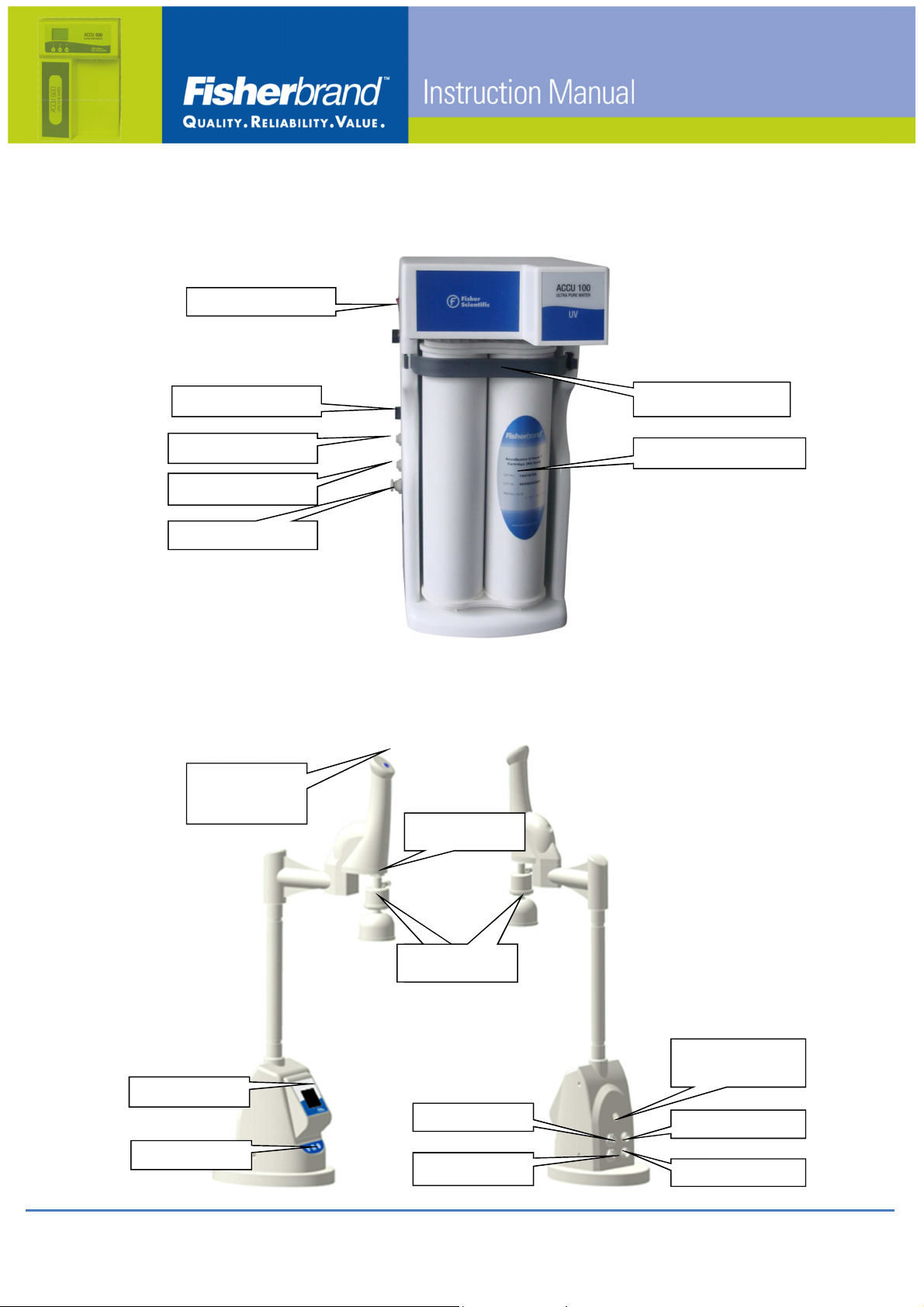

2.3 Structure and Flow Diagrams
2.3.1 System External Layout
2.3.2 Remote Dispenser Diagram
Feed Water inlet
In from dispenser
Purification
c
artridge
Cartridge lock bar
Out to dispenser
Cable port
Power Switch
In from system
Out to system
UP outlet
LCD display
Control
panel
Dispense
button
Data port
Tubing to
dispenser head
Final filter
Spare port

www.eu.fishersci.com/fisherbrand 10
2.3.3. Remote Dispenser Control Panel
1 In Ready mode, press 1 to start water recirculation. Press 1 and
2 simultaneously to enter user menu.
2 In Ready mode, press 2 to start volumetric dispensing setting.
Press 1 and 2 simultaneously to enter user menu.
3 In Ready mode, press 3 to release system pressure.
1 Recirculation
Button
2 Volumetric
Dispensing
3 Pressure
Relief Button
LCD Display

www.eu.fishersci.com/fisherbrand 11

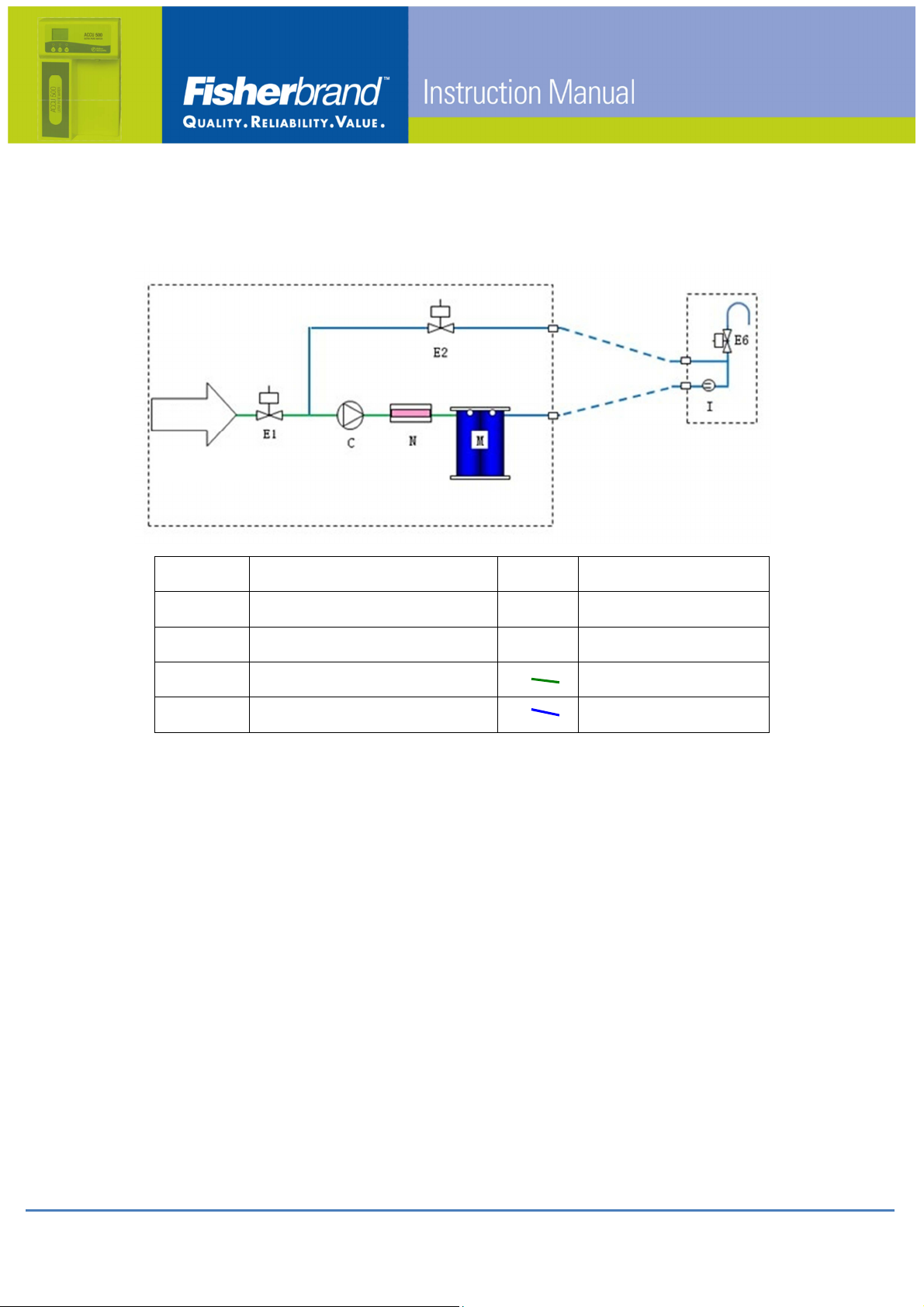

2.3.4 Accu100 System Water Flow Diagram
The water flow path for the Accu100 and Accu100 UV models are described
below. Each component is explained in the legend.
C Booster Pump M AccuQuatro U Pack
E1 Feed Water solenoid valve I Resistivity Cell
E2 Recirculation solenoid valve
E6 Product Water solenoid valve Pure Water Loop
N UV Lamp UP Water Loop
Feed Water

www.eu.fishersci.com/fisherbrand 12
2.4 Installation
Attention
Water inlet/outlet is a quick connector type with a lock (collet). It comes
protected by a stopper. DO NOT attempt to pull the stopper out from the port
with force without unlocking the collet first as this will damage the quick
connector, rendering it useless.
Please follow the instruction below to remove the stoppers
Insert the tweezers to the gap between the stopper and the collet.
Pinch the tweezers and push it as the picture indicated to remove the stoppers.
Collet
(push in)

www.eu.fishersci.com/fisherbrand 13
2.4.1 Connecting the Inlet Feed Water Tubing
2.4.1.1
Remove the stopper on the water inlet
by pressing the collet on the adapter
towards the system to pull out the
stopper.
2.4.1.2
1) Insert one end of the PE tubing into
the water inlet (Note: make sure to
insert the tubing all the way in for about
20 mm).
2) Gently pull the tubing outwards to
check if the connection is secure.
2.4.1.3
Connect the other end of the tubing to a
feed water tank; ensure the tubing inlet
is immersed to the bottom of the tank.
2.4.2 Connecting Power Cord
1) Make sure the power switch is OFF
at "O" position.
2) Insert one end of the power cord into
socket on the left side of the Accu100
system.
3) Plug the other end of the power cord
into power outlet.
Collet
Stopper
Feed Water inlet
Feed tank
Power cord

www.eu.fishersci.com/fisherbrand 14

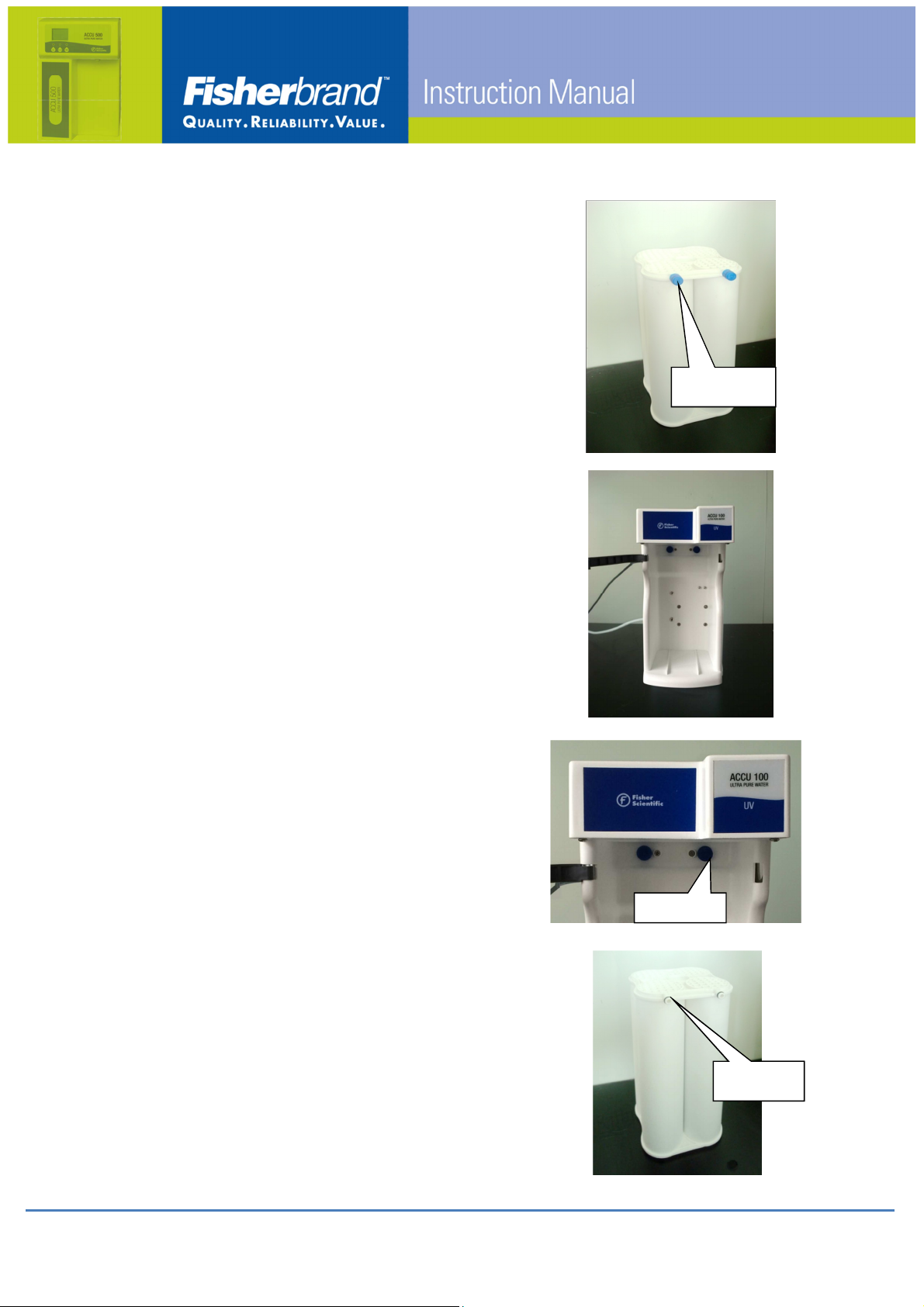

2.4.3 Installing the AccuQuatro U Pack Cartridge
2.4.3.1
1) Take out the cartridge from its
packaging.
2) Remove blue caps on the cartridge inlet /
outlet.
2.4.3.2
Open the lock bar at the front of the system.
2.4.3.3
Remove the two blue stoppers at the water
inlet/outlet inside the cabinet.
2.4.3.4
Wet the O-rings on the cartridge with
purified water.
O
S
toppers
O Rings
Blue caps

www.eu.fishersci.com/fisherbrand 15

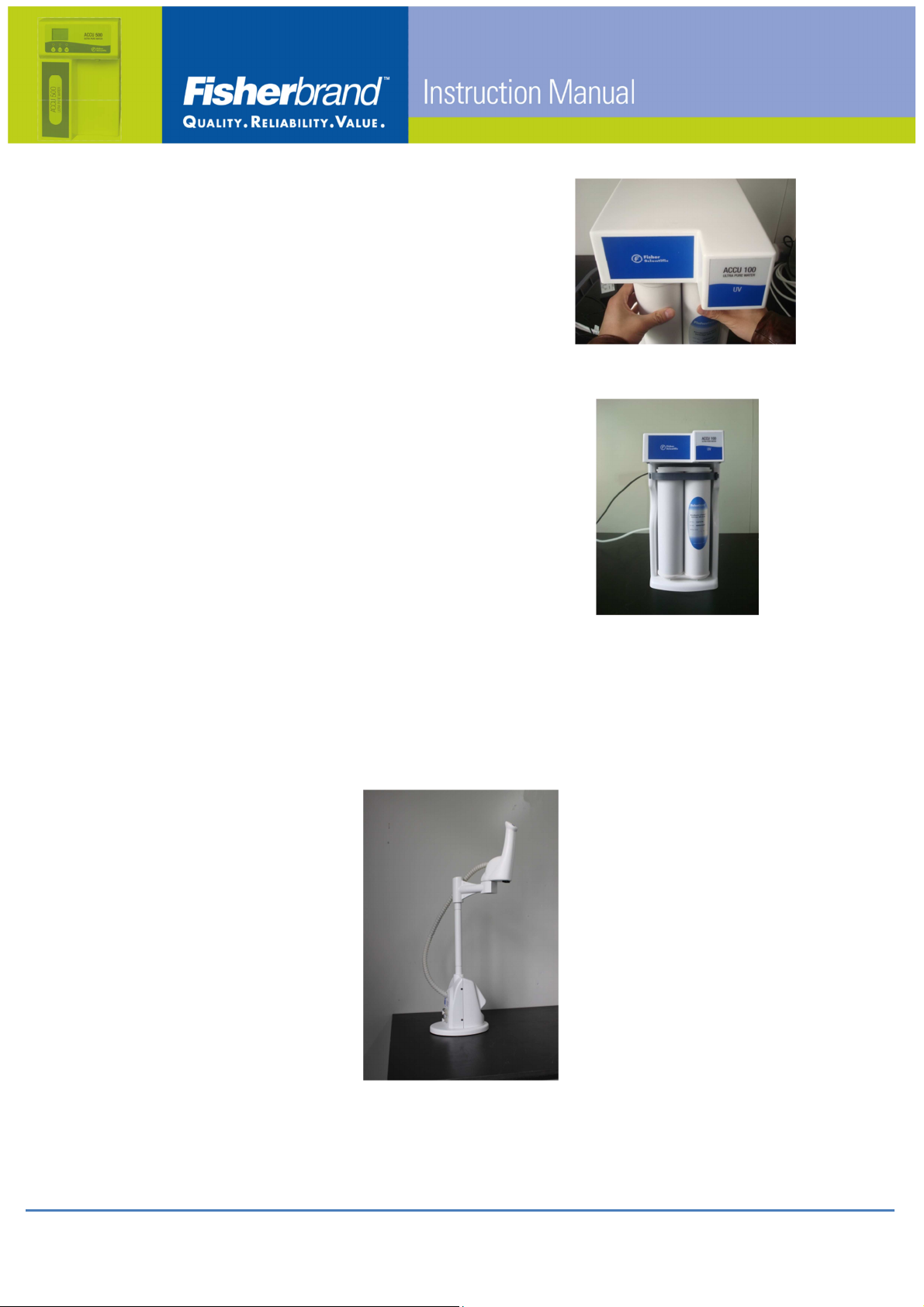

2.4.3.5
Push the cartridge gradually into the
cabinet until it is seated fully inside the
cabinet.
2.4.3.6
Lock the front lock bar by inserting the
flexible buckle to the groove.
If the bar cannot be locked, reseat the
cartridge all the way in, and then lock the
bar again till you hear a “click” sound.
2.4.4 Installing the Remote Dispenser

www.eu.fishersci.com/fisherbrand 16
2.4.4.1 Take the dispenser and connection tubing bundle out on the bench.
Connect one water
tubing on the bundle
as marked to the
system outlet (To
POU) and inlet (In
from system) to the
dispenser. Tubing is
marked with
corresponding tags
(IN and TO POU) .
Connect the other
marked tubing to the
inlet (FROM POU) on
the system and the
other end (Out to
system) to the
Dispenser. Tubing
is marked with
corresponding tags
(OUT and FROM
POU).
Connect the 9 Pin
cable in the bundle
between the
dispenser and the
system. Tighten
the nuts.
Note: Do not install final filter at this stage. It will be installed after system
start-up and degassing.
End of System Installation
Proceed to "System Start Up and Operation"

www.eu.fishersci.com/fisherbrand 17
3 SYSTEM START UP AND OPERATION
3.1 Check List Prior to System Start Up
Prior to system start up, use the table below to make sure all parts have been
installed and connected, and quality of feed water meets minimal requirements.
Check List Results
Feed Water quality – purified water
Water temperature: 5 - 45
o
C
Feed Water connection
Power cord connection
AccuQuatro U Pack cartridge installed
Dispenser installed

www.eu.fishersci.com/fisherbrand 18
3.2 system start up and Setting
3.2.1 Main Panel Display
After turning on the power, screen
displays system type, serial number (S
/ N) for 3 seconds, then system enter
Ready mode automatically.
In Ready mode
Press Dispense button to dispense
ultrapure water, system enter Product
mode
In Product mode
Press Dispense button again to stop
dispensing. System enter Recirculation
mode.
In Recirculation mode
Press Dispense button to dispense water.
Press to enter Ready mode
S4PPAL3701
Ready
Recirculation
18.2 MΩ.cm
25
0
C
Product
18.2 MΩ.cm
25
0
C

www.eu.fishersci.com/fisherbrand 19
3.2.2 Degassing the System
3.2.2.1
Screw off the cap from the water outlet.
3.2.2.2
Screw on the adapter to the water outlet.
Use the PE tubing inside the accessory
bag; insert one end to the adapter and
the other end into the drain.
3.2.2.3
1) Press Dispense button to dispense
water
2) Gas inside the system will be flushed
out of the system
3.2.2.4
1) Wait till no more gas bubbles come out
of the tubing and water resistivity reaches
18.2 MΩ·cm @ 25
o
C.
2) Press DISPENSE button to stop
degassing.
3) Screw off the adapter
Remove
Cap
Adapter
Product
18.2 MΩ.cm
25
0
C

www.eu.fishersci.com/fisherbrand 20
3.2.3. Installing the Final Filter
3.2.3.1
Open the attached 0.2µm final filter
package.
3.2.3.2
Screw the final filter onto the water outlet
till finger tight (no leaking at dispensing).
DO NOT over-tight.
.
3.2.3.3
Loosen the knob on the top of the final
filter for degassing.
Press Dispense button to drive air out of
the final filter, then press the Dispense
button again to stop dispensing
3.2.3.4
Tighten the knob on the top of the final
filter.
Installation is completed
Knob for
releasing
trapped air
