Fitness Avenue FA-7966 User manual

AUTO INCLINE TREADMILL
FA-7966
USER MANUAL
IMPORTANT! Please retain owner’s manual for maintenance and adjustment instructions. Your
satisfaction is very important to us, PLEASE DO NOT RETURN UNTIL YOU HAVE CONTACTED
US: [email protected] or 1- 877 - 90SUNNY (877-907-8669).

1
IMPORTANT SAFETY INFORMATION
We thank you for choosing our product. To ensure your safety and health, please use this equipment
correctly. It is important to read this entire manual before assembling and using the equipment. Safe
and effective use can only be achieved if the equipment is assembled, maintained and used properly.
It is your responsibility to ensure that all users of the equipment are informed of all warnings and
precautions.
1. Before starting any exercise program, you should consult your physician to determine if you have
any medical or physical conditions that could put your health and safety at risk, or prevent you from
using the equipment properly. Your physician’s advice is essential if you are taking medication that
affects your heart rate, blood pressure or cholesterol level.
2. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop
exercising if you experience any of the following symptoms: pain, tightness in your chest, irregular
heartbeat, shortness of breath, lightheadedness, dizziness or feelings of nausea. If you do
experience any of these conditions, you should consult your physician before continuing with your
exercise program.
3. Keep children and pets away from the equipment. The equipment is designed for adult use only.
4. Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet. To
ensure safety, the equipment should have at least 8 feet (240 CM) of free space behind it and 2
feet (60 CM) on each side. Do not place the treadmill on any surface that blocks air openings. To
protect the floor or carpet from damage, place a mat under the treadmill.
5. Ensure that all nuts and bolts are securely tightened before using the equipment. The safety of the
equipment can only be maintained if it is regularly examined for damage and/or wear and tear.
6. Always use the equipment as indicated. If you find any defective components while assembling or
checking the equipment, or if you hear any unusual noises coming from the equipment during
exercise, discontinue use of the equipment immediately and do not use until the problem has been
rectified.
7. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may become
entangled in the equipment.
8. Do not place fingers or objects into the moving parts of the equipment.
9. The maximum weight capacity of this unit is 220 pounds (100 KG).
10.The equipment is not suitable for therapeutic use.
11.To avoid bodily injury and/or damage to the product or property, proper lifting and moving is
required.
12.Your product is intended for use in cool, dry conditions. You should avoid storage in extreme cold,
hot or damp areas as this may lead to corrosion and other related problems.
13.This equipment is designed for indoor and home use only. It is not intended for commercial use!
IMPORTANT NOTE:
The running belt must be lubricated before the first use! Please see Page 7for instructions on
how to properly apply lubricant.

2

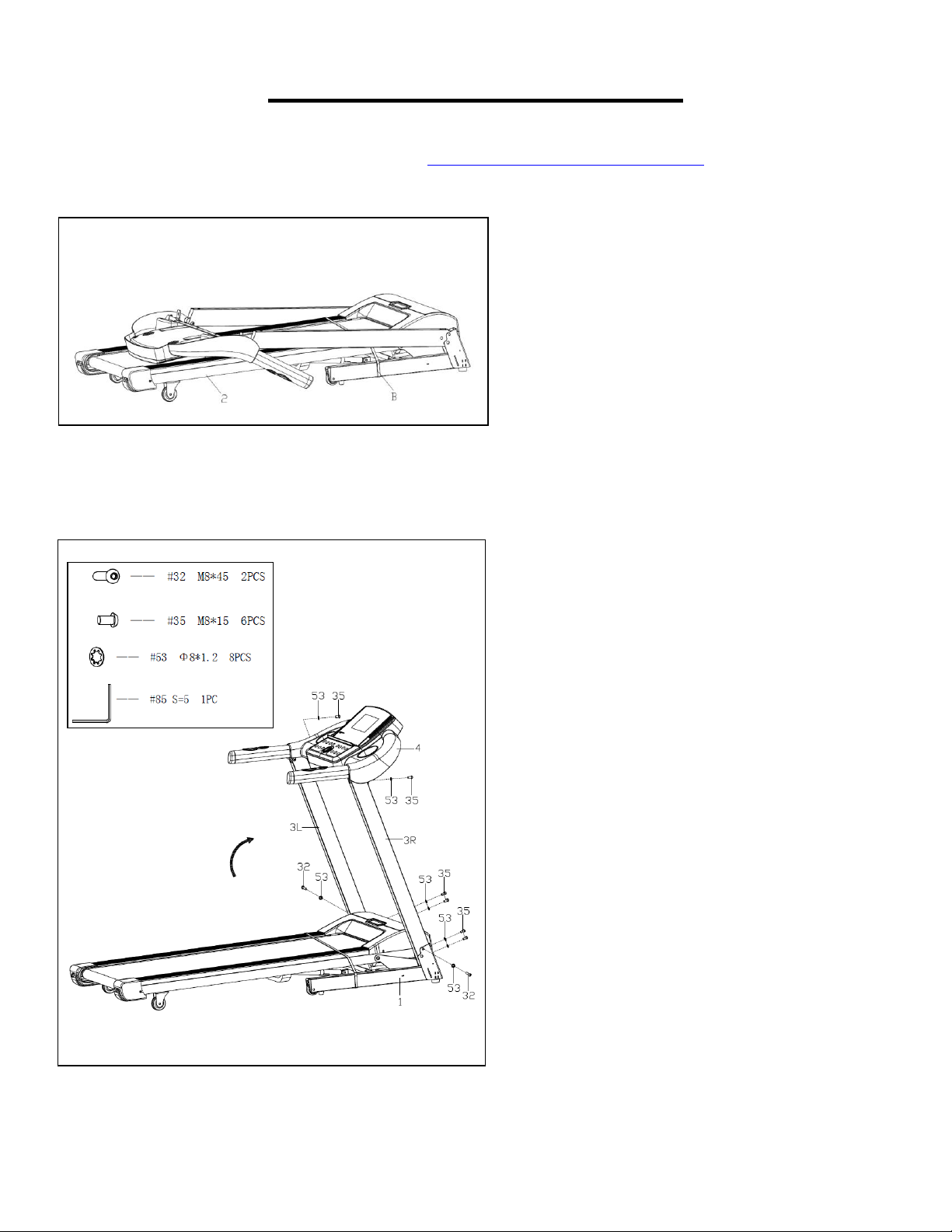

EXPLODED DIAGRAM

3
PARTS LIST
No.
Description
Specification
Qty.
No.
Description
Specification
Qty.
1
Base Frame
1
34
Allen Bolt
M8X25
4
2
Main Frame
1
35
Allen Bolt
M8X15
6
3L/R
Upright Tube
1 pr
36
Hex Bolt
M8X35
2
4
Console Frame
1
37
Hex Bolt
M8X45
1
5
Front Roller
1
38
Hex Socket Head Bolt
M8X65
1
6
Rear Roller
1
39
Hex Socket Head Bolt
M8X18
4
7
Cylinder
1
40
Hex Socket Head Bolt
M6X55
3
8
Incline Frame
1
41
Hex Socket
Countersunk Head
Bolt
M6X30
8
9
Motor Upper Cover
1
42
Cross Pan Head
Screw
M6X15
2
10
Motor Bottom Cover
1
43
Cross Washer Head
Screw
M5X8
5
11
Console Upper Cover
1
44
Cross Washer Head
Screw
M4X8
8
12
Console Panel
1
45
Cross Pan Head
Screw
ST4X40
6
13
Safety Key Base
1
46
Cross Pan Head
Screw
ST4X20
2
14L/R
Protective Cover
1 pr
47
Cross Pan Head
Screw
ST4X16
34
15
Foam Grip
2
48
Cross Pan Head
Screw
ST4X8
8
16
Running Board
1
49
Cross Washer Pan
Head Screw
ST4X12
6
17
Running Belt
1
50
Cross Pan Head
Screw
ST2.9X9.5
3
18
Side Rail
2
51
Cross Washer Screw
M4X8
4
19L/R
Rear End Cap
1 pr
52
Allen Bolt
M12X50
2
20
Transport Wheel
2
53
Locking Washer
Φ8x1.2
16
21
Flat Foot Pad
2
54
Locking Washer
Φ6x1.2
3
22
Plug
2
55
Locking Washer
Φ10x1.2
2
23
Power Wire Buckle
1
56
Flat Washer
Φ8x1.5
6
24
Motor Belt
1
57
Flat Washer
Φ12x1.0
2
25
Small Foot Pad
4
58
Nylon Nut
M12
2
26
Transport Wheel End
Cap
2
59
Spring Washer
Φ8
6
27
Adjustable Roller
2
60
Nylon Nut
M8
6
28
Rubber Pad
8
61
Nylon Nut
M6
8
29
Allen Bolt
M10X25
1
62
Control Board
1
30
Tube Cap
2
63
Shortcut Key
2
31
Allen Bolt
M10X45
1
64
Console Upper Wire
1
32
Allen Bolt
M8X45
2
65
Console Connecting
Wire
1
33
Allen Bolt
M8X40
6
66
Console Bottom Wire
1

4
HARDWARE PACKAGE
#32 M8X45 2PCS #35 M8X15 6PCS
#53 Φ8x1.2 8PCS #84 S=13,14,15 1PC
#85 S=5 1PC
Ordering Replacement Parts (U.S. and Canadian Customers only)
Please provide the following information in order for us to accurately identify the part(s) needed:
✓The model number (found on cover of manual)
✓The product name (found on cover of manual)
✓The part number found on the “EXPLODED DIAGRAM” and “PARTS LIST” (found near the front
of the manual)
Please contact us at [email protected] or 1- 877 - 90SUNNY (877-907-8669).
67
Safety Key
1
77
Allen Bolt
M10X20
2
68
Flat Washer
Φ20XΦ10X2.0
2
78
Flat Washer
Φ26XΦ8.2X2.0
4
69
DC Motor
1
79
Filter Connecting
Board
1
70
Switch
1
80
Loudspeaker
2
71
Overload Protector
1
81
Filter
1
72
Power Wire
1
82
USB Socket
1
73
Long Sleeve
2
83
Bluetooth
1
74
Short Sleeve
2
84
Spanner
S=13,14,15
1
75
Nylon Nut
M10
2
85
Allen Wrench
S=5
1
76
Incline Motor
1
#47 ST4*16 4PCS

5
ASSEMBLY INSTRUCTIONS
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at [email protected] or 1-877-90SUNNY
(877-907-8669).
STEP 1:
We recommend having two people to do
the assembly.
Open the carton and remove contents.
Place the Main Frame (No. 2) on level
ground and ensure that you have a work
area that is clean and has adequate
space. Do not cut the Packing Belt (No.
B) until the assembly is complete!
STEP 2:
Hold the Console Frame (No. 4), then lift
up the Console Frame (No. 4) and Left
& Right Upright Tubes (No.3L/R)
together, in the direction of the arrow.
Note: Make sure you do not cut or pinch
the wire inside the Right Upright Tube
(No. 3R).
Fix Left & Right Upright Tubes (No.
3L/R) to the Base Frame (No. 1) with 6
Allen Bolts (No. 32 & 35)and 6 Locking
Washers (No. 53) using Allen Wrench
(No. 85).
Note: Do not fully tighten at this time.
Lock the Console Frame (No. 4) to the
Left & Right Upright Tubes (No. 3L/R)
with 2 Allen Bolts (No. 35) and 2
Locking Washers (No. 53) using Allen
Wrench (No. 85).
Now fully tighten the 6 Allen Bolts (No.
32 & 35) and 6 Locking Washers (No.
53) in Left & Right Upright Tubes
(No.3L/R) and Base Frame (No. 1) using
Allen Wrench (No. 85).

6
We value your experience using Sunny Health and Fitness products. For assistance with parts or
troubleshooting, please contact us at [email protected] or 1-877-90SUNNY
(877-907-8669).
STEP 3:
Remove 4 Cross Pan Head Screws (No.
47)from the Base Frame (No. 1) using
Spanner (No. 84).
Attach the Protective Cover (No. 14L/R)
to the Base Frame (No. 1) with 4 Cross
Pan Head Screws (No. 47) that were just
removed using Spanner (No. 84).
Put the Safety Key (No. 67) on the E slot
of Console Panel (No. 12).
Now you can cut the Packing Belt (No.
B).
The assembly is complete!
IMPORTANT NOTE!
You will need to lubricate
your treadmill before the first
use. See Page 7.

7
LUBRICATING THE TREADMILL
*IMPORTANT NOTE:
You will need to lubricate your treadmill before the first use.
Lubricating the Running Board (No.16)and Running Belt (No. 17)is essential as the friction
between the two affects the life span and function of the treadmill. Inspect the Running Board (No. 16)
and Running Belt (No. 17)regularly. Should you find any wear on the Running Board (No. 16),
please contact us at: [email protected].
WARNING: Always unplug the treadmill from the electrical outlet before cleaning, lubricating or
repairing the unit.
HOW TO LUBRICATE:
1. Raise the Running Belt (No. 17)up on one side and apply lubricant to the Running Board (No. 16).
Use a rag to thoroughly wipe the lubricant over the Running Board (No. 16). Repeat this process
for the other side.
2. The moving parts should turn freely and quietly. Abnormality of moving parts will affect the safety of
the equipment. Inspect and tighten bolts regularly.
3. To better maintain the treadmill and prolong its lifespan, it is suggested that maintenance be done
on a regular basis.
4. DO NOT LOOSEN OR MAKE ANY ADJUSTMENT TO THE RUNNING BELT WHILE APPLYING
LUBRICANT. A loose Running Belt (No. 17)will result in the runner sliding off during use, while too
tight of a Running Belt (No. 17)will negatively affect the motor’s performance and also create more
friction between the roller and Running Belt (No. 17). The most suitable tightness for the Running
Belt (No. 17)is pulled out 50-75mm from the Running Board (No. 16).
The following time table is recommended:
Light user (less than 3 hours/ week) every five months
Medium user (4-7 hours/ week) every two months
Heavy user (more than 7 hours/ week) every one months

8
MAINTENANCE & CARE
General cleaning will help prolong the life and performance of your treadmill. Keep the unit clean and
maintained by dusting the components on a regular basis. Clean both sides of the Running Belt (No.
17)to prevent dust from accumulating underneath the Running Belt (No. 17). Keep your running
shoes clean so that dirt from your shoes does not wear out the Running Board (No. 16)and Running
Belt (No. 17). Clean the surface of the Running Belt (No. 17)with a clean damp cloth.
To better maintain the treadmill and prolong its life it is suggested that the machine be powered off for
10 minutes every 2 hours and fully powered off whenever not in use.
CENTERING THE RUNNING BELT:
Place the treadmill on level ground and set it at 3-5mph to check if the Running Belt (No. 17) drifts.
1. If the Running Belt (No. 17)moves
to the right, turn the adjusting bolt on
the right side ¼turn clockwise, then
turn the left adjustment bolt ¼ turn
counter-clockwise. If the Running
Belt (No. 17)does not move, keep
adjusting ¼ turn at a time until it
centers. Refer to Fig. A.
2. If the Running Belt (No. 17)moves
to the left, turn the adjusting bolts on
the left side ¼of a turn clockwise,
then turn the right adjustment bolt ¼
turn counter-clockwise. If the
Running Belt (No. 17)does not move,
keep adjusting ¼ turn at a time until it
centers. Refer to Fig. B.
3. Over time the Running Belt (No.17)
will loosen. To tighten the belt turn the
Left &Right side adjustment bolts one
full turn clockwise, check the tension
of the Running Belt (No. 17). Continue
this process until Running Belt (No.
17)is at the correct tension. Make sure
to adjust both sides equally to ensure
correct Running Belt (No. 17)
alignment. Refer to Fig. C.
Fig.A
Fig. B
Fig. C

9
FOLDING INSTRUCTIONS
FOLDING
UNFOLDING:
Turn off the power before folding.
Restore the incline to flat position
(Incline Level 0). Place your hand at
position “A” and lift up on the Main
Frame (No. 2) to push top of the
running board forward until the
Cylinder (No. 7) locks into the tube.
Note: When the Cylinder (No. 7)
successfully locks into the tube you will
hear a clicking sound.
Before lowering the Main Frame (No.
2), ensure that the space directly
underneath is clear of any objects and
the power is turned off.
Grasp the Main Frame (No. 2) at
position “A” with one hand. Next, using
your foot, firmly push against the
Cylinder (No. 7) “B” and press down
on the Main Frame (No. 2). Once the
Main Frame (No. 2) starts to lower, it
will automatically continue to steadily
lower itself until it reaches level ground.

10
HOW TO MOVE THE MACHINE
Before attempting to move the
treadmill, make sure that it has been
properly folded. Unplug the power
cord.
To tilt, start by placing one hand at
position “P” to support the top end of
the treadmill. Next, place one foot at
position “M” to hold the bottom end
of the treadmill steady. With your
foot at “M”, slowly tilt the top of the
treadmill downward towards the
ground. Once the treadmill reaches
a low enough point, the wheels of
the treadmill touch the ground.
To transport, hold the treadmill at
position “P” and tilt until the wheels
“M” are able to move on the ground.

11
IMPORTANT ELECTRICAL INFORMATION
WARNING: This treadmill requires a power source of 10 amps (100-120V) in order to properly
operate. For your safety, as well as the safety of others, please verify that the power source is correct
before plugging the equipment. Any power source above or below this level could cause significant
damage to the equipment and or user.
GROUNDING METHODS:
This product must be grounded. Grounding provides the least resistance for electrical current and will
reduce the risk of electric shock. The plug must be plugged into an appropriate outlet that is properly
installed and grounded in accordance with all local codes and ordinances. Ensure that the product is
connected to an outlet which contains the same configuration as the plug. Do not use an adaptor for
this product.
This product is for use on a nominal 100-120V circuit and has a grounding plug that looks like the plug
illustrated in sketch A. Make sure that the product is connected to an outlet having the same
configuration as the plug. No adapter should be used with this product.
DANGER:
Improper connection of the equipment-grounding conductor can result in risk of electric shock. Check
with a certified electrician if you are in doubt as to whether the product is properly grounded. Do not
modify the plug provided with the product. If it will not fit the outlet, have a proper outlet installed by an
electrician.
WARNING!
1. NEVER use a ground fault circuit interrupt (GFCI) wall outlet with this treadmill. Route the power
cord away from any moving part of the treadmill including the elevation mechanism and transport
wheels.
2. NEVER operate the treadmill using a generator or UPS power supply.
3. NEVER remove any cover without first disconnecting AC power.
4. NEVER expose the treadmill to rain or moisture. This treadmill is not designed for use outdoors,
near pools or in any other high humidity environment.
(A)

12
EXERCISE INSTRUCTIONS
GETTING STARTED:
Before starting any exercise program, you should consult with your physician to determine if you have
any medical or physical conditions that could put your health and safety at risk or prevent you from
using the equipment properly.
Be aware of your body’s signals. Incorrect or excessive exercise can damage your health.
Stop exercising immediately if you experience any of the following symptoms: pain, tightness in your
chest, irregular heartbeat, shortness of breath, lightheadedness, dizziness, or feelings of nausea.
Get to know your treadmill. Before attempting to use the treadmill take some time to stand alongside
and familiarize yourself with the controls.
1. Turn on the power switch.
2. Once you get on, you can stand with your feet on the side rails and stabilize yourself by holding
onto the handrails.
3. Next, attach the clip end of the Safety Key (No. 67) to your clothes and insert the magnetic end
of the key into the computer console.
4. Press the START key to start the treadmill.
5. The treadmill will start at the system default setting speed of 0.5 MPH. When you feel
comfortable, you may slowly increase this speed.
6. When you are finished with your exercise, press the STOP key to stop the treadmill or you can
remove the magnetic end of the Safety Key (No. 67) to stop the treadmill.

13

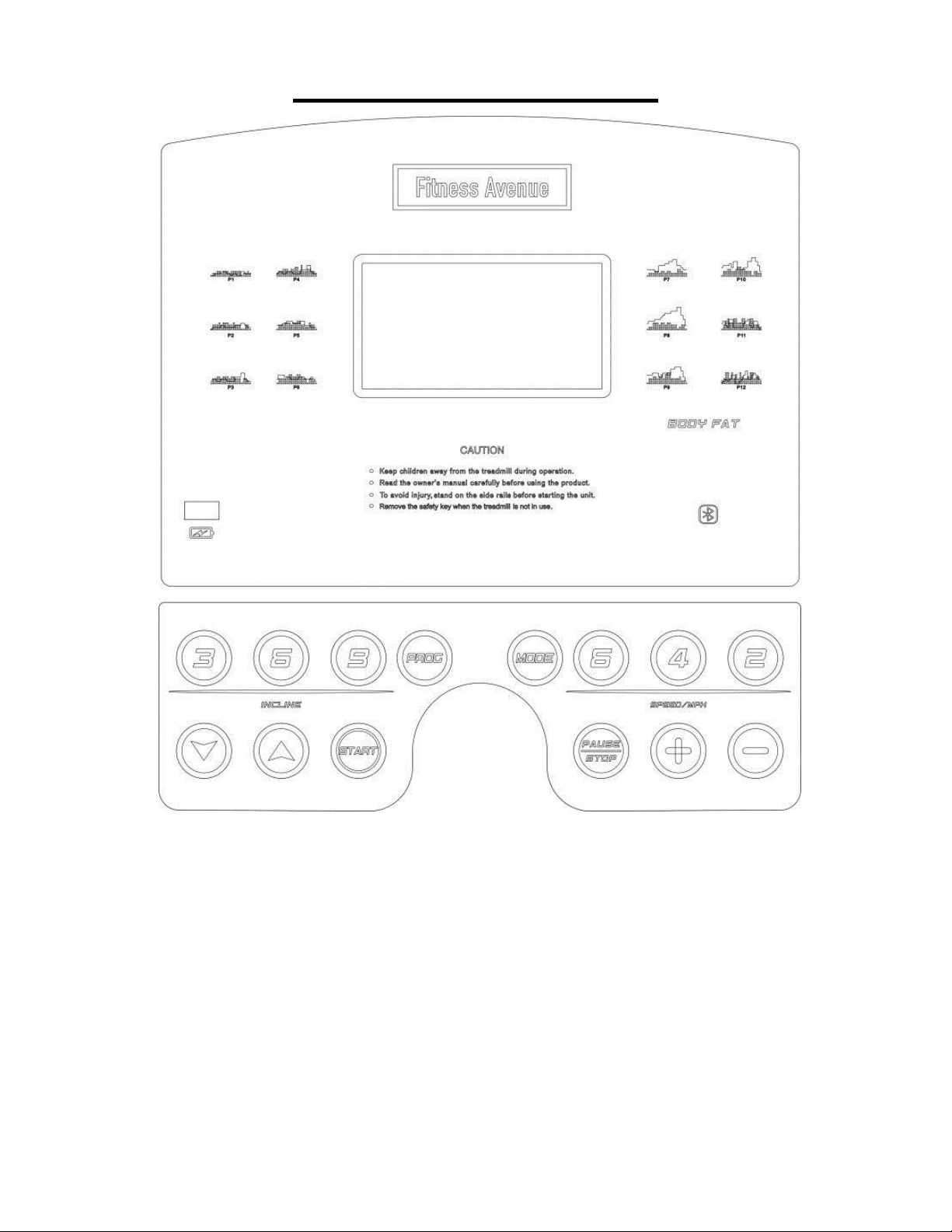

THE DISPLAY CONSOLE
DISPLAYS
1. Start
Normal startup after 3 seconds countdown.
2. Number of programs
Manual modes,12 Preset programs (P1-P12),3 User setting programs (U1-U3), 3 HRC and FAT.
3. Safe lock function
Remove the safety key in any mode, and the treadmill will slow down rapidly till it stops. The
console will beep continuously and “---” will be displayed on the window. Buttons will not function
when the safety key is removed. Insert the safety key onto the console. The display will light up for 2
seconds and then go into standby state, ready for you to input commands.
KEY FUNCTION
a. “START” is for start key. Press “START” when the treadmill is in stop state, the speed will be
displayed as “0.5”, treadmill will be started.
b. “PAUSE/STOP” is for pause/stop key, when the treadmill is running, press “PAUSE/STOP”once to
pause the motor, and “PAUSE”will show on the display. Time, distance and calorie data will be

14
automatically saved. The speed will go to zero, but the incline level stays the same. Press “PAUSE/
STOP”again to stop the motor, and all date will be cleared.
If you press “START”within 5 minutes, the data of time, distance and calorie will be accumulated,
and the starting speed will be the same as previous speed prior to pressing “PAUSE”.
“PAUSE”function lasts for about 5 minutes. If you do not press “START”again, the data will
automatically clear.
c. “PROG” is for program key. In standby mode, press the key to select manual mode “0.0” to
“P1-P12”, “U1-U3”, “3 HRC”and FAT different programs. Manual mode is the default mode, the
default speed 0.5MPH, the max operating speed is 7.5 MPH.
d. “MODE”is for mode key. In standby mode, press the key to loop set H-1 to H-3 different countdown
modes. H-1 is time countdown mode, H-2 is distance countdown mode and H-3 is calorie
countdown mode. All mode parameter can be set by “SPEED +/–” or “INCLINE +/-”, then press
“START” to start the treadmill.
e. “SPEED+/–” are for speed accelerating and decelerating keys. Press to adjust the treadmill speed
setting. When the treadmill is running, they are used to adjust the speed for 0.1 MPH increment;
after holding for more than 2s, automatic continuous acceleration and deceleration will be realized.
f. Speed shortcut keys: 2/4/6 MPH. Press any speed shortcut keys when the treadmill is running.
g. “INCLINE +/–” are for incline accelerating and decelerating keys. Press to adjust the treadmill
incline setting. When the treadmill is running, they are used to adjust the incline for 1 grade
increment; after holding for more than 2s, automatic continuous increasing or reducing will be
realized.
h. Incline shortcut keys: 3/6/9 grade. Press any incline shortcut keys when the treadmill is running.
KILOMETERS OR MILES
When the safety key is removed, press “PROG” and “MODE” for 5 seconds to change from miles to
kilometers. Display “12.0” means metric systems when display “7.5” means imperial systems.
DISPLAY FUNCTION
Speed display: Display the current running speed.
Time display: Display the running time in manual mode and display the countdown time in the time
countdown mode or in program mode.
Steps/Distance/Calorie display: Display the current running Steps. (Note：Running steps valid in
users when speed less than 2.0 MPH or more than 10.0 MPH, due to differences in user's weight and
step rate.) Display the accumulated distance in manual mode or program mode or the countdown
distance in distance countdown mode. Display the current calories.
Heart rate/Incline display: Detect heat rate signals and pulse value and current Incline.
Data display range of various parameters:
TIME: 0:00 –99.59 (MIN)
DISTANCE: 0.00 –99.9 (MILE)
CALORIES: 0.0 –999 (KCal)
SPEED: 0.5 –7.5 (MPH)
PULSE: 50 –200 (BPM)
INCLINE: 0 –15%

15
HEART RATE MEASUREMENT FUNCTION
While the treadmill is on, hold the pulse sensor for 5 seconds and the heart rate value will be displayed.
The initial value is the actually measured heart rate, and the display range is 50-200 BPM. In the
heartbeat measurement process, there will be a heart shaped icon flashing. Heart rate displayed is for
reference only and cannot be used as medical data.
SET UP COUNTDOWN MODE
1. Turn on the treadmill. The treadmill is in standby mode. Press “MODE” to select time countdown
mode, calorie countdown mode or distance countdown mode. Press START to start the treadmill.
2. To set countdown mode:
a. In manual mode, press “MODE” to enter time countdown mode. The time window will display the
time and flash. The initial time is 30:00. Set countdown time by pressing “SPEED +/–” or “INCLINE
+/–”. Time setting range: 5:00-99:00. Value is in increment of 1:00. Press “START” to start the
treadmill. If you do not press “START” and you press “MODE” again, the time value you set will be
cleared and treadmill will go into distance countdown mode.
b. Press “MODE” to enter distance countdown mode. The initial distance is 1.00 KM or MI. Set the
distance by pressing “SPEED +/–” or “INCLINE +/–”. Distance setting range: 1.0—99.0 KM or MI.
Value is in increment of 1 KM or MI. Press START to start the treadmill. If you do not press “START”
and you press “MODE” again, the distance value you set will be cleared and treadmill will go into
calorie countdown mode.
c. Press “MODE” to enter calorie count down mode. The initial calorie will be displayed as 50.0 kcal.
Set the calorie by pressing “SPEED +/–” or “INCLINE +/–”. Calorie setting range: 20.0—990 kcal.
Value increases in increment of 10 kcal. Press “START” to start the treadmill. If you do not press
“START” and you press “MODE” again, the calorie value you set will be cleared and treadmill will go
into standby mode.
OPERATION IN MANUAL MODE
a. Press “START”, and the motor will start operating after 3 seconds of countdown. The initial speed
is 0.8 KMH / 0.5 MPH;
b. Press “SPEED +/–” to adjust speed; or press speed shortcuts to change to the speed marked on the
key; Press “INCLINE +/–” to adjust incline; or press incline shortcuts to change to the incline marked
on the key;
c. When the motor is running, press “STOP” to stop the treadmill;
d. To stop the treadmill immediately, remove the safety key; then, LCD window will display “---” and the
console will make short sound of Beep-Beep-Beep.
e. When the set time, calorie or distance value reaches zero, the speed will gradually reduce till the
treadmill stops. The console will make short sound of Beep-Beep-Beep until the treadmill stops. The
screen will display END. All values go to zero and treadmill is now in standby state.
f. If a value reaches the maximum value, it will reset to 0 and the treadmill will stop. In manual mode,
the treadmill will stop when the time accumulates to be more than 99: 59 (100 min)
PROGRAM MODE
P1-P12 are programs with preset speed. Each program is divided into 20 segments. Each segment is
the same amount of time.
a. In standby state, press “PROG” to select pre-set program P1-P12.
b. Press “SPEED +/–” or “INCLINE +/–” to adjust the time.

16
c. Press “START” and the treadmill will run at the preset speed of the selected program. (see details in
the table of program parameters)
d. While the treadmill is running, you can press “SPEED +/–” or speed shortcut keys to adjust the
speed. You can press “INCLINE +/–” or incline shortcut keys to adjust the incline.
e. When the 19 segments are finished, the treadmill will stop with a long beep sound.
f. Press “STOP” to stop the treadmill. If you need to stop the treadmill immediately, remove the safety
key.
PROGRAM PARAMETERS
TIME
PROGRAM
Setup time / 20 = each segment of the running time
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
P01
SPEED
1.2
1.9
1.9
2.5
3.1
1.9
2.5
3.1
3.1
1.9
2.5
3.1
2.5
2.5
2.5
1.2
1.9
1.9
3.1
1.9
INCLINE
1
1
2
2
2
3
3
3
2
2
1
2
2
1
1
3
3
2
2
2
P02
SPEED
1.2
2.5
2.5
3.1
3.7
2.5
3.7
3.7
3.7
2.5
3.1
3.7
2.5
2.5
2.5
1.2
1.2
3.1
2.5
1.2
INCLINE
1
2
2
2
2
3
3
2
2
2
2
2
3
3
3
4
4
3
2
2
P03
SPEED
1.2
2.5
2.5
3.7
3.7
2.5
4.3
4.3
4.3
2.5
4.3
4.3
2.5
2.5
2.5
1.2
2.5
3.1
1.9
1.2
INCLINE
2
3
3
2
2
3
3
3
2
2
2
2
4
4
4
6
6
3
2
2
P04
SPEED
1.9
3.1
3.1
3.7
4.3
4.3
3.1
4.3
4.3
5.0
5.0
3.1
5.6
3.1
3.1
3.7
3.7
2.5
2.5
1.9
INCLINE
2
3
3
2
2
3
3
3
2
2
2
2
4
4
4
6
6
3
2
2
P05
SPEED
1.2
2.5
2.5
3.1
3.7
4.3
4.3
3.1
3.7
4.3
5.0
5.0
3.1
2.5
1.9
1.9
3.7
3.1
2.5
1.2
INCLINE
3
3
3
4
4
5
5
5
4
4
4
4
5
5
3
3
3
2
2
2
P06
SPEED
1.2
2.5
2.5
2.5
3.1
3.7
5.0
5.0
3.7
4.3
5.0
5.0
3.7
2.5
2.5
1.2
3.1
2.5
1.9
1.2
INCLINE
3
5
5
5
4
4
4
3
3
3
3
4
4
4
3
3
3
4
3
2
P07
SPEED
1.2
1.9
1.9
1.9
2.5
3.1
1.9
2.5
3.1
1.9
2.5
3.1
1.9
1.9
1.9
3.7
3.7
3.1
1.9
1.9
INCLINE
4
4
4
4
3
3
6
6
6
7
7
8
8
9
9
6
6
5
4
4
P08
SPEED
1.2
1.9
1.9
3.7
4.3
4.3
2.5
3.7
4.3
2.5
3.7
4.3
2.5
2.5
2.5
1.2
1.9
2.5
2.5
1.2
INCLINE
4
5
5
5
6
6
6
7
8
9
9
9
10
10
10
12
12
8
6
3
P09
SPEED
1.2
2.5
2.5
4.3
4.3
2.5
4.3
5.0
2.5
5.0
5.6
5.6
2.5
2.5
2.5
3.1
3.7
1.9
1.9
1.2
INCLINE
5
5
5
6
6
6
4
4
6
6
5
5
8
8
9
9
9
7
4
2
P10
SPEED
1.2
2.5
3.1
3.7
4.3
3.1
2.5
3.7
5.0
5.0
3.7
3.7
3.1
2.5
2.5
1.2
2.5
2.5
1.9
1.9
INCLINE
5
6
6
6
7
5
8
8
4
4
4
5
5
8
8
10
10
8
6
3
P11
SPEED
1.2
3.1
5.0
6.0
4.3
4.3
6.2
6.2
4.3
4.3
6.2
6.2
3.1
3.1
5.6
5.6
3.1
3.1
2.5
1.9
INCLINE
4
5
3
2
6
6
2
2
2
2
2
4
5
6
3
2
5
5
2
0
P12
SPEED
1.9
2.5
5.6
5.6
3.1
5.6
3.1
5.0
3.1
5.6
4.3
3.1
3.1
4.3
5.6
5.6
3.1
4.3
3.7
1.9
INCLINE
1
2
3
2
3
5
5
0
0
2
3
5
7
3
3
5
6
5
3
3
USER PROGRAM
Treadmill has 3 user modes: U1, U2, and U3 for you to set your own training program. Each program
will have 20 segments.
a. To set the parameters for a program, press “PROG.” to select U1, U2 or U3.
b. Press “INCLINE +/–” or “SPEED +/–” to set the time for the program. Press “MODE”to enter the
data.

17
c. Press “SPEED +/–” or speed shortcut keys to set the speed. Press “INCLINE +/–” or incline shortcut
keys to set the incline. Press “MODE”to enter the data.
d. Repeat to set the speed for the other 19 segments.
e. After the last segment is entered, the program is saved.
HEART RATE CONTROL (HRC)
HRC1 speed limit (max--2.5 MPH), HRC2 speed limit (max-1.2 MPH), HRC3 Max.
a. HRC setting: after repeatedly pressing “PROG” to get to HRC. Press “Speed +/–” or “Incline +/–” to
sequentially set TIME-AGE-PULSE value, press “MODE” to confirm after each setting. Then press
“START”to startup the treadmill.
(1) Age setting:13-80, default age: 25
(2) Target heart rate: (220 minus age) *0.6
(3) Target heart rate is changeable, ranging from 0.45 to 0.75 (220 minus age).
(4) Maximum heart rate: (220 minus age).
b. Speed change:
(1) Change sequence, HRC detects heart rate every 30 sec.
(2) If the user’s heart rate is lower than target heart rate by 30 times/min, then speed increases by
1.2 MPH.
(3) If such a discrepancy is within 1-29 times/min, then speed increases by 0.6 MPH.
(4) Vice versa, if the user’s heart rate is higher than target heart rate, the speed decreases and the
same rule applies
c. During the following circumstances, the treadmill will run at 0.6 MPH for 15 sec and then shut down
automatically; in the 15 sec, the treadmill will beep for each second elapsed.
(1) No heart rate detected for more than one minute.
(2) Heart rate exceeds (220 minus age).
BODY FAT TEST
a. In standby state, press “PROG”to enter FAT (Physical fitness test) program.
b. Press “MODE” to enter the program of F—1, F—2, F—3, F—4, F—5 (F—1:gender, F—2:age,
F—3:height, F—4:weight, and F—5:physical test).
c. Press “SPEED +/–” to set the parameter of F—1-F—4 (see below detailed table), then press
“MODE” to enter the program of F—5 for physical test.
d. At this state, hold the handle pulse board for 5-6 seconds and it will display the FAT, check if the
weight matches with your height.
e. FAT program is to measure the relevance between height and weight, not the body proportion. FAT
is suitable for every man and woman, it provides the important grounds for adjusting the weight with
other health indicators. The normal FAT is between 20-24, which means if less than 19 is too thin,
and if between 25-29 is overweight and if more than 30 is obesity.
F--1
Gender
1(man)
2(woman)
F--2
Age
10------------99
F--3
Height
40--86 inch / 100--220 cm
F--4
Weight
44--330lbs / 20--150 kg
F--5
FAT
≦19
Underweight
FAT
=(20--24)
Normal weight
FAT
=(25--29)
Overweight
FAT
≧30
Obesity

18
BLUETOOTH FUNCTION
After the treadmill is powered up, turn on the Bluetooth function of the mobile phone to connect with
the Bluetooth on treadmill (Bluetooth model number: SUNNY), and then it can play the music from the
phone.
LUBRICATION REMINDER
The treadmill needs lubrication every 188 miles. The console “ ” icon will light up when lubrication
is needed. To cancel this reminder, remove the safety key then hold the STOP" button simultaneously
until you hear a “Beep Beep” sound.
USB POWER CHARGER
The meter can provide USB charger for tablet or smart phone. Plug the data cable into USB port for
charging (cable not included).

19
TROUBLESHOOTING
Problem
Potential reasons
Solutions
-------
Safety key falls down
1. Place back the safety key back.
2. Replace safety key switch or magnetic sensor in the electronic
meter; if the problem still occur, replace the electronic meter.
E01
After powering on, the
electronic meter displays E01
Communication failure from the
electronic meter to the driver or
from the driver to the electronic
meter
1. Check whether the connecting joint between the electronic meter
and the core wire of the controller is loose, whether wires are
damaged, or whether the core wires are in correct connecting order.
2. The controller may be defective. Check and replace with a good
one.
3. The electronic controller’s IC may not be plugged to the place.
Check and ensure it is plugged in well.
4. The transformer may be damaged. Check and replace with a good
one.
E02
Explosion-proof protection or
motor abnormality
1. Check whether the power supply voltage is less than 50% of the
normal value. please ensure correct voltage and test again.
2 Check whether motor wires are well connected, re-connect motor
wires. If the problem still occur, replace the motor.
3. Check whether there is peculiar odor generated by the controller. If
yes, it means that IGBT has been broken down to cause short circuit.
Replace the controller.
E03
No sensory signal
Check whether the photoelectric sensor directs to the hole on CD,
check whether wires of photoelectric sensor are damaged and
whether terminals of the photoelectric sensor and speed terminals on
the controller are firmly connected.
E04
Lifting learning or
self-inspection fails
1. Check whether motor signal wires are well inserted; re-insert the
signal wire joint to ensure that it is reliable.
2. Check whether lifting motor's AC wires are properly connected.
Lifting motor shall be correctly plugged according to marks on its AC
controller.
3. Check whether motor wiring is damaged to form open circuit. If yes,
replace wires or replace the lifting motor.
4. Replace the controller.
5. After all of these inspections, press the learning key for learning
again.
E05
Over-current protection
1. It may be the system’s self-protection against excessive current
when the load exceeds the rated value. Restart the machine.
2. Some part of the treadmill is jammed so that the motor cannot
rotate, thus triggering the self-protection of the system against
excessive current under excessive load. Adjust the treadmill and
restart it or add lubricant.
3. Check whether there is over-current sound or burning odor when
the motor is running. Replace the motor.
4. Check whether the controller emits the odor of burning. If yes,
replace the controller.
E06
Lifting sensor has no signal
1. Check whether lifting signal wires are damaged.
2. Check whether lifting signal terminals and the controller’s lifting
