FITWAY FW-1500IC User manual

USER MANUAL
FW-1500IC

- 2 -
SAFETY GUIDELINES
Regular maintenance of the bike should be performed and is essential to keep your Indoor Cycle in
top operating condition. Without preventative maintenance, normal wear and tear may cause
cumulative effects, such as misalignment or early replacement of parts.
1. Once assembled, please inspect to make sure that all hardware parts such as bolts, nuts and washers
are positioned and tightened correctly.
2. Be sure to wear shoes when exercising and tighten the pedal cage and straps. When using SPD shoes,
make sure that the buckle is fully inserted. Do not remove your foot from the pedal when the flywheel is
spinning, and do not get off the bike until the flywheel, pedals and cranks stop moving completely.
3. We recommend lubricating all moving parts monthly with silicon lubricant.
4. Water bottle cages are easily damaged when over-sized bottles are forced to fit within them. Checking
and tightening the screws will help prevent damage, but never force a bottle into the holder as it could
lead to breakage.
5. Wipe down the bike at the end of each use. Consider using mildly alkaline cleaning or neutral cleaning
liquids, never use oil-based cleaning liquids when wiping down the bike, to avoid surface damage.
6. Please keep children away while riding. The bike is designed for adults andis not suitable for children.
7. If you have any pain or tightness in your chest, an irregular heartbeat, shortness of breath, feel faint or
have any discomfort while you exercise, STOP IMMEDIATELY, andseek medical assistance.
8. Do not place fingers or any other objects into moving parts of the Indoor Cycle. Do not wear loose
clothes while using this or any piece of fitness equipment.
9. Before starting any exercise program, consult with your physician first. He or she can help establish the
exercise frequency, time and intensity appropriate for your particular age and condition.
10. After exercising, please turn the adjustment control knob clockwise (+) to increase tension so the pedals
will not rotate freely and possibly hurt a passerby or the next user.
11. This Indoor Cycle has passed the standard test of EN 957-1:2005 and EN 957-10:2005, suitable for
home use. The max user weight should be within 135 kg.

- 3 -
EXPLODED VIEW

- 4 -
PARTS LIST
NO.
DESCRIPTION
SPECIFICATION
QTY
1
Frame
1
2
Rear Base
50*100*540L*2T
1
3
Front Base
50*100*540L*2T
1
4
Seat Post
30*70*3T*545L
1
5
Handlebar Post
30*70*3T*330L
1
6
Seat Support
26*48*240
1
7
Handlebar tube
26*48*180
1
8
Handlebar
1
9
Handle Knob Cover
2
10
Handle Knob
2
11
Sync Block
2
12
Hexagon Nut
M8
2
13
Washer
φ16*φ8.2*2T
6
14
Spacer Pin
φ4*18
1
15
Inner Hexagon
Column Screw
M4*8
12
16
Seat Support
Decoration Cover
4
17
Handlebar Slider
179MM
2
18
T-Shape Bolt
M8*45
2
19
Inner Hexagon
Column Screw
M6*14
2
20
Seat Post Decoration
Cover
4
21
Plastic Plug
2
22
Inner Hexagon
Column Screw
M5*12
2
23
Handlebar Rack
24*2*234
1
24
Cross Countersink
Screw
M5*16
10
25
Seat Rack
24*2*405
1
26
Seat Slider
239MM
2
27
Right Pedal
1
28
Pedal Feet Sheath
2
29
Pedal String
2
30
Right Crank Cover
1
31
Hexagon Flange Nut
M12*1.25
2
32
Right Crank
1
33
Outer Hexagonal
Bolts
M8*16
4
34
Axle Welding
1

- 5 -
35
Plastic Belt Wheel
1
36
Belt
5PK 1330MM
1
37
Bearing
6005-2RS
2
38
L-shape Handle
M16*P1.5
2
39
Rear Inner Pipe
Sheath
1
40
Aluminum Braking
Knob
M10
1
41
Braking Pole
Ø12*M12*P1.75*250L
1
42
Plastic Sheath
Ø22*Ø12.5*40L
1
43
Sheath
φ16*φ12*20L
1
44
Braking Limited Block
□16*16*33L
1
45
Hexagon Nut
M8
1
46
Hexagon Cap Nut
M8
1
47
Brake Holder
1
48
Brake Pad
1
49
Magnet Holder
2
50
Magnet
6
51
Inner Hexagon
Column Screw
M10*50L
1
52
Washer
Ø10.1*Ø20*1.5T
6
53
Torsion Spring
Φ2.8
1
54
Hexagon Nylon Nut
M10
1
55
Corrugated Mat
Φ32*Φ25.5*0.3T
2
56
Clamp Spring
Φ25
1
57
Hexagon Thin Nut
M12*1.0*6T
3
58
Left Crank
1
59
Left Crank Cover
1
60
Left Pedal
1
61
Front Inner Pipe
Sheath
1
62
Base Leveler
M10
4
63
Hexagon Nut
M10
4
64
Cross Pan Screw
M5*12L
6
65
Inner Hexagon Flat
Round Screw
M10*25L
4
66
Hexagon Socket
Hollow Screw
Φ8*M6*30L
2
67
Bearing
608ZZ
4
68
Pulley
2
69
Inner Hexagon Flat
Round Screw
M6*12L
2
70
Hexagon Flange Nut
M12*P1.0
2
71
Axle protecting
φ16*φ12.2*8L
2

- 6 -
Sheath
72
FlywheelAxle
φ12*M12*P1.0*154L
1
73
Bearing
6001
2
74
Nylon Nut
M8
6
75
FlywheelAluminum
Circle
Φ430*Φ336*7T
1
76
PK Magnetic
Flywheel
Ø360*38W
1
77
Flywheel Sleeve
φ16*φ12.1*27.5L
1
78
Decoration Cover of
Flywheel(L)
1
79
Washer
φ5.2*φ10*1.0T
4
80
Cross Pan Screw
M5*15L
6
81
Chain Cover A
1
82
Chain Cover B
1
83
Front cover
1
84
Front Sweat-proof
Shield
1
85
Inner Hexagon
Column Screw
M5*20L
6
86
Inner Hexagon
Column Screw
M6*18
2
87
Tension Wheel
Holder
5T
1
88
Washer
Φ25*Φ8*1T
1
89
Tension Spring
Φ3.0*17
1
90
Tension Wheel
φ37*φ30*24.5
1
91
Inner Hexagon Flat
Round Screw
M8*27L
1
92
Spacer Pin
φ4*14
1
93
Seat
1
94
Water Bottle
Holder(R)
φ6.4*1.8T
1
95
Water Bottle
Holder(L)
1
96
Computer
1
97
Cross Pan Screw
2
98
Philips Screws
5
99
Wireless Sensor
1
100
Cross Pan Screw
M3*10L
1
101
Magnetic
1

- 7 -
ASSEMBLY INSTRUCTIONS
Steps of Installation:

- 8 -

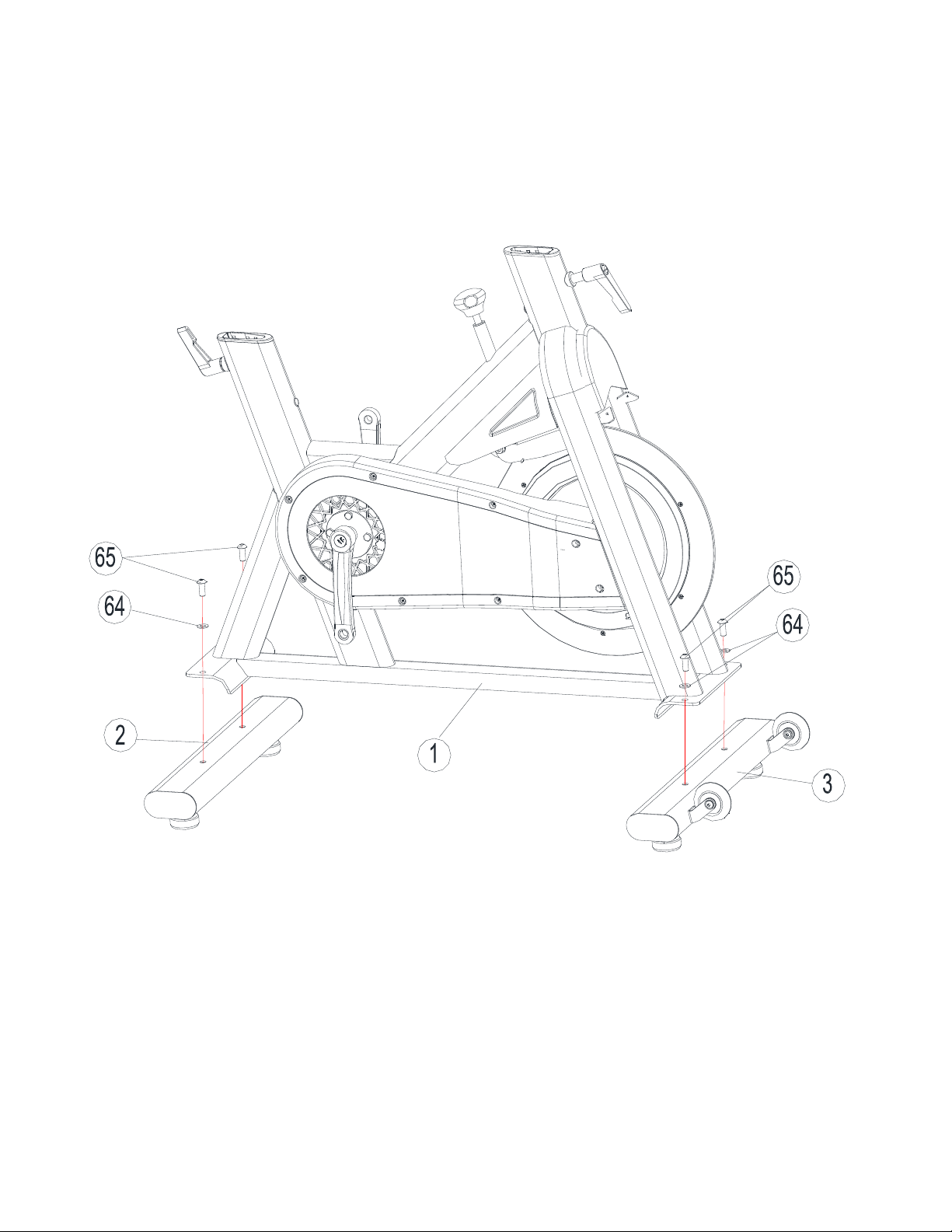

STEP 1：Install Front and Rear Base
According to the following diagram, attach the Front Base (3) and Rear Base (2) to Main Frame (1)
respectively with Washer Φ20*Φ10.1*1.5 (64) and Inner Hexagon Flat Round Screw M10*25 (65),
and tighten them by using the Inner Hexagon tool.

- 9 -

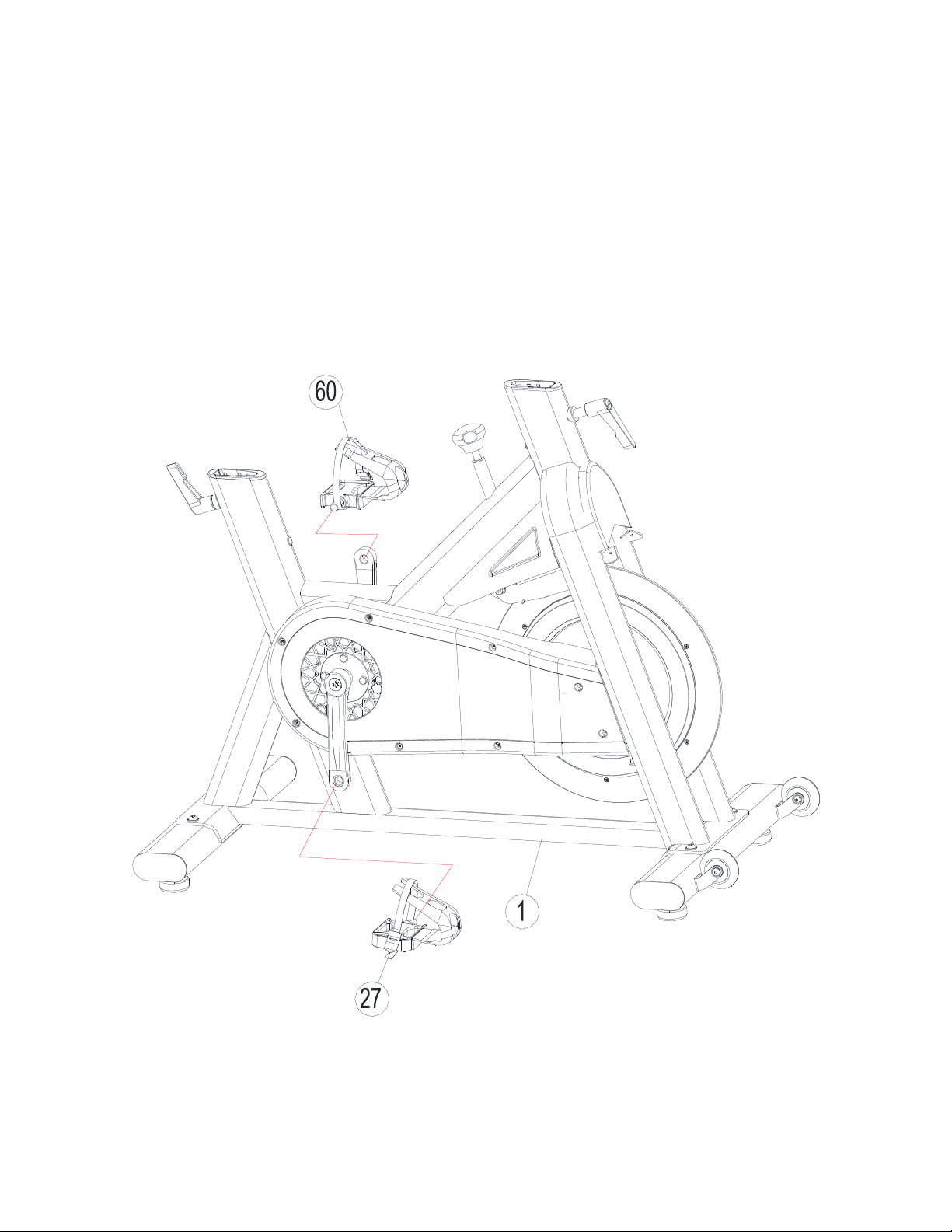

STEP 2：Install Left and Right Pedals
Gently insert the Left Pedal into the Left Crank, make sure the pedal is at a 90° Angle to the crank.
Slowly rotate the Left Pedal (60) into the left crank using Open Spanner Wrench towards the
direction of Handlebar (counterclockwise). Note, the left side is designed with reverse threading so
the pedal will not come loose during use. Make sure the pedal is firmly fixed.
Fix the Right Pedal (27) in the same with the same method. Make sure the rotate direction of Left or
Right Pedal should both toward the direction of Handlebar (clockwise).
Pay attention to ensure the correct pedals are used on the correct side otherwise you risk damage
to the pedals and cranks, and potentially could have the pedals fall off during exercise.

- 10 -

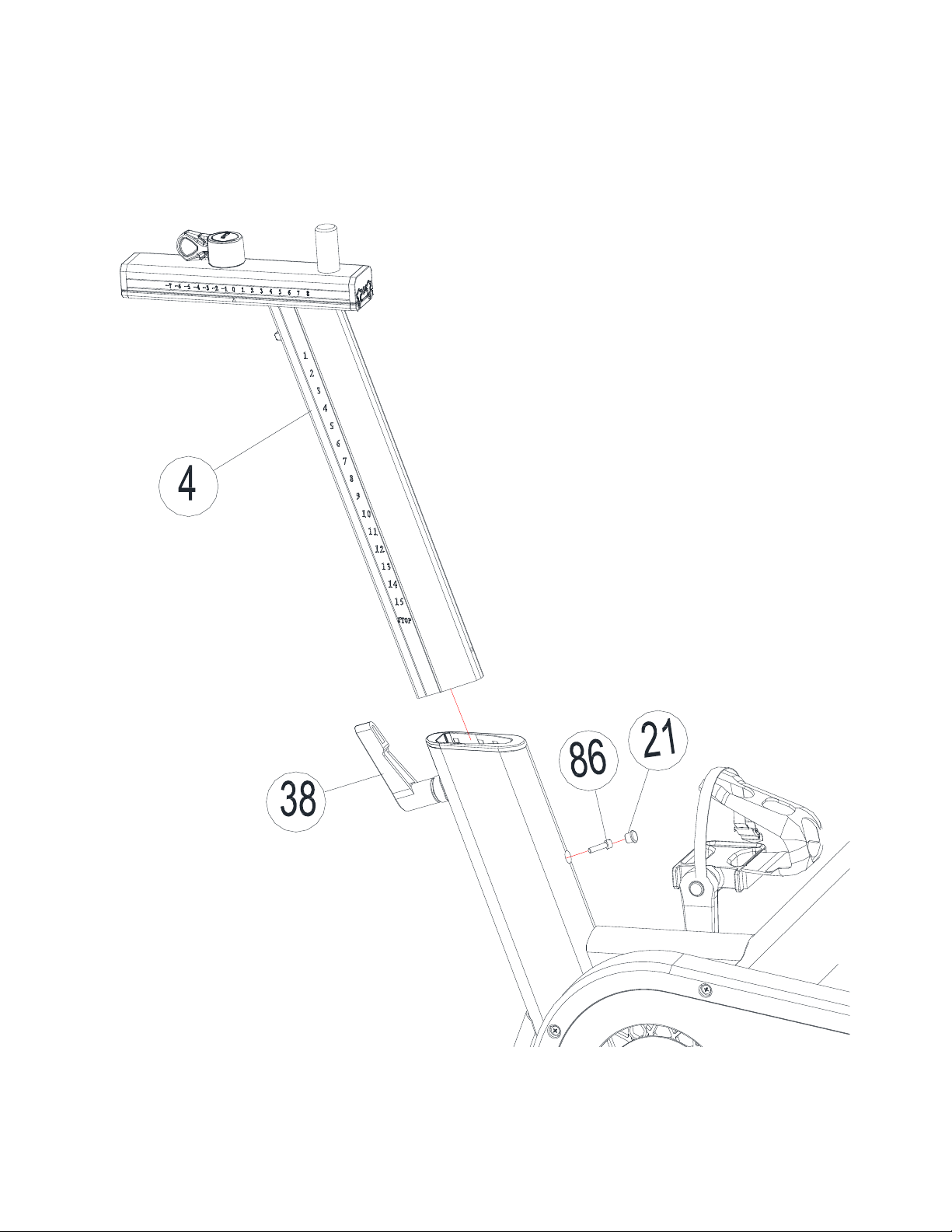

STEP 3：Assemble the Seat Post
Loosen and pull out the ratcheting handle (38) and slide the seat post (4) into the frame. Then pull
the seat post（4）to the“stop” position, lock it with Inner hexagon column screw(85), and finally, plug
the hole with a plastic plug(21).

- 11 -

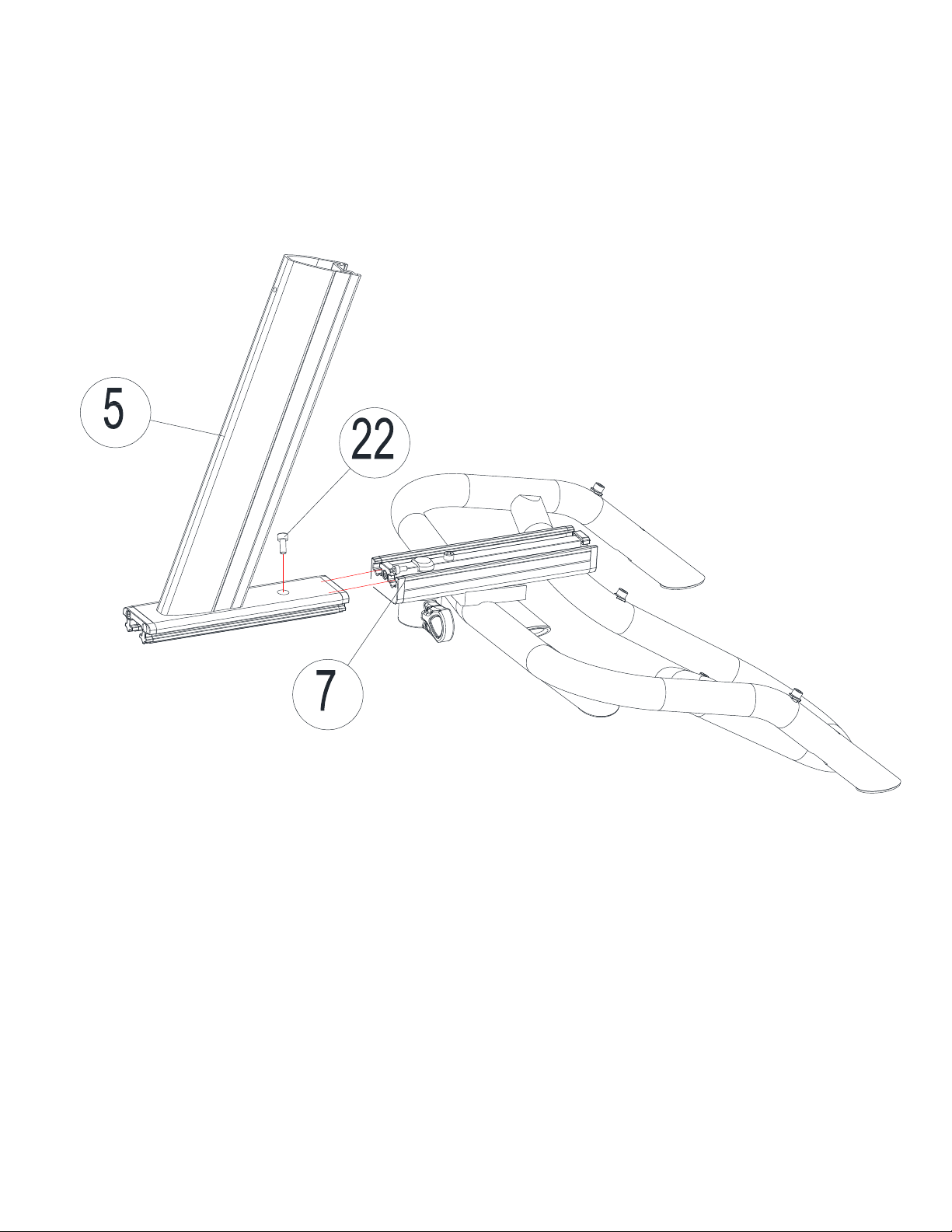

STEP 4：Assemble the Handlebar Assembly
Slide the Handlebar Tube (7) into the Handlebar Post (5),and lock it in place with Inner Hexagon
Column Screw (22)

- 12 -

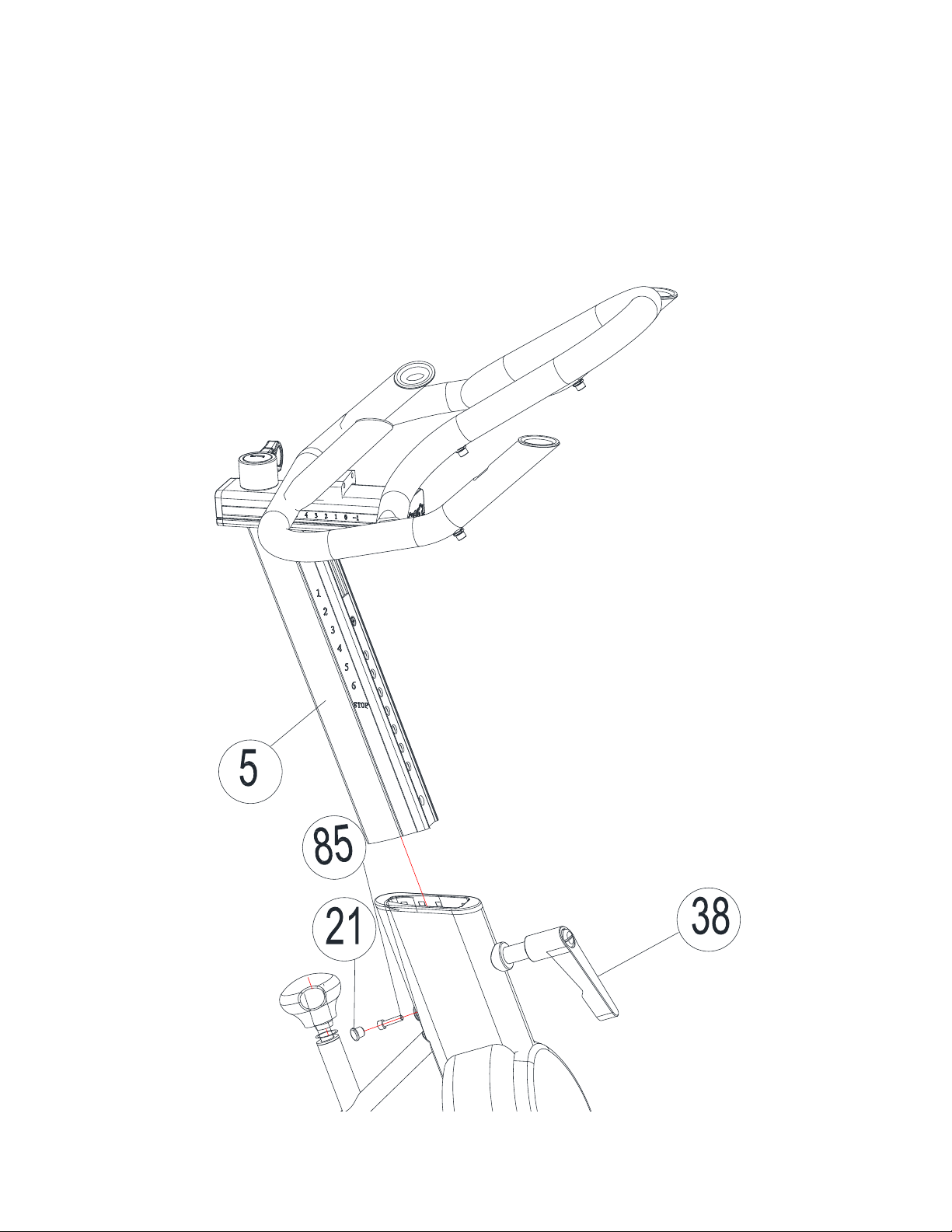

STEP 5：Assemble the Handlebar Post
Loosen and pull out the Ratcheting Handle (38) and then slide the Handlebar Post (5) into the frame.
Then pull the Seat Post (5) to the “stop” position and lock it in place with the Inner hexagon Column
Screw (85). Finally, plug the hole with a Plastic Plug (21).

- 13 -
STEP 6：Assemble the Seat
Put the Seat (93) onto Seat Support (6), and use the open end wrench to tighten the Hexagon Nut
on the Seat to the clockwise direction.

- 14 -

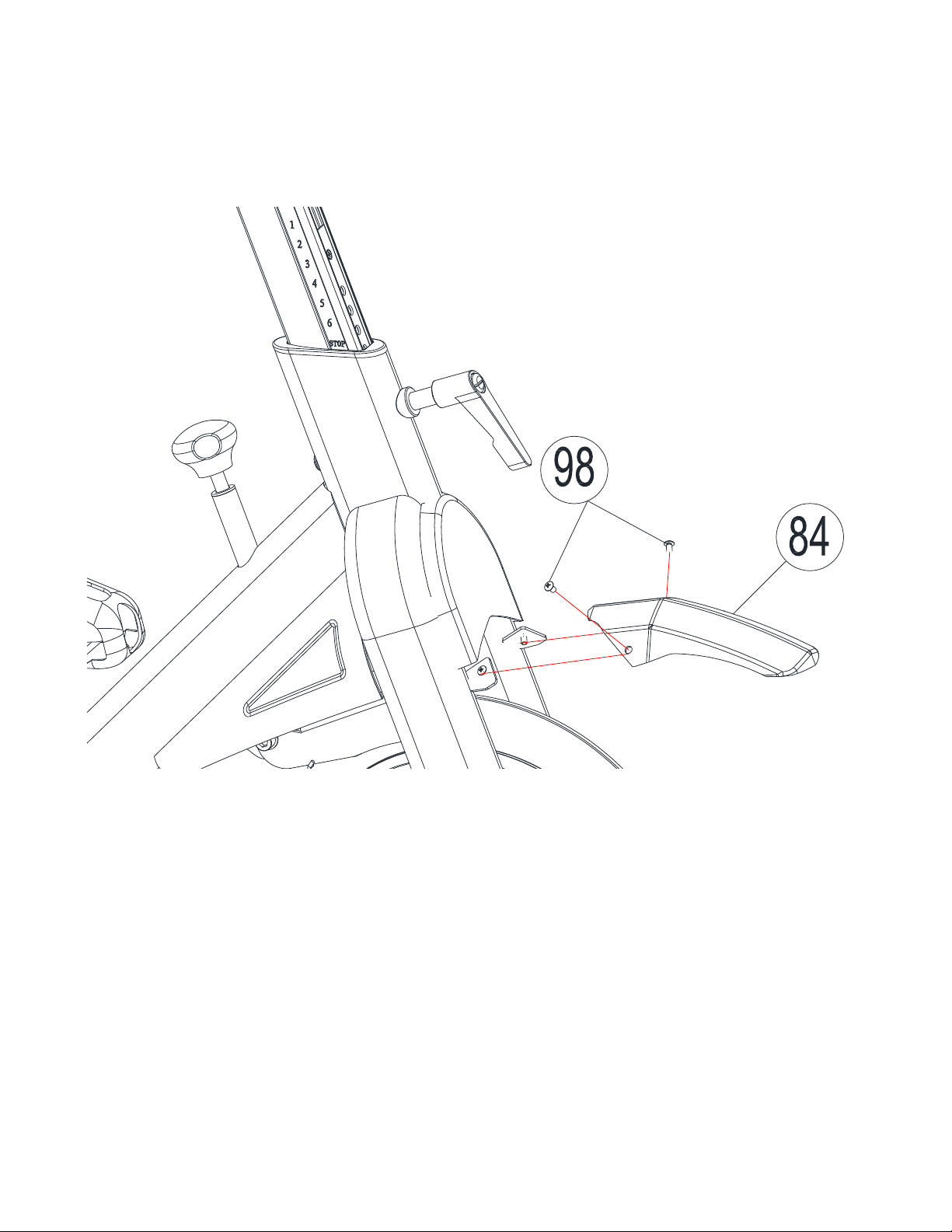

STEP 7：Assemble the Front Fender
Put the Front Fender (84) on the frame, and then attach it with Philips Screws (98).

- 15 -
STEP 8：Assemble the Console and Water Bottle Holder
Put the Console (96) on the Handlebar (8),and then lock it in place with Cross Pan Screw (97).
Place the Water Bottle Holders (94+95) on Handlebar (8), and attach them with Inner Hexagon
Column Screws (85)

- 16 -

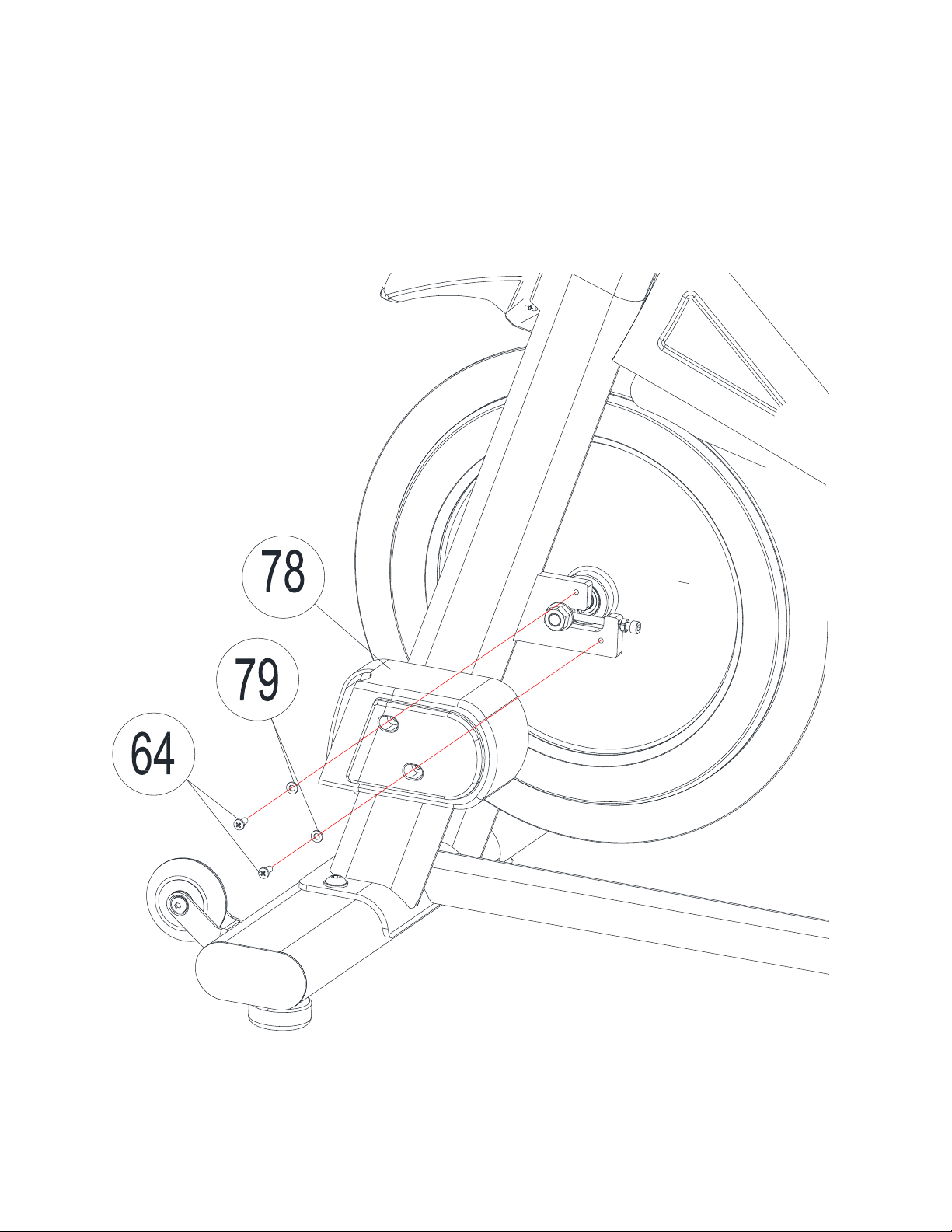

STEP 9：Assemble the Flywheel Cover
Put the Flywheel Cover (78) on the frame, and attach using Cross Pan Screws (64) and Washers
(79).

- 17 -
STEP 10：Installation complete
After finishing installation, please inspect all the screws and nuts carefully to make sure all of them
tightened.

- 18 -
SAFETY CHECK, TRANSPORT & MAINTENANCE
1. Before using your Indoor Cycle, please kindly check that all the moving parts (screws, nuts,
adjustment levers, etc.) are firmly tightened and secured. Please check your equipment regularly. If
any damaged parts are found, discontinue use, and replace them immediately. Do not exercise with
your Indoor Cycle until relevant worn parts are repaired or replaced.
2. Please pay special attention to the most easily worn parts such as belts, cranks, seats, etc.
3. Inspect the cranks and pedals before use, to ensure they are assembled and tightened correctly.
If not, please repeat the installation steps before use.
4. After each use, we advise to use furniture polish/wax or weak alkaline cleaner for routine
maintenance. At minimum we suggest to wipe down the cycle with a soft, dry cloth.
5. To move the Indoor Cycle, stand in front of the bike, push down on the tips of the handlebars, and
tilt the bike forward onto the wheels. Then push or pull the bike to the desired location

- 19 -
COMPUTER OPERATION
BUTTONS (Left to Right):
MODE
-Select what appears in the window
-Hold for 2 seconds to reset all data
SET
-Set the values of the current display, hold to quickly increase
REST
-Resets the current values displayed on the screen
RECOVERY
-Press to enter or exit the pulse recovery function while in the Heart Rate Display mode
(only works when using a compatible heart rate strap, sold separately)
FUNCTION:
1. SPEED: Window A is shown
a) The current exercise speed is displayed
2. TIME: Window B is shown
a) Counts the cumulative time from exercise start to finish. Will automatically
stop if there is no activity for more than 6 seconds
b) Exercise time can be set, up to 99 minutes. Each press adds 1 minute, timer
counts down to zero. The TIME will flash and beep for 5 seconds when the
goal is reached.
3. DISTANCE: Window C is shown
a) Counts the cumulative distance from exercise Start to Finish. KM is Kilometers,
MI is Miles
b) Exercise distance can be set, up to 99 KM or MI, each press adds 0.1, distance
counts down to zero. The DIST will flash and beep for 5 seconds when the
goal is reached.
4. CALORIES
a) Counts the cumulative calories consumed from exercise Start to Finish.
b) Target Calories Burned can be set up to 999, each press adds 1, and counts
down to zero. The CAL will flash and beep for 5 seconds when the goal is
reached.
5. PULSE: Window E is shown
a) Shows your current heart rate during exercise when using an optional Polar
Compatible Chest Strap (sold separately)
b) Pulse Range 40-220 BPM
6. AUTO OFF
a) Computer automatically shuts off when there is no activity for more than 45
minutes
b) Data will be saved

- 20 -
CONGRATULATIONS
Thank you again and congratulations on your purchase of this FitWay Indoor Cycle. Should you
have any questions or concerns please contact us at:
[e-mail]
Full Warranty details can be obtained at:
FitWayEquip.Com
-or-
By emailing us at: [e-mail]
Enjoy your new Indoor Cycle and YOUR FITNESS STARTS HERE
