OWNER’S MANUAL
CONTROLLED CHILLED BEAM PUMP MODULE

2
OWNER’S MANUAL
NEUTON™PUMP MODULE
TABLE OF CONTENTS
Introduction ..................................3
Configurations ................................3
Principle of Operation ..........................4
Sequence of Operation .........................5
Component Parts..............................6
Dimensions ..................................8
Receiving & Inspecting ........................10
Installation & Wiring ..........................10
Controls .................................... 14
Keypad.....................................19
Points List ..................................19
Troubleshooting ..............................25
© SEMCO LLC 2015. All rights reserved.
The information in this owner’s manual is furnished for informational use only, is subject to change without notice, and should not be construed as
a commitment by SEMCO LLC. SEMCO LLC assumes no responsibility for any errors that may appear in this owner’s manual.
No part of this publication may be reproduced, stored in a retrieval system or transmitted, in any form or by any means, electronic, mechanical,
recording, or otherwise, without the prior written permission of SEMCO LLC.
Patent pending.
SEMCO and the SEMCO logo are registered trademarks of SEMCO LLC. All other trademarks are registered to their respective companies. ZS Pro
is owned by OEMCtrl.
WARNING
To prevent injury or death, or property damage, read and follow all instructions and warnings.
Improper installation, adjustment, alteration, service maintenance, or use can cause explosion, fire,
electrical shock, or other conditions which may cause personal injury or property damage. Consult
a qualified installer or service agency for information or assistance. The qualified installer or agency
must use factory-authorized accessories when modifying this product.
Electric shock hazard. Can cause injury or death. Before attempting to perform any service or
maintenance, turn the electrical power to unit to OFF at disconnect switch(es). Unit may have
multiple power supplies. Follow lock out-tag out procedures when servicing.
!

3
OWNER’S MANUAL
NEUTON™
TO BEAMS
FROM
BEAMS
This manual describes the installation and maintenance of the NEUTON™ controlled chilled beam pump module.
The descriptions include all optional equipment and devices for the unit currently available from SEMCO. If optional
equipment is required after receiving the unit, please contact:
SEMCO LLC
1800 East Pointe Drive Columbia, MO 65201
573 443 1481 main 573 886 5408 fax
Email: [email protected]
Before proceeding with handling and installing the NEUTON™, review the important features and devices on the unit as
described and explained in the following pages of this manual.
INTRODUCTION
CONFIGURATIONS
NEUTON4, Dual Valve Pump Module NEUTON2, Single Valve Pump Module
CLOSED CLOSED
TO BEAMS
FROM
BEAMS
• Utilized as only cooling or only heating
• 2 pipe primary system (supply/return) - requires
primary system to have a summer/winter switch
over
• 4 pipe primary system (cold supply/ cold return,
hot supply/ hot return) - requires one NEUTON2per
circuit (one for cooling, one for heating)
• Utilized as dynamic zone operation with simultaneous
heating and cooling demand
• 2 pipe primary system – return water from pump
module is returned to same loop downstream from
supply, on both cooling and heating loops. Requires
only one NEUTON4for both cooling and heating.
• 4 pipe primary system – return water is piped to
dedicated return line, one for cold water and one
for hot water. Requires only one NEUTON4for both
cooling and heating.

4
OWNER’S MANUAL
NEUTON™PUMP MODULE
PRINCIPLE OF OPERATION
NEUTON™ is the HVAC industry’s first smart, plug-and-
play controlled chilled beam pump module (CCBPM)
for reducing chilled beam system installation and
operational costs.
NEUTON™ is a factory-built and pre-tested CCBPM
package complete with its own powered integrated direct
digital controller, chilled and hot water connections,
valves, variable-speed electronically commutated motor
(ECM) pumps, zone sensors, and other unique features.
The device provides active condensation control
effectively addressing one of the key design concerns
regarding active chilled beams.
The intuitiveness of NEUTON™ eliminates the expense
of a separate chiller, boiler and secondary water
distribution system associated with conventional chilled
beam HVAC designs. Instead of expensive secondary
piping loops, each NEUTON™ blends and re-circulates
return water within its zone to convert typical 42°F and
140°F primary loop water temperatures to optimal 58°F
or 100°F chilled beam discharge temperatures, which
prevents cooling mode condensation and heating season
heat stratification.
Each NEUTON™ can control up to 10 chilled beams,
depending upon the water flow rate required.
Numerous important design advantages are provided by
the combination of Pinnacle systems with active chilled
beams including:
• Very high energy efficiency
• Very low primary airflow requirements
• Low noise levels
• Reduced filter maintenance – central location not
room by room
• Ideal air distribution
• Improved indoor air quality – excellent outdoor air
delivery
• Ideal humidity control
• Active condensation control
62˚F
62
˚
F
58˚F
62˚F
Knob In
Closed
Mode
Knob in
Partial Open
(modulating)
Mode
CWR CWS HWS
(Closed)
Note: Only one of
multiple beams in
zone shown.
Cooling Mode
(4 pipe primary loop shown)
HWR
(Closed) 42˚FChilled Water
Supply
Chilled Water Return
120˚F
90
˚
F
100˚F
90˚F
Knob in
Partial
Open
(modulating)
Mode HWR
CWR
(Closed)
CWS
(Closed) HWS
Hot Water Supply
Hot Water Return
Note: Only one of
multiple beams in
zone shown.
Heating Mode
(4 pipe primary loop shown)
Knob in
Closed
Mode

5
OWNER’S MANUAL
NEUTON™
SEQUENCE OF OPERATION
NEUTON™ receives space conditions and setpoints from either a communicating wall mount ZS Pro Zone Sensor or
from the Building Automation System (BAS). The sequence begins when power is applied to the controller. The BAS
can override the controller operation with a stop command.
The controller modulates the chilled and hot water valves to maintain the desired supply water temperature to the
chilled beams. The water flow is modulated to maintain the desired space temperature setpoint. The controller
accepts occupied and unoccupied setpoints, which may be entered either at the zone sensor, or through the BAS.
Occupied mode is initiated either by a digital input, a call from the BAS, by space CO2exceeding the “CO2force occupied
mode setpoint,” or by the override button on the thermostat.
On call for cooling, the chilled water valve modulates to produce the “cooling beginning water temperature” setpoint.
On continued call for cooling, the pump operates at the default mid-range pump speed for a short duration and the
control valves modulate, as required, to achieve the desired beam supply water temperature setpoint.
After a default time delay, if the space cooling setpoint is not achieved or if it is exceeded beyond the deadband
parameters set, the pump speed is modulated between the “Cooling Minimum Pump Output %” and the “Max Pump
Demand” setpoint until space conditions are achieved.
If after reaching maximum pump speed the space cooling setpoint is not achieved, after a time delay, and on continued
call for cooling the water temperature delivered to the beams will be gradually reset until it is equal to the space
dewpoint plus the “water offset above dew-point” setpoint.
On call for heating, the hot water valve modulates to produce the “Heating Beginning Water Temperature” setpoint. On
continued call for heating the water temperature delivered to the beams will be gradually reset until it reaches 100°F.
The pump is running at the “heating minimum pump output %” setpoint while the water temperature is being reset.
When the water temperature reaches 100°F (adj.), and if the space heating setpoint is not reached, the pump demand
will modulate from its heating minimum pump output % setpoint up to the “max pump demand” (if needed) to reach the
space heating setpoint temperature.
58˚F
62˚F
Manual air vent
Beam Zone

6
OWNER’S MANUAL
NEUTON™PUMP MODULE
1
2
3
4
5
6
7
8
9
10
11
12
1) Integrated electrical, DDC controls panel
2) Electronically Commutated Motor (ECM)
high efficiency, variable speed pump
3) Hot water control valve
4) Chilled water control valve
5) Chilled water return
6) Hot water supply
7) Zone loop return connection
8) Chilled water supply
9) Hot water return
10) Zone supply water connection
11) Pete’s plugs for pressure and flow
measurement
12) Zone supply water thermistor
13) Pump Isolation Valves
14) Optional Main Power Penetration
and Bushing
COMPONENT PARTS
ZS Pro Sensor Zone Controller.
Temperature and Humidity standard,
CO2optional
Optional BACview6Keypad
14
13

7
OWNER’S MANUAL
NEUTON™
• The pump, water temperature sensor, control valves, associated electrical and controls are all factory wired
and tested
• Only field connections required are main power (208/230/1Ph), zone sensor, and BAS (if used)
• On-board controls specifically developed and optimized for chilled beam zone control (plug and play)
• All pipe connections use swivel half-union adapters with face gasket designed to easily connect to standard
1” male fittings
BAS
Communications Link
(field wiring by contractor)
18-4 Plenum
Cable
(field wiring by
contractor)
Main Power Connection
(field wiring by contractor)

8
OWNER’S MANUAL
NEUTON™PUMP MODULE
DIMENSIONS: NEUTON4DUAL VALVE PUMP MODULE
7-5/16" 10-1/2"
10-1/2"
21-9/16"
7-11/16"
4-1/8" 3-13/16"
21-3/8"
1A. FRONT
1C. SIDE 1D. BACK
1B. TOP
FIGURE 1. Dimensions of the NEUTON 4 Dual Valve Pump Module from the front (A), top (B), side (C), and back (D).

9
OWNER’S MANUAL
NEUTON™
DIMENSIONS: NEUTON2SINGLE VALVE PUMP MODULE
FIGURE 2. Dimensions of the NEUTON 2 Single Valve Pump Module from the front (A), top (B), side (C), and back (D).
20-3/4"
17-1/2"
4-1/8" 7-11/16" 3-13/16"
10-1/2"
10-1/2"
7-5/16"
2A. FRONT
2C. SIDE 2D. BACK
2B. TOP

10
OWNER’S MANUAL
NEUTON™PUMP MODULE
1) A control panel penetration/bushing will need to
be inserted to accommodate the BAS and/or zone
sensor wiring. Installer should determine optimal
positioning per final installation orientation. The
use of a knockout punch is recommended for
penetration(s). Install bushing.
NOTE: Take care to keep the inside of the control
panel free of metal shavings when installing hole.
2) Mount unit to an appropriate bracing system. The
pump module can be mounted in any position that
allows the pump shaft to be oriented horizontally
while not allowing the terminal box be oriented
in a downward position (See Figure 3). See the
dimensional drawings in Figures 1D and 2D for the
dimensions between the four (4) mounting holes
for each configuration. At a minimum, 12” should
be added to the width and 8” to the depth shown
to allow reasonable service access to the pump
and the valves and to allow for a full swing of the
electrical panel door.
3) Disconnect the o-rings that are attached to the unit
and place on each pipe connection (See FIgure 4).
INSTALLATION & WIRING
RECEIVING & INSPECTION
Upon delivery, confirm that the quantity and model(s) received matches the Bill of Lading. If there is any discrepancy,
immediately notify SEMCO LLC.
Inspect the packages for signs of damage. If damage is suspected, contact SEMCO immediately. If no visible damage
is apparent, the unit should be properly stored until installation.
FIGURE 3. Acceptable (A, B, E) and unacceptable (C, D) mounting orientations. Note that orientation C can be utilized provided that
the pump motor is field rotated to an acceptable position (E).
A B C D
4) Make pipe connections. See the dimensional
drawings in Figures 1A and 2A for the dimensions
between pipes. All piping connection ports on
NEUTON are 1” female National Pipe Tapered
(NPT) swivel half-union adapters with face gasket
designed to connect to standard 1” male National
Pipe Tapered fittings (NFT) to be provided by the
installing contractor. Tighten the swivel nut by hand
and then gently snug with pliers (1/8 to ¼ turn) for a
leak-free joint. Do not over-tighten or you may cut
the gasket and cause a leak.
5) WARNING! Air in the system will damage the pump:
air must be completely eliminated from the pump
module and chilled beam loop using a vent at the
high point. The actuator control valves must be
manually opened to facilitate filling the system (See
Figure 5). After the system is filled, the valve should
be returned to automatic operation. Be sure the
knob has “popped” out to the engaged position to
return to automatic mode. See Figure 6 for position
of valve knob and rotation direction switch after
E

11
OWNER’S MANUAL
NEUTON™
2-10 VDC
24~
COM
Belimo
TR24-SR-T US
HWR
FROM CHILLED
BEAM LOOP
Belimo
TR24-SR US
CWR CWS HWS
COM 24~ 2-10 VDC
P/T
Port
P/T
Port
ISO VLV
UNION
UNION
ISO VLV
CHECK
VALVE
CHECK
VALVE
PUMP
TO CHILLED
BEAM LOOP
Rotation Direction
Switches
venting is complete.
Venting the Pump
Venting the pump prior to operation ensures that all air
is out of the pump rotor can, and the back bearings are
lubricated with water. The pump is vented by rotating the
center screw on the pump a single turn counterclockwise
(See Figure 11 on page 25)and allowing a drop of water
to escape. Tighten the vent screw when complete.
Electrical Wiring
Make electrical connections as shown in the appropriate
electrical schematic for your configuration rung 103 (See
pages 12-13).
Power Requirements:
• Voltage: 208-230/1/60
• Amp Draw: 1.2 FLA
!WARNING
ELECTRIC WIRING MUST
BE CARRIED OUT BY A
QUALIFIED ELECTRICIAN.
Controls Wiring
The controller RS-485 communication ports accepts a 2
conductor plus shield connection for BACnet MS/TP, N2,
or Modbus communications. ARC156 is also available.
6) A wall mount zone sensor is shipped loose for
mounting in the space. The communicating sensor
requires a four conductor cable. Wire the ZS Pro
Zone Sensor in the chilled beam zone to the I/O
Zone 583 Controller per electrical schematic rungs
129-132.
7) Connect the BACview6(optional).
8) Connect the start/stop contacts (optional) or jumper
at terminals 1370 and 1371.
FIGURE 4.
Place provided
o-rings on
all pipe
connections.
FIGURE 5.
Actuator
control valve
with the dial
shown in
closed/bypass
mode. Press
and rotate 90
degrees for
open mode.
FIGURE 6. Position of valve knob and
rotation direction switch AFTER venting.

12
OWNER’S MANUAL
NEUTON™PUMP MODULE
EXTERNAL
CONDENSATE
SENSOR, PROVIDED
& FIELD INSTALLED
BY OTHER THAN
SEMCO (OPTIONAL)
ONE SET OF
TERMINALS ARE
PROVIDED FOR
EXTERNAL AUTO S/S
BY OTHER THAN
SEMCO. REMOVE
FACTORY JUMPER IF
TERMINALS ARE
USED.
0-10VDC
MODULATING
SIGNAL TO
WATER
PUMP
2-10VDC
MODULATING
SIGNAL TO
CW VALVE
ELECTRICAL SCHEMATIC: NEUTON4, Dual Valve Pump Module
BAS
COMMUNICATION
WIRING BY OTHER
THAN SEMCO
RNET
COMMUNICATION
WIRING TO ZONE
SENSOR BY OTHER
THAN SEMCO
CW
VALVE
2-10VDC
MODULATING
SIGNAL TO
HW VALVE
HW
VALVE

13
OWNER’S MANUAL
NEUTON™
EXTERNAL
CONDENSATE
SENSOR, PROVIDED
& FIELD INSTALLED
BY OTHER THAN
SEMCO (OPTIONAL)
ONE SET OF
TERMINALS ARE
PROVIDED FOR
EXTERNAL AUTO S/S
BY OTHER THAN
SEMCO. REMOVE
FACTORY JUMPER IF
TERMINALS ARE
USED.
0-10VDC
MODULATING
SIGNAL TO
WATER
PUMP
2-10VDC
MODULATING
SIGNAL TO
WATER
VALVE
ELECTRICAL SCHEMATIC: NEUTON2, Single Valve Pump Module
BAS
COMMUNICATION
WIRING BY OTHER
THAN SEMCO
RNET
COMMUNICATION
WIRING TO ZONE
SENSOR BY OTHER
THAN SEMCO

14
OWNER’S MANUAL
NEUTON™PUMP MODULE
CONTROLS
BACnet MS/TP communications are set up at the controller.
See the legend in the center of the I/O Zone 583 for baud rate
selection and protocol.
Available baud rates are 9600, 1.92 K, 38.4 K, and
75.8 K BPS.
Additional available protocols are N2 and Modbus.
The MAC address is set with the rotary dials on the upper left
side of the controller (See Figure 7). The device ID will be 2400
+ the MAC address.
If a different device ID is required, a BACview6keypad must be
used to either enter a specific ID or change the Base ID.
ZS Pro Zone Sensor
The ZS Pro Zone Sensor monitors space temperature and
dewpoint to provide active condensation control while
continuing to provide space heating and cooling. Information
such as zone temperature, setpoints, outside air temperature,
and equipment status can be viewed on the display. The
controls allow you to make the zone warmer or cooler or
override the schedule to put the zone in an occupied state.
When the green LED is lit, the zone is in an occupied state.
The ZS Pro Zone Sensor is designed for integration with the
I/O Zone 583 DDC controller. Communications are established
using the Rnet communications port and only a 4 wire
connection is required.
If the CCBPM is connected to a network via BACnet and/or
the zone conditions are provided to the pump module in this
manner, an additional connection is easily made at the BACnet
communications port standard at the 583 DDC controller. See
electrical diagram provided.
The control program determines what screens you see, what
information is in each screen, and what you can adjust. The
type of sensor also determines what you see. For example, if
the sensor reads temperature, humidity, and CO2, the Home
screen may cycle through the current values.

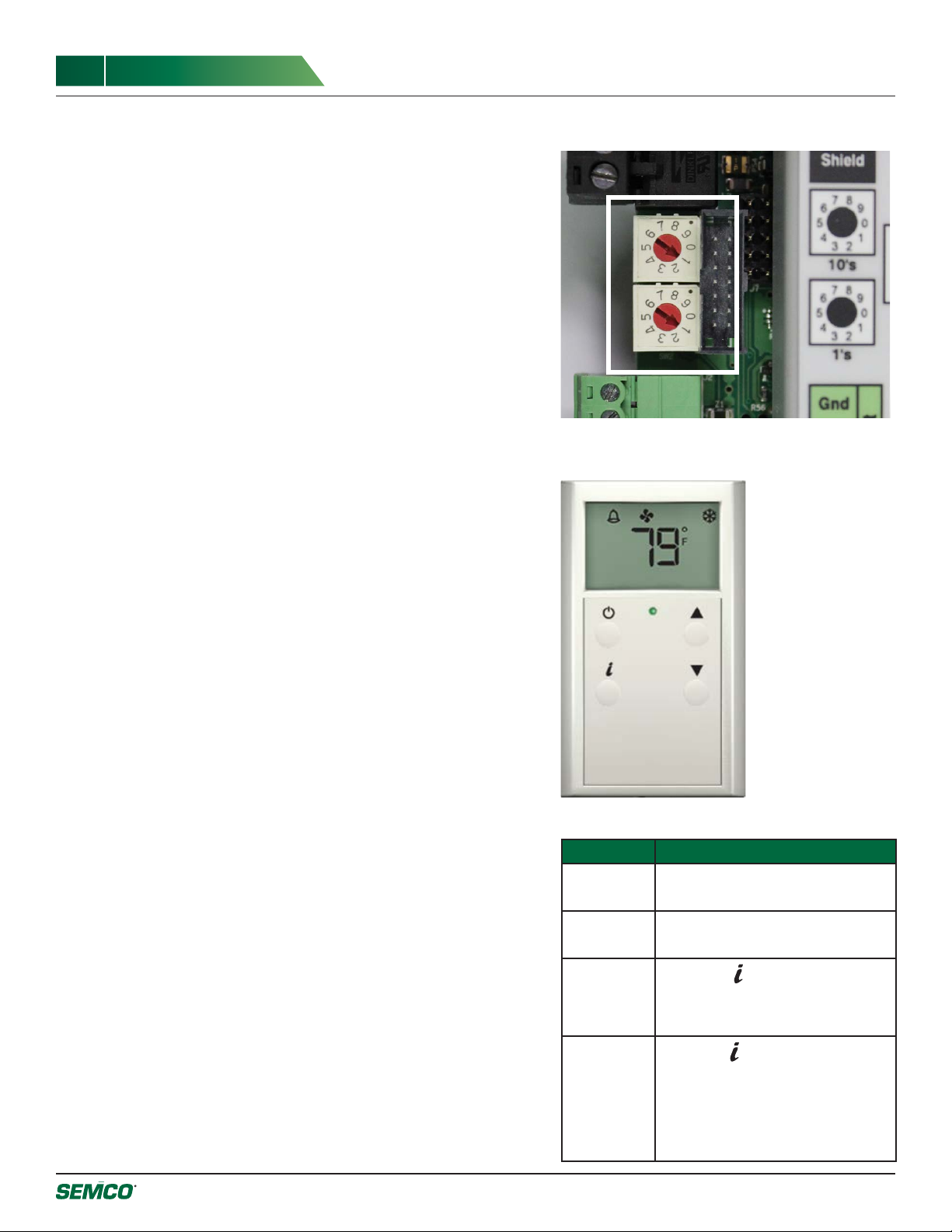

FIGURE 7. MAC Address rotary dials.
FIGURE 8. ZS Pro
Zone Sensor
Screen Display Conditions
Home The sensor has had no user
interaction for 5 seconds.
Setpoint
adjustment
Press the  or  buttons.
Information Press the button. Tap the
button to cycle through various
information.
Diagnostic Hold the button for 3
seconds. Tap the button
to cycle through various
information to troubleshoot your
system.

15
OWNER’S MANUAL
NEUTON™
Screen Display Conditions
Home The sensor has had no user
interaction for 5 seconds.
Setpoint
adjustment
Press the  or  buttons.
Information Press the button. Tap the
button to cycle through various
information.
Diagnostic Hold the button for 3
seconds. Tap the button
to cycle through various
information to troubleshoot your
system.
Zone Sensor Metrics
Temperature and Humidity (standard), CO2(optional)
Occupied indicator
Sensing Element Range Accuracy: Temperature 50° F to 104° F (10° C to 40° C) ±0.5° F (0.3° C) Humidity 10% to 90%
±1.8% typical CO2 ±30PPM or +/±3% of reading
Power Requirements/Supply: DDC controller supplies the Rnet zone sensor with 12 Vdc @ 210 mA. (no additional
power required)
Communication: 115 kbps Rnet connection between sensor(s) and controller
Local Access Port: For connecting a laptop computer to the local equipment for maintenance and commissioning
Mounting Dimensions: Standard 4”x 2” electrical box using provided 6/32” x 1/2” mounting screws
The ZS Pro sensor is designed for integration with the I/O Zone 583 DDC controller.
Communications are established using the Rnet communications port and only a 4 wire connection is required even if
the combined temperature, relative humidity and CO sensor is utilized.
If the NEUTON is connected to a network via BACnet and/or the zone conditions are provided to the pump module in
this manner, an additional connection is easily made at the BACnet communications port standard at the 583 DDC
controller. See electrical diagram provided.

16
OWNER’S MANUAL
NEUTON™PUMP MODULE
Depending on the control program and the type of sensor, you may see any of the following items
in the sensor's screens.
This item... Indicates...
or
The temperature is Fahrenheit or Celsius.
The value shown is percent relative humidity.
The value shown is outside air temperature or humidity.
Cooling
Heating
The value(s) in the display, typically setpoints, are editable using the and
buttons. If the control program specifies that the value is not editable, you will see
without arrows.
See: To make the zone warmer or cooler (page 17) and To edit displayed values (page 18)
The sensor is in a timed override. See To override the schedule (page 17).
The sensor's buttons are locked either because the control program specifies it or
because a user locked them at the sensor. See To lock the sensor buttons (page 18)
OCC The displayed setpoint is an occupied setpoint.
UnOCC The displayed setpoint is an unoccupied setpoint.
CO2 The value shown is CO2.
UOC The value shown is VOC.
EFF The value shown is the effective setpoint.
A number in
the bottom
left corner
A value in the control program that does not have an associated icon.
NOTE If a number on the display flashes, this indicates that the sensor cannot display the correct value (for
example, the value exceeds the maximum value that the sensor can show).
Reading the Display: ZS Pro Zone Sensor

17
OWNER’S MANUAL
NEUTON™
Making the Zone Warmer or Cooler
1) From the Home screen, press the  or  button to show the Setpoint Adjustment screen. This screen typically
shows one of the following:
2) Press the  or  button to adjust the zone temperature setpoint. The control program determines how much
you can adjust the setpoint.
3) Wait a few seconds until the display returns to the home screen before you press any other buttons.
Adjustment amount
(initially 0)
Heating Setpoint
Zone Temperature
Cooling setpoint Cooling setpoint
Heating
Setpoint
To override the schedule
Timed override to an occupied state
1) Press the button one time to override the schedule and put the zone in an occupied state for a length of time
specified in the control program's Increment field.
2) Press the button to incrementally increase the time. The maximum length of time that you can override the
schedule is specified in the control program's Maximum Duration field.
3) Wait a few seconds until the display returns to the home screen before you press any other buttons.
During the override, the bottom of the display shows the time (minutes) remaining in the override and an hourglass to
indicate the override state.
NOTES:
• If programmed, you can override the schedule for an indefinite amount of time. To do this, press the button
one time, then press the  button until the display shows 999. The override remains in effect until the schedule
transitions to occupied or until you cancel it.
• To cancel an override and return control to the schedule, press the button twice.

18
OWNER’S MANUAL
NEUTON™PUMP MODULE
To lock the sensor buttons
Simultaneously press and hold the 2 buttons shown below for 5 seconds to lock the sensor's
buttons. The display shows a lock icon to indicate the locked state.
Press and hold the 2 buttons again for 5 seconds to unlock the buttons.
NOTE: If you press the button slightly before the button, the sensor will go into an override
state instead of locking the buttons. But, if you press the button first, the buttons will lock.
To edit displayed values
If the display shows a value other than a zone temperature setpoint with to the right of it, the value is editable from
the sensor.
1) Press the  or  button to adjust the value.
2) Wait until the display returns to the home screen before you press any other buttons.
NOTE: If the control program specifies that the value is not editable, you will see without arrows.
Point Description Type Rnet Tag Units
INPUTS - HOME SCREEN
Zone Temp Analog Input 1 degF
Zone RH Analog Input 2 % RH
OUTPUTS - INFORMATION SCREEN
CHW Signal AV/Output 312 %
HW Signal AV/Output 313 %
Pump Signal AV/Output 1300 %
Effective CHW Temp Setpoint Analog Value EFF degF
Effective HW Temp Setpoint Analog Value EFF degF
ANALOG SETPOINTS - DIAGNOSTIC SCREEN
CO2 Occ Override Setpoint Analog Setpoint CO2 PPM
Occupied Cooling Setpoint Analog Setpoint OCC degF
Occupied Heating Setpoint Analog Setpoint OCC degF
Unoccupied Cooling Setpoint Analog Setpoint UNOCC degF
Unoccupied Heating Setpoint Analog Setpoint UNOCC degF

19
OWNER’S MANUAL
NEUTON™
POINTS LIST
KEYPAD
The BACview6keypad (See Figure 9) can be used to adjust setup parameters. The keypad can plug directly into the
bottom of the wall mount sensor (See Figure 10) or directly into the I/O Zone 583 Controller. If the CO2option on the
sensor is included, it may be necessary to plug the BACview6directly into the I/O Zone 583 controller, and disconnect
the wall mount sensor at the controller while the BACview is being used.
FIGURE 9. BACview6Keypad (Optional - not
included with module)
FIGURE 10. Plug the
BACview6keypad directly
into the bottom of the ZS
Pro Sensor zone controller.
Name Description Type Object ID Device ID Object Name Exp:-
Num I/O Type
Setpoint /
Cooling Occupied
Setpoint
Status of occupied cooling setpoint read
from the Zone Sensor and after limits
applied by BAS. Effective setpoint in use
by controller.
BAV AV:20 DEV:2402 occ_clg_sp_1
Setpoint
/ Heating
Occupied
Setpoint
Status of occupied heating setpoint read
from the Zone Sensor and after limits
applied by BAS. Effective setpoint in use
by controller.
BAV AV:21 DEV:2402 occ_htg_sp_1
Setpoint
/ Cooling
Unoccupied
Setpoint
Status of unoccupied cooling setpoint
read from the Zone Sensor and after
limits applied by BAS. Effective setpoint
in use by controller.
BAV AV:22 DEV:2402 unocc_clg_sp_1
Setpoint
/ Heating
Unoccupied
Setpoint
Status of unoccupied heating setpoint
read from the Zone Sensor and after
limits applied by BAS. Effective setpoint
in use by controller.
BAV AV:23 DEV:2402 unocc_htg_sp_1
Setpoint /
Cooling Setpoint
Adjust
not used - inaccessible Setblock block
internal value
BAV AV:16 DEV:2402 clg_adj_1
Setpoint /
Heating Setpoint
Adjust
not used - inaccessible Setblock block
internal value
BAV AV:19 DEV:2402 htg_adj_1
Setpoint /
Effective Cooling
Setpoint
not used - inaccessible Setblock block
internal value
BAV AV:17 DEV:2402 eff_clg_sp_1
Setpoint /
Effective Heating
Setpoint
not used - inaccessible Setblock block
internal value
BAV AV:18 DEV:2402 eff_htg_sp_1
water temp Loop water temperature sensor wired to
analog input #4
BAI AI:1 DEV:2402 water_temp_1 0:04 Thermistor
Zone CO2 CO2 value from Zone Sensor ASVI AI:2 DEV:2402 zone_co2_1

20
OWNER’S MANUAL
NEUTON™PUMP MODULE
POINTS LIST, CONTINUED
Name Description Type Object ID Device ID Object Name Exp:-
Num I/O Type
Zone RH RH value from Zone Sensor ASVI AI:3 DEV:2402 zone_rh_1
Zone Temp Temperature value from Zone Sensor ASVI AI:4 DEV:2402 zone_temp_1
Condensate
sensor
If a sensor is wired to input #1,
and a contact closure is made, the
condensation alarm is ON, and all
outputs are OFF or 0 demand.
BBI BI:1 DEV:2402 condensate_
sensor_1
0:01 Dry Con-
tact
Occupied (DC) If a sensor or contact closure is wired to
input #3, and the contact is made, the
occupied setpoints are used.
BBI BI:2 DEV:2402 occupied_dc_1 0:03 Dry Con-
tact
Pump CS Status (only) of pump current switch if
included and wired to input #2. Not an
alarm point.
BBI BI:3 DEV:2402 pump_current_
switch_1
0:02 Dry Con-
tact
chilled water
valve signal
Status of signal delivered to chilled
water valve from analog output # 1.
Status only, not R/W
BAV AV:1 DEV:2402 chw_sig_1
CHW temp
setpoint
The active CW temperature setpoint as
adjusted by demand
BAV AV:2 DEV:2402 chw_temp_
setpt_1
CO2 force OCC
mode setpoint
If CO2 override is enabled, and the space
CO2 exceeds this value, then Occupied
Mode is ON. The minimum setpoint
value is 500 PPM.
BAV AV:3 DEV:2402 co2_override_
setpt_1
Cooling Max
Water Temp
The highest temperature desired for
water temperature in cooling mode.
Factory setting is 60°F.
BAV AV:4 DEV:2402 chw_max_temp_1
Cooling Minimum
pump output (%)
Cooling Minimum pump output (%).
Note: 0 - 100% pump demand is scaled
to a 1.5 to 5 VDC signal which is the
operating range of the pump.
BAV AV:6 DEV:2402 clg_min_pump_
output_1
Cooling Min
Water Temp
The minimum water temperature will be
the greater of <1° above space dewpoint,
Cooling Min Water Temp parameter>
BAV AV:5 DEV:2402 chw_min_temp_1
dewpoint alarm
limit
If any (space dewpoint-dewpoint
setpoint) exceeds the "dewpoint alarm
limit" then the Zone high dewpoint alarm
is ON
BAV AV:34 DEV:2402 dewpoint_alarm_
limit_1
Heating Max
Water Temp
Max water temp setpoint. Default value
is 130°F. Above this range the risk of
stratification quickly rises.
BAV AV:7 DEV:2402 hw_max_temp_1
Heating Minimum
pump output (%)
Heating Minimum pump output (%)
Note: 0 - 100% pump demand is scaled
to a 1.5 to 5 VDC signal which is the
operating range of the pump.
BAV AV:9 DEV:2402 htg_min_pump_
output_1
Heating Min
Water Temp
Heating Min Water Temp BAV AV:8 DEV:2402 hw_min_temp_1
hot water valve
signal
Status of signal delivered to hot water
valve from analog output # 2. Status
only, not R/W
BAV AV:10 DEV:2402 hw_sig_1
HW temp
setpoint
The active HW temperature setpoint as
adjusted by demand
BAV AV:11 DEV:2402 hw_temp_setpt_1
max pump
demand
The parameter will limit the pump speed
for loops that do not require the full
pump flow.
BAV AV:12 DEV:2402 max_pump_
demand_1
