Flavor Burst CTP 80SS-INT Configuration guide

©2015 Flavor Burst Company Printed in September Printed in
All Rights Reserved The United States of America
Flavor Burst®
Integrated Cabinet
Compatible with Taylor C201 Cart
- Operations Manual Supplement
Models: CTP 80SS-INT
CTP 80BLD-INT
CTP 80BEV-INT
CTP 80FCB-INT
Manufactured by
Flavor Burst Company
499 Commerce Drive
Danville, IN 46122
For general information and to locate a
distributor near you, call or visit our
website:
Phone: [phone]
Toll Free Number: [phone]
Fax: [phone]
www.flavorburst.com
For pricing, ordering and support, contact
one of our qualified distributors.
PLEASE READ FIRST!
This supplement is not a full operations manual. It does not contain complete
information on installing and maintaining your new system. The purpose of
this manual supplement is to provide you with additional information and
instruction, such as diagrams and part lists, which are either not included or
are different from what is shown in the standard manual. Read through these
installation and maintenance instructions first and then refer to your standard
manual for the rest of the instructions. Be sure to also refer to your standard
model to get complete information needed for your system.
All manuals and supplements are available on www.flavorburst.com

1
PAGE INTENTIONALLY LEFT BLANK

2
TABLE OF CONTENTS
FCC ID……………………………...………………………………………….………………...3
Introduction……………………………...………………………………………….………….4
Safety Precautions……………………………..…………….………..……..….…………....4
Environmental Notices………………...………………………………………….………….5
Parts Identification/Function……...……………………….……..…..……….……..….…..7
Equipment Setup……………………………………………………...…..……….……..….36
Installing the Integrated Cabinet, Unit Syrup Line and Pump Harness Cable…..36
Filling the Sanitizer Tank………………………………………….…………….....…40
EQUIPMENT SETUP – Continued…………………………………………….....…41
Other Important Information…………….…….…...……………………..…...……....…..42
Ordering/Service Information…………….…….…...………………………...……....…..43

3
FCC ID 必须要加的警告语:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void
the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-- Consult the dealer or an experienced radio/TV technician for help.
FCC RF Radiation Exposure and SAR Statements SAR Statement.
The Flavor 10* has been tested for body-worn Specific Absorption Rate (SAR) compliance. The FCC
has established detailed SAR requirements and has established that these requirements. RF Exposure
Information. The radio module has been evaluated under FCC Bulletin OET 65C (01-01) and found to
be compliant to the requirements as set forth in CFR 47 Sections, 2.1093, and 15.247 (b) (4)
addressing RF Exposure from radio frequency devices. This model meets the applicable government
requirements for exposure to radio frequency waves. The highest SAR level measured for this device
was 0.293W/kg.
*The Flavor 10 is also referred to as the Touch Panel throughout this manual.

4
Congratulations on your purchase of a CTP
Integrated flavoring system! As a food and
beverage provider, your customers are your
greatest asset. Your primary concern must be
the health and welfare of your customers. This
manual supplement provides specialty
information on the parts of your equipment
model that differ from the standard model. Use
this supplement with your full standard
manual(s) for everyday operating guidelines
and procedures. We urge you to follow these
instructions carefully and maintain strict sanitary
practices in your daily operating routine. *Use
this manual supplement in conjunction with the
standard manual(s) included with your system.*
The CTP Integrated cabinet is an internal
cabinet, designed to fit inside the Taylor C201
carts. The system is an add-on to a soft serve
freezer designed to inject concentrated
flavorings throughout soft serve product as it is
dispensed. Dispensing Flavor Burst product is
very simple. Select a flavor from the Touch
Panel and draw the product. The Flavor Burst
system will automatically flavor the product at
the spout. You can also have multiple flavors
per serving. Simply select the flavors from the
Touch Panel and draw the product. The system
will switch from one flavor to the next in a
smooth, continuous motion, layering the serving
with different, delicious flavors.
Flavor Burst®syrup is stored within the
equipment cabinet in 1 gallon disposable bags.
Proper syrup injection rate is maintained by
adjusting the flavor level on the Touch Panel.
Components of the Flavor Burst system should
be cleaned daily to ensure the highest standard
of sanitation. When your equipment is
delivered or if it has been unused for more than
24 hours, follow the DAILY OPENING
PROCEDURES in your standard operations
manual(s).
NOTE: PARTS AND PART NUMBERS MAY
VARY FROM WHAT IS SHOWN AND LISTED.
CONSULT YOUR LOCAL DISTRIBUTOR IF
YOU HAVE ANY QUESTIONS CONCERNING
DIFFERENCES.
Always follow these safety precautions when
operating the Flavor Burst®system:
The Integrated cabinet system must be
placed inside a closed cabinet, such as the
Taylor C201 cart. Do not leave the Integrated
cabinet exposed out in the open.
DO NOT operate the system without
reading this operator’s manual. Failure to follow
this instruction may result in equipment
damage, poor system performance, health
hazards, or personal injury.
DO NOT operate the system unless it is
properly grounded. Failure to follow this
instruction may result in electrocution.
DO NOT operate the system with larger
fuses than specified on the system data label.
Failure to follow this instruction may result in
electrocution or damage to the machine.
Consult your electrician.
DO NOT put objects or fingers in the
door spout. Failure to follow this instruction may
result in contaminated product or personal
injury from blade contact.
The Integrated cabinet system must be
placed on a level surface capable of supporting
at least 220 lbs of weight. Failure to comply
may result in personal injury or equipment
damage.
DO NOT place more than 25 lbs of
weight on top of the cabinet. Failure to comply
may result in personal injury or equipment
damage.
DO NOT install the unit in an area where
a water jet could be used, and do not use a
water jet to clean or rinse the system. Failure to
follow these instructions may result in serious
electrical shock.
SAFETY PRECAUTIONS
INTRODUCTION

5
HAZARD COMMUNICATION STANDARD
(HCS) – The procedure(s) in this manual
include the use of chemical products. These
chemical products will be highlighted in
bold-faced letters followed by the
abbreviation (HCS) in the text portion of the
procedure. See the Hazard Communication
Standard (HCS) manual for the appropriate
Material Safety Data Sheet(s) (MSDS).
NOISE LEVEL: Airborne noise emission
does not exceed 70 dB(A) when measured at a
distance of 1.0 meter from the surface of the
machine and at a height of 1.6 meters from the
floor.
NOTE: Operations Manual subject to
change. Contact your local distributor for most
recent updates concerning the CTP Integrated
system.
NOTE: Access to the service area is
restricted to persons having safety / hygiene
knowledge and practical experience of the
appliance.
NOTE: This appliance can be used by
children aged from 8 years and above and persons
with reduced physical, sensory, or mental
capabilities or lack of experience and knowledge if
they have been given supervision or instruction
concerning use of the appliance in a safe way and
understand the hazards involved.
NOTE: Children shall not play with the
appliance.
NOTE: Cleaning and user maintenance shall
not be made by children without supervision.
ENVIRONMENTAL NOTICES
If the crossed out wheeled bin symbol is affixed to this product, it signifies that this product
is compliant with the EU Directive for Waste Electric/Electronic Goods (WEEE) as well as
other similar legislation in affect after August 13, 2005. Therefore, it must be collected
separately after is use is completed, and cannot be disposed of as unsorted
municipal waste.
The user is responsible for returning the product to the appropriate collection facility, as specified by
your local codes. For additional information regarding applicable local laws, please contact the
municipal facility and/or local distributor.

6
PAGE INTENTIONALLY LEFT BLANK

7
General Cabinet Overview (See Figure 1)
ITEM PART NO. DESCRIPTION QTY. FUNCTION
1 ELE 905A TOUCH PANEL ASSEMBLY WITH
BRACKET 1 Flavor Burst unit command center.
2 ELE 434 POWER CABLE 1 Supplies the electronics board with power.
3-1 INJ 424TS INJECTOR ASSEMBLY 1*
0**
FOR “SS” SYSTEMS: Injects syrups into the
product.
*1 for 80SS systems.
**0 for 80BLD, 80BEV, & 80FCB s
y
stems.
OR…
3-2 INJ 424BLD
FLAVOR BLEND BLENDING
ASSEMBLY 1* 0**
FOR “BLD” SYSTEMS: Blends syrups into
the product.
*1 for 80BLD systems.
**0 for 80SS, 80BEV, & 80FCB systems.
OR…
3-3 INJ 424VTS VERTICAL BLENDING ASSEMBLY 1*
0**
FOR “BEV” SYSTEMS: Blends syrups into
the product.
*1 for 80BEV systems.
**0 for 80BLD, 80SS, & 80FCB systems.
OR…
3-4 ADPT
TY80S-FCB MODIFIED FCB FREEZER SPOUT ASSEMBLY 1* 0**
FOR “FBC” SYSTEMS: Dispenses product
blended with syrups.
*1 for 80FCB systems.
**0 for 80BLD, 80BEV, & 80SS systems.
4 MIS 3196 STAINLESS TUBE / CABLE CASING
ASSEMBLY 1 Attaches the flavor lines and/or cables to the
side of the freezer.
5 SAN 756 SANITIZER TANK ASSEMBLY 1 Houses sanitizer cleaning solution.
6 CAB 113 FLAVOR TRAY 8 Houses syrup bags.
7-1 SYR 944 SYRUP BAG CONNECTOR
ASSEMBLY 8* 0**
FOR “SS” & “BLD” SYSTEMS: Transports
syrup from the bag to the pumps.
*8 for 80SS & 80BLD systems.
**0 for 80BEV & 80FCB systems.
OR…
7-2 SYR 944SH SYRUP TUBE ASSEMBLY - SHAKE 8*
0**
FOR “BEV” & “FCB” SYSTEMS:
Transports syrup from the bag to the pumps.
*8 for 80BEV & 80FCB systems.
**0 for 80SS & 80BLD systems.
8 N/A INTEGRATED FLAVOR BURST
CABINET ASSEMBLY 1 Houses syrup trays and bags.
9 CAB 358* MODIFIED TAYLOR BACK PANEL 1 Allows syrup tubes, Touch Panel cables and
motor cables external access and houses the
p
ower entrance module.
10 MIS 3026S TOUCH PANEL CABLE CASING 1 Conceals and protects the Touch Panel
cable, as well as attaches it to the freezer.
11 ELE 525M MALE TO MALE 48” SWITCH
EXTENSION 1 Connects Touch Panel to the freezer switch.
PARTS IDENTIFICATION/FUNCTIONS

8
General Cabinet Overview (Continued)
ITEM PART NO. DESCRIPTION QTY. FUNCTION
12 ELE 924 WIRELESS SPIGOT SWITCH 1*
0**
FOR “SS” & “BLD” SYSTEMS: Sends a
wireless signal to the Touch Panel when the
freezer draw handle is activated.
*1 for 80SS & 80BLD systems.
**0 for 80BEV & 80FCB systems.
13-1 SPR 5800A SPARE PARTS KIT 1*
0**
FOR “SS” SYSTEMS: Houses extra spare parts
and wear items.
*1 for 80SS systems.
**0 for 80BLD
,
80BEV
,
& 80FCB s
y
stems.
OR…
13-2 SPR
5800BLD SPARE PARTS KIT TOUCHSCREEN FLAVOR BLEND 1* 0**
FOR “BLD” SYSTEMS: Houses extra spare
parts and wear items.
*1 for 80BLD systems.
**0 for 80SS, 80BEV, & 80FCB systems.
OR…
13-3 SPR
5800BEV SPARE PARTS KIT TOUCHSCREEN BEVERAGE 1* 0**
FOR “BEV” SYSTEMS: Houses extra spare
parts and wear items.
*1 for 80BEV systems.
**0 for 80BLD, 80SS, & 80FCB systems.
OR…
13-4 SPR
5800FCB SPARE PARTS KIT TOUCHSCREEN FCB 1* 0**
FOR “FCB” SYSTEMS: Houses extra spare
parts and wear items.
*1 for 80FCB systems.
**0 for 80BLD, 80BEV, & 80SS systems.
14 SYR 946 SYRUP BAG LOCK 8*
0**
FOR “SS” & “BLD” SYSTEMS: Secures the
syrup bag adapters to the bag fitments.
*8 for 80SS & 80BLD systems.
**0 for 80BEV & 80FCB systems.
15 SYR 941A SYRUP BAG ADAPTER 8*
0**
FOR “SS” & “BLD” SYSTEMS: Connects soft
serve flavor bag to syrup out tube.
*8 for 80SS & 80BLD systems.
**0 for 80BEV & 80FCB systems.
*The Modified Back Panel may be included with the Taylor C201 if the Flavor Burst system was
purchased in conjunction with the Taylor cabinet. If integrated cabinet system was bought separately,
the Modified Back Panel should be included with the Flavor Burst cabinet to replace the existing one on
your Taylor C201 mobile cabinet.
Taylor Company Parts – Not included with the integrated cabinet system. Sold separately through your
local distributor. Please note that not all freezer equipment may be suitable for the C201 cabinet.
Ask your local distributor if your freezer is compatible and if it passes the “tip test” with the cart.
ITEM PART NO. DESCRIPTION QTY. FUNCTION
T TAYLOR C201 TAYLOR MOBILE CABINET X Houses the Flavor Burst Integrated
Cabinet unit. Sold separately.

9
PAGE INTENTIONALLY LEFT BLANK

10
General Cabinet Overview
Figure 1
8
6
5
T
2
9
1
15
10
11
12
14
OR “BEV” & “FCB”
SYSTEMS
“SS” & “BLD”
SYSTEMS
“SS” AND
“BLD”
SYSTEMS
“SS” AND
“BLD”
SYSTEMS
13-1
13-2
13-3
13-4
“BEV” SYSTEMS
“BLD” SYSTEMS
“SS” SYSTEMS
“FCB” SYSTEMS
OR
OR
OR
26000
7-1 7-2
3-1
3-3
3-2
3-4
“SS” SYSTEMS
“BEV” SYSTEMS
“BLD” SYSTEMS
“FCB” SYSTEMS
OR
OR
OR
4

11
Integrated Cabinet (See Figure 2)
ITEM PART NO. DESCRIPTION QTY. FUNCTION
1 CAB 357 PANEL STABILIZER BRACKET 2 Connects and secures the side and
interior panels of the internal cabinet.
2 CAB 304L LEFT SIDE CABINET PANEL 1 Holds left side syrup rails.
3 CAB 304R RIGHT SIDE CABINET PANEL 1 Holds right side syrup rails.
4 CAB 345 SYRUP TRAY RAIL 16 Holds flavor trays in place.
5 CAB 145 TRAY SUPPORT BRACKET 8 Houses flavor line leading to syrup bag.
6 CAB 303 CABINET DIVIDER PANEL 2 Holds inner syrup rails.
7 CAB 302 CABINET BACK PANEL 1 Attaches the divider and side panels.
8 MIS 3189 SIDE PANEL FOAM BRACE 2 Secures the integrated cabinet within the
Taylor C201 mobile cabinet.
9 CAB 333 CABINET BASE PANEL 1 Attaches the divider and side panels.
10-1 SYR 944 SYRUP BAG CONNECTOR
ASSEMBLY – SOFT SERVE 8* 0**
FOR “SS” & “BLD” SYSTEMS:
Transports syrup from the bag to pumps.
*8 for 80SS & 80BLD systems.
**0 for 80BEV & 80FCB systems.
OR…
10-2 SYR 944SH SYRUP TUBE ASSEMBLY -
SHAKE 8* 0**
FOR “BEV” & “FCB” SYSTEMS:
Transports syrup from bags to pumps.
*8 for 80BEV & 80FCB systems.
**0 for 80SS & 80BLD systems.
11 MIS 3026 SURFACE RACEWAY 1 Secures 9-tube assembly to the inside of
the cabinet.
12-1 MIS 3028-80M SANITIZER FLUSH TUBE
ASSEMBLY – SOFT SERVE 1* 0**
FOR “SS” & “BLD” SYSTEMS: Flushes
flavor lines with sanitizer when attached.
*1 for 80SS & 80BLD systems.
**0 for 80BEV & 80FCB systems.
OR…
12-2 MIS 3028S-80M SANITIZER FLUSH TUBE
ASSEMBLY – FROZEN
BEVERAGE
1*
0**
FOR “BEV” SYSTEMS: Flushes flavor
lines with sanitizer when attached.
*1 for 80BEV systems.
**0 for 80BLD, 80SS, & 80FCB systems.
OR…
12-3 MIS 3028S-X PUMP FLUSH ADAPTER
EXTENSION – BEV 1* 0**
FOR “FCB” SYSTEMS: Connects the
sanitizer tank to the beverage syrup lines
to flush with sanitizer solution.
*1 for 80FCB systems.
**0 for 80BLD, 80SS, & 80BEV systems.
13-1 SYR 307 PERISTALTIC SYRUP PUMP –
SOFT SERVE 8* 0**
FOR “SS” & “BLD” SYSTEMS: Pumps
syrup from flavor bags into flavor lines
*8 for 80SS & 80BLD systems.
**0 for 80BEV & 80FCB systems.
OR…
13-2 SYR 926 PERISTALTIC SYRUP PUMP -
BEVERAGE 8* 0**
FOR “BEV” & “FCB” SYSTEMS:
Pumps syrup from bags into flavor lines
*8 for 80BEV & 80FCB systems.
**0 for 80SS & 80BLD systems.
14 SAN 748 PERISTALTIC SANITIZER PUMP 1 Pumps sanitizer solution to flush tube
and sanitizer line.

12
Integrated Cabinet (See Figure 2)
ITEM PART NO. DESCRIPTION QTY. FUNCTION
1
15 SYR 927 INTERNAL 9-TUBE ASSEMBLY 1 Transports syrup from bags to the 9-
Tube Assembly.
16 FAS 2024 8-32 X 1/4 PAN HEAD SCREW 42 Secures various parts within the system.
17 CAB 355 SYRUP PUMP SHELF 3 Secures the pumps within the cabinet.
18 N/A ELECTRONICS PARTS 1 System’s various electronic components.
Figure 2
1
9
2
6
5
4
12-2
12-1
3
7
8
8
11
12-3
16
13-2
13-1
17
16
15
14
18
10-1 10-2
OR
OR
“BEV”
MODELS
“SS” & “BLD”
MODELS
“FCB” MODELS
OR “BEV” & “FCB”
SYSTEMS
“SS” & “BLD”
SYSTEMS

13
“SS” Injector Assembly and Related Parts (See Figure 3A)
ITEM PART NO. DESCRIPTION QTY. FUNCTION
A INJ 424TS INJECTOR ASSEMBLY WITH SYRUP
LINES, ADAPTER, & BRACKET 1* 0**
FOR “SS” SYSTEMS: Injects syrups into the
product.
*1 for 80SS systems.
**0 for 80BEV, 80BLD, & 80FCB systems.
1 INJ 422 INJECTOR HEAD ASSEMBLY 1 Connects flavor line to inject syrups into
product.
1A RUB 652-RSS SMALLER SYRUP PORT O-RING 1 ea. Provides sealed cavity inside syrup port.
1B RUB 651 INJECTOR HEAD O-RING 2-020 1 ea. Provides a sealed cavity.
1C RUB 660 LARGER SYRUP PORT O-RING 1 ea. Provides sealed cavity inside syrup port.
2 INJ 321 GEAR CARTRIDGE ASSEMBLY 1 Rotates product for even syrup distribution.
3 SYR 932 6' 9-TUBE ASSEMBLY 1 Supplies syrup to Injector Head from pumps.
3A FAS 2051 ROLLED FLANGE EYELET 18 ea.
Provides tension in syrup line to affix to line
coupler.
3B ROT 510 LINE COUPLER 2 ea. Holds flavor lines in place.
3C RUB 610 BAG CONNECTOR O-RINGS 1 ea. Provides extra tension between tube
connectors.
3D ROT 515-A 9-TUBE ASSEMBLY WAVE SPRING 1 ea. Provides tension between tube connectors.
3E INJ 116 LINE COUPLER NUT - BLACK 1 ea. Attaches flavor tubes to flavor manifold.
3F SYR 901 6' 9-TUBE ASSEMBLY TUBES 9 ea. Brings syrup from pump to Injector Head.
3G ROT 511 LINE COUPLER NUT 1 ea. Connects flavor lines to the internal 9-Tube
Assembly.
3H RUB 602 9-POS TUBE CONN. GASKET 1 ea. Provides sealed cavity.
4 INJ 117 TUBE CONNECTOR BODY –BLACK 1 Secures flavor line manifold to flavor lines.
5 MIS 3142 FLAVOR LINE DUST CAP – FB 80 1 Covers syrup manifold when not connected.
6 INJ 201A SYRUP MANIFOLD - BLACK 1 Connects flavor line to Injector Head.
7 RUB 601 9-POS DUCKBILL CHECK VALVE 1 Provides sealed cavity and prevents syrup
leakage.
8 MIS 3143 SUSPENSION BRACKET ASSEMBLY 1 Secures Injector Assembly to freezer door.
8A FAS 2107 INJECTOR BRACKET KNOB 1 ea. Secures the two bracket pieces.
8B MIS 3143A SUSPENSION BRACKET PART A 1 ea. Attaches to freezer door bolts to hang
Injector Assembly.
8C MIS 3143B SUSPENSION BRACKET PART B 1 ea. Secures Bracket Assembly to Injector
Assembly.
8D MIS 3144 NYLON SHOULDER WASHER 1 ea. Allows free horizontal movement for bracket
8E ROT 535 ROTOR BRACKET SPRING WASHER 1 ea. Allows space between hanging and base
brackets

14
“SS” Injector Assembly and Related Parts (Continued)
ITEM PART NO. DESCRIPTION QTY. FUNCTION
9 INJ 323TS INJECTOR ASSEMBLY - NO HEAD 1 Powers Injector system.
9A INJ 330TS INJECTOR MOTOR ASSEMBLY 1 ea. Supplies power to Motor which turns gears.
9B INJ 331 INJECTOR GEARBOX ASSEMBLY 1 ea. Gears turn Gear Cartridge for even syrup
distribution.
9C FAS 2023 ACCESSORY MOUNTING BRACKET
KNOB 1 ea. Secures base Mounting Bracket to Gear Box.
10 ADPT 8750-A CROWN ADAPTER WITH
O-RINGS 1 Attaches Injector Assembly to freezer door.
10A RUB 659 TAYLOR ADAPTER O-RING 8750 1 ea. Creates tension to secure adapter to freezer
door.
10B ADPT 8750 CROWN ADAPTER WITOUT
O-RINGS 1 ea. Attaches Injector Assembly to freezer door.
10C RUB 632 INJECTOR ADAPTER O-RING 1 ea. Creates tension to secure adapter to Injector
Head.
11 ADPT 101A INJECTOR ADAPTER W/ O-RINGS 1 Attaches Injector Assembly to freezer door.
11A RUB 642 ADAPTER O-RING 1 ea. Creates tension to secure Adapter to freezer
door.
11B RUB 640 FLAT ADAPTER GASKET 1 ea. Provides sealed cavity inside Adapter.
11C ADPT 101 INJECTOR ADAPTER 1 ea. Attaches Injector Assembly to freezer.
11D RUB 632 INJECTOR ADAPTER O-RING 1 ea. Creates tension to secure Adapter to Injector
Head.
Figure 3A
A
3H
1
3
2
3B
3G
3E
3D
3B 3F
1C
1B
9A
9C
3A
3A 3C
9B
4567
9
10
10A
10B
10C
11
11A
11B
11C
11D
26003A
1A
8
8B
8A
8C
8D
8E
FOR “SS” SYSTEMS

15
“BLD” Blending Assembly and Related Parts (See Figure 3B)
ITEM PART NO. DESCRIPTION QTY. FUNCTION
B INJ 424VBLD FLAVOR BLEND BLENDING
ASSEMBLY WITH SYRUP LINES,
ADAPTER, & BRACKET
1*
0**
FOR “BLD” SYSTEMS: Blends syrups into
the product.
*1 for 80BLD systems.
**0 for 80SS, 80BEV, & 80FCB systems.
1 ADPT 101A BLENDING ADAPTER W/ O-RINGS 1 Attaches Blending Assembly to freezer door.
1A RUB 642 ADAPTER O-RING 1 ea. Creates tension to secure Adapter to freezer
door.
1B RUB 640 FLAT ADAPTER GASKET 1 ea. Provides sealed cavity inside Adapter.
1C ADPT 101 BLENDING ADAPTER 1 ea. Attaches Blending Assembly to freezer.
1D RUB 632 BLENDING ADAPTER O-RING 1 ea. Creates tension to secure Adapter to
Blending Head.
2 INJ 422C BLENDING HEAD ASSEMBLY 1 Connects flavor line to inject syrups into
product.
2A RUB 652-RSS SMALLER SYRUP PORT O-RING 1 ea. Provides sealed cavity inside syrup port.
2B RUB 651 BLENDING HEAD O-RING 2-020 1 ea. Provides a sealed cavity.
2C RUB 660 LARGER SYRUP PORT O-RING 1 ea. Provides sealed cavity inside syrup port.
3 INJ 321C GEAR CARTRIDGE ASSEMBLY 1 Rotates product for even syrup distribution.
4 SYR 932 6' 9-TUBE ASSEMBLY 1 Supplies syrup to Blending Head from
pumps.
4A FAS 2051 ROLLED FLANGE EYELET 18 ea.
Provides tension in syrup line to affix to line
coupler.
4B ROT 510 LINE COUPLER 2 ea. Holds flavor lines in place.
4C RUB 610 BAG CONNECTOR O-RINGS 1 ea. Provides extra tension between tube
connectors.
4D ROT 515-A 9-TUBE ASSEMBLY WAVE SPRING 1 ea. Provides tension between tube connectors.
4E INJ 116 LINE COUPLER NUT - BLACK 1 ea. Attaches flavor tubes to flavor manifold.
4F SYR 901 6' 9-TUBE ASSEMBLY TUBES 9 ea. Brings syrup from pump to Blending Head.
4G ROT 511 LINE COUPLER NUT 1 ea. Connects flavor lines to the internal 9-Tube
Assembly.
4H RUB 602 9-POS TUBE CONN. GASKET 1 ea. Provides sealed cavity.
5 INJ 117 TUBE CONNECTOR BODY –BLACK 1 Secures flavor line manifold to flavor lines.
6 MIS 3142 FLAVOR LINE DUST CAP – FB 80 1 Covers syrup manifold when not connected.
7 INJ 201A SYRUP MANIFOLD - BLACK 1 Connects flavor line to Blending Head.
8 RUB 601 9-POS DUCKBILL CHECK VALVE 1 Provides sealed cavity and prevents syrup
leakage.

16
“BLD” Blending Assembly and Related Parts (Continued)
ITEM PART NO. DESCRIPTION QTY. FUNCTION
9 MIS 3143 SUSPENSION BRACKET ASSEMBLY 1 Secures Blending Assembly to freezer door.
9A FAS 2107 BLENDING BRACKET KNOB 1 ea. Secures the two bracket pieces.
9B MIS 3143A SUSPENSION BRACKET PART A 1 ea. Attaches to freezer door bolts to hang
Blending Assembly.
9C MIS 3143B SUSPENSION BRACKET PART B 1 ea. Secures Bracket Assembly to Blending
Assembly.
9D MIS 3144 NYLON SHOULDER WASHER 1 ea. Allows left and right movement for bracket.
9E ROT 535 ROTOR BRACKET SPRING WASHER 1 ea. Allows space between hanging and base
brackets.
10 INJ 330-TSC BLENDING MOTOR ASSEMBLY –
HIGH RPM 1 Powers Blending system.
11 INJ 331 BLENDING GEARBOX ASSEMBLY 1 Gears turn Gear Cartridge for even syrup
distribution.
11A FAS 2023 ACCESSORY MOUNTING BRACKET
KNOB 1 ea. Secures base Mounting Bracket to Gear Box.
12 ADPT 8750-A CROWN ADAPTER WITH
O-RINGS 1 Attaches Blending Assembly to freezer door.
12A RUB 659 TAYLOR ADAPTER O-RING 8750 1 ea. Creates tension to secure adapter to freezer
door.
12B ADPT 8750 CROWN ADAPTER WITOUT
O-RINGS 1 ea. Attaches Blending Assembly to freezer door.
12C RUB 632 BLENDING ADAPTER O-RING 1 ea. Creates tension to secure adapter to
Blending Head.

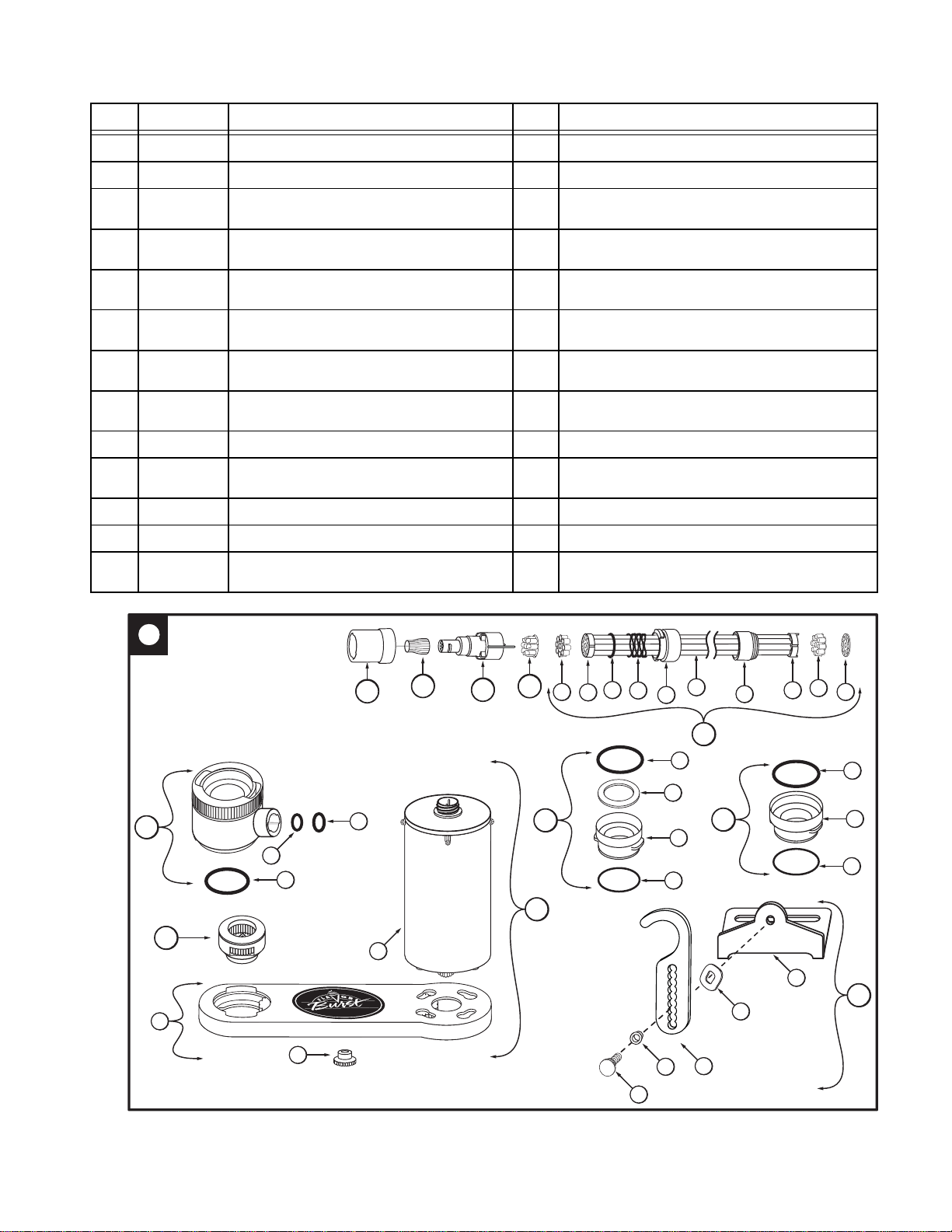

Figure 3B
FOR “BLD” SYSTEMS
B
4H
2
4
3
4B
4G
4E
4D
4B 4F
2C
2B
11A
4A
4A 4C
5678
12
12A
12B
12C
1
1A
1B
1C
1D
26003
2A
9
9B
9A
9C
9D
9E
10
11

17
“BEV” Blending Assembly and Related Parts (See Figure 3C)
ITEM PART NO. DESCRIPTION QTY. FUNCTION
C INJ 424VTS VERTICAL BLENDING ASSEMBLY
WITH SYRUP LINES, ADAPTER, &
BRACKET
1*
0**
FOR “BEV” SYSTEMS: Blends syrups into
the product.
*1 for 80BEV systems.
**0 for 80SS, 80BLD, & 80FCB systems.
1 INJ 422 BLENDING HEAD ASSEMBLY 1 ea. Connects flavor line to inject syrups into
product.
1A RUB 652-RSS SMALLER SYRUP PORT O-RING 1 ea. Provides sealed cavity inside syrup port.
1B RUB 651 BLENDING HEAD O-RING 2-020 1 ea. Provides a sealed cavity.
1C RUB 660 LARGER SYRUP PORT O-RING 1 ea. Provides sealed cavity inside syrup port.
2 INJ 321S GEAR CARTRIDGE ASSEMBLY –
VERTICAL BLENDER 1 Rotates product for even syrup distribution.
3 SYR 932 6' 9-TUBE ASSEMBLY 1 Supplies syrup to Blending Head from
pumps.
3A FAS 2051 ROLLED FLANGE EYELET 18 ea.
Provides tension in syrup line to affix to line
coupler.
3B ROT 510 LINE COUPLER 2 ea. Holds flavor lines in place.
3C RUB 610 BAG CONNECTOR O-RINGS 1 ea. Provides extra tension between tube
connectors.
3D ROT 515-A 9-TUBE ASSEMBLY WAVE SPRING 1 ea. Provides tension between tube connectors.
3E INJ 116 LINE COUPLER NUT - BLACK 1 ea. Attaches flavor tubes to flavor manifold.
3F SYR 901 6' 9-TUBE ASSEMBLY TUBES 9 ea. Brings syrup from pump to Blending Head.
3G ROT 511 LINE COUPLER NUT 1 ea. Connects flavor lines to the internal 9-Tube
Assembly.
3H RUB 602 9-POS TUBE CONN. GASKET 1 ea. Provides sealed cavity.
4 INJ 117 TUBE CONNECTOR BODY –BLACK 1 Secures flavor line manifold to flavor lines.
5 MIS 3142 FLAVOR LINE DUST CAP – FB 80 1 Covers syrup manifold when not connected.
6 INJ 201A SYRUP MANIFOLD - BLACK 1 Connects flavor line to Blending Head.
7 RUB 601 9-POS DUCKBILL CHECK VALVE 1 Provides sealed cavity and prevents syrup
leakage.
8 MIS 3143 BLENDING SUSPENSION BRACKET
ASSEMBLY 1 Secures Blending Assembly to the freezer door.
8A FAS 2107 INJECTOR BRACKET KNOB 1 ea. Secures the two bracket pieces.
8B MIS 3143A BLENDING BRACKET PART A 1 ea. Attaches to freezer door bolts to hang
Blending Assembly.
8C MIS 3143B BLENDING BRACKET PART B 1 ea. Secures Bracket Assembly to Blending
Assembly.

18
“BEV” Blending Assembly and Related Parts (Continued)
ITEM PART NO. DESCRIPTION QTY. FUNCTION
9 INJ 323TS BLENDING ASSEMBLY - NO HEAD 1 Powers Blending system.
9A INJ 330TS BLENDING MOTOR ASSEMBLY 1 ea. Supplies power to Motor which turns gears.
9B INJ 331 BLENDING GEARBOX ASSEMBLY 1 ea. Gears turn Gear Cartridge for even syrup
distribution.
9C FAS 2023 ACCESSORY MOUNTING BRACKET
KNOB 1 ea. Secures base Mounting Bracket to Gear Box.
10 ADPT 104R-A CROWN ADAPTER WITH
O-RINGS 1 Attaches Blending Assembly to freezer door.
10A RUB 627 TAYLOR ADAPTER O-RING 8750 1 ea. Creates tension to secure adapter to freezer
door.
10B ADPT 104R CROWN ADAPTER WITOUT
O-RINGS 1 ea. Attaches Blending Assembly to freezer door.
10C RUB 632 BLENDING ADAPTER O-RING 1 ea. Creates tension to secure adapter to
Blending Head.

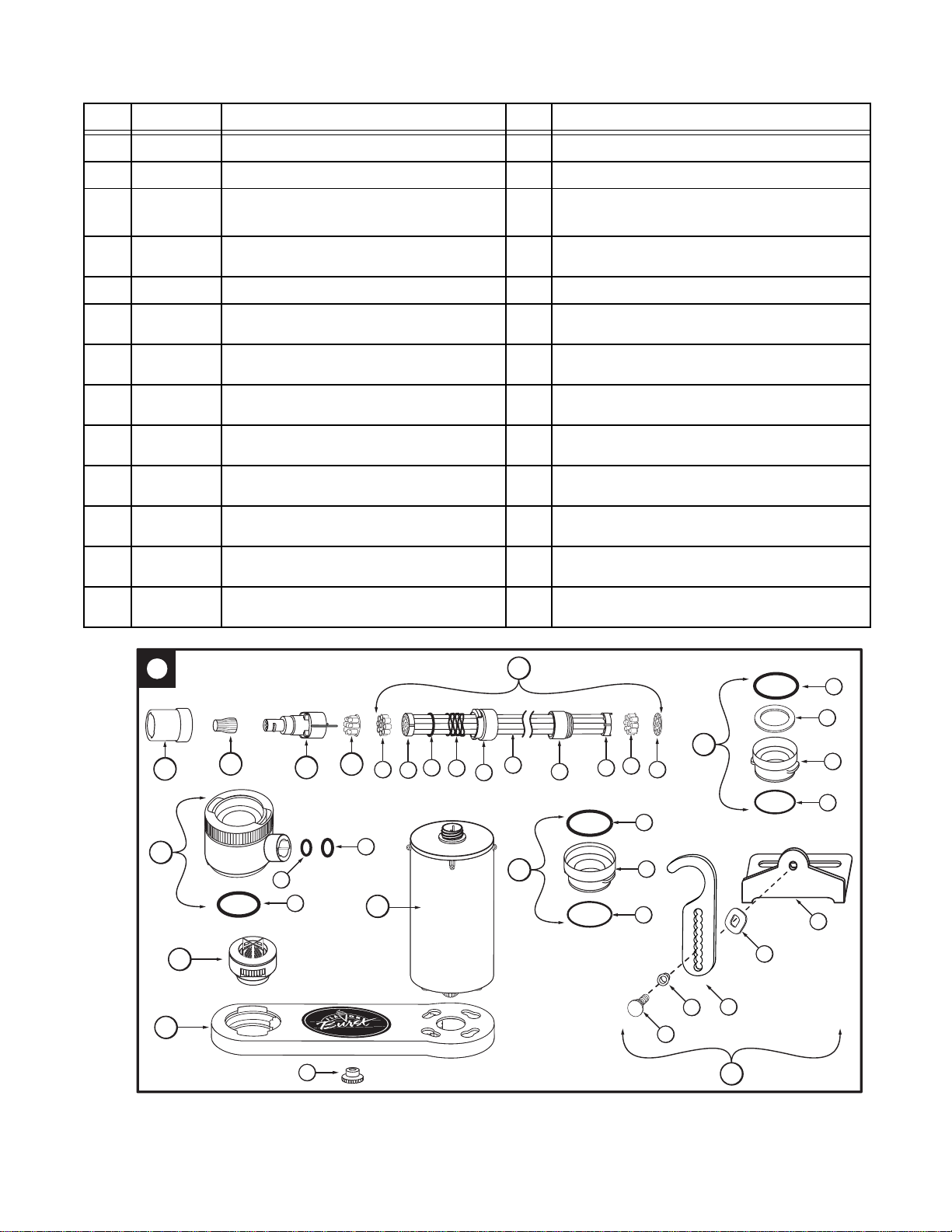

Figure 3C
C
3H
1
3
2
3B
3G
3E
3D
3B 3F
1C
1B
9A
9C
3A
3A 3C
9B
4567
9
10
10A
10B
10C
26003B
1A
8
8B
8A
8C
8D
8E
FOR “BEV” SYSTEMS

19
“FCB” Door Spout Assembly and Related Parts (See Figure 3D)
ITEM PART NO. DESCRIPTION QTY. FUNCTION
D ADPT
TY80S-FCB MODIFIED FCB FREEZER SPOUT ASSEMBLY 1* 0**
FOR “FBC” SYSTEMS: Dispenses product
blended with syrups.
*1 for 80FCB systems.
**0 for 80SS, 80BEV, & 80BLD systems.
1 FCB 112 MODIFIED DOOR SPOUT
ASSEMBLY 1 Dispenses product mixed with flavorings.
1A RUB 652-RSS SMALLER SYRUP PORT O-RING 1 ea. Provides a sealed cavity inside the syrup port.
1B RUB 660 LARGER SYRUP PORT O-RING 1 ea. Provides a sealed cavity inside the syrup port.
2 ELE 530 SPIGOT SWITCH ASSEMBLY KIT 1 Activates the syrup pumps.
2A MIS 3179 MAGNETIC ACTUATOR PIN 1 ea. Activates the Spigot Switch.
3 FCB 121 FLOW RATE CONTROLLER 1 Regulates the rate at which product is
dispensed.
3A FAS 2134 8-32 x 1 ½” M/SCREW P.H. SS 1 ea. Adjusts to shorten and lengthen the assembly
to allow more or less product dispensed.
3B FCB 115 8-32 X 1” PLAS STAND OFF 1 ea. Connects the two screws of the assembly.
3C FAS 2024 8-32 X ¼” M/SCREW P.H. SS 1 ea. Remains as a stationary screw.
4 SYR 932 6’ 9-TUBE ASSEMBLY 1 Supplies syrup to the draw spout from the
pumps.
4A FAS 2051 ROLLED FLANGE EYELET 18 ea.
Provides tension in syrup line to affix to line
coupler.
4B ROT 510 LINE COUPLER 2 ea. Holds flavor lines in place.
4C RUB 610 BAG CONNECTOR O-RING 1 ea. Provides extra tension between tube
connectors.
4D ROT 515-A 9-TUBE ASSEMBLY WAVE SPRING 1 ea. Provides tension between tube connectors.
4E INJ 116 LINE COUPLER NUT – BLACK 1 ea. Connects flavor lines to the internal 9-Tube
Assembly.
4F SYR 901 6’ 9-TUBE ASSEMBLY TUBES 9 ea. Brings syrup from pump to modified door
spout.
4G ROT 511 LINE COUPLER NUT 1 ea. Connects the flavor lines to the internal 9-
Tube Assembly.
4H RUB 602 9-POS TUBE CONNECTOR
GASKET 1 ea. Provides a sealed cavity.
5 INJ 117 TUBE CONNECTOR BODY-BLACK 1 Secures flavor line manifold to flavor lines.
6 MIS 3142 FLAVOR LINE DUST CAP- FB 80 1 Covers syrup manifold when not connected.
7 INJ 201A SYRUP MANIFOLD 1 Connects flavor line to modified door spout.
8 RUB 601 9-POS DUCKBILLE CHECK VALVE 1 Provides sealed cavity and prevents syrup
leakage.
