SAFETY REGULATIONS REGARDING LP GAS
SYSTEMS AND LP GAS APPLIANCES
The manufacturer of this recreational vehicle is required to furnish the following consumer information as provided by
the National Fire Protection Association and the American National Standards Institute, The information and warnings
found here may also be found in otherchapters ofthis Owner's Manual. Please see chapters titled "LP GAS SYSTEM"
and "APPLIANCES" for other safety and operating information.
WARNING
LP GAS CONTAINERS SHALL NOT BE PLACED OR STORED INSIDE THE VEHICLE. LP GAS CONTAINERS ARE
EQUIPPED WITH SAFETY DEVICES WHICH RELIEVE EXCESSIVE PRESSURE BY DISCHARGING GAS TO THE
ATMOSPHERE.
WARNING
IT IS NOT SAFE TO USE COOKING APPLIANCES FOR COMFORT HEATING. COOKING APPLIANCES NEED
FRESH AIR FOR SAFE OPERATION. BEFORE OPERATION:
1. OPEN OVERHEAD VENT OR TURN ON EXHAUST FAN, AND
2. OPEN WINDOW.
THIS
WARNING LABEL HAS BEEN LOCATED IN THE COOKING AREA TO REMIND YOU TO PROVIDE AN
ADEQUATE SUPPLY OF FRESH AIR FOR COMBUSTION. UNLIKE HOMES, THE AMOUNT OF OXYGEN SUPPLY
IS LIMITED DUE TO THE SIZE OF THE RECREATIONAL VEHICLE, AND PROPER VENTILATION WHEN USING
THE COOKING APPLIANCE(S) WILL AVOID DANGERS OF ASPHYXIATION. IT IS ESPECIALLY IMPORTANT
THAT COOKING APPLIANCES NOT BE USED FOR COMFORT HEATING AS THE DANGER OF ASPHYXIATION
IS GREATER WHEN THE APPLIANCE IS USED FOR LONG PERIODS OF TIME.
WARNING
PORTABLE FUEL-BURNING EQUIPMENT, INCLUDING WOOD AND CHARCOAL GRILLS AND STOVES, SHALL
NOT BE USED INSIDE THIS RECREATIONAL VEHICLE. THE USE OF THIS EQUIPMENT INSIDE THE RECREA-
TIONAL VEHICLE MAY CAUSE FIRES OR ASPHYXIATION.
WARNING
DO NOT BRING OR STORE LP GAS CONTAINERS, GASOLINE, OR OTHER FLAMMABLE LIQUIDS INSIDE THE
VEHICLE BECAUSE A FIRE OR EXPLOSION MAY RESULT.
Awarning label has been located nearthe LP gas container. Thislabel reads: DO NOTFILL CONTAINER(S) TO MORE
THAN 80 PERCENT OF CAPACITY.
Overiilling the LP gas container can result in uncontrolled gas flow which can cause fire or explosion. A properly filled
container will contain approximately 80 percent of its volume as liquid LP gas.
The following label has been placed in the vehicle near the range:
IF YOU SMELL GAS:
1. Extinguish any open flames, pilot lights and all smoking materials.
2. Do not touch electrical switches.
3. Shut oft the gas supply at the tank valve(s) or gas supply connection.
4. Open doors and other ventilating openings.
5. Leave the area until odor clears.
6. Have the gas system checked and leakage source corrected before using again.
LP gas regulators must always be installed with the diaphragm vent facing downward. Regulators that are not in
compartments have been equipped with a protectIve cover. Make sure that regulatorvent facesdownward and the cover
is kept in place to minimize vent blockage which could result in excessive gas pressure causing fire or explosion.

IMPORTANT NOTICE
Ourforest product suppliers have advised that urea-formaldehyde is used
in theproduction ofparticle board, hardwoodplywood or panelingwhichthey
supply us and which we utilize in ourfinished product.These suppliers have
requested that we communicate this to our customers.
Foryourinformation, we are reproducingsamplesof statementswhich have
been provided to us
by our suppliers.
WARNING: THIS PRODUCT IS MANUFACTUREDWITH UREA-FORM-
ALDEHYDE RESIN. FORMALDEHYDE VAPOR MAY
IN SOME PEOPLE
CAUSE HEADACHES, EYE, NOSE AND THROAT IRRITATION, AND
AGGRAVATION OFALLERGIESAND RESPIRATORYPROBLEMS, SUCH
AS ASTHMA. PROPER VENTILATION SHOULD REDUCE THE RISK OF
SUCH PROBLEMS.
Champion International Corporation
WARNING: IRRITANT: THIS PRODUCT CONTAINS A UREA-FORMAL-
DEHYDE RESIN AND MAY RELEASE FORMALDEHYDE VAPORS
IN
LOW CONCENTRATIONS. FORMALDEHYDE CAN BE IRRITATING TO
THE EYES AND UPPER RESPIRATORY SYSTEM
OF ESPECIALLY
SUSCEPTIBLE PERSONS SUCH AS THOSE WITH ALLERGIES OR
RESPIRATORY AILMENTS. USE WITH ADEQUATE VENTILATION. IF
SYMPTOMS DEVELOP, CONSULT YOUR PHYSICIAN.
Georgia-Pacific Corporation
WARNING: THIS PRODUCT IS MANUFACTURED WITH A UREA-
FORMALDEHYDE RESIN ANDWILL RELEASE SMALLQUANTITIES OF
FORMALDEHYDE.FORMALDEHYDELEVELS INTHE INDOORAIRCAN
CAUSE TEMPORARY EYE AND RESPIRATORY IRRITATION, AND MAY
AGGRAVATE RESPIRATORY CONDITIONS OR ALLERGIES. VENTILA-
TION WILL REDUCE INDOOR FORMALDEHYDE LEVELS.
Weyerhaeuser Company
Ventilation is important in maintaining a comfortable environment and we
direct your attention to the discussion of ventilation contained in your
Owner's Manual.

FULL ONE-YEAR 115,000 MILE
..----WARRANTy--- ......
FOR MOTOR HOMES MANUFACTURED BY SUBSIDIARIES OF FLEETWOOD ENTERPRISES, INC.
SOLD
IN THE UNITED STATES AND CANADA
COVERAGE PROVIDED
Your new motor home, including the structure, plumbing, heating and electrical systems, and all appliances and equipment installed by the manufacturer,
is warranted under normal use to be free from manufacturing defects in material or workmanship.
The warranty extends to the first retail purchaser and his transferee(s) and begins on the date of original retail delivery or the date the motor home Is
first placed into service as a rental, commercial or demonstrator unit (whichever occurs first). The warranty extends for a period of one year from such
date or until the unit has received 15,000 total miles of use as determined by the mileage shown on the odometer (whichever occurs first). Written notice
of defects
must be given to the selling deater or the manufacturer not later than ten (10) days after the expiration of the warranty period.
OWNER'S OBLIGATIONS
The owner is responsible for normal maintenance as described in the Owner's Manual; however, minor adjustments (such as adjustments to the interior
or exterior doors,
LP regulator pressure, cabinet latches, TV antenna control, etc.) will be penormed by the dealer during the first 90 days of warranty
coverage. Thereafter,
such adjustments are the responsibility of the owner as normal maintenance unless requIred as a direct result of repair or replace-
ment of a defective part under this warranty.
If a problem occurs which the owner believes is covered by this warranty, the owner shall contact the selling dealer, or other authorized dealer, givIng
that dealer sufficient information
to resolve the matter. The owner shall deliver the motor home to the dealer or manufacturing plant location for warranty
service.
DEALER'S OBLIGATIONS
By agreement with the manufacturer, the dealer is obligated to maintain the motor home prior to retail sale, to perform a detailed predelivery inspection
and to repair or replace any parts necessary to correct defects in material or workmanship.
WHEN THE DEALER DOES NOT RESOLVE THE PROBLEM
If the dealer is unable or unwilling to resolve a problem which the owner is convinced is covered by the warranty, he should contact the manufacturing
plant at the address listed below
and provide the manufacturer with a description in writing of the problem and attempts made to resolve It.
MANUFACTURING PLANT OBLIGATIONS
Upon receipt of notice of a claim, where the dealer was unable or unwilling to resolve the problem, the manufacturing plant will repair or replace any
parts necessary
to correct defects In material or workmanship, or will take other appropriate action as may be required.
WHEN THE MANUFACTURING PLANT DOES NOT RESOLVE THE PROBLEM
If the representatives of the manufacturing plant are unable to resolve the problem and the owner is convinced that it is covered by this warranty, the
owner should call the toll-free number listed below to describe the problem and the attempts made to resolve It.
WHAT IS NOT COVERED BY THE EXPRESS WARRANTY
THIS WARRANTY DOES NOT COVER:
1. THE AUTOMOTIVE SYSTEM (INCLUDING THE CHASSIS AND DRIVE TRAIN). TIRES AND BATIERIES. WHICH ARE COVERED BY THE
SEPARATE WARRANTIES OF THE RESPECTIVE MANUFACTURERS OF THESE COMPONENTS.
2. DEFECTS CAUSED BY OR RELATED TO:
A. ABUSE. MISUSE. NEGLIGENCE. OR ACCIDENT;
B. FAILURE TO COMPLY WITH INSTRUCTIONS CONTAINED IN THE OWNER'S MANUAL;
C. ALTERATION OR MODiFICATION OF THE MOTOR HOME;
D. ENVIRONMENTAL CONDITIONS (SALT. HAIL. CHEMICALS IN THE ATMOSPHERE. ETC.)
3. NORMAL DETERIORATION DUE TO WEAR OR EXPOSURE, SUCH AS FADING OF FABRICS OR DRAPES, CARPET WEAR, ETC.
4. NORMAL MAINTENANCE AND SERVICE ITEMS, SUCH AS LIGHT BULBS, FUSES, WIPER BLADES, LUBRICANTS, ETC.
5. MOTOR HOMES ON WHICH THE ODOMETER READING HAS BEEN ALTERED.
6. TRANSPORTATION TO AND FROM DEALER OR MANUFACTURING PLANT LOCATION. LOSS OF TIME. INCONVENIENCE. COMMERCIAL
LOSS. LOSS OF USE. TOWING CHARGES. BUS FARES. VEHICLE RENTAL. INCIDENTAL CHARGES SUCH AS TELEPHONE CALLS OR
HOTEL BILLS, OR OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES.
SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE
LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.
THE MANUFACTURERIS NOT RESPONSIBLE FORANYUNDERTAKING,REPRESENTATION ORWARRANTY MADE BY ANY DEALER OR OTHER PERSON BEYOND THOSE
EXPRESSLY SET FORTH IN THIS WARRANTY.
Brand Name:~~~~~~~~~~~~~~~~_
FOR SERVICE ASSISTANCE:
Fleetwood Parts & Service
P.O. Box 5700
Riverside. CA 92507
(800) 854·4755
Fleetwood Parts & Service
P.O. Box 1007
Decatur.
IN 46733
[phone]
Model; __________ _ Serial
No. _____ _
Fleetwood Parts & Service
P.O. Box 106
Paxinos, PA 17860
(800) 854·4755
CORPORATE HEADQUARTERS:
Motor Home Division
Fleetwood Enterprises, Inc.
P.O. Box 7638
Riverside,
CA 92513-7638
(800) 854·4755

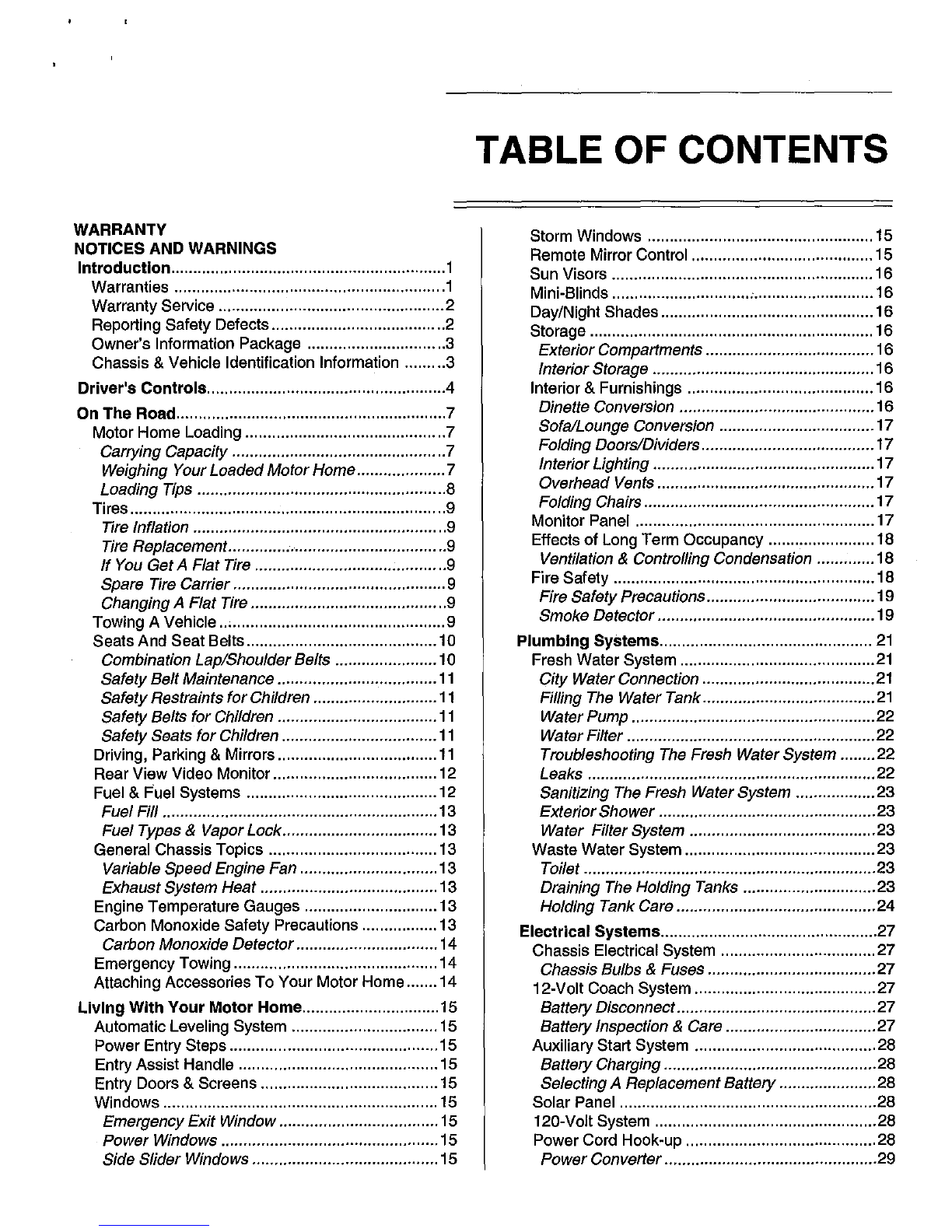

TABLE OF CONTENTS
