Fleetwood Jamboree 1991 User manual

• I
1991

,
I
i

WARRANTY
NOTICES AND WARNINGS
Introduction
Warranties ............................................................1
Reporting Safety Defects......................................2
Owner's Information Package ..............................3
Chassis & Vehicle Identification Information ........3
On The Road
Motor Home Loading ............................................5
Carrying Capacity ...............................................5
Loading Tips ...........:.........•.................................6
Determining Your Motor Home Load ..................6
Weighing Your LoadedMotor Home ....................6
Tires......................................................................7
Tire Inflation ........................................................7
Tire Replacement................................................7
If You Get A Flat Tire ..........................................7
Spare Tire Carrier ...............................................7
ChangingA Flat Tire ...........................................7
Towing A Vehicle .................................................8
Seats And Seat Belts............................................8
Driver/PassengerSeats ......................................8
Seat Belts............................................................8
ChildRestraint ....................................................8
Driving & Parking ..................................................9
Fuel & Fuel Systems .......................................,...,9
Fuel Fill ...............................................................9
Fuel Types & Vapor Lock..................................10
Variable Speed Engine Fan................................10
Exhaust System Heat .........................................10
Carbon Monoxide Safety Precautions ................ 10
Carbon Monoxide Detector............................... 11
Emergency Towing ............................................. 11
Living With Your Motor Home
Manual Entry Steps ............................................13
Power Entry Steps ..............................................13
Entry Assist Handle ............................................13
Entry Doors & Screens .......................................13
Windows .............................................................13
Emergency Exit Window .. .................................13
Power Windows ................................................13
Side Slider Windows .........................................13
Remote Mirror Control ........................................14
Sun Visors ..........................................................14
Mini-Blinds .................................................•........14
Roof Rack Ladder Installation ............................14
Storage ...............................................................14
Exterior Compartments .....................................14
Interior Storage .................................................15

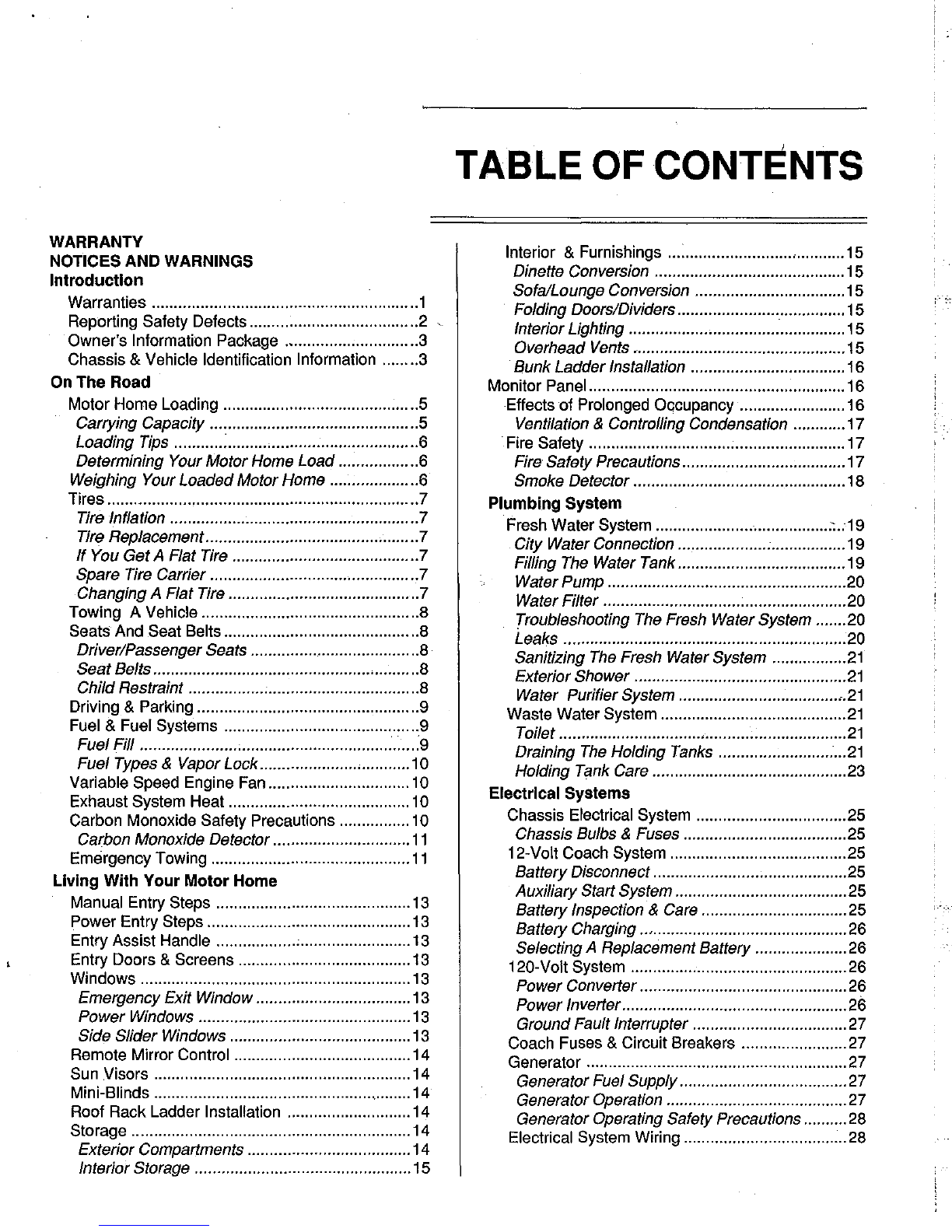

TABLE OF CONTENTS
Interior & Furnishings ............................,...........15
Dinette Conversion ...........................................15
Sofa/Lounge Conversion ..................................15
Folding Doors/Dividers.......................:..............15
Interior Lighting .................................................15
Overhead Vents ................................................15
Bunk LadderInstallation ...................................16
Monitor Panel..........................................................16
Effects
of Prolonged Occupancy ........................16
Ventilation & Controlling Condensation ............17
Fire Safety ................................;.........................17
Fire SafetyPrecautions .....................................17
Smoke Detector ................................................18
Plumbing System
Fresh Water System ....................................... ~ .. 19
City Water Connection ......................................19
Filling The Water Tank ......................................19
Water Pump ......................................................
20
Water Filter .......................................................20
Troubleshooting The Fresh Water System .......20
Leaks ................................................................20
Sanitizing The Fresh Water System ................. 21
Exterior Shower ................................................ 21
Water Purifier System .................................... ,.21
Waste Water System .......................................... 21
Toilet ................................,................................ 21
Draining The Holding Tanks ............................. 21
Holding Tank Care ............................................23
Electrical Systems
Chassis Electrical System .................................. 25
Chassis Bulbs & Fuses .....................................25
12-Volt Coach System ........................................ 25
BatteryDisconnect ............................................25
Auxiliary Start System.......................................
25
Battery Inspection & Care .................................25
i-'-:·
Battery Charging ...............................................26
SelectingA Replacement Battery .....................26
120-Volt System .................................................26
Power Converter...............................................26
Power Inverter ... ................................................26
Ground Fault Interrupter ...................................27
Coach Fuses & Circuit Breakers ........................27
Generator ...........................................................27
Generator Fuel Supply......................................27
GeneratorOperation .........................................27
GeneratorOperating Safety Precautions ..........28
Electrical System Wiring .....................................28

TABLE OF CONTENTS
LP Gas System
Maintenance
LP Gas Safety Precautions ................................29 Exterior ...............................................................37
System Components ..........................................30 Stains ................................................................37
Hoses ................................................................30 Windows, Door, Vents & Locks.........................37
LP Gas Regulator .............................................30 Rubber Roof System........................................38
Using
LP Gas At Low Temperatures .................. 31 Sealant Renewal .. ............................................38
Filling LP Gas Tank ............................................ 31
LP Gas System Leak Cbecks ............................. 31
Door, Window, Roof & Molding Resealing ........38
Interior.................................................................38
LPG Leak Detector .............................................32 Upholstery & Drapes .........................................38
Lighting LP Gas Appliances & Equipment ..........32 Cutting Block.....................................................39
Appliances
Water Heater ......................................................33
Refrigerator.........................................................33
Acrylic Refrigerator Door Panels.......................33
Furnace ..............................................................33
Range .................................................................33
Range Exhaust Hood .........................•...............34
Counter Tops ....................................................39
Walls & Ceifing Panels ......................................39
Bathtub & Plastic ShowerStall .........................39
Floors & Carpeting ............................................39
Engine Access ..................................................39
Maintenance Checklist .......................................39
Motor Home Storage
Air Conditioner...........................,........................34 Storage Checklists ..............................................
41
Entertainment Equipment ...................................34 Short-Term Storage Above Freezing ............... .41
120-Volt TV & VCR ...........................................34 Long-Term Storage Above Freezing.................42
120-Volt VCR ....................................................34 Winterization .......................................................42
120/12-Volt TV ..................................................34 Water System Winterizing..................................42
TVAntenna .......................................................34 Reactivatin(j The Motor Home After Storage ......43
TV Ghosts & FM Flutter ....................................35
Miscellaneous Appliances .......................... '" .....35
Maintenance Chart ................•..............•................45

.
FULL ONE-YEAR 115,000 MILE
...----- WARRANTY ---..
FOR MOTOR HOMES MANUFACTURED BY SUBSIDIARIES OF FLEETWOOD ENTERPRISES, INC.
SOLO IN THE UNITED STATES AND CANADA
COVERAGE PROVIDED
Your new molor home, including the structure, plumbing, heating and electrical systems, and all appliances and equipment installed by the manufacturer,
Is warranted under normal use to be free from manufacturing defects in material or workmanship.
The warranty extends to the first retail purchaser and his transferee{s) and begins on the date of original retail delivery or the date the motor home is
first placed into service as a rental, commercial or demonstrator unit (whichever occurs first). The warranty extends for a period of one year from such
dale or until the unit has received 15,000 total miles of use as determined by the mileage shown on the odometer (whichever occurs first). Written notice
of defects must be given to the selling dealer or the manufacturer not later than ten (10) days {liter the explrat'lon of the warranty period.
OWNER'S OBLIGATIONS
The owner is responsible for normal maintenance as described in the Owner's Manual; however, minor adjustments (such as adjustments to the interior
or exterior doors, LP regulator pressure, '1abinel latches, TV antenna control, etc.) will be performed by the dealer during the firsl 90 days of warranty
coverage. Thereafter, such adjustments are the responsibility of the owner as normal maintenance unless required as a direcl result of repair or replace-
ment of a defective part under this warranty.
If a problem occurs which the owner believes is covered by this warranty, the owner shall contact the selling dealer, or other authorized dealer, giving
him sufficient Information to resolve the matler. The owner shall deliver the motor home to the deafer or manufacturing plant location for warranty service.
DEALER'S OBLIGATIONS
By agreement with the manufacturer, the dealer is obligated to maintain the motor home prior to retail sale, to perform a detailed predelivery inspection
and 10 repair or replace any parts necessary to correct defects in material or workmanship.
WHEN THE DEALER DOES NOT RESOLVE THE PROBLEM
If the dealer is unable or unwilling to resolve a problem which the owner is convinced is covered by the warranty, he should conlact the manufacturing
plant at the address Ii~ted below and provide the manufacturer with a descrip!ion in writing of the problem and attempts made to resolve it.
MANUFACTURING PLANT OBLIGATIONS
Upon receipt of notice of a claim, where the deater was unabte or unwilling to resolve the problem, the manufacturing plant will repair or replace any
parts necessary to correct defects in material or workmanship, or will take other appropriate action as may be required.
WHEN THE MANUFACTURING PLANT DOES NOT RESOLVE THE PROBLEM
If the representatives of the manufacturing plant are unable to resolve the problem and the owner is convinced that it is covered by the warranty, the
owner should call the toll·free number listed below to describe the problem and the attempts made to resolve it.
WHAT IS NOT COVERED BY THE EXPRESS WARRANTY
THIS WARRANTY DOES NOT COVER:
1. THE AUTOMOTIVE SYSTEM (INCLUDING THE CHASSIS AND DRIVE TRAIN). TIRES AND BATTERIES. WHICH ARE COVERED BY THE
SEPARATE WARRANTIES OF THE RESPECTIVE MANUFACTURERS OF THESE COMPONENTS.
2. DEFECTS CAUSED BY OR RELATED TO:
A. ABUSE. MISUSE. NEGLIGENCE OR ACCIDENT;
B. FAILURE TO COMPLY WITH INSTRUCTIONS CONTAINED IN THE OWNER'S MANUAL;
C. ALTERATION OR MODIFICATION OF THE MOTOR HOME;
D. ENVIRONMENTAL CONDITIONS (SALT. HAIL. CHEMICALS IN THE ATMOSPHERE. ETC.)
3. NORMAL DETERIORATION DUE TO WEAR OR EXPOSURE. SUCH AS FADING OF FABRICS OR DRAPES. CARPET WEAR. ETC.
4. NORMAL MAINTENANCE AND SERVICE ITEMS. SUCH AS LIGHT BULBS. FUSES. WIPER BLADES. LUBRICANTS, ETC.
5. MOTOR HOMES ON WHICH THE ODOMETER READING HAS BEEN ALTERED.
6. TRANSPORTATION TO AND FROM DEALER OR MANUFACTURING PLANT LOCATION. LOSS OF TIME. INCONVENIENCE. COMMERCIAL
LOSS. LOSS OF USE. TOWING CHARGES. BUS FARES. VEHICLE RENTAL. INCIDENTAL CHARGES SUCH AS TELEPHONE CALLS OR HOTEL
BILLS. OR OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES .
SOME STATES 00 NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES. SO THE ABOVE
LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.
THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY UNDERTAKING, REPRESENTATION, OR WARRANTY MADE BY ANY DEALER OR OTHER
PERSON BEYOND THOSE EXPRESSLY SET FORTH IN THIS WARRANTY.
Brand Name _________________ Model _________ Serial No. ________ _
MANUFACTURING PLANT:
CORPORATE HEADQUARTERS:
Consumer Affairs Department
Fleetwood Enterprises, Inc.
P.O. Box 7300
Riverside, California 92523
From California: [phone]
From Outside of California: [phone]
Printed in USA

IMPORTANT NOTICE
Our forest product suppliers have advised that urea-formaldehyde is used
in the productionofparticleboard, hardwoodplywood orpanelingwhich they
supplyus andwhich we utilize in ourfinished product. These suppliers have
requested that we communicate this to our customers.
Foryour information, we are reproducingsamples of statementswhich have
been provided to us by our suppliers.
WARNING: THIS PRODUCT
IS MANUFACTURED WITH UREA-
FORMALDEHYDE RESIN. FORMALDEHYDE VAPOR MAY
IN SOME
PEOPLE CAUSE HEADACHES, EYE, NOSE AND THROAT IRRITATION,
AND AGGRAVATION OFALLERGIES AND RESPIRATORY PROBLEMS,
SUCH AS ASTHMA. PROPER VENTILATION SHOULD REDUCE THE
RISK OF SUCH PROBLEMS.
Champion International Corporation
WARNING: IRRITANT: THIS PRODUCT CONTAINS A UREA-FORMAL-
DEHYDE RESIN AND MAY RELEASE FORMALDEHYDE VAPORS
IN
LOW CONCENTRATIONS. FORMALDEHYDE CAN BE IRRITATING TO
THE EYES AND UPPER RESPIRATORY SYSTEM OF ESPECIALLY
SUSCEPTIBLE PERSONS SUCH
AS THOSE WITH ALLERGIES OR
RESPIRATORY AILMENTS. USE WITH ADEQUATE VENTILATION. IF
SYMPTOMS DEVELOP, CONSULT YOUR PHYSICIAN.
Georgia-Pacific Corporation
WARNING: THIS PRODUCT IS MANUFACTURED WITH A UREA-
FORMALDEHYDE RESIN AND WILL RELEASE SMALLQUANTITIES OF
FORMALDEHYDE. FORMALDEHYDELEVELS IN THE INDOORAIR CAN
CAUSE TEMPORARY EYE AND RESPIRATORY IRRITATION, AND MAY
AGGRAVATE RESPIRATORY CONDITIONS OR ALLERGIES. VENTILA-
TION WILL REDUCE INDOOR FORMALDEHYDE LEVELS.
Weyerhaeuser Company
Ventilation is important in maintaining a comfortable environment and we
direct your attention to the discussion
of ventilation contained in your
Owner's Manual.
.

SAFETY REGULATIONS REGARDING LP GAS
SYSTEMS AND LP GAS APPLIANCES
The manufacturer of this recreational vehicle is required to furnish the following consumer information as provided by
the National Fire Protection Association and the American National Standards Institute. The information and warnings,
found here may also befound in otherchapters ofthis Owner's Manual. Please see chapters titled "LP GAS SYSTEM"
and "APPLIANCES" for other safety and operating information.
WARNING
LP GAS CONTAINERS SHALLNOT BE PLACED OR STORED INSIDE THE VEHICLE. LP GAS CONTAINERSARE
EQUIPPEDWITH SAFETY DEVICES WHICH RELIEVE EXCESSIVE PRESSURE BY DISCHARGING GASTO THE
ATMOSPHERE.
WARNING
IT IS NOT SAFE TO USE COOKING APPLIANCES FOR COMFORT HEATING. COOKING APPLIANCES NEED
FRESH AIR FOR SAFE OPERATION. BEFORE OPERATION:
t. OPEN OVERHEAD VENT OR TURN ON EXHAUST FAN, AND
2. OPEN WINDOW.
THIS WARNING LABEL HAS BEEN LOCATED
IN THE COOKING AREA TO REMIND YOU TO PROVIDE AN
ADEQUATE SUPPLYOF FRESH AIR FOR COMBUSTION. UNLIKE HOMES,THE AMOUNT OFOXYGEN SUPPLY
IS LIMITED DUE
TO THE SIZE OF THE RECREATIONAL VEHICLE, AND PROPER VENTILATION WHEN USfNG
THE COOKING APPLIANCE(S) WILL AVOID DANGERS OF ASPHYXIATION. IT IS ESPECIALLY IMPORTANT
THATCOOKING APPLIANCES NOT BE USED FOR COMFORT HEATING AS THE DANGER OF ASPHYXIATION
IS GREATER WHEN THE APPLIANCE IS USED FOR LONG PERIODS OF TIME.
WARNING
PORTABLE FUEL·BURNINGEQUIPMENT, INCLUDING WOODAND CHARCOALGRILLS AND STOVES, SHALL
NOT BE USED INSIDE THIS RECREATIONAL VEHICLE. THE USE OF THIS"EQUIPMENT INSIDE THE RECREA-
TIONAL VEHICLE
MAY CAUSE FIRES OR ASPHYXIATION.
WARNING
DO NOT BRING OR STORE LP GAS CONTAINERS, GASOLINE, OR OTHER FLAMMABLE LIQUIDS INSIDE THE
VEHICLE BECAUSE A FIRE OR EXPLOSION MAY RESULT.
Awarning label hasbeen located nearthe LP gascontainer. Thislabel reads: DO NOTFILL CONTAINER(S)TO MORE
THAN 80 PERCENT OF CAPACITY.
Overfilling the LP gas container can result in uncontrolled gas flow which can cause fire or .exploslon. A properly filled
container will contain approximately 80 percent of its volume as liquid LP gas.
The following label has been placed in the vehicle near the range:
IF YOU SMELL GAS:
1. Extinguish any open flames, pilot lights and all smoking materials.
2. Do not touch electrical switches.
3. Shut off the gas supply at the tank valve(s) or gas supply connection.
4. Open doors and other ventilating openings.
5. Leave the area until odor clears.
6. Have the gas system checked and leakage source corrected before using again.
LP gas regulators must always be installed with the diaphragm vent facing downward. Regulators that are not in
compartments have been equipped with a protective cover. Make surelhat regulator vent faces downward and the cover
is kept in place to minimize vent blockage which could result in excessive gas pressure causing fire or explosion.

Welcome to the recreational vehicle life-style and the
growing family of motor home owners. We sincerely
thank you for choosing a Fleetwood motor home!
Your motor
home hasbeendesignedto provide you with
years of carefree, pleasant traveling and vacationing.
Yourmotorhomeconformswith, orexceeds, theAmeri-
can National Standards InstituteA119.2, CSAStandard
Z-240 (units built for Canada), and applicable Federal
Motor Vehicle Safety Standards. These standards es-
tablish the plumbing, heating, electrical and other re-
quirements for performance and safety. Compliance
with ANSI and CSAstandards is indicated by the seal
attached just outside the entry door.
Like all finely crafted equipment, your motor home will
requirecare
and regularmaintenancein orderto deliver
maximum value and performance. The dealer will give
you basic operating and maintenance instructions;
however, supplement this by reading all instructional
material furnished with the motor home in the Owner's
Information Package and Chassis Operator's Manual.
This information outlines important areas of mainte-
nance and provides a maintenance schedule for you to
follow for safe, trouble free service from your motor
home. Study these instructions carefully before you
operate the motor home for the first time. A good
working knowledgeofyour motorhome and howto care
for it will help you enjoy many miles and years of
recreational living.
NOTE: Thismanualdescribesmanyfeatures of
your motor home and includes instructions for
its safe use. This manual, including photo-
graphs and illustrations, is of a general nature
only. Some equipment and features described
or shown in this manual may be optional. Be-
cause of the continuous program of product
improvement conducted by Fleetwood, it is
possible that recent productchanges may not
be included. The instructions included in this
manualare intendedasa guide, and in no way
extendthe responsibilities of themanufacturing
subsidiary, parentcompany or affiliatesbeyond
the standard written warranty as presented in
this manual.
1
INTRODUCTION
In this manual, statements preceded by the following
words are of special significance:
"WARNING" means that there is the possibility
of personal injury to yourself and others.
"CAUTION" means that there is the possibility
of damage to the vehicle.
"NOTE" indicates points of particular interest
for more efficient and convenient operation.
Please pay close attention to these statements while
you read this manual.
NOTE: This product is designed for recrea-
tional use and shortterm occupancy only. It is
notdesigned or intendedto be usedasperma-
nenthousing. Use of thisproductfor long term
or permanent occupancy may lead to prema-
ture deterioratil1n of interior finishes, fabrics,
carpeting, drapes, appliances and fixtures.
Damage or deteriorationdueto long term occu-
pancy is not be considered normal, and will
under the terms of the warranty constitute
misuse, abuse, or neglect, thereby reducing
your warranty protection. Before considering
this motorhome for long term occupancy, con-
sult the relevant sections-if! this manual:
If you have any questions regarding operation, mainte-
nance, or service, please contact your dealer immedi-
ately so he' can assist you. Your dealer's Service or
Sales Department will handle any normal problems
which might occur.
WARRANTIES
Your motorhome is covered by one ofthe mostcompre-
hensive warranty programs in the RV industry. Please
refer to the warranty in the front of this manual. It
explainsyourrightsandobligations, aswell asthe rights
and obligations of.the dealer and manufacturer. Please
read this section carefully. You will be better informed in
case you have a warranty-related problem, and your
dealerwill be betterable to get you on the road again. If
you have any questions about the warranty or what it
does or does not cover, please contact your dealer.

2
The materials in your Owner's Information Package
contain warrantyinformation and operating instructions
on the various appliances and components in your
motorhome. Warranty registrationcards forthese items
should
be filled outand mailed as soon as possible after
youtakedeliveryofyourmotorhome. If you do not have
operating instructionsfor a particularappliance, contact
your dealer
..
You will automatically receive an Ownercare Card
approximately 3-4 weeks after delivery of your new
motor home. This plastic card is imprinted with your
name, the motor home serial number, and manufactur-
ing subsidiary location.
If your motor home ever needs
warranty service, present this card to the dealer.
The motorhome has been thoroughly inspected before
shipment. Your dealer is responsible for performing a
complete predelivery inspection of the chassis and all
motorhome componentsasspecified in the predelivery
checklists supplied by the motor home and chassis
manufacturers. You
should receive a copy of these
completed checklists from your dealer when your
motor home is delivered to you.
As a part of the predelivery inspection procedure, the
dealer is responsible for road testing the motor home,
noting and correcting any steering problems before
delivery. FLEETWOODAND ITS SUBSIDIARIESWILL
NOT BE RESPONSIBLE FOR FRONT END ALIGN-
MENTAFTER THIS PREDELIVERY INSPECTION
IS
DONE.
You should return your motorhometothe selling dealer
for warranty service. If this is not possible, you may
contact any other authorized Fleetwood motor home
dealer. The service department at any of the locations
listed at the back of this manual can help you find a
dealer in your area.
If, for some reason, a problem is not handled to your
satisfaction:
1. Discuss any warranty-related problems directly
with the manager and/or owner of the dealer-
ship, giving them an opportunity to help the
service department resolve the matter for you.
2. Ifa problem arises that has not been resolved to
yoursatisfaction byyourlocaldealer, contactthe
manufacturing subsidiary service facility. The
locations are listed in this manual. Please con-
tact the one nearest you.
3.
We sincerely believe that your dealer and the
factory representative will be able to solve any
problem which might arise. If their combined
efforts are not satisfactory, please send a letter
describing the circumstances to:
Fleetwood Enterprises, Inc.
Consumer Affairs Department
P.O. Box 7300
Riverside; CA 92523
Please include the brand name and serial num-
berofyour motorhome. The serial numberis lo-
cated on the identification tag next to the entry
door.
4. If you wish to call for assistance, please use
these toll-free telephone numbers:
From California: [phone]
From Outside California: [phone]
REPORTING SAFETY DEFECTS
Ifyou believethatyourvehicle hasa defectwhich could
cause acrash orcouldcause injuryordeath, you should
immediately inform the National Highway Traffic Safety
Administration (NHTSA) in addition to notifying FleEit-
wood Enterprises Consumer Affairs Department.
If NHTSA receives similar complaints, it may open an
investigation, and if it finds that a safety'defect exists in
a group of vehicles, it may order a recall and remedy
campaign. However, NHTSA cannoi become involved
in individual problems between you, your dealer or
Fleetwood's manufacturing subsidiary.
To contact NHTSA, you may eithercall the Auto Safety
Hotline toll-free at 1-800-424-9393 (or 366-0123
in
Washington, D.C. area) or write to:
NHTSA
U.S.
Department of Transportation
Washington, D.C. 20590.
You can also obtain other information about motor
vehicle safety from the Hotline.

OWNER'S INFORMATION PACKAGE
This package contains valuable documents about your
motor home and its equipment and systems. This
Owner's Manual is in the package. Since this manual
does not cover every possible detail of equipment and
options installed on or in your motor home, there are
booklets and instructional material in the package that
will help you safelyoperate, maintain and troubleshoot
those items. Be sure you read all this information and
understand the safety and operating instructions in-
cluded in the package. Additionally, you must follow all
maintenance instructions to insure full warranty cover-
age. Ifyou ever decideto sell ortrade your motorhome,
be sure the new owner gets all the material in this
package.
3
CHASSIS AND VEHICLE IDENTIFICATION
Several numbers are used to identify the vehicle and
components used on the vehicle. The V.I.N. or Vehicle
Identification Number is the legal identification of the
completed vehicle and is the number on the vehicle
registration. The V.I.N. is found on the DOTcertification
tag attached to the left sidewall ofthe motorhomedriver
compartment Refer to this information when ordering
parts from the chassis manufacturer or chassis dealer
service center. The Fleetwood Identification Number
(F.I.N) is located on the tag just outsidelhe main entry
doororon the outside left front side of the motor home.
Use this number when ordering parts through your
Fleetwood dealer or Service Center.

MOTOR HOME LOADING
Your motorhome chassis is designed to carry a certain
maximum load.Thjsloadindudeseverything:theweight
of the empty motor home itself, all occupants and their
belongings, fuel, fresh water, waste water and anything
else that may be in or attached to the motor home.
The maximum load for which the motor home is de-
signed is called the GROSS VEHICLE WEIGHT RAT-
ING (GVWR). Modifications to your motor home, i.e.,
changing tires
or spring load capacities, will not in any
way increase the GVWR.
Another critical weight factor is the GROSS AXLE
WEIGHTRATING (GAWR).Thisisthe maximumweight
a specific axle is designed to carry. Each axle has its
own GAWR. The GAWR'sdo not necessarily add up to
the GVWR.
The. GVWR and the GAWR for your motor home are
shownonthecertification tag postedon the driver'sdoor
or
in the driver's compartment.
WARNING
DO NOT EXCEED THE RATED LOAD OF
THE MOTOR HOME, OR THE RATED LOAD
OF
ANY AXLE. EXCEEDING THE GVWR OR
GAWROF YOUR MOTOR .HOME WILL
REDUCEYOUR WARRANTYPROTECTION,
CAN
CAUSE UNDESIRABLE HANDLING
CHARACTERISTICS AND MAY CREATE A
SAFETY HAZARD.
In addition to knowing the overall weight that can be
s,afely loaded in or attached to the motor home, you
ml.l$t~now how to distribute the weight so that correct
amounts of'weight are placed
on the axles, The allow-
able carrying capacity of the motor home is found by
weighing the motor home empty, and subtracting this
weight from the GVWR.
Carrying Capacity
Duringthe design and developmentofFleetwood motor
homes, the numberand size of storage compartments,
the liquid tank capacities and number of belted seating
positions are maximized for value and convenience. If
5
ON THE ROAD
you fill all liquidtankstocapacity, fill all storagecompart-
ments and cupboards to maximum volume and fill all
available seating
pOSitions with passengers, the motor
home will be overloaded. According to National High-
way Traffic Safety Administration figures, a vehicle
occupant weighs 150 pounds. Additionally, each gallon
ofgasolineweighssix pounds (6.0 Ibs.) and each gallon
of water weighs over eight pounds (8.3 Ibs.).
You are responsible for analyzing the conditions under
which the motor home will be used for each trip. The
number of passengers and placement of cargo will
affect the amount ofwater and cargo that you can carry
(See "Loading Tips"). For convenience, the passen-
gercapacity forcamping use and the passengercapac-
ity for day use are shown on a permanent label in the
driver's area or adjacent to the main entry door. The
passenger capacity for camping provides reasonable
cargo capacity for trips taking more than one day. The
passenger capacity for day use provides less cargo
capacity for trips or activities not involving overnight
stays. For example, it may
be necessary to reduce the
amount of water carried and unload some cargo items
normallycarriedforcamping in orderto providecarrying
capacity for the additional day use passengers.
The number of seat belt locations may be greater than
the numberofpassengerspermittedbythe label.These
extra locations, if provided,
.are to permit a choice of
seatswhile travelling.
It is notsafeto exceedthe labeled
passenger capacity unless the axle loadings and total
weight are checked against their ratings on a public
scale. (See
"Determining and Distributing Your
Load").
Thoughtful consideration of the weight placed in the
motor home can yield important benefits:
•
Greater choice of seating and storage
Safe operation, including improved handling char-
acteristics and ride comfort
Better fuel mileage and reduced tire wear.

6
NOTE:Carryingcapacities of yourmotorhome
are specified on a label affixed
to the inside of
a wardrobe door. The label includes all factory
installed options. If
other equipment such as
leveling jacks, awnings, roof pods, etc., are
installed after the motor home leaves the fac-
tory, the weight of these items must be sub-
tracted from the total of the passenger and
cargo carrying capacities. Ifyou tow a trailer,
the tongue weight of the trailer must be sub-
tracted from the total of the passenger and
cargo carrying capacities.
Loading Tips
Do not load heavy items in upper cabinets.
Secure and brace items so theywon't move during
travel, thereby shifting the load.
Do not load heavy items near either end of the
motor home
or on the rear bumper.
Adjustcargo storageto keepthe side
to sidewheel
loads as equal as possible.
Carry only as much water as needed for travel use
or to balance the load.
Whenever possible, empty the holding tanks be-
fore traveling.
WARNING
MODIFICATION OF YOUR VEHICLE BY
ADDITION OF RACKS NOT SPECIFIED BY
THE MANUFACTURER TO CARRY ADDI-
TIONAL EQUIPMENT OR VEHICLES WILL
REDUCE YOUR WARRANTY COVERAGE
AND MAY CAUSE INJURY OR PROPERTY
DAMAGE.
Make a loading diagram of your properly loaded motor
home. It will help you locate where specific items are
stored, and will help speed the loading process. Store
emergency items in a readily accessible location. In-
clude a fire extinguisher, tools, first aid kit, rain gear,
flashlight, highway warning devices, and
an electric
cord with light.
WARNING
DO NOT STORE OR CARRY LP GAS CON-
TAINERS, GASOLINE, OR OTHER FLAM-
MABLE LIQUIDS INSIDE YOUR MOTOR
HOME. THE CONTAINERS MAY LEAK.
Determining And Distributing
Your Motor Home Load
If the loaded weight of your motor home exceeds the
GVWR, you will have to removeitems to bringtheweight
down
to or below the GVWR. If the loaded axle weight
on any axle exceeds the GAWR, you will have to
redistribute cargo to bring the weight down to or below
theGAWR.
Weighing Your Loaded Motor Home
Refer to your local directory to locate a public weigh
station. The following weighing procedure will help you
determine whether your loaded motor home (complete
with cargo, fluids, passengers, and driver) is within
GAWR and GVWR limits. When you arrive at a weigh
station, the attendant will guide you through the correct
positioning of the motor home
on the scales.
1.Centerthefrontwheelson the scaleplatformand
take a reading. This is the Front Gross Axle
Weight (Reading
I).
2. Centerthe entire vehicle (all axles) on the scale
and take a reading. This is the Gross Vehicle
Weight (Reading 2).

3. Center the rear wheels on the platform and take a
reading. This reading is the Rear Gross Axle Weight
(Reading 3).
4. Compare Reading 2 with the GVWR of your
vehicle. If the reading exceeds the GVWR rat-
ing, you will haveto reduce the total vehicle load.
5. If reading 2 is less than the GVWR of your
vehicle, check Readings 1 and 3 to verify that
each is less than its respective GAWR. If either
exceeds the GAWR, redistribute the load and
reweigh.
Periodically reweigh your motor home. Loading and
weight patterns will change according to use.
TIRES
Your motor home is equipped with truck tires. Under
normal circumstances and with proper maintenance,
you should receive thousands of miles of trouble free
service.
Tire Inflation
For safety and maximum tire life, proper inflation pres·
sure must be maintained. Properly inflated tires also
contribute to overall motor home stability and safety.
&eter to the tire section in your chassis operator's
manuarfor information on maintenance, inflation pres·
sure, and tire care.
WARNING
FOR SAFETY AND MAXIMUM TIRE LIFE,
CHECKTIRE PRESSURES(INCLUDINGTHE
SPARE) OFTEN. PAY SPECIALATIENTION
TO INSIDE REAR DUALS.ALWAYS CHECK
PRESSURE WHEN TIRES ARE COLD, AND
DO NOT BLEED AIR OUT OF WARM TIRES.
FOLLOW THE TIRE PRESSURE INSTRUC-
TIONS IN THE CHASSIS OPERATOR'S
MANUAL.
NOTE: Check the wheel covers periodically.
They could work loose during driving.
Tire Replacement
7
Replacement tires must be the same size, and have at
least the same weight carrying capacity as the original
equipment. All tires ofthe same size and rating may not
have the same weight carrying capacity. Consult your
tire dealer.The original equipmenttiressupplied on your
motorhome have weight carrying capacities to support
gross axle weight ratings (GAWR) as stated on the
Federal Certification Tag located on the sidewall near
the driver's seat.
If You Get A Flat Tire
In case of sudden tire failure, avoid heavy brake appli-
cation. Gradually decrease speed. Hold steering wheel
firmly and move slowlyto a safe, off-road place. Parkon
a firm, level spot, turn off the ignition, and turn on the
hazard flasher system.
SpareTire Carrier
On some models, the spare tire is located in an exterior
storage compartment. On other models, the spare tire
carrier is located under the rear of the motor home
between the frame rails.
WARNING
TRUCK TIRES AND WHEELS ARE EX-
TREMELY HEAVY AND MAY WEIGH 100
POUNDS OR MORE. DO NOT ATIEMPT TO
REMOVE THE SPARE TIRE UNLESS YOU
ARECAPABLEOFHANDLINGTHEWEIGHT.
Changing A Flat Tire
Even with good tire maintenance and normal driving,
you may experience a flat tire. Summon professional
help through your auto club ortravel service, or a local
truck service facility. Consult the chassis operator's
manual for additional information on tire inflation and
proper torque.
WARNING
TO AVOID PERSONAL INJURY AND/OR
PROPERTY DAMAGE IF A BLOWOUT OR
OTHER TIRE DAMAGE OCCURS, OBTAIN
EXPERT TIRE SERVICE HELP. DO NOT
ATTEMPT TO CHANGE THE TIRE YOUR-
SELF.

8
TOWING A VEHICLE
If you expect to pull a vehicle with your motor home,
please use these guidelineswhen choosing a hitch and
trailer:
Hitch classification: Class
II.
Do not use a load equalizing hitch. It could cause
structural damage to the frame members.
Limitthe tongueweightoftrailerortowing deviceto
a maximum of 250 pounds. Heavier tongue
weights can damage. your rnotor home rear
frame and body, cause unstable driving and
handling characteristics, and will restrict your
rights under the Ownercare warranty.
Do not tow a vehicle weighing more than 3500
pounds,
or more than recommended by the
chassis manufacturer, whichever is less. Heav-
ier vehicles can cause braking problems, dam-
age the motor home structure or drive train,
cause unstable driving
or handling characteris-
tics, and restrict your rights under the Owner-
care warranty. Changing the trailer hitch will not
increase the tow capacity of the motor home
even if the chassis is rated at a higher level.
Th.e Gross Combined Weight Rating (GCWR) is
listed on the wardrobe door tag. The GCWR is
themaximumallowableweightofboththeloaded
motor home and towed vehicle. Exceeding the
GCWR will cause damage to your motor home
drive train
or chassis, unstable driving and han-
dling characteristics, and will reduce your war-
ranty protection.
SEATS AND SEAT BELTS
Driver/Passenger Seats
The driver's .and passenger's seats offer different posi-
tion/cornfort adjustm~nts:
WARNING
DO NOT ADJUST THE SEAT POSITION
WHILE THE VEHICLE IS
IN MOTION. YOU
MAY LOSE CONTROL OF THE VEHICLE.
Forward/Back -The forward/back lever is lo-
cated under the front left of the seat. Pull the
levertowardtheleftoutside ofthe seatto unlock.
Release the lock lever to secure the seat posi-
tion.
Swlvel-The swivel lockleveris located underthe
front right ofthe seat. Lift the lever forward and
up
to swivel.Theseatlocks in the center, forward
position. When unlocked, the seat will swivel
.freely around to the center position.
Recline -The recliner leveris located on the right
arm rest.
Seat Belts
Seat belts are an important safety feature of your
vehicle. Foryourprotection, always useyourseatbelts.
The driver's seat and other seats designed to carry
passengerswhilemoving have been equippedwithseat
belts.
WARNING
ALL RIDERS SHOULD USE SEAT BELTS
WHILE THE VEHICLE IS
IN MOTION. NEI-
THER SEATS WITHOUT SAFETY BELTS
NOR BEDS SHOULD BE OCCUPIED WHILE
THE VEHICLE IS IN MOTION.
Adjust seat belts as follows:
To fasten belt, be sure it is not twisted, thenpush
the tongue end of one belt into the buckle of the
mating belt.
Be sure it latches. For greatest
safety, adjust the belt snugly
as Iowan the
abdomen
as comfort will allow.
To release the belt, depress the button in the
center of the buckle and slide the tongue out of
the buckle. Never use a belt for more than one
person at a time.
Child Restraint
All vehicle occupants, and especially children, should
be restrained whenever riding
in vehicles. Holding a
child
in your arms is not a substitute for seat belts or a
child restraint system. Child restraint systems are de-
signed to be secured in the vehicle seats by lap belts.
Children could be endangered
in a crash if their child
restraints are not properly secured
in the vehicle.

When using any child restraint system, be sure to read
and follow all instructions on installation and use that
come with the system.
When securing a child restraint with a lap belt that has
no retractor, pullthe excesswebbingthroughthe adjust-
ment mechanism.
If the child restraint is still not secure, use a different
seating position
in the vehicle and/or contact your
dealer and the child restraint manufacturer for help.
DRIVING AND PARKING
Onceyou become accustomedtothefeel ofthe controls
and the reference pOints from the driver's seat, you will
find driving a motor home comparable to driving your
familycar. Becomefamiliarwith the position ofthemotor
home
in traffic, and be cautious when maneuvering to
allow for the length and width of the vehicle. Always
allow extra room to corner and to change lanes. Learn
to use the side mirrors to view the road behind.
Remember that your motorhome
is heavierthan a car,
making
it less maneuverable and harder to stop. Also,
because of it'sgreatersidesurfacearea, itis moreeasily
affected bycross winds. Allow extradistances for pass-
ing and stopping, and drive at a moderate speed,
particularly in traffic and in gusty wind conditions.
Driving on winding or mountain roads is not difficult if
done with reasonable care. Observe proper vehicle
speedswhen ascending or descending hills and always
operate in the proper transmission range. Downshift on
hillsto avoid overheating orundueengine loads. Down-
shift when descending grades. Engine braking power
will help control vehicle speed, and relieve some ofthe
strain on
the brakes.
Mountain driving or desert temperatures can put ex-
treme demands on drive train components -especially
the transmission. Under extreme heat conditions you
may need
to turn off the vehicle air conditioner to
improve engine and transmission cooling.
Be aware ofthe extraheight ofyourmotorhome. Check
for low hanging tree branches
or other obstructions
whenever you drive
or park. Avoid low overhangswhen
pulling in for service. Always check overhead clear-
ances ofoverpasses and bridges. This may be particu-
larly importantifyou drive with the overhead vents open
or if the motor home is equipped with a roof air condi-
tioner, roofrack, CB orTV/radioantenna. Beforeleaving
on atrip, check your route. Some tunnels prohibit motor
homes with
LP gas systems.
9
When parking parallel to a curb, be sure to allow for
polesorobstructions as thefrontand rearportionsofthe
motor home swing wider than an automobile. When
parking on
an incline, turn the front wheel into the curb
in thedirection ofthe roll to aid the parking brake. When
parking, always shift the transmission to PARK ("P")
and set the parking brake, if applicable.
WARNING
DONOTPARKORIDLETHE MOTOR HOME
OVER COMBUSTIBLE MATERIALS SUCH
AS TALL GRASS OR DRIED LEAVES. THIS
IS PARTICULARLY
IMPORTANT IF THE
EXHAUSTSYSTEM HAS NOT BEEN PROP-
ERLY MAINTAINED. COMBUSTIBLE MATE-
RIALS MAY CATCH FIRE FROM HOT EX-
HAUST GASES, SOOT OR SPARKS THAT
COULD ESCAPE THROUGH CORROSION
HOLES OR CRACKS.
If operating, parking or idling your vehicle off-road is
unavoidable, as is often the case in recreational use:
Be aware that combustible materials could catch
fire from the vehicle's hot exhaust system.
Keep a fire extinguisher handy.
Avoid
-driVing your vehicle through or over com-
bustible materials such as leaves, grass, vege-
tation or stubble high enough to touch, catch or
collect on its hot exhaust system.
Parking or idling should be done only in an area
where there are nocombustible materials under
the vehicle.
FUEL AND FUEL SYSTEMS
See the Chassis Operator's Manual in the Owner's
Information Package for fuel recommendations. The
optional generator is designed to run on the same fuel
asthe chassis. Consultthegeneratoroperating instruc-
tions for special cautionsaboutmaintenancewith differ-
ent types of fuels.
Fuel Fill
The fuel fillercapis located towardthe rearofthecoach.
Modernfuel systems maybuildupvaporpressure within
the tank
as the gasoline warms during use or hot
weather. Under certain conditions, sudden release of
this pressure when removing the gasoline cap can
cause gasoline to spray from the fill opening, creating a
fire hazard.

10
WARNING
WHEN REMOVING THE GASOLINE CAP,
ROTATE SLOWLY ONLY FAR ENOUGH TO
ALLOW PRESSURE TO RELEASE. AFTER
"HISSING"SOUNDSTOPS, COMPLETETHE
REMOVAL OF THE CAP.
To protectthe gasolinesystem from excessive pressure
or vacuum,
orlrom sudden release of pressure, replace
lost caps with caps of the same design which are
available from your Fleetwood motor home dealer.
Clean upfuel spills immediately. Raw fuel spilled on the
motor home could damage the exterior finish, and is a
serious fire hazard.
Fuel Types And Vapor Lock
Today's automotive fuel and emissions systems are
sophisticated and highly engineered to meet Federal
and State emissions standards. They are also some-
times sensitive to fuel types and blends, particularly
fuels blended for certain altitudes and climates. Fuel
suppliers provide customers with the correct fuel for
their location and seasonal conditions. Sometimes,
though, fuel blended for winter is supplied during sum-
mer months.
"Vapor lock" occurs when gasoline vaporizes, and
vapor pockets block the flow of liquid fuel to the engine.
If you experience engine stall or stutter, you may be ex-
periencing vapor lock.
If your engine and fuel system are properly tuned and
maintained, you should not experience this problem.
If
vapor lockoccurs, thefuel itself could be the cause. If at
all possible, checkwiththe servicestation operator as to
the fuel blend before filling your fuel tank.
If you pur-
chase your fuel from nationally recognized fuel dealers,
yourchances of vaporlockcan be reduced.
If you store
your motor home during the winter months, be aware
that when you take the vehicle out of storage
in the
spring or summer, winterfuel maycause vaporlockuntil
it
is consumed.
GENERAL CHASSIS TOPICS
Variabie Speed Engine Fan
When the engine is under load or requires maximum
cooling, the engine fan adjusts and turnsfaster. The fan
may become very noisy at high speed and when maxi-
mum cooling is required. High speed fan noise can
sometimes be misinterpreted
as transmission slippage.
This is not the case. High engine speed and tempera-
ture conditions, such as pulling away from a stop after
long freeway driving, can cause loud fan noise until the
engine cools down. This fan noise indicates that thefan
is doing what it is supposed to do. This noise is not a
defect
in the fan or the transmission.
Exhaust System Heat
Your motorhomeengine hasbeen designedto conform
.10 Federal and State emission requirements. To meet
these requirements, engineoperatingtemperaturesare
high.As a result, theengine and exhaustsystem radiate
a great deal of heat
Special heat shields are built into your motor home to
protectwiring and othercomponentsfrom possible heat
damagecaused by the exhaust system. Do not remove
these shields, modify the exhaust system, or add addi-
tional equipment, such as wiring, plumbing, or other
components, which will be affected by exhaust system
heat.
CARBON MONOXIDE
SAFETY PRECAUTIONS
Carbon monoxide is a colorless, tasteless, odorless
gas.
It is a by-product of combustion in engines. The
engines
in your motor home and generator system
produce it constantly while they are running. CARBON
MONOXIDE
IS DEADLY. Please read and understand
the following precautions to protect yourself and others
from the effects of carbon monoxide poisoning.
WARNING
EXHAUST GASES ARE DEADLY. DO NOT
BLOCK THE TAILPIPES OR SITUATE THE
VEHICLE IN A PLACE WHERE THE EX-
HAUST GASES HAVE ANY POSSIBILITY OF
ACCUMULATING EITHER OUTSIDE, UN-
DERNEATH, OR INSIDE YOUR VEHICLE OR
ANY NEARBY VEHICLES. OUTSIDE AIR
MOVEMENTS CAN CARRY EXHAUST
GASES INSIDE THE VEHICLE THROUGH
WINDOWSOR OTHER OPENINGS REMOTE
FROM THE EXHAUST OUTLET. OPERATE
THE ENGINE(S) ONLY WHEN SAFE DIS-
PERSION OF EXHAUST GASES CAN
BE
ASSURED, AND MONITOR OUTSIDE CON-
DITIONS TO BE SURE THAT EXHAUST
CONTINUES TO
BE DISPERSED SAFELY.
"

Beware of exhaust gas (carbon monoxide) poisoning
symptoms:
Dizziness
Vomiting
Nausea
MuscularTwitching
Intense Headache
Throbbing
in Temples
Weakness and Sleepiness
Inability to Think Coherently
If you or others experience any ofthese symptoms, ~et
out into the fresh air immediately. If symptoms persist,
seek medical attention. Shut down the unit and do not
operate until it has been inspected and repaired.
WARNING
DO NOT UNDER ANY CIRCUMSTANCES
OPERATE ANY ENGINE WHILE SLEEPING.
You would not be able to monitor outside conditions to
assure that engine exhaust does not enter the interior,
and you would not be alert to exhaust odors or symp-
toms of carbon monoxide poisoning.
Do not operate an engine with a damaged exhaust
system. Check the system frequently for damage. Do
not under
any circumstances modify the exhaust
systems(s)
in any way.
Carbon Monoxide Detector
Your motor home is equipped with a carbon monoxide
(CO) detector. Usually located in the main sleeping
area, it is designed to alert you to the presence of CO
gas. Test the CO detector after the motor home has
been
in storage, before each trip, and at least once a
weekduring use. Replace the sensor and battery when
necessary. Do not replace the battery without replacing
the sensor. Sensors may be obtained through your
Fleetwood dealer. Please refer to the operating instruc-
tions included in your Owner's Information Package.
11
EMERGENCY TOWING
Consult yourchassis operator's manual for information
on safe and approved towing procedures. Most tow
truckoperatorswilling and able
to tow motorhomes will
be familiar with these procedures. Be prepared to give
the tow truck operator at least the following information
when you call:
Length and height of motor home
Chassis manufacturer
Gross vehicle weight rating
CAUTION
DO NOT TOW THE MOTOR HOME FROM
THE REAR.TOWING FROMTHE REAR WILL
CAUSE SERIOUS OVERLOADING OF THE
FRONT TIRES AND SUSPENSION, POSSI-
BLY RESULTING IN TIRE OR FRONT SUS-
PENSION FAILURE. THE REAR FRAME
EXTENSIONS ARE NOT DESIGNED TO
WITHSTAND THE LOADS IMPOSED BY
LIFTING FROM THE REAR.
The vehicle must be towed from the front, either on the
rear wheels (if operational) or on a heavy duty dolly, or
transported on a flat bed trailer. Consult your chassis
owner's manual.
To prepare your motor home for towing:
1. Secure any loose or protruding parts of the
disabled vehicle.
2. Secure any heavy, loose items in the interior.
3. Turn off
LP gas appliances and the LP gas tank
valve.
4. Do not allow any person to ride in the towed
vehicle.
