Fleetwood Tioga Walkbout 1995 User manual

1995

This page intentionally left blank.

LIMITED ONE-YEARfTHREE-YEAR
WARRANTY
FOR MOTOR HOMES MANUFACTURED BY SUBSIDIARIES OF FLEETWOOD ENTERPRISES, INC.
SOLD IN THE UNITED STATES AND CANADA
COVERAGE PROVIDED
Your new motor home, Including the structure, plumbing, heating and electrical systems, and all appliances and equipment Installed by the manufacturer,
Is warranted under normal use to be free from manufacturing defects in material or wOrkmanship.
The warranty extends to the first relall purchaser and his transferee(s) and begins on the date of original retail delivery or the date the motor home Is first
placed Into service as a rental, commercial or demonstrator unit (whichever occurs first). The warranty extends for the following periods:
1. For aI/ defects (other than structural) the warranty extends for a period of one year from such date or unlil the unit has received 15.000 tolal miles
of use as determined by the mileage shown on the odometer (whichever occurs first).
2. For structural defects, 3 years; structural defects are IImfted to the following: roof structure, sub-floor structure, exterior walls, interiorwalls and ceilings.
Written notice of defects must be given to the selling dealer or manufacturer not later than ten (10) days after the expIration of the warranty period.
OWNER'S OBLIGATIONS
The owner Is responsible for normal maintenance as described In the Owner's Manual; however, minor adjustments (such as adjustments to the Intenor or
exterior
doors, LP regulator pressure, cabinet latches, TV antenna control, elc.) will be performed by the dealer during the first 90 days of warranty
coverage. Thereafter, such adjustments are the responsibility of the owner as normal maintenance unless required as a direct result of repair or
replacement of a defective part under this warranty.
If a problem occurs which the owner beHeves Is covered by this warranty, the owner shall contact the seiling dealer, or other authorized dealer, giving him
sufficient information to resolve the matter. The ownershall deliver the motor home to the dealer or manufacturing plant location for warranty service.
DEALER'S OBLIGATIONS
By agreement with the manufacturer, the dealer is obligated to maIntain the motor home prior to retail sale, to perform a detailed predelivery inspectton
and to repairor replace any parts necessary to correct defects In material or workmanship.
WHEN THE DEALER DOES NOT RESOLVE THE PROBLEM
If the dealer is unable or unwilling to resolve a problem which the owner is convinced Is covered by the warranty, he should contact the manufacturing
plant at the address listed below and provide the manufacturer with a description in writing of the problem and attempts made to resolve II.
MANUFACTURING PLANT OBLIGATIONS
Upon receipt ofnollce of a claim, where the dealer was unable or unwj[(Jng to resolve the problem, the manufacturing plant will repair or replace any parts
necessary to correct defects In malerial or workmanship or will take other appropriate action as may be required. .
WHEN THE MANUFACTURING PLANT DOES NOT RESOLVE THE PROBLEM
If the representatives of the manufacturing plant are unable to resolve the problem and the owner is convinced thai it is covered by the warranty, the
owner should can the toll·free number listed below to describe the problem and the attempts made to resolve It.
WHAT IS NOT COVERED BY THE EXPRESS WARRANTY
THIS WARRANTY DOES NOTCOVER:
1. THE AUTOMOTIVE SYSTEM (INCLUDING THE CHASSIS AND DRIVE TRAIN), TIRES AND BATIERIES. WHICH ARE COVERED BY THE
SEPARATE WARRANTIES OF THE RESPECTIVE
MANUFACTURERS OF THESE COMPONENTS.
2. DEFECTS CAUSED BY OR RELATED TO:
A. ABUSE. MISUSE. NEGLIGENCE OR ACCIDENT:
B. FAILURE TO COMPLY WITH INSTRUCTIONS CONTAINED IN THE OWNER'S MANUAL;
C. ALTERATION OR MODIFICATION OF THE MOTOR HOME:
D. ENVIRONMENTAL CONDITIONS (SALT. HAIL. CHEMICALS IN THE ATMOSPHERE. ETC.)
3. NORMAL DETERIORATION DUE TO WEAR OR EXPOSURE. SUCH AS FADING OF FABRICS OR DRAPES.CARPECWEAR. ETC.
4. NORMAL MAINTENANCE AND SERVICE ITEMS. SUCH AS LIGHT BULBS. FUSES. WIPER BLADES. LUBRICANTS. ETC.
5. MOTOR HOMES ON WHICH THE ODOMETER READING HAS BEEN ALTERED.
6. TRANSPORTATION TO AND FROM DEALER OR MANUFACTURING PLANT LOCATION, LOSS OF TIME. INCONVENIENCE. COMMERCIAL
LOSS. LOSS OF USE. TOWING CHARGES. BUS FARES. VEHICLE RENTAL. INCIDENTAL CHARGES SUCH AS TELEPHONE CALLS OR
HOTEL BILLS. OR OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES.
SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEOUENTIAL DAMAGES. SO THE ABOVE
LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
THIS WARRANTY GIVES YOU SPECIRC LEGAL RIGHTS. AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.
THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY UNDERTAKING, REPRESENTATION OR WARRANTY MADE BY ANY DEALER OR OTHER PERSON BEYOND THOSE
EXPRESSLY
SET FORTH IN THIS WARRANTY.
Brand Name: _______________ _
FOR SERVICE ASSISTANCE:
Fleetwood Parts & Service
P.O. Box 5700
Riverside, CA 92507
[phone]
Fleetwood Parts & Service
P.O. Box 1007
Decatur, IN 46733
[phone]
Model: __________ _ Serial No.
______ _
Fleetwood Parts & Service
P.O. Box 106
Paxinos. PA 17860
(800) 322·8216
CORPORATE HEADQUARTERS:
MotorHome Division
Fleetwood Enterprises, Inc.
P.O. Box 7638
Riverside,
CA 92513-7638
[phone]

This page intentionally left blank.

SERVICE CENTERS:
FLEETWOOD MOTOR HOME SERVICE
P.O.
Box 106
Reed Industrial Park
Paxinos, Pennsylvania 17860
[phone]
FLEETWOOD MOTOR HOME SERVICE
.P.O.
Box 5700
1975 Third Street
Riverside, California 92517-5700
[phone]
FLEETWOOD MOTOR HOME SERVICE
P.O.
Box 1007
1420 W. Patterson Street
Decatur, Indiana 46733
[phone]
MANUFACTURING PLANTS
FLEETWOOD MOTOR HOMES OF CALIFORNIA, INC.
300 East Ryan Avenue
Chico, California
95926-9094
[phone]
L90·7238 12194 Walkabout Owne(s Manual Printed In USA

MAKE YOUR HOME
WITH US!
When Fleetwood Home Owners return
from the road, they feel the pride that
comes from owning a stylish, graceful
home that lets them pursue a carefree
kind of life. Homes that reflect their
lifestyle, without weighing them down
with high maintenance or intimidat-
ing prices. They know their home is
backed by the stability and tradition of
Fleetwood's financial strength and lead-
ership. The result is comfort with-
out compromise: the har-
mony of style, substance
and craftsmanship.
Fleetwood homes present
a variety of efficient-to-lux-
~'~"',,,ri,m floorplans, each making
its own dramatic statement. Ex-
citingfeatureslikefIreplaces,
cathedral
ceilings, private master bedroom
suites, morning rooms, garden baths,
dens and great rooms. And the kitchens
can be on-the-go functional or room-
for-two gourmets!
There's a reason why Fleetwood is
America's largest homebuilder:
commitment to customer satisfaction
and dedication to quality and value in
each home built!
There's a lifetime of enjoyment wait-
ing foryou! For complete information,
contact a retailer who carries Fleetwood
homes. And be prepared for more
surprises. WithFleetwood homes, you
don't just envision the dream - you
live it!
For name of retailer nearest you, call
909/351-3500, or write Marketing Department, Housing Group,
Fleetwood Enterprises, Inc., 3125 Myers Street P.O. Box 7638, Riverside, CA 92513-7638.

SAFETY REGULATIONS REGARDING LP GAS
SYSTEMS AND LP GAS APPLIANCES
The manufacturer of this recreational vehicle is required to furnish the following consumer Information as provided by
the National Fire Protection Association and the American National Standards Institute. The information and warnings
found here may also be found In other chaptersoithis Owner's Manual. Please see chaplers tilled "LP GAS SYSTEM"
and "APPLIANCES" for other safely and oparatlng Information.
WARNING
LP GAS CONTAINERS SHALL NOT BE PLACED OR STORED INSIDE THE VEHICLE. LP GAS CONTAINERS ARE
EQUIPPED WitH SAFETY DEVICES WHICH RELIEVE EXCESSIVE PRESSURE BY DISCHARGING GAS TO THE
ATMOSPHERE.
WARNING
IT IS NOT SAFE TO USE COOKING APPLIANCES FOR COMFORT HEATING. COOKING APPLIANCES NEED
FRESH AIR FOR SAFE OPERATION. BEFORE OPERATION:
1. OPEN OVERHEAD VENT OR TURN ON EXHAUST FAN, AND
2. OPEN WINDOW.
THIS WARNING LABEL HAS BEEN LOCATED IN THE COOKING AREA TO REMIND YOU TO PROVIDE AN
ADEQUATE SUPPLY OF FRESH AIR FOR COMBUSTION. UNLIKE HOMES, THE AMOUNT OF OXYGEN SUPPLY
IS LIMITED DUE TO THE SIZE OF THE RECREATIONAL VEHICLE, AND PROPER VENTILATION WHEN USING
THE COOKING APPLIANCE(S) WILL AVOID DANGERS OF ASPHYXIATION. IT IS ESPECIALLY IMPORTANT
THAT COOKING APPLIANCES NOT BE USED FOR COMFORT HEATING AS THE DANGER OF ASPHYXIATION
IS GREATER WHEN THE APPLIANCE IS USED FOR LONG PERIODS OF TIME.
WARNING
PORTABLE FUEL-BURNING EQUIPMENT, INCLUDING WOOD AND CHARCOAL GRILLS AND STOVES, SHALL
NOT BE USED INSIDE THIS RECREATIONAL VEHICLE. THE USE OF THIS EQUIPMENT INSIDE THE RECREA-
TIONAL VEHICLE MAY CAUSE FIRES OR ASPHYXIATION.
WARNING
DO NOT BRING OR STORE LP GAS CONTAINERS, GASOLINE, OR OTHER FLAMMABLE LIQUIDS INSIDE THE
VEHICLE BECAUSE A FIRE OR EXPLOSION MAY RESULT.
A wamlng label has been located near the LP gas container. This label reads: DO NOT FILL CONTAINER(S) TO MORE
THAN 80 PERCENT OF CAPACITY.
Overfilling the LP gas conlalner can result In unconlrolled gas flow which can cause fire or explosion. A property filled
container will conlaln approximately 80 parcent of Its volume as liquid LP gas.
The following label has been placed In the vehicle near the range:
IF YOU SMELL GAS:
1. Extinguish any opan flames, pilot IIghls and all smoklng malerials.
2. Do not touch electrical switches.
3. Shut off the gas supply at the tank valve(s) or gas supply connection.
4. Opan doors and other ventilating opanlngs.
5. Leave the area until odor clears.
6. Have the gas system checked and leakage source corrected before using again.
LP gas regulators must always be installed with the diaphragm vent facing downward. Regulators that are not In
compartments have been equipped with a protective cover. Make sure that regulator vent faces downward and the cover
Is kept in place to minimize vent blockage which could result in excessive gas pressure causing fire or explosion.

IMPORTANT NOTICE
Our forestproductsuppliershaveadvisedthaturea-formaldehydeis usedin
the production of particle board, hardwood plywood
or paneling which they
supply usand which we utilize in ourfinished product.Thesesuppliers have
requested that we communicate this to our customers.
Foryourinformation,
we arereproducing samplesof statementswhich have
been provided to us by oursuppliers.
WARNING: THIS PRODUCTIS MANUFACTUREDWITH UREA-FORM-
ALDEHYDE RESIN. FORMALDEHYDE VAPOR MAY IN SOME PEOPLE
CAUSE HEADACHES, EYE, NOSE AND THROAT IRRITATION, AND
AGGRAVATION OF ALLERGIESANDRESPIRATORYPROBLEMS, SUCH
AS ASTHMA. PROPERVENTILATION SHOULD REDUCE THE RISK OF
SUCH PROBLEMS.
Champion Internatlonal Corporation
-
WARNING: IRRITANT: THIS PRODUCT CONTAINS A UREA-FORMAL-
DEHYDE RESIN AND MAY RELEASE FORMALDEHYDE VAPORS IN
LOW CONCENTRATIONS. FORMALDEHYDE CAN BE IRRITATING TO
THE EYES AND UPPER RESPIRATORY SYSTEM OF ESPECIALLY
SUSCEPTIBLE PERSONS SUCH AS THOSE WITH ALLERGIES OR
RESPIRATORY AILMENTS. USE WITH ADEQUATE VENTILATION. IF
SYMPTOMS DEVELOP, CONSULTYOUR PHYSICIAN.
Georgia-Pacific Corporation
WARNING: THIS PRODUCT IS MANUFACTURED WITH A UREA-
FORMALDEHYDE RESIN ANDWILL RELEASE
SMALL QUANTITIES OF
FORMALDEHYDE.FORMALDEHYDELEVELS INTHE INDOORAIRCAN
CAUSETEMPORARY EYE AND RESPIRATORY IRRITATION, AND MAY
AGGRAVATE RESPIRATORY CONDITIONS OR ALLERGIES. VENTILA-
TION WILL REDUCE INDOOR FORMALDEHYDE LEVELS.
Weyerhaeuser Company
Ventilation is important in maintaining a comfortable environment and we
direct your attention to the discussion of ventilation contained in your
Owner's Manual.

TABLE OF CONTENTS
WARRANTY
Entry Doors and Screens .................................... 13
NOTICES AND WARNINGS
Introduction .............................................................1
Windows .............................................................
13
EmergencyExit Window ................................. 13
Side SliderWindows ....................................... 13
Warranties .......................,..................................... 1 Sun Visors ...........................................................
13'
Reporting Safety Defects ......................................2 Mini-Blinds ..........................................................
13
Owner's Information Package ...............................2
Chassis and Vehicle Identification .........................3 Storage ...............................................................
13
Exterior Compartments................................... 13
On the Road .............................................................5 Interior Storage ............................................... 14
MotorHome Loading....................:........................5 Interiorand Furnishings ...................................... 14
Responsibilityfor ProperLoading.....................5 Dinette Conversion .........................................
14
A FewDefinitions First......................................5 Sofa/Lounge Conversion
.. ............................... 14
Towing a Vehicle or Trailer .....................................5 Folding Doors/PrivacyCurtain Dividers .........
14

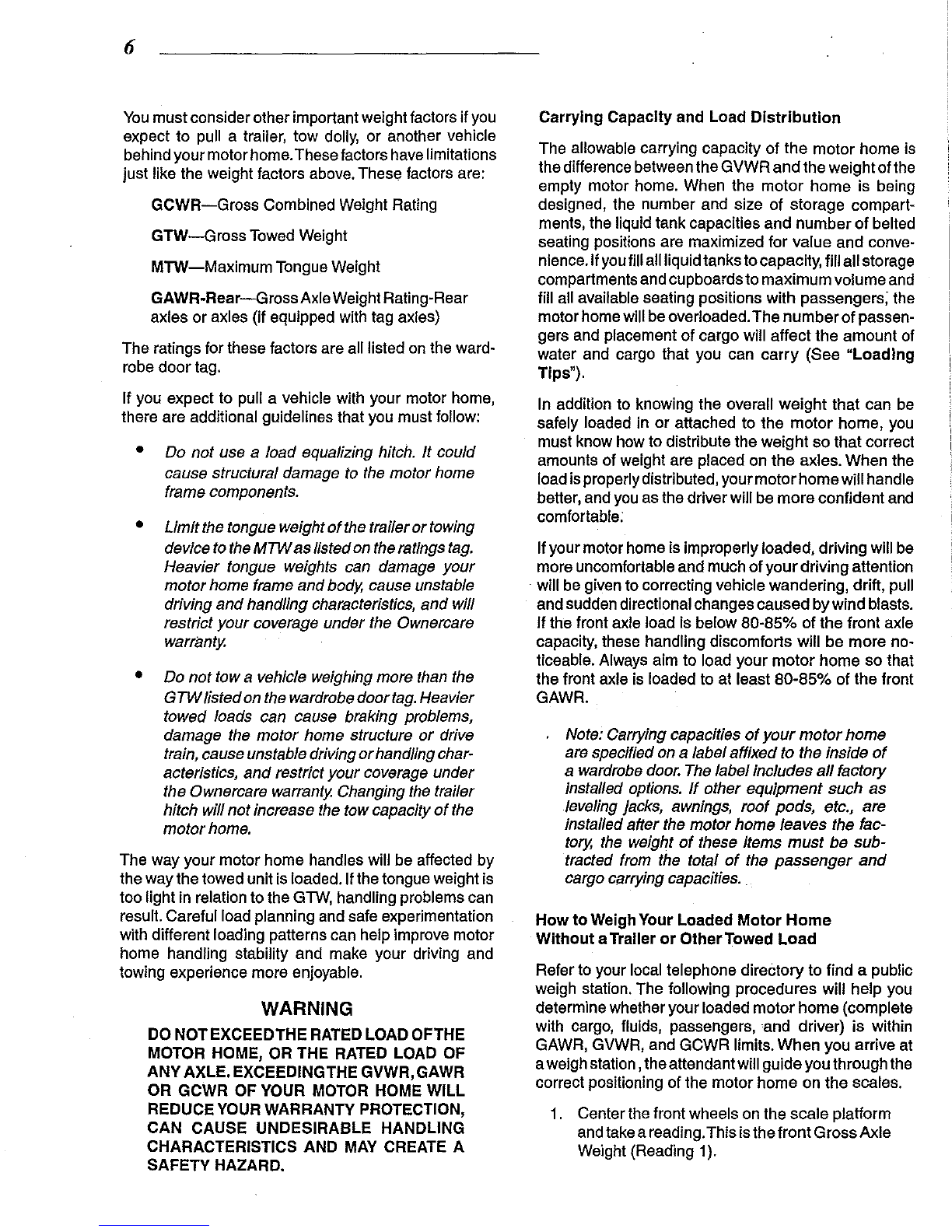

CarryingCapacity and Load Distribution ......... 6 InteriorLighting...............................................
15
How to Weigh Your Loaded Motor Home Overhead Vents .............................................. 15
Without a Trailer or OtherTowed Load ............. 6
Bunk LadderInstallation ................................. 15
How to Weigh Your LoadedMotorHome Monitor Panel ......................................................
15
With a Trailer or OtherTowed Load .................. 7
LoadingTips .....................................................8
Tires ......................................................................8
Tire Inflation ......................................................8
Tire Replacement .............................................8
Effects of Long Term Occupancy ........................ 16
Ventilation and Controlling Condensation ...... 16
Fire Safety........................................................... 16
Fire Safety Precautions................................... 17
Smoke Detector.............................................. 17
If You Get a Flat Tire .........................................8
Spare Tire Carrier.............................................9
Changing a FlatTire .........................................9
Seats and Seat Belts.............................................9
Driver/PassengerSeats ....................................9
Seat Belts .........................................................9
ChildRestraint ..................................................9
Driving and Parking .................;........................... 10
Fuel and Fuel Systems .......................................10
Fuel Fill ...........................................................10
Fuel Types and Vapor Lock ............................. 11
General Chassis Topics....................................... 11
Variable SpeedEngine Fan ............................ 11
Exhaust System Heat ..................................... 11
Plumbing Systems ................................................ 19
Fresh Water System ............................................ 19
CityWater Connection .................................... 19
The WaterPump............................................. 20
WaterFilter ..................................................... 20
Troubleshooting the Fresh WaterSystem ...... 20
Leaks .............................................................. 20
Sanitizing the Fresh WaterSystem ................ 20
ExteriorShower.............................................. 21
Waste Water System ................:.......................... 21
Toilet ................:.............................................. 21
Draining the Holding Tanks ............................. 21
Holding Tank Care .......................................... 22
Carbon Monoxide
Electrical Systems ................................................. 23
Safety Precautions .............................................. 11
Chassis Electrical System ................................... 23
Carbon Monoxide Detector.............................12 Chassis Bulbs
and Fuses ............................... 23
EmergencyTowing .............................................. 12 12-Volt Coach System.........................................
23
Attaching Accessories to
Your Motor Home ................................................12
EngineTemperature Gauges ..............................12
BatteryDisconnect.......................................... 23
AuxiliaryStartSystem..................................... 23
BatteryInspection and Care ........................... 23
Living with Your Motor Home ..............................13 Battery Charging.............................................
24
Manual Entry Steps............................................. 13 Selecting a ReplacementBattery ...................
24
Entry Assist Handle............................................. 13 120-Volt System ..................................................
24

TABLE OF CONTENTS
Power Converter.............................................25 TVAntenna.....................................................34
PowerInverter................................................. 25
TV and Radio Interference .................................. 34
GroundFault Interrupter .................................25 Miscellaneous Appliances ...............................•...35
Coach Fuses and Circuit Breakers .....................25 Maintenance...........................................................
37
Generator............................................................25 Exterior................................................................37
GeneratorFuel Supply.................................... 25
Stains..............................................................37
Generator Operation .......................................26
GeneratorOperating Safety Precautions ....... 26
Electrical System Wiring ..................................... 27
Windows, Doors, Vents andLocks................. 37
Rubber Roof System...........................................
37
Cleaning ...........................................,.............37
LP Gas System ......................................................29 Care ................................................................ 38
LP Gas Safety Precautions .................................29 Sealant Renewal.............................................38
System Components...........................................30 Door, Window, RoofComponent
Hoses .............................................................30 andMolding Resealing ...................................38
LP Gas Regulator...........................................30 Interior.................................................................38
Using LP Gas System
at
Fabrics ............................................................38
Low Temperatures...............................................30 Laminate
Top Care ..........................................39
Filling LP Gas Tanks .•......................................... 31 Walls andCeiling Panels ................................39
LPGas System Leak Checks ............................. 31 Bathtub andPlasticShowerStall....................39
LP Leak Detector ................................................32 Floors andCarpeting
... ...................................39
Lighting LP Gas Appliances ................................32 Engine Access ................................................
39
Appliances .............................................................33 Maintenance Checklist ........................................39
Water Heater.......................................................33
Motor Home Storage ............................................. 41
Refrigerator ......................................................... 33 Storage Checklists .............................................. 41
Acrylic RefrigeratorDoorPanels.....................33 Short-Term Storage ........................................ 41
Furnace...............................................................33 Long- Term Storage ......................................... 41
Range .................................................................33 Winterization .......................................................42
Range Exhaust Hood ..........................................34
Water System Winterizing............................... 42
Air Conditioner ..........................................:......... 34
.Reactivating the Motor Home
Entertainment Equipment....................................34 After Storage .......................................................43
120- Volt TVand VCR ...................................... 34
Maintenance Chart ..................•...........•.................45
120/12- Volt Television .....................................34
