Flight Display Systems FD932DVD-LP-2-AV User manual

Document Number:
MAN –FD932DVD-LP-2-AV
Rev:
J
Revision Date:
02/24/2014
Page 1 of 26

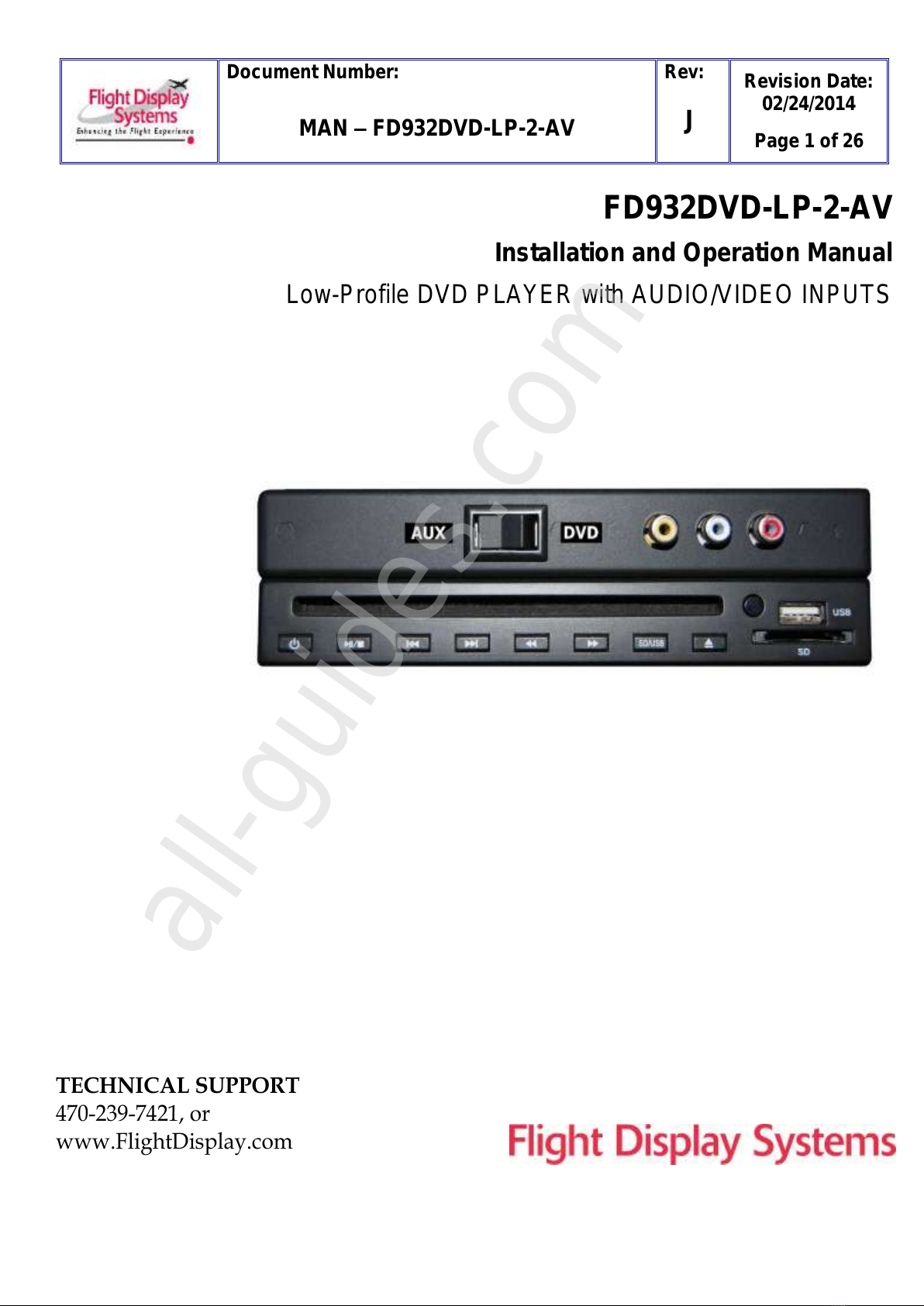

FD932DVD-LP-2-AV
Installation and Operation Manual
Low-Profile DVD PLAYER with AUDIO/VIDEO INPUTS
TECHNICAL SUPPORT
470-239-7421, or
www.FlightDisplay.com
All manuals and user guides at all-guides.com
all-guides.com

Document Number:
MAN –FD932DVD-LP-2-AV
Rev:
J
Revision Date:
02/24/2014
Page 2 of 26

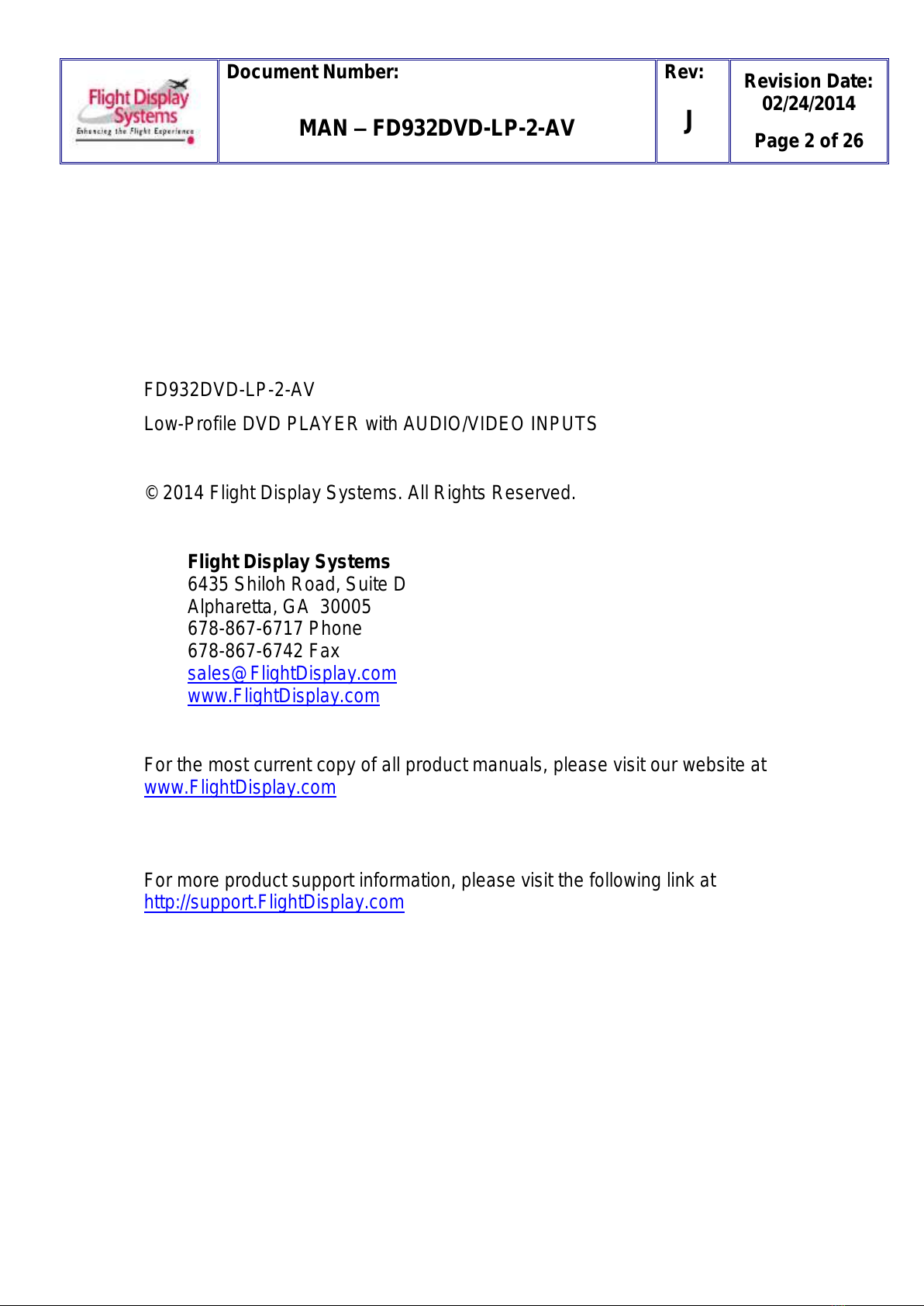

FD932DVD-LP-2-AV
Low-Profile DVD PLAYER with AUDIO/VIDEO INPUTS
© 2014 Flight Display Systems. All Rights Reserved.
Flight Display Systems
6435 Shiloh Road, Suite D
Alpharetta, GA 30005
678-867-6717 Phone
678-867-6742 Fax
[e-mail]
www.FlightDisplay.com
For the most current copy of all product manuals, please visit our website at
www.FlightDisplay.com
For more product support information, please visit the following link at
http://support.FlightDisplay.com
All manuals and user guides at all-guides.com

Document Number:
MAN –FD932DVD-LP-2-AV
Rev:
J
Revision Date:
02/24/2014
Page 3 of 26
Table of Contents
General Information.................................................................................................................4
1. Features ..............................................................................................................................4
2. Additional Information....................................................................................................3
3. Front View/Cautions .......................................................................................................5
Specifications.............................................................................................................................6
Installation Instructions ..........................................................................................................6
1. Power ..................................................................................................................................6
Video Wiring Suggestions ......................................................................................................7
1. Composite and Audio Wiring.........................................................................................7
2. Power and Ground Wiring..............................................................................................7
Wiring Options..........................................................................................................................8
Pinout for DB-9...........................................................................................................................8
RCA Breakout Cable..................................................................................................................9
Pinout Breakout Cable.............................................................................................................10
Remote Eye...............................................................................................................................11
Ship Kit Items.................................................................................................................... 12-13
Operation Instructions...........................................................................................................14
Remote Button Controls..........................................................................................................15
Auxiliary Panel Switch............................................................................................................16
USB & SD Card Video File Types .......................................................................................17
Technical Drawing..................................................................................................................18
All manuals and user guides at all-guides.com

Document Number:
MAN –FD932DVD-LP-2-AV
Rev:
J
Revision Date:
02/24/2014
Page 4 of 26

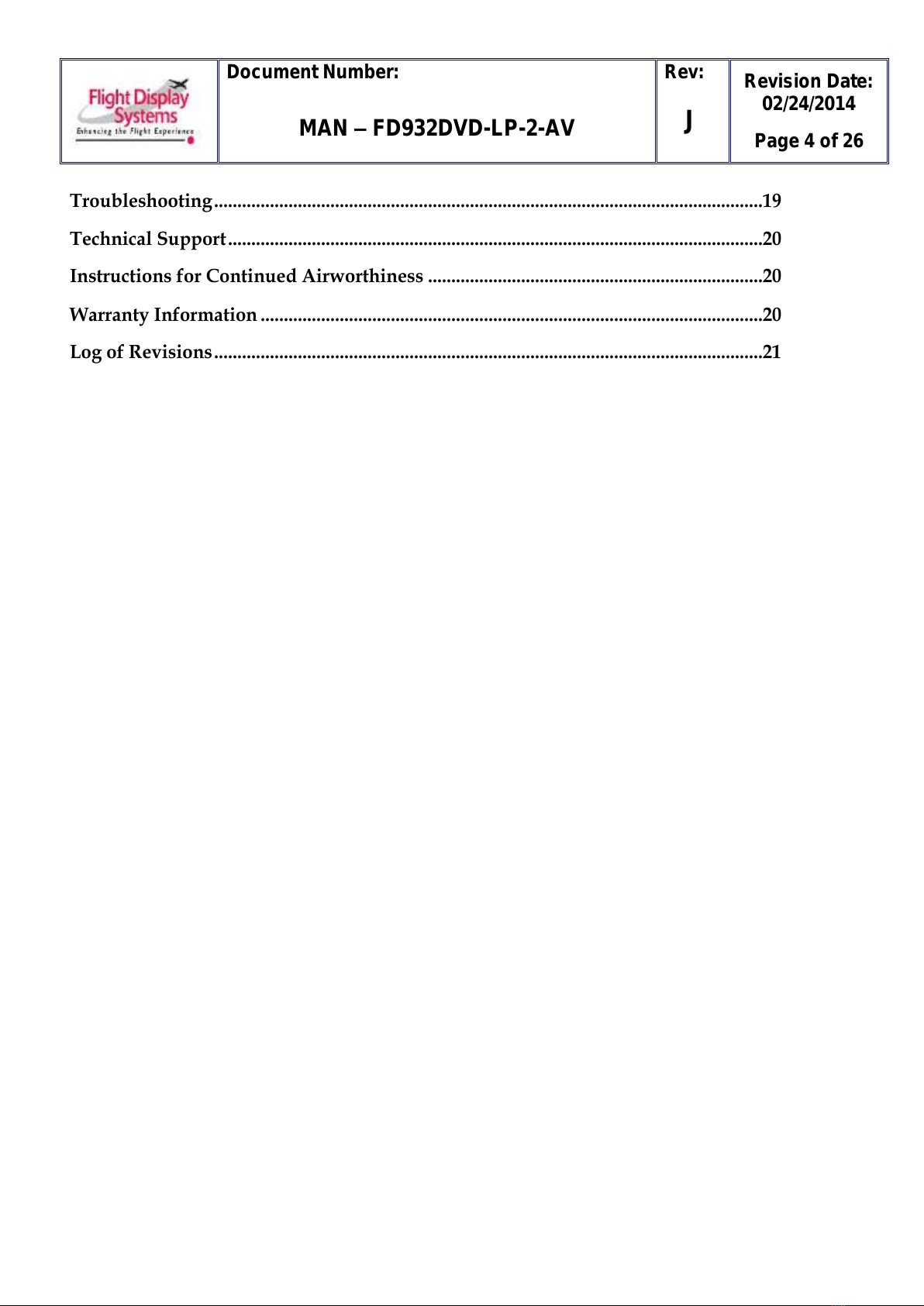

Troubleshooting......................................................................................................................19
Technical Support...................................................................................................................20
Instructions for Continued Airworthiness ........................................................................20
Warranty Information ............................................................................................................20
Log of Revisions......................................................................................................................21
All manuals and user guides at all-guides.com

Document Number:
MAN –FD932DVD-LP-2-AV
Rev:
J
Revision Date:
02/24/2014
Page 5 of 26

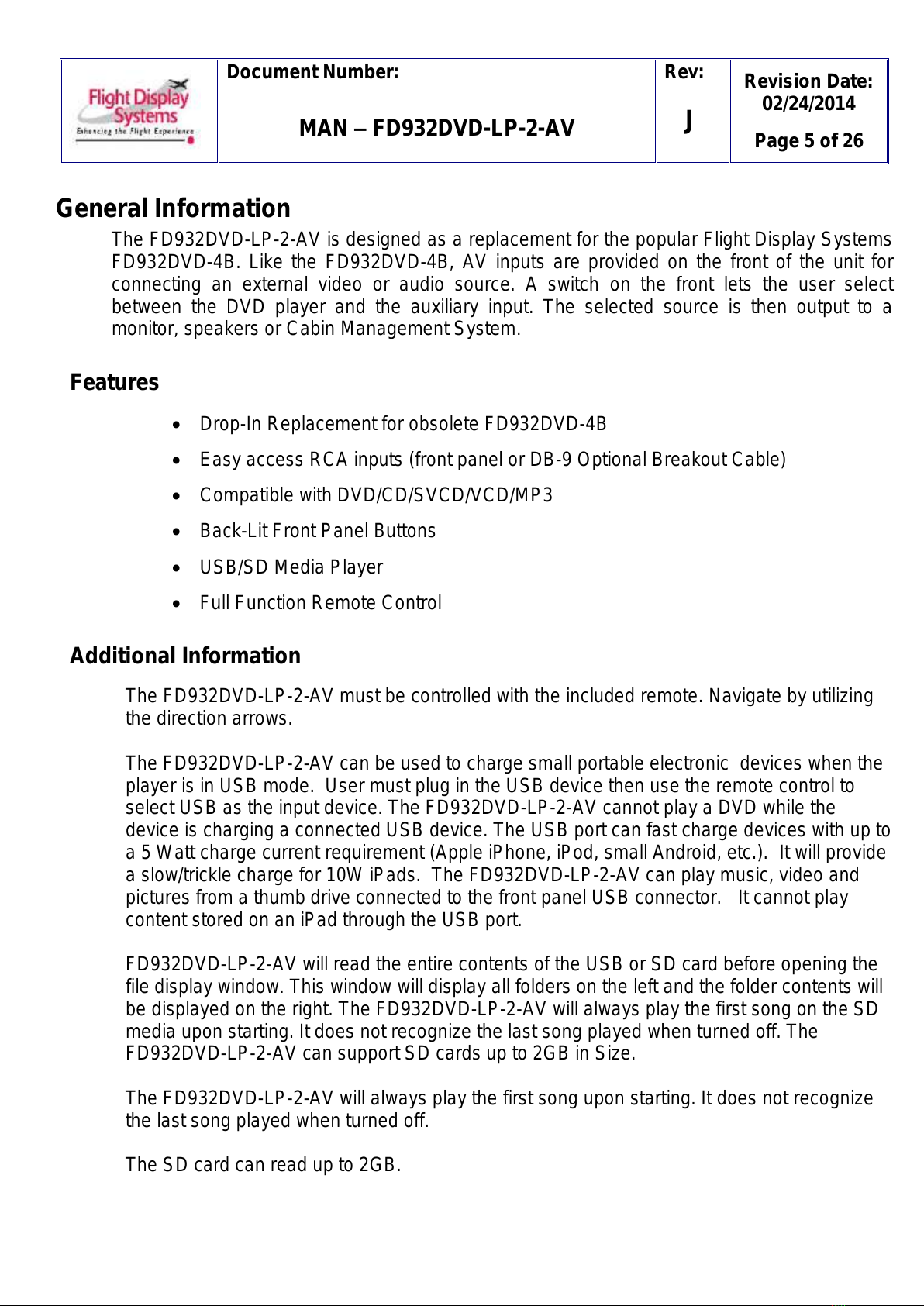

General Information
The FD932DVD-LP-2-AV is designed as a replacement for the popular Flight Display Systems
FD932DVD-4B. Like the FD932DVD-4B, AV inputs are provided on the front of the unit for
connecting an external video or audio source. A switch on the front lets the user select
between the DVD player and the auxiliary input. The selected source is then output to a
monitor, speakers or Cabin Management System.
Features
Drop-In Replacement for obsolete FD932DVD-4B
Easy access RCA inputs (front panel or DB-9 Optional Breakout Cable)
Compatible with DVD/CD/SVCD/VCD/MP3
Back-Lit Front Panel Buttons
USB/SD Media Player
Full Function Remote Control
Additional Information
The FD932DVD-LP-2-AV must be controlled with the included remote. Navigate by utilizing
the direction arrows.
The FD932DVD-LP-2-AV can be used to charge small portable electronic devices when the
player is in USB mode. User must plug in the USB device then use the remote control to
select USB as the input device. The FD932DVD-LP-2-AV cannot play a DVD while the
device is charging a connected USB device. The USB port can fast charge devices with up to
a 5 Watt charge current requirement (Apple iPhone, iPod, small Android, etc.). It will provide
a slow/trickle charge for 10W iPads. The FD932DVD-LP-2-AV can play music, video and
pictures from a thumb drive connected to the front panel USB connector. It cannot play
content stored on an iPad through the USB port.
FD932DVD-LP-2-AV will read the entire contents of the USB or SD card before opening the
file display window. This window will display all folders on the left and the folder contents will
be displayed on the right. The FD932DVD-LP-2-AV will always play the first song on the SD
media upon starting. It does not recognize the last song played when turned off. The
FD932DVD-LP-2-AV can support SD cards up to 2GB in Size.
The FD932DVD-LP-2-AV will always play the first song upon starting. It does not recognize
the last song played when turned off.
The SD card can read up to 2GB.
All manuals and user guides at all-guides.com

Document Number:
MAN –FD932DVD-LP-2-AV
Rev:
J
Revision Date:
02/24/2014
Page 6 of 26
Front View
FD932DVD-LP-2-AV
Cautions
In order to prevent damage to the FD932DVD-LP-2-AV, please follow the following
precautions:
Do not open and/or disassemble the unit.
Do not attempt to insert a 3” disc (Mini-CD/Mini-DVD)
Do not use sharp objects (such as pens, pencils, ice pick, etc.) to operate the
buttons
All manuals and user guides at all-guides.com
all-guides.com

Document Number:
MAN –FD932DVD-LP-2-AV
Rev:
J
Revision Date:
02/24/2014
Page 7 of 26

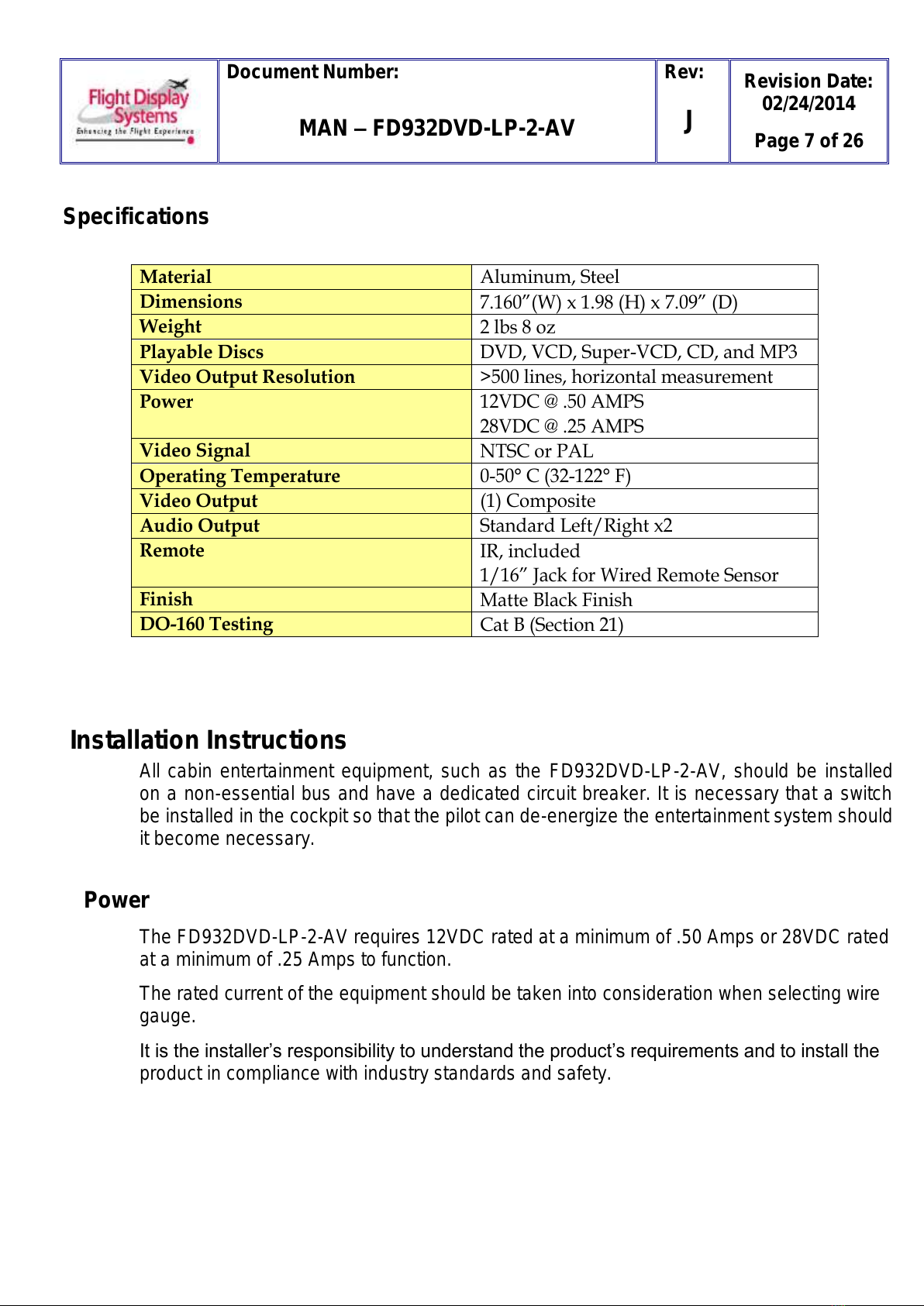

Specifications
Installation Instructions
All cabin entertainment equipment, such as the FD932DVD-LP-2-AV, should be installed
on a non-essential bus and have a dedicated circuit breaker. It is necessary that a switch
be installed in the cockpit so that the pilot can de-energize the entertainment system should
it become necessary.
Power
The FD932DVD-LP-2-AV requires 12VDC rated at a minimum of .50 Amps or 28VDC rated
at a minimum of .25 Amps to function.
The rated current of the equipment should be taken into consideration when selecting wire
gauge.
It is the installer’s responsibility to understand the product’s requirements and to install the
product in compliance with industry standards and safety.
Material
Aluminum, Steel
Dimensions
7.160”(W) x 1.98 (H) x 7.09” (D)
Weight
2 lbs 8 oz
Playable Discs
DVD, VCD, Super-VCD, CD, and MP3
Video Output Resolution
>500 lines, horizontal measurement
Power
12VDC @ .50 AMPS
28VDC @ .25 AMPS
Video Signal
NTSC or PAL
Operating Temperature
0-50° C (32-122° F)
Video Output
(1) Composite
Audio Output
Standard Left/Right x2
Remote
IR, included
1/16” Jack for Wired Remote Sensor
Finish
Matte Black Finish
DO-160 Testing
Cat B (Section 21)
9
1
All manuals and user guides at all-guides.com

Document Number:
MAN –FD932DVD-LP-2-AV
Rev:
J
Revision Date:
02/24/2014
Page 8 of 26
Video Wiring Suggestions
Avoid routing video wiring parallel to:
AC wiring
Strobe wiring
DC motor supply cables
Inverter cabling
Or any other potential noise source.
Composite and Audio Wiring
Recommended cable for composite and audio purposes is PIC 75 Ohm Coax, P/N
V75268. This is a lightweight, flexible, and low signal loss cable which meets FAA
flammability requirements of FAR 23.1359(d), FAR 25.853(a) and FAR 25.869(a)(4).
Similar aviation coaxial cable can be used from other vendors, as well.
Some aircraft are prone to AC noise –If noise is a problem, we recommend adding a 75
Ohm video isolation transformer to the composite source (such as Deerfield Laboratory,
Inc. PartNo.162-1, www.deerfieldlab.com, 650 632-4090). In most cases it should be
added to the video output near the source.
Power and Ground Wiring
22 AWG wire is recommended for Power and Ground applications.
All manuals and user guides at all-guides.com

Document Number:
MAN –FD932DVD-LP-2-AV
Rev:
J
Revision Date:
02/24/2014
Page 9 of 26

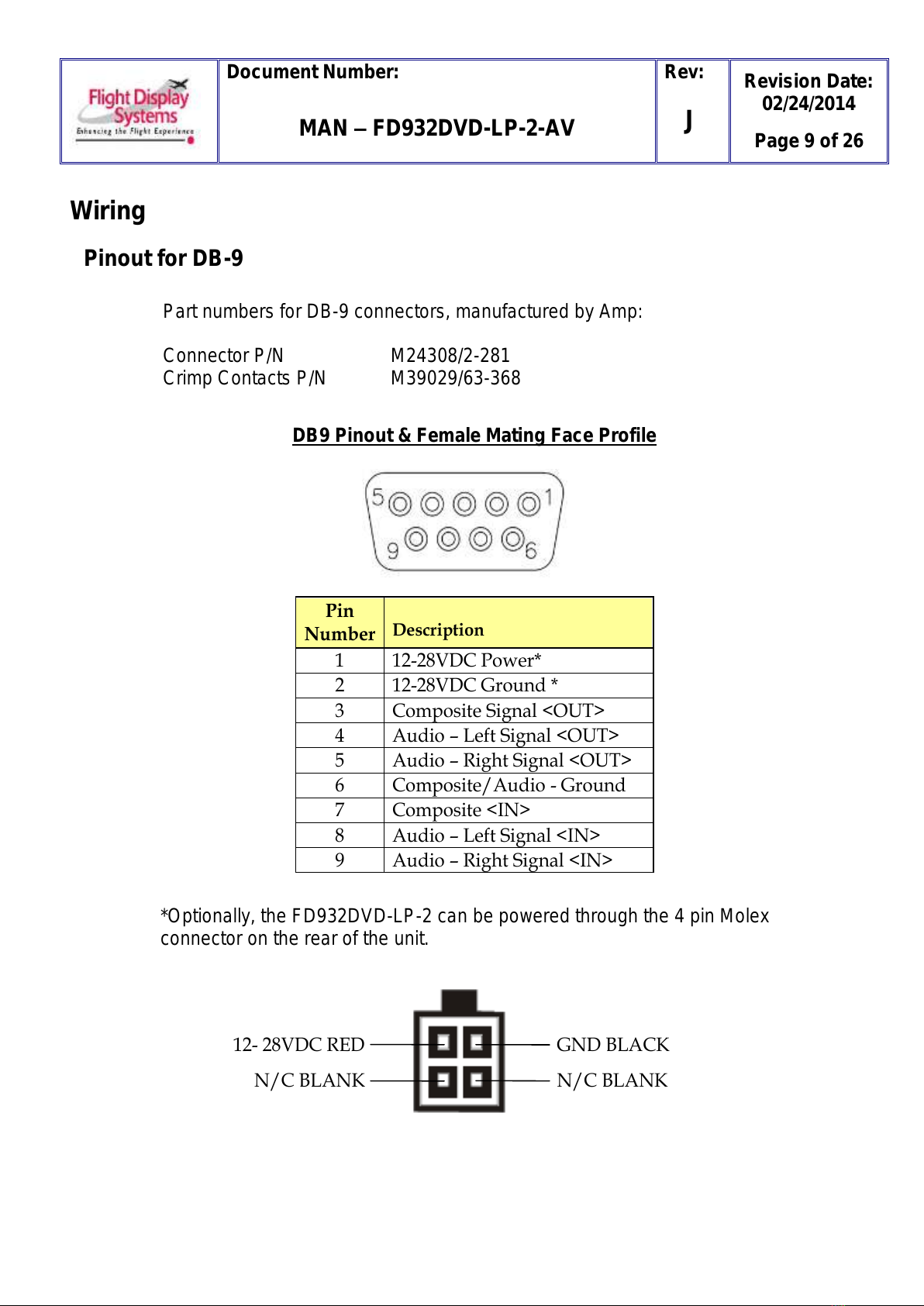

Wiring
Pinout for DB-9
Part numbers for DB-9 connectors, manufactured by Amp:
Connector P/N M24308/2-281
Crimp Contacts P/N M39029/63-368
DB9 Pinout & Female Mating Face Profile
Pin
Number
Description
1
12-28VDC Power*
2
12-28VDC Ground *
3
Composite Signal <OUT>
4
Audio –Left Signal <OUT>
5
Audio –Right Signal <OUT>
6
Composite/Audio - Ground
7
Composite <IN>
8
Audio –Left Signal <IN>
9
Audio –Right Signal <IN>
*Optionally, the FD932DVD-LP-2 can be powered through the 4 pin Molex
connector on the rear of the unit.
12- 28VDC RED
N/C BLANK
GND BLACK
N/C BLANK
All manuals and user guides at all-guides.com

Document Number:
MAN –FD932DVD-LP-2-AV
Rev:
J
Revision Date:
02/24/2014
Page 10 of 26

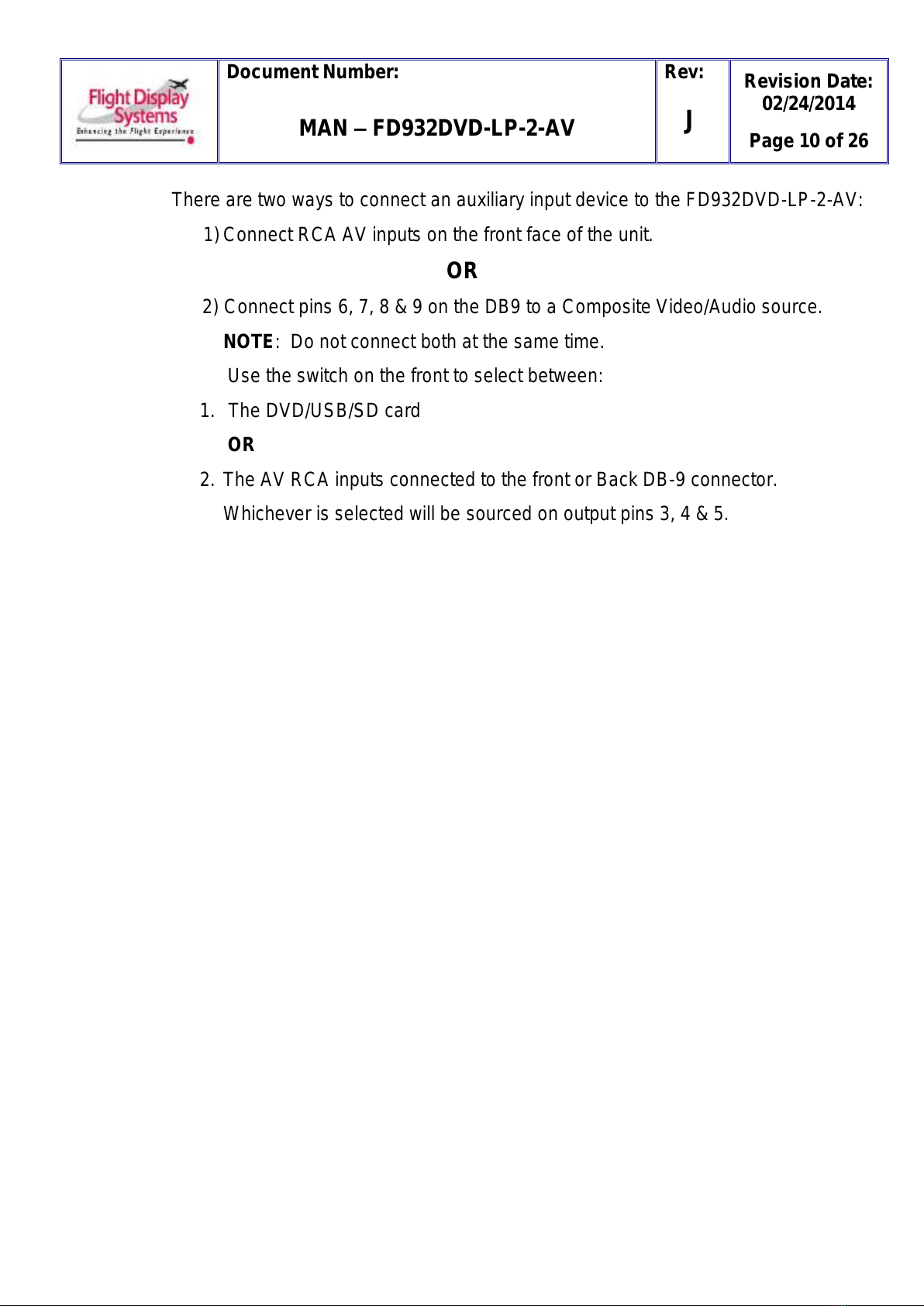

There are two ways to connect an auxiliary input device to the FD932DVD-LP-2-AV:
1)Connect RCA AV inputs on the front face of the unit.
OR
2) Connect pins 6, 7, 8 & 9 on the DB9 to a Composite Video/Audio source.
NOTE: Do not connect both at the same time.
Use the switch on the front to select between:
1. The DVD/USB/SD card
OR
2. The AV RCA inputs connected to the front or Back DB-9 connector.
Whichever is selected will be sourced on output pins 3, 4 & 5.
All manuals and user guides at all-guides.com

Document Number:
MAN –FD932DVD-LP-2-AV
Rev:
J
Revision Date:
02/24/2014
Page 11 of 26
RCA Breakout Cable
Flight Display Systems supplies an optional RCA breakout cable which allows for power on
a DB9 connector with (3) RCA Connectors for Composite Video <OUT> (Yellow), Left
Audio <OUT> (White), and Right Audio <OUT> (Red).
Part numbers for DB-9 connectors, manufactured by Amp:
Connector P/N M24308/2-281
Crimp Contacts P/N M39029/63-368
DB9 Pinout & Female Mating Face Profile
Pin
Number
Description
1
12-28VDC Power
2
12-28VDC Ground
3
N/C
4
N/C
5
N/C
6
Composite Video/Audio - Ground
7
Composite Video<IN>
8
Audio –Left Signal <IN>
9
Audio –Right Signal <IN>
RCA Pinout & Male Mating Face Profile
Pin
Description
Center
Shield
All manuals and user guides at all-guides.com
all-guides.com

Document Number:
MAN –FD932DVD-LP-2-AV
Rev:
J
Revision Date:
02/24/2014
Page 12 of 26
Center
Signals - Composite (Yellow),
Left Audio (White), Right Audio (Red)
Shield
Ground
All manuals and user guides at all-guides.com

Document Number:
MAN –FD932DVD-LP-2-AV
Rev:
J
Revision Date:
02/24/2014
Page 13 of 26

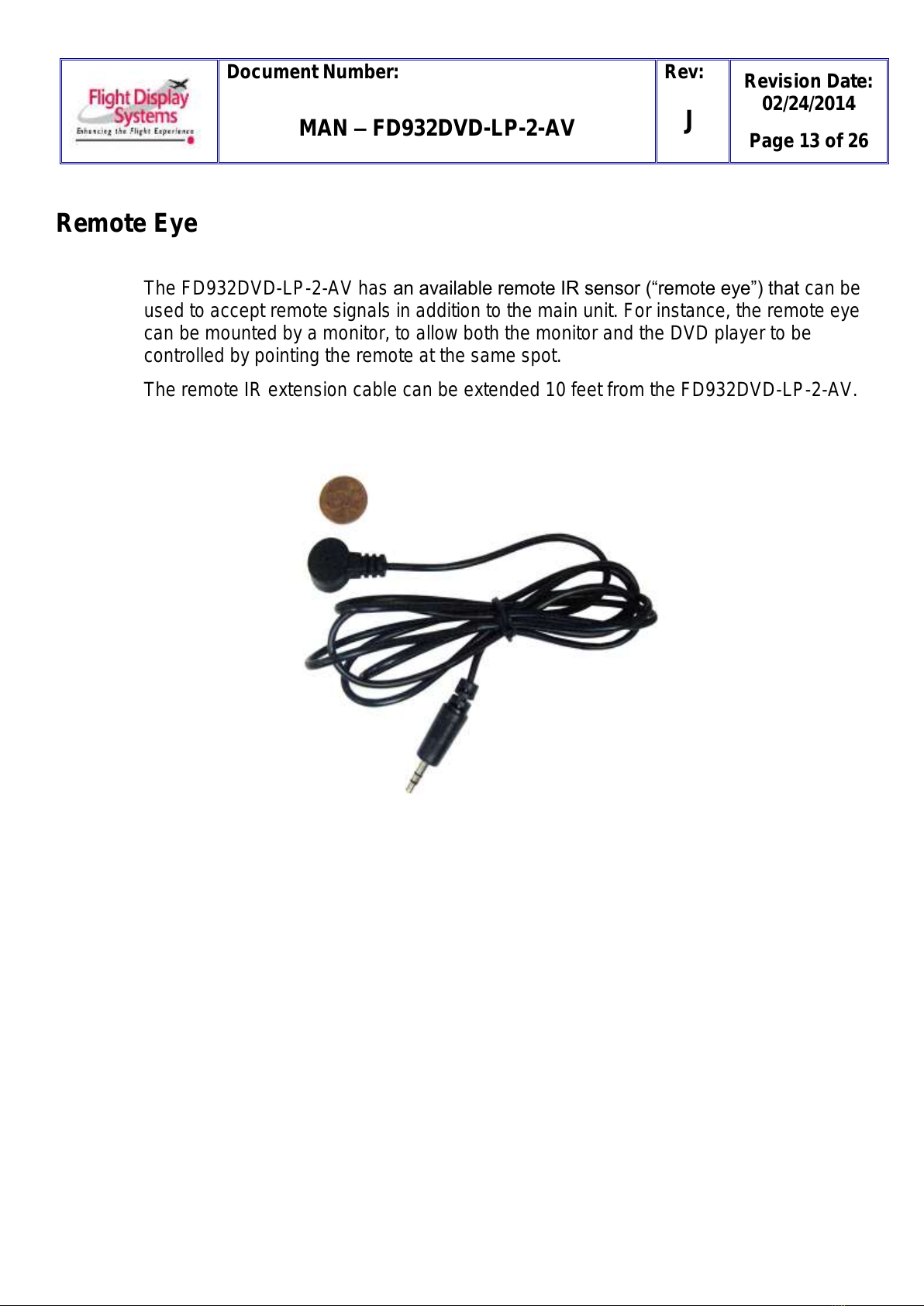

Remote Eye
The FD932DVD-LP-2-AV has an available remote IR sensor (“remote eye”) that can be
used to accept remote signals in addition to the main unit. For instance, the remote eye
can be mounted by a monitor, to allow both the monitor and the DVD player to be
controlled by pointing the remote at the same spot.
The remote IR extension cable can be extended 10 feet from the FD932DVD-LP-2-AV.
All manuals and user guides at all-guides.com

Document Number:
MAN –FD932DVD-LP-2-AV
Rev:
J
Revision Date:
02/24/2014
Page 14 of 26

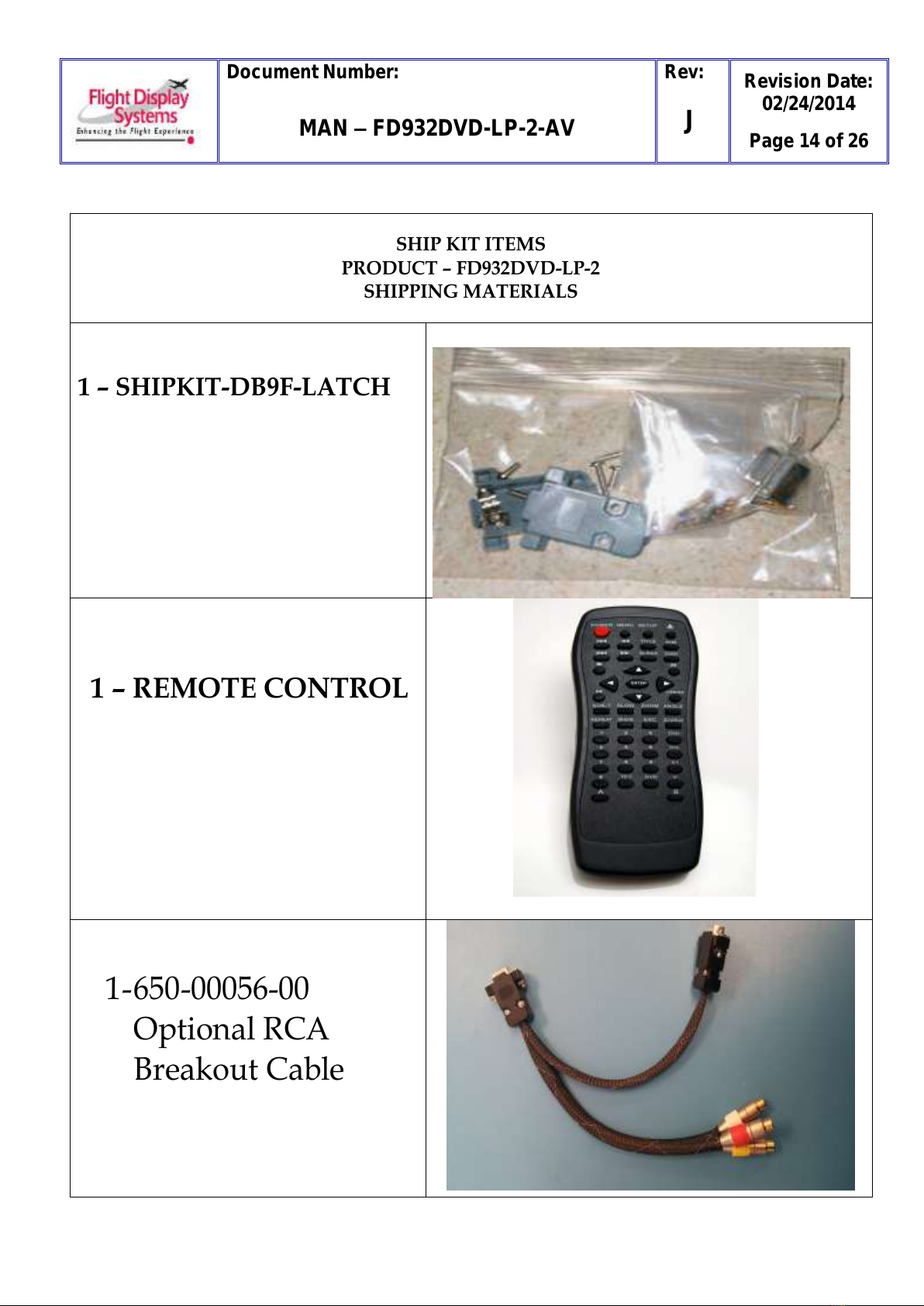

SHIP KIT ITEMS
PRODUCT –FD932DVD-LP-2
SHIPPING MATERIALS
1 –SHIPKIT-DB9F-LATCH
1 –REMOTE CONTROL
1-650-00056-00
Optional RCA
Breakout Cable
All manuals and user guides at all-guides.com

Document Number:
MAN –FD932DVD-LP-2-AV
Rev:
J
Revision Date:
02/24/2014
Page 15 of 26
1 –REMOTE IR EXTENSION
CABLE
1 - FERRITE INSTALL
1 –FERRITE
(240-2072-ND)
Additional Shipping Materials
(2) MOUNTING BRACKETS
(4) M4x6 SCREWS
All manuals and user guides at all-guides.com

Document Number:
MAN –FD932DVD-LP-2-AV
Rev:
J
Revision Date:
02/24/2014
Page 16 of 26

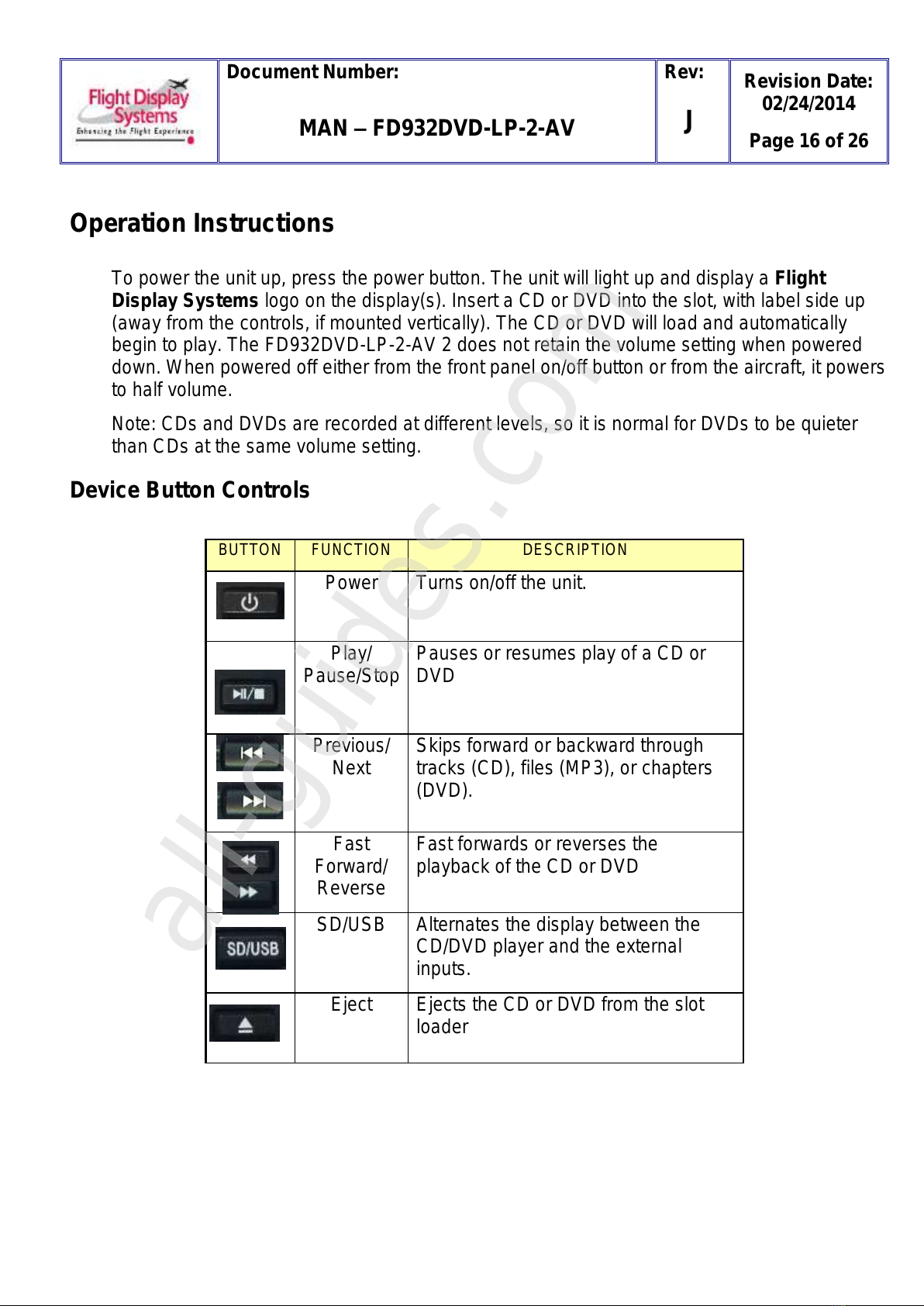

Operation Instructions
To power the unit up, press the power button. The unit will light up and display a Flight
Display Systems logo on the display(s). Insert a CD or DVD into the slot, with label side up
(away from the controls, if mounted vertically). The CD or DVD will load and automatically
begin to play. The FD932DVD-LP-2-AV 2 does not retain the volume setting when powered
down. When powered off either from the front panel on/off button or from the aircraft, it powers
to half volume.
Note: CDs and DVDs are recorded at different levels, so it is normal for DVDs to be quieter
than CDs at the same volume setting.
Device Button Controls
BUTTON
FUNCTION
DESCRIPTION
Power
Turns on/off the unit.
Play/
Pause/Stop
Pauses or resumes play of a CD or
DVD
Previous/
Next
Skips forward or backward through
tracks (CD), files (MP3), or chapters
(DVD).
Fast
Forward/
Reverse
Fast forwards or reverses the
playback of the CD or DVD
SD/USB
Alternates the display between the
CD/DVD player and the external
inputs.
Eject
Ejects the CD or DVD from the slot
loader
All manuals and user guides at all-guides.com
all-guides.com

Document Number:
MAN –FD932DVD-LP-2-AV
Rev:
J
Revision Date:
02/24/2014
Page 17 of 26
All manuals and user guides at all-guides.com

Document Number:
MAN –FD932DVD-LP-2-AV
Rev:
J
Revision Date:
02/24/2014
Page 18 of 26
Remote Button Controls
1. Power
2. Menu
3. Setup
4. Eject
5. Previous
6. Rewind
7. Title
8. Dim
9. Next
10.Fast Forward
11.Sleep
13.Display
14.Stop
15.Up Arrow
16.Mute
17.Left Arrow
18.Enter
19.Right Arrow
20.Play/Pause
21.Down Arrow
22.USB/SD
23.Subtitles
24.Slow
25.Zoom
26.Angle
27.Repeat
28.Wide
29.Escape
30.Source
31.1
32.2
33.3
34.Channel+(Unused)
35.4
36.5
37.6
38.Channel-(Unused)
39.7
40.8
41.9
42.Volume Up
43.0
44.TFT (Unused)
45.DVD
46.Volume Down
47.Change to Set A IR
Commands (Default)
48.Change to Set B IR
Commands
*The remote control for the FD932DVD-LP-2-AV supports two different sets of IR commands, but
the unit itself only supports one. If the FD932DVD-LP-2-AV does not seem to be responding to
remote control button presses, press either A or B to make the remote switch between IR
command sets A and B.
Please call the Flight Display Support Team to inquire about the Flight Display Systems Universal
Remote if the need to support multiple DVD players on a single aircraft is present.
All manuals and user guides at all-guides.com

Document Number:
MAN –FD932DVD-LP-2-AV
Rev:
J
Revision Date:
02/24/2014
Page 19 of 26
Auxiliary Panel Switch
The FD932DVD-LP-2-AV has a toggle switch on the front panel. This switch allows the user to
source either the DVD player or the AUX input connections located on the front & rear panels.
Toggle the switch RIGHT to source the DVD player and LEFT to source the AUX inputs. See
Figure 1 below:
Figure 1: FD932DVD-LP-2-AV Toggle Switch
All manuals and user guides at all-guides.com

Document Number:
MAN –FD932DVD-LP-2-AV
Rev:
J
Revision Date:
02/24/2014
Page 20 of 26
USB & SD Card Video File Types
The FD932DVD-LP-2 is capable of playing videos from the USB port and SD card slot on the
front of the unit. Only certain types of files and encoding types are supported. This is a
hardware limitation of the DVD player chipset and additional support cannot be added with
firmware updates. The table below provides guidelines on compatible file types.
Please note while the FD932DVD-LP-2 can play certain .mp4 files, not all .mp4 files are
supported. MPEG-4 Part 2, also known as DivX and Xvid encoding is compatible based on the
guidelines above. MPEG-4 Part 10, also known as H.264 encoding is not compatible. Please
play close attention to the encoding type when converting and obtaining files for the
FD932DVD-LP-2 DVD player.
All manuals and user guides at all-guides.com
