FD932DVD-LP-2-4B & FD932DVD-LP-2-AV
Installation and Operation Manual
DVD/CD/MP3 Player, 4B Replacement &
DVD/CD/MP3 Player, Audio/Video Input
TECHNICAL SUPPORT
678-867-6717, or
www.FlightDisplay.com
All manuals and user guides at all-guides.com
all-guides.com

Document Number:
MAN – FD932DVD-LP-2-4B & FD932DVD-
LP-2-AV
Rev:
A
Revision Date:
12/07/2010
Page 2 of 19

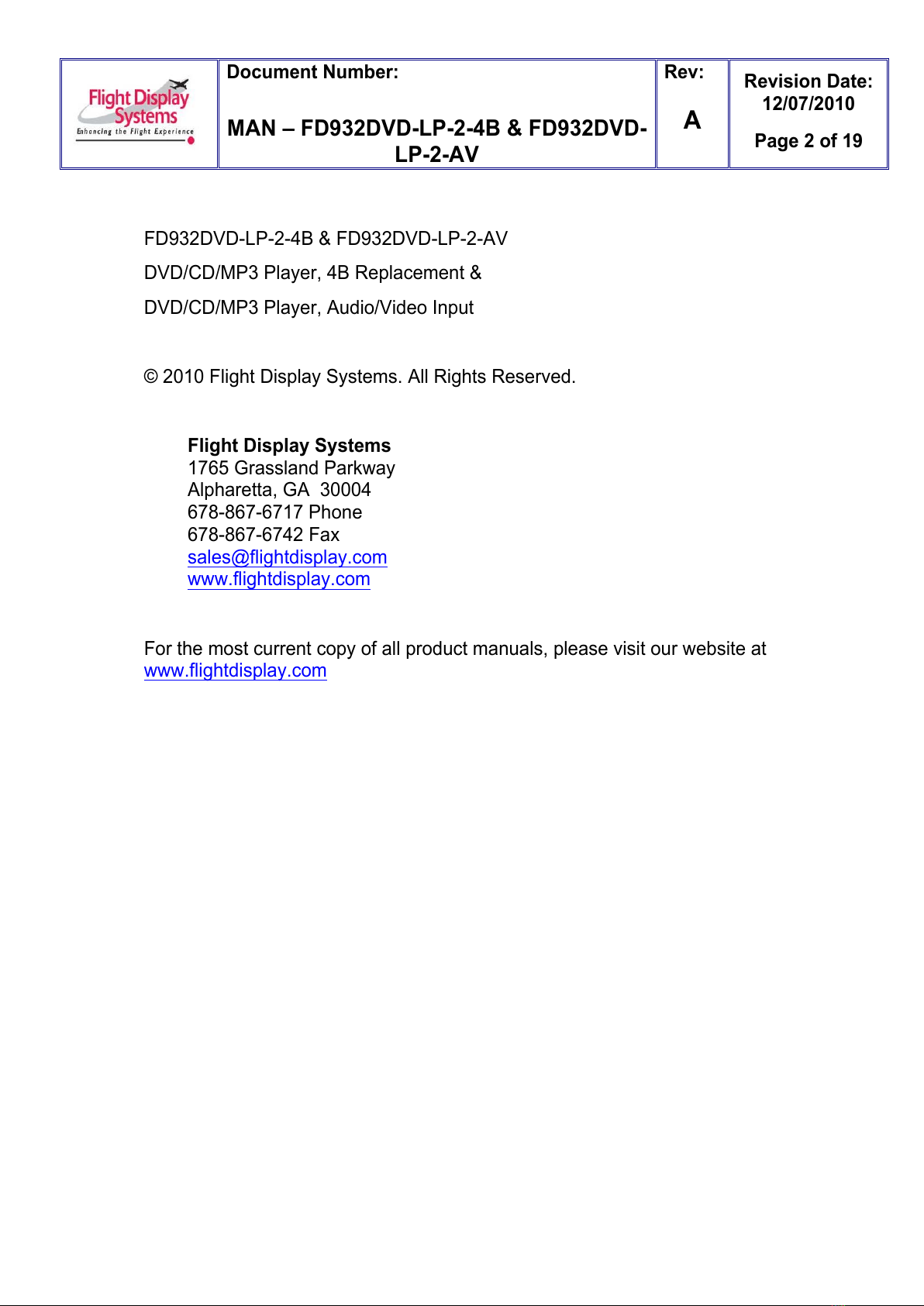

FD932DVD-LP-2-4B & FD932DVD-LP-2-AV
DVD/CD/MP3 Player, 4B Replacement &
DVD/CD/MP3 Player, Audio/Video Input
© 2010 Flight Display Systems. All Rights Reserved.
Flight Display Systems
1765 Grassland Parkway
Alpharetta, GA 30004
678-867-6717 Phone
678-867-6742 Fax
[email protected]
www.flightdisplay.com
For the most current copy of all product manuals, please visit our website at
www.flightdisplay.com
All manuals and user guides at all-guides.com

Document Number:
MAN – FD932DVD-LP-2-4B & FD932DVD-
LP-2-AV
Rev:
A
Revision Date:
12/07/2010
Page 3 of 19

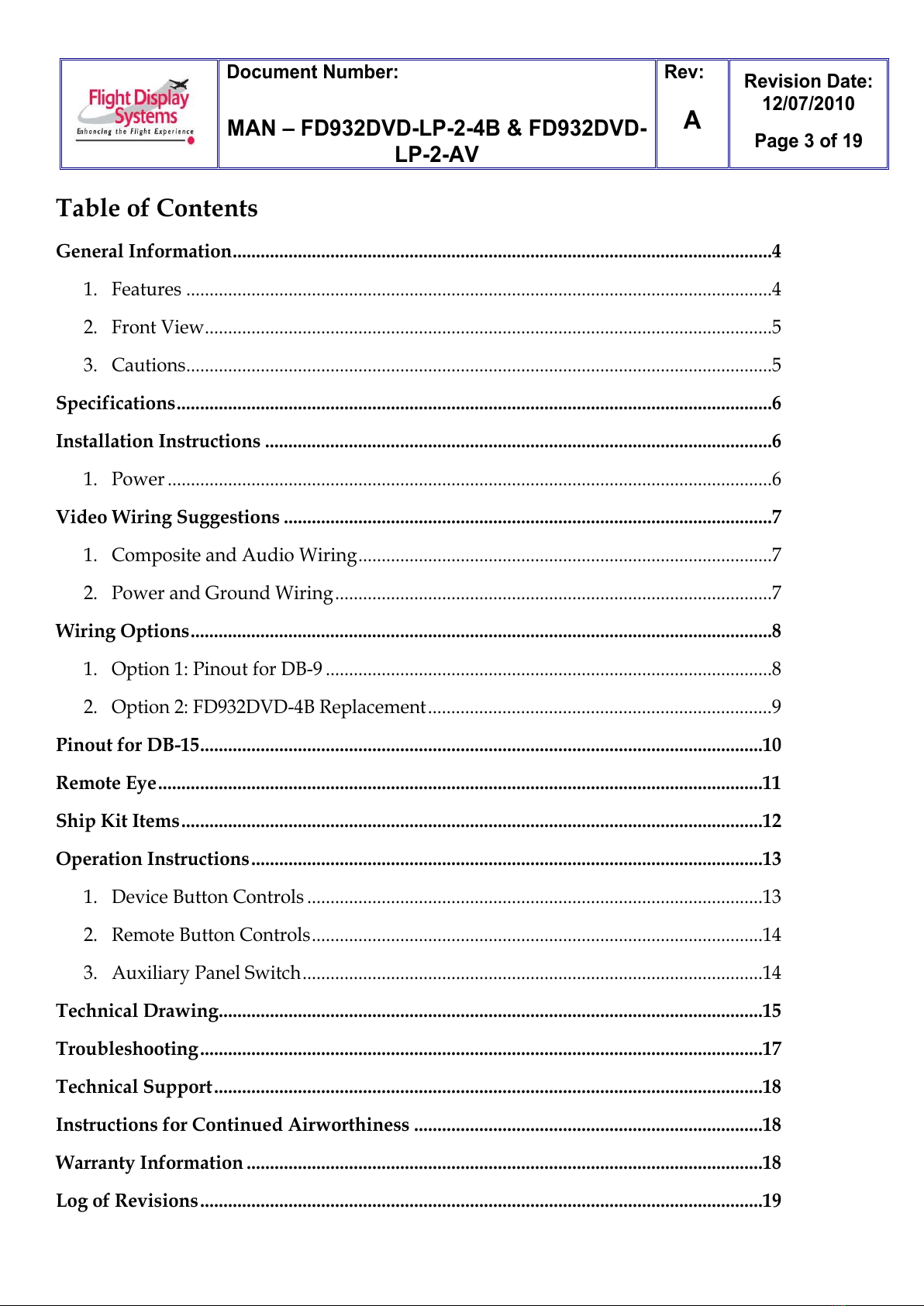

Table of Contents
General Information....................................................................................................................4
1. Features ..............................................................................................................................4
2. Front View..........................................................................................................................5
3. Cautions..............................................................................................................................5
Specifications................................................................................................................................6
Installation Instructions .............................................................................................................6
1. Power ..................................................................................................................................6
Video Wiring Suggestions .........................................................................................................7
1. Composite and Audio Wiring.........................................................................................7
2. Power and Ground Wiring..............................................................................................7
Wiring Options.............................................................................................................................8
1. Option 1: Pinout for DB-9 ................................................................................................8
2. Option 2: FD932DVD-4B Replacement..........................................................................9
Pinout for DB-15.........................................................................................................................10
Remote Eye..................................................................................................................................11
Ship Kit Items.............................................................................................................................12
Operation Instructions..............................................................................................................13
1. Device Button Controls ..................................................................................................13
2. Remote Button Controls.................................................................................................14
3. Auxiliary Panel Switch...................................................................................................14
Technical Drawing.....................................................................................................................15
Troubleshooting.........................................................................................................................17
Technical Support......................................................................................................................18
Instructions for Continued Airworthiness ...........................................................................18
Warranty Information ...............................................................................................................18
Log of Revisions.........................................................................................................................19
All manuals and user guides at all-guides.com

Document Number:
MAN – FD932DVD-LP-2-4B & FD932DVD-
LP-2-AV
Rev:
A
Revision Date:
12/07/2010
Page 4 of 19
General Information
The FD932DVD-LP-2-4B is designed as a replacement for the popular Flight Display Systems
FD932DVD-4B. The FD932DVD-4B was a full DIN size DVD player. The FD932DVD-LP-2-4B
includes a blanking plate to take up the space of the FD932DVD-4B to provide for a direct
replacement of the -4B without having to significantly modify the mounting location in the
aircraft. Please note that although this is identified as a replacement unit for the -4B there is a
slight width difference where the new FD932DVD-LP-2-4B is approximately an 1/8” wider than
the FD932DVD-4B which may require the mounting location to be slightly modified.
The FD932DVD-LP-2-AV is the same as the FD932DVD-LP-2-4B except for on difference:
RCA inputs are provided on the blanking plate for connecting an external video or audio
source. A switch lets the user select between the DVD player and the auxiliary input. The
selected source is then output to a monitor, speakers or CMS system.
Features
•Drop-In Replacement for FD932DVD-4B
•Easy access RCA inputs, (FD932DVD-LP-2-AV Only)
•Compatible with DVD/CD/SVCD/VCD/MP3
•Back-Lit Front Panel Buttons
•USB/SD Media Player
•2 Composite, NTSC/PAL Outputs
•Full Function Remote Control
All manuals and user guides at all-guides.com

Document Number:
MAN – FD932DVD-LP-2-4B & FD932DVD-
LP-2-AV
Rev:
A
Revision Date:
12/07/2010
Page 5 of 19
Front View
FD932DVD-LP-2-4B
FD932DVD-LP-2-AV
Cautions
In order to prevent damage to the FD932DVD-LP-2-4B & FD932DVD-LP-2-AV, please
follow the following precautions:
•Do not open and/or disassemble the unit.
•Do not attempt to insert a 3” disc (Mini-CD/Mini-DVD)
All manuals and user guides at all-guides.com

Document Number:
MAN – FD932DVD-LP-2-4B & FD932DVD-
LP-2-AV
Rev:
A
Revision Date:
12/07/2010
Page 6 of 19

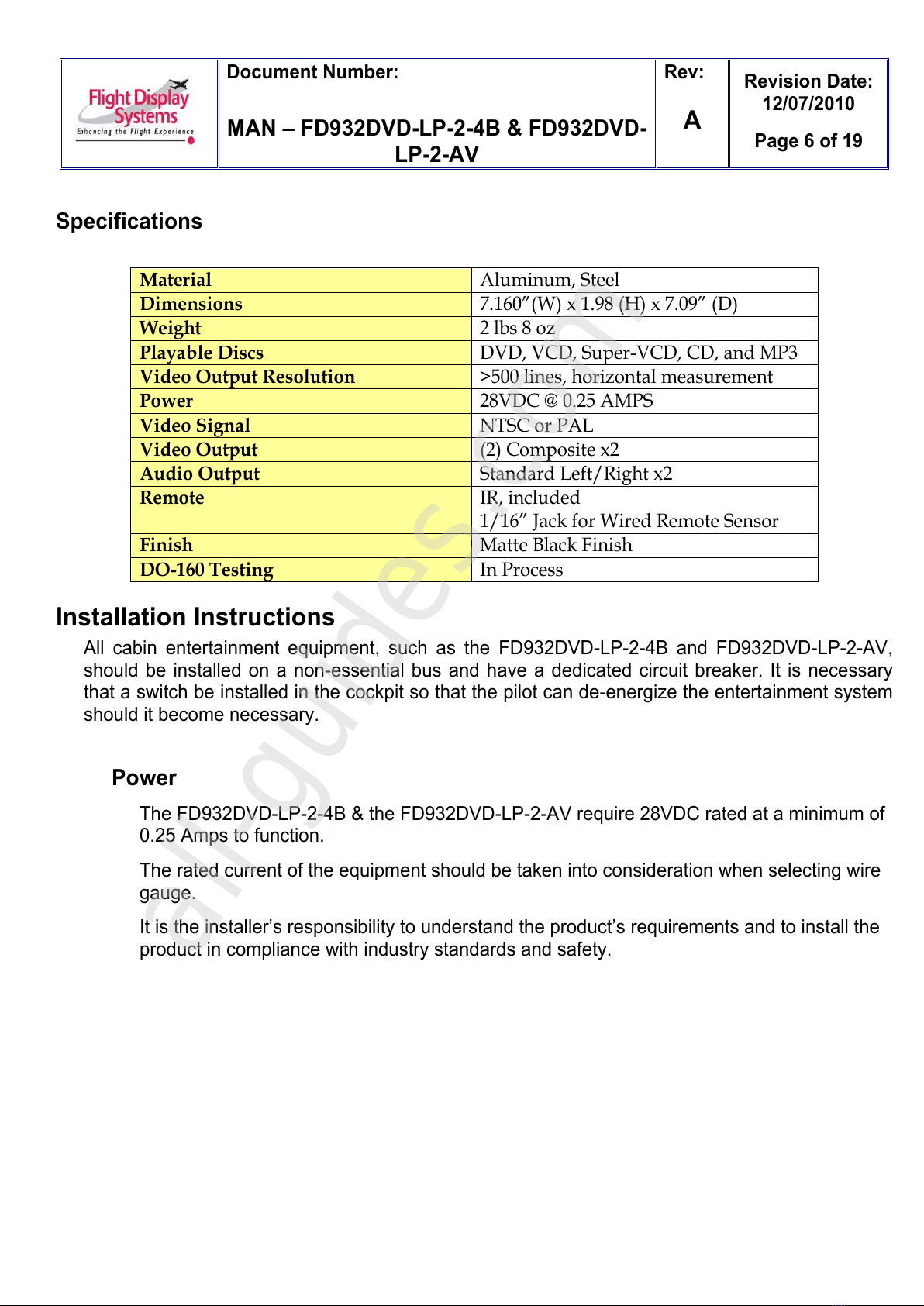

Specifications
Installation Instructions
All cabin entertainment equipment, such as the FD932DVD-LP-2-4B and FD932DVD-LP-2-AV,
should be installed on a non-essential bus and have a dedicated circuit breaker. It is necessary
that a switch be installed in the cockpit so that the pilot can de-energize the entertainment system
should it become necessary.
Power
The FD932DVD-LP-2-4B & the FD932DVD-LP-2-AV require 28VDC rated at a minimum of
0.25 Amps to function.
The rated current of the equipment should be taken into consideration when selecting wire
gauge.
It is the installer’s responsibility to understand the product’s requirements and to install the
product in compliance with industry standards and safety.
Material
Aluminum, Steel
Dimensions
7.160”(W) x 1.98 (H) x 7.09” (D)
Weight
2 lbs 8 oz
Playable Discs
DVD, VCD, Super-VCD, CD, and MP3
Video Output Resolution
>500 lines, horizontal measurement
Power
28VDC @ 0.25 AMPS
Video Signal
NTSC or PAL
Video Output
(2) Composite x2
Audio Output
Standard Left/Right x2
Remote
IR, included
1/16” Jack for Wired Remote Sensor
Finish
Matte Black Finish
DO-160 Testing
In Process
9
1
All manuals and user guides at all-guides.com
all-guides.com

Document Number:
MAN – FD932DVD-LP-2-4B & FD932DVD-
LP-2-AV
Rev:
A
Revision Date:
12/07/2010
Page 7 of 19

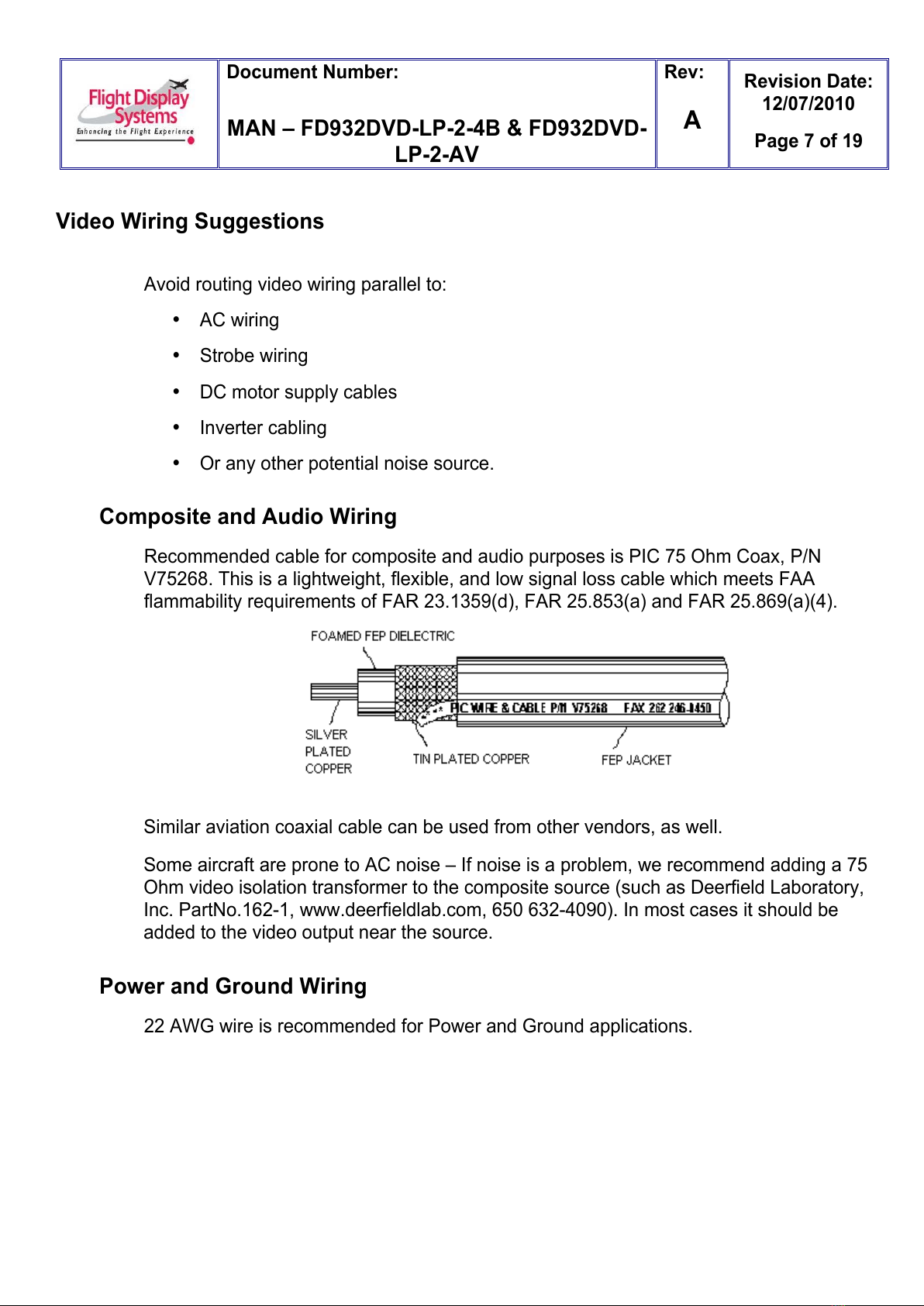

Video Wiring Suggestions
Avoid routing video wiring parallel to:
•AC wiring
•Strobe wiring
•DC motor supply cables
•Inverter cabling
•Or any other potential noise source.
Composite and Audio Wiring
Recommended cable for composite and audio purposes is PIC 75 Ohm Coax, P/N
V75268. This is a lightweight, flexible, and low signal loss cable which meets FAA
flammability requirements of FAR 23.1359(d), FAR 25.853(a) and FAR 25.869(a)(4).
Similar aviation coaxial cable can be used from other vendors, as well.
Some aircraft are prone to AC noise – If noise is a problem, we recommend adding a 75
Ohm video isolation transformer to the composite source (such as Deerfield Laboratory,
Inc. PartNo.162-1, www.deerfieldlab.com, 650 632-4090). In most cases it should be
added to the video output near the source.
Power and Ground Wiring
22 AWG wire is recommended for Power and Ground applications.
All manuals and user guides at all-guides.com

Document Number:
MAN – FD932DVD-LP-2-4B & FD932DVD-
LP-2-AV
Rev:
A
Revision Date:
12/07/2010
Page 8 of 19

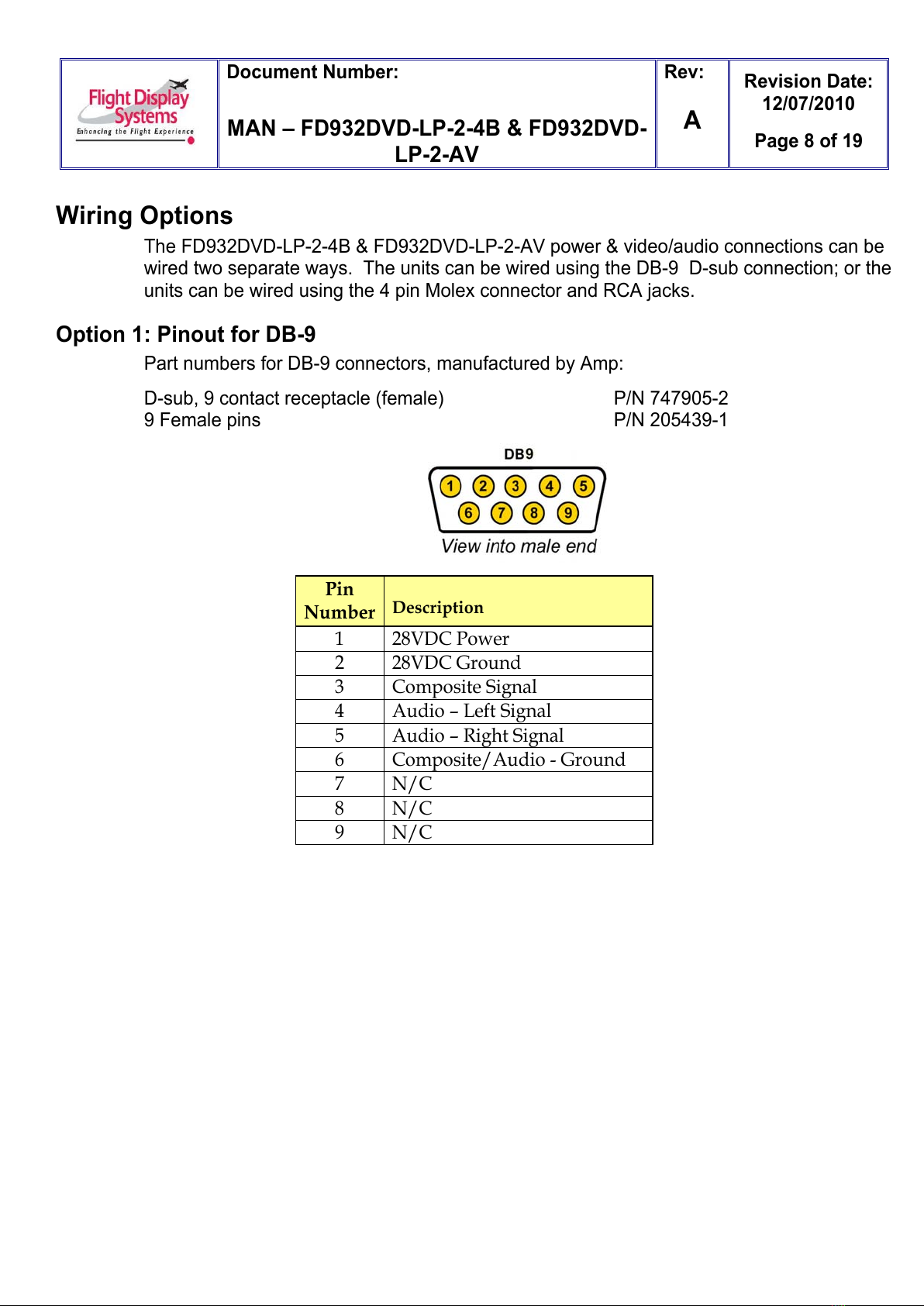

Wiring Options
The FD932DVD-LP-2-4B & FD932DVD-LP-2-AV power & video/audio connections can be
wired two separate ways. The units can be wired using the DB-9 D-sub connection; or the
units can be wired using the 4 pin Molex connector and RCA jacks.
Option 1: Pinout for DB-9
Part numbers for DB-9 connectors, manufactured by Amp:
D-sub, 9 contact receptacle (female) P/N 747905-2
9 Female pins P/N 205439-1
Pin
Number
Description
1
28VDC Power
2
28VDC Ground
3
Composite Signal
4
Audio – Left Signal
5
Audio – Right Signal
6
Composite/Audio - Ground
7
N/C
8
N/C
9
N/C
All manuals and user guides at all-guides.com

Document Number:
MAN – FD932DVD-LP-2-4B & FD932DVD-
LP-2-AV
Rev:
A
Revision Date:
12/07/2010
Page 9 of 19
Option 2: Molex Connector and RCA
To replace an existing 28VDC FD932DVD-4B player, plug the existing Molex connector
into the rear panel Molex socket. Connect the RCA plugs to the RCA jacks on the rear
panel of the unit. To replace an existing 12VDC FD932DVD-4B, the Molex connector
should be rewired at 28VDC. To connect the unit for 28VDC, connect the yellow wire and
the red wire of the Molex connector to 28VDC (for redundancy the yellow and red
connections are connected internal to the unit). Connect the Black wire to 28VDC ground.
See below for power and video connections.
Separate RCA Jack Locations, Rear Panel
28VDC
GND
N/C
28VDC
All manuals and user guides at all-guides.com

Document Number:
MAN – FD932DVD-LP-2-4B & FD932DVD-
LP-2-AV
Rev:
A
Revision Date:
12/07/2010
Page 10 of 19

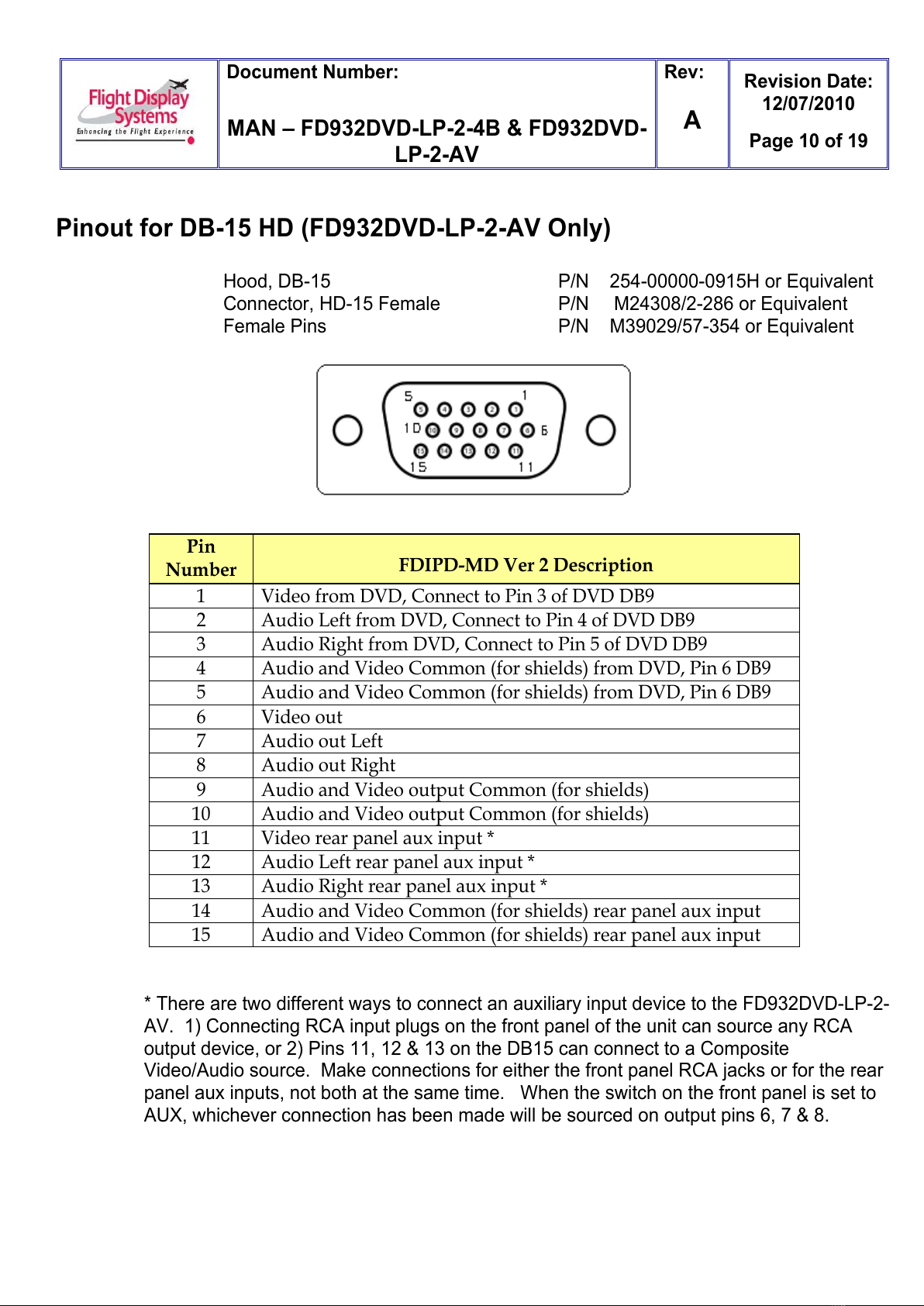

Pinout for DB-15 HD (FD932DVD-LP-2-AV Only)
Hood, DB-15 P/N 254-00000-0915H or Equivalent
Connector, HD-15 Female P/N M24308/2-286 or Equivalent
Female Pins P/N M39029/57-354 or Equivalent
* There are two different ways to connect an auxiliary input device to the FD932DVD-LP-2-
AV. 1) Connecting RCA input plugs on the front panel of the unit can source any RCA
output device, or 2) Pins 11, 12 & 13 on the DB15 can connect to a Composite
Video/Audio source. Make connections for either the front panel RCA jacks or for the rear
panel aux inputs, not both at the same time. When the switch on the front panel is set to
AUX, whichever connection has been made will be sourced on output pins 6, 7 & 8.
Pin
Number
FDIPD-MD Ver 2 Description
1
Video from DVD, Connect to Pin 3 of DVD DB9
2
Audio Left from DVD, Connect to Pin 4 of DVD DB9
3
Audio Right from DVD, Connect to Pin 5 of DVD DB9
4
Audio and Video Common (for shields) from DVD, Pin 6 DB9
5
Audio and Video Common (for shields) from DVD, Pin 6 DB9
6
Video out
7
Audio out Left
8
Audio out Right
9
Audio and Video output Common (for shields)
10
Audio and Video output Common (for shields)
11
Video rear panel aux input *
12
Audio Left rear panel aux input *
13
Audio Right rear panel aux input *
14
Audio and Video Common (for shields) rear panel aux input
15
Audio and Video Common (for shields) rear panel aux input
All manuals and user guides at all-guides.com

Document Number:
MAN – FD932DVD-LP-2-4B & FD932DVD-
LP-2-AV
Rev:
A
Revision Date:
12/07/2010
Page 11 of 19
Remote Eye
The FD932DVD-LP-2-4B & FD932DVD-LP-2-AV have an available remote IR sensor
(“remote eye”) that can be used to accept remote signals in addition to the main unit. For
instance, the remote eye can be mounted by a monitor, to allow both the monitor and the
DVD player to be controlled by pointing the remote at the same spot.
The remote eye measures 1.05” (27mm) x 0.68” (17mm) x 0.28” (7mm), and can be
extended 10 feet from the FD932DVD-4B.
All manuals and user guides at all-guides.com
all-guides.com

Document Number:
MAN – FD932DVD-LP-2-4B & FD932DVD-
LP-2-AV
Rev:
A
Revision Date:
12/07/2010
Page 12 of 19
Ship Kit Items
Product
FD932DVD-LP-2-4B & FD932DVD-LP-2-AV
Shipping Materials
•(1) SHIPKIT-DB9F
•(1) FERRITE INSTALL
•(1) FERRITE (240-2072-ND)
All manuals and user guides at all-guides.com

Document Number:
MAN – FD932DVD-LP-2-4B & FD932DVD-
LP-2-AV
Rev:
A
Revision Date:
12/07/2010
Page 13 of 19

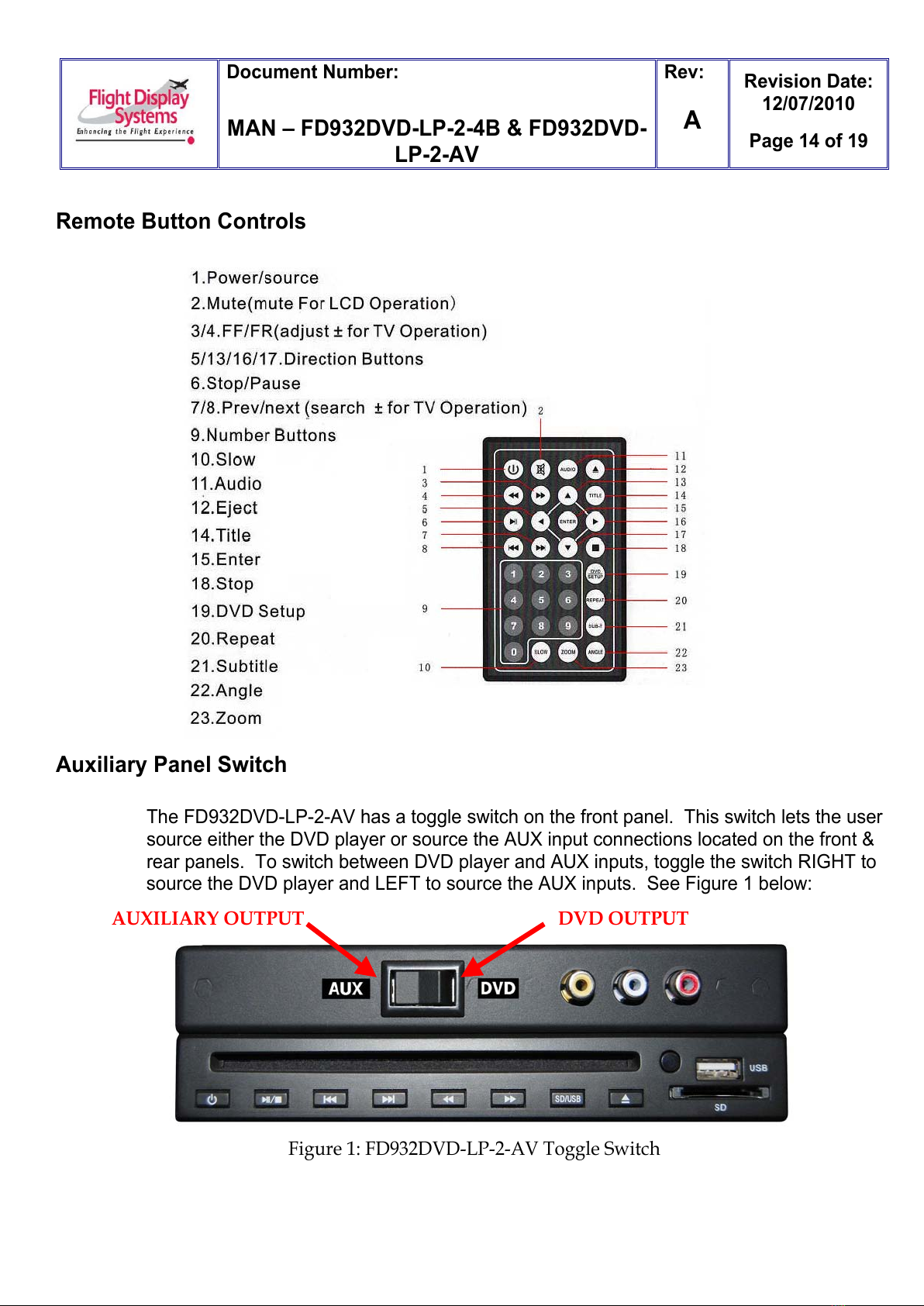

Operation Instructions
To power the unit up, press the power button. The unit will light up and display a Flight
Display Systems logo on the display(s). Insert a CD or DVD into the slot, with label side
up (away from the controls, if mounted vertically). The CD or DVD will load and
automatically begin to play. The FD932DVD-LP-2-4B & FD932DVD-LP-2-AV will
remember its volume setting when powered down.
Note: CDs and DVDs are recorded at different levels, so it is normal for DVDs to be
quieter than CDs at the same volume setting.
Device Button Controls
BUTTON
FUNCTION
DESCRIPTION
Power
Turns on/off the unit.
Play/
Pause/Stop
Pauses or resumes play of a CD or
DVD
Previous/
Next
Skips forward or backward through
tracks (CD), files (MP3), or chapters
(DVD).
Fast
Forward/
Reverse
Fast forwards or reverses the
playback of the CD or DVD
SD/USB
Alternates the display between the
CD/DVD player and the external
inputs.
Eject
Ejects the CD or DVD from the slot
loader
All manuals and user guides at all-guides.com

Document Number:
MAN – FD932DVD-LP-2-4B & FD932DVD-
LP-2-AV
Rev:
A
Revision Date:
12/07/2010
Page 14 of 19
Remote Button Controls
Auxiliary Panel Switch
The FD932DVD-LP-2-AV has a toggle switch on the front panel. This switch lets the user
source either the DVD player or source the AUX input connections located on the front &
rear panels. To switch between DVD player and AUX inputs, toggle the switch RIGHT to
source the DVD player and LEFT to source the AUX inputs. See Figure 1 below:
AUXILIARY OUTPUT DVD OUTPUT
Figure 1: FD932DVD-LP-2-AV Toggle Switch
All manuals and user guides at all-guides.com

Document Number:
MAN – FD932DVD-LP-2-4B & FD932DVD-
LP-2-AV
Rev:
A
Revision Date:
12/07/2010
Page 15 of 19

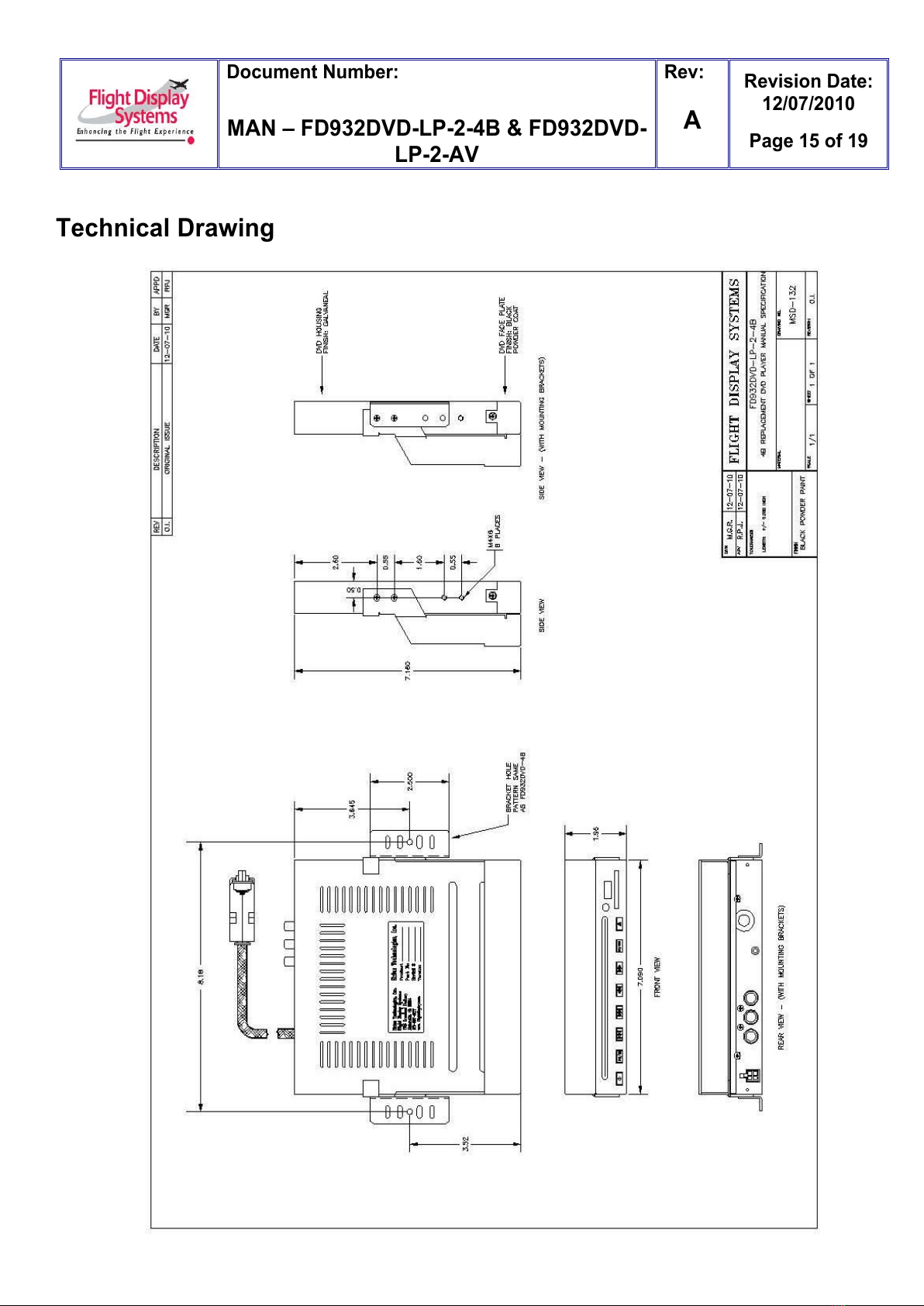

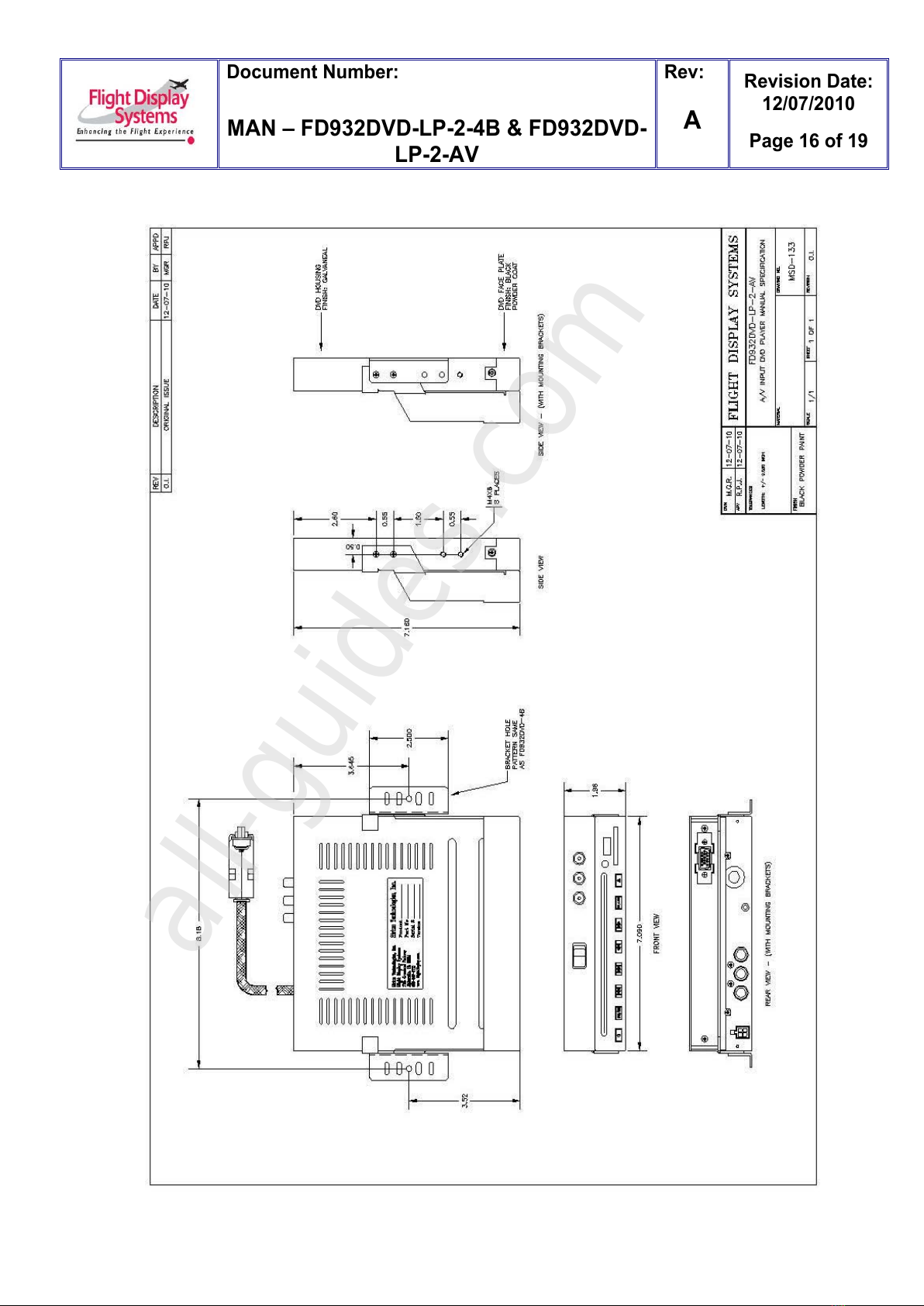

Technical Drawing
All manuals and user guides at all-guides.com

Document Number:
MAN – FD932DVD-LP-2-4B & FD932DVD-
LP-2-AV
Rev:
A
Revision Date:
12/07/2010
Page 16 of 19
All manuals and user guides at all-guides.com
all-guides.com

Document Number:
MAN – FD932DVD-LP-2-4B & FD932DVD-
LP-2-AV
Rev:
A
Revision Date:
12/07/2010
Page 17 of 19

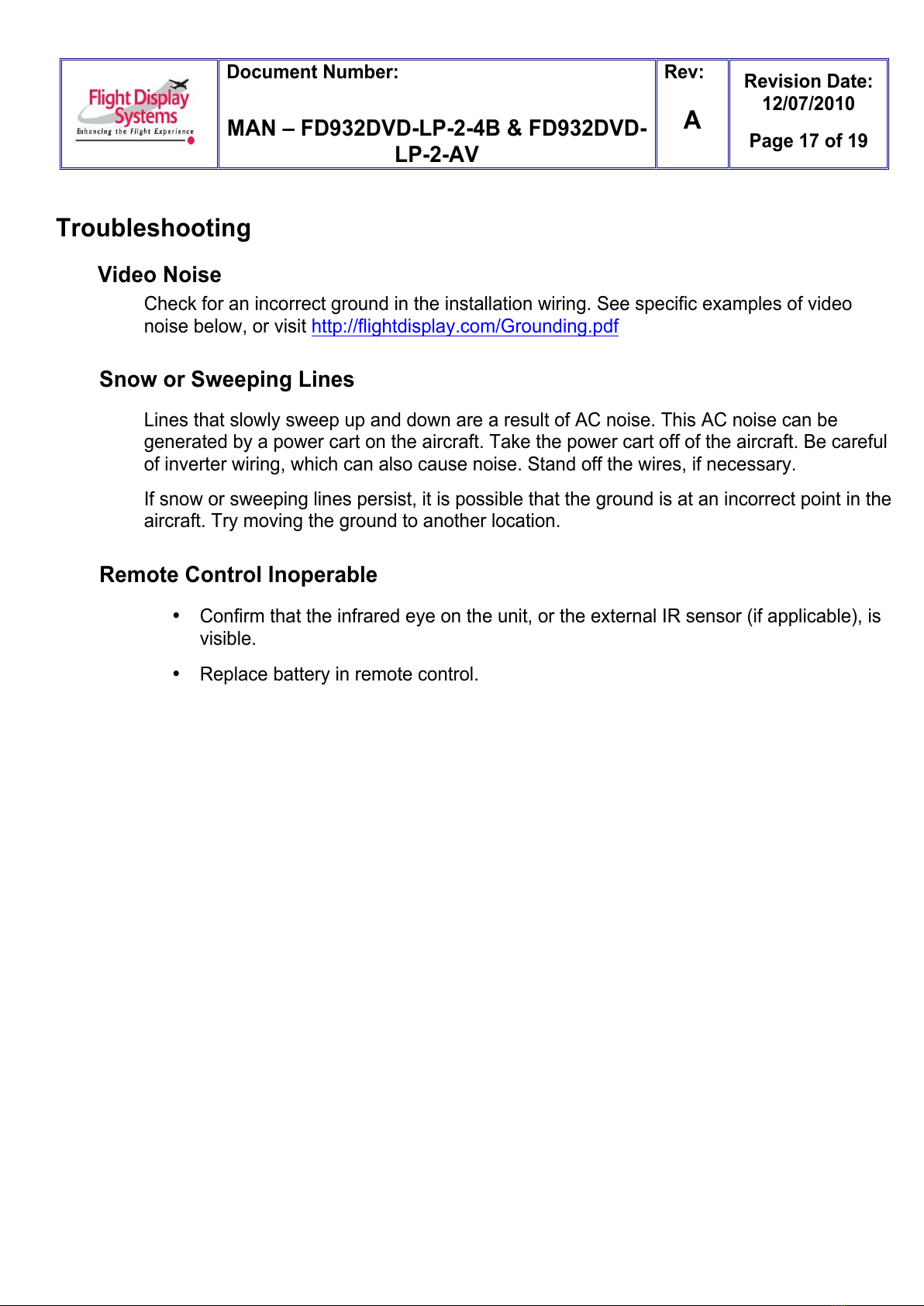

Troubleshooting
Video Noise
Check for an incorrect ground in the installation wiring. See specific examples of video
noise below, or visit http://flightdisplay.com/Grounding.pdf
Snow or Sweeping Lines
Lines that slowly sweep up and down are a result of AC noise. This AC noise can be
generated by a power cart on the aircraft. Take the power cart off of the aircraft. Be careful
of inverter wiring, which can also cause noise. Stand off the wires, if necessary.
If snow or sweeping lines persist, it is possible that the ground is at an incorrect point in the
aircraft. Try moving the ground to another location.
Remote Control Inoperable
•Confirm that the infrared eye on the unit, or the external IR sensor (if applicable), is
visible.
•Replace battery in remote control.
All manuals and user guides at all-guides.com

Document Number:
MAN – FD932DVD-LP-2-4B & FD932DVD-
LP-2-AV
Rev:
A
Revision Date:
12/07/2010
Page 18 of 19
Technical Support
Should you have any questions concerning this product or other Flight Display Systems
products, please contact our Product Support representatives at [phone].
Flight Display Systems
1765 Grassland Parkway
Alpharetta, GA 30004
Phone: [phone]
Fax: [phone]
Email: [email protected]
For further product information, technical data and sample wiring diagrams, please click on
the Dealers section of our web site at www.flightdisplay.com
Instructions for Continued Airworthiness
The FD932DVD-LP-2-4B & FD932DVD-LP-2-AV is designed not to require regular general
maintenance.
Warranty Information
Flight Display Systems warrants the FD932DVD-LP-2-4B & FD932DVD-LP-2-AV against material
or manufacturing defects for a two-year period. Effective 1/1/2009, all equipment sold after
1/1/2009 will have a 2-year warranty. Warranty begins on date of installation. *The warranty
registration card must be returned upon installation in order to validate the two-year warranty. Any
warranty registration not returned during this time period will default to the date of purchase as the
warranty start date.
Please call our Technical Support at 678-867-6717 to obtain an RMA number. Flight Display
Systems will, upon receipt of the failed hardware, remanufacture or replace the unit at our
discretion.
Flight Display Systems will pay Ground Shipping charges for warranted items. Charges for
express shipment will be the responsibility of the sender.
This warranty is not transferable. Any implied warranties expire at the expiration date of this
warranty. We shall not be liable for incidental or consequential damages.
This warranty does not cover a defect or failure that has resulted from improper or unreasonable
installation, use or maintenance, as determined by Flight Display Systems. This warranty is void if
there is any attempt to disassemble or open this product without factory authorization.
Any labor charges associated with the removal of product or related troubleshooting by a firm
other than Flight Display Systems or its designee will not be covered.
All manuals and user guides at all-guides.com

Document Number:
MAN – FD932DVD-LP-2-4B & FD932DVD-
LP-2-AV
Rev:
A
Revision Date:
12/07/2010
Page 19 of 19

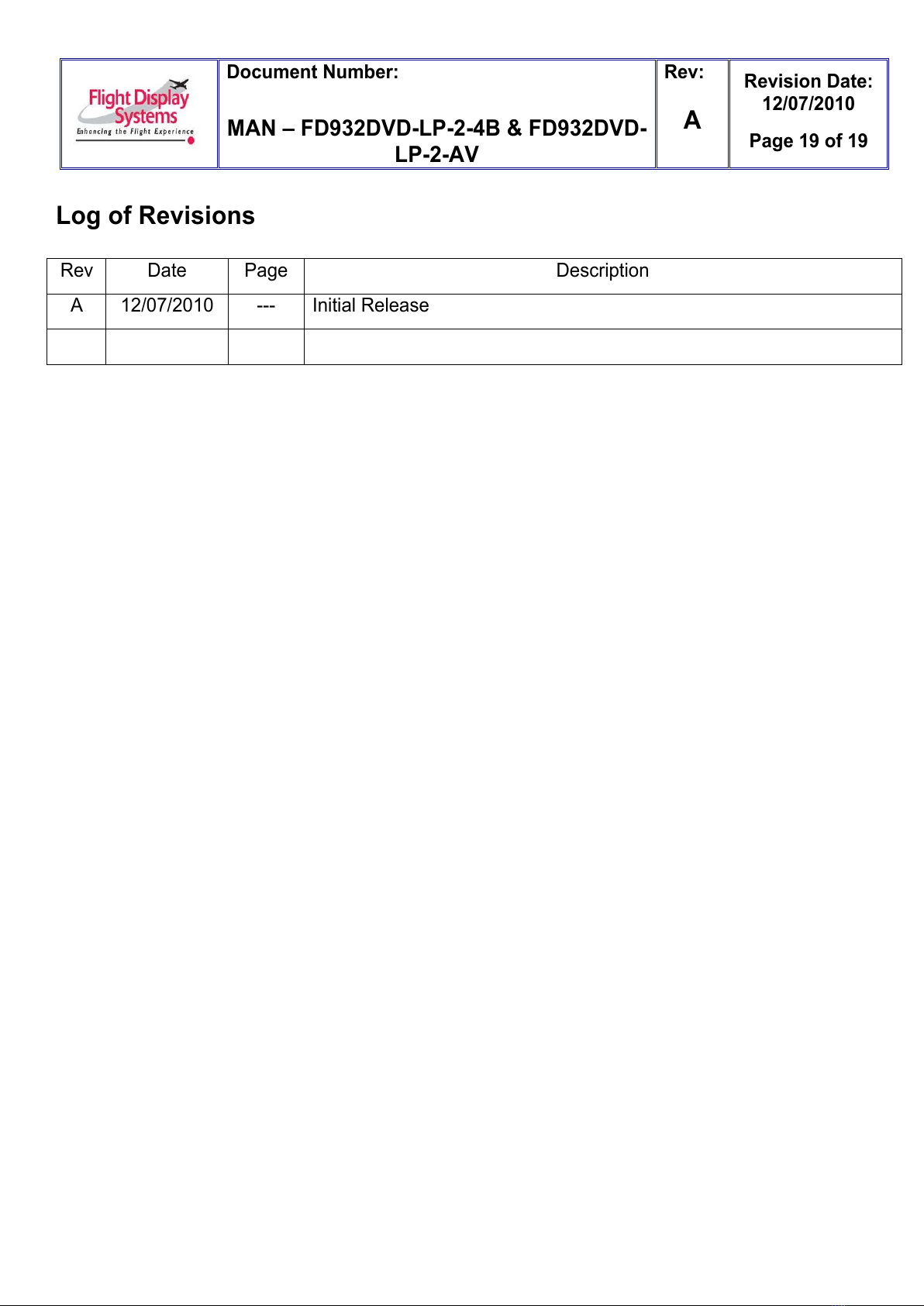

Log of Revisions
Rev
Date
Page
Description
A
12/07/2010
---
Initial Release
All manuals and user guides at all-guides.com
