Flight Display Systems FD932DVD-LP-2 User manual

Document Number:
MAN – FD932DVD-LP-2
Rev:
F
Revision Date:
07/19/2011
Page 1 of 18
FD932DVD-LP-2
Installation and Operation Manual
Low-Profile DVD/CD/MP3 Player
TECHNICAL SUPPORT
678-867-6717, or
www.FlightDisplay.com
All manuals and user guides at all-guides.com
all-guides.com

Document Number:
MAN – FD932DVD-LP-2
Rev:
F
Revision Date:
07/19/2011
Page 2 of 18
FD932DVD-LP-2
Low-Profile DVD/CD/MP3 Player
© 2010 Flight Display Systems. All Rights Reserved.
Flight Display Systems
1765 Grassland Parkway
Alpharetta, GA 30004
678-867-6717 Phone
678-867-6742 Fax
[e-mail]
www.flightdisplay.com
For the most current copy of all product manuals, please visit our website at
www.flightdisplay.com
All manuals and user guides at all-guides.com

Document Number:
MAN – FD932DVD-LP-2
Rev:
F
Revision Date:
07/19/2011
Page 3 of 18
Table of Contents
General Information....................................................................................................................4
1. Features ..............................................................................................................................4
2. Front View..........................................................................................................................4
3. Cautions..............................................................................................................................4
4. Additional Information....................................................................................................5
Specifications................................................................................................................................6
Installation Instructions .............................................................................................................6
1. Power ..................................................................................................................................6
Video Wiring Suggestions .........................................................................................................7
1. Composite and Audio Wiring.........................................................................................7
2. Power and Ground Wiring..............................................................................................7
Wiring Options.............................................................................................................................8
1. Option 1: Pinout for DB-9 ................................................................................................8
2. Option 2: Molex Connector and RCA ............................................................................9
Remote Eye..................................................................................................................................10
Ship Kit Items.............................................................................................................................11
Operation Instructions..............................................................................................................12
1. Device Button Controls ..................................................................................................12
2. Remote Button Controls.................................................................................................13
3. Set Region Codes/Region Codes..................................................................................14

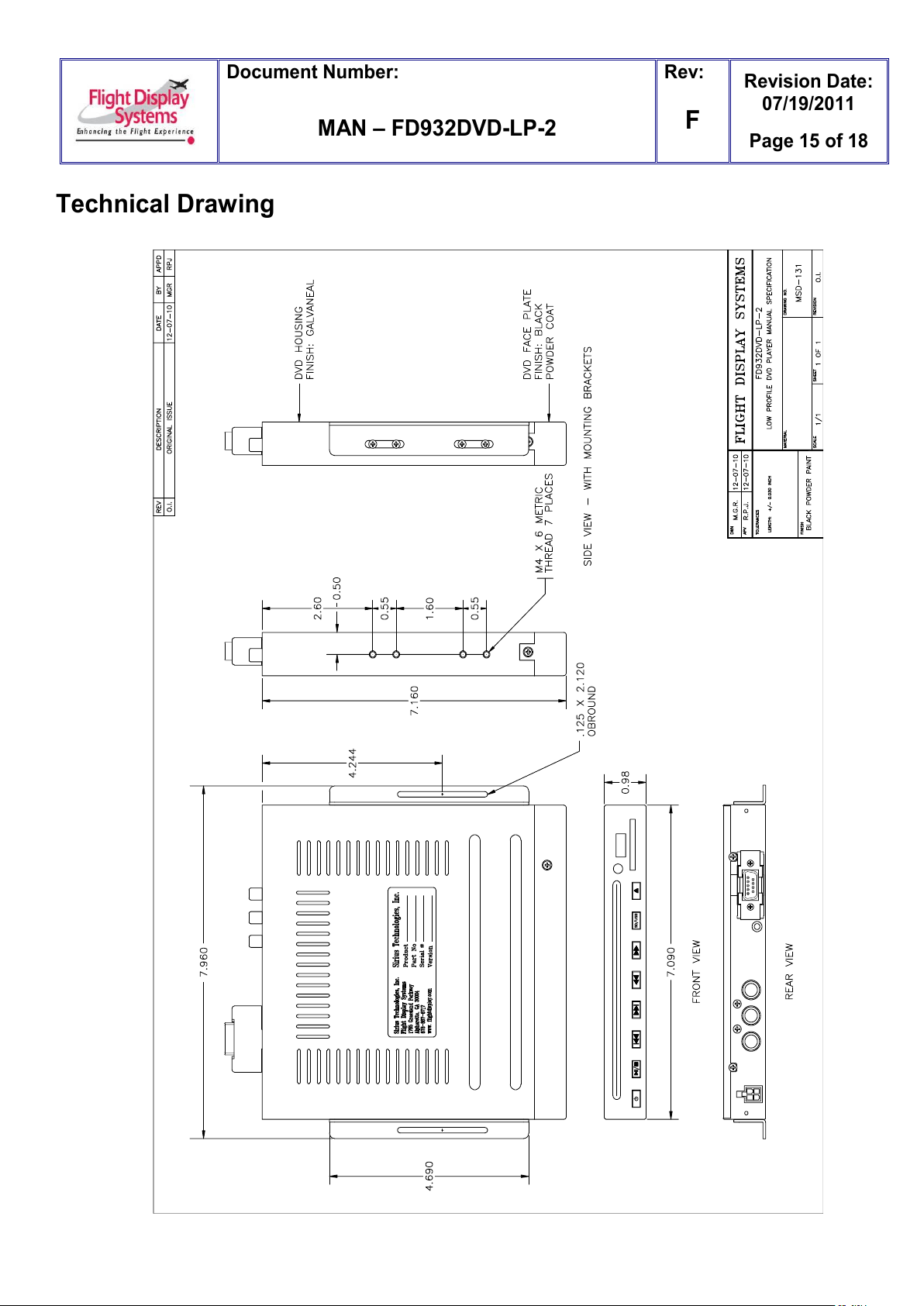

Technical Drawing.....................................................................................................................15

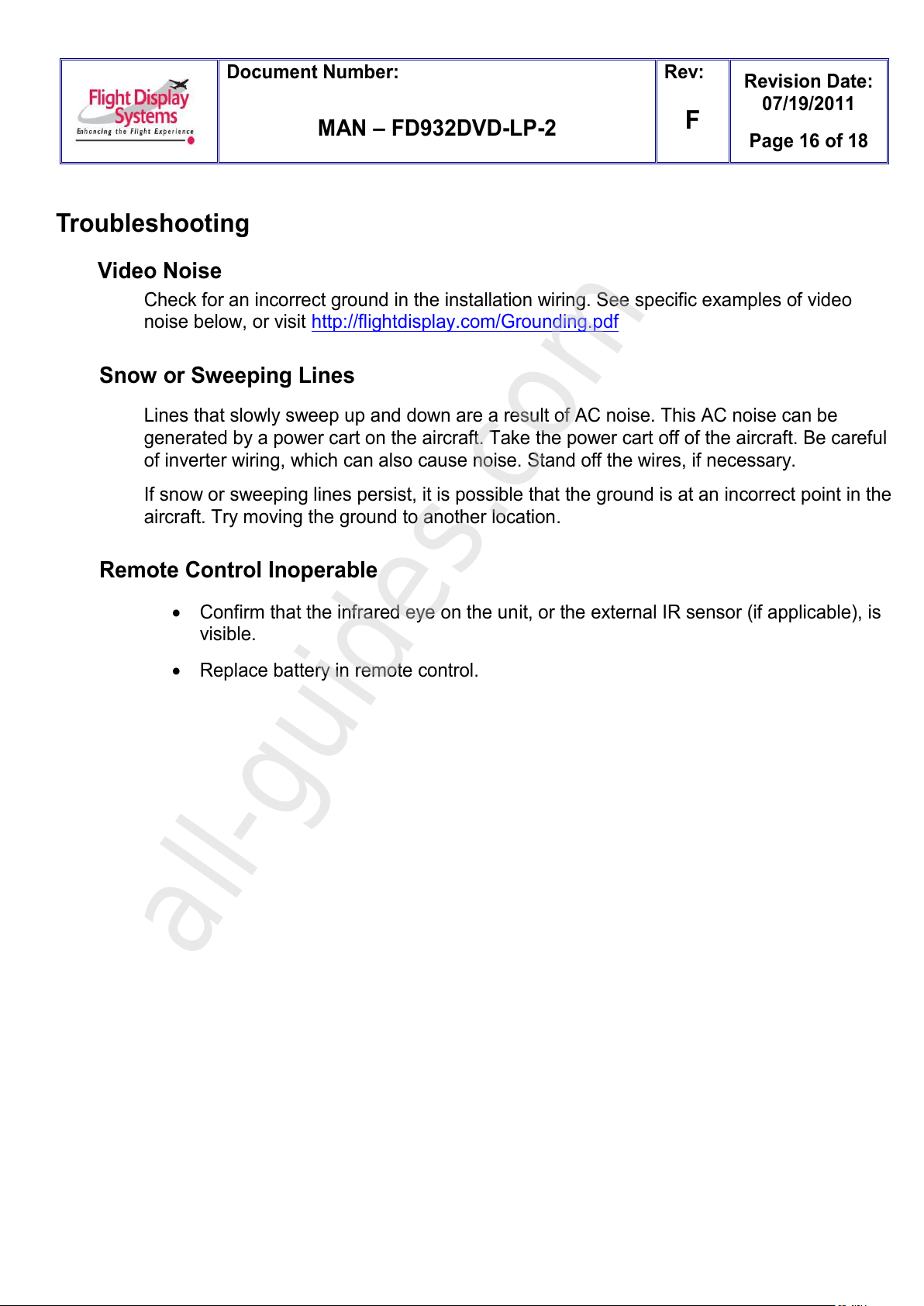

Troubleshooting.........................................................................................................................16
Technical Support......................................................................................................................17
Instructions for Continued Airworthiness ...........................................................................17
Warranty Information ...............................................................................................................17

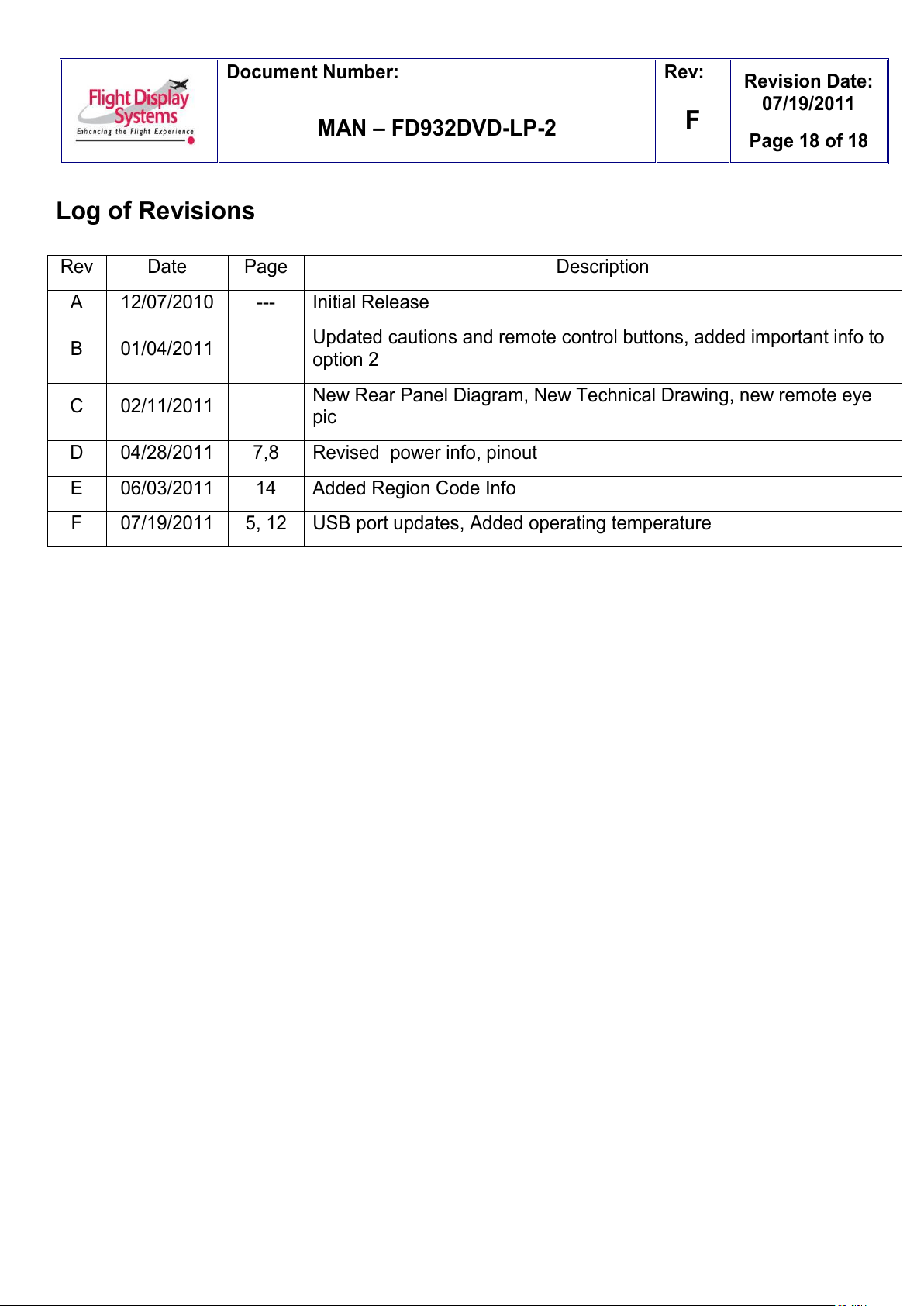

Log of Revisions.........................................................................................................................18
All manuals and user guides at all-guides.com

Document Number:
MAN – FD932DVD-LP-2
Rev:
F
Revision Date:
07/19/2011
Page 4 of 18

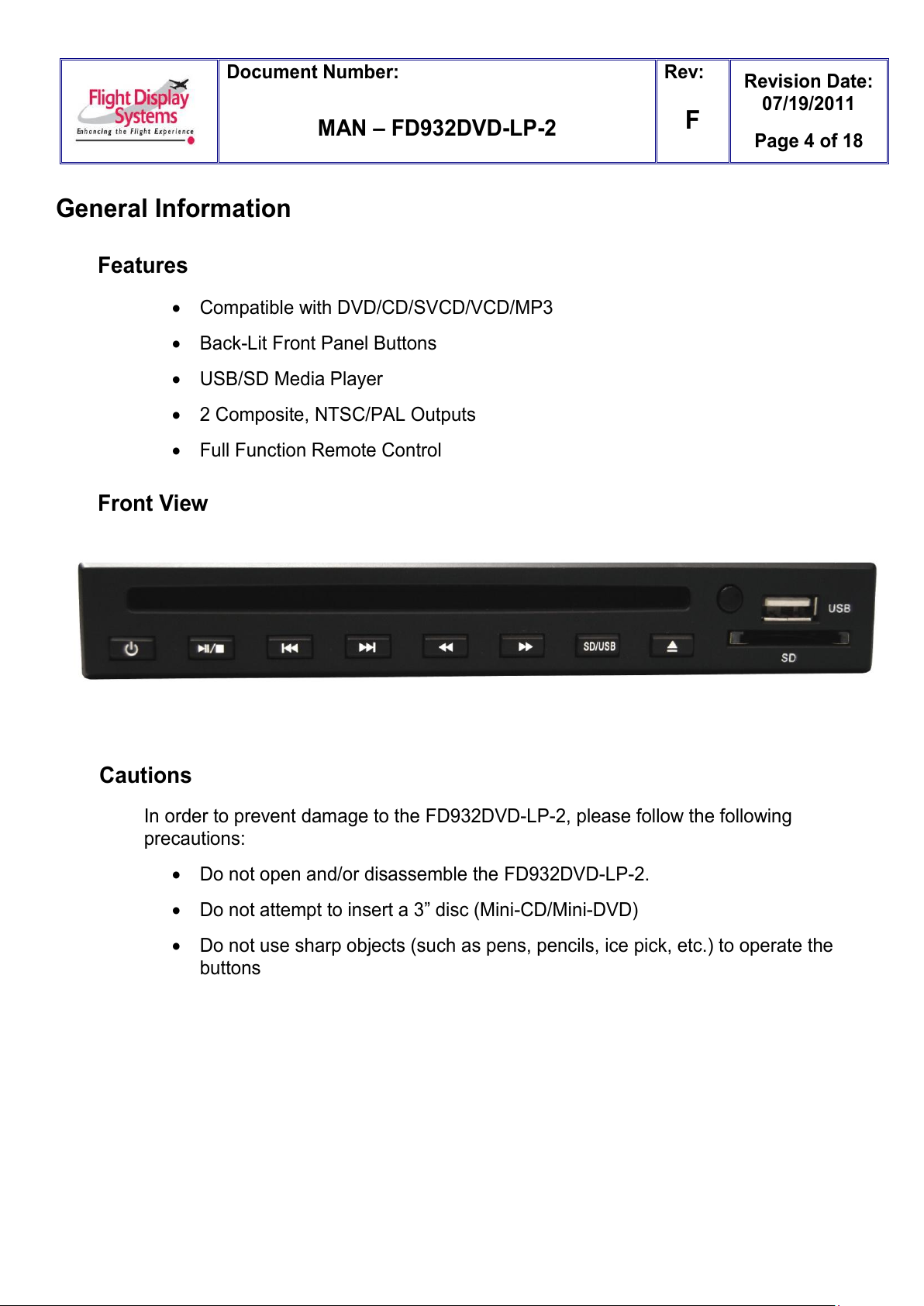

General Information
Features
 Compatible with DVD/CD/SVCD/VCD/MP3
 Back-Lit Front Panel Buttons
 USB/SD Media Player
 2 Composite, NTSC/PAL Outputs
 Full Function Remote Control
Front View
Cautions
In order to prevent damage to the FD932DVD-LP-2, please follow the following
precautions:
 Do not open and/or disassemble the FD932DVD-LP-2.
 Do not attempt to insert a 3” disc (Mini-CD/Mini-DVD)
 Do not use sharp objects (such as pens, pencils, ice pick, etc.) to operate the
buttons
All manuals and user guides at all-guides.com

Document Number:
MAN – FD932DVD-LP-2
Rev:
F
Revision Date:
07/19/2011
Page 5 of 18

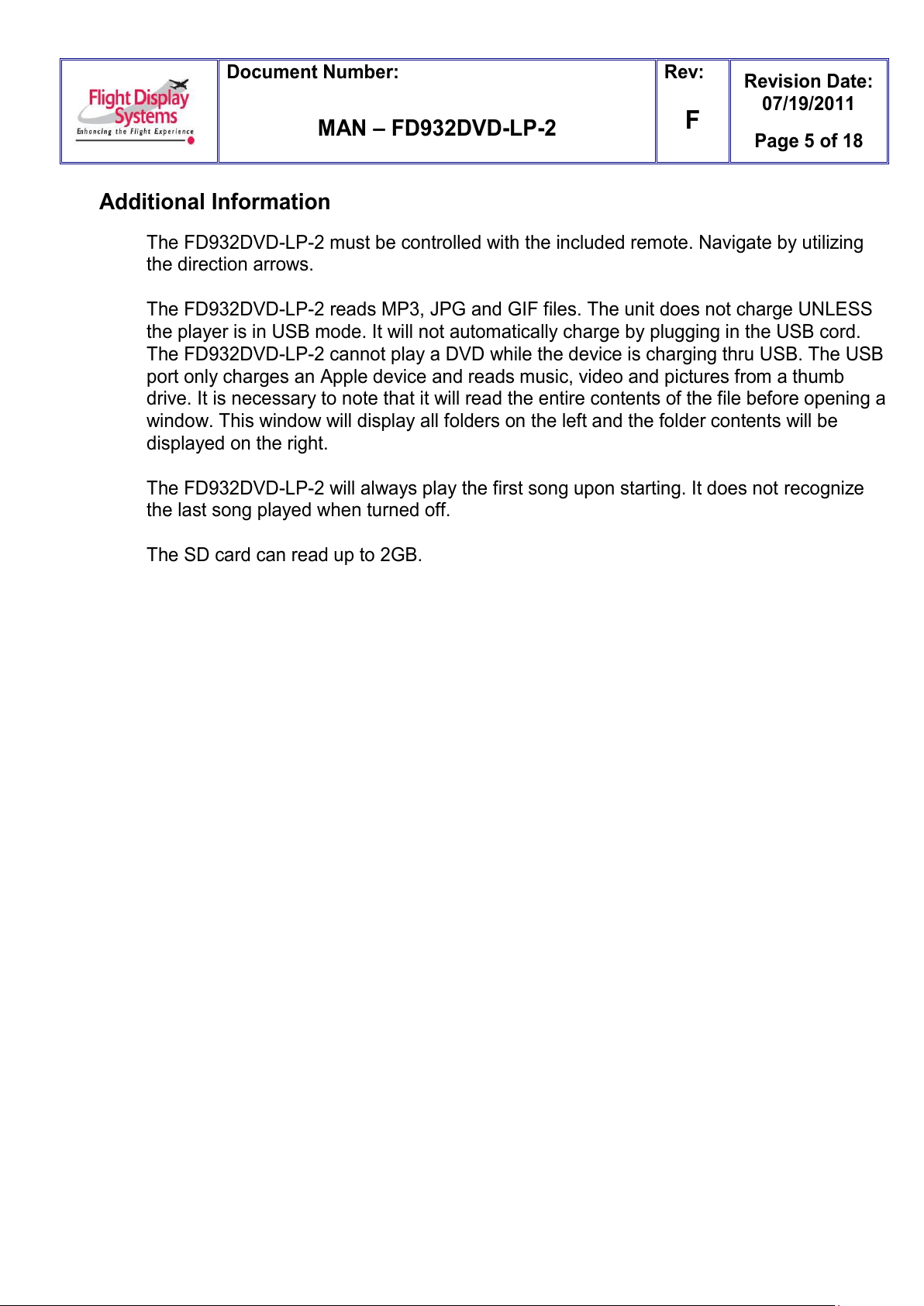

Additional Information
The FD932DVD-LP-2 must be controlled with the included remote. Navigate by utilizing
the direction arrows.
The FD932DVD-LP-2 reads MP3, JPG and GIF files. The unit does not charge UNLESS
the player is in USB mode. It will not automatically charge by plugging in the USB cord.
The FD932DVD-LP-2 cannot play a DVD while the device is charging thru USB. The USB
port only charges an Apple device and reads music, video and pictures from a thumb
drive. It is necessary to note that it will read the entire contents of the file before opening a
window. This window will display all folders on the left and the folder contents will be
displayed on the right.
The FD932DVD-LP-2 will always play the first song upon starting. It does not recognize
the last song played when turned off.
The SD card can read up to 2GB.
All manuals and user guides at all-guides.com

Document Number:
MAN – FD932DVD-LP-2
Rev:
F
Revision Date:
07/19/2011
Page 6 of 18
Specifications
Material
Aluminum, Steel
Dimensions
7.160”(W) x 0.98 (H) x 7.09” (D)
Weight
2 lbs 8 oz
Playable Discs
DVD, VCD, Super-VCD, CD, and MP3
Video Output Resolution
>500 lines, horizontal measurement
Power
12VDC @ .50 AMPS
28VDC @ .25 AMPS
Video Signal
NTSC or PAL
Operating Temperature
0-50° C (32-122° F)
Video Output
(2) Composite x2
Audio Output
Standard Left/Right x2
Remote
IR, included
1/16” Jack for Wired Remote Sensor
Finish
Matte Black Finish
DO-160 Testing
SEC 21, CAT B
Installation Instructions
All cabin entertainment equipment, such as the FD932DVD-LP-2, should be installed on a non-
essential bus and have a dedicated circuit breaker. It is necessary that a switch be installed in the
cockpit so that the pilot can de-energize the entertainment system should it become necessary.
Power
The FD932DVD-LP-2 requires 12VDC rated at a minimum of .50 Amps or 28VDC rated at
a minimum of .25 Amps to function.
The rated current of the equipment should be taken into consideration when selecting wire
gauge.
It is the installer’s responsibility to understand the product’s requirements and to install the
product in compliance with industry standards and safety.
9
1
7
1
All manuals and user guides at all-guides.com
all-guides.com

Document Number:
MAN – FD932DVD-LP-2
Rev:
F
Revision Date:
07/19/2011
Page 7 of 18
Video Wiring Suggestions
Avoid routing video wiring parallel to:
 AC wiring
 Strobe wiring
 DC motor supply cables
 Inverter cabling
 Or any other potential noise source.
Composite and Audio Wiring
Recommended cable for composite and audio purposes is PIC 75 Ohm Coax, P/N
V75268. This is a lightweight, flexible, and low signal loss cable which meets FAA
flammability requirements of FAR 23.1359(d), FAR 25.853(a) and FAR 25.869(a)(4).
Similar aviation coaxial cable can be used from other vendors, as well.
Some aircraft are prone to AC noise – If noise is a problem, we recommend adding a 75
Ohm video isolation transformer to the composite source (such as Deerfield Laboratory,
Inc. PartNo.162-1, www.deerfieldlab.com, 650 632-4090). In most cases it should be
added to the video output near the source.
Power and Ground Wiring
22 AWG wire is recommended for Power and Ground applications.
All manuals and user guides at all-guides.com

Document Number:
MAN – FD932DVD-LP-2
Rev:
F
Revision Date:
07/19/2011
Page 8 of 18
Wiring Options
The FD932DVD-LP-2 power & video/audio connections can be wired two separate ways.
The unit can be wired using the DB-9 D-sub connection; or the unit can be wired using the
4 pin Molex connector and RCA jacks.
Option 1: Pinout for DB-9
Part numbers for DB-9 connectors, manufactured by Amp:
D-sub, 9 contact receptacle (female) P/N 747905-2
9F pins P/N 205439-1
Pin
Number
Description
1
12-28VDC Power
2
12-28VDC Ground
3
Composite Signal
4
Audio –Left Signal
5
Audio –Right Signal
6
Composite/Audio - Ground
7
N/C
8
N/C
9
N/C
IMPORTANT:
When using Option 1 for power, please connect the red and yellow wires for the Molex
connector together but do not connect them to the aircraft power. Also, do not connect the
black wire to the aircraft ground.
All manuals and user guides at all-guides.com

Document Number:
MAN – FD932DVD-LP-2
Rev:
F
Revision Date:
07/19/2011
Page 9 of 18
Option 2: Molex Connector and RCA
Note: This unit is capable of running either 12VDC or 28VDC.
To connect the unit for 28VDC, connect the yellow wire and the red wire of the Molex
connector to 28VDC. Connect the Black wire to 28VDC ground. See below for power and
video connections. (Mating MOLEX power connector harness supplied)
Separate RCA Jack Locations, Rear Panel
28VDC YELLOW
28VDC RED
GND BLACK
N/C BLANK
All manuals and user guides at all-guides.com

Document Number:
MAN – FD932DVD-LP-2
Rev:
F
Revision Date:
07/19/2011
Page 10 of 18

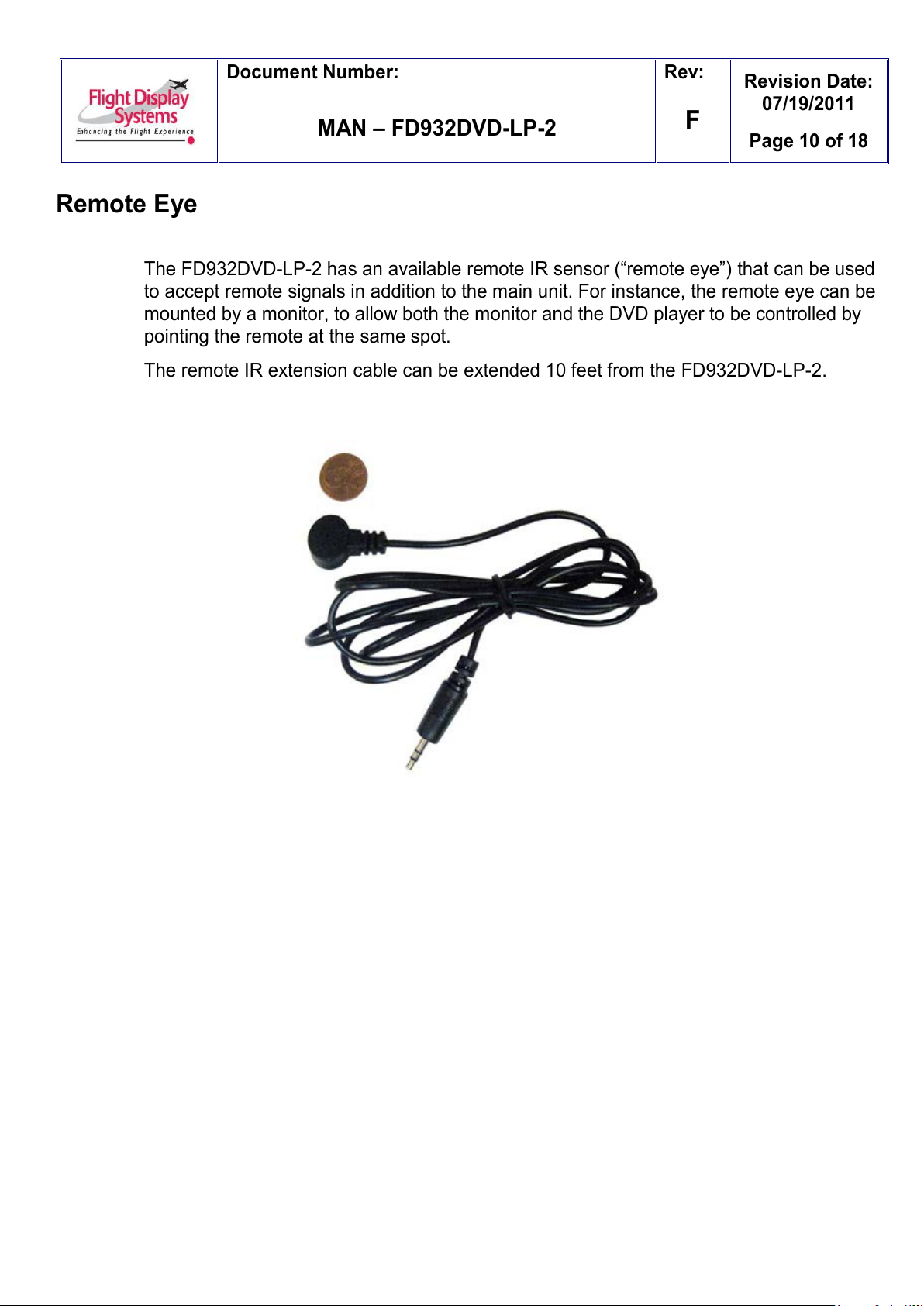

Remote Eye
The FD932DVD-LP-2 has an available remote IR sensor (“remote eye”) that can be used
to accept remote signals in addition to the main unit. For instance, the remote eye can be
mounted by a monitor, to allow both the monitor and the DVD player to be controlled by
pointing the remote at the same spot.
The remote IR extension cable can be extended 10 feet from the FD932DVD-LP-2.
All manuals and user guides at all-guides.com

Document Number:
MAN – FD932DVD-LP-2
Rev:
F
Revision Date:
07/19/2011
Page 11 of 18

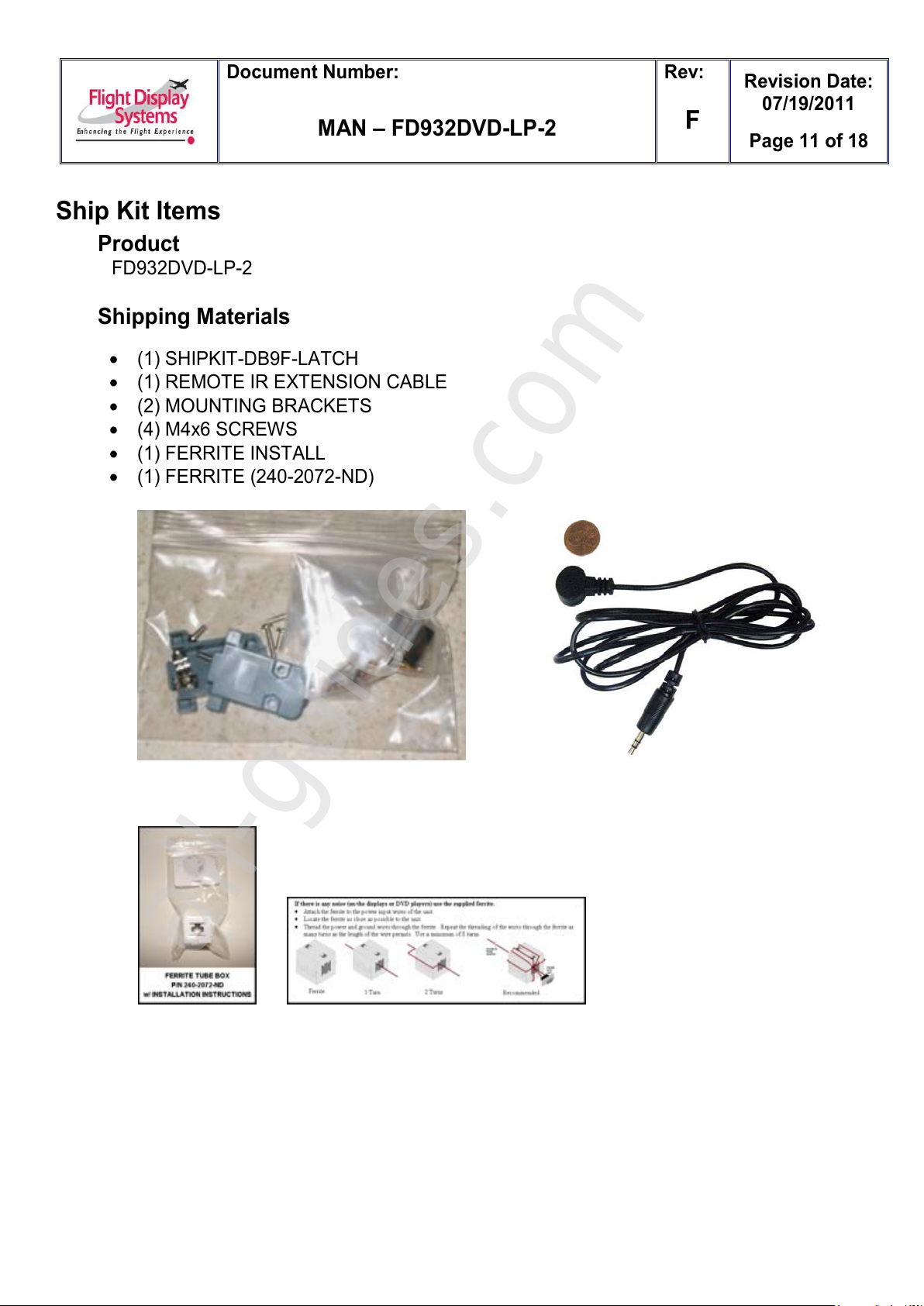

Ship Kit Items
Product
FD932DVD-LP-2
Shipping Materials
 (1) SHIPKIT-DB9F-LATCH
 (1) REMOTE IR EXTENSION CABLE
 (2) MOUNTING BRACKETS
 (4) M4x6 SCREWS
 (1) FERRITE INSTALL
 (1) FERRITE (240-2072-ND)
All manuals and user guides at all-guides.com
all-guides.com

Document Number:
MAN – FD932DVD-LP-2
Rev:
F
Revision Date:
07/19/2011
Page 12 of 18

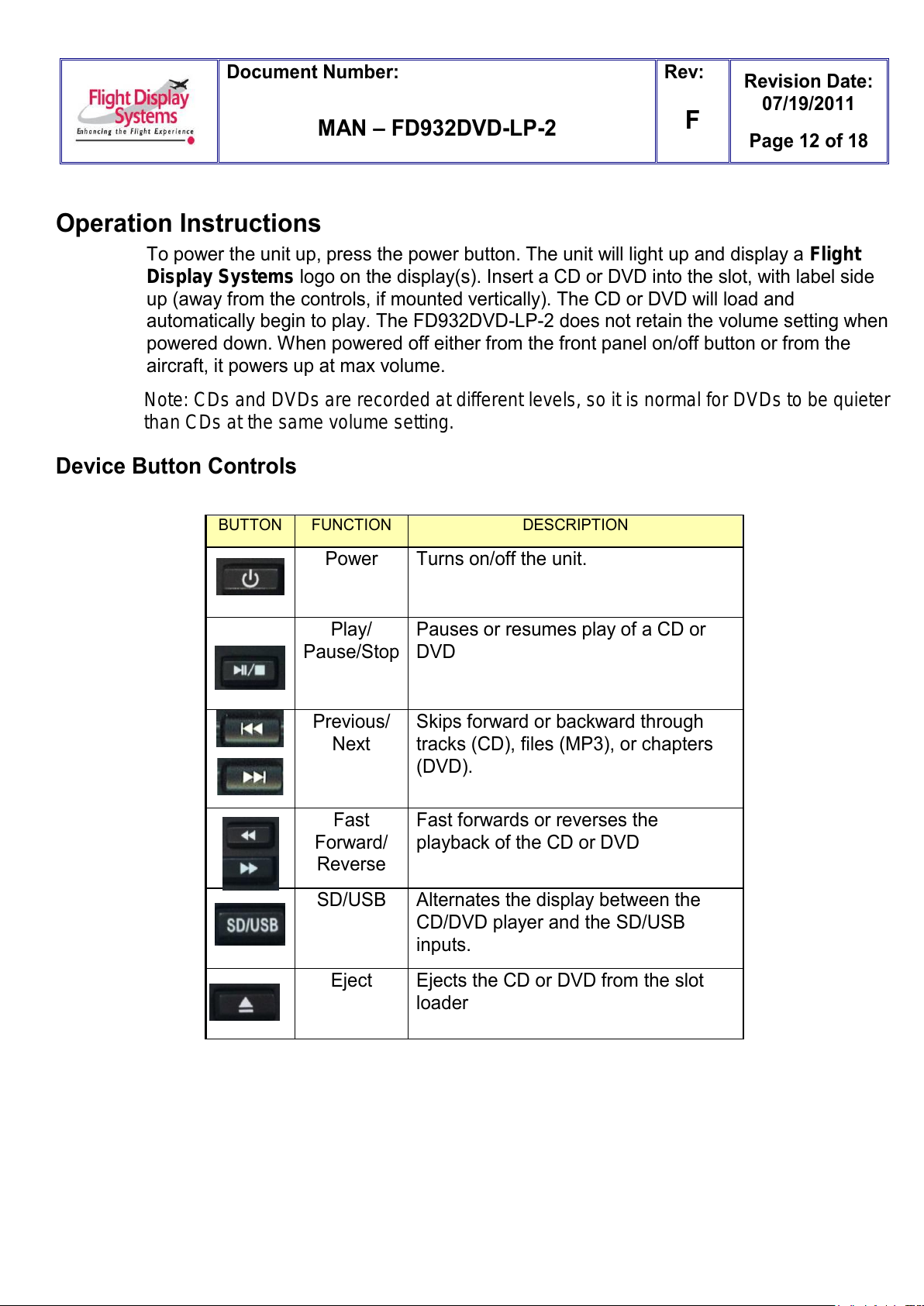

Operation Instructions
To power the unit up, press the power button. The unit will light up and display a Flight
Display Systems logo on the display(s). Insert a CD or DVD into the slot, with label side
up (away from the controls, if mounted vertically). The CD or DVD will load and
automatically begin to play. The FD932DVD-LP-2 does not retain the volume setting when
powered down. When powered off either from the front panel on/off button or from the
aircraft, it powers up at max volume.
Note: CDs and DVDs are recorded at different levels, so it is normal for DVDs to be quieter
than CDs at the same volume setting.
Device Button Controls
BUTTON
FUNCTION
DESCRIPTION
Power
Turns on/off the unit.
Play/
Pause/Stop
Pauses or resumes play of a CD or
DVD
Previous/
Next
Skips forward or backward through
tracks (CD), files (MP3), or chapters
(DVD).
Fast
Forward/
Reverse
Fast forwards or reverses the
playback of the CD or DVD
SD/USB
Alternates the display between the
CD/DVD player and the SD/USB
inputs.
Eject
Ejects the CD or DVD from the slot
loader
All manuals and user guides at all-guides.com

Document Number:
MAN – FD932DVD-LP-2
Rev:
F
Revision Date:
07/19/2011
Page 13 of 18

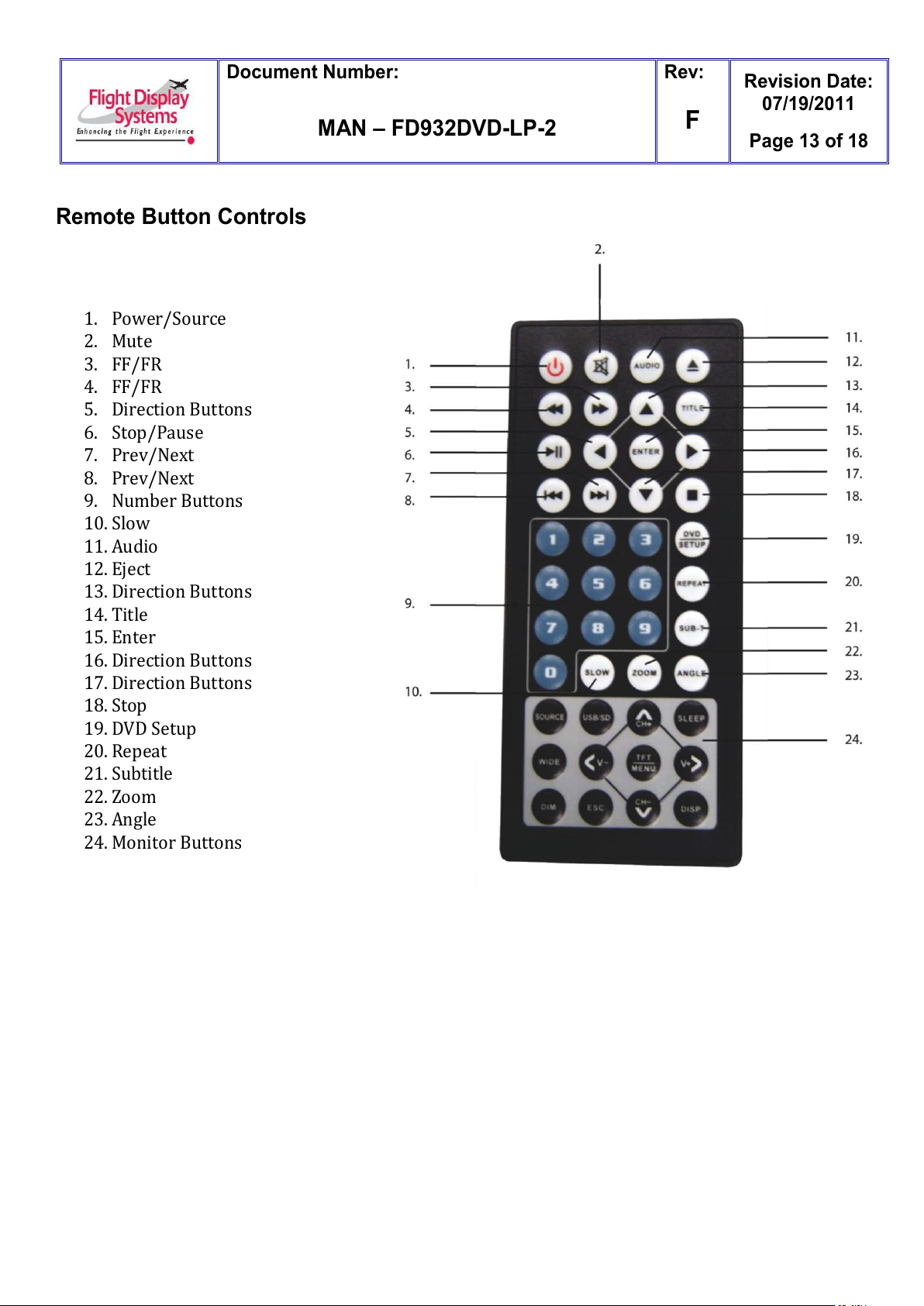

Remote Button Controls
1. Power/Source
2. Mute
3. FF/FR
4. FF/FR
5. Direction Buttons
6. Stop/Pause
7. Prev/Next
8. Prev/Next
9. Number Buttons
10. Slow
11. Audio
12. Eject
13. Direction Buttons
14. Title
15. Enter
16. Direction Buttons
17. Direction Buttons
18. Stop
19. DVD Setup
20. Repeat
21. Subtitle
22. Zoom
23. Angle
24. Monitor Buttons
All manuals and user guides at all-guides.com

Document Number:
MAN – FD932DVD-LP-2
Rev:
F
Revision Date:
07/19/2011
Page 14 of 18

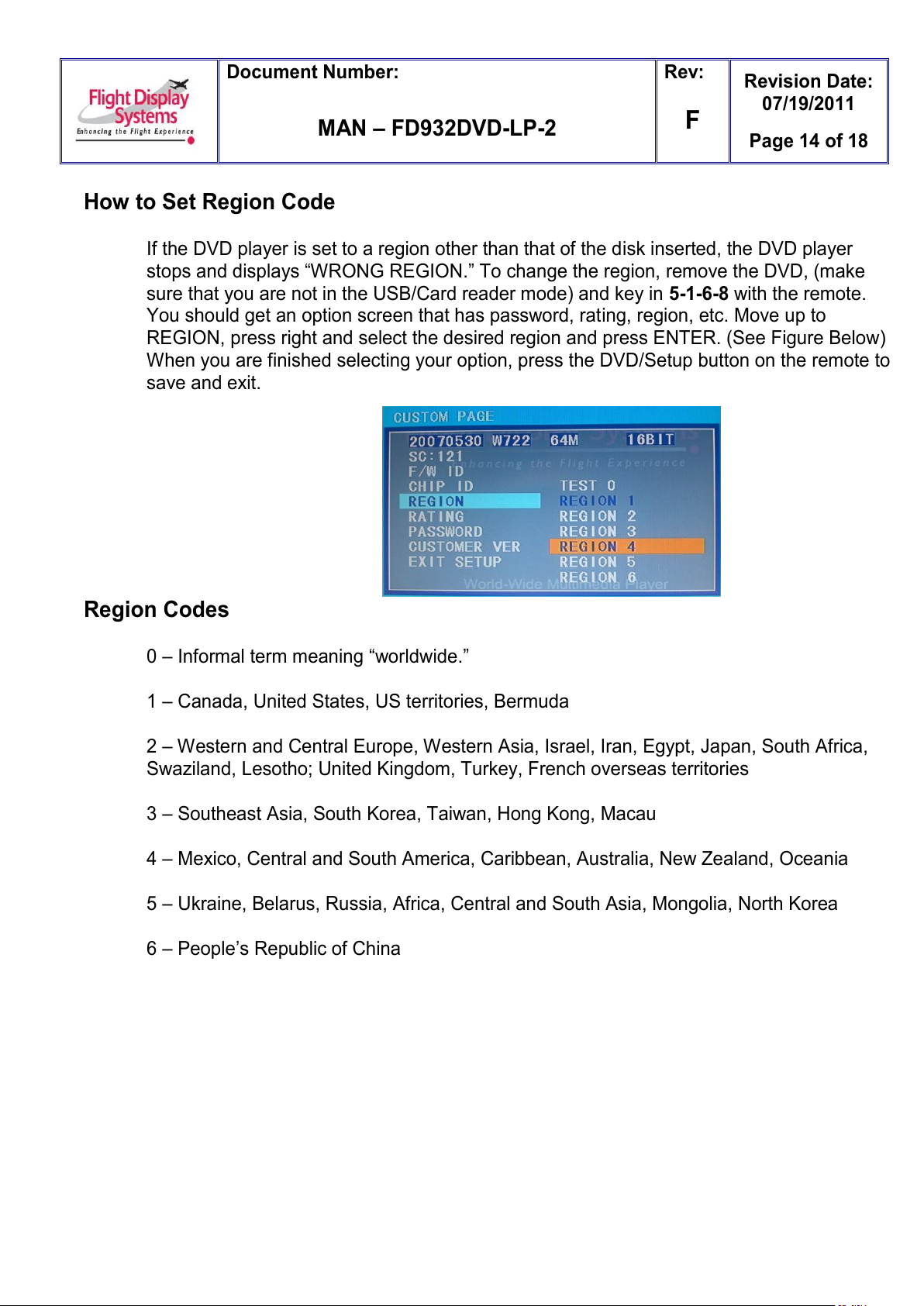

How to Set Region Code
If the DVD player is set to a region other than that of the disk inserted, the DVD player
stops and displays “WRONG REGION.” To change the region, remove the DVD, (make
sure that you are not in the USB/Card reader mode) and key in 5-1-6-8 with the remote.
You should get an option screen that has password, rating, region, etc. Move up to
REGION, press right and select the desired region and press ENTER. (See Figure Below)
When you are finished selecting your option, press the DVD/Setup button on the remote to
save and exit.
Region Codes
0 – Informal term meaning “worldwide.”
1 – Canada, United States, US territories, Bermuda
2 – Western and Central Europe, Western Asia, Israel, Iran, Egypt, Japan, South Africa,
Swaziland, Lesotho; United Kingdom, Turkey, French overseas territories
3 – Southeast Asia, South Korea, Taiwan, Hong Kong, Macau
4 – Mexico, Central and South America, Caribbean, Australia, New Zealand, Oceania
5 – Ukraine, Belarus, Russia, Africa, Central and South Asia, Mongolia, North Korea
6 – People’s Republic of China
All manuals and user guides at all-guides.com

Document Number:
MAN – FD932DVD-LP-2
Rev:
F
Revision Date:
07/19/2011
Page 15 of 18
Technical Drawing
All manuals and user guides at all-guides.com

Document Number:
MAN – FD932DVD-LP-2
Rev:
F
Revision Date:
07/19/2011
Page 16 of 18
Troubleshooting
Video Noise
Check for an incorrect ground in the installation wiring. See specific examples of video
noise below, or visit http://flightdisplay.com/Grounding.pdf
Snow or Sweeping Lines
Lines that slowly sweep up and down are a result of AC noise. This AC noise can be
generated by a power cart on the aircraft. Take the power cart off of the aircraft. Be careful
of inverter wiring, which can also cause noise. Stand off the wires, if necessary.
If snow or sweeping lines persist, it is possible that the ground is at an incorrect point in the
aircraft. Try moving the ground to another location.
Remote Control Inoperable
 Confirm that the infrared eye on the unit, or the external IR sensor (if applicable), is
visible.
 Replace battery in remote control.
All manuals and user guides at all-guides.com
all-guides.com

Document Number:
MAN – FD932DVD-LP-2
Rev:
F
Revision Date:
07/19/2011
Page 17 of 18
Technical Support
Should you have any questions concerning this product or other Flight Display Systems
products, please contact our Product Support representatives at [phone].
Flight Display Systems
1765 Grassland Parkway
Alpharetta, GA 30004
Phone: [phone]
Fax: [phone]
Email: [e-mail]
For further product information, technical data and sample wiring diagrams, please click on
the Dealers section of our web site at www.flightdisplay.com
Instructions for Continued Airworthiness
The FD932DVD-LP-2 is designed not to require regular general maintenance.
Warranty Information
Flight Display Systems warrants the FD932DVD-LP-2 against material or manufacturing
defects for a two-year period. Effective 1/1/2009, all equipment sold after 1/1/2009 will have
a 2-year warranty. Warranty begins on date of installation. *The warranty registration card
must be returned upon installation in order to validate the two-year warranty. Any warranty
registration not returned during this time period will default to the date of purchase as the
warranty start date.
Please call our Technical Support at 678-867-6717 to obtain an RMA number. Flight
Display Systems will, upon receipt of the failed hardware, remanufacture or replace the unit
at our discretion.
Flight Display Systems will pay Ground Shipping charges for warranted items. Charges for
express shipment will be the responsibility of the sender.
This warranty is not transferable. Any implied warranties expire at the expiration date of this
warranty. We shall not be liable for incidental or consequential damages.
This warranty does not cover a defect or failure that has resulted from improper or
unreasonable installation, use or maintenance, as determined by Flight Display Systems.
This warranty is void if there is any attempt to disassemble or open this product without
factory authorization.
Any labor charges associated with the removal of product or related troubleshooting by a
firm other than Flight Display Systems or its designee will not be covered.
All manuals and user guides at all-guides.com

Document Number:
MAN – FD932DVD-LP-2
Rev:
F
Revision Date:
07/19/2011
Page 18 of 18
Log of Revisions
Rev
Date
Page
Description
A
12/07/2010
---
Initial Release
B
01/04/2011
Updated cautions and remote control buttons, added important info to
option 2
C
02/11/2011
New Rear Panel Diagram, New Technical Drawing, new remote eye
pic
D
04/28/2011
7,8
Revised power info, pinout
E
06/03/2011
14
Added Region Code Info
F
07/19/2011
5, 12
USB port updates, Added operating temperature
All manuals and user guides at all-guides.com
