Flight Display Systems FD932DVD-LP Owner's manual

Document Number:
MAN – FD932DVD-LP
Rev:
E
Revision Date:
12/10/2010
Page 1 of 13
FD932DVD-LP
Installation and Operation Manual
Low-Profile DVD/CD/MP3 Player
TECHNICAL SUPPORT
678-867-6717, or
www.FlightDisplay.com
All manuals and user guides at all-guides.com
all-guides.com

Document Number:
MAN – FD932DVD-LP
Rev:
E
Revision Date:
12/10/2010
Page 2 of 13
FD932DVD-LP
Low-Profile DVD/CD/MP3 Player
© 2006 Flight Display Systems. All Rights Reserved.
Flight Display Systems
1765 Grassland Parkway
Alpharetta, GA 30004
678-867-6717 Phone
678-867-6742 Fax
[email protected]
www.flightdisplay.com
For the most current copy of all product manuals, please visit our website at
www.flightdisplay.com
All manuals and user guides at all-guides.com

Document Number:
MAN – FD932DVD-LP
Rev:
E
Revision Date:
12/10/2010
Page 3 of 13

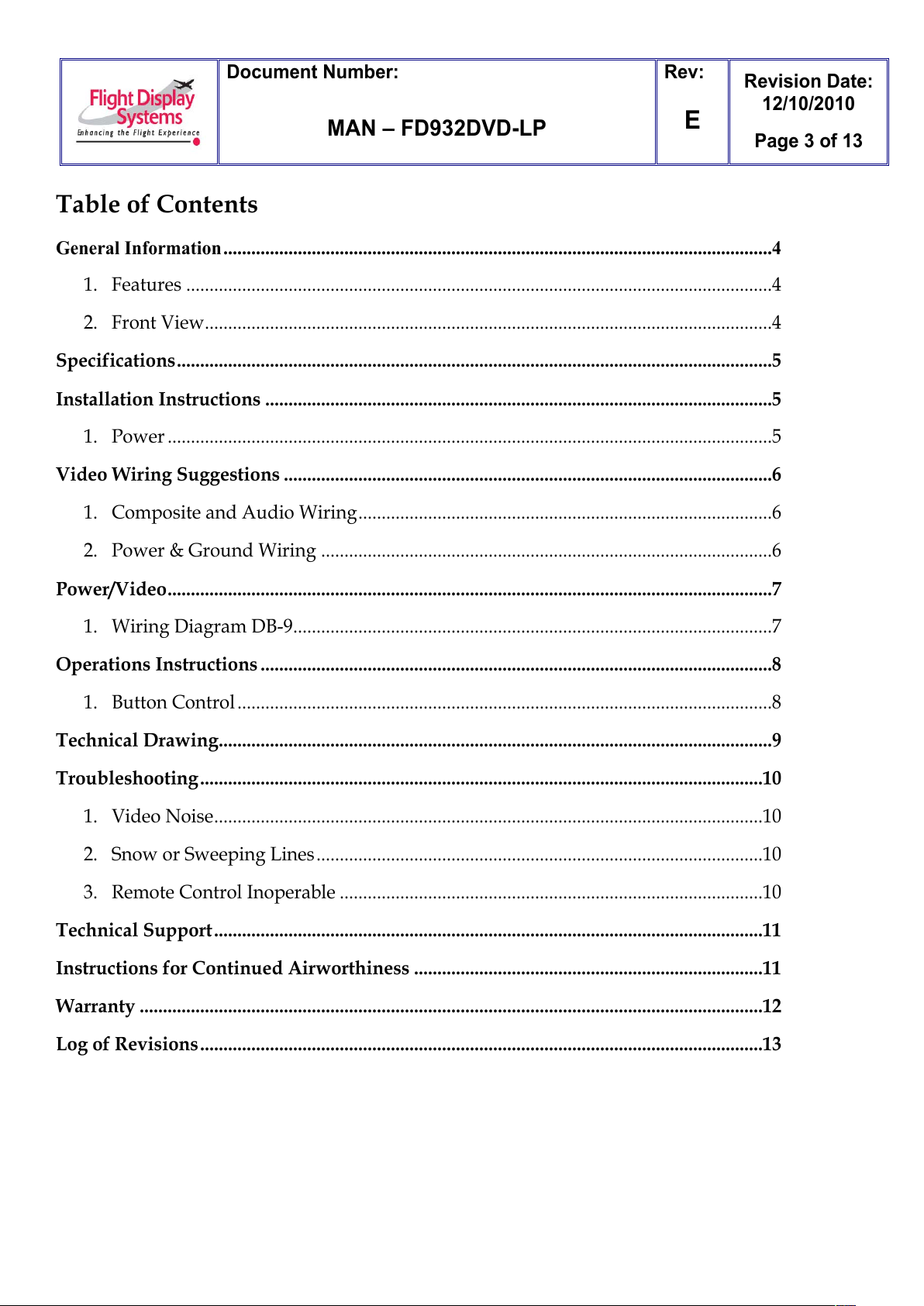

Table of Contents
General Information......................................................................................................................4
1. Features ..............................................................................................................................4
2. Front View..........................................................................................................................4
Specifications................................................................................................................................5
Installation Instructions .............................................................................................................5
1. Power ..................................................................................................................................5
Video Wiring Suggestions .........................................................................................................6
1. Composite and Audio Wiring.........................................................................................6
2. Power & Ground Wiring .................................................................................................6
Power/Video..................................................................................................................................7
1. Wiring Diagram DB-9.......................................................................................................7
Operations Instructions ..............................................................................................................8
1. Button Control...................................................................................................................8
Technical Drawing.......................................................................................................................9
Troubleshooting.........................................................................................................................10
1. Video Noise......................................................................................................................10
2. Snow or Sweeping Lines................................................................................................10
3. Remote Control Inoperable ...........................................................................................10
Technical Support......................................................................................................................11
Instructions for Continued Airworthiness ...........................................................................11
Warranty ......................................................................................................................................12
Log of Revisions.........................................................................................................................13
All manuals and user guides at all-guides.com

Document Number:
MAN – FD932DVD-LP
Rev:
E
Revision Date:
12/10/2010
Page 4 of 13

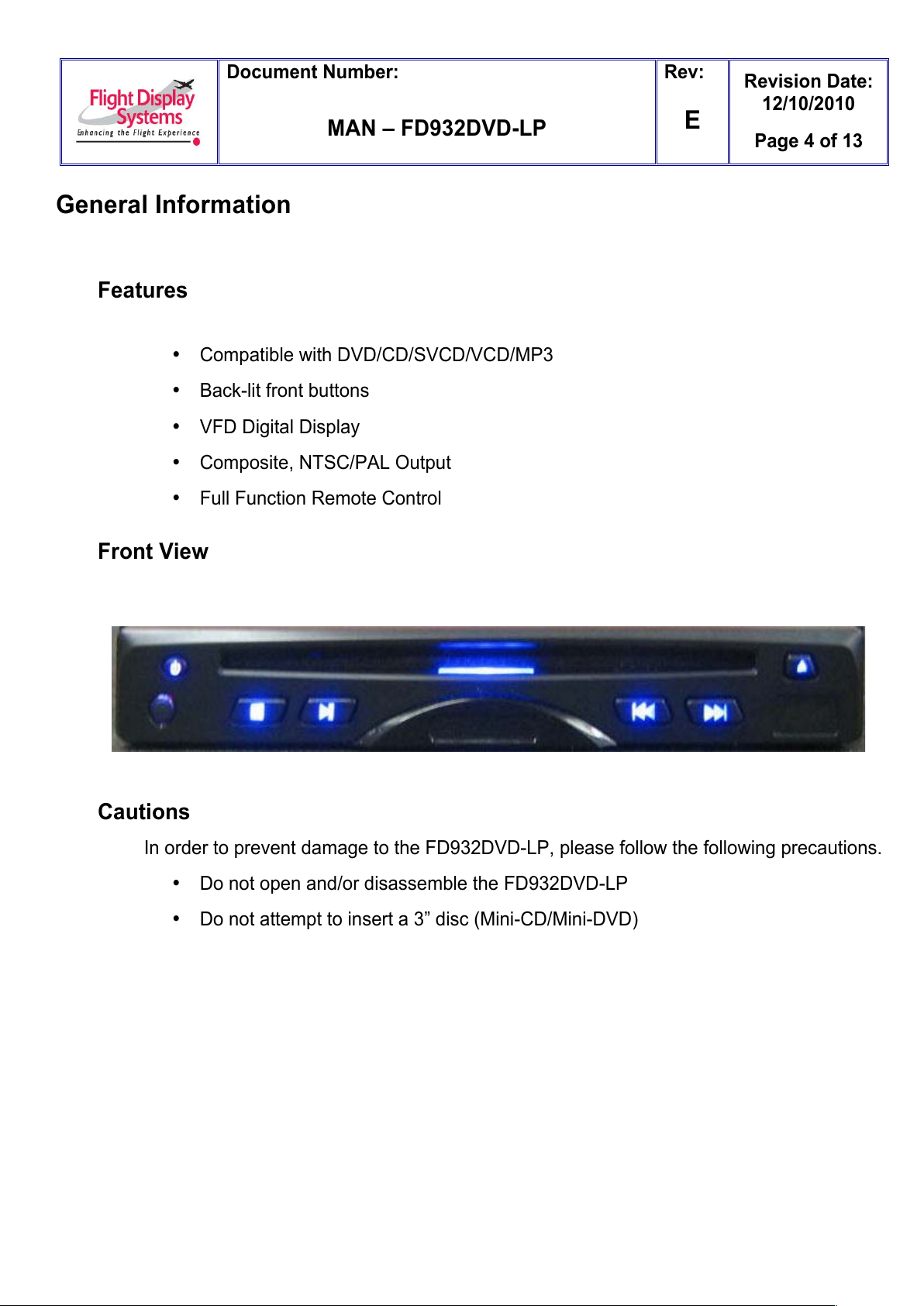

General Information
Features
•Compatible with DVD/CD/SVCD/VCD/MP3
•Back-lit front buttons
•VFD Digital Display
•Composite, NTSC/PAL Output
•Full Function Remote Control
Front View
Cautions
In order to prevent damage to the FD932DVD-LP, please follow the following precautions.
•Do not open and/or disassemble the FD932DVD-LP
•Do not attempt to insert a 3” disc (Mini-CD/Mini-DVD)
All manuals and user guides at all-guides.com

Document Number:
MAN – FD932DVD-LP
Rev:
E
Revision Date:
12/10/2010
Page 5 of 13
Specifications
Dimensions
7.10”(W) x 1.1”(H0 x 7”(D)
Weight
2 lbs. 5.4 oz.
Playable Discs
DVD, VCD, Super-VCD, CD, and MP3
Video Output Resolution
>500 lines, horizontal measurement
Power
28VDC @ 0.5 AMPS
Video Signal
NTSC or PAL
Video Output
Composite
Audio Output
Standard Left/Right
Output
RCA
Remote
IR, included
1/16” Jack for Wired Remote Sensor
Installation Instructions
All cabin entertainment equipment, such as the FD932DVD-LP, should be installed on a
non-essential bus and have a dedicated circuit breaker. It is a requirement that a switch be
installed in the cockpit so that the pilot can de-energize the entertainment system should it
become necessary.
Power
The FD932DVD-LP requires 28VDC rated at a minimum of 0.5 Amps to function.
All manuals and user guides at all-guides.com

Document Number:
MAN – FD932DVD-LP
Rev:
E
Revision Date:
12/10/2010
Page 6 of 13
Video Wiring Suggestions
All shields should be grounded to the connector at the source, and floating at the display.
Avoid routing video wiring parallel to:
•AC wiring
•Strobe wiring
•DC motor supply cables
•Inverter cabling
•Or any other potential noise source.
Composite and Audio Wiring
Recommended cable for composite and audio purposes is PIC 75 Ohm Coax, P/N
V75268. This is a lightweight, flexible, and low signal loss cable which meets FAA
flammability requirements of FAR 23.1359(d), FAR 25.853(a) and FAR 25.869(a)(4).
Similar aviation coaxial cable can be used from other vendors, as well.
Some aircraft are prone to AC noise - we recommend adding to the composite source a
75Ohmvideo isolation transformer such as Deerfield Laboratory, Inc. PartNo.162-1
(www.deerfieldlab.com, [phone]). In most cases this should be added to the video
output of the source.
Power and Ground Wiring
22 AWG wire is recommended for Power and Ground applications.
All manuals and user guides at all-guides.com
all-guides.com

Document Number:
MAN – FD932DVD-LP
Rev:
E
Revision Date:
12/10/2010
Page 7 of 13
Power/Video
Pin out for P1 (High Density DB-9 Receptacle)
Part numbers for DB-9 connectors, manufactured by Amp:
D-sub, 9 contact receptacle (female) P/N 747905-2
9F pins P/N 205439-1
Wiring Diagram
Pin
Number
Description
1
12VDC Power (28VDC for FD932DVD-LP (28V))
2
12VDC Ground (28VDC for FD932DVD-LP (28V))
3
Composite Signal
4
Audio – Left Signal
5
Audio – Right Signal
6
Composite/Audio - Ground
7
N/C
8
N/C
9
N/C
All manuals and user guides at all-guides.com

Document Number:
MAN – FD932DVD-LP
Rev:
E
Revision Date:
12/10/2010
Page 8 of 13

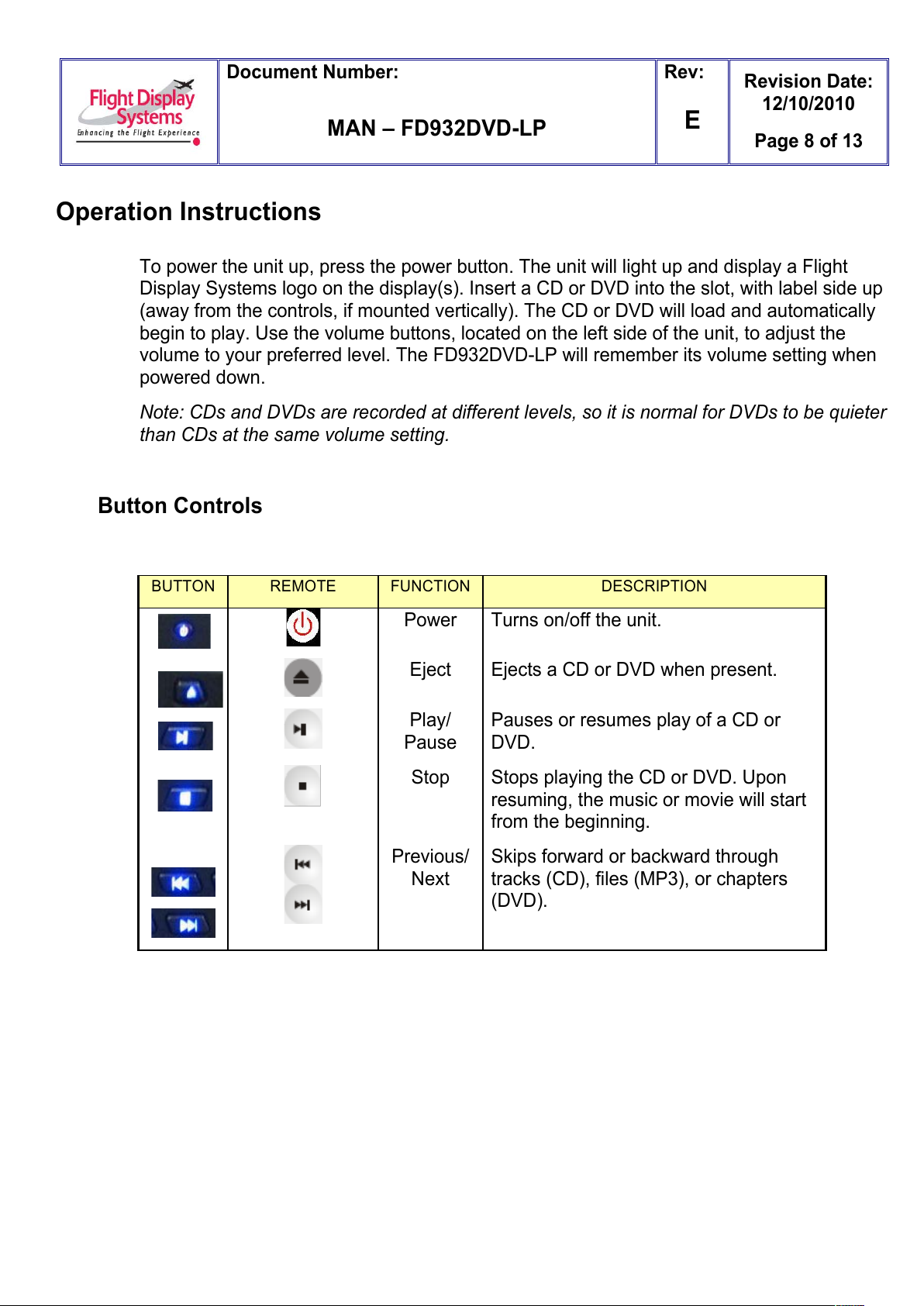

Operation Instructions
To power the unit up, press the power button. The unit will light up and display a Flight
Display Systems logo on the display(s). Insert a CD or DVD into the slot, with label side up
(away from the controls, if mounted vertically). The CD or DVD will load and automatically
begin to play. Use the volume buttons, located on the left side of the unit, to adjust the
volume to your preferred level. The FD932DVD-LP will remember its volume setting when
powered down.
Note: CDs and DVDs are recorded at different levels, so it is normal for DVDs to be quieter
than CDs at the same volume setting.
Button Controls
BUTTON
REMOTE
FUNCTION
DESCRIPTION
Power
Turns on/off the unit.
Eject
Ejects a CD or DVD when present.
Play/
Pause
Pauses or resumes play of a CD or
DVD.
Stop
Stops playing the CD or DVD. Upon
resuming, the music or movie will start
from the beginning.
Previous/
Next
Skips forward or backward through
tracks (CD), files (MP3), or chapters
(DVD).
All manuals and user guides at all-guides.com

Document Number:
MAN – FD932DVD-LP
Rev:
E
Revision Date:
12/10/2010
Page 9 of 13
Technical Drawing
All manuals and user guides at all-guides.com

Document Number:
MAN – FD932DVD-LP
Rev:
E
Revision Date:
12/10/2010
Page 10 of 13

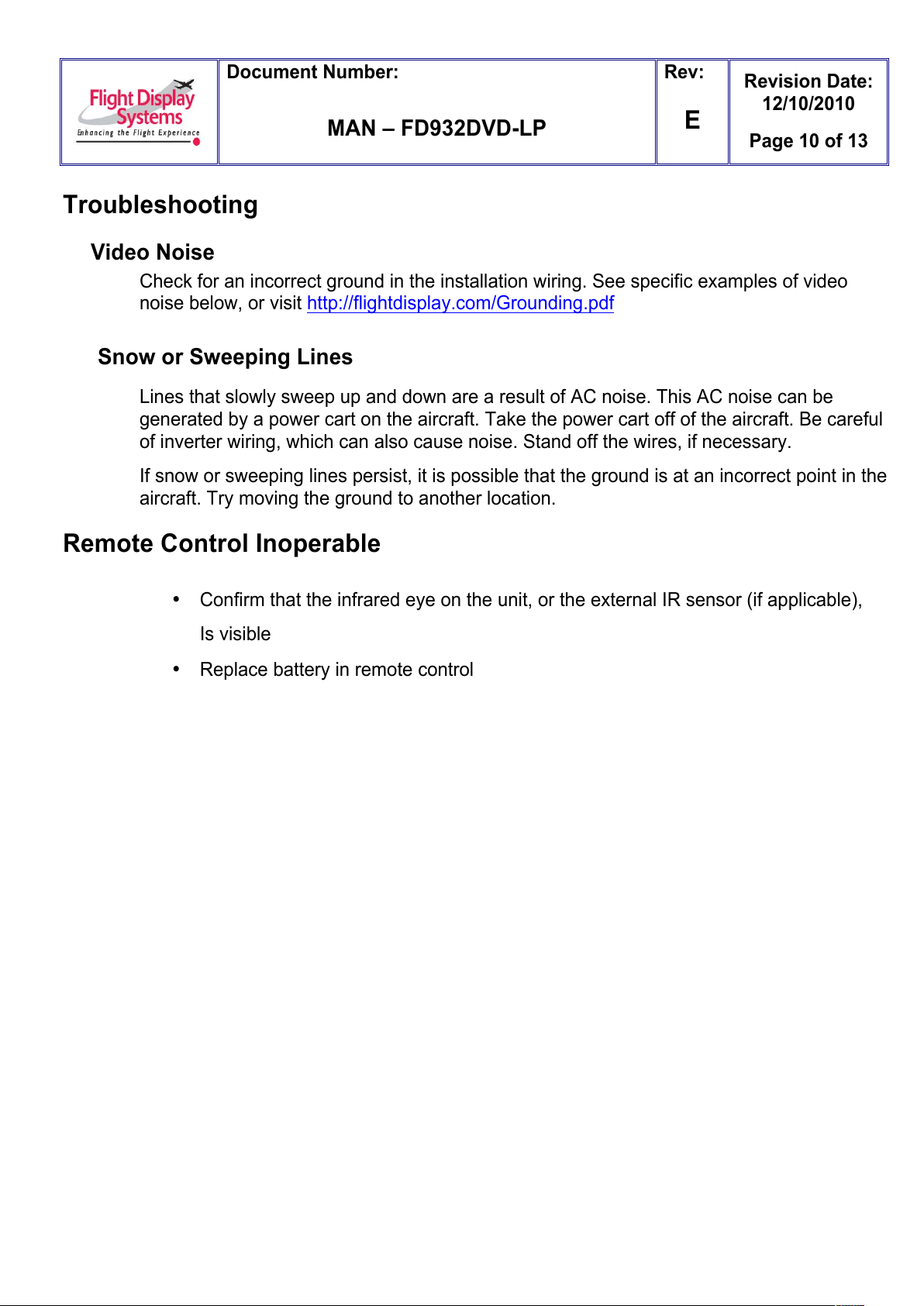

Troubleshooting
Video Noise
Check for an incorrect ground in the installation wiring. See specific examples of video
noise below, or visit http://flightdisplay.com/Grounding.pdf
Snow or Sweeping Lines
Lines that slowly sweep up and down are a result of AC noise. This AC noise can be
generated by a power cart on the aircraft. Take the power cart off of the aircraft. Be careful
of inverter wiring, which can also cause noise. Stand off the wires, if necessary.
If snow or sweeping lines persist, it is possible that the ground is at an incorrect point in the
aircraft. Try moving the ground to another location.
Remote Control Inoperable
•Confirm that the infrared eye on the unit, or the external IR sensor (if applicable),
Is visible
•Replace battery in remote control
All manuals and user guides at all-guides.com

Document Number:
MAN – FD932DVD-LP
Rev:
E
Revision Date:
12/10/2010
Page 11 of 13
Technical Support
Should you have any questions concerning this product or other Flight Display Systems
products, please contact our Product Support representatives at [phone].
Flight Display Systems
1765 Grassland Parkway
Alpharetta, GA 30004
Phone: [phone]
Fax: [phone]
Email: [email protected]
For further product information, technical data and sample wiring diagrams, please click on
the Dealers section of our web site at www.flightdisplay.com
Instructions for Continued Airworthiness
The FD932DVD-LP is designed not to require regular general maintenance.
All manuals and user guides at all-guides.com
all-guides.com

Document Number:
MAN – FD932DVD-LP
Rev:
E
Revision Date:
12/10/2010
Page 12 of 13
Warranty Information
Flight Display Systems warrants the FD932DVD-LP against material or manufacturing
defects for a two-year period. Effective 1/1/2009, all equipment sold after 1/1/2009 will have
a 2-year warranty. Warranty begins on date of installation. *The warranty registration card
must be returned upon installation in order to validate the two-year warranty. Any warranty
registration not returned during this time period will default to the date of purchase as the
warranty start date.
If product support is required, please call our Technical Support team at 678-867-6717 to
obtain assistance. If the return of the unit to the factory is required, an RMA number will be
issued at that time. Flight Display Systems will, upon receipt of the failed hardware,
remanufacture or replace the unit at our discretion.
Flight Display Systems will pay Ground Shipping charges for warranted items. Charges for
express shipment will be the responsibility of the sender.
This warranty is not transferable. Any implied warranties expire at the expiration date of this
warranty. We shall not be liable for incidental or consequential damages.
This warranty does not cover a defect or failure that has resulted from improper or
unreasonable installation, use or maintenance, as determined by Flight Display Systems.
This warranty is void if there is any attempt to disassemble or open this product without
factory authorization.
Any labor charges associated with the removal of product or related troubleshooting by a
firm other than Flight Display Systems or its designee will not be covered.
All manuals and user guides at all-guides.com

Document Number:
MAN – FD932DVD-LP
Rev:
E
Revision Date:
12/10/2010
Page 13 of 13
Log of Revisions
Rev
Date
Page
Description
A
03/02/2007
Initial Release
B
01/16/2008
Combined 12VDC and 28VDC manuals
C
07/31/2008
8
Updated Assembly Drawing
D
04/14/2009
2,7
Updated specifications, warranty info
E
12/08/2010
8,9
Updated button controls, assembly drawing
