Florida Pneumatic FP733M User manual

FP733M & FP733W
1/4” Mini Ratchet Sq. Dr. & Wobble Dr.
PLEASE READ AND FOLLOW ALL WARNINGS
Read Operating Instructions
Always become familiar with all the
instructions and warnings before
operating any power tool.
Always Wear Approved
Eye Protection
Impact resistant eye protection
should meet or exceed the
standards as set forth in the United
States ANSI Z87.1, Occupational
and Educational Eye and Face
Protection. Look for the marking
Z87.1 on your eye protection to
insure that it is an approved style.
For further information, ANSI Z87.1,
Occupational and Educational Eye
and Face Protection, is available
from the American National
Standards Institute, Inc., 11 West
42nd Street, New York, NY 10036.
Hearing Protection is
Recommended
Hearing protection should be used
when the noise level exposure
equals or exceeds an 8 hour time-
weighted average sound level of 85
dBA. Process noise, reflective
surfaces, other tools being
operated nearby, all add to the
noise level present in your work
area. If you are unable to determine
your noise level exposure, we
recommend the use of hearing
protection.
Avoid Prolonged Exposure to
Vibration
Tools can vibrate during use.
Prolonged exposure to vibration or
very repetitive hand and arm
movements, can cause injury. Stop
using any tool if discomfort, tingling
feeling or pain occurs. You should
consult your physician before
resuming use of the tool.
90 PSIG Maximum
This tool is designed to operate at
an air pressure of 90 pounds per
square inch gauge pressure (90
PSIG) maximum, at the tool. Use of
higher air pressure can, and may
cause injury. Also, the use of
higher air pressure places the
internal components under loads
and stresses they were not
designed for, causing premature
failure. The air supply should be
clean and dry, preferably
lubricated. For best results, drain
the moisture from your compressor
daily.
Florida Pneumatic Manufacturing Corporation
851 Jupiter Park Lane, Jupiter, Florida 33458
Toll Free 1-800-327-9403
Read these instructions carefully before attempting to install, operate
or service this Florida Pneumatic product. Failure to comply with the
instructions could result in personal injury and/or property damage!
Retain these instructions for future reference.
Safety Instructions
The following instructions are furnished
as general guidelines for use of your
pneumatic tool. They cannot compre-
hensively cover all possible or conceiv-
able uses of the subject tool. For
additional information on the safe use
of air tools, we advise you to obtain a
copy of ANSI B186.1 Safety Code for
Portable Air Tools, available from the
following source:
American National Standards
Institute, Inc.
11 West 42nd Street
NewYork, NY 10036.
The use of the word “shall” in the
following instructions, indicates that
adherence to the particular require-
ment is necessary to conform to ANSI
B186.1.
Tool Application and Usage
Portable tools shall be used only for
the purposes intended in their design
and within the capacity for which they
were intended and rated. It shall be
the tool owner’s and/or employer’s
responsibility to instruct each operator
in the safe use of the tool. Tools shall
not be used without guards and safety
devices as furnished by the manufac-
turer. Where an air tool is modified or
altered, the modifier shall provide the
safeguards to enable it to be safely used
in the operations intended and to comply
with any applicable provisions as
contained in ANSI B186.1.
Tool Installation
Pressure regulators shall be used to limit
air pressure to the rated pressure where
the supply pressure exceeds the tool’s
rated pressure. Air hoses and lines shall
be relieved of compressed air before
being disconnected or disjointed, unless
there is automatic valve closing protec-
tion at the joint being separated. Syn-
thetic lubricants which can cause
deterioration of elastomer seals shall not
be used in air systems of air tools.
Tool Maintenance
It shall be the tool owner’s and/or
employer’s responsibility to assure that
tools are maintained in a safe operating
condition. Tool maintenance and repair
shall be performed by authorized,
trained, competent personnel. Tools shall
be disconnected from their compressed
air supply before repairs are attempted.
Repairs shall be consistent with the
manufacturer’s recommended proce-
dures. Tool, hoses and fittings shall be
replaced if unsuitable for safe operation.
It shall be the tool owner’s and/or
employer’s responsibility to keep required
rating markings and warnings on the tool
in legible condition.
FPMC
WARNING:
Some dust created by power sanding,
sawing, grinding, drilling, and other
construction activities contains chemicals
known to cause cancer, birth defects or
reproductive harm. Some examples of
these chemicals are:
•Lead from lead-based paints
•Crystalline silica from bricks, cement
and other masonry products
•Arsenic and chromium from chemi-
cally treated lumber
Your risk from these exposures varies,
depending on how often you do this type
of work. To reduce your exposure to
these chemicals, work in a well-ventilated
area and work with approved safety
equipment such as those dust masks that
are specially designed to filter out
microscopic particles.
Description
Florida Pneumatic ratchet wrench is designed for a wide variety of fastening applica-
tions.This unit features a patented reverse-change rotation on the job. A built -in
toggle style power regulator. Ergonomic grip with sunken throttle lever. Extended flat
head design improves access. Visual rotation direction indicators. Heavy duty anti-
ratchet head.

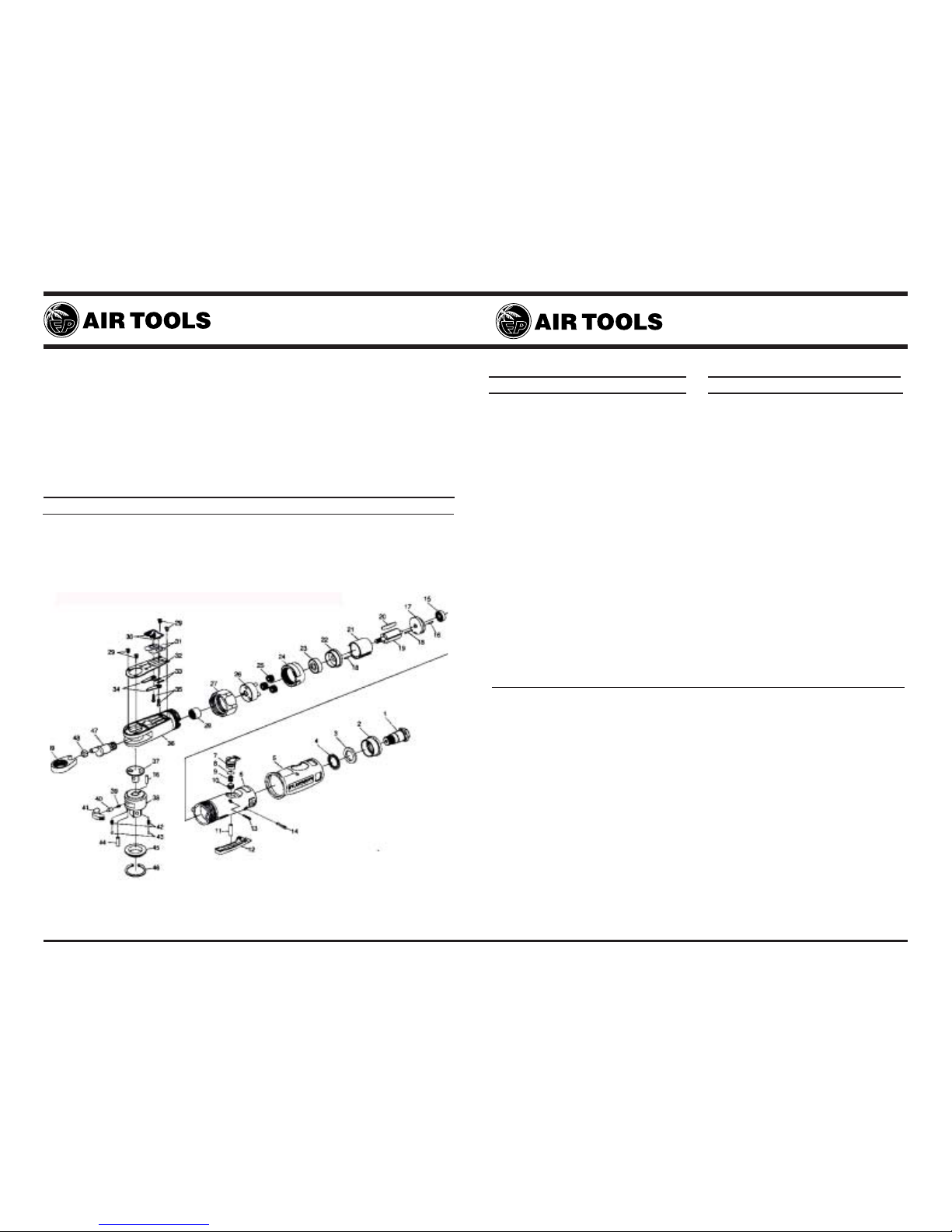

Parts Breakdown for FP733M & FP733W
Ref. Description Part # Ref. Description Part #
Replacement Parts for FP733M & FP733W
FP733M & FP733W FP733M & FP733W
USEONLYPOWER SOCKETS &ACCESSORIES
Sockets and accessories used shall be of the power socket type. Always check sockets,
retainers and drives regularly for wear or damage and replace whenever necessary
Limited Warranty
Florida Pneumatic warrants its tools to be free from defects in material and workmanship for two
years from the date of purchase. This warranty does not apply to tools which have been abused,
misused, modified or repaired by someone other than Florida Pneumatic or its authorized service
centers. If a Florida Pneumatic proves defective in material of workmanship within one year after
purchase, return it to any authorized service center or to Florida Pneumatic, freight prepaid. Please
enclose your name, address and adequate proof of purchase date with a brief description of the
defect. Florida Pneumatic will, at its option, repair or replace defective tools, free of charge. Repairs
or replacements are warranted as described above for the remainder of the warranty period.
Florida Pneumatic's sole liability and your exclusive remedy under this warranty is limited to repair or
replacement of the defective tool. There are no other warranties expressed or implied and Florida
Pneumatic shall not be liable for incidental, consequential or special damages, or any other damages,
costs or expense of repair or replacement as described above.
Drive size............................................................................................1/4"
Free speed....................................................................................350 RPM
Maximum Torque..........................................................................25 ft.-lbs.
Bolt Capacity.....................................................................................3/8”
Weight........................................................................................ 1.3 lbs.
Overall length................................................................................... 6.5"
Air consumption................................................................................4 CFM
Recommended hose size......................................................................3/8"
Air inlet........................................................................................1/4" NPT
Maximum operating press..................................................................90 PSI
1 Bushing 8901291
2 Muffler Cover 8901292
3 Muffler 8901293
4 Silencer 8901294
5 Body Cover 8901295
6 Body 8901296
7 Air Regulator 8901297
8 O-Ring 8900990
9 Throttle Spring 8729163
10 Valve Ball 81015215
11 Throttle Pin 8900270
12 Throttle Lever 8901298
13 Pin 8731930
14 Lever Pin 8731259
15 Ball Bearing 8901249
16 Roll Pin(2) 8900720
17 RearPlate 8901299
18 Roll Pin(2) 8900720
19 Rotor 8901300
20 Rotor Blade (4) 8731269
21 Cylinder 8731268
22 Front Plate 8731964
23 Ball Bearing 8731274
24 Internal Gear 8901301
25 Idler Gear (3) 8731969
26 Idler GearPlate 8731970
27 Rock Ring 8901302
28 Needle Bearing 8731972
29 Screw (4) 8901303
30 Reverse Button (2) 8901304
31 Plate (2) 8901305
32 Cover Plate 8901306
33 Spring (2) 8901307
34 Reverse Arm (2) 8901308
35 Cap Screw (2) 8901282
36 Ratchet Housing 8901309
37 Reverse Gear 8901310
38 Spindle(FP733M) 8901311
38 Spindle(FP733W) 8901312
39 Reverse Spring 8731980
40 Reverse Pin 8731979
41 Ratchet Pawl 8900509
42 Spring (2) 8731983
43 Steel Ball (2) 8731984
44 Ratchet Pin 8731982
45 Thrust Washer 8731985
46 Snap Ring 8900799
47 Crank Shaft 8900503
48 Dowel Pin 8731976
49 Yoke 8731975
1/4” Mini Ratchet Sq. Dr. & Wobble Dr. 1/4” Mini Ratchet Sq. Dr. & Wobble Dr.
