flowair ELIS DUO-W-100 User manual

TECHNICAL DOCUMENTATION
OPERATION MANUAL
DTR ELIS DUO/1.0/2014.04.29/EN

www.flowair.com |2
Table Of Contents
1. GENERAL INFORMATION.........................................................3
2. TECHNICAL DATA ..................................................................... 3
2.1.CONSTRUCTION................................................................. 3
2.2.DIMENSIONS.......................................................................4
2.3.ACOUSTIC PRESSURE LEVEL...........................................4
2.4.AIR VOLUME........................................................................ 4
2.5.NOMOGRAM OF AIR FLOW SPEED...................................4
3. HEAT OUTPUT DATA ................................................................ 5
3.1.ELIS DUO-W-100 .................................................................5
3.2.ELIS DUO-W-200 .................................................................6
4. INSTALLATION...........................................................................7

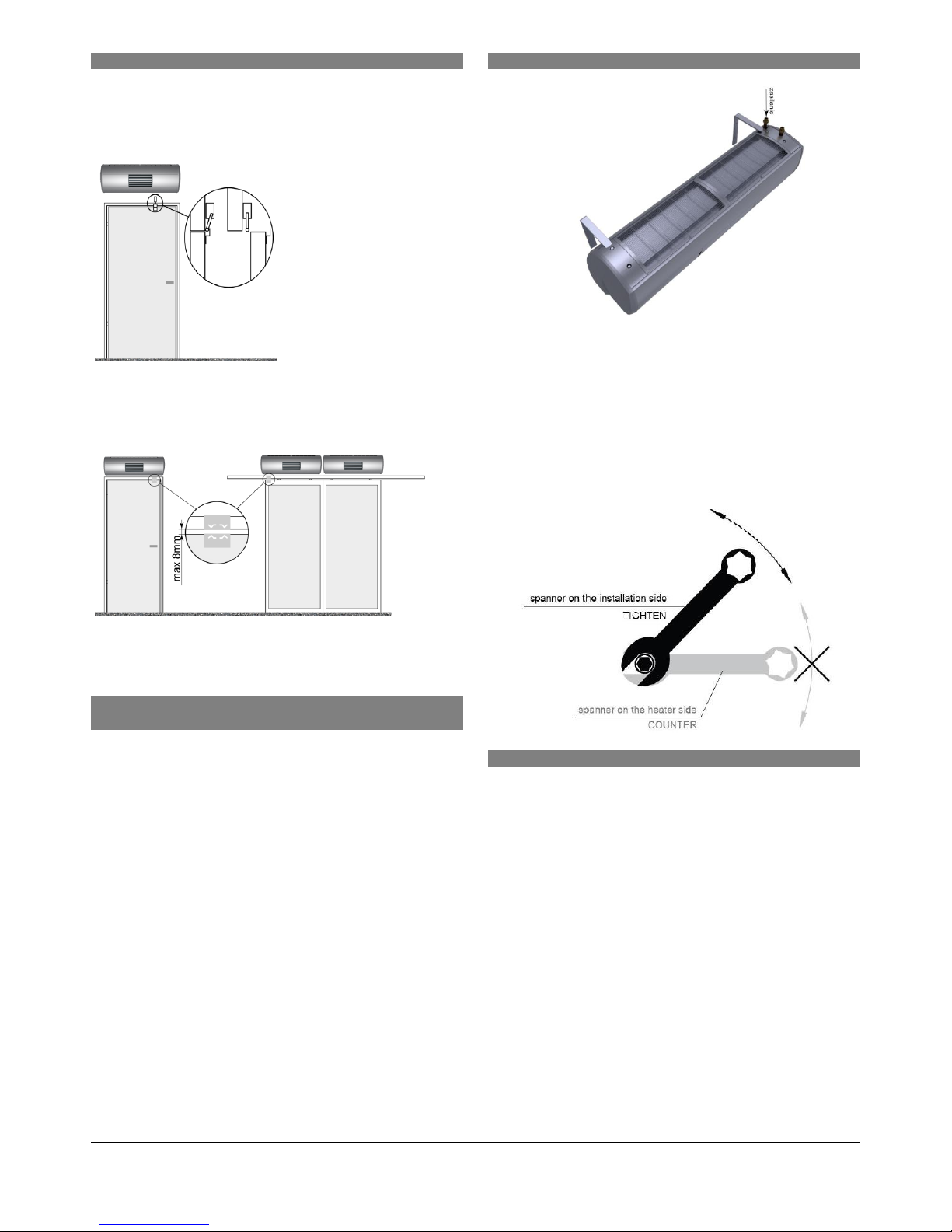

4.1.RECOMMENDATION OF MONTAGE DISTANCES..............7
4.2.MOUNTING BY RODS UNDER THE CEILING..................... 7

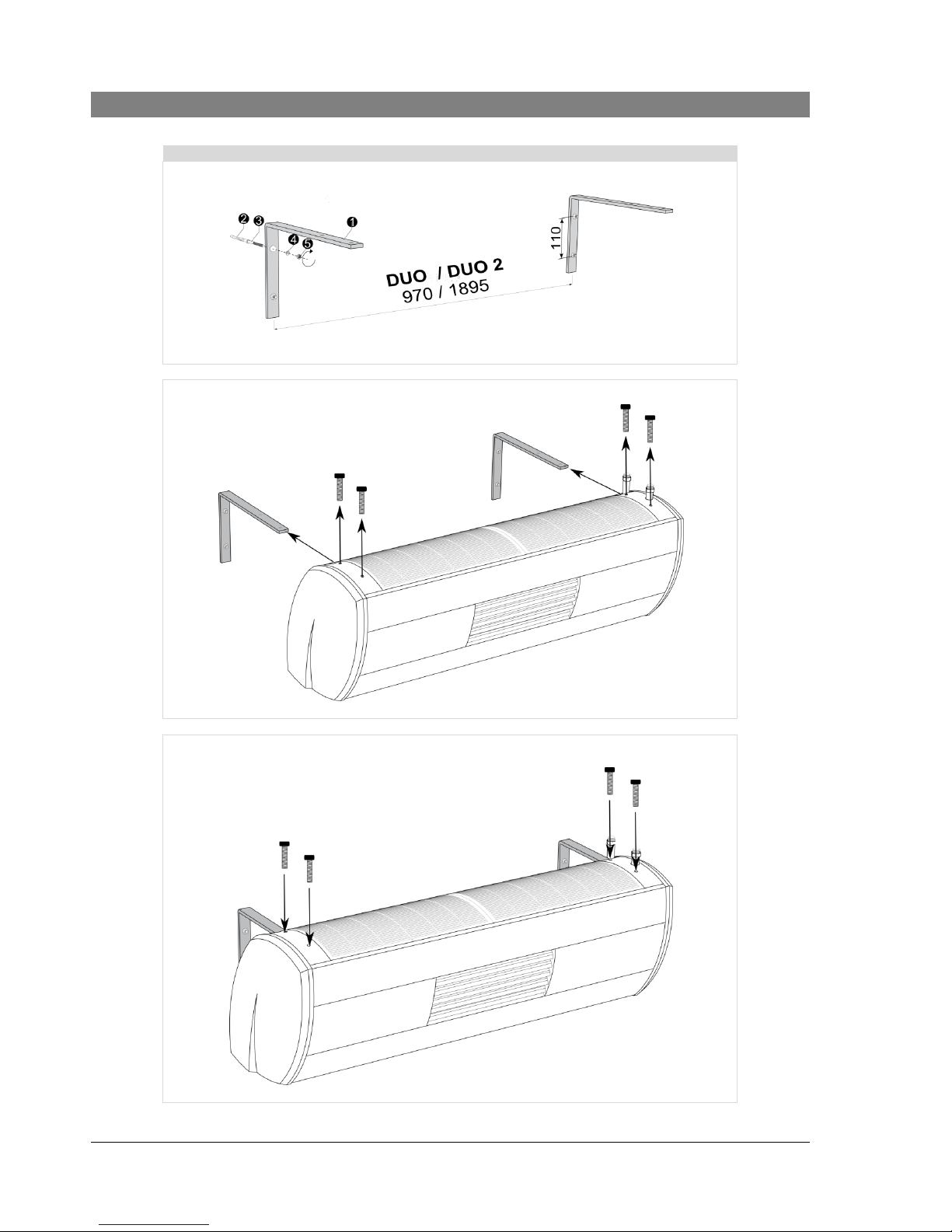

4.3.MOUNTING ON THE WALLS BY THE BRACKETS.............. 8
4.4.BRACKETS ..........................................................................8
4.5.STAGES OF INSTALATION.................................................9
5. CONTROL SYSTEM................................................................. 10

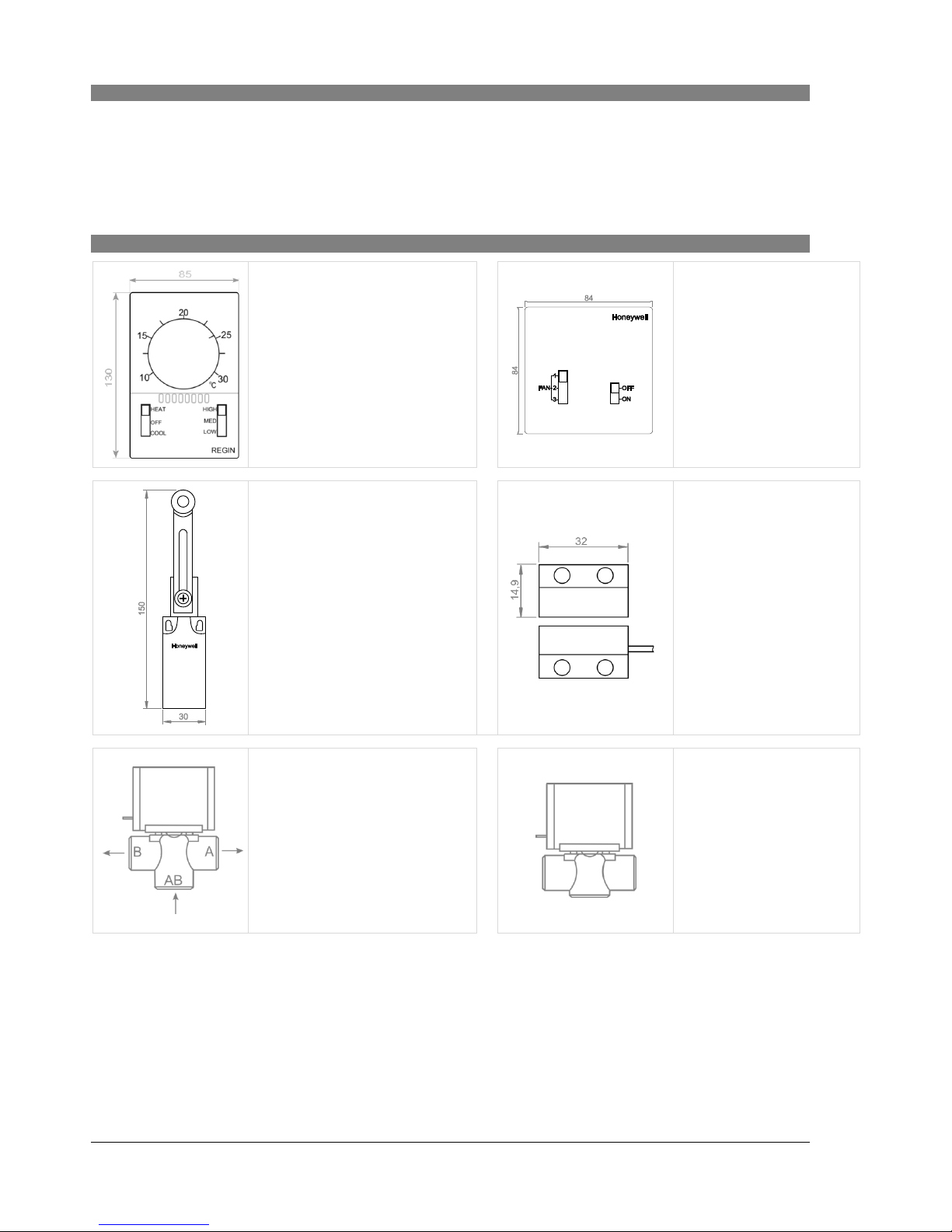

5.1.CONTROL ACCESSORIES................................................10
5.2.CONNECTING GUIDE........................................................ 11
5.3.DRV CONTROL SYSTEM .................................................. 11

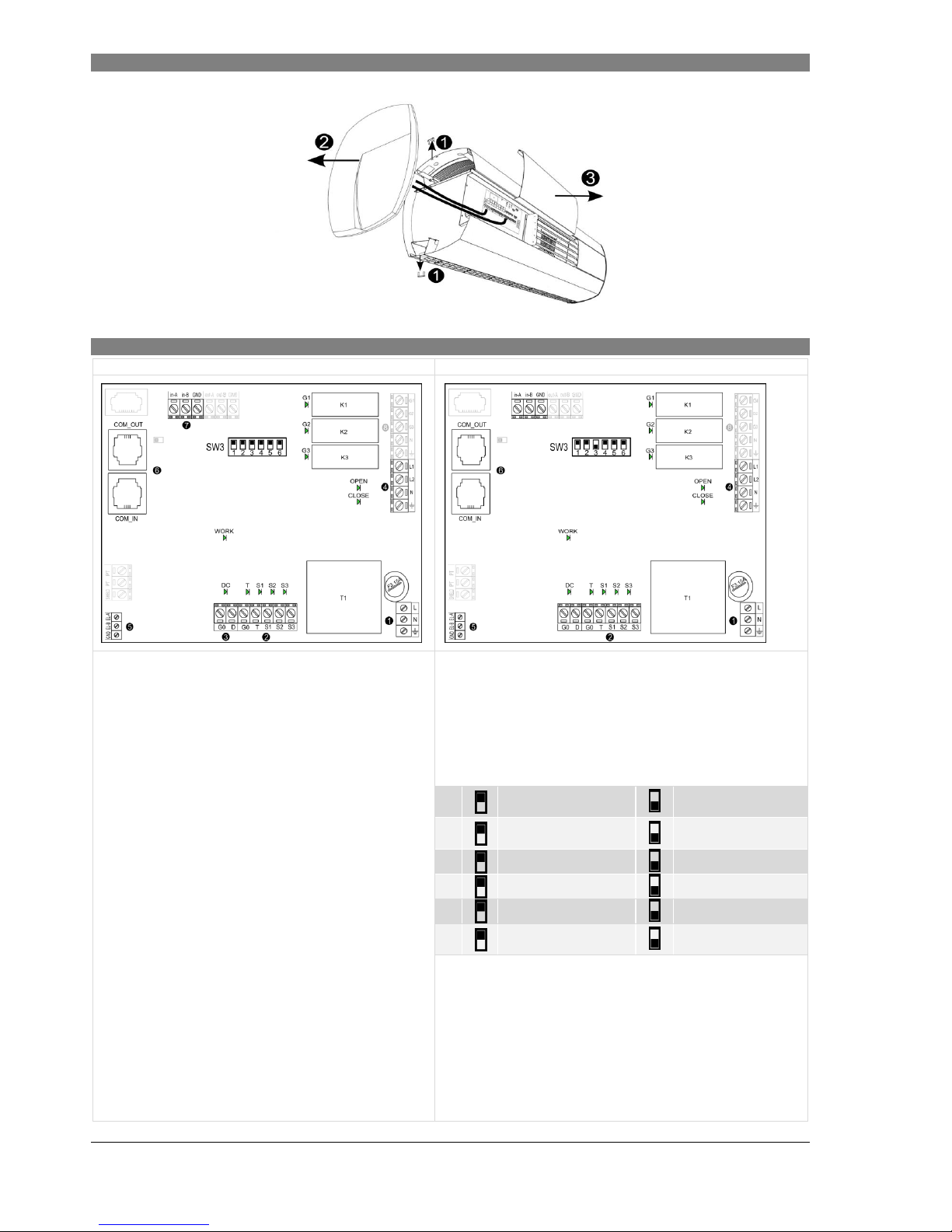

5.3.1. DRV CONTROL SYSTEM –ELIS WIRING DIAGRAMS
.................................................................................. 12
5.3.2. DRV CONTROL SYSTEM –WIRING DIAGRAMS... 12

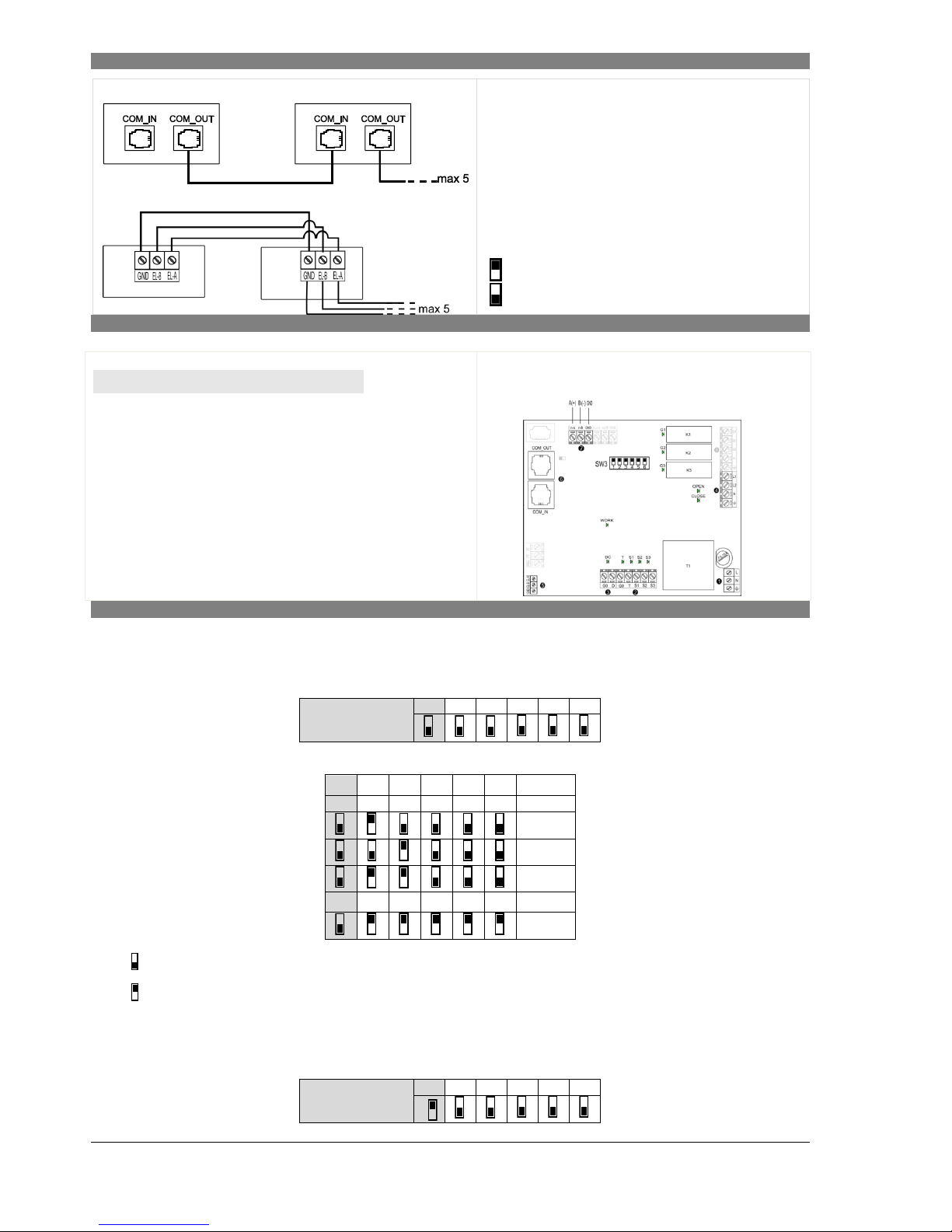

5.3.4. DRV CONTROL SYSTEM –BMS CONNECTION....13
5.3.5. DRV CONTROL SYSTEM –SETTING BMS
ADDRESS................................................................. 13
5.3.6. DRV CONTROL SYSTEM –BMS REGISTERS....... 14
5.4. DOOR CONTACT INSTALLATION................................... 15
6. GUIDELINES FOR CONNECTION WITH POWER SUPPLY .... 15
7. GUIDELINES FOR CONNECTION WITH PIPELINE................. 15
8. OPERATION............................................................................. 15
9. FILTERS REPLACEMENT........................................................ 16
10. CLEANING AND CONSERVATION..........................................16
11. SERVICE.................................................................................. 16
Thank you for purchasing the ELiS curtain. This operation
manual has been issued by the FLOWAIR GŁOGOWSKI
I BRZEZIŃSKI SP.J. company. The manufacturer reserves the
right to make revisions and changes in the operation manual at
any time and without notice, and also to make changes in the
device without influencing its operation
This manual is an integral part of the device and it must be
delivered to the user together with the device. In order to
ensure correct operation of the equipment, get thoroughly
acquainted with this manual and keep it for the future.
The devices may only be installed and operated in conditions
for which they have been designed. Any other application,
inconsistent with this manual, may lead to the occurrence of
accidents with dangerous consequences. Every effort must be
made in order to eliminate the possibility of improper use of the
device. Access of unauthorized persons to the device should
be restricted, and the operating personnel should be trained.
The manufacturer bears no responsibility for damage resulting
from incorrect installation, improper operating, or not getting
acquainted with the guidelines of the manufacturer manual.
RECOMMENDATIONS AND REQUIRED SAFETY
MEASURES
Get acquainted with this operation manual before
performing any works at the device.
The device may only be installed by qualified personnel
with adequate authorisations and skills.
In the building where ventilation causes underpressure, air
cutrain may have limited efficiency
When performing works at the device, remember about
your own safety.
During installation, electrical connection, connection to the
heating medium, start-up, repairs and maintenance of air
curtains, observe the commonly recognized safety
standards and regulations.

www.flowair.com |3
1. GENERAL INFORMATION
Air Curtain - Fan Heater Elis Duo is dedicated to install over
the door opening, it provides dynamic barrier cutting out
external environment from indoor.
ELIS DUO oppositely of others types of ELiS curtains are
equipped with unit heater, which is responsible for heating up
area.
ELIS types:
ELIS DUO-W-100 –Air Curtain - Fan Heater: air curtain range
2,5m, unit heater range 8m;
ELIS DUO-E-100 –Air Curtain - Fan Heater: air curtain range
2,5m, unit heater range 8m;
ELIS DUO-W-200 –Air Curtain - Fan Heater: air curtain range
2,5m, unit heater range 8m;
air inlet; curtain air outlet; heater air outlet (ELIS DUO only)
2. TECHNICAL DATA
DUO-W-100
DUO-W-200
DUO-E-100
K*
N**
K-N***
Power supply [V/Hz]
230V / 50Hz
230V / 50Hz
3x400V /50 Hz
Current consumption [A]
1,1
1,85
9,9
4,8
14,7
Power consumption [W]
0,25
0,43
6,8
3,3
10,1
IP / Insulation class
21 / F
Max. water temperature [oC]
95
-
Max. water pressure [MPa]
1,6
-
Connecting stub [”]
½
-
Weight [kg]
23,9
41,1
28,5
Weight of unit filled with water [kg]
25,3
42,8
-
Temperature increase (∆T) [ºC]*
30
20
* T2-W temperature increase at inlet air 10C and heating agent temperature 90/70C / T2-E temperature increase at inlet air 10ºC
2.1. CONSTRUCTION
Main construction –aluminium;
Fan –dual inlet radial fan, blades are made of polypropylene, IP20,
Heat exchanger –copper-aluminium, connecting stub ½”; electrical heaters PTC;
Casing –coated steel; silver RAL 9006 or white RAL 9010,
–side panels are made of ABS, 9006 or 9010
–inlet grille PA6GF30,RAL 9007 or 9003
–outlet of air curtain PA6GF30, RAL 7016 or 9003
Brackets –steel, RAL 9006 or 9010 (optional)
* ELiS DUO-W-200 only in white color RAL 9010

www.flowair.com |4

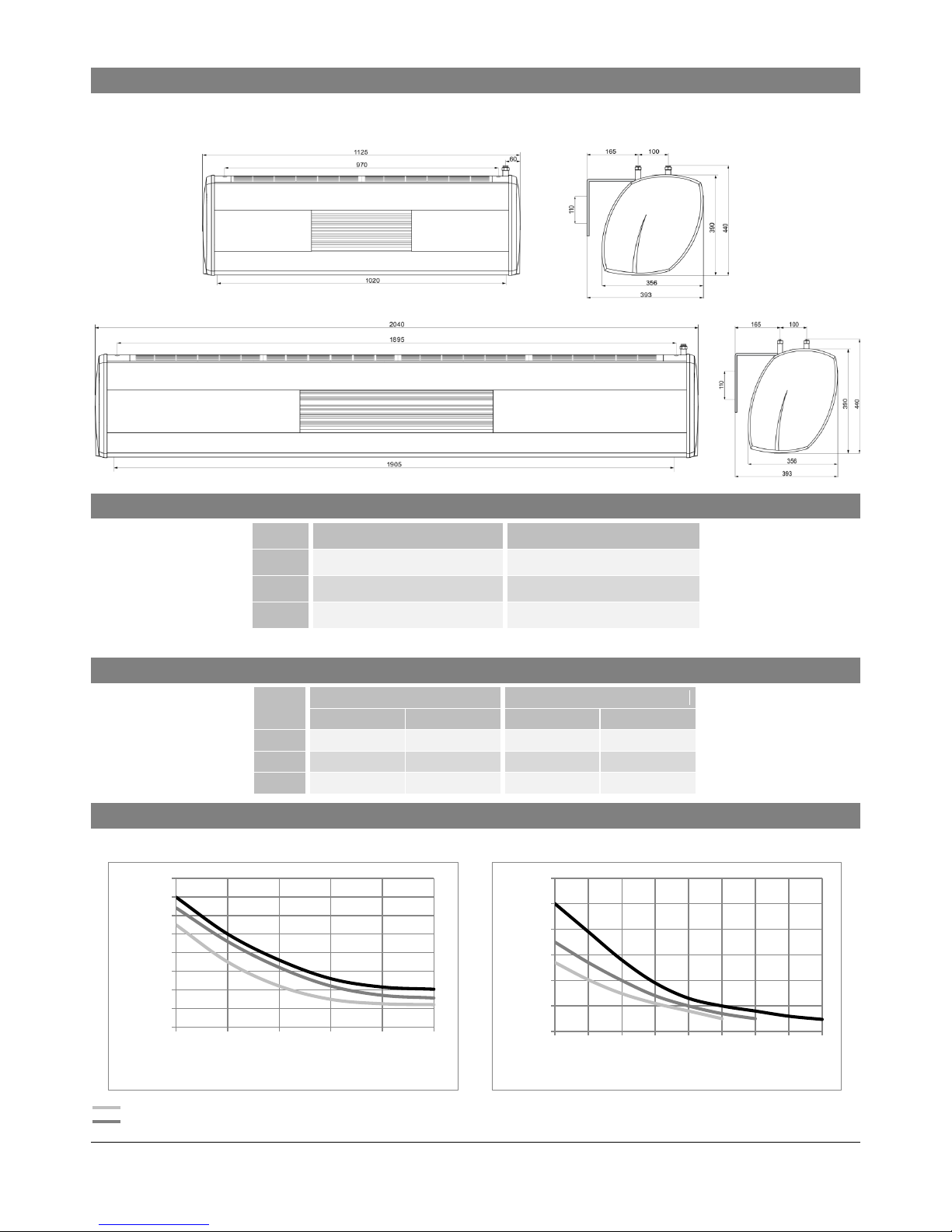

2.2. DIMENSIONS
ELIS DUO-W-100; ELiS DUO-E-100;
ELiS DUO-W-200
2.3. ACOUSTIC PRESSURE LEVEL
step
DUO
DUO 2
3
56dB(A)
59dB(A)
2
49dB(A)
52dB(A)
1
45dB(A)
48dB(A)
Acoustic pressure level measured in the room of average sound absorption, capacity 500m3, at the distance of 3 m apart of the unit.
2.4. AIR VOLUME
step
DUO
DUO 2
Air curtain
Fan heater
Air curtain
Fan heater
3
1400m3/h
700m3/h
3000m3/h
700m3/h
2
1100m3/h
550m3/h
2250m3/h
550m3/h
1
800m3/h
400m3/h
1700m3/h
400m3/h
2.5. NOMOGRAM OF AIR FLOW SPEED
ELIS DUO curtain
ELIS DUO Fan heater
step 1
step 2
0,0
1,0
2,0
3,0
4,0
5,0
6,0
7,0
8,0
0 0,5 1 1,5 2 2,5
prędkość powietrza [m/s]
odległość od wylotu [m]
0,0
1,0
2,0
3,0
4,0
5,0
6,0
0 1 2 3 4 5 6 7 8
prędkość powietrza [m/s]
odległość od wylotu [m]

www.flowair.com |5
step 3
3. HEAT OUTPUT DATA
3.1. ELIS DUO-W-100
Air curtain
PT
Qw
Δpw
Tp2
PT
Qw
Δpw
Tp2
Tp1
V
kW
l/h
kPa
°C
kW
l/h
kPa
°C
°C
m3/h
Tw1 / Tw2 = 90/70oC
Tw1 / Tw2 = 80/60oC
0
800/1100/1400
12,1/14,9/17,2
max.1141
max.12,8
42/37/34
10,4/12,8/14,8
max.976
max.9,9
36/32/29
5
11,2/13,7/15,9
44/40/37
9,5/11,7/14,8
38/35/32
10
10,3/12,6/14,7
47/43/40
8,6/10,6/12,3
41/38/35
15
9,4/11,6/13,4
49/46/43
7,8/9,5/11,1
43/40/38
20
8,6/10,5/12,2
52/48/46
6,9/8,5/9,8
46/43/41
Tw1 / Tw2 = 70/50oC
Tw1 / Tw2 = 70/40oC
0
800/1100/1400
8,7/10,7/12,4
max.811
max.7,3
30/27/24
7,2/8,8/10,2
max.447
max.2,5
25/22/20
5
7,8/9,6/11,1
32/30/27
6,3/7,7/9,0
27/25/23
10
6,9/8,5/9,9
35/32/30
5,4/6,7/7,7
29/27/26
15
6,1/7,5/8,7
37/35/33
4,5/5,6/6,5
31/30/29
20
5,2/6,4/7,5
39/37/36
3,5/4,5/5,2
33/32/31
Tw1 / Tw2 = 60/40oC
Tw1 / Tw2 = 50/40oC
0
800/1100/1400
7,0/8,5/9,9
max.646
max.5,0
24/21/20
6,7/8,2/9,5
max.1245
max.16,7
23/21/19
5
6,1/7,5/8,6
26/24/22
5,8/7,2/8,3
26/23/22
10
5,2/6,4/7,4
29/27/25
5,0/6,1/7,1
28/26/25
15
4,3/5,3/6,2
31/29/28
4,2/5,1/5,9
30/29/27
20
3,5/4,3/5,0
33/32/31
3,3/4,1/4,8
32/31/30
Fan heater
PT
Qw
Δpw
Tp2
PT
Qw
Δpw
Tp2
Tp1
V
kW
l/h
kPa
°C
kW
l/h
kPa
°C
°C
m3/h
Tw1 / Tw2 = 90/70oC
Tw1 / Tw2 = 80/60oC
0
400/550/700
6,1/7,4/8,6
max.1141
max.12,8
42/37/34
5,2/6,4/7,4
max.976
max.9,9
36/32/29
5
5,6/6,9/8,0
44/40/37
4,8/6,4/6,8
38/35/32
10
5,2/6,3/7,3
47/43/40
4,3/5,3/6,1
41/38/35
15
4,7/5,8/6,7
49/46/43
3,9/4,8/5,5
43/40/38
20
4,3/5,3/6,1
52/48/46
3,4/4,2/4,9
46/43/41
Tw1 / Tw2 = 70/50oC
Tw1 / Tw2 = 70/40oC
0
400/550/700
4,4/5,3/6,2
max.811
max.7,3
30/27/24
3,6/4,4/5,1
max.447
max.2,5
25/22/20
5
3,9/4,8/5,6
32/30/27
3,2/3,9/4,5
27/25/23
10
3,5/4,3/4,9
35/32/30
2,7/3,3/3,9
29/27/26
15
3,0/3,7/4,3
37/35/33
2,3/2,8/3,2
31/30/29
20
2,6/3,2/3,7
39/37/36
1,8/2,2/2,6
33/32/31
Tw1 / Tw2 = 60/40oC
Tw1 / Tw2 = 50/40oC
0
400/550/700
3,5/4,3/4,9
max.646
max.5,0
24/21/20
3,4/4,1/4,8
max.1245
max.16,7
23/21/19
5
3,0/3,7/4,3
26/24/22
2,9/3,6/4,2
26/23/22
10
2,6/3,2/3,7
29/27/25
2,5/3,1/3,6
28/26/25
15
2,2/2,7/3,1
31/29/28
2,1/2,6/3,0
30/29/27
20
1,7/2,1/2,5
33/32/31
1,6/2,0/2,4
32/31/30
V –air flow
PT –heating capacity
Tp1 –inlet air temperature
Tp2 –outlet air temperature
Tw1 –inlet water temperature
Tw2 –outlet water temperature
Qw –heating water stream
Δpw – water pressure

www.flowair.com |6
3.2. ELIS DUO-W-200
Air curtain
PT
Qw
Δpw
Tp2
PT
Qw
Δpw
Tp2
Tp1
V
kW
l/h
kPa
°C
kW
l/h
kPa
°C
°C
m3/h
Tw1 / Tw2 = 90/70oC
Tw1 / Tw2 = 80/60oC
0
1700/2250/3000
19/23/26,6
max.1465
max.18,9
34/30/27
16,3/19,4/22,8
max.1252
max.14,5
29/26/23
5
17,8/21,1/24,9
36/33/30
15,1/17,9/21,1
32/29/26
10
16,6/19,7/23,2
39/36/33
13,8/16,5/19,7
34/32/29
15
15,4/18,2/21,5
42/39/36
12,6/15/17,7
37/35/33
20
14,2/16,8/19,8
45/42/40
11,2/13,6/16
40/38/36
Tw1 / Tw2 = 70/50oC
Tw1 / Tw2 = 70/40oC
0
1700/2250/3000
13,6/16,2/19
max.1039
max.10,6
24/21/19
11,2/13,4/15,7
max.571
max.3,6
20/18/16
5
12,3/14,6/17,3
27/24/22
10/11,9/14
23//21/19
10
11,1/13,2/15,6
30/27/26
8,7/10,4/12,2
25/24/22
15
9,8/11,8/13,8
32/30/29
7,4/8,8/10,4
28/26/25
20
8,6/10,3/12,1
35/33/32
6,0/7,2/8,5
30/29/28
Tw1 / Tw2 = 60/40oC
Tw1 / Tw2 = 50/40oC
0
800/1100/1400
10,8/12,9/15,1
max.826
max.7,2
19/17/15
10,5/12,5/14,7
max.1599
max.24,4
19/17/15
5
9,6/11,4/13,4
22/20/19
9,2/11/13
21/20/18
10
8,4/9,9/11,7
25/23/22
8,0/9,5/11,2
24/23/21
15
7,1/8,4/9,9
27/26/25
6,8/8,1/9,5
27/26/24
20
5,8/6,9/8,2
30/29/28
5,5/6,6/7,7
30/29/28
Fan heater
PT
Qw
Δpw
Tp2
PT
Qw
Δpw
Tp2
Tp1
V
kW
l/h
kPa
°C
kW
l/h
kPa
°C
°C
m3/h
Tw1 / Tw2 = 90/70oC
Tw1 / Tw2 = 80/60oC
0
400/550/700
4,7/5,8/6,6
max.1465
max.18,9
34/30/27
4,1/4,8/5,7
max.1252
max.14,5
29/26/23
5
4,4/5,3/6,2
36/33/30
3,8/4,5/5,3
32/29/26
10
4,1/4,9/5,8
39/36/33
3,5/4,1/4,9
34/32/29
15
3,8/4,6/5,4
42/39/36
3,2/3,8/4,4
37/35/33
20
3,5/4,2/5,0
45/42/40
2,8/3,4/4,0
40/38/36
Tw1 / Tw2 = 70/50oC
Tw1 / Tw2 = 70/40oC
0
400/550/700
3,4/4/4,7
max.1039
max.10,6
24/21/19
2,8/3,3/3,9
max.571
max.3,6
20/18/16
5
3,1/3,7/4,3
27/24/22
2,5/3/3,5
23//21/19
10
2,8/3,3/3,9
30/27/26
2,2/2,6/3
25/24/22
15
2,5/2,9/3,5
32/30/29
1,8/2,2/2,6
28/26/25
20
2,2/2,6/3,0
35/33/32
1,5/1,8/2,1
30/29/28
Tw1 / Tw2 = 60/40oC
Tw1 / Tw2 = 50/40oC
0
400/550/700
2,7/3,2/3,8
max.826
max.7,2
19/17/15
2,6/3,1/3,7
max.1599
max.24,4
19/17/15
5
2,4/2,9/3,4
22/20/19
2,3/2,8/3,2
21/20/18
10
2,1/2,5/2,9
25/23/22
2/2,4/2,8
24/23/21
15
1,8/2,1/2,5
27/26/25
1,7/2/2,4
27/26/24
20
1,4/1,7/2
30/29/28
1,4/1,6/1,9
30/29/28
V –air flow
PT –heating capacity
Tp1 –inlet air temperature
Tp2 –outlet air temperature
Tw1 –inlet water temperature
Tw2 –outlet water temperature
Qw –heating water stream
Δpw – water pressure

www.flowair.com |7
4. INSTALLATION
Width of doorway must be equal or lower than width of air curtain
outlet (or outlets if air curtains are installed side by side).
While mounting ELiS DUO side by side it is important to start
from right side (like is shown below), all electrical
conntection should be done before installing following
curtain.
4.1. RECOMMENDATION OF MONTAGE DISTANCES
ELIS: DUO;
4.2. MOUNTING BY RODS UNDER THE CEILING
While mounting curtains under the ceiling, 4 rods M8 should be screwed minimum 20 mm deep.

www.flowair.com |8
4.3. MOUNTING ON THE WALLS BY THE BRACKETS
4.4. BRACKETS
Brackets ELiS DUO
2 x bracket ELiS A/DUO
4 x plug (Ø10)*
4 x double threaded screw (M8)*
4 x washer (M8)*
4 x nut (M8)*
4 x allen screw (M8)
* not included

www.flowair.com |9
4.5. STAGES OF INSTALATION
ELIS DUO-W-100; ELIS DUO-E-100; ELiS DUO-W-200 (DUO 2)
1
2
3

www.flowair.com |10
5. CONTROL SYSTEM
ELIS DUO control systems ensure listed possibilities:
Independent control of air curtain section and unit heater section;
Connecting miscellaneous equipment e.g.: room thermostat* step switch*, valve with actuator*, door contact*;
Control up to 5 unit by one panel;
Connect to BMS.
*optional equipment.
5.1. CONTROL ACCESSORIES
TS - 3-speed fan switch with
room thermostat
Temperature range::
+10 … +30oC
Operatiing temperature range:
0 … +40oC
IP/Insulation class:: IP30
Max current:
inductive 3A, resistive 4A
Power supply: 230V/50Hz
TA - 3-speed fan switch
Operating temperature
range: 0 … +40oC
IP/Insulation class: IP30
Max current:
inductive 4A, resistive 6A
DCm –mechanical door contact
Operating temperature range:: -10 -
+80oC
IP/Insulation class: IP 65
Connectors: 1xNC i 1xNO
Max current:
resistive 10 A –inductive 3 A
Max Power load: 300Vac or
250Vdc
DCe –magnetic door
contact
Operating temperature
range::
-5 - +60 oC
IP/Insulation class: IP 64
Connectors: NC
Max current::
inductive/resistive 0,5A
Max power Load: 175Vdc
Lenght of cabel: 2m
Max operating contactors
distance: 8mm
SRQ3d ½” – three-way 1/2 valve
with actuator
IP/Insulation class: IP20
Power supply:
200 –240V 50/60Hz
Max water temperature: +93oC
Max water pressure
: 2,1MPa
Kvs: 3,4 m3/h
Opening time: 18 s
SRQ2d ½” –two-way 1/2
valve with actuator
IP/Insulation class: IP20
Power supply:
200 –240V 50/60Hz
Max water temperature:
+93oC
Max water pressure
: 2,1MPa
Kvs: 3,0 m3/h
Opening time: 18 s

www.flowair.com |11
5.2. CONNECTING GUIDE
While connecting ELiS A dismount left side panel and left front panel, cables protract by glands..
5.3. DRV CONTROL SYSTEM
5
AIR CURTAIN PLATE
FAN HEATER PLATE
Power supply 230V/50Hz;
Connectors for thermostat and fan step switch;
Door switch (only air curtain);
Valve actuator connector ELIS-DUO-W; heaters
contactor connector ELiS-DUO-E;
MASTER-SLAVE connectors;
TJACK slot for MASTER-SLAVE curtain connection;
BMS system connection;
Fans connectors;
LED INDICATORS:
G1, G2, G3 –signalize number of fan speed operating
S1, S2, S3 –signalize number of set fan speed
T –signalize of valve set
DC –signalize of door contact set (air curtain only)
OPEN, CLOSE –signalize valve actuator
WORK –signalize of software working
SW3 –operating mode switch (default settings)
1
Device function
selection
BMS Address
adjustment
2
MASTER mode
operating
SLAVE mode
operating
3
Curtain
Heater (DUO)
4
ELiS DUO-W
ELiS-DUO-E
5
K1 Programme*
K2 Programme**
6
Operating with
thermostat
Operating w/o
thermostat
*K1 air curtain programme –Signal from door switch or
thermostat is main signal for the device to run
**K2 air curtain programme –Signal from door switch is main
signal for the device to run and thermostat is in charge of
valve/heaters
K1 and K2 programs do not apply to the Fan Heater part.

www.flowair.com |12
5.3.1. DRV CONTROL SYSTEM –ELIS WIRING DIAGRAMS
AIR CURTAIN PLATE
FAN HEATER PLATE
Air Curtain power supply 230V/50Hz (OMY 3x1mm2)
Air curtain step switch with thermostat TS (OMY 5x0,5mm2)
Air Curtain Door switch DCe/DCm (door closed –contacts opened; door opened –contacts closed)
Valve with actuator SRSQ3d (OMY 3x0,5mm2) or SRQ (OMY 3x0,5mm2) (Should be connected to the Fan Heater
plate)
Fan Heater power supply 230V/50Hz (OMY 3x1mm2)
Fan Heater step switch with thermostat TS (OMY 5x0,5mm2)
A –Exchanger water supply
AB –Valve water supply
B –Return pipe water supply
5.3.2. DRV CONTROL SYSTEM –WIRING DIAGRAMS
In order to connect the drivers to the curtains with
electric heaters use the diagrams in section 5.3.1.
(not considering single-phase power automation 
and ).
Three-phase power for electric curtains should be
connected to the terminal block located on the left
side of the device shown in the illustration.
NOTE:
Switch 4 on SW3 to the position as shown in the
picture (the other switches in accordance with the
diagrams shown in section 5.3.1) and then restart the
system switching it off for 5 seconds. Each time the
device is switched off the heaters are being cooled for
next 15 seconds.
AIR CURTAIN
FAN HEATER

www.flowair.com |13
5.3.3. DRV CONTROL SYSTEM–MASTER-SLAVE COMMUNICATION
1.
2.
Electrical air curtain chaining provides control from 1
to 5 devices using one set of driver.
Electrical air curtain chaining might be done in two
ways:
1. With wire with modular straight plug 4-contact
(RJ12);
2. With OMY 3x0,5mm2wire.
(Connecting units among themselves ensure transfer of
controlling signals. Whatever each curtain need to be
supplied)
Switch 2 on SW3 set in position (on both plates):
–for MASTER air curtain and fan heater
–for SLAVE air curtain and fan heater
5.3.4. DRV CONTROL SYSTEM –BMS CONNECTION
DRV driver has a possibility to be connected to integrated Building Management System (BMS).
Parameters:
Name
Description
Physical layer
RS485
Protocol
MODBUS-RTU
Baud rate
38400 [bps]
Parity
Even
Data bits
8
STOP bits
1
Connection must be made using 3-poliges wire to
connectors on air curtain plate:
IN-A; IN-B; GND (SIGNAL GROUND)
5.3.5. DRV CONTROL SYSTEM –SETTING BMS ADDRESS
There is a possibility to set 31 addresses which are set binary on SW3 switch. In order to set address must be made
the following steps (only on air curtains plate):
1) Turn off the power supply for driver;
2) Set the SW3 switches in position:
SW3 Switch
1
2
3
4
5
6
3) Set the device address with SW3 switches:
1
2
3
4
5
6
B0
B1
B2
B3
B4
Address
1
2
3
...
31
Switch down
Switch up
4) Turn on the power supply –WORK LED continuous signalization means that driver saves the address (address is
saved when WORK LED turns off);
5) Turn off power supply;
6) Set the first switch on SW3 switch in upper position (remaining switches set according to curtain version and work
programs):
SW3 Switch
1
2
3
4
5
6
7) Turn on the power supply, system is ready to run.

www.flowair.com |14
5.3.6. DRV CONTROL SYSTEM –BMS REGISTERS
Holding Register Data (Write and Read)
Lp.
Modbus register
address
Name of parameter
Min
Max
Description
1
0x04
CurtainFanSpeedRef
0
3
Set value air curtain fan speed
0
FAN_SPEED0
Fan off
1
FAN_SPEED1
First fan speed set
2
FAN_SPEED2
Second fan speed set
3
FAN_SPEED3
Third fan speed set
2
0x05
CurtainHeatRef
0
1
Air curtain thermostat value set
0
HEAT_OFF
Air curtain thermostat off
1
HEAT_ON
Air curtain thermostat on
3
0x06
HeaterFanSpeedRef
0
3
Set value heater fan speed
0
FAN_SPEED0
Fan off
1
FAN_SPEED1
First fan speed set
2
FAN_SPEED2
Second fan speed set
3
FAN_SPEED3
Third fan speed set
4
0x07
HeaterHeatRef
0
1
Heater thermostat value set
0
HEAT_OFF
Heater thermostat off
1
HEAT_ON
Heater thermostat on
5
0x08
ContactDoor
0
1
Door contact value set
0
DOOR_CLOSE
Door closed
1
DOOR_OPEN
Door opened
Inputs Register Data (Read only)
Lp.
Modbus register
address
Name of parameter
Min
Max
Description
1
0x04
CurtainFanSpeed
0
3
Air curtain fan speed value
0
FAN_SPEED0
Fan off
1
FAN_SPEED1
First fan speed
2
FAN_SPEED2
Second fan speed
3
FAN_SPEED3
Third fan speed
2
0x05
CurtainValveState
0
2
Actual air curtain valve state
0
VALVE_IDLE
Valve in stationary state (for three-
point valve)
1
VALVE_CLOSE
Valve cloosing
2
VALVE_OPEN
Valve opening
3
0x06
HeaterFanSpeed
0
3
Heater fan speed value
0
FAN_SPEED0
Fan off
1
FAN_SPEED1
First fan speed
2
FAN_SPEED2
Second fan speed
3
FAN_SPEED3
Third fan speed
4
0x07
HeaterValveState
0
2
Heater valve state
0
VALVE_IDLE
Valve in stationary state (for three-
point valve)
1
VALVE_CLOSE
Valve cloosing
2
VALVE_OPEN
Valve opening
5
0x08
ContactDoor
0
1
Door contat value
0
DOOR_CLOSE
Door closed
1
DOOR_OPEN
Door opened

www.flowair.com |15
5.4. DOOR CONTACT INSTALLATION
Sample of door contact installation.
DCm –In case of installation in way which is show on drawing
below, connectors 21 and 22 need to be used.
Hinged doors
Dce –In case of installation in way which is show on drawing
below, cable yellow and green need to be used. Other cables
must be isolated.
Hinged door
Sliding doors
6. GUIDELINES FOR CONNECTION WITH POWER
SUPPLY
Before connecting the power supply check the correctness of
connection of the fan motor and the controllers. These
connections should be executed in accordance with their
technical documentation.
Before connecting the power supply check whether the
mains voltage is in accordance with the voltage on the device
data shield.
The electrical system supplying the fan motor should be
additionally protected with a circuit breaker against the effects
of a possible short-circuit in the system
Starting the device without connecting the ground conductor
is forbidden.
7. GUIDELINES FOR CONNECTION WITH PIPELINE
The connection should be executed in a way which does
not induce stresses.
It is recommended to install vent valves at the highest point
of the system.
The system should be executed so that, in the case of a
failure, it is possible to disassemble the device. For this
purpose it is best to use shut-off valves just by the device.
The system with the heating medium must be protected
against an increase of the heating medium pressure above
the permissible value (1.6 MPa).
While screwing exchanger to pipeline - connecting stubs
has to be hold by wrench.
8. OPERATION
The device is designed for operation inside buildings, at
temperatures above 0oC. In low temperatures (below 0ºC)
there is a danger of freezing of the medium.
The manufacturer bears no responsibility for damage of
the heat exchanger resulting from freezing of the medium
in the exchanger. It is forbidden to place any objects on the
heater or to hang any objects on the connecting stubs.
The device must be inspected periodically. In the case of
incorrect operation of the device it should be switched off
immediately.
It is forbidden to use a damaged device. The manufacturer
bears no responsibility for damage resulting from the use
of a damaged device.
If it is necessary to clean the exchanger, be careful not to
damage the aluminium lamellas.
For the time of performing inspection or cleaning the
device, the electrical power supply should be
disconnected.
In case water is drained from the device for a longer period
of time, the exchanger tubes should be emptied with
compressed air.

www.flowair.com |16
9. FILTERS REPLACEMENT
Elis curtains can be equipped with EU2 filters. Filters need to
be replaced periodically. Filled filters can causes in Air flow
drop. It is forbidden to use filters to electric curtain
Replacing of filters step by step:
1. Dismount inlet grill guard (unscrew the screws).
ELIS: DUO
2. Wyciągnąć filtry wyjmując je z zaczepów.
ELIS: DUO;
YSZCZ
ENIE I KONSERWACJA
3. Install grill guard
10.CLEANING AND CONSERVATION
Periodically need to be checked exchanger condition.
Exchanger filled with dirt causes in heat output and air flow
drop.
If cleaning of heat exchanger is needed use listed guidelines.
Disconnect power supply of unit.
Dismount inlet grill guard
It is recommended to use pressured air to clean the
exchanger, air stream need to be directed perpendicular to
exchanger and moved along lamellas.
It is prohibited to use water or sharp items to clean
exchanger.
Other installed equipment do not need be cleaned.
11.SERVICE
In the case of any irregularities in the device operation, please
contact the manufacturer’s service department.
The manufacturer bears no responsibility for operating the
device in a manner inconsistent with its purpose, by persons
not authorized for this, and for damage resulting from this!
Made in Poland
Made in EU
Manufacturer: FLOWAIR GŁOGOWSKI I BRZEZIŃSKI SP.J.
ul. Chwaszczyńska 133A, 81-571 Gdynia
phone. [phone], fax.: [phone]
e-mail: [email protected]
www.flowair.com

www.flowair.com |17
DEKLARACJA ZGODNOŚCI WE / Declaration of Conformity
Producent / Manufacturer:
FLOWAIR GŁOGOWSKI I BRZEZIŃSKI SP.J.
Biuro / Office: Chwaszczyńska 151E, 81-571 Gdynia
tel. [phone]
tel./fax: [phone]
e-mail: [email protected]
www.flowair.pl
deklaruje, że / hereby confirms, that
nazwa / device name:
Kurtyna powietrzna / Air curtain
modele / models:
ELIS DUO, ELIS A,
typ / types:
ELIS A-W-100/AF ; ELIS A-W-100/L ; ELIS A-N-100/AF ; ELIS A-N-100/L ;
ELIS A-E-100/AF ; ELIS A-E-100/L ; ELIS A-W-150/AF ; ELIS A-W-150/L ;
ELIS A-N-150/AF ; ELIS A-N-150/L ; ELIS A-E-150/AF ; ELIS A-E-150/L ;
ELIS A-W-200/AF ; ELIS A-W-200/L ; ELIS A-N-200/AF ; ELIS A-N-200/L ;
ELIS A-E-200/AF ; ELIS A-E-200/L ; ELIS DUO; ELIS DUO EL; ELIS DUO-W-100;
ELIS DUO-W-200; ELIS-E-100;
data wprowadzenia produktu do
obrotu / product launch date:
2014
jest zgodna z zasadniczymi
wymaganiami / was produced in
accordance to the following
European Directives:
dyrektywy / directives MD 2006/42/WE;
dyrektywy / directives EMC 2004/108/WE
oraz zharmonizowanymi z tymi
dyrektywami normami / and
harmonized norms, with above
directives:
PN-EN 60204-1:2010 –Bezpieczeństwo maszyn - Wyposażenie elektryczne maszyn
Część 1: Wymagania ogólne / Safety of machinery - Electrical equipment of machines -
Part 1: General requirements
PN-EN 60335-1:2004 + A1:2005 + A2:2008 + A12:2008 + A13:2009 + A14:2010 +
Ap:2005 + Ap:2006 –Elektryczny sprzęt do użytku domowego i podobnego -
Bezpieczeństwo użytkowania Część 1: Wymagania ogólne / Household and similar
electrical appliances - Safety - Part 1: General requirements

www.flowair.com |18
PN-EN 60335-2-80:2007 + A2:2009 –Elektryczny sprzęt do użytku domowego i
podobnego - Bezpieczeństwo użytkowania Część 2-80: Wymagania szczegółowe
dotyczące wentylatorów / Household and similar electrical appliances - Safety –Part 2-
30: Particular requirements for room heaters
PN-EN 60034-1:2009 + Ap1:2009 –Maszyny elektryczne wirujące Część 1: Dane
znamionowe i parametry / Rotating electrical machines –Part 1: Rating and
performance
PN-EN 60034-5:2004 + A1:2009 –Maszyny elektryczne wirujące Część 5: Stopnie
ochrony zapewniane przez rozwiązania konstrukcyjne maszyn elektrycznych wirujących
(kod IP) –Klasyfikacja / Rotating electrical machines –Part 5: Degrees of protection
provided by the integral design of rotating electrical machines (IP code). Classification.
PN-EN 60034-8:2007 –Maszyny elektryczne wirujące Część 8: Oznaczanie
wyprowadzeń i kierunek wirowania maszyn wirujących / Rotating electrical machines –
Part 8: Terminal markings and direction of rotation.
PN-EN 60034-9:2009 –Maszyny elektryczne wirujące Część 9: Dopuszczalne poziomy
hałasu / Rotating electrical machines –Part 9: Noise limits.
PN-EN 61000-6-1:2008 –Kompatybilność elektromagnetyczna (EMC) Część 6-1: Normy
ogólne - Odporność w środowiskach: mieszkalnym, handlowym i lekko
uprzemysłowionym / Electromagnetic compatibility (EMC) Part 6-1: Generic standards.
Immunity for residential, commercial and light-industrial environments.
PN-EN 61000-6-2:2008 + Ap1:2009 + Ap2:2009 –Kompatybilność elektromagnetyczna
(EMC) Część 6-2: Normy ogólne – Odporność w środowiskach przemysłowych /
Electromagnetic compatibility (EMC) - Part 6-2: Generic standards. Immunity for
industrial environments.
PN-EN 61000-6-3:2008 –Kompatybilność elektromagnetyczna (EMC) Część 6-3: Normy
ogólne – Norma emisji w środowiskach: mieszkalnym, handlowym i lekko
uprzemysłowionym / Electromagnetic compatibility (EMC) - Part 6-3: Generic standards
- Emission standard for residential, commercial and light-industrial environments.
PN-EN 61000-6-4:2008 –Kompatybilność elektromagnetyczna (EMC) Część 6-4: Normy
ogólne - Norma emisji w środowiskach przemysłowych / Electromagnetic compatibility
(EMC) - Part 6-4: Generic standards - Emission standard for industrial environments.
Gdynia, 01.04.2012
Product Manager
Dunajski Maciej
