infrastructure, they will immediately
understand the need for inspection.
Alternatively
Step 1. Using Fluke Networks tools, inspect
and clean all end-faces when setting up a
sales demonstration.
Step 2. Customers will inevitably ask for
advice when seeing the cleaning and inspec-
tion tools in use. Share the importance of
inspecting and cleaning before every mating.
Questions for customers:
1. Do you work with fiber?
Allow the customer to try the tool. Seeing
is believing. Share that contamination is
the #1 cause of fiber failure.
2. Have you ever had a fiber failure due to
contamination?
Ask them to consider the time and
expense that could have been avoided
by inspecting and cleaning.
3. Are you using a direct view microscope
to inspect?
Video microscopes can be 10x faster and
are the only way to ensure zero exposure
to harmful laser light.
Fiber Inspection Series
What is it?

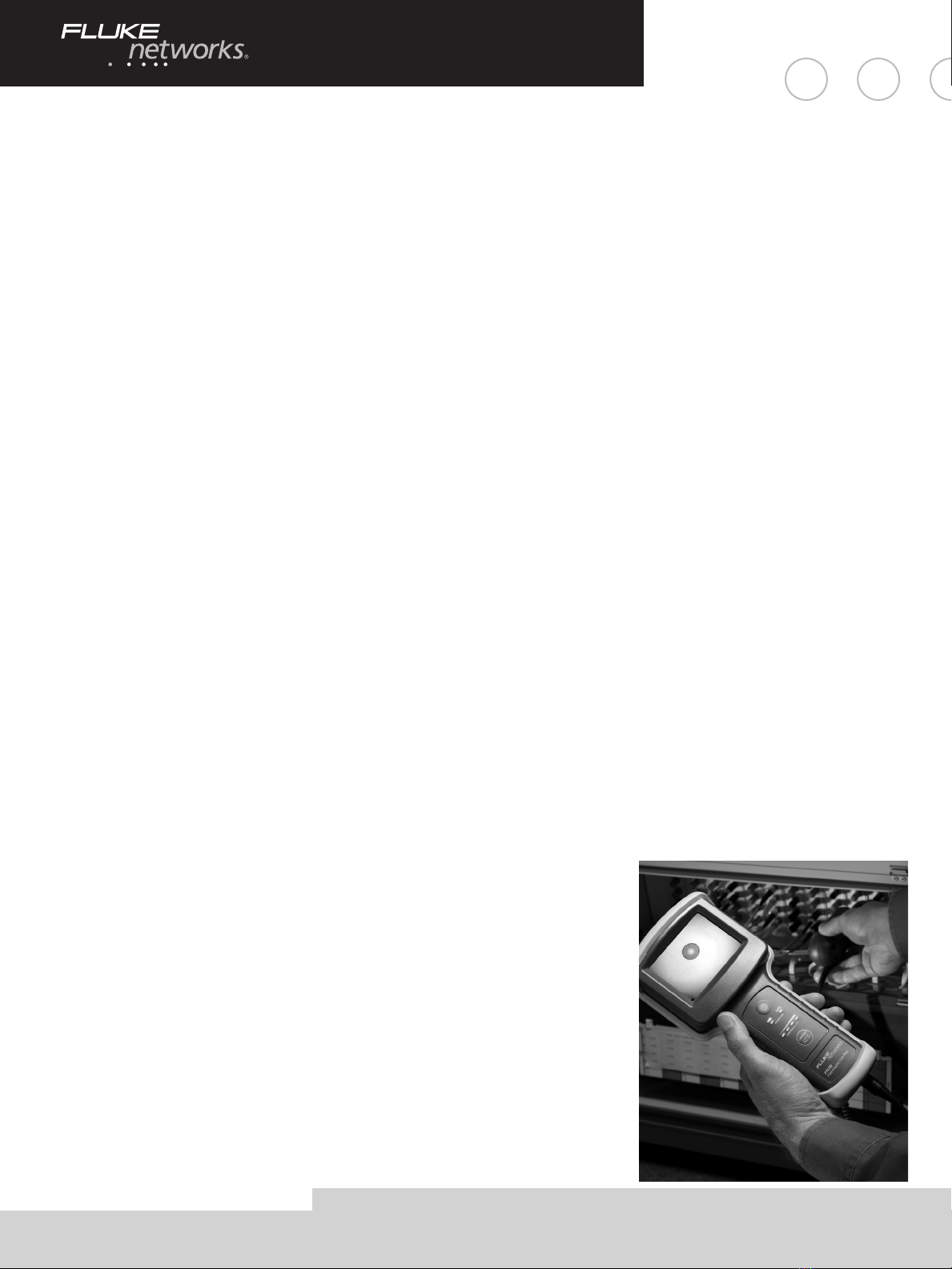

The Fiber Inspection Series includes
microscopes used to inspect fiber optic
end-faces on patch cords, inside equip-
ment and behind bulkheads. The series
includes the standalone FT120/FT140
FiberViewerTM, FT500 FiberInspectorTM
Mini and FT600 FiberInspectorTM Pro as
well as the OFTM-5352 FiberInspector Pro
for the OptiFiberTM and the OPV-FT600
FiberInspector Pro for the OptiViewTM.
Images are viewed directly on FiberViewer
microscopes and on a screen with
FiberInspector units. The OptiFiber and
OptiView allow images to be saved and
uploaded to Fluke Networks’ LinkWareTM
software package.
Target user:
EVERYONE using fiber optics needs to be
inspecting end-faces before every mating.
Contamination is everywhere: floating in
the air, on skin, inside equipment and
inside protective caps. Customers should
be informed that brand new, factory-
terminated patch cords and pigtails are
not clean even when they come out of
a sealed bag with protective caps. The
protective caps themselves can contami-
nate the end-faces. Potential customers
include both private network owners and
installers.
Model comparison:
The FT120 and FT140 FiberViewer models
are the most economical way to inspect a
fiber end-face, but they have their limita-
tions. The FiberViewer units can only view
end-faces on connectors; they cannot
see inside ports. The FT120 and FT140
provide 200x and 400x magnification,
respectively. To view end-faces inside
ports, a video microscope such as the
Quick Reference Sales Guide
Fiber Inspection Series
FiberInspector Mini or FiberInspector Pro is
required. All of Fluke Networks’ microscopes
are sufficient for viewing both multimode
and singlemode end-faces, but 400x magni-
fication on the FiberInspector Pro and FT140
FiberViewer is more desirable for customers
working in sensitive environments and with
higher data rate links. While the Mini is the
more economical video microscope, the Pro
has a protective boot, a greater range of
probe tips, a larger screen and a dual
magnification probe.
Value to customer:
The #1 cause of fiber link failure is dirty
end-faces. 85% of fiber network failures are
due to contamination.
Avoid unexpected and costly downtime
by easily inspecting end-faces, and
cleaning them as necessary (all Fiber
Inspection Series products).
Save time when troubleshooting on a
patch panel as a video microscope can
be 10x faster than a direct view scope
(FiberInspector video microscopes).
Protect your eyesight with video
microscopes as there is no chance
of laser light exposure (FiberInspector
video microscopes).
Capture images to prove the quality of
the installation or as future reference if
problems arise (OptiFiber or OptiView).
Dual 250x/400x magnification on the
FiberInspector Pro allows for both
a wide field of view and extremely
close inspection of the fiber core
(FiberInspector Pro).
Selling the tool:
Step 1. Share that dirty end-faces are the
leading cause of fiber failure, responsible for
85% of problems with fiber links.
Step 2. Let the customer use a demo unit to
inspect some of their own end-faces. Once
the customer sees dirt on their own
•
•
•
•
•

Fiber Inspector Series
NETWORKSUPERVISION
Fluke Networks
P.O. Box 777, Everett, WA USA 98206-0777
Fluke Networks operates in more than 50 countries
worldwide. To find your local office contact details, go
to www.flukenetworks.com/contact.
©2007 Fluke Corporation. All rights reserved.
Printed in U.S.A. 3/2007 2836475 H-EN-N Rev A
Fiber Inspection and
Cleaning Series Data Sheet
Lit# 1592489 (English)
For more information on fiber
inspection and cleaning, visit
www.flukenetworks.com/fibercare
Fiber Series Sales Tools
Fiber Cleaning Kits SQRG
Lit#2844253 (English)
Name FiberViewer FiberInspector Mini FiberInspector Pro
Model FT120 FT140 FT500 FT600 OFTM-5352 OPV-FT600
Magnification 200x 400x 200x 250x 400x 250x 400x 250x 400x
Field of View 950µm 475µm 700µm 670µm 420µm 670µm 420µm 670µm 420µm
Detection Capability .75µm .5µm 2µm 2µm 1µm 2µm 1µm 2µm 1µm
Display N/A 1.8”, 4.6 cm LCD 3.5”, 8.9 cm LCD
View Patch Cords • • • • •
View Inside Ports No • • • •
Image Capture • •
Universal 2.5 mm ferrules • • • • •
Universal 1.25 mm ferrules NF350 NFM110 Tip Set NF368 NF368 NF368
SC Ports • • • •
ST Ports • • • •
FC Ports NFM110 Tip Set • • •
LC Ports NFM110 Tip Set NF362 NF362 NF362
MU Ports NF364 NF364 NF364
MTP Ports NF370 NF370 NF370
MT-RJ Ports NF360 NF360 NF360
FT120 FT140 FT500 FT600 OFTM-5352
OPV-FT600
