Recordable Audio Speaker MP3 Sound Player
Activated with PIR Motion Sensor
User’s Manual V1.0
Model No.: FN-H865A
1. Features
It adopts a high-quality external PIR motion sensor.
Built-in high quality MP3 player with great sound quality.
Built-in 4MB flash memory as the storage device.
Update sound file easily on computer through USB connection.
-No need any software. It will be detected as a USB flash drive on computer.
-It supports uploading single sound file only.
-There is a config file "Config.txt" on the memory. Please never delete it.
Equipped with a high-quality class D amplifier.

Flyron Technology Co., Ltd. FN-H865A Recodable Audio Speaker MP3 Sound Player
www.flyrontech.com E-mail: [e-mail]
2
Adjustable sound volume through the blue pot on the internal circuit board.
Small body but loud volume. Suitable for any indoor occasions.
Hanging holes available on both of the PIR motion sensor and the speaker.
- Also fine to fix using a double-sided adhesive.
Outline size of the PIR motion sensor: 52L*36W*23H mm
Outline size of the speaker: 65D*32H mm
Length of the cable between PIR motion sensor and the speaker: 42 cm
Length of the power wires: 28 cm
2. Technical Parameters
Working voltage: 9V to 24V DC
Working current: ≤1000mA
Detecting distance: ≤6m (not adjustable)
Detecting angle: 120
Power consumption: ≤3W
Flash memory size: 4MB
Audio format: MP3 (32Kbps-192Kbps)
Sound pressure level: ≤100dB

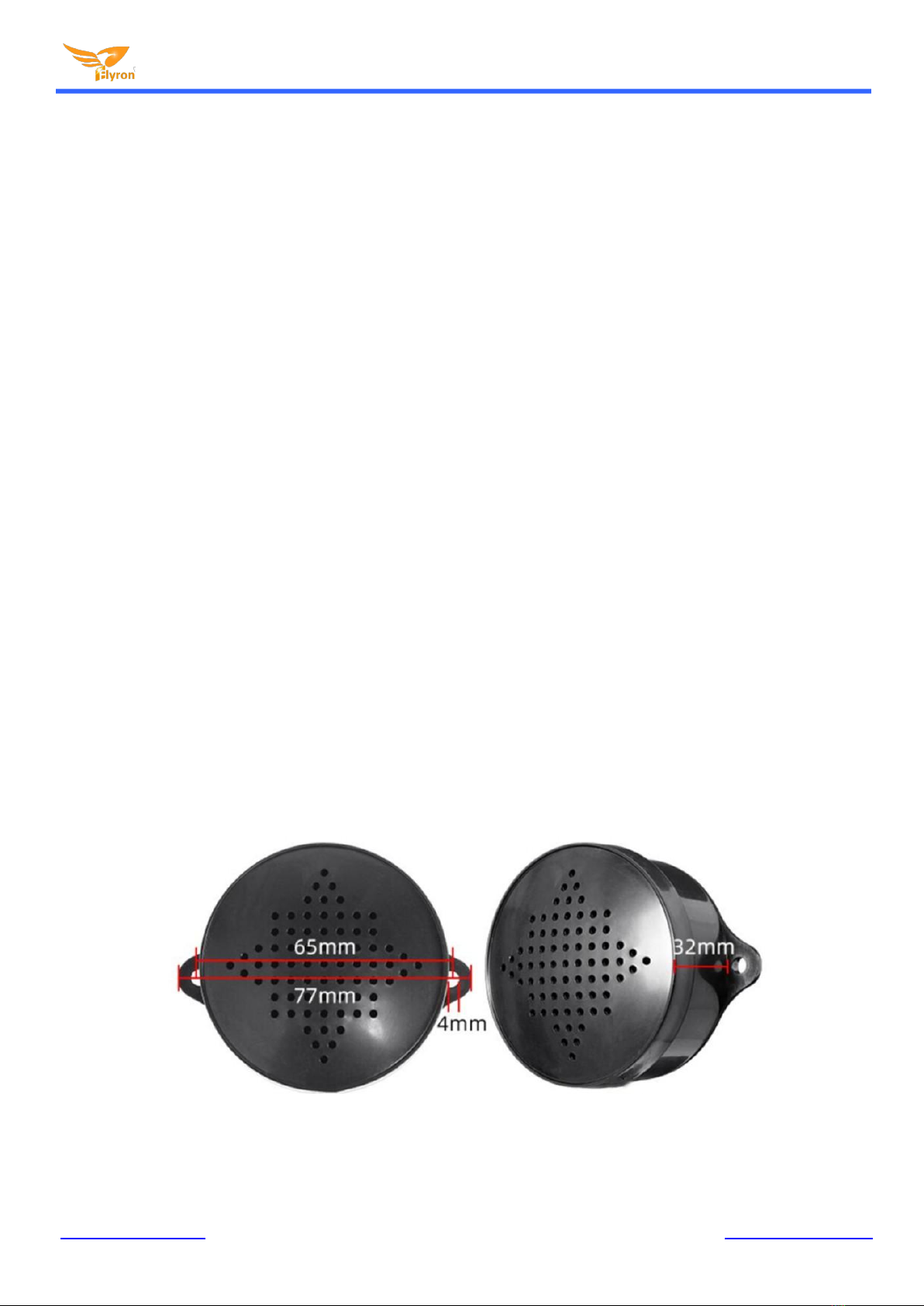

3. Dimension Details of the Speaker (sound player)
4. Operation Guide
4.1. Sound Files Uploading/Updating

Flyron Technology Co., Ltd. FN-H865A Recodable Audio Speaker MP3 Sound Player
www.flyrontech.com E-mail: [e-mail]
3
1). Before uploading sound files onto the device, you need to take off the lid by hand easily as shown below . There is a
concealed buckle on the two sides of the case.
2). Move aside the lid and the speaker unit and you will see it as shown below.
3). Connect the internal circuit board to computer through a USB data cable. It will be detected as a USB flash drive on
computer. Once the connection is successful, the LED indicator on the board will flash, and you’ll see a preloaded
sound file and a config file as shown below.

Flyron Technology Co., Ltd. FN-H865A Recodable Audio Speaker MP3 Sound Player
www.flyrontech.com E-mail: [e-mail]
4
Note: It’s fine whether you change the name of the MP3 file to “001” or not.
4). Delete the sound file preloaded at factory for testing purpose, and copy yours onto the flash memory. Open the
Config file and change the number to what you need, and save it.
4.2. How to Create a Config File
If you delete the Config file by mistake, you can follow these steps to create one by yourself easily.
1). Firstly create a new text file (.txt).
2). Open it and enter the number “M:2” as shown below.
3). Save the file and close it.
4). Change the file name “xxx.txt” to “Config.txt” as shown below.

Flyron Technology Co., Ltd. FN-H865A Recodable Audio Speaker MP3 Sound Player
www.flyrontech.com E-mail: [e-mail]
5
5. Installation Methods
Note: When the device is powered on, the PIR sensor will take about 30-45 seconds for initialization.
During this period of time, it's normal the PIR sensor doesn’t trigger to play the sound. Once the
initialization is finished, it will get into work mode immediately.
