FMF Ti-Q User manual

18033 S. Santa Fe Ave.Rancho Dominguez, CA 90221-5514 PH: 310-631-4363 FX: 310-900-5699 www.fmfracing.com
[01-05 / #000602]
Ti-Q S/A Installation

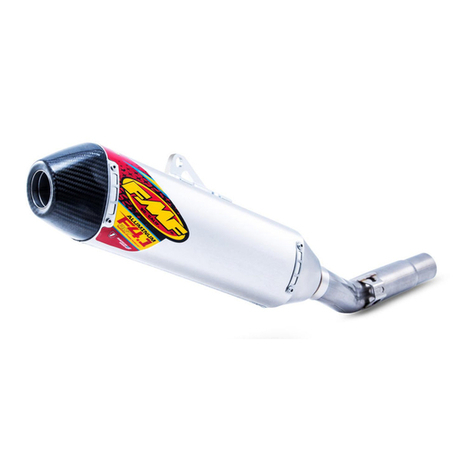

Thank you for purchasing FMF’s Ti-Q as your aftermarket performance exhaust. We have spent countless
hours of R & D and testing to ensure you receive the highest quality product on the market today.
All FMF's products are developed using the most current design and manufacturing technologies
available. We use only the highest quality materials for function and durability. The Ti-Q muffler is constructed
from military grade titanium for the canister and mandrel bent mid-pipe. Titanium Hi-Flo modular endcaps are
are fitted to both ends and we utilize advanced multi stage sound absorption packing material.
The Ti-Q muffler weighs less than most moto mufflers and is specially engineered to accelerate exhaust flow with
less noise and minimal power loss. Bolt on FMF performance and FEEL THE POWER!
Check out our website at www.fmfracing.com for more information.
Please read all instructions thoroughly before installation. Failure to follow all installation instructions completely will void any
FMF warranty implied or otherwise. FMF Racing will not be held responsible for problems derived from improper installation and/or
improper usage.
Before you begin installing this product, be sure you are wearing eye protection and gloves. You should have a complete understanding of
how to remove and replace your stock exhaust. Otherwise, you should have it installed by a professional mechanic. Keep all stock parts
when removing your stock exhaust, as some parts may be necessary to install the FMF exhaust depending on your particular application.
2005-07 SUZUKI RMZ450
1. Make sure the engine is completely cool prior to installation and the vehicle is in a stable position.
2. Remove the right plastic side panel to gain access to the muffler.
3. Loosen the band clamp connecting the muffler to the header.
4. Remove the stock bolt attaching the midpipe to the subframe. Keep for later use (only applies to ‘05-06
models).
5. While holding the muffler, loosen and remove the stock muffler mounting bolt.
6. Gently slide the muffler rearward to release it from the header. Spray WD-40 into the muffler-header
junction to help ease removal.
7. Install the rubber sleeve onto the strap bracket so the rubber is facing inward. Make sure the
outer lip is over the bracket edge fully. No rubber should be in the area where the bracket tabs pinch
together.
8.
PARTS SUPPLIED
1 Ti-Q Muffler 043081
940406
900446
900548
982000
940619
1Medium Strap Bracket
1Strap Bracket Rubber Sleeve
28mm x 20mm Bolt
2
1
70mm Spring
Adapter Sleeve
TOOLS REQUIRED
5mm Allen Wrench
8mm Wrench
10mm Wrench
12mm Wrench
Vise Grip Pliers
Contact Cleaner
WD-40®
High Temp Silicone
Spring Puller
R E M O V A L
PRE-INSTALLATION
Using contact cleaner, clean the section of the header where the muffler connects. Allow to dry then
lightly coat with a bead of high temp silicone for an improved seal.

INSTALLATION
POST-INSTALLATION
9. Slip the FMF midpipe over the header. Wipe off any excess silicone.
10. Install the stock bolt and washer removed in step 4 through the subframe into the midpipe. Do not fully
tighten at this time.
For 07 models you must use the supplied bolt and adapter sleeve. Insert the sleeve
into the subframe then thread the bolt through the sleeve into the midpipe mount. Do not fully tighten
at this time.
Gently slide the FMF muffler onto the midpipe. Positioned correctly the FMF logos should be at the
11.
3 & 9 o’clock position when looking from the rear.
12. While supporting the muffler, install the two (2) supplied 70mm exhaust springs from the muffler to the
midpipe using a spring puller tool (one spring on top, one on bottom).
13. Slide the strap bracket carefully over the muffler and position it to the rear upper mounting point. Make sure
the “inside” sticker on the bracket is towards the subframe
14. Using vise grip pliers, pinch the strap bracket tabs together and install the supplied 8mm x 20mm bolt to
attach the strap bracket to the frames.
Do not fully tighten at this time.
15. Make sure the header and muffler are in neutral positions and not binding. Slowly tighten all mounting
fasteners and clamps to manufacturer’s specifications, starting at the midpipe and working your way to the
back.
16. Inspect the complete exhaust to make sure there is no contact with the frame, shock spring, engine, body
panels or any cables, hoses or wiring. The exhaust system should only be in contact with the exhaust port
and mounting points. Confirm all controls operate in accordance with the manufacturer’s specifications.
18. Before operating your vehicle, we recommend either stock jetting or installing our Power-Up jet kit for
optimum performance. Our jetting recommendations are used as a guide only and were developed based
Our jetting recommendations are to be used as a guide only and we developed
on operation at sea-level at 70 degree ambient air temperature. There are too many variables outside of FMF’s
control to give you an pricise recommendations. If you’re not capable of tuning the carburetor yourself, please find
a mechanic in your area. Refer to our website for more jetting information.
19. Start the engine and bring it up to operating temperature. Check for exhaust leaks.
20. Let engine cool completely and re-torque all mounting hardware to the manufacturers specifications.
To clean your FMF muffler, allow to cool and use mild soap and water. Do not spray water onto a hot exhaust. Dry completely to prevent
streaking. Windex® works great on the muffler canister to prevent streaking and uneven discoloration.
We recommend repacking your FMF muffler after every 20-30 hours of normal use when properly jetted. This will maintain peak performance
and keep that race tone. Water will ruin the packing. Cover the exhaust outlet when washing your machine. Repack your muffler if water
enters into the chamber. We have various packing materials to choose from. We also recommend cleaning the spark arrestor screen (if
equipped) gently using a wire brush after every 30 hours of use.
To repack the muffler, remove the allen screws from the front of the muffler using a allen wrench. Do not remove the rear endcap. Gently slide
out the front midpipe from the muffler canister. You may need to use a rubber or plastic mallet to lightly tap it out. Be careful not to damage
the muffler. Unwrap the packing from the core and discard. Wrap the core with new packing and secure with a strip of 1/2” masking tape. Do
not pack too tightly, as this will hamper performance and increase the sound level. Before reinstalling the inner core assembly, apply a thin
layer of high temp silicone on the front endcap where the aluminum canister slips over. Slide inner core assembly into canister making sure
the perforated core fully seats in the rear endcap. Wipe off any excess silicone. Reinstall the allen screws until snug or tighten 1/4 turn after
the screw makes contact with the canister. Allow sufficent time for silicone to cure before starting.
MAINTENANCE
