VENTED DECORATIVE GAS LOG HEATER
OWNER’S OPERATION AND
INSTALLATION MANUAL
HARDWOOD ORIGINAL CALIFORNIA MAPLE KENTUCKY ELM
HCA-18-RFN HCM-18-RFN HKE-18-RFN
HCA-24-RFN HCM-24-RFN HKE-24-RFN
HCA-18-RFP HCM-18-RFP HKE-18-RFP
HCA-24-RFP HCM-24-RFP HKE-24-RFP
PFS
®
US

www.desatech.com
117272-01F 3
WARNING: Any change to
this replace or its controls can
be dangerous.
1. This appliance, as supplied, is only for use
with the type of gas indicated on the rating
plate. This appliance is convertible for use
with propane/LP, using the GA050A or
GA150A pilot kit.
2. If you smell gas
• shut off gas supply
• do not try to light any appliance
• do not touch any electrical switch; do not
use any phone in your building
• immediately call your gas supplier from
a neighbor’s phone. Follow the gas
suppliers instructions
• if you cannot reach you gas supplier, call
the re department.
3. Never install the log set
• in a recreational vehicle
• where curtains, furniture, clothing, or
other ammable objects are less than
42" from the front, top, or sides of the
log set
• in high trafc areas
• in windy or drafty areas
4. Before installing in a solid fuel burning re-
place, the chimney ue and rebox must
be cleaned of soot, creosote, ashes and
loose paint by a qualied chimney cleaner.
Creosote will ignite if highly heated. Inspect
chimney ue for damage. If damaged, repair
ue before operating heater.
5. You must operate this log set with a re-
place screen in place. Make sure replace
screen is closed before running log set.
6. This log set is designed to be smokeless.
If logs ever appear to smoke, turn off appli-
ance and call a qualied service person.
7. To reduce the creation of soot, follow the
instructions in ,
page 11.
SAFETY
Continued
8. Do not allow fans to blow directly into the
replace. Avoid any drafts that alter burner
ame patterns. Ceiling fans can create
drafts that alter burner ame patterns.
Altered burner patterns can increase
sooting.
. Do not use a blower insert, heat exchang-
er insert or other accessory not approved
for use with this log set.
10. The installation and provisions for com-
bustion and ventilation air must conform
with the
11. Do not run log set
• where ammable liquids or vapors are
used or stored
• under dusty conditions
12. Do not burn solid fuel in the replace after
installing the log set. Do not use this log
set to cook food or burn paper or other
objects.
13. Log set becomes very hot when in use.
Keep children and adults away from hot
surface to avoid burns or clothing ignition.
Log set will remain hot for a time after
shutdown. Allow surface to cool before
touching.
14. Carefully supervise young children when
they are in the room with log set.
15. Do not use appliance if any part has been
exposed to or under water. Immediately
call a qualied service technician to inspect
the room appliance and to replace any part
of the control system (if using GA050A or
GA150A) and any gas control which has
been under water.
16. To help prevent breakage, new logs must
be broken-in (see page 11).
17. Turn log set off and let cool before servic-
ing, installing, or repairing. Only a qualied
service person should install, service, or
repair log set.
18. Provide adequate clearances around air
openings.
1. This vented gas log set may not be
installed in a bedroom or bathroom in
the Commonwealth of Massachusetts.
fire-parts.com

www.desatech.com
117272-01F 7
We recommend that you install a sediment
trap in supply line as shown in Figure 4.
Locate sediment trap where it is within reach
for cleaning. Install in piping system between
fuel supply and heater. Locate sediment
trap where trapped matter is not likely to
freeze. A sediment trap traps moisture and
contaminants. This keeps them from going
into log set controls. If sediment trap is not
installed or is installed wrong, log set may
not run properly.
Figure 4 - Gas Connection
* Purchase the optional CSA design-certied
equipment shutoff valve from your dealer.
** Minimum inlet pressure for purpose of input
adjustment.
3" Minimum
Sediment Trap
From Gas Meter
(5" W.C.** to
10.5" W.C.
Pressure)
CSA Design-
Certied Equipment
Shutoff Valve With
1/8" NPT Tap*
Approved Flexible Gas Hose
(if allowed by local codes)
Tee
Joint
Pipe
Nipple
Cap
INSTALLATION
Continued
CHECKING GAS CONNECTIONS
WARNING:Testallgaspiping
and connections, internal and
external to unit, for leaks after
installing or servicing. Correct
all leaks at once.
WARNING: Never use an
open ame to check for a leak.
Apply a noncorrosive leak detec-
tion uid to all joints. Bubbles
forming show a leak. Correct all
leaks at once.
PRESSURE TESTING GAS SUPPLY
PIPING SYSTEM
Test Pressures In Excess Of 1/2 PSIG
(3.5 kPa)
1. Disconnect log set and its individual equip-
ment shutoff valve from gas supply piping
system.
2. Cap off open end of gas pipe where equip-
ment shutoff valve was connected.
3. Pressurize supply piping system by either
using compressed air or opening main gas
valve located on or near gas meter.
4. Check all joints of gas supply piping sys-
tem. Apply noncorrosive leak detection
uid to gas joints. Bubbles forming show
a leak.
5. Correct all leaks at once.
6. Reconnect log set and equipment shutoff
valve to gas supply. Check reconnected
ttings for leaks.
Test Pressures Equal To or Less Than
1/2 PSIG (3.5 kPa)
1. Close equipment shutoff valve (see Fig-
ure 5).
2. Pressurize supply piping system by either
using compressed air or opening main gas
valve located on or near gas meter.
3. Check all joints from gas meter to equip-
ment shutoff valve (see Figure 5). Apply
noncorrosive leak detection uid to gas
joints. Bubbles forming show a leak.
4. Correct all leaks at once.
Figure 5 - Checking Gas Joints
Gas Meter
Equipment
Shutoff
Valve
fire-parts.com

www.desatech.com 117272-01F8
INSTALLATION
Continued
HEARTH KIT ASSEMBLY AND
INSTALLATION
Kit Assembly - Dual-Flame Only
1. Determine which side gas line will be
coming into replace.
NOTICE: Triple-burner model HD-
VTR24W comes preassembled
with gas inlet on right side of
burner pan. DO NOT attempt to re-
position burner on triple-burner
models. If your replace supply
is on the left side, a longer 3/8"
ex line should be purchased
and routed behind burner pan
and away from ame area.
2. Using a hammer and screw driver, remove
knockout plug from side of pan that cor-
responds to gas line (see Figure 6).
3. Unscrew burner inlet tting from burner
manifold.
Burner Inlet
Fitting
Burner Inlet
Fitting
Screw
Front
Burner
Burner
Manifold
Nut
Burner Clamp
Burner Pan
(Front)
Burner Pan
(Front)
Knockout
Plugs
Gas Connection
Must Be On
Right Side For
Triple Burner
TRIPLE-BURNER
DUAL-FLAME
Burner
Manifold
Figure 6 - Installing Burner
Figure 7 - Connecting Gas to Appliance
Adapter
Fitting
Gas
Connector
Tube
Burner Pan
Assembly
(Facing Front
of Fireplace)
4. Place burner manifold in pan with thread-
ed opening facing open knockout plug.
5. Using thread sealant (resistant to the ac-
tion of propane/LP gas) on larger end of
tting, screw burner inlet tting through
hole and into burner manifold (see Figure
6). Tighten using a wrench.
6. Using burner clamp, screw, and nut pro-
vided, assemble clamp to pan (U style
and triple burners only). This will hold
burner manifold in place.
7. If using optional GA150A kit, follow in-
structions included kit for installation and
operation.
Installation and Gas Connection
1. Place burner pan assembly in center of
replace oor. Make sure front of pan
faces forward.
2. Thread gas supply tting to replace gas
supply pipe. Use thread sealant.
3. Install adapter tting onto burner inlet t-
ting using thread sealant on male threads
of burner inlet tting (see Figure 7). Adjust
to most convenient position.
4. Install gas connector tube to gas supply
tting. Carefully shape tube to attach to
adapter tting. Be careful not to cause
kinks in tube.
fire-parts.com

www.desatech.com 117272-01F10
INSTALLATION
Continued

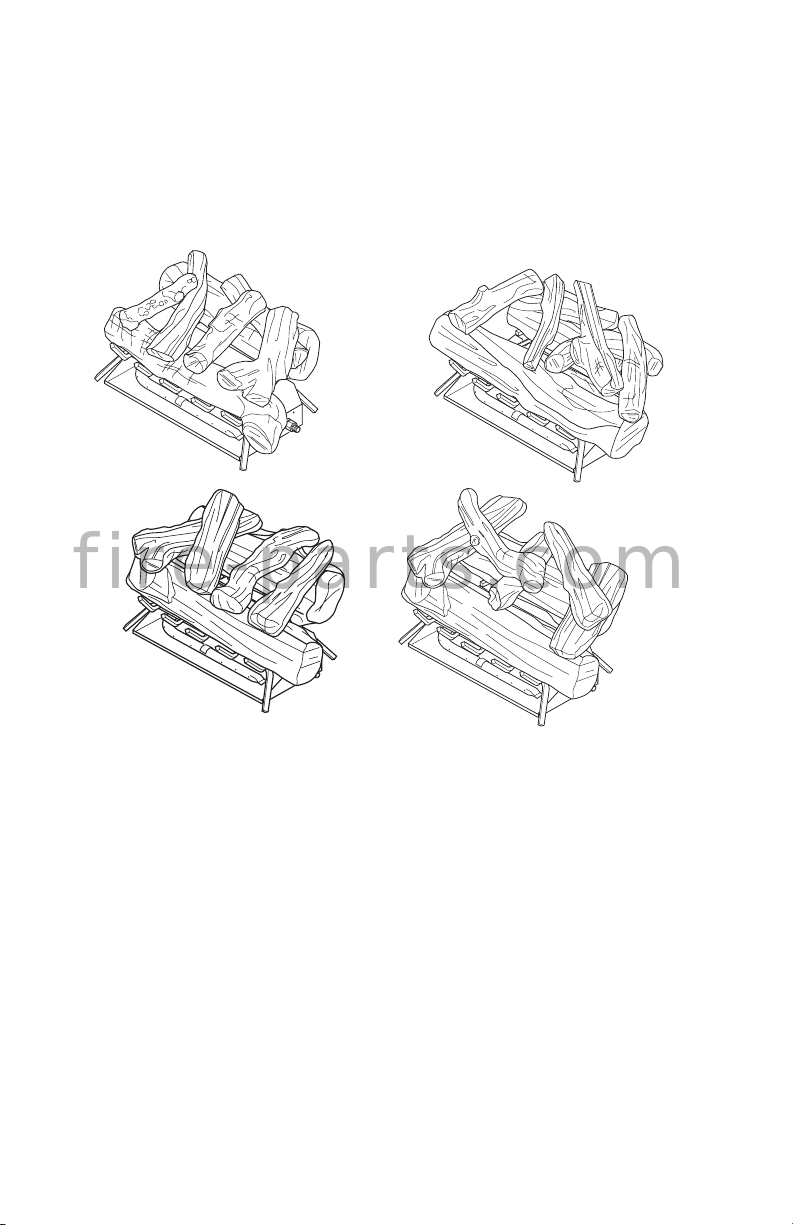

Figure 10 - Placement of Top Logs
Kingston Oak
American
Chestnut
24" Crimson
Creek
4. Place front log(s) on grate and slide
forward against front bars on grate (see
Figure , page ).
5. Place smaller top logs onto bottom logs
(see Figure 10). Leave as much open
space between logs as possible to
minimize ame impingement and sooting.
18" Crimson
Creek
fire-parts.com

www.fmiproducts.com
115481-01D 11
OPERATION
Continued
4. Wait ve (5) minutes to clear out any gas.
If you then smell gas STOP! Follow the
safety information, page 10. If you don't
smell gas, go on to the next step.

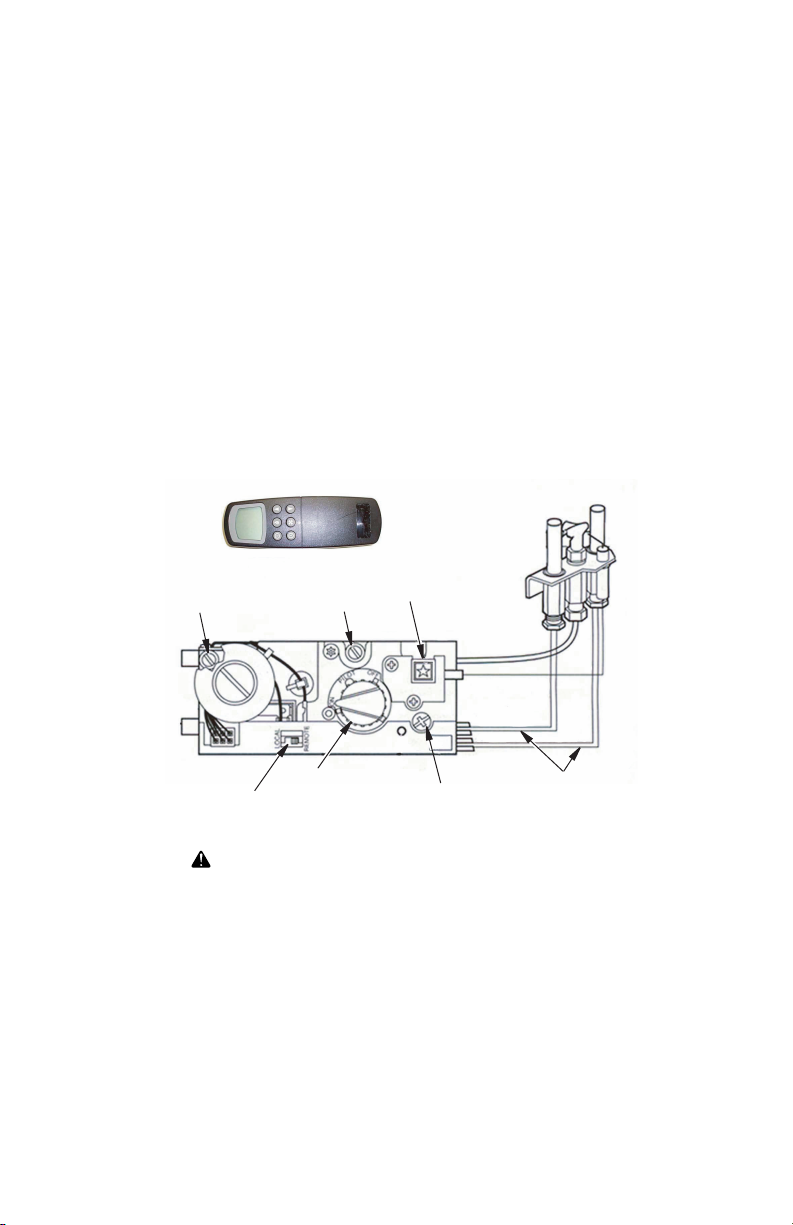

5. Turn PilotStat knob to PILOT. Push in on
PilotStat knob and press Piezo button
until the pilot is lit.
6. Continue to hold PilotStat knob in until
LED blinks (one brief blink every two
seconds) then release knob.
Note: You will need to hold the knob in for
about one minute.
7. Turn PilotStat knob to ON See Figure 12,
page 10.
WARNING: Moving the Lo-
cal/Remote switch can cause
the main burner to come on
immediately. Stand away from
the main burner when moving
the local/remote switch to avoid
possible injury.
USING TRANSMITTER/
REMOTE
1. Move switch to REMOTE position (see
Figure 12, page 10). Remote comes on
in Manual mode.
2. Press FLAME key within 30 seconds.
3. Make sure LED turns on for one second.
Figure 13 - Correct Pilot Flame Pattern
4. Press MODE button until mode
shows in display window of transmitter/
remote. Press up or down key to change
set temperature.
5. To set delay timer, press TIMER button
followed by either the up or down key.
6. To change the ame height, press the
MODE button until mode is ON. Press
the FLAME button and press the up or
down arrow key.
7. To change between Fahrenheit and Cel-
sius, press the up and down arrow keys at
the same time and hold for at least three
seconds.
TO TURN OFF GAS
TO APPLIANCE
Shut Off Main Burner Using Remote
Press MODE button until mode is OFF.
Pilot stays lit.
Shut Off Main Burner Without Remote
Turn PilotStat knob to PILOT. Pilot stays lit.
Shut Off Main Burner and Pilot
Turn PilotStat knob to OFF.
CAUTION: During normal
shutdown of this unit, a ash
may be observed due to the na-
ture of the burner components.
Remain clear of the unit during
the shutdown process.
INSPECTING bURNERS
Check pilot ame pattern and burner ame
patterns often.
Flames from the pilot should always be pres-
ent when the appliance is in operation (see
Figure 13).
The ame should look similar to those in
Figure 14, page 12. The ames should look
random in appearance with the ember bed
glowing red-orange in color.

www.fmiproducts.com 115481-01D12
CLEANING AND MAINTENANCE
Figure 15 - Bottom of Transmitter,
Showing Battery Compartment and Door
INSPECTING bURNERS
Continued

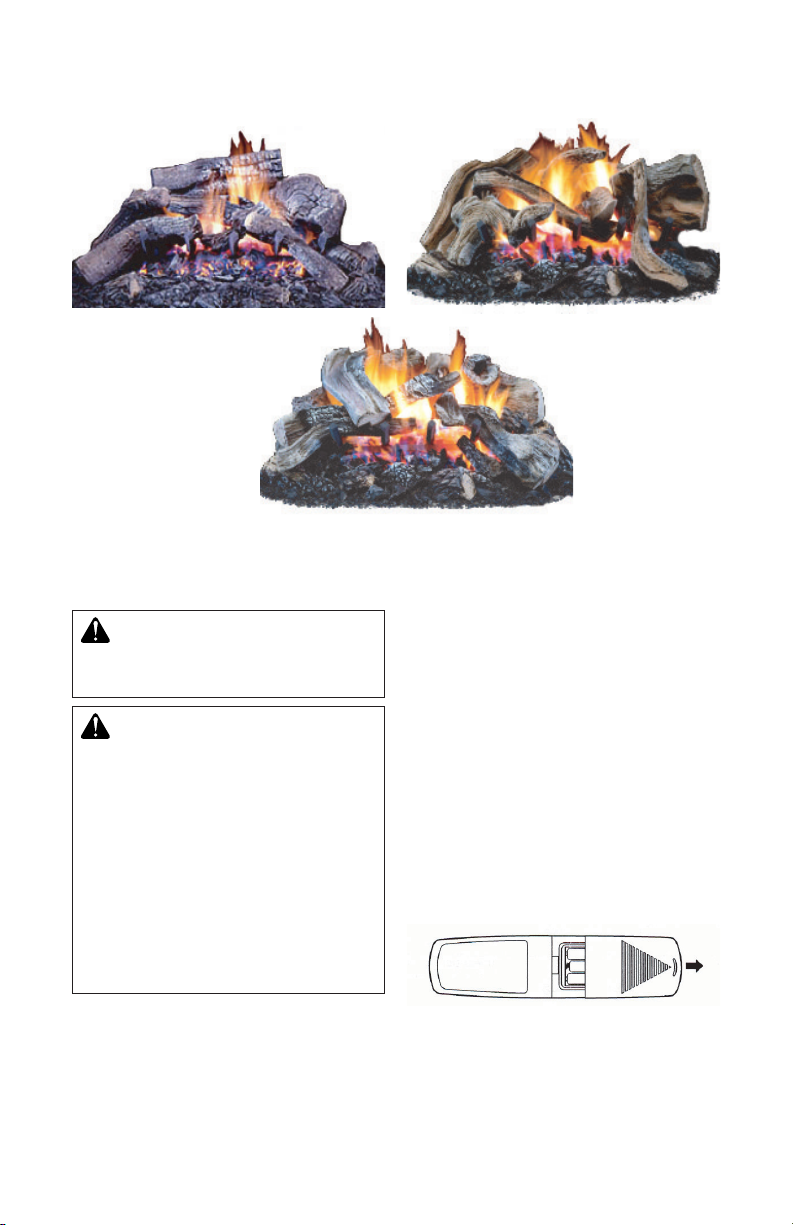

Figure 14 - Log Sets with Flame Patterns
Hardwood Original Log Set California Maple Log Set
Kentucky Elm Log Set
WARNING: Turn off the ap-
pliance and allow to cool before
cleaning.
CAUTION: You must keep
control areas, burners and
circulating air passageways of
replace clean. Inspect these
areas of replace before each
use. Have replace and chimney
(if applicable) inspected yearly
by a qualied service person.
Fireplace may need more fre-
quent cleaning due to excessive
lint from carpeting, bedding
material, etc.
Only limited cleaning will be required under
normal use of this appliance. Dust the front
grate and top of receiver/valve. Do not use
cleaning uids to clean logs or any other part
of the appliance.
If, after a period of use, the ames start to
exhibit unusual shapes and behavior or the
burner fails to ignite smoothly, then the burner
holes may require some cleaning. If this hap-
pens, we recommend that you contact your
nearest authorized service technician to get
the appliance serviced.
TRANSMITTER
If the battery light is on or the display is blank,
you will need to replace the three AAA batter-
ies in transmitter/remoter. To change batteries
in the transmitter/remote, slide the battery
compartment door off to expose old batteries.
Place new batteries into housing and reattach
door. See Figure 15.

www.fmiproducts.com
115481-01D 13
TROUbLESHOOTING
Note: In normal operation, LED blinks once
every two seconds; also, LED will be on
for one second after every valid command
received by the receiver/valve' these are not
error codes.
Failure codes can occur anytime after the pilot
burner is lit. Failure code timing is 1/4 second
on, 1/2 second off.
Sequence is failure code followed by LED not
blinking for four seconds.
In the event of multiple failure codes, the next
failure code follows the previous failure code
by approximately 3 seconds.
LED Failure Code
(No. of Blinks) Service Action
8 Replace valve.
7 Conrm stepper motor
connection exists.
5 Conrm fan connection
exists and works.
3 Replace thermopiles.
2 Devicetoohot.Turnonfan
or if applicable, open glass
doors.
1 short blink Normal operation
LED Failure Codes and Service Action
WARNING: Turn off and unplug heater and let cool before servicing.
Only a qualied service person should service and repair heater.
IMPORTANT: Valve system troubleshooting should only be accom-
plished by a qualied service technician.
Note: Before troubleshooting the gas control system, be sure external gas shut off valve
(located at gas supply inlet) is in the "ON" position.
POSSIBLE CAUSE REMEDY
OBSERVED PROBLEM
1. Defective ignitor (no spark
at electrode)
2. Defective or misaligned
electrode at pilot (spark
at electrode)
3. Gas s upp ly pressure
errant
4. Pilot orice plugged
Spark ignitor will not light pilot
after repeated triggering of
ignitor button
1. Check for spark at elec-
trode and pilot; if no spark
and electrode wire is prop-
erly connected, replace
ignitor
2. Using a match, light pilot.
If pilot lights, turn off pilot
and trigger the ignitor but-
ton again. If pilot lights,
an improper gas mixture
caused the bad lighting
and a longer purge period
is recommended. If pilot
will not light, check gap at
electrode and pilot - gap
should be 1/8" to have a
strong spark. If gap mea-
sures 1/8", replace pilot
3. Check inlet gas pressure. It
should be within the limits
as marked on the rating
plate
4. Clean or replace pilot
orice

www.fmiproducts.com 115481-01D14
OBSERVED PROBLEM
Pilot will not stay lit after
carefully following the lighting
instructions
Pilot burning, no gas to burner,
valve knob "ON"
Frequent pilot/burner outage
problem
REMEDY
1. Check pilot ame, it must
impinge on thermocouple
(see Figure 13, page 11).
Clean and/or adjust pilot for
maximum ame impinge-
ment on thermocouple.
Ensure that the connection
between the valve and
thermocouple are tight and
secure.
1. Check thermopile with mil-
livolt meter. Take reading
at thermopile terminals of
gas valve. It should read
325 millivolts minimum.
Replace faulty thermopile
if reading is below specied
minimum.
2. Check burner orifice for
stoppage and remove
1. Clean and/or adjust pilot
ame for maximum ame
impingement on thermo-
couple (see Figure 13,
page 11)
POSSIBLE CAUSE
1. Defective pilot generator
(thermocouple)
1. Thermopile may not be
generating sufcient mil-
livoltage.
2. Plugged burner orice
1. Pilot ame may be too low
or blowing (high) causing
the pilot/valve safety to
drop out
TROUbLESHOOTING
Continued

www.fmiproducts.com
115481-01D 15
SPECIFICATIONS
HCA-24-RFN HCA-24-RFP HCA-18-RFN HCA-18-RFP
HCM-24-RFN HCM-24-RFP HCM-18-RFN HCM-18-RFP
HKE-24-RFN HKE-24-RFP HKE-18-RFN HKE-18-RFP
Btu (Variable) 45,000/67,000 43,000/65,000 41,000/56,000 42,000/51,000
Type Gas Natural Gas Only Propane/LP Only Natural Gas Only
Propane/LP Only
Ignition Piezo Piezo Piezo Piezo
Manifold Pressure 3.5" - 1.6"W.C. 10" - 6.3"W.C. 3.5" - 1.6"W.C. 10" - 6.3"W.C.
Inlet Gas Pressure (in. of water)
Maximum 10.5" W.C. 13" W.C. 10.5" W.C. 13" W.C.
Minimum* 5.0" W.C. 11" W.C. 5.0" W.C. 11" W.C.
Valve Operation RF Millivolt RF Millivolt RF Millivolt RF Millivolt
Orice Size #21 #42 #28 #45
* For purpose of input adjustment
WIRING DIAGRAM
Outlet
Pressure
Tap
Inlet
Pressure
Tap
Piezo
Gas Control
Knob Pilot
Adjustment
Screw
Pilot
Burner
Assembly
Pilot Tube
Thermopile
Leadwires
Local and
Remote Switch
REMOTE CONTROL
(MILLIVOLT)
POWER SUPPLY. PROVIDE DISCONNECT MEANS
AND OVERLOAD PROTECTION AS REQUIRED.
Figure 16 - Millivolt System Wiring Diagram
TECHNICAL SERVICE
You may have further questions about
installation, operation, or troubleshooting.
If so, contact FMI PRODUCTS, LLC at
1-866-328-4537. When calling please have
your model and serial numbers of your
heater ready.
You can also visit FMI PRODUCTS, LLC’s
web site at www.fmiproducts.com.

www.fmiproducts.com 115481-01D16
PARTS
HCA-24-RFN, HCA-24-RFP, HCA-18-RFN, HCA-18-RFP, HCM-24-RFN,
HCM-24-RFP, HCM-18-RFN, HCM-18-RFP, HKE-24-RFN, HKE-24-RFP,
HKE-18-RFN, HKE-18-RFP
1
3
7
6
5
4
2
8
9
10
12
13
17
15
16
11

www.fmiproducts.com
115481-01D 17
PARTS
This list contains replaceable parts used in your heater. When ordering parts, follow the
instructions listed under Replacement Parts on page 12 of this manual.
LOG SET ASSEMBLIES
MODELS PART NO.
HCA-24-RFN/P 115474-01
HCM-24-RFN/P 115471-01
HKE-24-RFN/P 115473-01
HCA-18-RFN/P 115469-01
HCM-18-RFN/P 115470-01
HKE-18-RFN/P 115472-01
KEY
NO. PART NO. DESCRIPTION QTY.
1 111814-01 Gas Valve • • 1
111814-02 Gas Valve • • 1
2 115453-01 Valve/Pilot Bracket ••••1
3 115457-01 Log Burner • • 1
115458-01 Log Burner • • 1
4 111815-01 Transmitter/Remote ••••1
5 111809-01 Pilot • • 1
111809-02 Pilot • • 1
6 115490-01 Orice • 1
115490-02 Orice • 1
115490-03 Orice • 1
115490-04 Orice • 1
7 115449-01 Grate • • 1
115448-01 Grate • • 1
8 104489-01 Gasket ••••1
9 115491-01 Air Shutter •1
115492-01 Air Shutter • • 1
115493-01 Air Shutter •1
10 115454-01 Venturi ••• 1
115454-02 Venturi •1
11 115452-01 Valve Bracket ••••1
12 115488-01 Tube ••••1
13 14396 Adapter Valve ••••1
14 115489-01 Adapter Orice • • • • 1
15 115450-01 Burner Plate • • 1
115451-01 Burner Plate • • 1
16 115456-01 Log Support Plate ••••1
17 114394-01 Pilot Shield ••••1
PARTS AVAILABLE NOT SHOWN
111288-02 Flex Gas Line ••••1
112363-01 Ember Chunk Kit #1, (3 Pieces) • • • • 1
112364-01 Ember Chunk Kit #2, (2 Pieces) • • • • 1
112799-01 Ember Flakes Kit • • • • 1
GA6060 Lava Rock ••••1
26839 Rock Wool ••••1
HCA-24-RFN
HCM-24-RFN
HKE-24-RFN
HCA-24-RFP
HCM-24-RFP
HKE-24-RFP
HCA-18-RFN
HCM-18-RFN
HKE-18-RFN
HCA-18-RFP
HCM-18-RFP
HKE-18-RFP

www.fmiproducts.com 115481-01D18
REPLACEMENT PARTS
Note: Use only original replacement parts.
This will protect your warranty coverage for
parts replaced under warranty.
Contact authorized dealers of this product.
If they can’t supply original replacement
part(s), call FMI PRODUCTS, LLC at
1-866-328-4537.
When calling, have ready:
• your name
• your address
• model and serial numbers of your heater
• how heater was malfunctioning
• purchase date
Usually, we will ask you to return the part to
the factory.
Purchase these accessories from your local
dealer. If they can not supply these accessories
call FMI PRODUCTS, LLC at 1-866-328-4537
for information. You can also write to the ad-
dress listed on the back page of this manual.

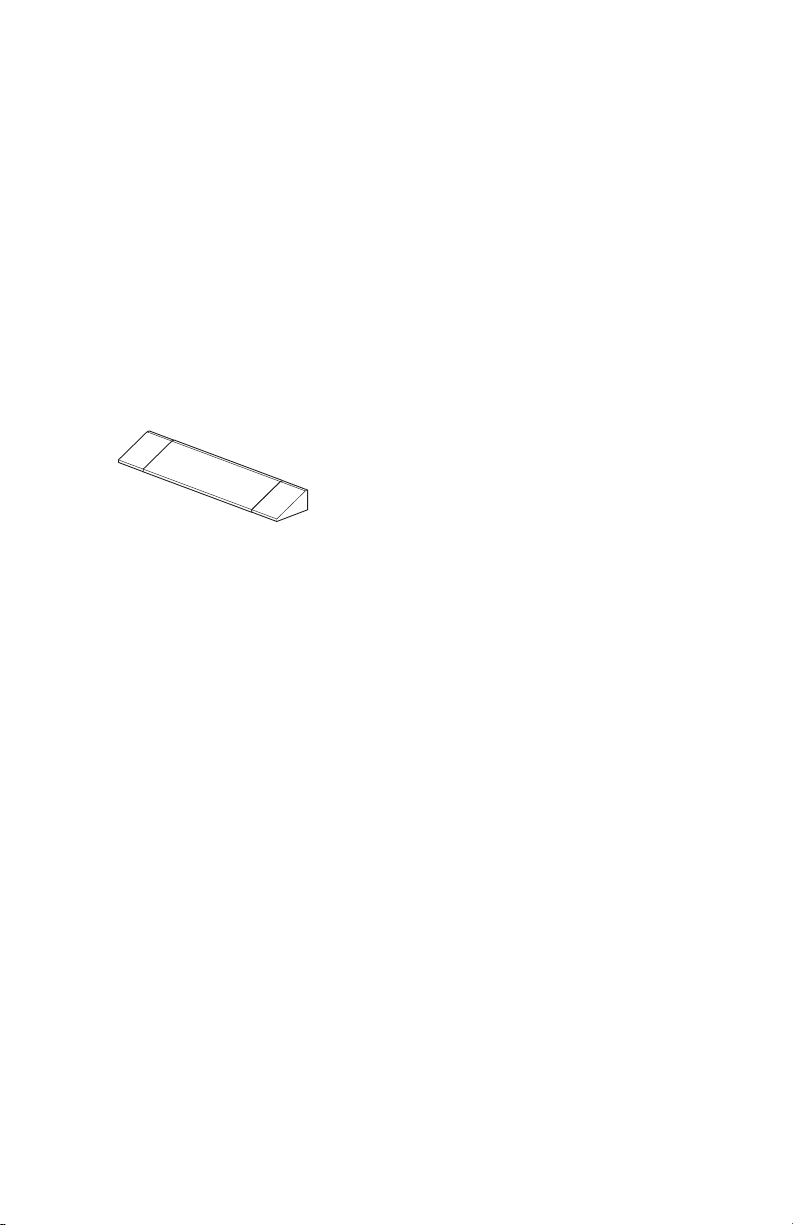

FIREPLACE HOOD
Black - GA6050
Antique Brss - GA6053
Helps deect heat away from mantel or wall ab
ove replace. Fits opening 28" to 4" wide.
DAMPER CLAMP - GA6080
Permanently opens chimney ue damper for
vented operation.
LAVA ROCK - GA6060
Order when additional rock is desired (1.8 lb.
bag)
ACCESSORIES

www.fmiproducts.com
115481-01D 19
_____________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
_____________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
_____________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
______________________________________________________
NOTES

115481-01
Rev. D
09/10
WARRANTY
KEEP THIS WARRANTY
FMI PRODUCTS, LLC LIMITED WARRANTIES
New Products
Standard Warranty: FMI PRODUCTS, LLC warrants this new product and any parts thereof to be free from defects
in material and workmanship for a period of four (4) years from the date of rst purchase from an authorized dealer
provided the product has been installed, maintained and operated in accordance with FMI PRODUCTS, LLC’s
warnings and instructions.
For products purchased for commercial, industrial or rental usage, this warranty is limited to 90 days from the date
of rst purchase.
Factory Reconditioned Products
Limited Warranty: FMI PRODUCTS, LLC warrants factory reconditioned products and any parts thereof to be
free from defects in material and workmanship for 30 days from the date of rst purchase from an authorized dealer
provided the product has been installed, maintained and operated in accordance with FMI PRODUCTS, LLC’s
warnings and instructions.
Terms Common to All Warranties
The following terms apply to all of the above warranties:
Always specify model number and serial number when contacting the manufacturer. To make a claim under this
warranty the bill of sale or other proof of purchase must be presented.
This warranty is extended only to the original retail purchaser when purchased from an authorized dealer, and only
when installed by a qualied installer in accordance with all local codes and instructions furnished with this product.
This warranty covers the cost of part(s) required to restore this product to proper operating condition and an allow-
ance for labor when provided by a FMI PRODUCTS, LLC Authorized Service Center or a provider approved by
FMI PRODUCTS, LLC. Warranty parts must be obtained through authorized dealers of this product and/or FMI
PRODUCTS, LLC who will provide original factory replacement parts. Failure to use original factory replacement
parts voids this warranty.
Travel, handling, transportation, diagnostic, material, labor and incidental costs associated with warranty repairs,
unless expressly covered by this warranty, are not reimbursable under this warranty and are the responsibility of
the owner.
Excluded from this warranty are products or parts that fail or become damaged due to misuse, accidents, improper
installation, lack of proper maintenance, tampering, or alteration(s).
This is FMI PRODUCTS, LLC’s exclusive warranty, and to the full extent allowed by law; this express warranty
excludes any and all other warranties, express or implied, written or verbal and limits the duration of any and all
implied warranties, including warranties of merchantability and tness for a particular purpose to four (4) years on
new products and 30 days on factory reconditioned products from the date of rst purchase. FMI PRODUCTS, LLC
makes no other warranties regarding this product.
FMI PRODUCTS, LLC’s liability is limited to the purchase price of the product, and FMI PRODUCTS, LLC shall not
be liable for any other damages whatsoever under any circumstances including indirect, incidental, or consequential
damages.
Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental
or consequential damages, so the above limitation or exclusion may not apply to you.
This warranty gives you specic legal rights, and you may also have other rights which vary from state to state.
For information about this warranty contact:
Model ( located on product or identication tag ) _____________________________
Serial No. ( located on product or identication tag ) __________________________
Date Purchased __________________________
Keep receipt for warranty verication.
2701 S. Harbor Blvd.
Santa Ana, CA 92704
1-866-328-4537
www.fmiproducts.com
