SUNWIND GASSPEIS TB4 User manual

NO Bruksanvisning
Mobile Outdoor Patio Heaters
TB4/TB5/TB6
Certificate No.EC 1144-EC 1154
MONTERING OG BRUKERVEILEDNING
GASSPEIS TB4 –TB6
420230 - 420220

2
Monteringsveiledning ligger bakerst i denne manualen
etter den engelspråkelige delen.
ADVARSLER:
Vennligst les denne håndboken nøye. Reparasjoner må utføres av
kvalifisert servicepersonell. Ikke bruk denne gasspeisen innendørs.
Peisen må plasseres på et stødig og plant underlag. Påse at peisen er
tilknyttet gassflaske med riktig regulator. Ikke lagre eller bruk bensin
eller andre brennbare gasser eller væsker i peisen. Hele gass-systemet,
slange, regulator og brenner bør inspiseres for lekkasjer eller skader før
bruk, og minst årlig av en kvalifisert servicemann. Alle lekkasjetester
bør gjøres med lekkasjespray. Bruk aldri åpen flamme for å søke etter
lekkasjer. Ikke bruk peisen før alle tilkoblinger er lekkasjetestet. Steng
gassventilen umiddelbart ved misstanke om gasslekkasje. Ikke flytt
peisen mens den er i bruk. Ikke flytt peisen før den er kald. Koble fra
gassflasken når peisen ikke er i bruk. LPG regulator / slange skal være
montert sammen med flasken i skapet. Dekk aldri til peisen eller legg
tøy eller andre gjenstander oppå den. MERK! Overflater blir svart varme
og kan føre til brannskader ved berøring. Hold barn og husdyr på sikker
avstand.
Plassering
Peisen er kun for utendørs bruk. Sørg alltidtilstrekkelig
ventilasjon rundt den.
Peisen må plasseres på fast og plant underlag
Plasser aldi peisen nærmere enn 2 meter fra brennbart materiale.
Peisen bør beskyttes mot sterk vind husk å sette bremsen på
hjulet.
Gasstilkobling
Peisen er kun ment for bruk med propangass
Trykkregulatoren og slange som brukes må være i
overensstemmelse med nasjonale bestemmelser. I Norge skal
regulator levere maks 30mbar.
Sjekk alltid at pakkning på gassflasken er hel før tilkobling av
regulator.
Gasstilkoblinger er testet på fabrikken før forsendelse. En
lekkasjetest av samtilige koblinger er allikevel påkrevet ved
montering av peisen. Dette skyldes at sammenkoblingerkan være
skadet etter transport og håndteringSpray på lekkasjevæske på
alle sammenføyninger i gassystemet og se etter bobler. Er du i tvil
la en kvalifisert servicemann utføre dette for deg

3
Opptenning
1. Åpne kabinettet, sette gassflasken inn i skapet Vri bryteren med
klokken til "OFF"-stilling.
2. Koble regulatoren til gassflasken. Sett regualtor i "ON" på
sylinderen. Sjekk med bruk av såpevann for gasslekkasje mellom
flaske og regulator.
3. Trykk ned bryteren og fortsette å trykke mens du vrir mot klokken
til "Ignition" posisjon (et klikk vil bli hørt), dette skal tenne
pilotbrenneren. Hvis ikke dette skjer så gjenta denne prosessen.
4. Når piloten brenneren er tent, hold bryteren inne i 15 sekunder og
slipp den.
5. Hvis brenneren ikke fortsette å brenne, gjenta trinn 3 og 4
6. Juster varmen innstillingen ved å vri bryteren til høy eller lav
posisjon.
7. For å slå peisen av, 'OFF' slå flaskeventilen eller regulator-
bryteren til "OFF" posisjon og deretter vri kontrollknappen på
peisen med klokken til "OFF" posisjon.
ADVARSEL:
Hvis brenneren ikke tenner etter noen forsøk, skru bryteren av
(med klokken) av, vent fem minutter før du prøver å tenne på nytt.
RENGJØRING OG VEDLIKEHOLD
Peisen må alltid være kald før rengjøring.
Tørk av pulverlakkerte overflater med myk, fuktig klut.
Ikke rengjør peisen med rengjøringsmidler som er brennbare eller
etsende.
Fjern skitt fra brenneren, en støvsuger kan med fordel benyttes
for å fjerne spindelvev og innsekter.
Åpne den øverste bakdøren for å rengjøre rusk på glasset.

4
Mobile Outdoor Patio Peisens
TB4/TB5/TB6
Certificate No.EC 1144-EC 1154
CAUTION
PLEASE READ CAREFULLY THE FOLLOWING SAFETY GUIDELINES BEFORE
OPERATION
FOR INSTALLATION, PLEASE READ THIS MANUAL CAREFULLY
REPAIRS SHOULD BE DONE BY A QUALIFIED SERVICE PERSON ONLY
Do not use the this appliance for indoors, as it may cause personal
injury or property damage.
This outdoor peisen is not intended to be installed on recreational
vehicles and/or boats.
Appliance should be located on a solid surface.
Maintenance and repair should be carried out by a qualified person.
Improper installation, adjustment, alteration can cause personal
injury or property damage.
Do not attempt to alter the unit in any manner.
Never replace or substitute the regulator with any regulator other
than the factory-suggested replacement.
Do not store or use gasoline or other flammable vapors or liquids in
the peisen unit.
The whole gas system, hose, regulator, pilot or burner should be
inspected for leaks or damage before use, and at least annually by a
qualified service person.
All leak tests should be done with a soap solution. Never use an
open flame to check for leaks.
Do not use the peisen until all connections have been leak tested.
Turn off the gas valve immediately if smell of gas is detected.
Do not transport peisen while it is operating.
Do not move the peisen after it has been turned off until the
temperature has cooled down..
Control compartment, burner and circulation air passageways of the
peisen must be kept clean.
Frequent cleaning may be required as necessary.
The LP tank should be turned off when the peisen is not in use.
Check the peisen immediately if any of the following occurs:
- The peisen does not reach temperature.
- The burner makes popping noise during use (a slight noise is
normal when the burner is extinguished).
- Smell of gas in conjunction with extreme yellow tipping of the
burner flames.
The LPG regulator/hose assembly must be located in the tank

5
cabinet where LPG tank located
Any guard or other protective device removed for servicing the
peisen must be replaced before operating the peisen.
Adults and children should stay away from high temperature surface
to avoid burns or clothing ignition.
Children should be carefully supervised when they are in the area of
the peisen.
Clothing or other flammable materials should not be hung on the
peisen or placed on or near the peisen.
HEATER STAND AND LOCATION
The heater is for outdoor use only. Always ensure that adequate
fresh air ventilation is provided.
Always maintain proper clearance to combustible materials.
Peisen must be placed on level firm ground.
Never operate peisen in an explosive atmosphere like in areas
where
gasoline or other flammable liquids or vapors are stored.
Keep a distance of at least 2 metres from Combustible Materials.
After every use, turn off the gas valve on the cylinder.
The heater should be protected from strong winds by braking the
wheel
GAS REQUIREMENTS
Use liquid propane gas only.
The pressure regulator and hose assembly to be used must conform
to local standard codes.
The installation must conform to local codes, or in the absence of
local codes, with the standard for the storage and handling of liquid
petroleum gases.
A dented, rusted or damaged propane tank may be hazardous and
should be checked by your tank supplier. Never use a propane tank
with a damaged valve connection.
The propane tank must be arranged to provide for vapor withdrawal
from the operating cylinder.
Never connect an unregulated propane tank to the peisen.
LEAKAGE TEST
Gas connections on the heater are leak tested at the factory prior to
shipment. A complete gas tightness check must be performed at the
installation site due to possible mishandling in shipment or excessive
pressure being applied to the heater.
Make a soap solution of one part liquid detergent and one part

6
water. The soap solution can be applied with a spray bottle, brush or
rag. Soap bubbles will appear in case of a leak.
The heater must be checked with a full cylinder.
Make sure the safety control valve is in the OFF position.
Turn the gas supply ON.
In case of a leak, turn off the gas supply. Tighten any leaking
fittings, then turn the gas supply on and recheck.
Never do leak test while smoking.
LIGHTING INSTRUCTIONS
1. Open the cabinet door, put the gas cylinder into the cabinet
Turn the control knob clockwise to “OFF” position.
2. Connect the regulator to the gas bottle and gas control valve. Turn
the gas supply “ON” at the cylinder. Check with the use of soapy
water for any gas leakage between the bottle and the regulator
3. Push down the control knob and keep pressing whilst turning anti-
clockwise to the
“Ignition” position (a click will be heard), this will light the pilot. If
not repeat this process.
4. When the pilot burner is lit, keep the control knob pressed for 5
seconds then release it.
5. If the burner does not stay alight, repeat steps 3 and 4. If the burner
has not lit wait 5 minutes and repeat steps 3 and 4.
6. Adjust the heat setting by turning the control knob to the high or low
position.
7. To turn the heater ‘OFF’ turn the cylinder valve or regulator switch
to the ‘OFF’ position and then turn the control knob on the appliance
clockwise to the ‘OFF’ position.
WARNING:
If the burner fails to ignite, turn the control knob off (clockwise) and
also turn the cylinder
valve off. Wait five minutes before attempting to relight with ignition
sequence.
CLEANING AND CARE
Make sure all the cleaning is done after turn off the heater and cooling
down.
Wipe off powder coated surfaces with soft, moist rag.
Do not clean heater with cleaners that are combustible or corrosive.
Remove debris from the burner to keep it clean and safe for use.
Open the top back door to clean debris on glass carefully.

7
STORAGE
1. Always close the gas valve of the gas cylinder after use or in case of
a disturbance.
2. Remove the pressure controller and the hose.
3. Check the tightness of the gas valve and for damage. If you suspect a
damage, have it changed by your
gas dealer.
4. Never store liquid gas cylinder in a sub-terrain, or at places without
adequate air ventilation.

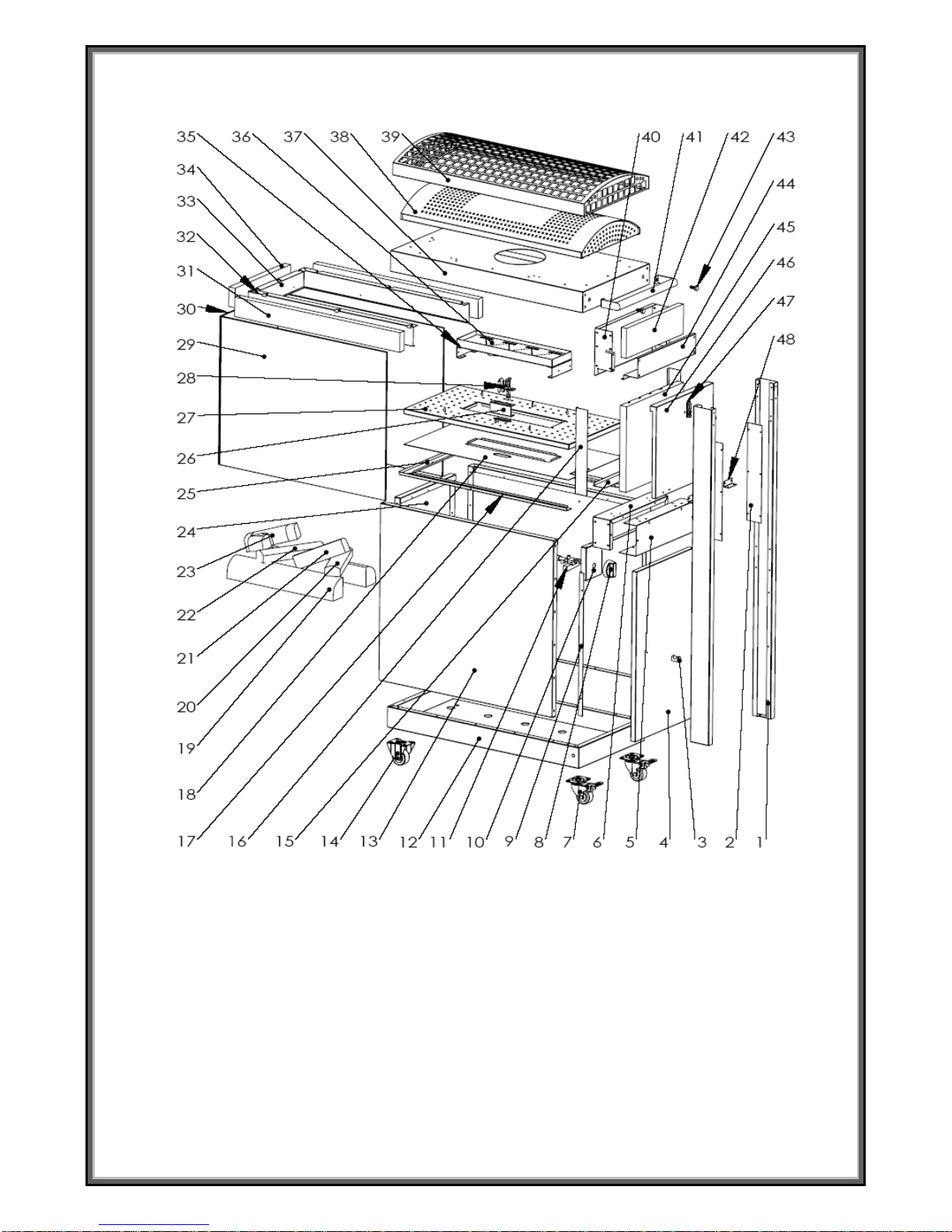

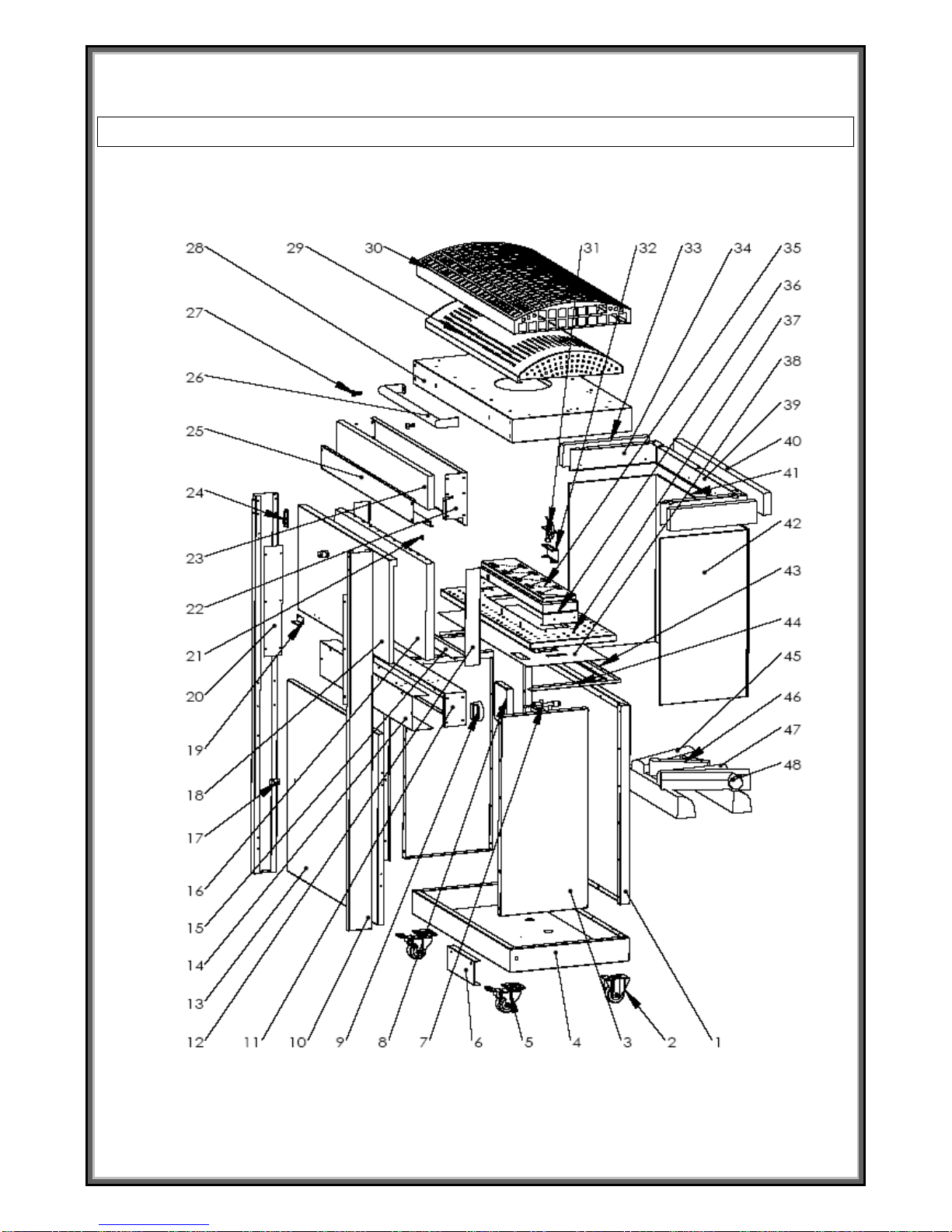

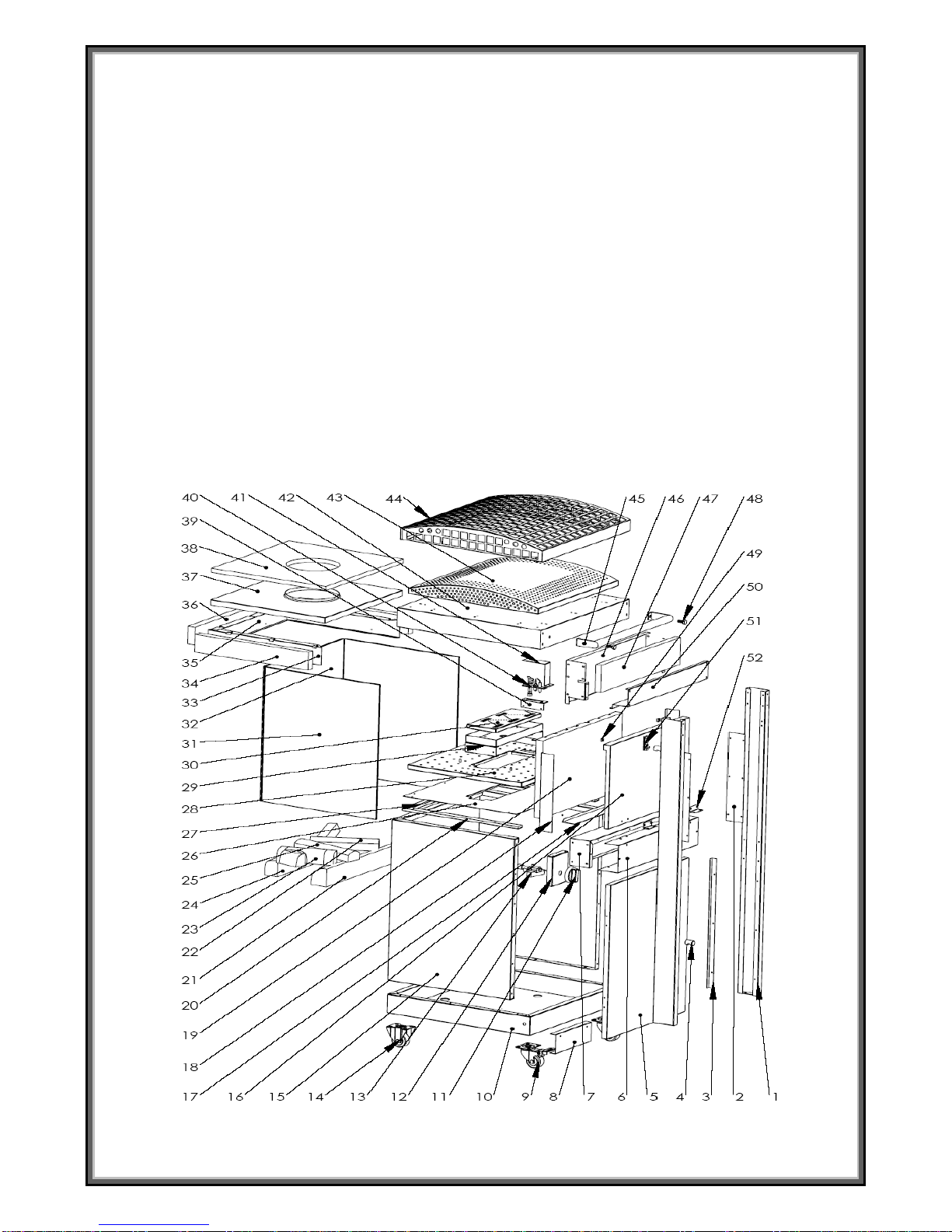

Exploding Drawing-TB4

8
PARTS LIST-TB4
Part
No Name QT Y Part No Name QT Y
1 VERTICAL BAR 2 27 FRONT SUPPORTER OF
COMBUSTION
CHAMBER BOTTOM BOARD
1
2 INNER PIECE 2 28 BASE BOARD OF BURNER 1
3 TANK CABINET DOOR
DAMPER 1 29 BURNER INNER ASSEMBLY 1
4 TANK CABINET DOOR KNOB 1 30 BURNER OUTER ASSEMBLY 1
5 TANK CABINET DOOR 1 31 SIDE GLASS 2
6 TOP DECORATED BAR
OUTER 1 32 FRONT GLASS 1
7 TOP DECORATED BAR INNER 1 33 GLASS FIXING SIDE PIECE 2
8 SS DECORATED BAR 1 34 HEAT INSULATION BLANKET 2
9 WHEEL WITH BRAKE 2 35 GLASS FIXING FRONT PIECE 1
10 BASE ASSEMBLY 1 36 HEAT INSULATION BLANKET 1
11 TURN KNOB 1 37 TOP BOARD 1
12 TURN KNOB WALL 1 38 HEAT INSULATION BLANKET 1
13 GAS VALVE ASSEMBLY 1 39 PILOT SUPPORTER 1
14 WHEEL WITHOUT BRAKE 2 40 PILPT ASSEMBLY 1
15 SIDE & FRONT OF TANK
CABINET 1 41 PILOT ASSEMBLY PANEL 1
16 DOOR OF COMBUSTION
CHAMBER 1 42 TOP BOARD 1
17 BRICK PANEL FIXED
BAR(BOTTOM) 1 43 TOP INSULATION PANEL 1
18 BRICK PANEL FIXED
BAR(SIDE) 2 44 TOP HEAT INSULATION MESH 1
19 BRICK PANEL 1 45 HANDRAIL 1
20 SIDE SUPPORTER OF
COMBUSTION CHAMBER
BOTTOM BOARD
2 46 MIDDLE DECORATED BAR INNER 1
21 CERAMIC LOG PART A 1 47 HEAT INSULATION BLANKET 1
22 CERAMIC LOG PART B 1 48 HANDRAIL SCREW 2
23 CERAMIC LOG PART C 1 49 MAGNET 2
24 CERAMIC LOG PART D 1 50 MIDDLE DECORATED BAR OUTER 1
25 CERAMIC LOG PART F 1 51 PIN OF COMBUSTION CHAMBER
DOOR 1
26 DUST INSULATED BOARD 1 52 HINGE OF COMBUSTION CHAMBER
DOOR 2

9
Exploding Drawing-TB5
PARTS LIST-TB5

10
Part No Name QTY Part No Name QTY
1 FRONT BOARD OF TANK CABINET 1 25 TOP DECORATED BAR OUTER 1
2 WHEEL WITHOUT BRAKE 2 26 HANDRAIL 1
3 SIDE BOARD OF TANK CABINET 2 27 HANDRAIL SCREW 2
4 BASE ASSEMBLY 1 28 TOP BOARD 1
5 WHEEL WITH BRAKE 2 29 TOP INSULATION PANEL 1
6 SS DECORATED BAR 1 30 TOP HEAT INSULATION MESH 1
7 VALVE ASSEMBLY 1 31 PILOT ASSEMBLY 1
8 TURN KNOB WALL 1 32 PILOT SUPPORTER 1
9 TURN KNOB 1 33 HEAT INSULATION BLANKET 2
10 VERTICAL BAR 2 34 GLASS FIXING SIDE PIECE 2
11 MIDDLE DECORATED BAR INNER 1 35 BURNER INNER ASSEMBLY 1
12 BRICK PANEL FIXED BAR(SIDE) 2 36 BURNER OUTER ASSEMBLY 1
13 TANK CABINET DOOR 1 37 BASE BOARD OF BURNER 1
14 MIDDLE DECORATED BAR OUTER 1 38 DUST INSULATED BOARD 1
15 BRICK PANEL FIXED BAR(BOTTOM) 1 39 GLASS FIXING FRONT PIECE 1
16 BRICK PANEL 1 40 HEAT INSULATION BLANKET 1
17 TANK CABINET DOOR KNOB 1 41 FRONT GLASS 1
18 DOOR OF COMBUSTION CHAMBER 1 42 SIDE GLASS 2
19 HINGE OF COMBUSTION CHAMBER
DOOR 2 43 FRONT SUPPORTER OF COMBUSTION CHAMBER BOTTOM BOARD 1
20 INNER PIECE 2 44 SIDE SUPPORTER OF COMBUSTION
CHAMBER BOTTOM BOARD 2
21 MAGNET 2 45 CERAMIC LOG PART A 2
22 TOP DECORATED BAR INNER 1 46 CERAMIC LOG PART C 2
23 HEAT INSULATION BLANKET 1 47 CERAMIC LOG PART D 1
24 PIN OF COMBUSTION CHAMBER
DOOR 1 48 CERAMIC LOG PART F 1

11
Exploding Drawing-TB6

12
PARTS LIST-TB6
Part
No Name QTY Part No Name QTY
1 VERTICAL BAR 2 25 FRONT SUPPORTER OF COMBUSTION
CHAMBER BOTTOM BOARD 1
2 INNER PIECE 2 26 PILOT SUPPORTER 1
3 TANK CABINET DOOR KNOB 1 27 BASE BOARD OF BURNER 1
4 TANK CABINET DOOR 1 28 PILOT ASSEMBLY 1
5 MIDDLE DECORATED BAR OUTER 1 29 SIDE GLASS 2
6 MIDDLE DECORATED BAR INNER 1 30 FRONT GLASS 1
7 WHEEL WITH BRAKE 2 31 HEAT INSULATION BLANKET 2
8 TURN KNOB 1 32 GLASS FIXING SIDE PIECE 2
9 TANK CABINET DOOR DAMPER 1 33 GLASS FIXING FRONT PIECE 1
10 TURN KNOB WALL 1 34 HEAT INSULATION BLANKET 1
11 VALVE ASSEMBLY 1 35 BURNER OUTER ASSEMBLY 1
12 BASE ASSEMBLY 1 36 BURNER INNER ASSEMBLY 1
13 SIDE OF TANK CABINET 2 37 TOP BOARD 1
14 WHEEL WITHOUT BRAKE 2 38 TOP INSULATION PANEL 1
15 BRICK PANEL FIXED
BAR(BOTTOM) 1 39 TOP HEAT INSULATION MESH 1
16 BRICK PANEL FIXED BAR(SIDE) 2 40 TOP DECORATED BAR INNER 1
17 SIDE SUPPORTER OF
COMBUSTION CHAMBER BOTTOM
BOARD
2 41 HANDRAIL 1
18 DUST INSULATED BOARD 1 42 HEAT INSULATION BLANKET 1
19 CERAMIC LOG PART A 1 43 HANDRAIL SCREW 2
20 CERAMIC LOG PART B 2 44 TOP DECORATED BAR OUTER 1
21 CERAMIC LOG PART C 1 45 BRICK PANEL 1
22 CERAMIC LOG PART D 1 46 DOOR OF COMBUSTION CHAMBER 1
23 CERAMIC LOG PART E 1 47 PIN OF COMBUSTION CHAMBER DOOR 1
24 FRONT OF TANK CABINET 1 48 HINGE OF COMBUSTION CHAMBER DOOR 2

13
Monteringsinstruksjoner / Assembly Procedures
Pakk ut peisen av embalasjen og følg disse instruksjoenene / Take out
the heater body and all of the parts from carton, then follow below
procedures.
STEP 1 STEP 2
Sett fast dårhåndaket med
medfølgende skrue / Fasten the
knob on tank door with screw we
supplied in one set.
Bruk 2 stk m8 skruer til å feste
håndaket øverst på peisen / Use 2
pcs of M8 screw to contact
handrail with peisen body
STEP 3 STEP 4
Sett på alle fire hjulene, hjulene de
med brems skal sitte bak. / Screw
four wheels on peisen body, two
wheel without brake for front side
and the other two for behind.
Plasser toppen på peisen som vist,
fest denne med 4 skruer. / Position
top space mesh on the top
board,then fasten it securely in
place using 4 self tapper screws.

14
Position ceramic logs on the burner
Ta ut de keramiske kubbene /
Take out ceramic logs from
carton
Sjekk hvilken modell du har kjøpt
og plassere kubbene som vist
under / According to following pics
to position the ceramic logs
TB4
(5 pcs)
TB5
(6 pcs)
TB6
(6 pcs)
Step 5

15
DATABLAD / DATA BADGE FOR THE TB4/TB5/TB6 MOBILE PATIO HEATER
APPARATET ER PRODUSERT AV
/ APPLIANCE MANUFACTURED
BY:
Laizhou Yike Burner Co., Ltd
APPARATKODE / APPLIANCE
CODE: TB4/TB5/TB6
TOTAL EFFEKT OG FORBRUK /
TOTAL HEAT INPUT: Qn 8.50 kW (607 g/h)
KATEGORI/GAS CATEGORIES: I3+ I
3B/P
(
30
)
GASSTYPE/TYPES OF GAS: Butane Propane LPG mixtures
GASSTRYKK/GAS PRESSURE: 28 – 30 mbar butane
37 mbar propane 30 mbar LPG mixtures
DYSE STR / INJECTOR SIZE: 1.45 mm 1.45 mm
DESTINASJONSSTED/
COUNTRIES OF DESTINATION BE, CH, CY, CZ, ES, FR, GB, GR, IE, IT, LT, LU, LV, PT, SK, and SI. BE, BG, CY, DK, EE, FI, FR, HR, HU, IS, IT, LT, LU, MT, NL, NO,
RO, SK, SI, SE and TR.
ID KODE/ IDENTIFICATION
CODE: 359CM
SERIE NR / SERIAL NUMBER
11-0000
KUN DOR UTENDØRS BRUK OG I GODT VENTILERTE OMRÅDER / FOR USE OUTDOORS AND IN
WELL VENTILATED AREAS
APPARATET ER IKKE FOR INNENDØRS BRUK / THIS APPLIANCE IS NOT FOR DOMESTIC USE
ADVARSEL: OVERFLATER KAN BL SVÆRT VARME – HOLD BARN OG HUSDYR PÅ SIKKER AVSTAND!
/ WARNING: ACCESSIBLE PARTS MAY BE VERY HOT. KEEP YOUNG CHILDREN AWAY
LES MANUALEN FØR BRUK – ALL INSTALLASJON MÅ SKJE I SAMSVAR MED NASJONALE REGLER.
/ READ THE INSTRUCTION LITERATURE BEFORE USING THE APPLIANCE. THE APPLIANCE MUST
BE INSTALLED IN ACCORDANCE WITH THE INSTRUCTIONS AND LOCAL REGULATIONS
STNG VENTILEN PÅ GASSFLASKEN ETTER BRUK. / CLOSE THE VALVE OF THE GAS CYLINDER OR
THE REGULATOR AFTER USE.
BRUK ALDRI APPARATET I LUKKEDE OMRÅDER / THE USE OF THIS APPLIANCE IN ENCLOSED
AREAS CAN BE DANGEROUS AND IS PROHIBITED
VED BRUK I VENTILERTE OMRÅDER MÅ VENTILASJONEN TILSVARE 25% AV VEGGAREALET. /
WELL VENTILATED AREAS MUST HAVE A MINIMUM OF 25% OF THE SURFACE AREA OPEN. THE
SURFACE AREA IS THE SUM OF THE WALL SURFACE.

16

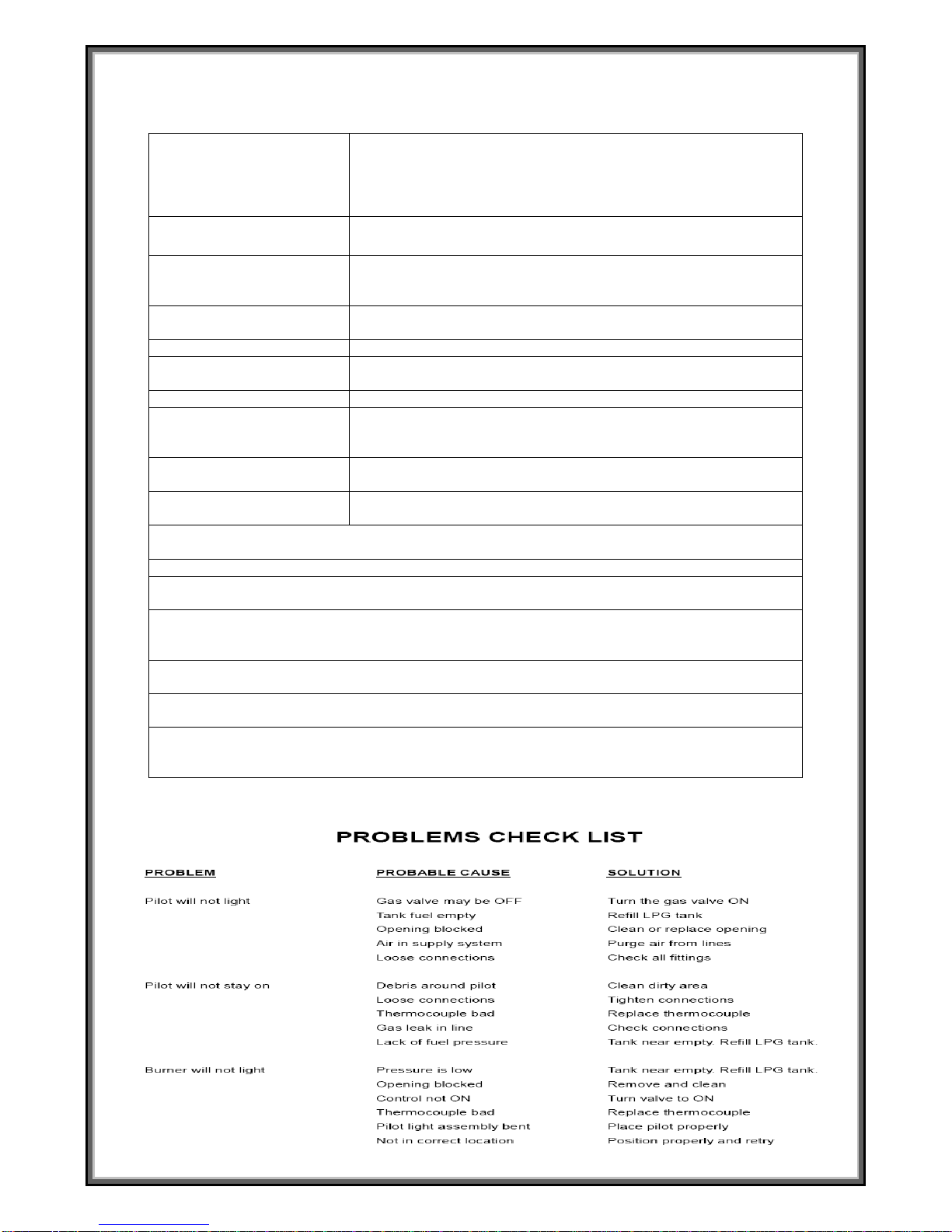

DATABLAD / DATA BADGE FOR THE TB4/TB5/TB6 MOBILE PATIO HEATER
APPARATET
ER PRODUSERT AV.
/
APPLIANCE
MANUFACTURED BY:
Laizhou Yike Burner Co., Ltd
APPARATKODE / APPLIANCE
CODE: TB4/TB5/TB6
TOTAL EFFEKT OG
FORBRUK / TOTAL HEAT
INPUT: Qn
8.50 kW (607 g/h) for Gas Category I3P(37)
KATEGORI/GAS
CATEGORIES: I3B/P(50)
GASSTYPE/TYPES OF GAS: LPG mixtures
GASSTRYKK/GAS
PRESSURE: 50 mbar LPG mixtures
DYSE STR / INJECTOR SIZE: 1.30 mm
DESTINASJONSSTED/
COUNTRIES OF
DESTINATION
AT, CH, DE and SK.
ID KODE/ IDENTIFICATION
CODE: 359CM
SERIE NR / SERIAL NUMBER
11-0000
KUN DOR UTENDØRS BRUK OG I GODT VENTILERTE OMRÅDER / FOR USE OUTDOORS AND IN
WELL VENTILATED AREAS
APPARATET ER IKKE FOR INNENDØRS BRUK / THIS APPLIANCE IS NOT FOR DOMESTIC USE
ADVARSEL: OVERFLATER KAN BL SVÆRT VARME – HOLD BARN OG HUSDYR PÅ SIKKER AVSTAND!
/ WARNING: ACCESSIBLE PARTS MAY BE VERY HOT. KEEP YOUNG CHILDREN AWAY
LES MANUALEN FØR BRUK – ALL INSTALLASJON MÅ SKJE I SAMSVAR MED NASJONALE REGLER.
/ READ THE INSTRUCTION LITERATURE BEFORE USING THE APPLIANCE. THE APPLIANCE MUST
BE INSTALLED IN ACCORDANCE WITH THE INSTRUCTIONS AND LOCAL REGULATIONS
STNG VENTILEN PÅ GASSFLASKEN ETTER BRUK. / CLOSE THE VALVE OF THE GAS CYLINDER OR
THE REGULATOR AFTER USE.
BRUK ALDRI APPARATET I LUKKEDE OMRÅDER / THE USE OF THIS APPLIANCE IN ENCLOSED
AREAS CAN BE DANGEROUS AND IS PROHIBITED
VED BRUK I VENTILERTE OMRÅDER MÅ VENTILASJONEN TILSVARE 25% AV VEGGAREALET. /
WELL VENTILATED AREAS MUST HAVE A MINIMUM OF 25% OF THE SURFACE AREA OPEN. THE
SURFACE AREA IS THE SUM OF THE WALL SURFACE.

17
•
Sunwind Gylling AS • Postboks 64 • N-1309 RUD • Norge
Rudssletta 71-75 • N-1351 RUD • Norge
([phone]
[email protected]
Sunwind Gylling AB • Vendevägen 90 • S-182 32 DANDERYD • Sverige
([phone]
Sunwind Gylling OY • Niemeläntie 1. • Kaarina
FIN-20780
([phone]
