FMI (V)GL36PN Safety guide

For more information, visit www.fmiproducts.com
NATURAL GAS MODELS (V)GL36PN AND (V)GL36PNE
PROPANE/LP GAS MODELS (V)GL36PNP AND (V)GL36PNEP
3-SIDED (PENINSULA), VENTED DECORATIVE GAS APPLIANCE
OWNER’S OPERATION AND INSTALLATION MANUAL
FOR YOUR SAFETY
— Donotstoreorusegasolineoranyotherammable
vapors or liquids in the vicinity of this or any other
appliance.
— WHAT TO DO IF YOU SMELL GAS :
• Donottrytolightanyappliance.
• Donottouchanyelectricalswitch;
• Donotuseanyphoneinyourbuilding.
• Immediatelycallyourgassupplierfromaneighbor’s
phone.Followthegassupplier’sinstructions.
• Ifyoucannotreachyourgassupplier,callthere
department.
— Installationandservicemustbeperformedbyaquali-
edinstaller,serviceagencyorthegassupplier.
WARNING:Iftheinformationintheseinstructionsis
not followed exactly, a re or explosion may result
causingpropertydamage,personalinjuryordeath.
PFS
®
US

www.fmiproducts.com 55175G2
WARNING: Improper installation, adjustment, altera-
tion,serviceormaintenancecancauseinjuryorprop-
ertydamage.Refertothismanualforcorrectinstallation
and operational procedures. For assistance or addi-
tionalinformationconsultaqualiedinstaller,service
agency or the gas supplier.
NOT FOR USE WITH SOLID FUEL
CHECK LOCAL CODES PRIOR TO INSTALLATION
SAVE THIS BOOK
Thisbookisvaluable.Inadditiontoinstructingyouon
howtoinstallandmaintainyourappliance,italsocon-
tainsinformationthatwillenableyoutoobtainreplace-
mentpartsoroptionalaccessoryitemswhenneeded.
Keepitwithyourotherimportantpapers.
Thisapplianceisonlyforusewiththetypeofgasindi-
cated on the rating plate.
This appliance is not convertible for use with other
gases.
TABLE OF CONTENTS
Safety Information ............................................... 3
Dimensions.......................................................... 4
Introduction.......................................................... 5
Selecting Location ............................................... 5
Fireplace Installation............................................ 6
Operating Fireplace........................................... 13
Cleaning and Maintenance................................ 15
Technical Service............................................... 15
Specications .................................................... 15

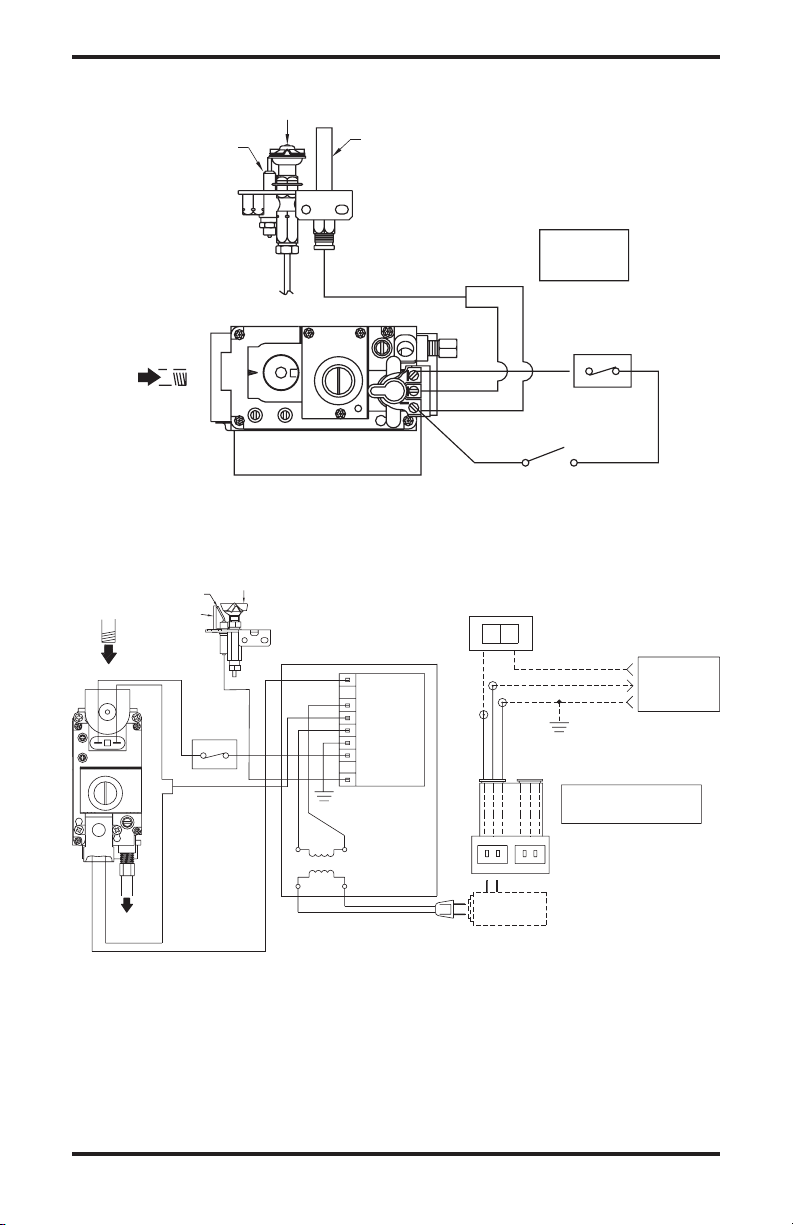

Wiring Diagrams................................................ 16
Troubleshooting................................................. 17
Replacement Parts and Accessories................. 19
Limited 2-Year Warranty ......................Back Cover

www.fmiproducts.com
55175G 3
SAFETy INFORMATION
WARNING: This product
contains and/or generates
chemicals known to the State
of California to cause cancer or
birthdefectsorotherreproduc-
tiveharm.
IMPORTANT:Readthisowner’s
manualcarefullyandcompletely
before trying to assemble, op-
erate or service this replace.
Improper use of this replace
cancauseseriousinjuryordeath
from burns, re, explosions,
electrical shock and carbon
monoxidepoisoning.
DANGER:Carbonmonoxide
poisoningmayleadtodeath!
This replace is a vented product. This replace
will not produce any gas leakage into your home if
properly installed. This replace must be properly
installed by a qualied service person. If this unit is
not properly installed by a qualied service person,
gas leakage can occur.
Carbon Monoxide Poisoning: Early signs of
carbon monoxide poisoning resemble the u, with
headaches, dizziness or nausea. If you have these
signs, the replace may not have been installed
properly. Get fresh air at once! Have replace
inspected and serviced by a qualified service
person. Some people are more affected by carbon
monoxide than others. These include pregnant
women, people with heart or lung disease or
anemia, those under the inuence of alcohol and
those at high altitudes.
Propane/LP gas and natural gas are both odorless.
An odor-making agent is added to each of these
gases. The odor helps you detect a gas leak. How-
ever, the odor added to these gases can fade. Gas
may be present even though no odor exists.
Make certain you read and understand all warnings.
Keep this manual for reference. It is your guide to
safe and proper operation of this replace.
WARNING: Any change to
thisreplaceoritscontrolscan
bedangerous.
1. This appliance is only for use with the type
of gas indicated on the rating plate. This ap-
pliance is not convertible for use with other
gases.
2. For propane/LP replace, do not place propane/
LP supply tank(s) inside any structure. Locate
propane/LP supply tank(s) outdoors. To prevent
performance problems, do not use propane/LP
fuel tank of less than 100 lbs. capacity.
3. If you smell gas
• shut off gas supply
• do not try to light any appliance
• do not touch any electrical switch; do not
use any phone in your building
• immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier's
instructions
• if you cannot reach you gas supplier, call the
re department.
4. Never install the replace
• in a recreational vehicle
• where curtains, furniture, clothing or other
ammable objects are less than 42" from
the front, top or sides of the replace
• in high trafc areas
• in windy or drafty areas
5. This replace reaches high temperatures. Keep
children and adults away from hot surfaces to
avoid burns or clothing ignition. Fireplace will
remain hot for a time after shutdown. Allow
surfaces to cool before touching.
6. Carefully supervise young children when they
are in the room with replace.
7. A hearth extension is not required with this
appliance. If one is installed, it is for aesthetic
purposes only and does not have to meet the
standard requirements.
8. Turn replace off and let cool before servicing
or repairing. Only a qualied service person
should install, service or repair this replace.
Have replace inspected annually by a quali-
ed service person.
9. You must keep control compartments, burn-
ers and circulating air passages clean. More
frequent cleaning may be needed due to ex-
cessive lint and dust from carpeting, bedding
material, etc. Turn off the gas valve and pilot
light before cleaning replace.
10. Have venting system inspected annually by a
qualied service person. If needed, have vent-
ing system cleaned or repaired. See Cleaning
and Maintenance, page 15.

www.fmiproducts.com 55175G4
11. Keep the area around your replace clear of
combustible materials, gasoline and other
ammable vapor and liquids. Do not run re-
place where these are used or stored. Do not
place items such as clothing or decorations on
or around replace.
12. Do not use this replace to cook food or burn
paper or other objects.
13. Do not use any solid fuels (wood, coal, paper,
cardboard, etc.) in this replace. Use only the
gas type indicated on replace nameplate.
14. This appliance, when installed, must be electri-
cally grounded in accordance with local codes
or, in the absence of local codes, with the
National Electrical Code, ANSI/NFPA 70.
15. Do not obstruct the ow of combustion and
ventilation air in any way. Provide adequate
clearances around air openings into the combus-
tion chamber along with adequate accessibility
clearance for servicing and proper operation.
SAFETy INFORMATION
Continued
16. Do not install replace directly on carpeting,
vinyl tile or any combustible material other
than wood. The replace must set on a metal
or wood panel extending the full width and
depth of the replace.
17. Do not use replace if any part has been ex-
posed to or under water. Immediately call a
qualied service person to arrange for replace-
ment of the unit.
18. Do not operate replace if any log is broken.
19. Do not use a blower insert, heat exchanger
insert or other accessory not approved for use
with this replace.
20. Provide adequate clearances around air
openings.
DIMENSIONS
SIDE VIEW
FRONT VIEW
TOP VIEW
4 1/2"
12" 2 1/2"
24"
40"
36 1/2"
8"
37 1/2"
3 1/4"
40"
9 1/2"
2 1/2"
24"
BACK VIEW
16" 12"
5 1/4"
5 1/2"
9"
13"
2 1/2"
20 1/2"
23"
19 1/4"
19 3/8"
20 5/8"
6"
24"
19 1/4"
4"
6" O.D.
16"
52 1/2"

www.fmiproducts.com
55175G 5
Figure 2 - Typical Two-Sided Fireplace
Installation
INTRODUCTION
Models (V)GL36PN/P and (V)GL36PNE/P are
decorative gas appliances that use a millivolt
gas control and piezo pilot or an electronic gas
control valve with an electronic ignition system
respectively. These systems require a 6", B-type
venting system for operation.
The 6" B-type vent is not supplied by FMI PROD-
UCTS, LLC. For installation guidelines, check
your B-vent instructions.
WARNING: This gas appli-
ancemustnotbeconnectedto
achimneyueservicingasolid
fuelburningappliance.
Models (V)GL36PN and (V)GL36PNE are smooth
face units for natural gas only. The (V)GL36PNP
and (V)GL36PNEP are smooth face units for
propane/LP gas only. To determine which type of
gas your unit is approved and tested for, check the
rating plate on the lift-out plate located inside the
rebox under the access panel.
BEFORE YOU BEGIN
Before beginning the installation of your appli-
ance, read these instructions through completely.
This appliance and its approved components are
safe when installed according to this installation
manual and are operated as recommended by
FMI PRODUCTS, LLC. Unless you use FMI
PRODUCTS, LLC approved components tested
for this appliance, YOU MAY CAUSE A FIRE
HAZARD!
The FMI PRODUCTS, LLC warranty will be voided
by and FMI PRODUCTS, LLC disclaims any respon-
sibility for the following actions :
A) Modication of the appliance or any of the
components manufactured by FMI PROD-
UCTS, LLC unless otherwise permitted by
FMI PRODUCTS, LLC.
B) Use of any component part not approved by
FMI PRODUCTS, LLC in combination with
this appliance.
C) Installation and/or operation in a manner other
than instructed in this manual.
D) The burning of anything other than the type of
gas approved for use in this gas appliance.
This appliance, when installed, must be electrically
grounded in accordance with local codes or, in the
absence of local codes, with the National Electrical
Code, ANSI/NFPA 70..
The installation must conform with local codes or, in
the absence of local codes, with the current National
Fuel Gas Code, ANSI Z223.1/NFPA 54.
This appliance complies with ANSI Z21.50 as a
Vented Gas Appliance and is listed and tested by
the PFS Corporation.
WARNING: Installation of
thisapplianceshouldbedoneby
a qualied service person well
trained in the installation of such
appliances. You will also need a
building permit from your local
BuildingandSafetyCommissioner
before installing this appliance;
otherwiseyourinsurancecompa-
nymaynotcoverthisappliance.
NOTICE: This appliance is not
intendedtobeusedasaprimary
source of heat.
SELECTING LOCATION
To determine the safest and most efcient location
for your appliance, you must take into consider-
ation the following guidelines:
1. The location must allow for proper clearances
(see Clearances, page 6). Note: This decora-
tive appliance is not designed for outdoor
installation.
2. The location should be in a place where drafts,
air conditioning ducts, windows or doors will
not affect replace heat output.
3. A location that avoids the cutting of joists
or roof rafters will make installation easier.
Figure 2 shows a typical three-sided replace
installation.
IMPORTANT: Side openings must be located at
least 3 feet from facing wall or combustible mate-
rial. End opening must be located at least 1 foot
from facing wall or combustible material.
Existing
Side
Wall
4" From Opening to
Perpendicular Wall Access
Control Panel

www.fmiproducts.com 55175G6
Figure 3 - Clearances from Top View
Figure 4 - Clearances from Side View
MANTEL CLEARANCES
Woodwork, such as wood trims, mantels and other
combustible materials, should not be placed within
7" of the opening of this appliance (see Figure
5). Combustible material above the fireplace
projecting more than 1 1/2" from the appliance’s
front face must not be less than 12" from the ap-
pliance opening.
Figure 5 - Mantel Clearances
FIREPLACE
INSTALLATION
CLEARANCES
Minimum clearances to combustibles are:
• Fireplace anges to studs . . . . . . . . . . . . . . 0"
• Fireplace back/sides . . . . . . . . . . . . . . . . . . 1"
• Fireplace spacers to framing ............0"
• Openings to perpendicular wall . . . . . . . . . 4"
• End glass to facing wall . . . . . . . . . . . . . . 12"
• Side glass to facing wall ..............36"
• Bottom of replace to oor or platform ...0"
• “B” vent surfaces . . . . . . . . . . . . . . . . . . . . 1"
• Top of replace opening to ceiling ......35"
See Figures 3 and 4.
 CAUTION: Do not block
required air spaces with insu-
lationoranyothermaterial.Do
not obstruct effective opening
of appliance with any type of
facingmaterial.
In selecting a location, the following precautions
must be observed:
1. Do not connect this appliance to a chimney
system used for a solid fuel burning re-
place.
2. Install in an area providing ventilation and
adequate combustion air.
3. Due to high temperatures, do not locate this
appliance in high trafc areas or near furniture
and draperies.
4. Never obstruct the front opening of the appli-
ance or the ow of combustion and ventilation
air. Keep control compartments accessible.
5. DO NOT locate in the vicinity where gasoline
or other ammable liquids may be stored. The
appliance area must be kept clear and free
from these combustible materials.
SELECTING LOCATION
Continued
1" Minimum
Clearance to Combustibles
1" Minimum
Clearance from Pipes
to Combustibles
4" Min. from the Perpendicular
Side Wall to the Fireplace Opening (Typ.)
6" O.D.
19"
1 1 3/8"
22 3/4"
21 5/8"
35" Min. to
Effective
Opening
to Ceiling
Doublewall
6" B-Vent
1" Min. Clearance
from Pipes to Combustibles
Do Not Pack Space
Between Spacer with
Any Type of Insulation
0" to
Floor
63 7/8"
Minimum
Note: Mantel clearances apply
to both sides of the applliacne.
Header
Drywall
Fireplace T o p
12 1/4"
(Ref.)
6" (Ref.)
33°
12" Min.
7" Min.
to Effective
Opening
3" Nom.
1 1/2" Max.
Combustible
Materials

www.fmiproducts.com
55175G 7
FIREPLACE
INSTALLATION
Continued
FRAMING
Construct framing using dimensions shown if Figures
6, 7 and 8. (Use the gure applicable to your applica-
tion.) Figure 6 shows the framing dimensions prior
to having the appliance in place. If installing on a
platform, platform must be solid, at and fully sup-
ported (see Figure 7). Once the unit has been tted,
bring studs in against nailing anges located on the
side of the appliance making sure a 1" clearance is
maintained as shown in Figure 8.
If the replace is to be installed directly on carpeting,
tile (other than ceramic) or any combustible mate-
rial other than wood ooring the replace must be
installed upon a metal or wood panel extending the
full width and depth of the replace.
Figure 6 - Framing Dimensions Prior to
Placing Appliance
Figure 8 - Securing Appliance with
Nailing Flanges
52 3/4"
Min.
40
3
/
8
"
22
3
/
4
"
VENT PIPE INSTALLATION
A 6", B-1 type gas vent pipe is a double-wall, vent-
ing system (not supplied) which must be installed
during rough framing of the appliance. Any B-1
type gas vent system may be used for proper vent-
ing as long as the vent system is installed per the
vent manufacturer’s recommendations.
FMI PRODUCTS, LLC supplies this appliance
with a tapered starter pipe for a snug t. Slide B-1
type vent pipe over this starter pipe until vent pipe
is fully seated. Secure this rst section of B-vent
pipe by strapping the connector around the vent
pipe and then tightening the strap with any 1/8"
nut and bolt (see Figure 9). Note: Visually inspect
for proper vent connection by looking inside top
of appliance. If connection does not appear to be
correct, contact your local service technician.
Figure 9 - Installing B-Vent Pipe
Nailing Flanges
1" Min. to Combustibles
Prepared Framing
Nails or Screws
B-1 Type
Vent (Not
Supplied)
Strap
(Fasten with
#6 Screw or
Bolt)
52 3/4"
Min.
22
3
/
4
"
*
Figure 7 - Framing Dimensions Prior to
Placing Appliance Using a Platform
*As required by design as
long as ceiling clearance is
maintained

www.fmiproducts.com 55175G8
FIREPLACE
INSTALLATION
Continued
OPTIONAL OUTSIDE AIR KIT
(MODEL AK4)
The installation of an outside air kit should be
completed during the rough framing of the re-
place due to the nature of it's location. Outside
combustion air is accessed through a vented
crawl space.
CAUTION: Air inlet ducts
must not be terminated in an
attic space.
Avoid installing outside air eyebrow in areas where
inlet opening may be blocked by snow, bushes or
other obstacles (see Figure 10).
The maximum height for the air inlet termination
cannot exceed 3 feet below the B-vent termination
exhaust height.
Figure 10 - Outside Air Kit
Secure to Collars with Duct Tape or
Screws
Air Inlet
Location
Must Allow
For Bushes
or Snow
Vent Hood
Required for
Wall Installation
Air Inlet
Eyebrow
Vented Crawl Space
(Check Local Codes
Before Installing in a
Vented Crawl Space)
MILLIVOLT MODELS (GL36PN/PNP
AND VGL36PN/PNP)
The installation of a wall switch in this millivolt
control appliance allows you to activate the gas
control valve without the use of normal current.
CAUTION: Do not connect
thismillivoltsystemwallswitch
toaregular120vpowersource!
Gasvalvewillbedamagedbe-
yond repair.
WallSwitchInstallation
1. Remove the J-box cover plate from side of
appliance’s outer surround.
2. Using the 18 ga. millivolt wire and wall switch
(both supplied), connect wiring per wiring
diagram (see Figure 11). For more detail, see
Wiring Diagrams on page 16.
Note: If any of the original 10 feet supplied wire
must be replaced, use Thermostat Millivolt Wire
18 AWG Type CL2-105 C or equivalent only.
IMPORTANT: Do not hook up to standard 120
VAC household wiring.
Figure 11 - Wall Switch Installation
O
F
P
I
L
O
T
ON
F
T
O
I
P
L
7
TPTH TP TH
Wall Switch
(Supplied)
Back View
To Thermopile
Route Millivolt Wires
(Supplied) Through
Electrical Conduit Bushing
ELECTRONIC MODELS
(GL36PNE/PNEP AND
VGL36PNE/PNEP)
This appliance must be properly wired to standard
120v household current through the FMI PROD-
UCTS, LLC provided wall switch before its remote
control unit can be used to activate the automatic
pilot ignition (turn replace ames ON).
WallSwitchInstallation
1. Remove the J-box cover plate from side of
appliance’s outer surround.
2. Using the 18 ga. wires coming through strain
relief grommet on side of appliance’s outer
wall to standard household 120 VAC current
through the wall switch provided, as shown in
Figure 12, page 9. For more detail, see Wiring
Diagrams, page 16.
Note: If any of the original 10 feet supplied wire
must be replaced, use 20 AWG electrical wire or
equivalent only.

www.fmiproducts.com
55175G 9
FIREPLACE
INSTALLATION
Continued
GAS SUPPLY TESTING
Note: This section is intended as a guide for quali-
ed technicians installing gas to this appliance.
CAUTION: Do not connect
appliancebeforepressuretest-
inggaspiping.Damagetogas
valvemayresultandanunsafe
conditionmaybecaused.
The appliance and its individual shut-off valve
must be disconnected from the gas supply piping
system during any pressure testing of that system at
test pressures in excess of 1/2 psig (3.5 kPa).
The appliance must be isolated from the gas sup-
ply piping system by closing its individual manual
shut-off valve during any pressure testing of the
gas supply piping system at test pressures equal
to or less than 1/2 psig (3.5 kPa).
This unit has been tested for installation at high
altitude. Higher altitudes affect the atmospheric
pressure and heat valve of gaseous fuels. When
installing this unit at high altitudes, the rated
input will be lower than at sea level. The lowered
oxygen content in the air and the lowered gas
density require installation of a different size
orice in order to achieve clean combustion of
the unit. Consult the unit data plate for the proper
high-altitude orice size. Fill out the information
sticker attached to the unit when eld converting.
See Specications, page 15, when derating.
The gas control valve is secured to the burner pan
assembly underneath the front ledge. A 1/8" NPT
plugged tapping is provided on the gas control
valve for a test gauge connection immediately
upstream of the gas supply connection to the ap-
pliance (see Figures 13 and 14).

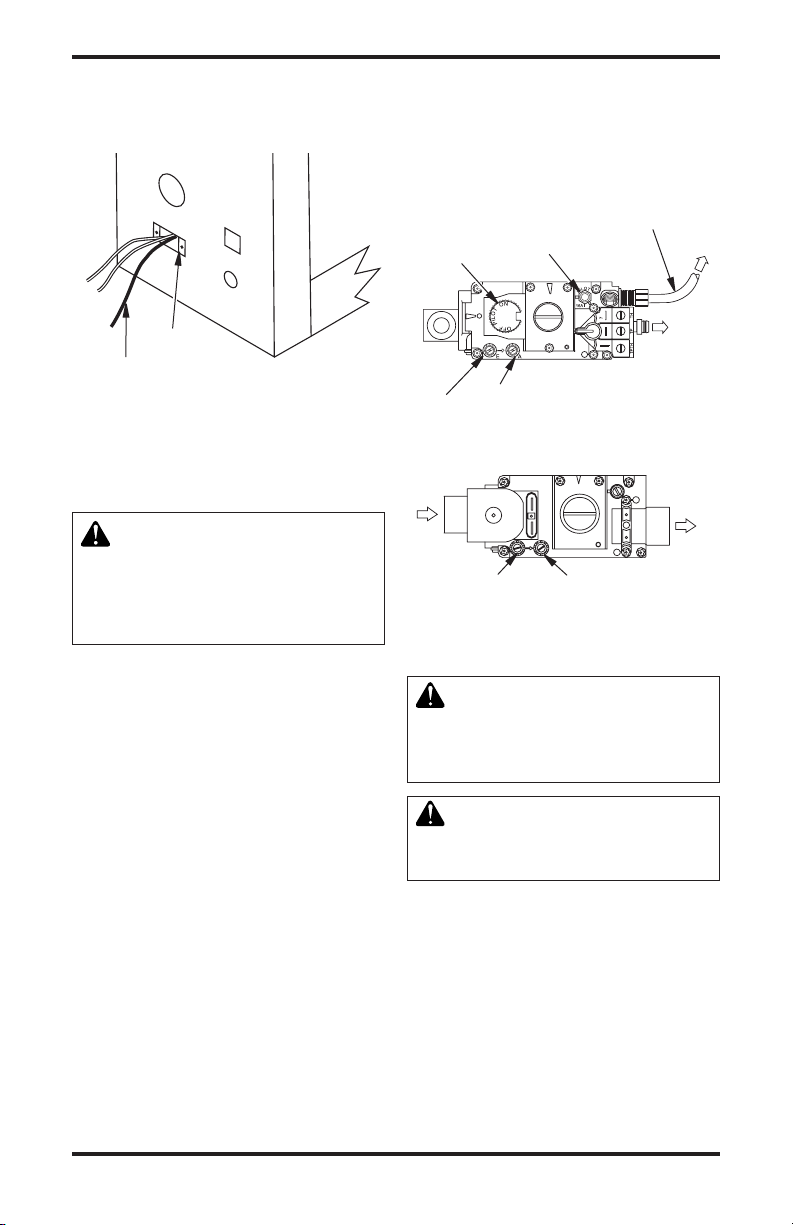

Figure 12 - Wiring Through Outer Surround
Figure 13 - Millivolt Control Valve
Figure 14 - Electronic Control Valve
ON/OFF
Knob
Pilot
Adjustment
Cap
Pilot Gas Line
Do Not Kink
Inlet
Pressure
Outlet
Pressure
To Main
Burner
To Pilot
Burner
EA
From
Gas
Supply
To
Main
Burner
Inlet
Pressure
Outlet
Pressure
GAS LINE HOOK-UP
WARNING:Gaslinehookup
should be done by your gas
supplier or a qualied service
person.
WARNING: Before you pro-
ceed,makesureyourgassupply
is OFF.
A manual shutoff valve has been included in the
appliance’s gas supply system. You may consider
installing an extra gas shutoff valve outside the ap-
pliance’s enclosure (check with local codes) where
it can be accessed more conveniently with a key
through a wall as shown in Figure 15, page 10.
A 30" long, 1/2" NPT SCHD 40 exible gas line
(supplied) may be used between the incoming 1/2"
NPT black iron gas line and the replace regulator
(located inside the rebox, under the access plate).
The incoming gas line may be routed toward the
appliance from either the left or right hand side of
replace outer surround.
Common
Ground Wire
Strain Relief
Grommet

www.fmiproducts.com 55175G10
To install:
1. Remove gas line cover plate from appliance’s
outer surround at the location to be used.
2. Remove insulation from inside the gas line
conduit sleeve.
3. Run gas line through sleeve.
4. Prepare incoming black iron gas line with
Teon tape or pipe joint compound. (Check
local codes as to the use of Teon tape.)
CAUTION:Compoundsused
onthreadedjointsofgaspiping
shallberesistanttotheaction
of Liqueed Petroleum (LP or
propane)andshouldbeapplied
lightlytoensureexcesssealant
does not enter the gas line.
5. Connect incoming gas line to regulator. Secure
all joints tightly with wrench, but do not over
tighten. If a exible gas line is used, take care
not to kink the connector.
6. Re-pack insulation in and around the conduit
sleeve and exible gas line.
WARNING: All gas piping
andconnectionsmustbetested
forleaksaftertheinstallationis
completed.
After ensuring that the gas valve
ison,applyacommercialleak
detection solution to all con-
nectionsandjoints.If bubbles
appear, leaks can be detected
and corrected.
Donotuseanopenameforleak
testing and do not operate any
applianceifaleakisdetected.
Typical Exterior Wall Gas
Shutoff Installation
Key
Extension
Shutoff
Valve
FIREPLACE
INSTALLATION
Continued
Figure 15 - Typical Exterior Wall Gas
Shut-Off Installation
LOG SET PLACEMENT
Carefully remove log set from packaging. Place
the two bottom logs over grate and align with pins.
Place three loose logs, or twigs, onto alignment
pins on two bottom logs (see Figure 16).
Figure 16 - Log Placement
FIREPLACE FACING
Any non-combustible material may be used for
facing (glass, tile, brick, etc.) as long as the proper
clearances are adhered to and the replace open-
ings are not blocked or obstructed in any way. See
Clearances, page 6, and Figure 17 on page 11.
Use only heat-resistant, noncombustible mortar
or adhesive when securing facing material to the
front of the replace.
Bottom Logs
Top Logs (Twigs)

www.fmiproducts.com
55175G 11
FIREPLACE
INSTALLATION
Continued
MANTELS
Mantels, combustible or non-combustible, may
be constructed as long as proper clearances are
observed (see Figure 5, page 6 and Clearances,
page 6).
PILOT ASSEMBLY ADjUSTMENT
The pilot assembly is factory preset for the proper
ame height. Alteration to factory settings may
have occurred during shipping. If this is the case,
some minor readjustments may be necessary and
should be done by a qualied technician.
The pilot assembly is located behind the burner
next to the rear refractory piece at the right-hand
side. The thermopile (in millivolt models) or the
sensor (in electronic models) should be engulfed
with the pilot ame approximately 3/8" to 1/2" in
order for the regulator to receive proper signal (see
Figures 18 and 19).
Figure 17 - Fireplace Facing Material
Figure 18 - Correct Pilot Flame Pattern -
Millivolt Assembly
Figure 19 - Correct Pilot Flame Pattern -
Electronic Assembly
BURNER FLAME ADjUSTMENT
The air shutter, located at the base of the main
burner tube, has been factory preset to the proper
air to bas ratio which results in a long, blue, cleaner
burning ame (see Figure 20).
If readjustment is necessary, loosen the air shut-
ter screw and rotate air shutter until proper ame
setting is achieved, retighten air shutter screw. See
Figure 20 for air shutter location.
Closing the air shutter reduces the air-to-gas mix,
resulting in a longer, yellow ame which produces
excessive carbon monoxide (CO) and could also
cause sooting.
Figure 20 - Air Shutter Adjustment
Noncombustible
Facing Material
Do Not
Block
Effective
Opening
"L" Shaped
Metal Support
Noncombustible
Facing Material
Burner Pan
Air Shutter
Screw
Orice
Gas Valve
3/8" to 1/2"
1/8" to 1/4"
Pilot Burner Ignitor Flame
Sensor
Pan
Burner
3/8" to 1/2"
(10 mm - 13 mm)
1/8" (3 mm)
Ignitor
Pilot Burner
Thermopile

www.fmiproducts.com 55175G12
OPTIONAL GLASS DOOR
Glass doors are optional with this gas appliance (see
Replacement Parts and Accessories, page 19).
Installing Glass Door
1. Be sure top spring clip hole is aligned with
hole in replace frame (see Figure 21). Fit
glass door top pin into aligned holes.
2. Swing inner end of bottom clip out away from
replace frame. Fit door bottom pin into clip.
Push clip into frame until bottom door pin
slips into hole in frame.
3. Check door alignment. If doors do not align
with each other, use top spring clip to align.
a. Use Phillips screwdriver to loosen screw
that holds top spring clip in place.
b. Push spring clip left or right in its align-
ment slot until door is at proper angle
(aligned with opposing door). Moving
spring clip to the LEFT (your left as you
face the replace) moves glass door’s top,
inner corner UP; moving spring clip to
the RIGHT moves glass door’s top, inner
corner DOWN.
c. When door alignment is satisfactory, use
Phillips screwdriver to retighten spring
clip screw.
 WARNING: When replace
is in operation, both sets of
cabinetdoorsoneachsideofthe
replacemustbeeitherFULLY
OPENorFULLYCLOSED.Ifnot,
arehazardmaybecreated.
Only doors certied with this appliance may be
used. When operating doors, do not slam or abuse
them. Always keep area below bottom edge of
doors clear of obstacles or debris. Do not operate
this appliance if glass doors are broken or dam-
aged. See Figure 22.
FIREPLACE
INSTALLATION
Continued
Figure 21 - Installing Glass Doors
Figure 22 - Glass Doors Shown Fully
Open
Adjustment
Clip
Adjustment
Screw
Top Slot
Under Frame
Long Pivot Pin
Bottom Pin
Bottom Slot
Adjustment Clip
Glass Doors Must be Fully Open
(as Shown) or Fully Closed when
Appliance is in Operation

www.fmiproducts.com
55175G 13
OPERATING FIREPLACE
MILLIVOLT MODELS
FOR YOUR SAFETY
READ BEFORE LIGHTING
WARNING: If you do not fol-
lowthese instructions exactly,
a re or explosion may result
causingpropertydamage,per-
sonalinjuryorlossoflife.
A. This appliance has a pilot which must be
lighted by hand. When lighting the pilot,
follow these instructions exactly.
B. BEFORE LIGHTING smell all around the
appliance area for gas. Be sure to smell next
to the oor because some gas is heavier than
air and will settle on the oor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electric switch; do not
use any phone in your building.
• Immediately call your gas supplier from
a neighbor’s phone. Follow the gas sup-
plier’s instructions.
• If you cannot reach your gas supplier,
call the re department.
C. Use only your hand to push in or turn the
gas control knob. Never use tools. If the
knob will not push in or turn by hand, don’t
try to repair it, call a qualied service tech-
nician or gas supplier. Force or attempted
repair may result in a re or explosion.
D. Do not use this appliance if any part has
been under water. Immediately call a
qualied service technician to inspect the
appliance and to replace any part of the
control system and any gas control which
has been under water.
LIGHTING
INSTRUCTIONS
NOTICE: During initial operation
ofnewheater,burninglogswill
giveoffapaper-burningsmell.
Orangeamewillalsobepres-
ent.Openwindowtoventsmell.
Thiswillonlylastafewhours.
1. STOP! Read the safety information,
column 1.
2. Turn wall switch to the OFF position.
3. Turn off all electric power to the appliance.
4. Open control access panel.
5. Push in gas control knob and turn clock-
wise to the OFF position (see
Figure 23). Note: It is recommended that
you maintain the gas control knob in the
full OFF position during lengthy periods
of seasonal non usage.
6. Wait ve (5) minutes to clear out any gas.
Then smell for gas, including near the oor.
If you smell gas, STOP! Follow “B” in the
safety information above. If you don’t smell
gas, go to the next step.
7. Turn control knob counterclockwise
to the PILOT position.
8. Push in control knob all the way and hold
in. Immediately light the pilot by pressing
the red ignitor button until a flame ap-
pears. Continue to hold the control knob
in for about (1) minute after the pilot is lit.
Release knob and it will pop back up. Pilot
should remain lit. If it goes out, repeat steps
5 through 8.
• If knob does not pop up when released,
stop and immediately call your service
technician or gas supplier.
• If the pilot will not stay lit after sev-
eral tries, turn the gas control knob to
“OFF” and call your service technician
or gas supplier.
9. Turn gas control knob counterclockwise
to “ON”. Knob can be turned to
“ON” only if the control knob is popped out.
10. Replace control access panel.
11. Turn on all electric power to the appliance.
Figure 23 - Millivolt Control Valve
Position Indicator
Gas Control Knob

www.fmiproducts.com 55175G14
TO TURN OFF GAS
TO APPLIANCE
1. Turn off the wall switch.
2. Turn off all electric power to the appliance
if service is to be performed.
3. Remove control access panel.
4. Push in gas control knob and turn clockwise
to “OFF”. Do not force.
5. Replace control access panel.
OPERATING FIREPLACE
Continued
Figure 24 - Pilot
Thermopile
Pilot
Burner
Ignitor
ELECTRONIC MODELS
FOR YOUR SAFETY
READ BEFORE LIGHTING
WARNING: If you do not fol-
lowthese instructions exactly,
a re or explosion may result
causingpropertydamage,per-
sonalinjuryorlossoflife.
A. This appliance has a pilot which must be
lighted by hand. When lighting the pilot,
follow these instructions exactly.
B. BEFORE LIGHTING smell all around the
appliance area for gas. Be sure to smell next
to the oor because some gas is heavier than
air and will settle on the oor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electric switch; do not
use any phone in your building.
• Immediately call your gas supplier from
a neighbor’s phone. Follow the gas sup-
plier’s instructions.
• If you cannot reach your gas supplier,
call the re department.
C. Use only your hand to push in or turn the
gas control knob. Never use tools. If the
knob will not push in or turn by hand, don’t
try to repair it, call a qualied service tech-
nician or gas supplier. Force or attempted
repair may result in a re or explosion.
D. Do not use this appliance if any part has
been under water. Immediately call a
qualied service technician to inspect the
appliance and to replace any part of the
control system and any gas control which
has been under water.
LIGHTING
INSTRUCTIONS
NOTICE: During initial operation
ofnewheater,burninglogswill
giveoffapaper-burningsmell.
Orangeamewillalsobepres-
ent.Openwindowtoventsmell.
Thiswillonlylastafewhours.
1. STOP! Read the safety information,
column 1.
2. Set the thermostat to lowest setting (if
applicable).
3. Turn off wall switch.
4. Open control access panel or louver.
5. Smell for gas, including near the oor. If you
smell gas, STOP! Follow “B” in the safety
information in column 1. If you don’t smell
gas, go to the next step.
6. Turn the main burner wall switch to the ON
position for ignition. There will be a spark
at the electrode.
7. Replace control access panel or louver once
there is a ame at the burner.
8. If burner will not stay lit after several tries,
ip the wall switch to OFF and call your
service technician or gas supplier.
Figure 25 - Electronic Control Valve
EA
From
Gas
Supply
To
Main
Burner
Inlet
Pressure
Outlet
Pressure

www.fmiproducts.com
55175G 15
CLEANING AND
MAINTENANCE
WARNING: Installation and
repair should be done by a
qualied service person. The
applianceshouldbeinspected
before each use and at least
annuallybyaqualiedservice
person. More frequent clean-
ing may be required due to
excessive lint from carpeting,
beddingmaterial,pethair,etc.
Itisimperativethatthecontrol
compartments, burners and
circulatingair system bekept
clean.
WARNING:Thelogscanbe
hot.Handleonlywhencool.
TO TURN OFF GAS
TO APPLIANCE
1. Turn off all electric power to the appliance
if service is to be performed.
2. Remove control access panel.
3. Close the gas valve.
OPERATING FIREPLACE
Continued
Figure 26 - Pilot
WARNING: Turn off gas and
electricalpowerbeforeservicing
appliance. Any safety screen
orguardremovedforservicing
mustbereplacedpriortooperat-
ing the appliance.
 WARNING: Failure to keep
the primary air opening(s) of
theburner(s)cleanmayresultin
sootingandpropertydamage.
Keep control compartment, logs, burner and area
surrounding logs clean by vacuuming or brushing
at least twice a year. Take care not to alter the set-
tings on the pilot assembly.
Do not use abrasive liquids or cleaners for cleaning
glass doors and trims. Any household glass cleaner
should sufce. Do not clean doors when hot. Allow
appliance to cool before cleaning.
TEChNICAL SERVICE
You may have further questions about installation,
operation or troubleshooting. If so, contact FMI
PRODUCTS, LLC’s Technical Service Depart-
ment at 1-866-328-4537. When calling please
have your model and serial numbers of your
heater ready.
You can also visit our web site at
www.fmiproducts.com.
SPECIFICATIONS
(V)GL36PN,(V)GL36PNE
• Maximum Input Rating at Altitudes: 2,000 ft.
- 42,000 Btu/hr., 2,000 ft. to 4,000 ft. - 37,800
Btu/hr.
• Manifold Pressure: 3.5 W.C. (.87 kPa)
• Supply Pressure (in. of water): Minimum* - 4.5"
(1.12 kPa), Maximum - 11.0" (2.74 kPa)
• Orice Size at Altitudes: 2,000 ft. - #30, 2,000 ft.
to 4,000 ft. - #31
(V)GL36PNP,(V)GL36PNEP
• Maximum Input Rating at Altitudes: 2,000 ft.
- 42,000 Btu/hr., 2,000 ft. to 4,000 ft. - 37,800
Btu/hr.
• Manifold Pressure: 11.0 W.C. (2.74 kPa)
• Supply Pressure (in. of water): Minimum* -
12.0" (2.89 kPa), Maximum - 13.0" (3.23 kPa)
• Orice Size at Altitudes: 2,000 ft. - #49, 2,000 ft.
to 4,000 ft. - #51
* For the purpose of input adjustment

www.fmiproducts.com 55175G16
DO NOT
CONNECT
N.C.SW
HEAT LIMIT SWITCH
TH/TP
TP
TH
WALL SWITCH
(SUPPLIED)
TO 120V
THERMOPILE
PILOT
IGNITOR
O
F
F
P
I
L
O
T
O
N
PILOT SAFETY WIRE
MAIN GAS
INCOMING
SUPPLY
MILLIVOLT WIRING DIAGRAM
STEP DOWN
TRANSFORMER
EV2
SUPPLY
INCOMING
MAIN GAS
EV1
TO
GAS LINE
BURNER
24V AC
N.C.SW
HEAT LIMIT
SWITCH
120V AC
120V AC
INCOMING
OR BREAKER)
(FUSE BOX
OFF
ON
(SUPPLIED)
WALL SWITCH
GREEN
BLACK
WHITE
120v, 60Hz, 0.7A
ELECTRICAL RATING:
BLACK
WHITE
GREEN
OPTIONAL
REMOTE
CONTROL
SENSOR
PILOT
IGNITOR
PV
GND
PV/MV
TR
MV TH IGN
ELECTRONIC WIRING DIAGRAM
WIRING DIAGRAMS

www.fmiproducts.com
55175G 17
TROUBLEShOOTING
MILLIVOLT SYSTEM
Note: Before troubleshooting the system, make sure the gas shutoff valve is ON.
The two most common causes of a malfunctioning gas appliance are:
1. Loose wiring connections
2. Construction debris clogging the pilot and/or gas control valve lter
OBSERVED PROBLEM
Pilot will not light
Pilot will not stay lit
No gas to burner, although wall
switch and valve are set to the
ON position
Frequent pilot outage
Pilot goes out when wall switch
is ON
POSSIBLE CAUSE
1. No gas supply or shutoff
valve is OFF
2. Air in gas line
3. Construction debris clog-
ging pilot orice
4. Low gas pressure
5. Control valve knob is not on
the PILOT position
6. Kinked pilot line
7. Bad valve
1. Loose wiring on thermopile
to control valve.
2. No millivolt current is being
sent back to regulator
3. If valve knob and wall switch
are in the ON position, prob-
able defective control valve
1. Wall switch wires defective
2. Thermopile or sensor not
generating sufcient voltage
1. Pilot flame may be too
low, causing safety pilot to
“drop out”
1. Millivolt output on thermo-
pile too high
REMEDY
1. Check to see if you have gas
supply
2. Hold regulator control valve
in the PILOT position for 2 to
3 minutes to purge air. If you
smell gas stop and wait for a
few minutes before trying to
light the replace
3. Remove debris and dirt, in-
spect and clean any other
possible obstructions
4. Contact your gas supplier
5. Refer to section on pilot
lighting
6. Have a qualied technician
replace pilot line
7. Replace control valve (see
Replacement Parts and Acces-
sories, page 19)
1. Check wiring connections.
Refer to wiring diagrams on
page 15
2. Have a qualified technician
check millivolts
3. Have a qualified technician
replace valve (see Replace-
ment Parts and Accessories,
page 19)
1. Check electrical connections
and wires for continuity
2. See Pilot will not stay lit,
above
1. Clean and adjust pilot ame
for maximum ame impinge-
ment on thermopile
1. Have a qualified technician
replace thermopile

www.fmiproducts.com 55175G18
TROUBLEShOOTING
ELECTRONIC IGNITION SYSTEM
Note: Before troubleshooting the system, make sure the gas shutoff valve is ON.
The two most common causes of a malfunctioning gas appliance are:
1. Loose wiring connections
2. Construction debris clogging the pilot and/or gas control valve lter
OBSERVED PROBLEM
Pilot will not light
Pilot will not stay lit
No gas to burner, although wall
switch and valve are set to the
ON position
Frequent pilot outage
Pilot goes out when wall switch
is ON
POSSIBLE CAUSE
1. No gas supply or shutoff
valve is OFF
2. Construction debris clog-
ging pilot orice
3. Low gas pressure
4. Control valve knob is not on
the PILOT position
5. Kinked pilot line
6. Bad valve
1. Loose wiring on thermopile
to regulator valve. No mil-
livolt current is being sent
back to regulator
2. If valve knob and wall switch
are in the ON position, prob-
able defective control valve
1. Wall switch wires defective
2. Thermocouple generator or
sensor not generating suf-
cient voltage
1. Pilot flame may be too
low, causing safety pilot to
“drop out”
1. Output on ame sensor too
high
REMEDY
1. Check to see if you have gas
supply
2. Remove debris and dirt, in-
spect and clean any other
possible obstructions
3. Contact your gas supplier
4. Refer to section on pilot
lighting
5. Have a qualied technician
replace pilot line
6. Replace control valve (see
Replacement Parts and Acces-
sories, page 19)
1. Check wiring connections.
Refer to wiring diagrams on
page 16
2. Have a qualified technician
replace valve (see Replace-
ment Parts and Accessories,
page 19)
1. Check electrical connections
and wires for continuity
2. See Pilot will not stay lit,
above
1. Clean and adjust pilot ame
for maximum ame impinge-
ment on thermopile
1. Replace ame sensor

www.fmiproducts.com
55175G 19
REPLACEMENT PARTS AND ACCESSORIES
Purchase these replace replacement parts and
accessories from your local dealer. If they can not
supply these parts, call FMI PRODUCTS, LLC at
1-866-328-4537 for referral information. You can
also write to the address listed on the back page
of this manual.
Before ordering, please have your appliance’s
model name or number and part number of the
item(s) you are ordering ready. The model name or
number for your particular appliance may be found
on the rating label located inside the appliance.
MILLIVOLT VALVE
Natural Gas - 14512
Propane/LP Gas - 14513
ELECTRONIC VALVE
Natural Gas - 14569
Propane/LP Gas - 14570
MILLIVOLT PILOT ASSEMBLY
Natural Gas - 112784-01
Propane/LP Gas - 112784-02
ELECTRONIC PILOT ASSEMBLY
Natural Gas - 108866-01
Propane/LP Gas - 108866-02
TRANSFORMER - 14129
For use with all models.
PIEzO IGNITER - 14261
For use with all models.
ORIFICE
Natural Gas - 23105
Propane/LP Gas - 23106
For use with all models.
WALL SWITCH KIT - 22180
WallSwitch-14112
Cover Plate - 14113
For use with all models.
IGNITION CONTROL - 110286-01
For use with all models.
GAS VALVE CONVERSION KIT
Millivolt Propane/LP Gas - PC-GL36
Millivolt Natural Gas - NC-GL36
Electronic Propane/LP Gas - PC-GL36E
Electronic Natural Gas - NC-GL36E
CABINET STYLE DOOR KIT -
Brushed Brass - DBBGL36PN
Platinum-DCGL36PN
Black-DBGL36PN
For use with all models.
BURNER ASSEMBLY - 23439
For use with all models.
ON/OFF REMOTE CONTROL KIT -
MLCR
For Millivolt Units Only - Batteries required for
receiver and transmitter.
VENT HOOD - AK4
For use with all models.
REFRACTORY
Side Refractory - 23519
BottomRefractory-23516
Face - 112139-01
For use with all models.
GRATE ASSEMBLY - 11159
For use with all models.
LOG SET ASSEMBLY - 25793
BottomRearLog-25795
BottomFrontLog-25794
Top Left Log - 25797
Top Center Log - 25672
Top Right Log - 25796
For use with all models.
"B-1 TYPE" VENT PIPE
For use with all models. Any B-1 type, 6" diam-
eter, gas vent pipe may be purchased from your
local vent manufacturer.

55175
Rev. G
09/09
WARRANTy
KEEP ThIS WARRANTy
FMI PRODUCTS, LLC LIMITED WARRANTIES
NewProducts
Standard Warranty: FMI PRODUCTS, LLC warrants this new product and any parts thereof to be free
from defects in material and workmanship for a period of two (2) year from the date of rst purchase from
an authorized dealer provided the product has been installed, maintained and operated in accordance with
FMI PRODUCTS, LLC’s warnings and instructions.
For products purchased for commercial, industrial or rental usage, this warranty is limited to 90 days from
the date of rst purchase.
Factory Reconditioned Products
LimitedWarranty: FMI PRODUCTS, LLC warrants factory reconditioned products and any parts thereof
to be free from defects in material and workmanship for 30 days from the date of rst purchase from an
authorized dealer provided the product has been installed, maintained and operated in accordance with
FMI PRODUCTS, LLC’s warnings and instructions.
TermsCommontoAllWarranties
The following terms apply to all of the above warranties:
Always specify model number and serial number when contacting the manufacturer. To make a claim under
this warranty the bill of sale or other proof of purchase must be presented.
This warranty is extended only to the original retail purchaser when purchased from an authorized dealer,
and only when installed by a qualied installer in accordance with all local codes and instructions furnished
with this product.
This warranty covers the cost of part(s) required to restore this product to proper operating condition and
an allowance for labor when provided by a FMI PRODUCTS, LLC Authorized Service Center or a provider
approved by FMI PRODUCTS, LLC. Warranty parts must be obtained through authorized dealers of this
product and/or FMI PRODUCTS, LLC who will provide original factory replacement parts. Failure to use
original factory replacement parts voids this warranty.
Travel, handling, transportation, diagnostic, material, labor and incidental costs associated with warranty
repairs, unless expressly covered by this warranty, are not reimbursable under this warranty and are the
responsibility of the owner.
Excluded from this warranty are products or parts that fail or become damaged due to misuse, accidents,
improper installation, lack of proper maintenance, tampering, or alteration(s).
This is FMI PRODUCTS, LLC’s exclusive warranty, and to the full extent allowed by law; this express war-
ranty excludes any and all other warranties, express or implied, written or verbal and limits the duration of
any and all implied warranties, including warranties of merchantability and tness for a particular purpose to
two (2) year on new products and 30 days on factory reconditioned products from the date of rst purchase.
FMI PRODUCTS, LLC makes no other warranties regarding this product.
FMI PRODUCTS, LLC’s liability is limited to the purchase price of the product, and FMI PRODUCTS, LLC
shall not be liable for any other damages whatsoever under any circumstances including indirect, incidental,
or consequential damages.
Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of
incidental or consequential damages, so the above limitation or exclusion may not apply to you.
This warranty gives you specic legal rights, and you may also have other rights which vary from state to state.
For information about this warranty contact:
Model ( located on product or identication tag ) _____________________________
Serial No. ( located on product or identication tag ) __________________________
Date Purchased __________________________
Keep receipt for warranty verication.
2701 S. Harbor Blvd.
Santa Ana, CA 92704
1-866-328-4537
www.fmiproducts.com
