Fn-Link 8223A-SR User manual

欧智通科技
Fn-Link
8223A-SR
WiFi Dual-band 1X1 +
11ac + Bluetooth v4.2
User's Manual

8223A-SR
FN-LINK
TECHNOLOGY LIMITED 1Proprietary & Confidential Information
Revision History
Date Revision Content Revised By Version
2016/05/30 -Preliminary Ken 1.0
2016/06/11 Pin Definition Modified Ken 1.1
2016/11/01 Added power timing requirements Ken 1.2
2016/11/22 Modified power timing requirements Ken 1.3
2016/12/12 Deleted Pin 45 46 47 ken 1.4
2016-12-13 Add the key material list and reference design Colin Ming 1.5
2017-1-17 Modified the BT version Colin Ming 1.6
2017-02-09 Modified the RF Specification Colin Ming 1.7
2017-03-08 Update shield cover image Colin Ming 1.8
2017-04-11 Modified cover of the datasheet Colin 1.9

8223A-SR
FN-LINK
TECHNOLOGY LIMITED 1Proprietary & Confidential Information
CONTENTS
1. Introduction ................................................................................................................... 1
2. Features ......................................................................................................................... 2
3. General Specification ................................................................................................... 3
3.1 General Specification .................................................................................................................. 3
4. WiFi RF Specification ................................................................................................... 4
4.1 2.4GHz RF Specification ............................................................................................................. 4
4.2 5GHz RF Specification ................................................................................................................ 5
5. Bluetooth Specification ................................................................................................ 8
5.1 Bluetooth Specification................................................................................................................ 8
6. Pin Assignments ........................................................................................................... 9
6.1 Pin Outline................................................................................................................................... 9
6.2 Pin Definition ............................................................................................................................... 9
7. Dimensions.................................................................................................................. 11

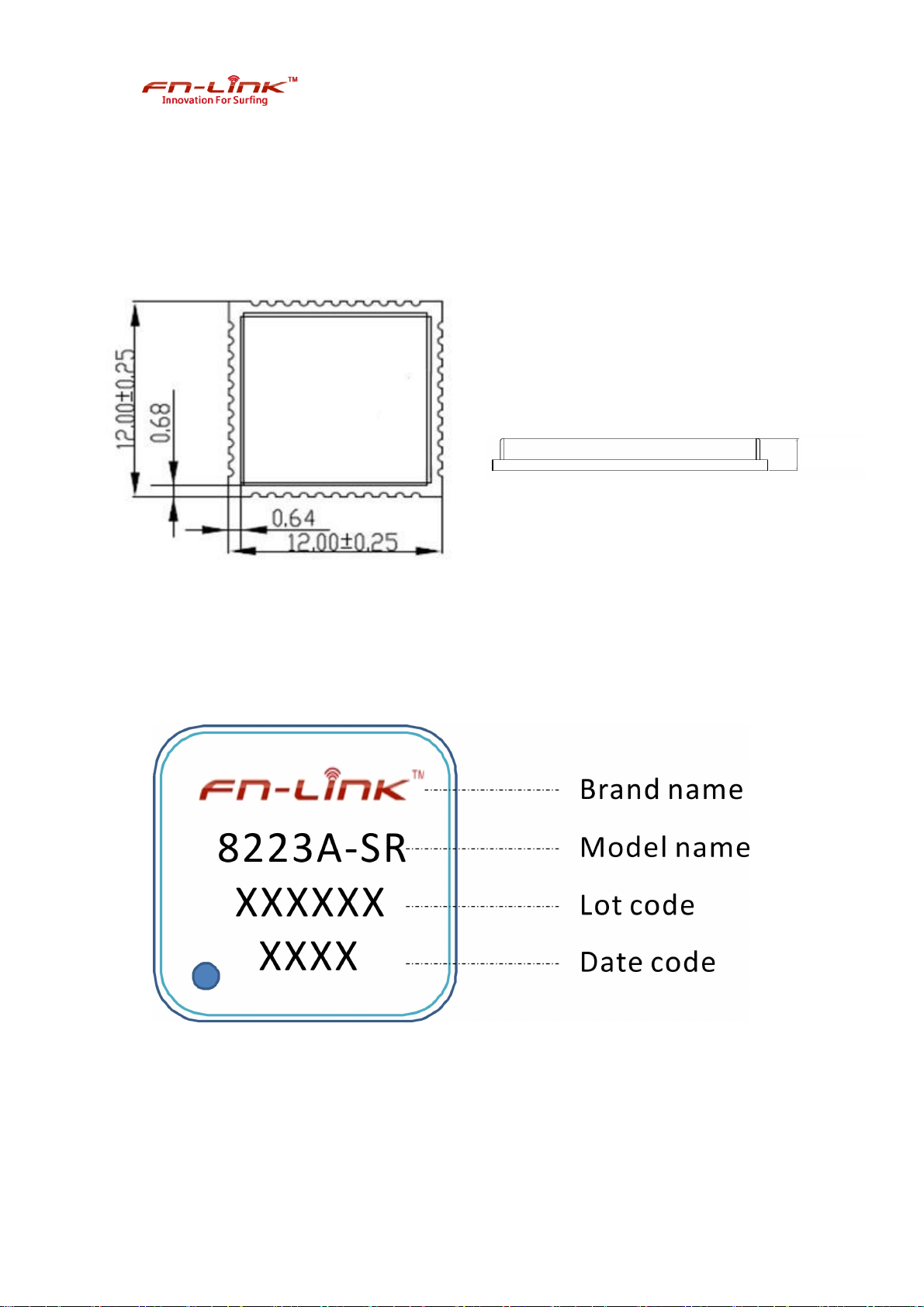

7.1 Physical Dimensions ................................................................................................................. 11
7.2 Module Physical Dimensions .................................................................................................... 12

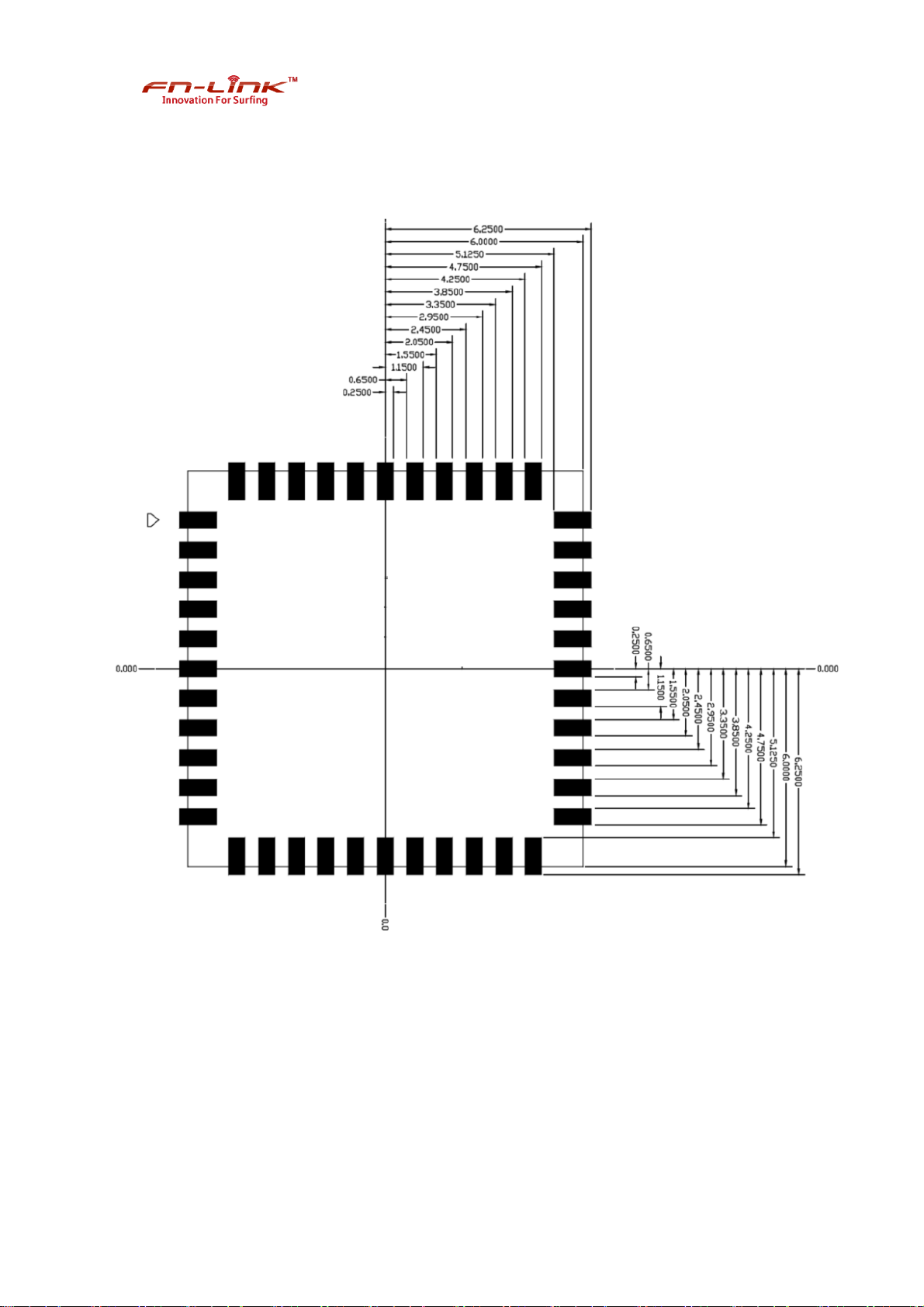

7.3 Layout Recommendation .......................................................................................................... 13
8. Host Interface Timing Diagram .................................................................................. 14

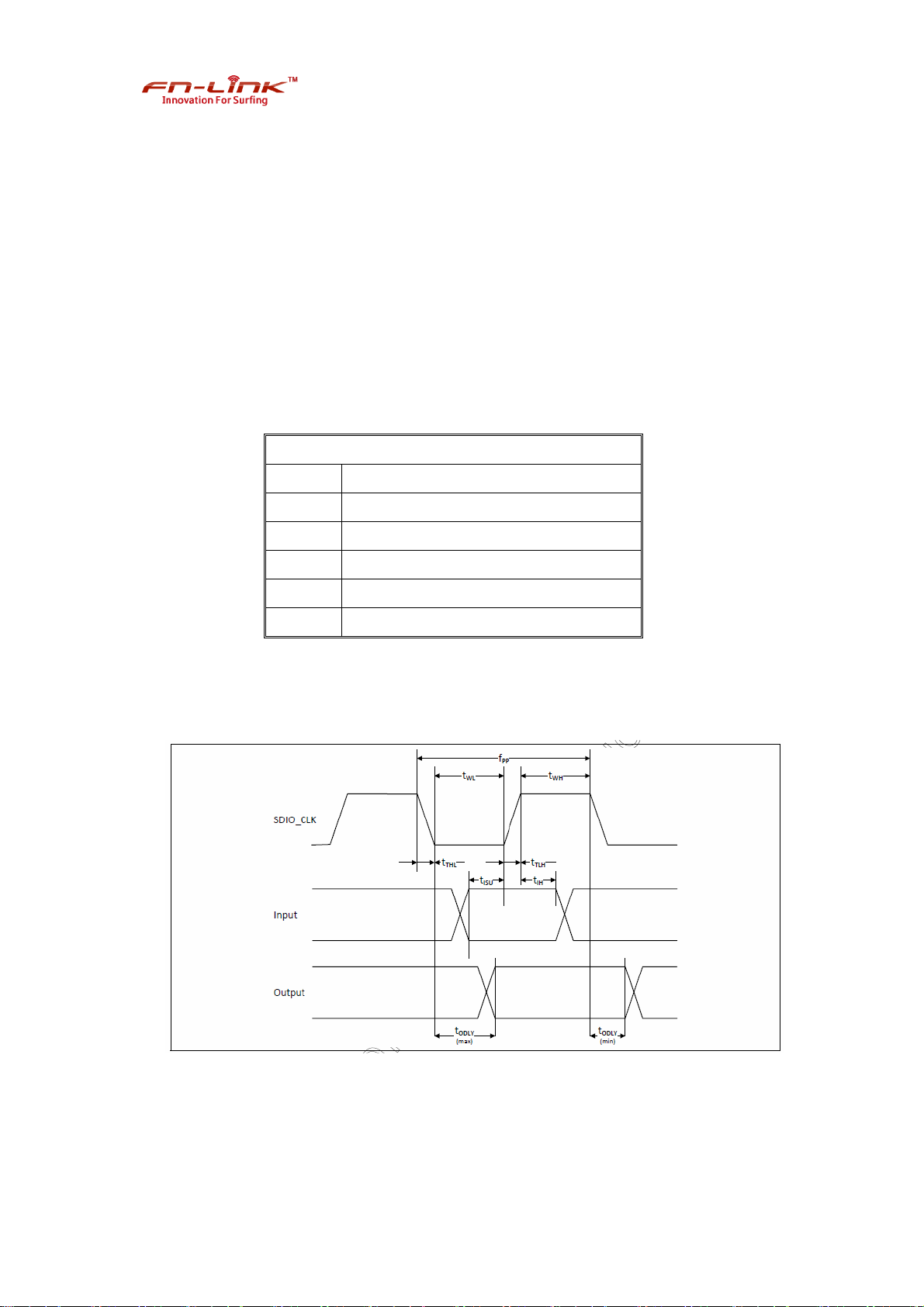

8.1 SDIO Pin Description ................................................................................................................ 14

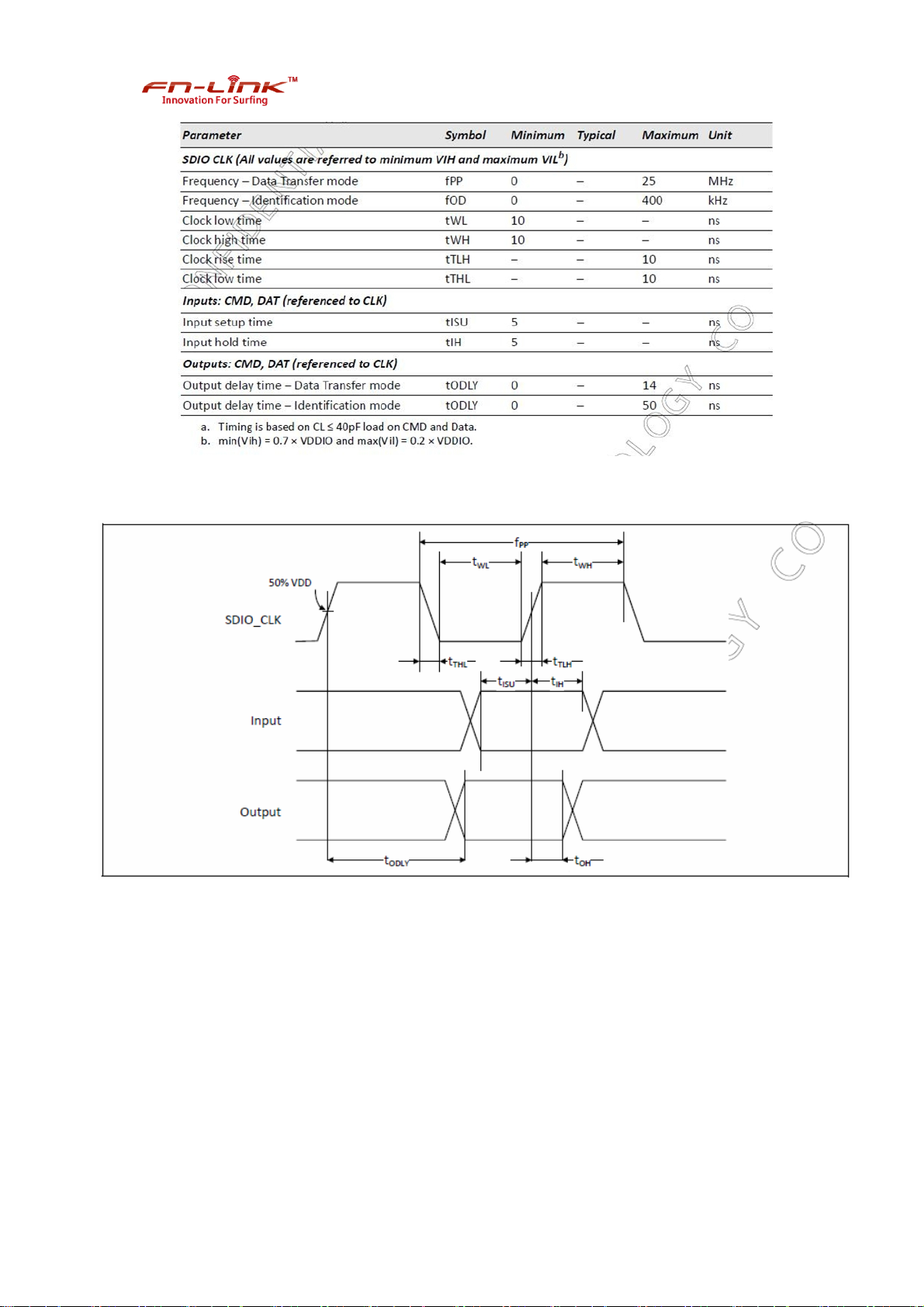

8.2 SDIO Default Mode Timing Diagram......................................................................................... 14
8.3 SDIO High Speed Mode Timing Diagram.................................................................................. 15
8.4 SDIO Bus Timing Specifications in SDR Modes ....................................................................... 16
8.5 SDIO Bus Timing Specifications in DDR50 Mode ..................................................................... 18
9. Power timing requirements........................................................................................ 19
10. Reference Design...................................................................................................... 20
11. Recommended Reflow Profile ................................................................................. 21
12. Packing Information.................................................................................................. 22

8223A-SR
FN-LINK
TECHNOLOGY LIMITED 1Proprietary & Confidential Information
1. Introduction
Fn-Link Technology would like to announce a low-cost and low-power consumption module
which has all of the Wi-Fi, Bluetooth functionalities. The highly integrated module makes the
possibilities of web browsing, VoIP, Bluetooth headsets applications. With seamless roaming
capabilities and advanced security, also could interact with different vendors’
802.11a/b/g/n/ac Access Points in the wireless LAN.
The wireless module complies with IEEE 802.11 a/b/g/n/ac standard and it can achieve up
to a speed of 433.3Mbps with single stream in 802.11ac draft to connect to the wireless LAN.
The integrated module provides SDIO interface for Wi-Fi, UART / PCM interface for
Bluetooth.
This compact module is a total solution for a combination of Wi-Fi + BT technologies. The
module is specifically developed for Smart phones and Portable devices.

8223A-SR
FN-LINK
TECHNOLOGY LIMITED 2Proprietary & Confidential Information
2. Features
zHighly integrated wireless local area network(WLAN) system-on-chip (SOC) for 5 GHZ
802.11ac, or 2.4G/5G 802.11n WLAN applications.
zSupports 20/40MHz at 2.4GHz and supports 20/40/80MHz at 5GHz
zSupports low power SDIO3.0 interface for WLAN and UART/PCM interface for
Bluetooth.
zSupports Bluetooth V4.2+HS, BLE and be backwards compatible with Bluetooth 1.2,
2.X+ enhance data rate.
zSupports WLAN-Bluetooth coexistence and ISM-LTE coexistence.
zSupports Bluetooth for class1 and class2 power level transmissions without requiring
an external PA.
zBT host digital interface:
- HCI UART (up to 4 Mbps)
- PCM for audio data

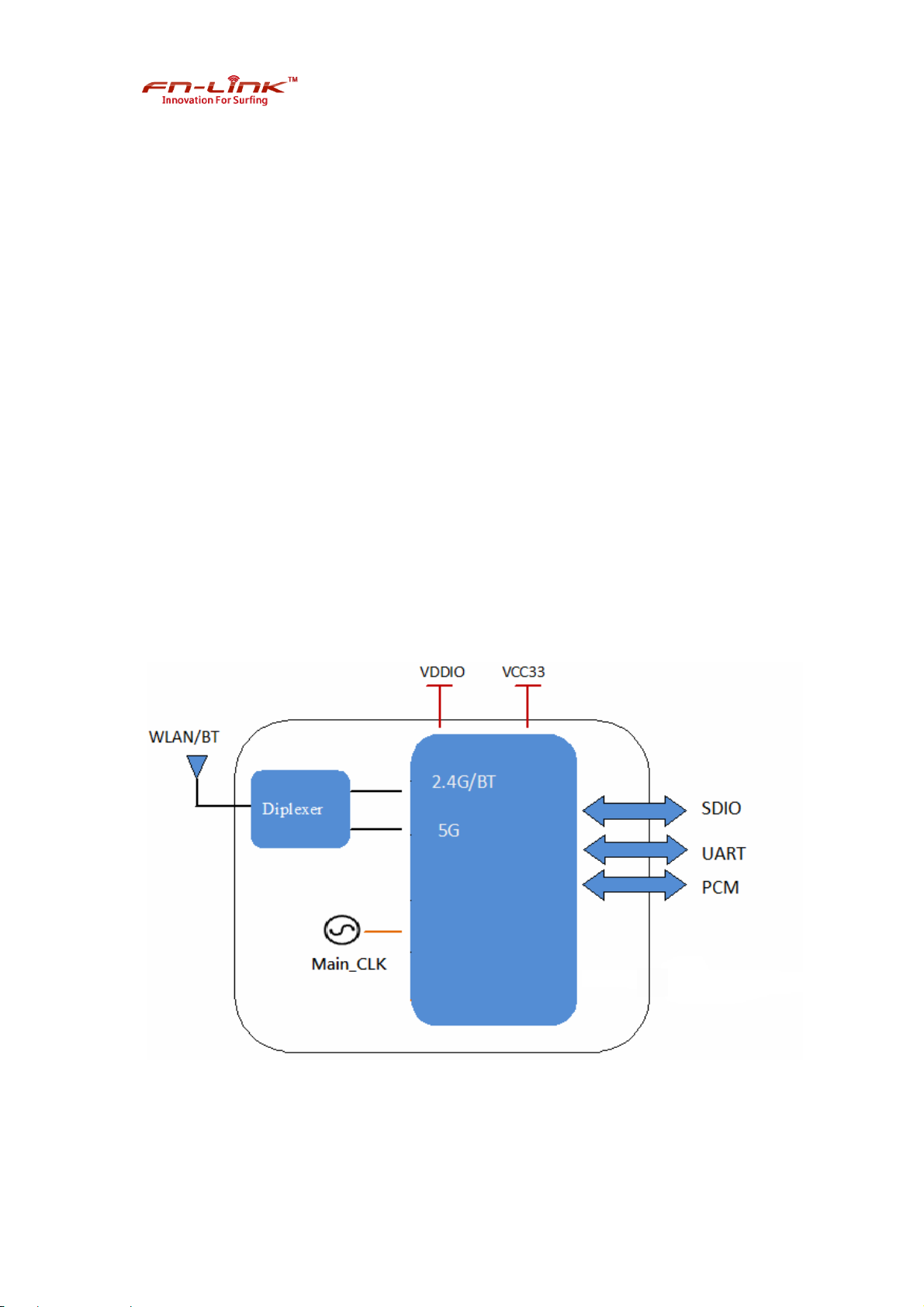

The block diagram of module is depicted in the figure below.

8223A-SR
FN-LINK
TECHNOLOGY LIMITED 3Proprietary & Confidential Information
3. General Specification
3.1 General Specification
3.1.2 Recommended Operating Rating
Min. Typ. Max. Unit
Operating
Temperature -40 25 85 deg.C
VCC33 3.15 3.3 3.45 V
VDDIO 1.7 1.8 or 3.3 3.45 V
Model Name 8223A-SR
Product Description Support WiFi/Bluetooth functionalities
Dimension Lx W x H: 12 x 12 x 1.7 (typical) mm
WiFi Interface Support SDIO V3.0
BT Interface UART / PCM
Operating temperature -40°C to 85°C
Storage temperature -40°C to 125°C

8223A-SR
FN-LINK
TECHNOLOGY LIMITED 4Proprietary & Confidential Information
4. WiFi RF Specification
4.1 2.4GHz RF Specification
Feature Description
WLAN Standard IEEE 802.11b/g/n, WiFi compliant
Frequency Range 2.400 GHz ~ 2.4835 GHz (2.4 GHz ISM Band)
Number of Channels
2.4GHz：Ch1 ~ Ch11
802.11b /CCK : EVM ≤-9dB
802.11g /64-QAM(R=3/4): EVM ≤-25dB
EVM
802.11n /64-QAM(R=5/6): EVM ≤-28dB
Test Items Typical Value Standard Value
- 1Mbps PER @ -96 dBm ≤-83
- 2Mbps PER @ -90 dBm ≤-80
- 5.5Mbps PER @ -88 dBm ≤-79
Receive Sensitivity
(11b) @8% PER
- 11Mbps PER @ -87 dBm ≤-76
- 6Mbps PER @ -90 dBm ≤-85
- 9Mbps PER @ -88 dBm ≤-84
- 12Mbps PER @ -87 dBm ≤-82
- 18Mbps PER @ -85 dBm ≤-80
- 24Mbps PER @ -83 dBm ≤-77
- 36Mbps PER @ -80 dBm ≤-73
- 48Mbps PER @ -76 dBm ≤-69
Receive Sensitivity
(11g) @10% PER
- 54Mbps PER @ -74 dBm ≤-68
- MCS=0 PER @ -89 dBm ≤-85
- MCS=1 PER @ -85 dBm ≤-82
- MCS=2 PER @ -84 dBm ≤-80
- MCS=3 PER @ -80 dBm ≤-77
- MCS=4 PER @ -77 dBm ≤-73
- MCS=5 PER @ -75 dBm ≤-69
- MCS=6 PER @ -72 dBm ≤-68
Receive Sensitivity
(11n,20MHz)
@10% PER
- MCS=7 PER @ -71 dBm ≤-67
- MCS=0 PER @ -89 dBm ≤-82
- MCS=1 PER @ -85 dBm ≤-79
- MCS=2 PER @ -84 dBm ≤-77
- MCS=3 PER @ -80 dBm ≤-74
Receive Sensitivity
(11n,40MHz)
@10% PER
- MCS=4 PER @ -76 dBm ≤-70

8223A-SR
FN-LINK
TECHNOLOGY LIMITED 5Proprietary & Confidential Information
- MCS=5 PER @ -72 dBm ≤-66
- MCS=6 PER @ -70 dBm ≤-65
- MCS=7 PER @ -69 dBm ≤-64
4.2 5GHz RF Specification
Feature Description
WLAN Standard IEEE 802.11a/n/ac, Wi-Fi compliant
Frequency Range 5.150 GHz ~ 5.250 GHz and 5.725 ~ 5.850 GHz (5.0GHz Band)
Number of Channels
5.0GHz：Please see the table1
Modulation 802.11a/n : 64-QAM,16-QAM, QPSK, BPSK
802.11ac : 256-QAM, 64-QAM,16-QAM, QPSK, BPSK
802.11a /64-QAM(R=3/4): EVM ≤-25dB
802.11n /64-QAM(R=5/6): EVM ≤-28dB
802.11ac/256-QAM(R=3/4): EVM ≤-30dB
Output Power
802.11ac/256-QAM(R=5/6): EVM ≤-32dB
Test Items Typical Value Standard Value
- 6Mbps PER @ -91 dBm ≤-85
- 9Mbps PER @ -89 dBm ≤-84
- 12Mbps PER @ -88 dBm ≤-82
- 18Mbps PER @ -86 dBm ≤-80
- 24Mbps PER @ -82 dBm ≤-77
- 36Mbps PER @ -79 dBm ≤-73
- 48Mbps PER @ -74 dBm ≤-69
Receive Sensitivity
(11a, 20MHz) @10%
PER
- 54Mbps PER @ -73 dBm ≤-68
- MCS=0 PER @ -90 dBm ≤-85
- MCS=1 PER @ -88 dBm ≤-82
- MCS=2 PER @ -85 dBm ≤-80
- MCS=3 PER @ -82 dBm ≤-77
- MCS=4 PER @ -78 dBm ≤-73
- MCS=5 PER @ -74 dBm ≤-69
- MCS=6 PER @ -72 dBm ≤-68
Receive Sensitivity
(11n,20MHz)
@10% PER
- MCS=7 PER @ -71 dBm ≤-67
- MCS=0 PER @ -88 dBm ≤-85
- MCS=1 PER @ -85 dBm ≤-82
Receive Sensitivity
(11n,40MHz)
@10% PER - MCS=2 PER @ -83 dBm ≤-80

8223A-SR
FN-LINK
TECHNOLOGY LIMITED 6Proprietary & Confidential Information
- MCS=3 PER @ -79 dBm ≤-76
- MCS=4 PER @ -76 dBm ≤-73
- MCS=5 PER @ -71 dBm ≤-68
- MCS=6 PER @ -70 dBm ≤-67
- MCS=7 PER @ -68 dBm ≤-65
- MCS=0 PER @ -89 dBm ≤-83
- MCS=1 PER @ -87 dBm ≤-82
- MCS=2 PER @ -84 dBm ≤-80
- MCS=3 PER @ -81 dBm ≤-75
- MCS=4 PER @ -77 dBm ≤-72
- MCS=5 PER @ -73 dBm ≤-68
- MCS=6 PER @ -71 dBm ≤-67
- MCS=7 PER @ -70 dBm ≤-62
Receive Sensitivity
(11ac,20MHz)
@10% PER
- MCS=8 PER @ -66 dBm ≤-60
- MCS=0 PER @ -87 dBm ≤-80
- MCS=1 PER @ -83 dBm ≤-77
- MCS=2 PER @ -81 dBm ≤-74
- MCS=3 PER @ -78 dBm ≤-70
- MCS=4 PER @ -75 dBm ≤-69
- MCS=5 PER @ -70 dBm ≤-65
- MCS=6 PER @ -68 dBm ≤-64
- MCS=7 PER @ -66 dBm ≤-59
- MCS=8 PER @ -64 dBm ≤-57
Receive Sensitivity
(11ac,40MHz)
@10% PER
- MCS=9 PER @ -63 dBm ≤-55
- MCS=0 PER @ -83 dBm ≤-79
- MCS=1 PER @ -80 dBm ≤-76
- MCS=2 PER @ -78 dBm ≤-74
- MCS=3 PER @ -74 dBm ≤-71
- MCS=4 PER @ -71 dBm ≤-67
- MCS=5 PER @ -69 dBm ≤-63
- MCS=6 PER @ -65 dBm ≤-62
- MCS=7 PER @ -63 dBm ≤-61
- MCS=8 PER @ -60 dBm ≤-56
Receive Sensitivity
(11ac,80MHz)
@10% PER
- MCS=9 PER @ -59 dBm ≤-54

8223A-SR
FN-LINK
TECHNOLOGY LIMITED 7Proprietary & Confidential Information
15GHz Channel table
Band (GHz) Operating Channel
Numbers
Channel center
frequencies(MHz)
36 5180
38 5190
40 5200
5.15GHz~5.25GHz 42 5210
44 5220
46 5230
48 5240
149 5745
151 5755
153 5765
155 5775
157 5785
159 5790
161 5805
165 5825
5.725GHz~5.825GHz

8223A-SR
FN-LINK
TECHNOLOGY LIMITED 8Proprietary & Confidential Information
5. Bluetooth Specification
5.1 Bluetooth Specification
Feature Description
General Specification
Bluetooth Standard Bluetooth V4.2 of 1, 2 and 3 Mbps.
Host Interface UART
Antenna Reference External Antenna
Frequency Band 2402 MHz ~ 2480 MHz
Number of Channels 79 channels
Modulation FHSS, GFSK, DPSK, DQPSK
RF Specification
Min. Typical. Max.
Output Power
Sensitivity @ BER=0.1%
for GFSK (1Mbps) -92 dBm
Sensitivity @ BER=0.01%
for π/4-DQPSK (2Mbps) -92 dBm
Sensitivity @ BER=0.01%
for 8DPSK (3Mbps) -85 dBm
GFSK (1Mbps):-20dBm
π/4-DQPSK (2Mbps) :-20dBm
Maximum Input Level
8DPSK (3Mbps) :-20dBm
Class 1.5

8223A-SR
FN-LINK
TECHNOLOGY LIMITED 9Proprietary & Confidential Information
6. Pin Assignments

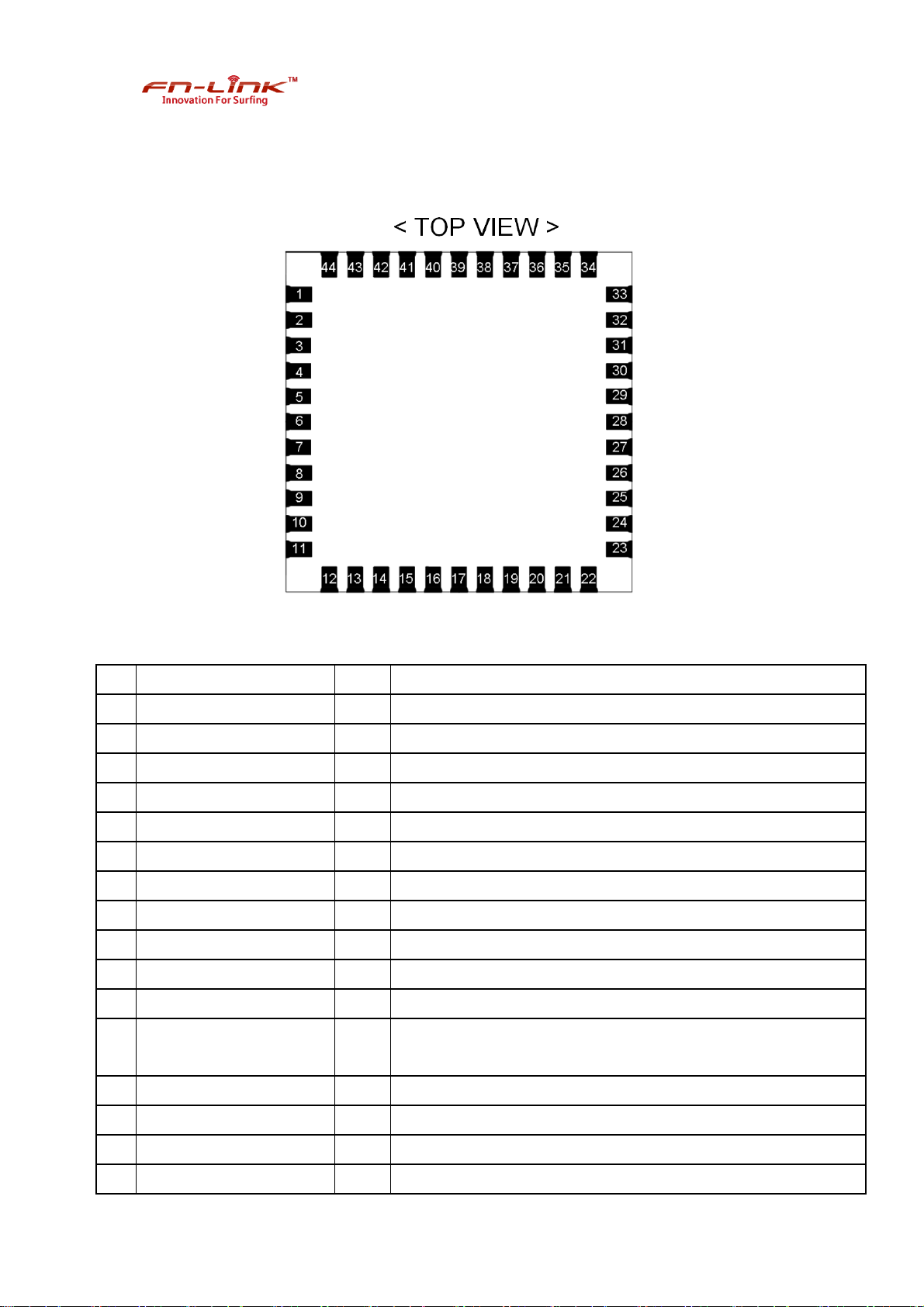

6.1 Pin Outline
6.2 Pin Definition
NO Name Type Description
1 GND －Ground connections
2 WL_BT_ANT I/O RF I/O port
3 GND －Ground connections
4 NC －Floating (Don’t connected to ground)
5 NC －Floating (Don’t connected to ground)
6 HOST_WAKE_BT I HOST to wake-up Bluetooth device
7 BT_WAKE_HOST O Bluetooth device to wake-up HOST
8 NC －Floating (Don’t connected to ground)
9 VCC33 P Main power voltage source input 3.3V
10 NC －Floating (Don’t connected to ground)
11 NC －Floating (Don’t connected to ground)
12 WL_EN I Enable pin for WLAN device
ON: pull high ; OFF: pull low
13 WL_HOST_WAKE O WLAN to wake-up HOST
14 SDIO_DATA_2 I/O SDIO data line 2
15 SDIO_DATA_3 I/O SDIO data line 3
16 SDIO_DATA_CMD I/O SDIO command line

8223A-SR
FN-LINK
TECHNOLOGY LIMITED 10 Proprietary & Confidential Information
17 SDIO_DATA_CLK I/O SDIO clock line
18 SDIO_DATA_0 I/O SDIO data line 0
19 SDIO_DATA_1 I/O SDIO data line 1
20 GND －Ground connections
21 NC －Floating (Don’t connected to ground)
22 VDDIO P I/O Voltage supply input 1.8V or 3.3V
23 NC －Floating (Don’t connected to ground)
24 LPO I External Low Power Clock input (32.768KHz)
25 PCM_OUT O PCM Data output
26 PCM_CLK I/O PCM
clock
27 PCM_IN I PCM data input
28 PCM_SYNC I/O PCM
sync signal
29 NC －Floating (Don’t connected to ground)
30 NC －Floating (Don’t connected to ground)
31 GND －Ground connections
32 NC －Floating (Don’t connected to ground)
33 GND －Ground connections
34 BT_EN I Enable pin for Bluetooth device
ON: pull high ; OFF: pull low
35 NC －Floating (Don’t connected to ground)
36 GND －Ground connections
37 NC －Floating (Don’t connected to ground)
38 NC －Floating (Don’t connected to ground)
39 Debug_UART_TXD O Floating (Don’t connected to ground)
40 Debug_UART_RXD I Floating (Don’t connected to ground)
41 UART_RTS_N O Bluetooth UART interface
42 UART_TXD O Bluetooth UART interface
43 UART_RXD I Bluetooth UART interface
44 UART_CTS_N I Bluetooth UART interface

8223A-SR
FN-LINK
TECHNOLOGY LIMITED 11 Proprietary & Confidential Information
7. Dimensions
7.1 Physical Dimensions
(Unit: mm)
<
TOPVIEW> <SideView>
Marking Description
< TOP VIEW >
1.7±0.1

8223A-SR
FN-LINK
TECHNOLOGY LIMITED 12 Proprietary & Confidential Information
7.2 Module Physical Dimensions
(
Unit:mm)
< TOP VIEW >

8223A-SR
FN-LINK
TECHNOLOGY LIMITED 13 Proprietary & Confidential Information
7.3 Layout Recommendation
(Unit: mm)
< TOP VIEW >

8223A-SR
FN-LINK
TECHNOLOGY LIMITED 14 Proprietary & Confidential Information
8. Host Interface Timing Diagram
8.1 SDIO Pin Description
The module supports SDIO version 3.0 for all 1.8V 4-bit UHSI speeds: SDR50(100
Mbps),SDR104(208MHz) and DDR50(50MHz, dual rates) in addition to the 3.3V default
speed(25MHz) and high speed (50 MHz). It has the ability to stop the SDIO clock and map
the interrupt signal into a GPIO pin. This ‘out-of-band’ interrupt signal notifies the host when
the WLAN device wants to turn on the SDIO interface. The ability to force the control of the
gated clocks from within the WLAN chip is also provided.
SDIO Pin Description
SD 4-Bit Mode
DATA0 Data Line 0
DATA1 Data Line 1 or Interrupt
DATA2 Data Line 2 or Read Wait
DATA3 Data Line 3
CLK Clock
CMD Command
Line
8.2 SDIO Default Mode Timing Diagram

8223A-SR
FN-LINK
TECHNOLOGY LIMITED 15 Proprietary & Confidential Information
8.3 SDIO High Speed Mode Timing Diagram

8223A-SR
FN-LINK
TECHNOLOGY LIMITED 16 Proprietary & Confidential Information
8.4 SDIO Bus Timing Specifications in SDR Modes
Clock timing(SDR Modes)

8223A-SR
FN-LINK
TECHNOLOGY LIMITED 17 Proprietary & Confidential Information
Card Input timing (SDR Modes)
Card output timing (SDR Modes up to 100MHz)
