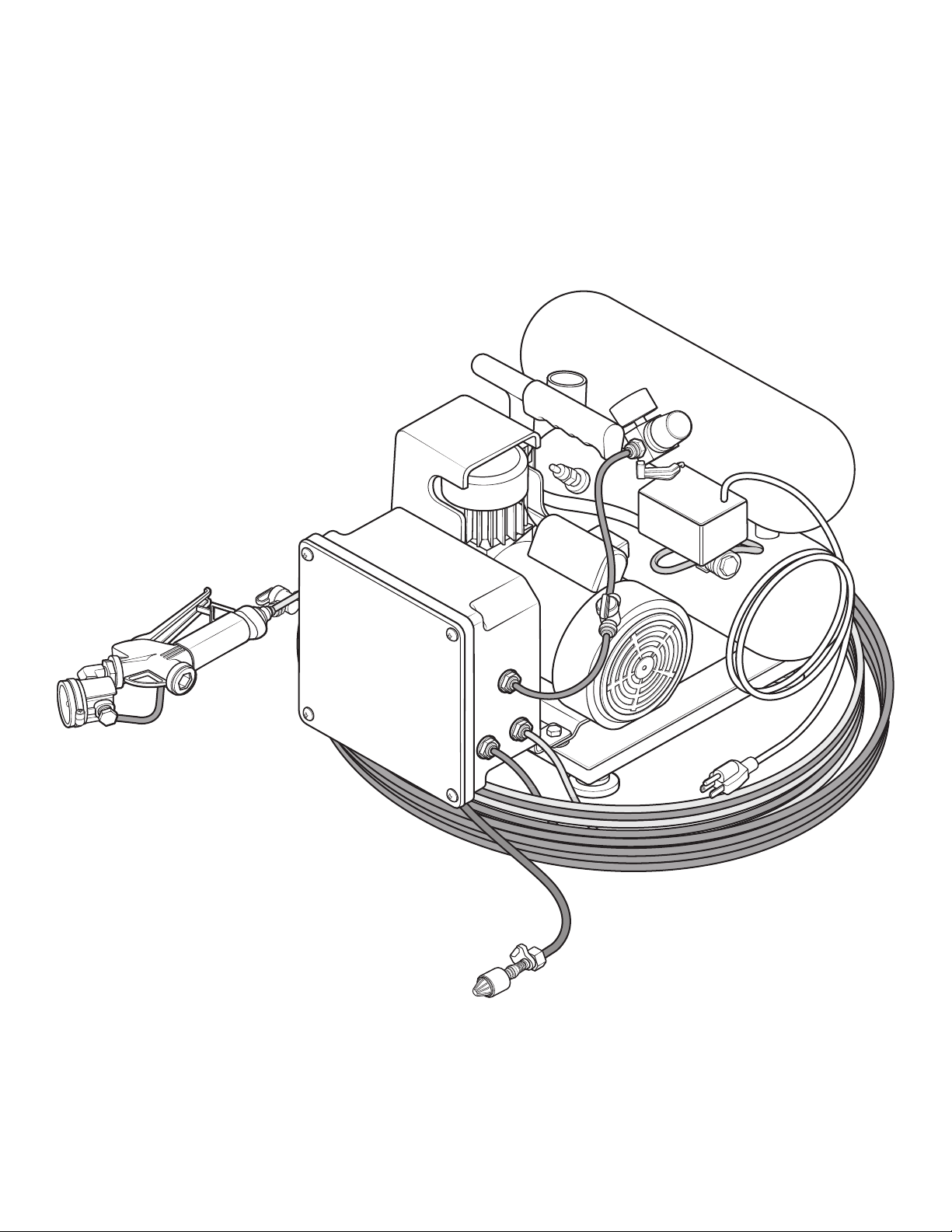

Foamit MU-JR-PSGN130-H50 User manual

Pre-Mix Electric Fog / Mist Unit
User Manual
MU-JR-PSGN130-H50
READ ALL INSTRUCTIONS BEFORE USING, OR SERVICING, THIS EQUIPMENT. KEEP THIS MANUAL IN A
LOCATION THAT IS READILY AVAILABLE TO USERS AND SERVICE TECHNICIANS.
English (Original Instructions)

V20201210 • Page 2 of 11
Model: MU-JR-PSGN130-H50
Contents
1Safety ..............................................3
2 Product Overview ...................................5
Product Requirements....................................... 5
Product Specifications....................................... 5
Product components ........................................ 6
3Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
4Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
5Air Compressor Instructions . . . . . . . . . . . . . . . . . . . . . . . . . 11

V20201210 • Page 3 of 11
Model: MU-JR-PSGN130-H50
WARNING
!
1Safety
PEOPLE OR OBJECTS CAN BE HURT OR DAMAGED IF THIS UNIT IS NOT USED CORRECTLY!
Failure to read all the instructions before operating the unit may result in personal injury or death from
the improper use of the chemical solution. Anyone handling, operating or using the unit must read,
and understand, the instructions in the manual. The buyer assumes all responsibility for safety and
proper use in accordance with the instructions.
Using, or servicing, the unit without proper protective clothing, gloves, and
eye wear may result in serious injury such as burns, rashes, eye, throat
or lung damage and death. Always wear protective clothing, gloves, and
eye wear when using, or servicing, the unit. Protect eyes, skin, and lungs
against drifting spray.
Chemical solutions may pose a health risk and death if they contact the skin or eyes, are inhaled
or swallowed. Always read, and follow, all chemical safety precautions and handling instructions
provided by the chemical manufacturer and the Safety Data Sheet (SDS) associated with the chemical
solution being used before using the unit.
Pressure within the equipment may cause an unexpected release of the chemical solution and
cause serious injury such as burns, rashes, eye damage, throat or lung damage and death. Always
depressurize and clean the unit after each use. Never leave the unit unattended while pressurized.
Using the unit with fluid temperatures above 100°F (37.77°C) may result in scalding, burns, serious
injury or death. DO NOT use a solution with a temperature above 100°F (37.77°C).
Operating the unit when damaged or leaking may result in exposure to chemical solutions, serious
injury or death. Never use the unit if it is damaged or leaking.
Never point the discharge wand at yourself, another person, or any object you do not want covered
in chemical.
Using incoming air pressure exceeding 100 psi (7 bar) may result in pressure buildup, explosion,
serious injury or death. DO NOT exceed 100 psi (7 bar) incoming air pressure when operating the unit.
Use of hydrocarbons and flammable products may result in explosions, fire and serious injury or
death. Never use hydrocarbons or flammable products with the unit.
Mixing an alkaline with an acid may result in a chemical reaction. Overheating of the mixture may
cause it to splatter caustic compounds or release hazardous fumes, gas and vapors. Always flush
the unit with fresh water for five (5) minutes when switching from an alkaline to an acid or an acid to
an alkaline.

V20201210 • Page 4 of 11
Model: MU-JR-PSGN130-H50
Servicing, or modification, of this unit with parts not listed in this manual may cause the unit to operate improperly.
Do not use unauthorized parts when servicing the unit.
Use of an air lubricator before the unit may result in diminished performance and damage to the unit. Do not use an
air lubricator before the unit.
Moisture in the air lines may damage the pump and diminish the units life. The air must be filtered, clean, dry and
free of moisture.
PROTECT THE ENVIRONMENT
Please dispose of packaging materials, old machine components, and hazardous fluids in an
environmentally safe way according to local waste disposal regulations.
NOTICE

V20201210 • Page 5 of 11
Model: MU-JR-PSGN130-H50
2Product Overview
* Dilution rates and flow rates given are based on chemical with viscosity of water and factory air pressure settings.
Product requirements
Operating air pressure 50-80 psi (3.4-5.5 bar)
Liquid temperature range 40-100˚F (4.4-37˚C)
Chemical compatibility
Chemical products used with this equipment must be formulated for
this type of application and compatible with unit materials and pump
seals. For more information on chemical compatibility, consult the
manufacturer or SDS for your product or contact our customer service
department.
MU50-PSGN130
Power type Electricity
Chemical pickup type Draws from pre-mixed solution
Number of products unit can draw from One product
Suction line length/diameter 6 ft. (1.8 m) clear hose with 1/4 in. (6.4 mm) inside diameter
Discharge line length/diameter 50 ft. (15.2 m) twin-line tubing 1/4 in. (6.4 mm) outside diameter
Discharge wand/tip type Polypropylene trigger handle for liquid output and polypropylene fog/
mist nozzle with Kynar tip
Output distance 3-4.5 ft. (0.9-1.4 m)
Output volume 8.96 oz/min at 50 psi (3.4 bar) - static
Flow rate* 8.96 oz/min at 50 psi (3.4 bar) - static
Pump seals Santoprene, Viton, or Kalrez
Droplet size 15 microns at 50 psi (3.4 bar)
Coverage area 1 liter of solution will cover approximately 1000 cubic feet
Nozzle type Pneumatic fog nozzle
Number of nozzles One
Product specifications

V20201210 • Page 6 of 11
Model: MU-JR-PSGN130-H50
1. Control box
2. Pump
3. 1/4 tube x 1/4 tube quick-fit check valve
4. Solution discharge hose
5. Air discharge hose
6. Air compressor handle and frame
7. Air gauge
8. Air tank
9. Electrical cord
10. Air inlet shut-o valve
11. Suction hose
12. PSG-N130 wand
13. Air discharge shut-o valve

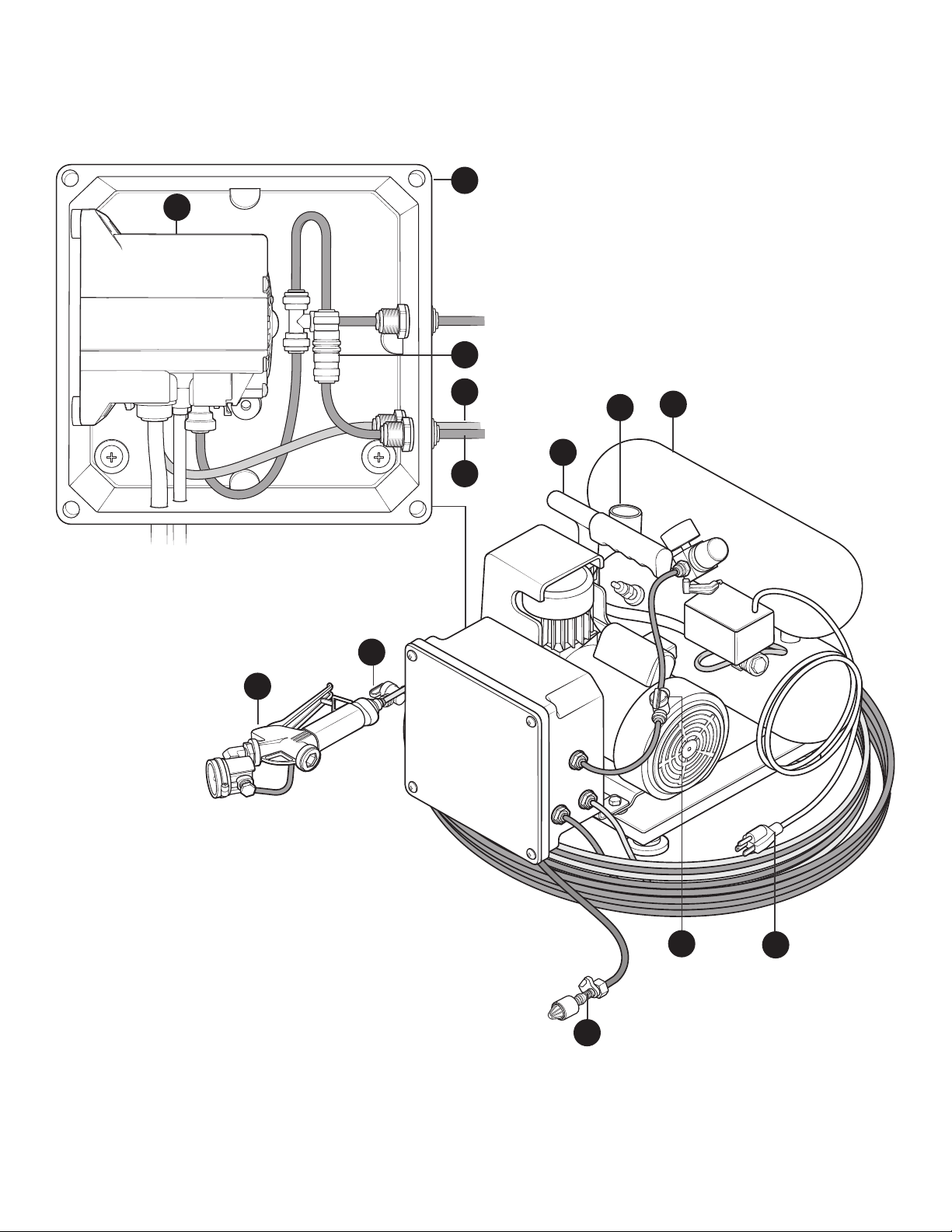

Product components
Before you begin get to know the MU-JR-PSGN130-H50 components that you will need to use, adjust or assemble.
9
12
3
13
6
2
4
5
1
78
11
10

V20201210 • Page 7 of 11
Model: MU-JR-PSGN130-H50
3Operation
1. Follow all instructions from chemical manufacturer.
Place the chemical suction line into a container of
pre-mixed chemical solution.
2. Plug the unit in to a GFCI protected 120 VAC power
outlet.
3. Turn the power switch ON to start the air compressor.
4. Verify that the air shut-o valve at the trigger gun is
in the closed position and
5. Open the air inlet valve (QFSOV14) to the control box.
6. Point the discharge wand in a safe direction and
open the air shut-o valve at the trigger gun.
7. Squeeze the trigger handle to begin misting.
Note: Both discharge valves should be completely
open while misting.
8. To stop misting, release the trigger handle and the
close the air shut-o valve.
3
4
2
5
7
6
Open
Open
On
Close
Close
O

V20201210 • Page 8 of 11
Model: MU-JR-PSGN130-H50

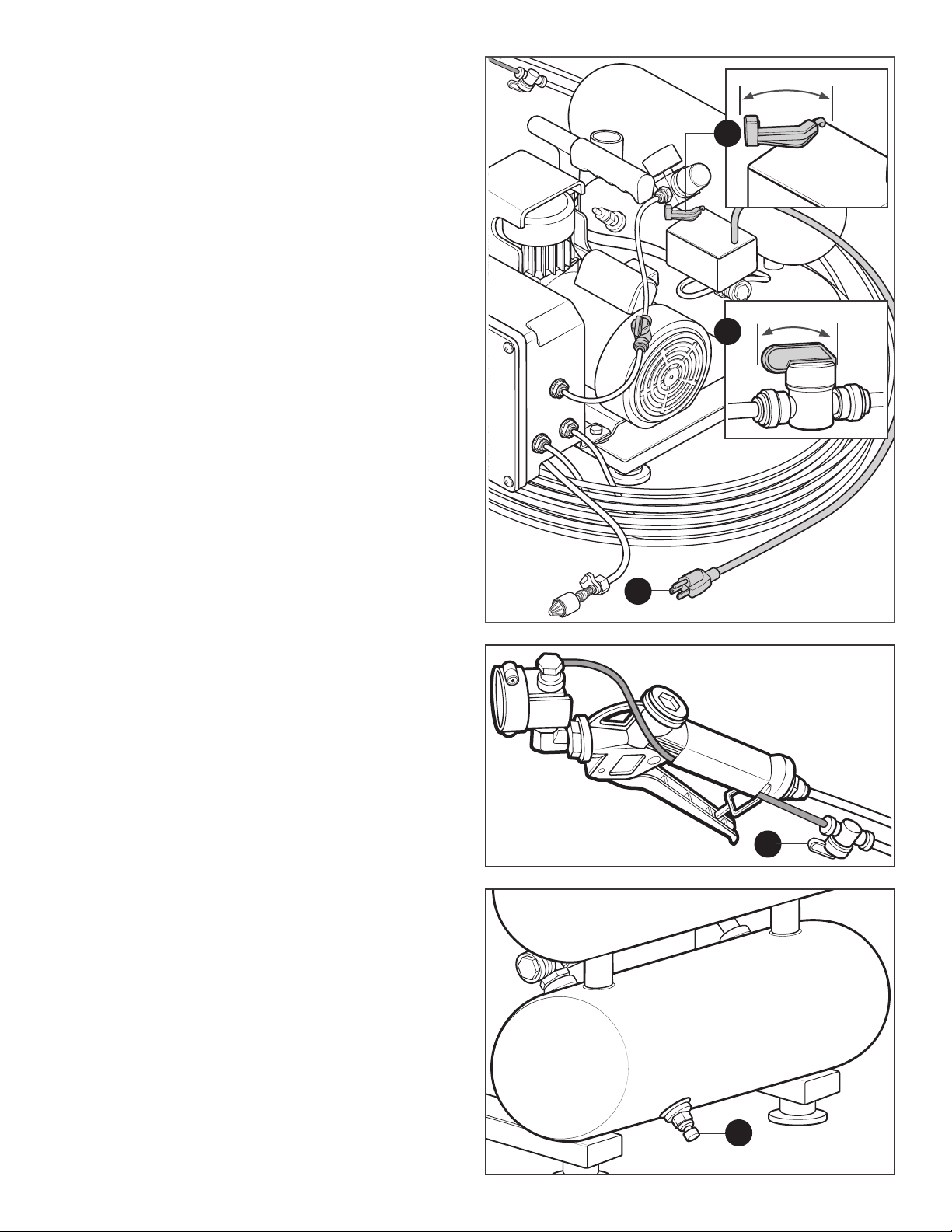

After Use Instructions
9. Flush the unit with fresh water for 5 minutes.
10. Shut o the air supply to the unit by closing the air
inlet valve to the control box.
11. Turn the power switch OFF to shut o the air
compressor.
12. Unplug the air compressor.
13. Open the air shut-o valve at the trigger gun and
squeeze the trigger handle to relieve any pressure
remaining in the unit.
Once pressure is relieved, release the trigger
handle and close the air shut-o valve at the trigger
gun.
14. Depressurize and drain the air compressor tank by
opening the drain valve on the compressor tank.
Open Close
12
13
10
11
OnO
14

V20201210 • Page 9 of 11
Model: MU-JR-PSGN130-H50
4Parts
FV2
H14C
H14BU
H14RU
H14TRB-50
H14TRB-100
H14BU
QF14P
CV14QF-S
QFBH14
QF14PAF
QFT14
ACLA5721
P56, P56K, or P56V
QFSOV14
PSG-N130
PFN-NZGRD QF1214
PSG12PFN-N130

V20201210 • Page 10 of 11
Model: MU-JR-PSGN130-H50
Item number Description
ACLA5721 1-HP 2-GALLON TWIN STACK AIR COMPRESSOR
CV14QF-S 1/4 Tube x 1/4 tube check quick fit-small
FV2 FOOT VALVE, VITON, BLUE
H14BU 1/4 in. OD blue polyurethane tubing - Available per ft.
H14C 1/4 in. ID (3/8 in. OD) clear polyvinyl tubing - Available per ft
H14RU 1/4 in OD red polyurethane tubing - Available per ft.
H14TRB-50 50 ft. section of 1/4 in. red/blue polyurethane twin tube
H14TRB-100 100 ft. Section of 1/4 in. red/blue polyurethane twin tube
P56 Pump with Santoprene seals - includes hose barbs, air fitting, and exhaust barb
P56K Pump with Kalrez seals - includes hose barbs, air fitting, and exhaust barb
P56V Pump with Viton seals - includes hose barbs, air fitting, and exhaust barb
PFN-N130 Pneumatic fog nozzle - polypropylene and kynar tip - 3.7 gallon/hour per nozzle
PFN-NZGRD-A Nozzle guard assembly for pneumatic fog nozzles-includes 2 guards and hardware
PSG12 1/2 in. poly spray gun with o-ring and gray handle and 316SS
PSG-N130 PSG12 gun with PFN-N130 and nozzle guard
QF1214 Quick fit-1/2 MPT x 1/4 OD tube-polypropylene
QF14P Quick fit-1/4 MPT X 1/4 OD tube-polypropylene
QF14PAF Quick fit-1/4 MPT pump air fitting
QFBH14 Bulkhead 1/4 in. tube polypropylene
QFSOV14 Shut o valve 1/4 in. tube - polypropylene
QFT14 Union tee 1/4 in. tube - polypropylene

V20201210 • Page 11 of 11
Model: MU-JR-PSGN130-H50
5Air Compressor Instructions
EXTENSION CORDS
The use of any extension cord will cause some drop in voltage and loss of power. For optimum performance, plug
the compressor power cord directly into a grounded wall socket.
Do not use an extension cord unless absolutely necessary. It is better to use a long air hose to reach area where
work is being performance. If use of an extension cord can not be avoided, refer to the following guidelines
Use only 3-wire extension cord. Make sure your extension cord is in good condition. Be sure gauge is sucient
to carry the current the unit will draw. Note that the smaller the gauge the heavier the cord. Example: Gauge 10 is
heavier than gauge 12.
