Light-ink SMOKE-1500 User manual

ENGLISH
SMOKE-1500
PRODUCT MANUAL
Version: 1.0

Warning 1
Caution 3
Please note:  3
Important 3
Description 4
Figure 1 SMOKE-1500 Functions  5
Getting ready 6
Set Up  6
DMX Connector Pin Assignment 7
Operation  8
Figure 2 DMX Chart  9
Important  11
Note other important detail  11
Troubleshooting  12
Maintenance  12
Product Specication 13

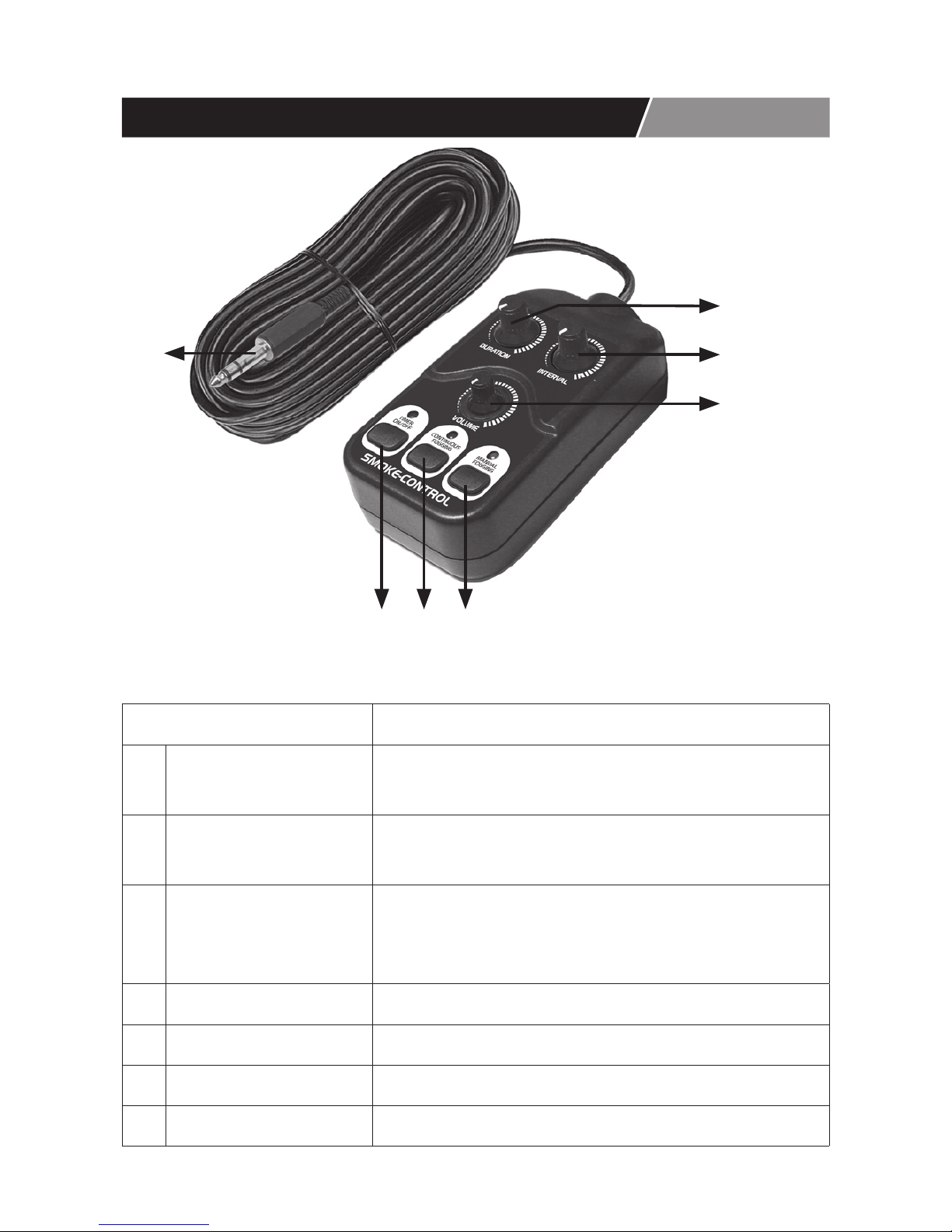

Appendix-A SMOKE-CONTROL  14
Appendix-B DMX Dip Switch Value Guide 16
CONTENTS
If the supply cord is damaged, it must be replaced by the manufacturer,
its service agent or similarly qualied persons in order to avoid a hazard.
Read the manual
Indoor use only
This symbol indicating separate collection for electrical and electronic equipment
Warning: situations that could cause injury to yourself or others
Caution: situations that could cause damage to your machine or other equipment
Note: notes, usage tips, or additional information
!
!
Instructional icons

(1)
Like all electronic products, SMOKE-1500 must be
used with safety precautions in mind.
Fill enough fog fluid before plugging in, empty fluid
tank when not in use or moving.
•Productsforindooruseonly.Keepawayfromliquids.Neveroperate
in rain or in damp conditions.
•Useonlyappropriate,groundedelectricpowersupplyforyourunit.
 Seeyourproductspecicationlabelforappropriatepowersupply.
This appliance must be earthed.
•Disconnectfromelectricmainspowersupplywhennotinuse,
 whenllingthefoguidtank,orwhenchangingafuse.Keepunit
dry. If moisture or liquids enter the fog machine case, immediately
 disconnectpower.Contactaservicetechniciantodetermine
safety for use.
•Keepmachineinatposition,neverputitintiltedplace.
•Beforemovingfogmachine,alwaysdrainfoguidintothetankand
 tightenthetankcapsecurelytoavoidspilling.
•Withoutuser-serviceablepartsinthepackage,pleasecontactyour
 localagentorqualiedtechnicianforservicing.
•Withoutchangeablestructurebynon-qualieduser,pleasedonot
 opentheupcoverorhaveanychangeatwill,otherwise,itmay
cause an accident!
Thank you for selecting our SMOKE-1500, you already own
the high-tech, professional DMX Fogs! Better read the manual
thoroughly before operation, follow instruction will help you
have a smooth handling with SMOKE-1500 to achieve the most
satisfactory fog effect, it will also assist unit to further prolong
life time as a whole.
Warning!

(2)
•Fogmachineisforadultuse.Keepoutofreachofchildren.
 Neverleavetheunitrunningunattended.
•Fogmachinenozzlegetshotover200degrees(celsius)during
 use.Don’ttouch!Maintainasafedistanceover100CM.Neveraim
 thenozzledirectlyatpeople.
•Keepcaseclosedwhileoperating.Putfogmachineindraftyplace,
 donotinsertobjectsintoairvents.Allow20cmspaceorabove
 aroundthemachineforproperventilation.
•Keepfogmachineawayfromamesandammableitems.
 Neveraimthenozzleatopenamesorsparks.Useonlyhighquality
 water-basedfoguid.Neverputammablesubstancesintothetank.
•Machinemustcooldownbeforecleaning,servicingorstoring.
•Neverputanyammablematerial(lipid,gas,perfumeetc.)intothe
 tank,readtheusermanualthoroughlybeforeoperation.
•Betteruseourhighqualitywater-basedfoguid,randomusewith
 otherfoguidmayjamthepipe,orevenerodethecomponents
inside.
•Keepsufcientfoguidintank.Operatingtheunitwithout 
 sufcientfoguid,willdamagethepump.
•Ifanyabnormalrunningoccurs,stopitimmediately,emptytheuid,
and bring the done up unit (recommend original box) to your agent
 ordealerforservicing.Makesurealluidisemptyfromthetank
 beforemovingorshipping.
•Neverdrinkfoguid.Ifuidcontactseyesorskin,rinseskin
 thoroughlywithwater.
•Readusermanualinstructionsthoroughlybeforeoperating.
 Followtheinstruction.Neverremovewarningorinformativelabels
from the unit.

(3)
Caution!
Important
Therearenouserserviceablepartsinsidethisunit.
Donotattemptanyrepairsyourself,doingsowillvoid
yourmanufactureswarranty.Intheunlikelyeventyour
unitmayrequireservicepleasecontactyourlocaldealer.
The wires in this mains lead are colored in accordance
with the following code.
EU
GreenandYellow–Earthed(E)
Blue–Neutral(N)
Brown–Live(L)
Warning:Thisappliancemustbeearthed.
USA
GreenandYellow–Earthed(E)
White–Neutral(N)
Black–Live(L)
Warning:Thisappliancemustbeearthed.
!
Please note:
Specicationsandimprovementsinthedesignofthis
unitandthismanualaresubjecttochangewithoutany
priorwrittennotice.

(4)
•DMXonboard,2DMXmodesforchoice;1CH,3CH,operatebyany
 additionalDMXcontroller.
•SimplytooperatebySMOKE-CONTROLtimingcontrolallowseasy
 timingcontrolvolume,interval,anddurationthroughbycontrol
panel.
•Humanizedwarningfunctionforabnormalstatus:Incasethefogger
 hasanyabnormalfunctioning,thestatusofLEDunderthetankwill
 beindicatingabnormalstatusaswarningtolettheuserbeawareof
 theproblematicsituationintime.
•LEDheatingindicatorsystemintank:RedON=Heating;Red
 OFF=Readytouse;RedFlash=Outofuid.
•Advancedoil-levelsensordetectsshortageofoilandwarnsthe
pump to cut the oil supply automatically.
•Aluminumdie-castdesignfunctionedwithhigh-effectiveheating
 modulepreventsclogging.
•Triplesafetyprotectionofheatergaveconsumersmoresecurity.
•Highoutputfogmachine,approx.18,000cu.ft/minoutputfor
 SMOKE-1500.
•ElectronicThermoSensing(ETS)–electronicheaterstayhotatall
 timesbetweenfogblasts.
•Directthermalprotection.
•Master/Slavemodecanbeoperatedeitherbythebuilt-intiming
 controlorbyoutsideconnectedcontroller.Simpleandhumanized
 designmakesthefoggereasierforuse.
Description

(5)
A.Bracket
B. Handle
C. FogFluidTank
D. SafetyLoop
E. LEDIndicator
F. DMX3pinXLROutput
G. DMX3pinXLRInput
H. ControlSocketConnection
I. DMXDipSwitch
 •FDS1:OFF=DMX1CH;
  ON=DMX3CH
 •FDS2:Nofunction
J. PowerSwitch
K. FuseHolder
L. ElectricPowerInput
H I L K J
A
B
C
D
E
F
G
Figure1 SMOKE-1500 Functions

(6)
Allproductsarethoroughlytestedatthefactoryandshippedin
perfect condition. If damage has occurred during shipping, or if
components are missing, please contact your local dealer immediately.
Your package should include:
1. OneSMOKE-1500
2.OneSMOKE-CONTROLtimercontroller
3.OnepowerCONcord
4.Oneproductusermanual
1. Opentheshippingcartonandcarefullyremovetheunitfromthe
shipping carton.
2. Besuretoremovepackingmaterialfromaroundthefogmachine,
 especiallynearthenozzle.
3. Setthefogmachineonadry,atsurface.
4. Placethefeedertubewithlterdeepinsidethefullfoguidtank
 (Cofgure1).Useonlyhighquality,water-basedfoguid.
5. Firmlyattachtheremotecontrolmechanismtosocket
 (Hofgure1)onthebackoftheunit.OruseDMXcontrolsetting
 (Iofgure1)onthebackoftheunit.
6. Plugmainspowercordfromthefogmachineintoappropriate
 powersupplysocket.Waitabout7minutesforheatingelementto
heat up.
7. Refertoyourcontrollermanualforoperationdetails.(AppendixA
 &B)
8. If fog is emitted continuously for a long time, the heating element
temperature may drop, shutting off fog production. If so, please
 donotactivateforemission.Waitbriey.Whentheheating
element temperature rises, fog emissions can be resumed.
Getting Ready
Set Up

(7)
Themachineprovidesa3-or5-pinXLRconnectorforDMX
connection.Thediagrambelowindicatespinassignmentinformation.
5 pin XLR 3 pin XLR
1. Ground
1. Ground
1. Ground
1. Ground
2. Cold
2. Cold
2. Cold
2. Cold
3. Hot
3. Hot
3. Hot
3. Hot
4. N/A
4. N/A
5. N/A
5. N/A
XLR Pin Configuration
Pin 1= Ground
Pin 2= Data Compliment
(negative)
Pin 3= Data True (positive)
Pin 4= No use
Pin 5= No use
XLR Pin Configuration
Pin 1= Ground
Pin 2= Data Compliment
(negative)
Pin 3= Data True (positive)
DMX Connector Pin Assignment

(8)
Function Dip Switch Selection:
FDS1: Channel Selection
OFF: DMX1CH ON: DMX3CH
FDS2: No Function
Remote Control Operation (Any of DMX Dip 1-9 “OFF”)
For best result, use SMOKE-CONTROL timing controller.
1. Firmlyattachtheremotecontrolmechanismtosocket(H;gure1)
 onthebackoftheunit.
2. Plugmainspowercordfromthefogmachineintoappropriate
 powersupplysocket.Waitabout7minutesforheatingelementto
heat up.
3. Refertoyourcontrollermanualforoperationdetails.(AppendixA)
DMX Control Operation (Any of DMX Dip 1-9 “ON”)
Use DMX Dip switches 1-9 to set the unit to the desired DMX512 address.
Refer to the DMX value guide in Appendix B.
1. ConnecttheDMX512controllercabletotheinputsocket
 (Gofgure1)ofthefogmachineunit.Makesurethesignalcable
 polarityiscorrect.Connectpowerlines.Yourmachineisnow
 readyforoperationwithyourDMXcontroller.
2. Ifdesired,connectanotherfogmachine:Plugoneendofanother
 signalcableintotheoutputsocket(Fofgure1)onthebackof
 therstSMOKE-1500;plugtheotherendofthesignalcabletothe
 inputsocket(Gofgure1)onthebackofthesecondSMOKE-1500.
 Followthesameproceduretolinkmorefogmachine,ifdesired.
Operation

(9)
CH1
Volume
5-25510%-100%
0-4OFF
CH1 CH2 CH3
Volume Interval Duration
5-25510%-100%
0-25510-250(s) 0-2551-10(s)
0-4OFF
DMX 1CH MODE ...............................................................................
DMX 3CH MODE ...............................................................................
Figure 2 DMX Chart

(10)
MASTER/SLAVER Operation (Any of DMX Dip 1-9 “OFF”)
Morethantwofoggerscanbesetassynchronicfoggingmodeby
SMOKE-CONTROL.Followingisthesettingway:
1. Master fogger: 1.SetDMXDipSwitch1-9toOFF,atthismoment,
 DMXforoutputmode,usedtocontrolotherfogmachines
 connectedtofollowthesynchronousaction;
2. Slave fogger: Afterconnectinginseries,setDMXaddressofall
 slavefoggersto“1”andsetitsFDS1toOFF(thenumberof
 channelsissettosinglechannel);
3. Done! NowyoucanusetheSMOKE-CONTROLformaster/slave
operation.
SMOKE-CONTROL

(11)
• AnyofDMXDip1-9”ON”forMasterfogger,willswitchtoDMX
 mode,onlyforreceivingexternalDMXcontrolsignals,andstop
 Master/SlavecontrolbySMOKE-CONTROL.
• ForMaster/Slavecontrol,onlyonefoggercanbesetastheMaster
 fogger.TheDMXDip1-9cannotbesettoOFFforanyoftheother
 Slavefogger.
• AsthehighpowerbetterputSMOKE-1500insteadyplace.
Ifdotiltitforspecialneed,pleasefastenitthoroughlywithincline
anglewithin15degree.
PluggingSMOKE-1500in,theredLEDundertankbottomwill
glowindicatingpoweron&warming-up.Checkifwithcorrect
voltageincaseitdoesn’tglow.RedLEDoffappearsaswarm-up
arrivesatfoggingpoint,indicatinganishedheatingtime.Besides,
SMOKE-1500devisesthelowuidsensor.RedLEDundertank
bottomwillautomaticallyashtowarnlowuidsupply.Thepump
stopssimultaneously.Keepaneyeontoensureenoughfoguid
whenrunning.
Shouldtherebeanylowfogemitted,runningnoisilyorhindered
fogging,pullouttheplugimmediately.Checkifstringenoughfog
uid,orifoutsidefuse,controllerconnectionandpowersupply
improper,ifnot,plug-inagain,stillpersistsabnormalrunning,check
ifwithanunhinderedpipe,withowinguid.Ifcausationisunclear,
stoprunningtoavoidanydamage,shutdowntocoolit,andbring
unittoyourlocalagentorappointedserviceplaceforinspection,
prohibit any dismantlement by yourself.
Important:
Note other important detail:

(12)
Thistroubleshootingguideismeanttohelpsolvingsimpleproblems.
Ifaproblemoccurs,carryoutthestepsbelowinsequenceuntila
solutionisfound.Iftheproblempersists,referservicingtoaqualied
technician.
-- Power Connected but No Fog Is Emitted
1. Checkthepowersupply.Plugtheunitintogroundedelectricpower
 supplysocketwithpropervoltage.
2. Checkyourcontrollerconnection.
3. CheckyourDMXaddresssetting.
4. Disconnectfogmachinefromelectricpowersupply.Replacefuse
 withoneofthesametype.
Beforedoingmaintenance,pleasemakesurethatthepoweriscut,the
powercordisunplugged,andthemachineitselfhascooleddown.
The maintenance must be done by qualified person.
• Thefogliquidisnotallowedtogetdirty.Besuretoalwayscleanor
 replacethecapsonthefogliquidvesselandtightthecoverofthe
 fogmachineliquidtankimmediatelyafterlling.
• Thenozzlecanbepossiblyjammedwithimpuritiesafterlong-time
 use.Dismantlethenozzleforcleaningeverycertainperiodoftime
 tokeepitsow.
• Periodicallychecktheconnectionsamongtheoiltube,thepump
 andtheheatertoseeifthere’soilleaking.Ifpositive,locktightthe
 connectionscarefullywithpropertool.
• PCboardshouldbekeptfrombeingdirtiedwithoil.Incasethis
 happened,dismantlecarefullythePCB,andhaveitbrushed
 cleanbothsideswithdilutealcohol.Leaveitdryitself,theninstallit
 back.Makesureallwiresarewellconnected.
• Cleanthemetalcoverwithdrycloth.
Troubleshooting
Maintenance

(13)
Item No. SMOKE-1500
Consumption 1450W
DMXChannel DMX1CHor3CH
Master/Salve Yes
Fuse(230V) T7A/250V
Tank(L) 2
FogOutput(cu.ft/min) 18000
WarmUptime(min) 7
FluidConsumption(ml/min) 45
DateConnection 3PXLR
LowFluidShutdown Yes
Bracketorhandle Both
Voltage 230V/50Hz
Dimensions/mm(LxWxH) 418×220×209mm
Weight(kg) 7.5kg
MatchingController(Included) SMOKE-CONTROL
* Voltage is preset at the factory and may not be changed.
418mm 220mm
209mm
Product Specifications

(14)
Timing Remote Control Operation .................................................
Function Movement Instruction
ATimersON/OFF Pressthebutton;thetimerofintervaloutputON
andtheupperredLEDwillglow.
BContinuousFogging Pressthebutton,thefogmachineemitsfog
continuouslyandtheuppedredLEDwillglow.
CManualFogging
Pressthebutton,itallowstheoperationbecon-
trolledmanually.Afterthemachinehaswarmed
up,theuppergreenLEDwillglow.
DDuration 0.5s~10s±1s
EInterval 3s~255s±1s
FVolume 10%~100%
G1/4”jackcable 8m
A B C
D
E
G
F
Appendix-A SMOKE-CONTROL

(15)
SMOKE-CONTROL timing controller is suitable for SMOKE-1500,
the operating manners and functions as follows:
1. The order of fogging:
 ManualFogging-->ContinuousFogging-->TimingFogging
2. RedLEDofmachine:On,heatingup;Off,heatingiscompleted;
 Slowash,lowuidlevelindication;Fastash,thethermalsensor
 wirefallsofforactsabnormal;Intermittentash,thecommunication
of thermo circuit and main control circuit faulted.
3. WhenTIMERbuttonpressed(down),theupperredledglows,
 meanstimingfunctionturnsON;thefoggingdurationisadjusted
 byturningDurationknob,Intervalknobsetstheamountoftime
 inbetweeneveryfogoutput,andVolumeknobisadjustthe
 fogvolume.DurationandIntervalknobsareeffectiveatthis
 moment.TIMERbuttonrelease(up)toOFFthetimingfunction.
4. WhenCONTINUOUSbuttonpressed(down)toturnson,theupper
 redLEDglows,themachineemitsfogcontinuouslyuntilanOFF
 greenLEDappears(indicatingtimeisnowtowarm-upagain).
 Underthisstate,Volumecouldbeadjustedbyknob.TIMERand
 MANUALbuttonareineffectiveatthismoment.
5. WhentheMANUALbuttonispressed(down),thefogoutputis
 outputwiththemaximumamountofsmoke.WhentheMANUAL
button is release (up), it returns to its original state.
Caution: Beforeremovingorreplacingtheremotecontrolunit
  disconnectthepowercord.

(16)
ThisisabriefguidetoDMXdipswitchvaluesettings.DMXproducts
musthavetheirown“address”toreceiveDMXsignals.Addresseson
SMOKE-1500aresetbyippingappropriateDMXdipswitches.
Todothis,youneedtoknowtheDMXdipswitcheshavethe
followingvalues:#1=1;#2=2;#3=4;#4=8;#5=16;#6=32;#7=64;
#8=128;#9=256.AndyouneedtoknowthatDMXaddresssettings
arethesumofthedipswitchvalues.
Forexample,standardDMXaddressesforfourSMOKE-1500,eachof
whichhasthreechannels(seeFigure2),follow:
Address Value DMX Dip Switches “ON”
Unit1  1  #1
Unit2  4  #3
Unit3  7  #1,#2,&#3
Unit4  10  #2,&#4
Explanation:Sinceeachunithasonechannel,eachaddressadvances
onevalues(seeaddressvalueabove).
Onceaddressvaluesareguredout,addDMXdipswitchvaluesto
obtaintheappropriateaddress(AnyofDip1-9“ON”)foreachunit.
FlipappropriateDMXdipswitchesoneachunit.
 Theaverageoperatingtemperatureofthefogmachinemust
 belessthan250degreesCelsius.
Appendix-B DMX Dip Switch Value Guide
Savethisinstructionproperly
Alltheinformationissubjecttochangewithoutpriornotice

Savethisinstructionproperly
Alltheinformationissubjecttochangewithoutpriornotice
