The CenterStage™video processors, by Focus
Enhancements, offer exceptional image quality, flexibility,
features, and the latest in de-interlacing, digital video
processing and scaling technology. With a combination
of advantages usually found in the most expensive
processors, CenterStage brings high-end performance
without the high-end price.
While television, DVDs, tapes, and other interlaced
sources look good on displays designed for their
resolution, artifacts result when these sources are
incorrectly converted for higher resolution displays.
The scaling circuitry inside projectors or plasmas
is typically primitive or only optimized for computer
video sources. External line doublers, while better,
only bring the source one step closer to the native
resolution required by the display.
CenterStage functions as a resolution multiplier and
upscales video to the full native resolutions required by
today's CRT/LCD monitors, LCD/DLP/D-ILA projectors,
and high-resolution plasma display panels.
Visible scan lines and flicker are eliminated, and
the result is a picture with improved detail and color
quality that is perfect for professional presentations
and home theater applications. CenterStage accepts
interlaced, progressive and digital inputs. Its output is
pure, flicker-free, progressive video that is fine-tuned
to your standard or high-definition display.
In addition to an easy-to-use interface complete with
infrared remote and on-screen display, the full RS-232
capability allows for interfacing to Crestron, AMX,
or similar controllers. Input parameters are stored to
ensure consistent operation with all your video sources.
video processor
CenterStage Remote (CSR)

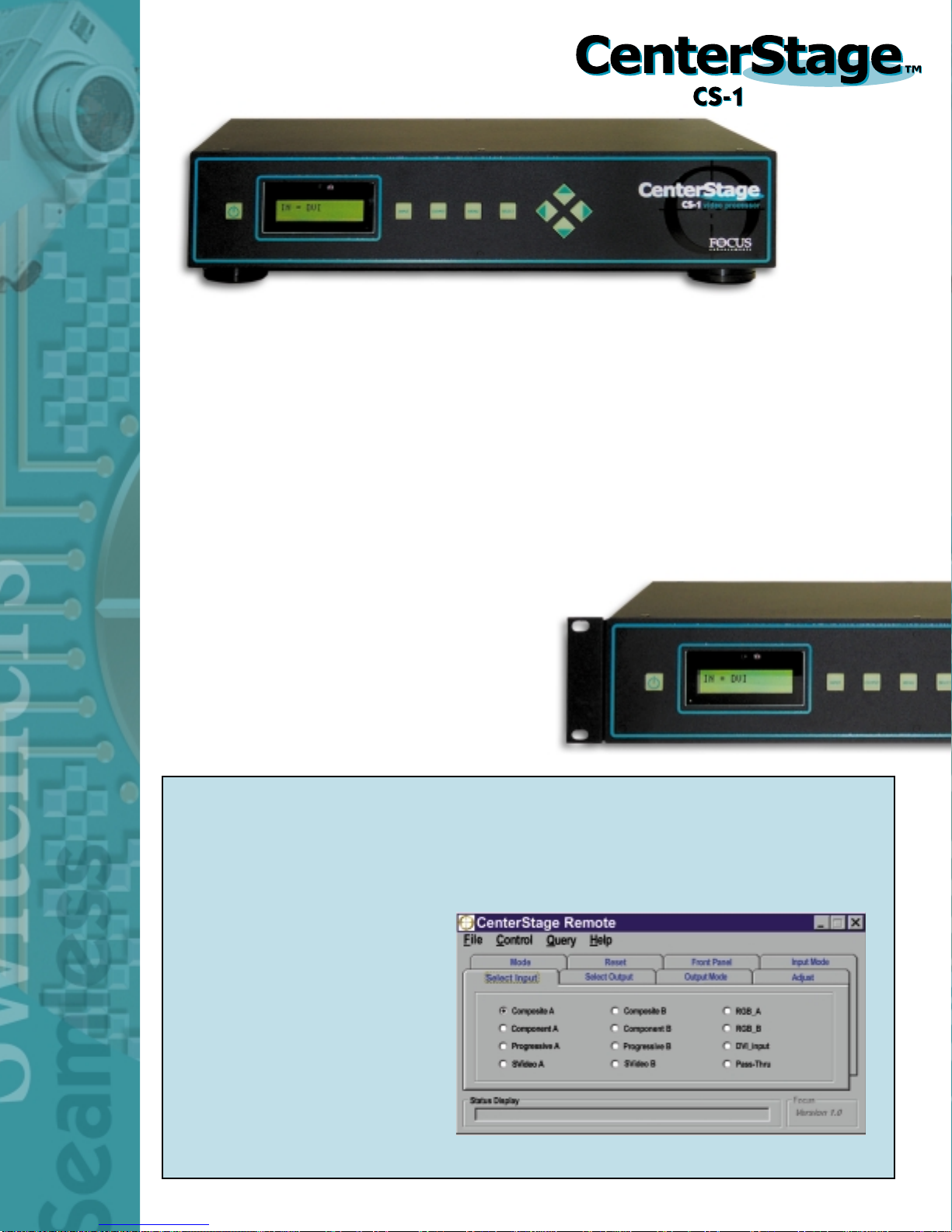

Any registered CenterStage customer can download CSR for free. With CSR , your CenterStage Video Processor is
controllable, customizable, and upgradable. CSR runs on a Win 95/98/NT/2000 computer with a RS-232 serial port,
and requires a standard serial cable for connection to CenterStage.
With CSR, you can:
• Control video settings, select input
channels or formats, and set preferences
• Customize, rename, delete, or add
output resolutions
• Upgrade your CenterStage Video
Processor's operating software
• Verify serial operation for Crestron
or AMX interfacing
Most importantly, CSR ensures that your
CenterStage is future-proof, since new
display resolutions can be easily
downloaded and installed.

OUTSTANDING FEATURES
•Scales to popular native resolutions for monitors,
projectors and plasma panels including: VESA
(VGA to WXGA), 1365 x 1024 D-ILA, 720P, 1080i,
1080p, 852 x 480/576, 1024 x 1024, 1024 x 768,
1280 x 768 and 1365 x 768. New resolutions can
be easily downloaded, installed and customized
•Flexible inputs support composite, S-Video, YPrPb,
RGB, 480/576p, and DVI digital
•DVI digital, RGB and component outputs
•Infrared Remote, RS-232, or front panel control choices
•Backlit LCD status and on-screen display
•3:2/2:2 Pulldown detection and correction for best
viewing of film-based sources
•Supports all combinations of input and output
aspect ratios
•Input controls over contrast, brightness, saturation,
sharpness and hue
•Active buffered pass-through for DTV or computer sources
•Advanced comb filter input
•Luminance and chrominance noise reduction
•Auto-save memory for settings and input formats
•Screen Trigger Output
•Supports 4:3, 16:9 and Anamorphic Output Aspect Ratios
APPLICATIONS
•Home Theater
•Corporate Presentations and Training
•Rental and Staging
•HDTV Upscaling
•Video Installations
•Electronic Cinema
•Digital Signage and Advertising
•Format Conversion
CS-2 SPECIFIC FEATURES
•Standard DVI HDCP compliance
•SDI input option
•Time base correction (TBC)
•Rackmount brackets
•BNC analog video input
connectors
DVI and HDCP
The CenterStage CS-2 Video Processor supports the most common flavor of digital
source and display standards, DVI. With DVI, or the Digital Visual Interface, video
remains digital from the source (STB, PC, DVD, HTPC, etc.), through the CenterStage
Video Processor, and to the display (television, monitor, projector, plasma, etc.).
High-bandwidth Digital Content Protection (HDCP) is a content protection scheme used
with DVI to prevent unauthorized copying
and redistribution of digitally perfect
content. Original content via computer
display cards or game consoles, and
video from standard definition DVD
players will not likely be content protected.
New high-definition set-top boxes are
expected to be HDCP enabled to protect
high-definition movies and pay-per-view
programming. DVI with HDCP is standard
on CenterStage CS-2, so it is fully
compatible with any HDTV installation.
digital visual interface
video processor
HDCP COMPLIANT

PRODUCT SPECIFICATIONS
Input
Horizontal Range NTSC 15.734 kHz, PAL 15.625 kHz
Vertical Range NTSC 30 Hz, PAL 25 Hz
Color Standards NTSC, NTSCJ, PAL 50, PAL 60, SECAM
Connectors Composite - RCA or BNC (CS-2)
S-Video (Y/C) - 4-pin mini din
Component (Y Pr Pb or RGB) - RCA or BNC (CS-2)
Progressive (Y Pr Pb) - RCA or BNC (CS-2)
Digital (DVI-D) receptacle
Computer Pass-Through HD-15 male (VGA)
Aspect Ratios 4:3 (standard format), 16:9 (widescreen format),
4:3 (letterbox), 16:9 (letterbox)
Memory Auto-save input parameters
Adjustments Contrast, Brightness, Saturation, Hue, Sharpness
Weight and Size 19” x 9” x 3.5”, 12 lbs. (482mm x 230mm x 88mm, 5.5 kg.)
Power Usage 100-240 VAC, Auto Ranging 50 to 60 hz
Compliance FCC Class B
UL cUL
Optional Accessories HD15 to BNC Cable, Rackmount Brackets (CS-1)
Warranty Two years (USA & Canada)
Included Centerstage Video Processor, Remote Control,
Centerstage Manual, IEC Power cord. VGA
Pass-Through Cable
Outputs
Frame Rate Computer/VESA 60, 72, or 75 hz
PAL 50, 60, 72, 75
Other resolutions 60 hz
Connectors Digital (DVI-D) receptacle connector
HD-15 female (VGA)
Aspect Ratios 4:3, 4:3 Anamorphic, 16:9
Professional Video Processors
1370 Dell Avenue Campbell, CA 95008
Info: 800 338-3348 Main: 408 866-8300 Fax: [phone]
http://www.FOCUSinfo.com email:[email protected]
Specifications subject to change.
All brand and product names are trademarks
of their respective companies.
©FOCUS Enhancements, Inc. MANL-0888-04
STANDARD OUTPUT RESOLUTIONS
COMPUTER/VESA PROJECTOR/HDTV PLASMA
800 x 600 (SVGA) 480p 852 x 480
1024 x 768 (XGA) 1280 x 720p 16:9 852 x 576 (PAL)
1280 x 1024 (SXGA) 1920 x 1080i 16:9 1024 x 768
1280 x 768 (WXGA) 1920 x 1080p 16:9 1024 x 1024
960 x 540p 1280 x 768
1365 x 1024 D-ILA 1280 x 960
1400 x 1050 D-ILA 1365 x 768 16:9
1365 x 1024

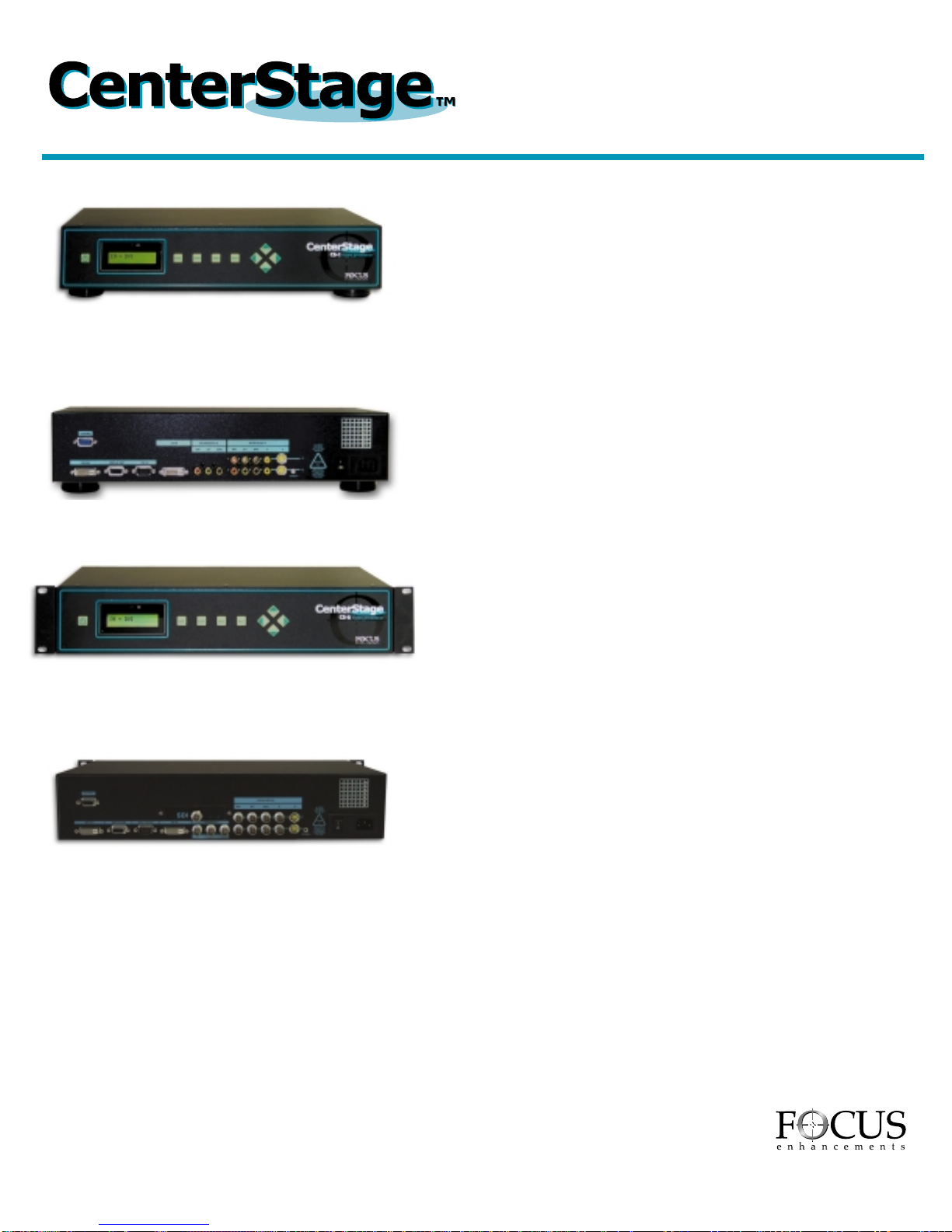

CS-1
ASYF-0635-01 (USA)
ASYF-0636-01 (EURO)
ASYF-0637-01 (UK)
ASYF-0638-01 (AUST)
CS-1 Rear Panel
CS-2
ASYF-0650-01 (USA)
ASYF-0651-01 (EURO)
ASYF-0652-01 (UK)
ASYF-0653-01 (AUST)
CS-2 Rear Panel
