foc.us moovs User manual

foc.us v2, dock and moovs
instructions

2
Congrats on your foc.us moovs neuro-
stimulator, lets get started!
1. Connect your foc.us v2 and moovs
together
2. Stick the hydrogel pad to your clean dry
head and then attach the moovs
3. take charge - start your neuro-modulation
session
Please ensure you have the foc.us+ connect
software installed on your computer.
Quick Start

3
If you suffer epilepsy, seisures, brain
lessions, bipolar depression or severe heart
disease you should not us a foc.us headset.
If you experience any short term negative
effects with focus you should stop use
immediately. foc.us moovs is not a toy and
is not intended for use by anyone under
the age of 18 years old. Do not position
electrodes over cuts, grazes or damaged
skin. Allow at least 48 hours between
usage. Do not touch the metal electrodes as
this can lead to burns.
Warning
WARNINGCE CERTIFIED BF APPLIED PART

4
Please download the foc.us+ connect
software for your computer from
http://www.foc.us/v2/downloads
You must have the correct drivers installed
for your foc.us dock to draw power via USB.
Installing the software is also allows you to
keep your foc.us rmware up to date.
Download

5
Firmly insert your foc.us v2 into the dock
and connect the dock to a 5V power supply
e.g. your computer.
You must have the drivers or software
installed on your computer for charging
function to work correctly.
Charge

6
Press the blue joystick to wake the foc.us
v2
The programs menu contains ve default
programs which you can tailor to your
needs.
The setup menu allows you to change
device specic settings.
Menus control

7
There are four different modes that can be
used for neuro-modulation.
Each mode produces a different electrical
signal shape.

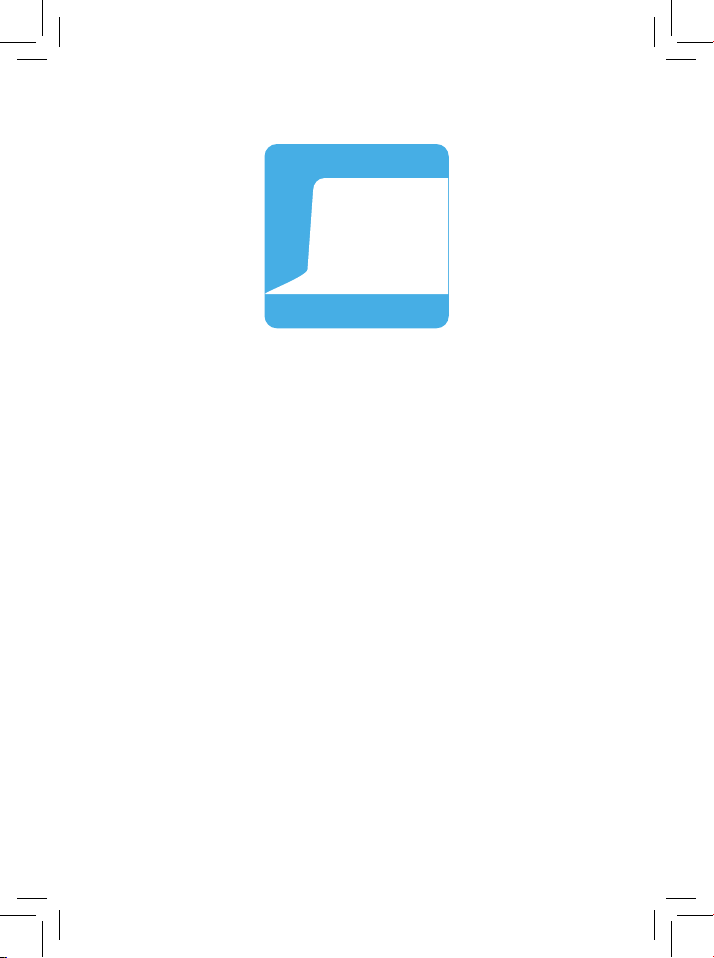

tDCS
transcranial Direct Current Stimulation.
This mode generates a current at a
constant value.
Modes

8

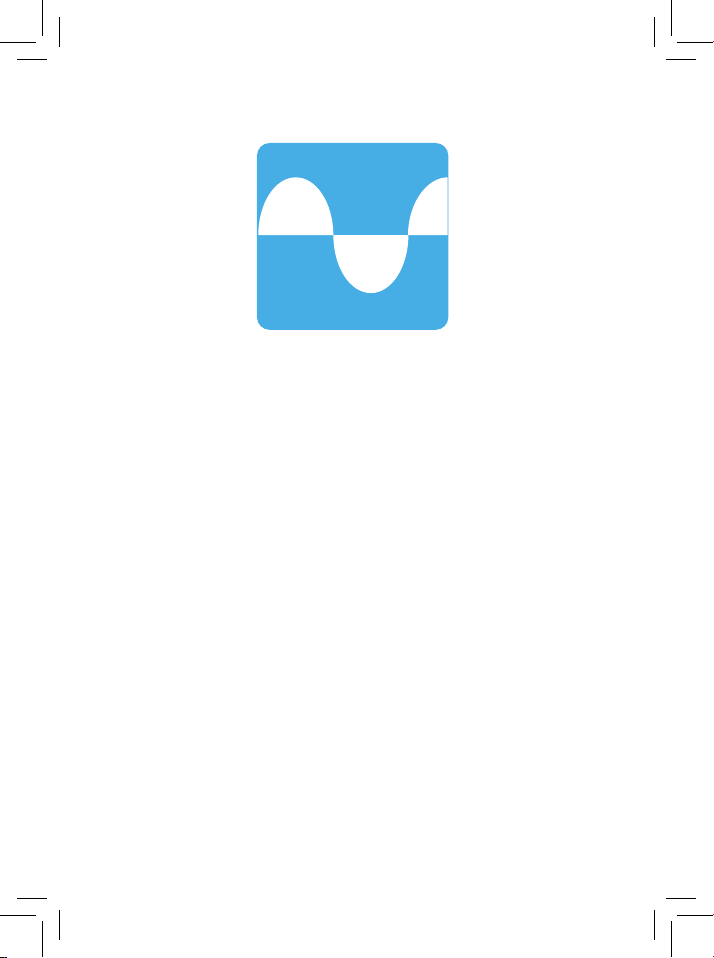

tACS
transcranial Alternating Current Stimulation.
This mode generates a current with an
alternating value shaped like a sine wave.
Frequency setting determines how many
cycles per second will be generated.
Bipolar setting determines if the electrodes
will alternate polarity during a cycle.

9
tRNS
transcranial Random Noise Stimulation
This mode generates a random current
where either the frequency or target current
can be randomized.
tPCS
transcranial Pulsed Current Stimulation.
The mode generates pulses of current
shapes like square waves, where the duty
cycle can be controlled.

10
The maximum voltage setting will
determine the maximum voltage at the
electrodes.
This setting overrides the target current
value and so can prevent a target current
being reached if the resistance of the
electrode or head is too great.
The target current value can be set for all
modes.
The maximum possible setting is 2.0mA
and the device is hardware limited to
2.05mA
If using non-foc.us electrodes please be
careful to ensure the current density is
within considered safe guidelines.
Current
Voltage

11
Sham
Setup
When sham mode is enabled the device
ramps up a current but then invisibly turns
it off, whilst the display shows a fake graph.
In blind sham, the device may or may not be
in sham, only later analysis of the session
will conrm if it was a sham session or not.
Power OFF -
Battery - show battery charge level
About Device - show device serial number,
rmware, hardware and bootloader version
infrmation
Reboot device - restarts device
Reset settings - resets device to factory
settings for both programs and setup

12
Bluetooth security - protects the reading
and writing of program related data via
bluetooth with a PIN
Bluetooth - turns Bluetooth on or off
Airplane mode - turns Bluetooth on or off

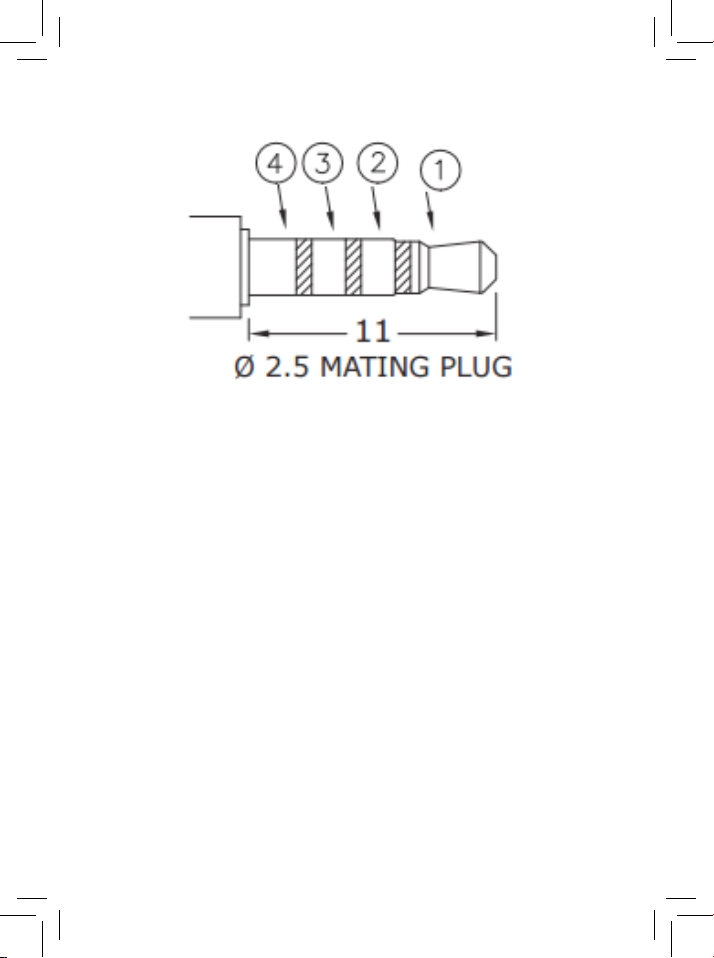

1. -ve 5v power
2. +ve 5v power
3. electrode Y
4. electrode X
4 pin standard

13
Bluetooth Low Energy
Updating rmware
The foc.us dock and v2 are Bluetooth Low
Energy devices.
The foc.us Bluetooth specications are
documented online and available for 3rd
party development.
Regularly update your v2 with the newest
rmware for best results.
The rmware update process is controlled
by the foc.us+ connect software.
Please note that updating via Bluetooth can
be interrupted in areas with a high density
of other wi and Bluetooth devices.

14
Connect the moovs electrodes to the foc.us
v2 by inserting the 4pin 2.5mm jack into the
corresponding socket.
For the latest information on available
mobile apps to control foc.us please see
www.foc.us/apps
Mobile Apps
Peel & Stick
foc.us hydrogel pads are designed to stick
to clean dry skin.
They can often be reused but should be
changed when they no longer fully stick to
skin.
foc.us moovs attach to the hydrogel pads
via magnetic force
Connect to v2

15
X & Y
foc.us moovs are labelled X and Y to
identify which electrode is the cathode and
which is the anode.
Ensure that you have placed the X and Y
correctly according to the program you are
running.

16
It is possible to create many different
stimulation montages using foc.us moovs.
Please register with foc.us+ to nd the right
montage for you. http://foc.us
Montages
Trouble shooting
V2 will not charge - ensure dock is
connected and software has been
installed on host PC. Suggested steps: try
connecting to a USB wall socket adapter.
No dock connected - ensure usb is
connected, drivers are installed and only
one instance of software is running.
Suggested steps: Uninstall and reinstall
software

17
Bluetooth not found - ensure Bluetooth is
turned on in device and device is not already
Bluetooth connected to something else e.g.
phone, or dock.
Suggested steps: Reset settings from
foc.us v2 setup menu.
Target current not reached - ensure
maximum voltage setting is high enough
to reach target current given impedance
of system. Suggested steps: increase
maximum voltage setting or reduce
resistance in electrodes or head.
Not sticking to head - ensure skin is clean
and dry before application. Suggested
steps: clean skin area and try with new
hydrogel pads
More information can be found on the
foc.us support website
http://help.foc.us

18
Always return foc.us moovs to the
protective case when not in use.
Maintenance
Specications
foc.us v2
Size: 56mm x 29mm x 14mm
Weight: 21 grams
Battery: 3.7V Li-Po 180mAh rechargeable
Maximum current: 2.05mA
Maximum voltage: 60V
Bluetooth: Bluetooth 4.0 low energy, GATT
prole
FCC ID: 2AAh6NUFC9
foc.us moovs
Size: 38mm x 38mm x 12mm
Weight: 14 grams per each
Connection: 2.5mm 4 pin male plug

19
FCC
FCC warning statement:
This device complies with Part 15 of the
FCC Rules.
Operation is subject to the following two
conditions:
(1) This device may not cause harmful
interference, and
(2) This device must accept any
interference received, including interference
that may cause undesired operation.
This equipment complies with FCC
radiation exposure limits set forth for an
uncontrolled environment. End users must
follow the specic operating instructions
for satisfying RF exposure compliance. This
transmitter must not be co-located or
operating in conjunction with any other
antenna or transmitter.
Changes or modications not expressly
approved by the party responsible for
compliance could void the user’s authority
to operate the equipment

20
foc.us warrants the foc.us headset (the
“Product”), and only the Product, against
defects in materials and workmanship
under normal use for a period of twenty four
(24) months commencing on the date of
original purchase by the original purchaser
(the Warranty Period). This warranty does
not cover damage caused by misuse,
accident, abuse, natural and/or external
causes (i.e. re, earthquake, flood, etc.), use
other than as intended and described in the
Product instruction manual, nishes, normal
wear and tear, tampering, unreasonable use,
service performed by unauthorised service
agents, or loss or damage to the battery.
foc.us does not warrant that the operation
of the Product will be uninterrupted or error-
free
Warranty & Guarantee
