H-980 7.1 VIRTUAL SURROUND SOUND HEADSET
OWNER’S MANUAL —
Before installing and using the product, please read the instructions thoroughly and retain them for future reference. 8044982
FEATURES:
• TheUSB2.0interfaceeasilyconnectstoacomputer.Driversoftware
(provided)offerscustomizablefunctions
• Supportedsystemswithdriversoftware:Win7,Win8,Win8.1andWin10
• Thecustomizableinterfaceprovidespowerfulandrealistic3Dsound
qualitywithoptionstoenhancethelisteningsoundeffects
• Thetwo-piecebuilt-invibrationunitensuresstrongerbassandbrings
animmersiveeffecttoyourgameormovie;offeringamorepowerful
and stronger gaming experience
1. PC MANUAL
• DriverInstallation
• PlugtheUSBconnectorintoanyavailableUSBportonyourcomputer
• Ifthedriverdoesnotautomaticallyload,open“mycomputer”,locate
the“setup.exe”anddoubleclicktoinstall

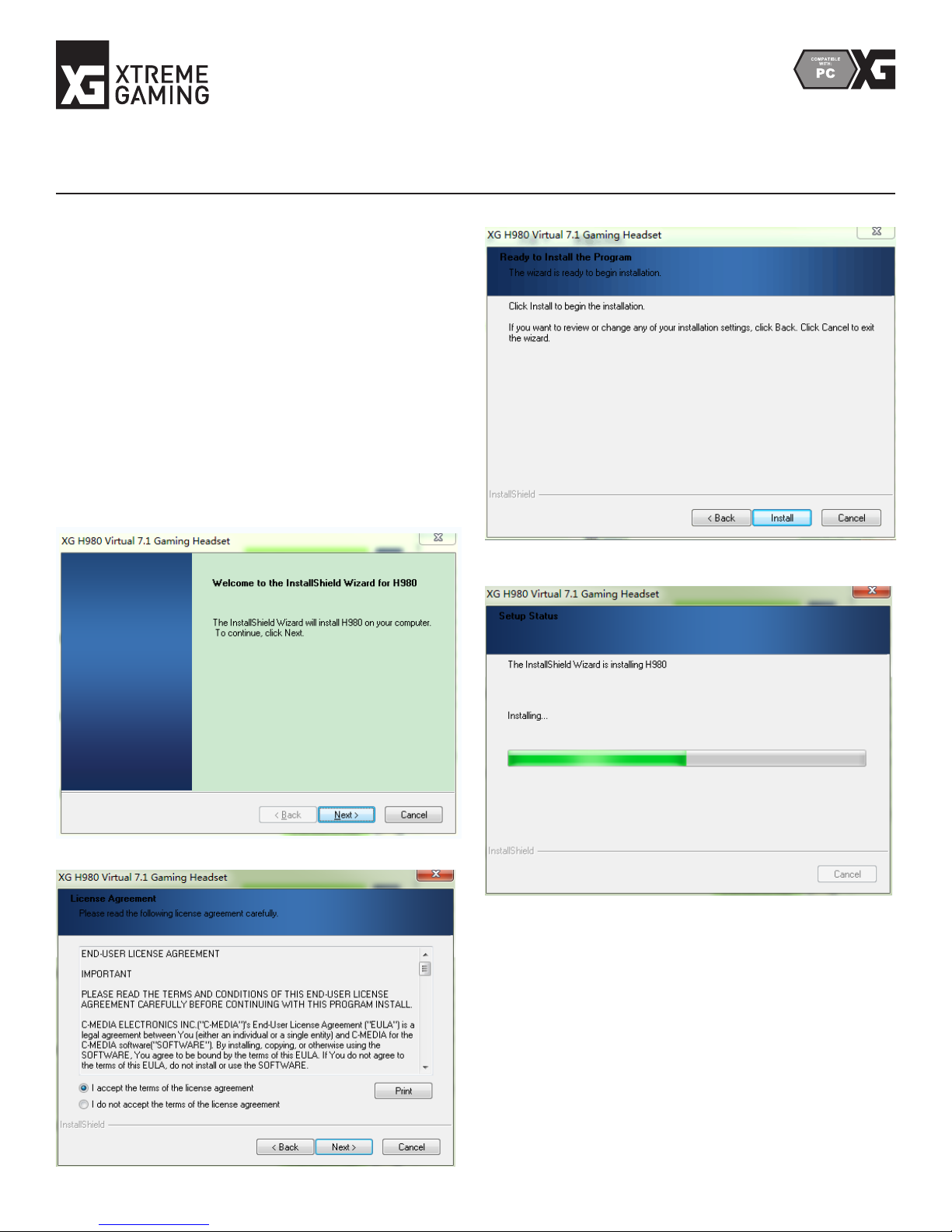

• Entertheinstallationinterface(asPic.1),click“Next>”.Click‘Next’on
Pic2andPic3

Pic.1
Pic2.
Pic.3
Pic.4

Pic.5
Thelastledialogwillrequesttorestartandupdatethecomputer.Click
‘Yes’and‘Finish’torestartyourcomputer.
Note:Someantivirussoftwarewillrecognizethisdriverasavirusora
virusalert.Theantivirussoftwaremightalsointercepttheinstallationcaus-
ingtheinstallationtofail.Topreventthis,temporarilycloseyourantivirus
softwarebeforeinstallation.Thenrebootyoursystemforautomaticrecov-
eryofyouranti-virussoftware.
INTERFACE INSTRUCTION
Main settings
• DoubleclicktheXGicon(asshownonPic6).Pic.7willpop-up
Pic.6

Pic.7
VOLUME CONTROL
• Toadjustthevolume(MasterVolume,Leftandrightsensitivitycontrols),
select‘VolumeControl’onPic7.SeePic8below
Pic.8
SAMPLING FREQUENCY
• ShowninPic.9,selectfromtwooptions:44.1KHzor48KHz
Pic.9
SOUND EFFECT
• InPic.frame10,selectthedesiredsoundeffectsuchas:Default,
Dance,BassorRock
Pic.10

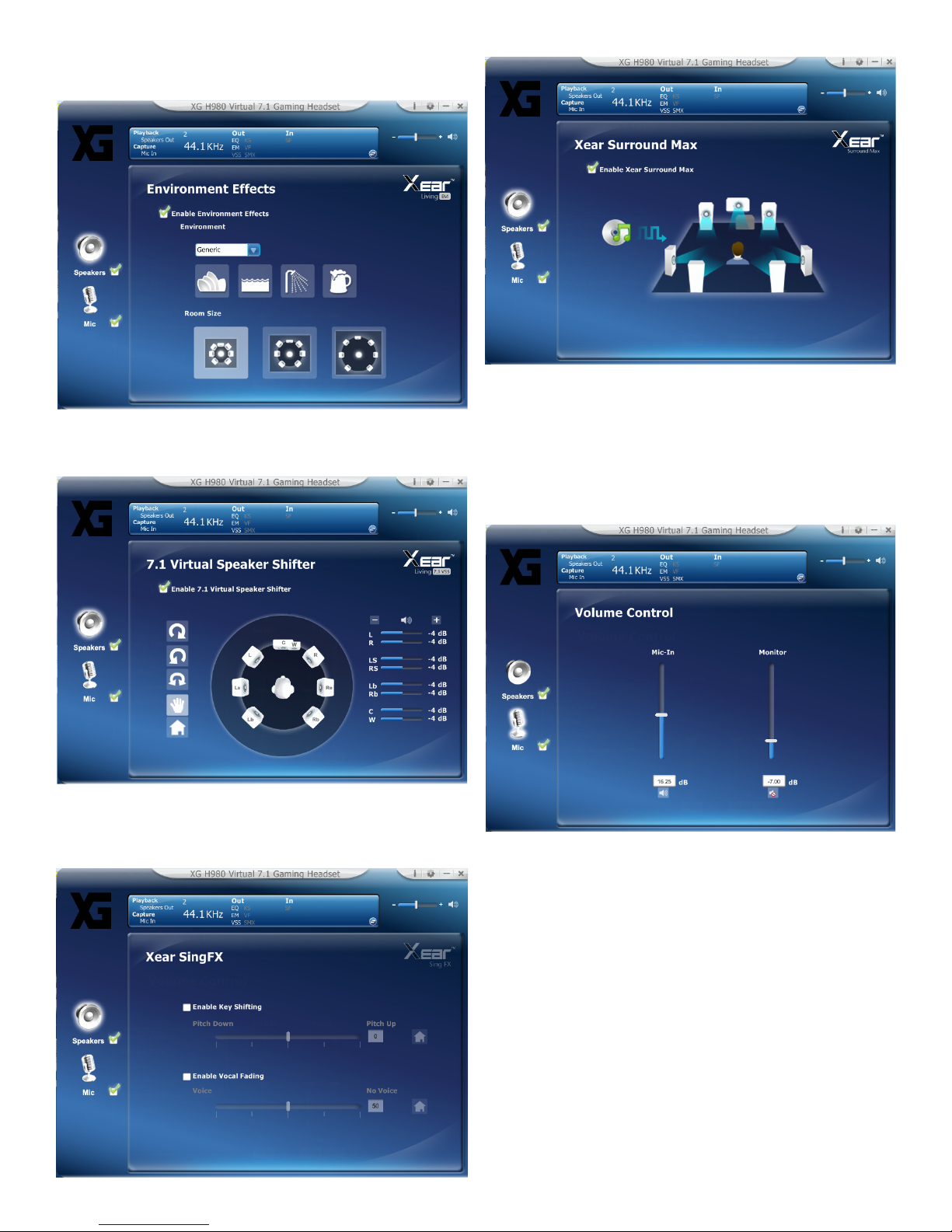

• ShownasPic.11,selecttheaudiosoundsimulation.Thereareupto27
differentsoundeffectsand3differentroomsizes
Pic.11
• ShownasPic.12,selecttheactivevirtual7.1soundeffect
Pic.12
• ShownasPic.13,selecttheactivetonecontrolandtheoriginalsound
alteration function
Pic.13
• ShownasPic.14,activatethesurroundsound
Pic.14
Microphoneadjustment:doubleclickorright-clicktoopenthemicrophone
MICicontoselectthecorrespondingmenu.
VOLUME CONTROL
• ShownasPic.15,youcanchoosetoadjustvolume(MicVolumeand
Monitor),unlocktheleftandrightchannelsensitivity
Pic.15
SAMPLING FREQUENCY
• ShownasPic.16,selectfromtwooptionsformicrophonefrequency:
44.1KHzor48KHz

Pic.16
• ShownasPic.17,selectfrom4kindsofvoiceeffects:monster,cartoon,
manorwoman
Pic.17
MICROPHONE UPGRADE
• ShownasPic.18,activateMicrophoneBoosteffecttoupgradethevoice
volume
Pic.18
• ShownasPic.19,selecttocustomize4optionsofsoundeffectsand
playhighdelity,movies,musicorcustommode
Pic.19
OS VERSION INFORMATION
• ShowasPic.20,thedriverinformationisshownintheWin7/8/8.1/10OS
Pic.20
APPLICATION SETTINGS
• ShownasPic.21,selectfromthelanguageandtransparenteffect
optionsavailable
Pic.21

WIRE CONTROLLER INTRODUCTION
• Thein-linecontrollerisshownasPic.22.Tooperatethe‘vibration’
function,presstheVIBRATEbuttontoactivate.Toactivatethemute
functionofthemicrophone,presstheMUTEMICROPHONEbutton.
Adjustthevolumebyturningthevolumewheelupordown
WARNING:TurndownthevolumeontheH980tothelowestlevel.Place
theheadsetonyourheadandadjusttheheadbanduntiltheheadset
tscomfortably.Adjustthemicrophonetotproperly.Slowlyraisethe
volumetoacomfortablelevel.Highlevelsofnoisecandamageyourear
drumsandincreasetheriskofhearingloss.
SPECIFICATIONS
Microphone MicDimensions 6.0x2.8mm
Sensitivity -46±3dB(at1KHz)
Directivity Omnidirectional
Impedance ≤2.2kΩ
Speaker DriverDiameter Ø40mm
Sensitivity(S.P.L) 105±3dB(at1KHz)
Impedance 32Ω
FrequencyResponse 20Hz-20kHz
CordLength ≥2.0meters
Plug USB
NetWeight ≈405g
IMPORTANT SAFETY PRECAUTIONS
• Donotlistenatahighvolumelevel.Extendedhighvolumelevelscan
lead to permanent hearing loss
• Startwithsettingthevolumelevelatthelowestvolumeandadjustuntil
youreachacomfortablevolumelevel
• Donotusewhilesleeping,asaccidentsmayoccur
• Ifyouexperienceanyringinginyourears,tryloweringthevolume.If
theringingpersists,visityourphysician
• Tamperingwiththeproductcanresultindamagetoyourproduct,void
ofwarranty,andcouldcauseinjuries
