Focusrite REDNET D16 AES User manual

User Guide
www.focusrite.com
FFFA001091-02
IN
OUT
1-2 3-4 5-6 7-8 9-10 11-12 13-14 15-16
SECONDARY
PRIMARY
LOCKED
NETWORK
×2
×4
48 kHz
44.1 kHz
PULL UP/DOWN
SAMPLE RATE
WORD CLOCK DARS
INTERNAL
INPUT 1-2
INPUT 9-10
CLOCK SOURCE
POWER
WORD CLOCK
PRIMARY SECONDARY
S/PDIF AES/EBU
9-16 IN & OUT 1-8 IN & OUT
IN DARS
( )
IN
OUT
1-2 3-4 5-6 7-8 9-10 11-12 13-14 15-16
SECONDARY
PRIMARY
LOCKED
NETWORK
x2
×4
48 kHz
44.1 kHz
PULL UP/DOWN
SAMPLE RATE
WORD CLOCK
DARS
INTERNAL
INPUT 1-2
INPUT 9-10
CLOCK SOURCE
PSU A
PSU B
ON

2
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s
instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug
has two blades with one wider than the other. A grounding type plug has two blades and
a third grounding prong. The wide blade or the third prong are provided for your safety. If
the provided plug does not fit into your outlet, consult an electrician for replacement of the
obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer,
or sold with the apparatus. When a cart is used, use caution when moving the cart/
apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus
has been damaged in any way, such as power-supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain
or moisture, does not operate normally, or has been dropped.
No naked flames, such as lighted candles, should be placed on the apparatus.
The appliance coupler is used as the disconnect device, the disconnect device shall remain readily
operable.
Do not use a damaged or frayed power cord.
If the mains plug supplying the apparatus incorporates a fuse then it should only be replaced with a fuse
of identical or lower rupture value.
The apparatus shall be connected to a mains socket outlet with a protective earthing connection.
Laite on liitettävä suojamaadoituskoskettimilla va rustettuumpistorasiaan
Apparatet må tikoples jordet stikkontakt
Apparaten skall anslutas till jordat uttag
GB
FIN
NOR
SWE

3
Compliance Information Statement: Declaration of Compliance procedure
Product Identification: Focusrite RedNet
Responsible party: American Music and Sound
Address: 4325 Executive Drive
Suite 300
Southaven
MS 38672
Telephone: [phone]
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired
operation.
For USA
To the User:
1. Do not modify this unit! This product, when installed as indicated in the instructions contained in this manual, meets
FCC requirements. Modifications not expressly approved by Focusrite may void your authority, granted by the FCC, to
use this product.
2. Important: This product satisfies FCC regulations when high quality shielded cables are used to connect with other
equipment. Failure to use high quality shielded cables or to follow the installation instructions within this manual may
cause magnetic interference with appliances such as radios and televisions and void your FCC authorization to use this
product in the USA.
3. Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of
this equipment in a residential area is likely to cause harmful interference in which the user will be required to correct
the interference at his own expense
For Canada
To the User:
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.
The exclamation point within an equilateral triangle is intended to alert the user
to the presence of important operating and maintenance (servicing) instructions
in the literature accompanying the appliance.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS
TO RAIN OR MOISTURE AND OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHOULD NOT BE
PLACED ON THIS APPARATUS.
The lightning flash with arrowhead symbol, within equilateral triangle, is intended
to alert the user to the presence of uninsulated “dangerous voltage” within the
product’s enclosure that may be of sufficient magnitude to constitute a risk of
electric shock to persons.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER
(OR BACK). NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
RoHS Notice
Focusrite Audio Engineering Limited has conformed where applicable, to the European Union’s Directive 2002/95/EC on Restrictions
of Hazardous Substances (RoHS) as well as the following sections of California law which refer to RoHS, namely sections 25214.10,
25214.10.2, and 58012, Health and Safety Code; Section 42475.2, Public Resources Code.
ENVIRONMENTAL DECLARATION
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN

4
CONTENTS
IMPORTANT SAFETY INSTRUCTIONS .............................................. 2
About this User Guide .........................................................5
Box Contents ................................................................5
INTRODUCTION ................................................................ 6
INSTALLATION GUIDE ........................................................... 7
RedNet D16/D16R Connections and Features .....................................7
Front Panels............................................................7
Rear Panels ............................................................8
Power Connection ...........................................................10

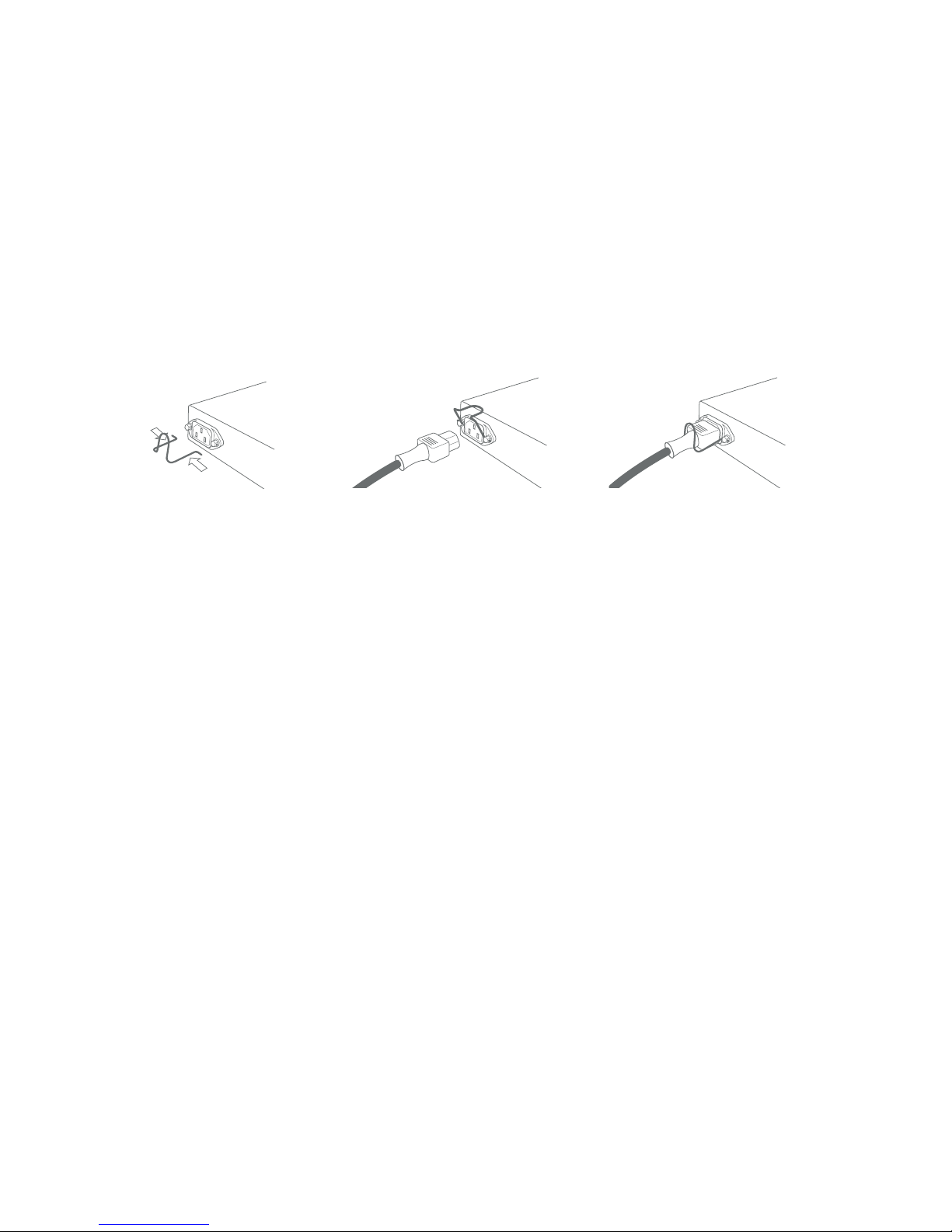

IEC Power Cord Retaining Clip ............................................10
Physical Characteristics ......................................................11
Power Requirements.........................................................11
REDNET D16/D16R OPERATION..................................................12
First Use and Firmware Updates ...............................................12
Digital Clocking .............................................................12
Pull Up and Pull Down Operation...............................................12
Sample Rate Converters ......................................................12
OTHER REDNET SYSTEM COMPONENTS ..........................................13

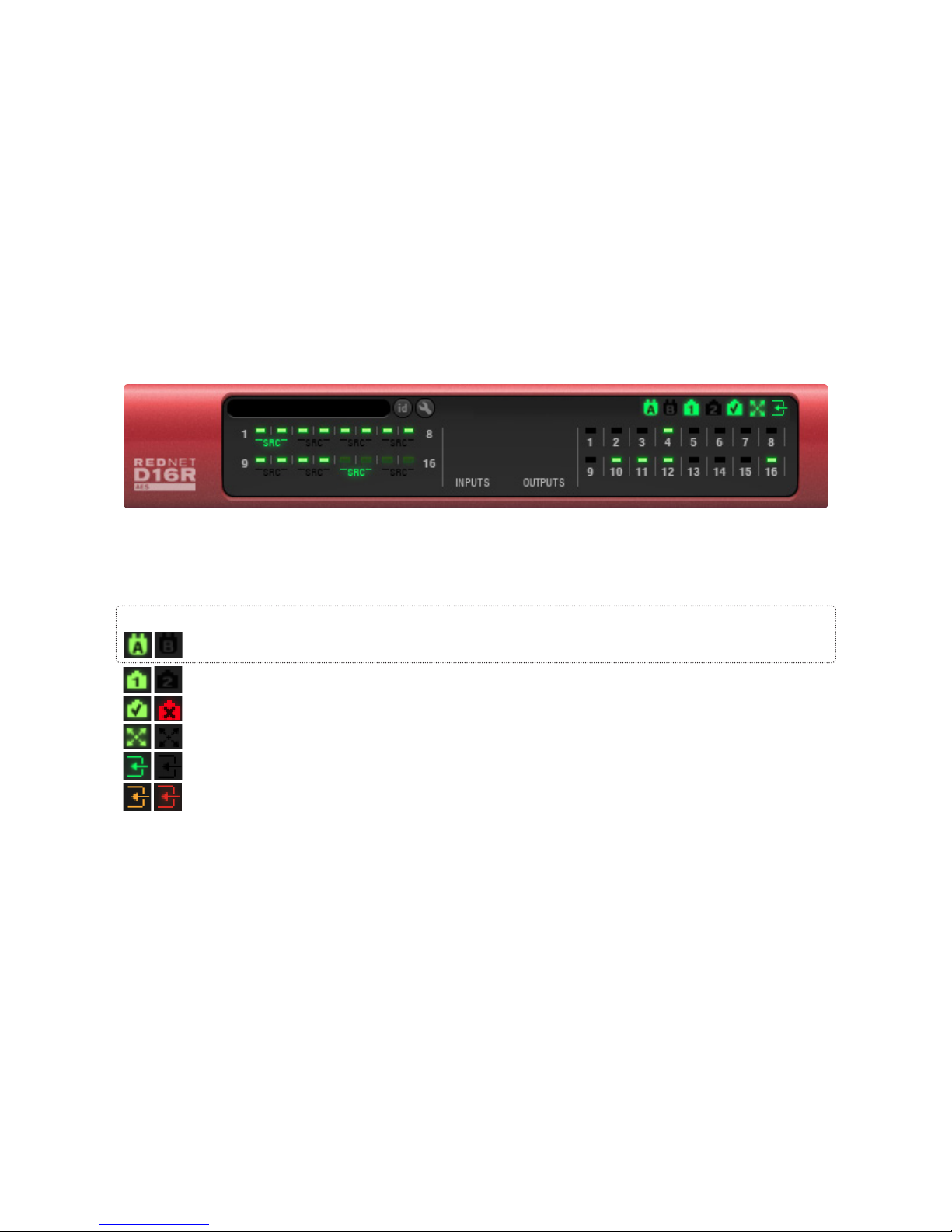

USING REDNET CONTROL.......................................................13
Signal Metering .............................................................13
ID (Identification) ............................................................14
Tools Menu .................................................................14
APPENDIX.................................................................... 15

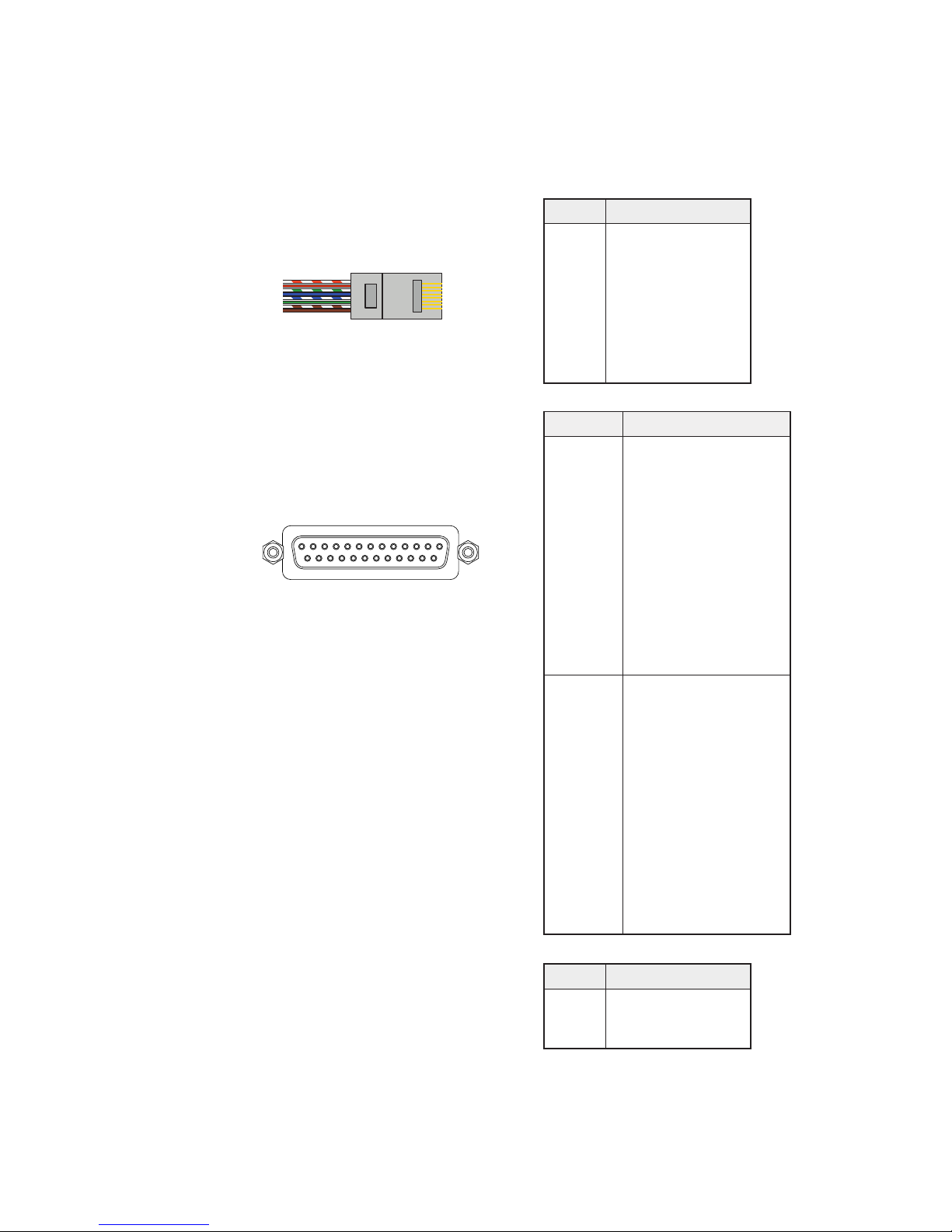

Connector Pinouts...........................................................15
Ethernet Connector.....................................................15
DB-25 (AES59) Connector................................................15
XLR Connectors ........................................................15
PERFORMANCE AND SPECIFICATIONS............................................16
Focusrite RedNet Warranty and Service .........................................18
Registering Your Product .....................................................18
Customer Support and Unit Servicing ...........................................18
Troubleshooting ............................................................18

5
About this User Guide
This User Guide applies to both the RedNet D16 and RedNet D16R AES interfaces. It provides
information about installing each unit and how either can be connected into your system.
All references relating to the RedNet D16 are also applicable to the RedNet D16R. In any instances
where names or values differ, the screening or value for the D16R unit will be appended in square
brackets, eg., “Power [PSU A]”.
A RedNet System User Guide is also available from the RedNet product pages of the Focusrite
website. The Guide provides a detailed explanation of the RedNet system concept, that will help you
achieve a thorough understanding of its capabilities. We recommend that all users, including those
already experienced in digital audio networking, take the time to read through the System User
Guide so that they are fully aware of all the possibilities that RedNet and its software have to offer.
Should either User Guide not provide the information you need, be sure to consult:
www.focusrite.com/rednet, which contains a comprehensive collection of common technical support
queries.
Box Contents
• RedNet D16 [D16R] unit
• 1 [2] x IEC AC mains cables
• 1 [2] x IEC mains cable retaining clips (See instructions on page 10)
• 2m Cat 6 Ethernet cable
• Safety information cut sheet
• RedNet Getting Started Guide
• Product registration card, provides links to:
RedNet Control
RedNet PCIe drivers (included with RedNet Control download)
Audinate Dante Controller (installed with RedNet Control)
Dante Virtual Soundcard (DVS) Token and download instructions
D16R
Any information that is relevant to only one device will be separated within a border like this.
D16 only

6
INTRODUCTION
Thank you for purchasing the Focusrite RedNet D16/D16R.
RedNet D16/D16R is a 1U 19in rack-mount interface featuring 16 channels of AES/EBU connectivity
to and from a Dante audio network – perfect for bridging between digital consoles, power amplifiers
or any other AES3 equipped audio equipment and a Dante network.
Dual Ethernet connectors (primary and secondary) on the rear-panel allow maximum network
reliability with seamless switchover to a standby network in the unlikely event of a network failure.
These ports may also be used to daisy-chain additional units when operating in Switched mode.
RedNet D16/D16R has a Sample Rate Converter (SRC) on each input pair allowing instant operation
with any AES3 source irrespective of the sample rate or clocking of the Dante audio network.
Audio interface is provided by two standard 8-channel (AES59) Combined Digital I/O DB25 connections.
In addition, a duplicate of channels 1 & 2 is available on a pair of XLR3 connectors.
S/PDIF input and outputs are provided on RCA connectors; ideal for connecting CD players or solid-
state recorders. The input replaces channels 3 & 4 in the DB25 connector while the output can be
assigned to replicate any adjacent odd/even pair.
Word Clock I/O on BNC connectors allows synchronisation of the Dante network to house clock, or
syncing external equipment to the Dante network. DARS reference can also be accepted via the XLR
input connector.
The RedNet D16/D16R front panel contains a set of LEDs to confirm network status, sample rate,
clock sources and signal presence on both input and output.
RedNet D16
RedNet D16R
D16R
Redundant power supplies (PSU A and B) with separate input sockets on the rear panel allow one
supply to be connected to an uninterruptable source. Each PSU’s status can be monitored remotely
over the network or from the front panel.

7
INSTALLATION GUIDE
RedNet D16/D16R Connections and Features
Front Panels
1. AC Power Switch
2. Power Indicator(s)
• Power [PSU A] – Illuminates when an AC input is applied and all DC outputs are present.
• PSU B – Illuminates when an AC input is applied and all DC outputs are present.
When both supplies are functioning and have AC inputs PSU A will be the default supply.
3. RedNet Network Status Indicators:
• PRIMARY – Illuminates when the device is connected to an active Ethernet network. Also
illuminates to indicate network activity when operating in switched mode.
• SECONDARY – Illuminates when the device is connected to an active Ethernet network.
Not used when operating in Switched mode.
• LOCKED – Illuminates when a valid sync signal is received from the network, or when the
RedNet D16/D16R unit is Network Master. Flashes if external clock is selected but not
connected.
4. RedNet Sample Rate Indicators
Five orange indicators: 44.1 kHz, 48 kHz, x2 (multiple of 44.1 or 48), x4 (multiple of 44.1 or 48)
and sample rate PULL UP/DOWN. These Indicators illuminate individually or in combination
to indicate the sample rate being used. For example, for a 96kHz Pull Up/Down setting, the
48kHz, x2 and Pull Up/Down indicators will illuminate.
5. Signal Presence LEDs
LEDs Indicate whether an input or an output signal is present for each odd/even channel pair.
Illuminate at -126dBFS.
6. Clock source
Five orange indicators: Word Clock, DARS, Input 1-2, Input 9-10 and Internal. Whichever is
lit identifies the clock reference being used. When an incoming clock source is invalid, the
‘Locked’ indicator will flash to indicate that the unit has reverted to using its internal clock.
16
5
43
2
165432
IN
OUT
1-2 3-4 5-6 7-8 9-10 11-12 13-14 15-16
SECONDARY
PRIMARY
LOCKED
NETWORK
×2
×4
48 kHz
44.1 kHz
PULL UP/DOWN
SAMPLE RATE
WORD CLOCK DARS
INTERNAL
INPUT 1-2
INPUT 9-10
CLOCK SOURCE
POWER
WORD CLOCK
PRIMARY SECONDARY
S/PDIF AES/EBU
9-16 IN & OUT 1-8 IN & OUT
IN DARS
( )
IN
OUT
1-2 3-4 5-6 7-8 9-10 11-12 13-14 15-16
SECONDARY
PRIMARY
LOCKED
NETWORK
x2
×4
48 kHz
44.1 kHz
PULL UP/DOWN
SAMPLE RATE
WORD CLOCK
DARS
INTERNAL
INPUT 1-2
INPUT 9-10
CLOCK SOURCE
PSU A
PSU B
ON
RedNet D16
RedNet D16R
D16R

8
Rear Panels
1. IEC Mains Inlet [A]
Standard IEC receptacle for connection of AC mains. RedNet D16/D16Rs feature ‘Universal’
PSUs, enabling them to operate on any supply voltage of between 100 V and 240 V.
Note that initial use requires tment of the plug retaining clip – see page 10
2. Primary Network Port
RJ45 [etherCON] connector for the Dante network. Use standard Cat 5e or Cat 6 network
cable to connect to a local Ethernet switch to connect the RedNet D16/D16R to the RedNet
network. Adjacent to each network socket are LEDs which illuminate to indicate a valid
network connection plus network activity. See page 14 for connector details.
3. Secondary Network Port
Secondary Dante network connection where two independent Ethernet links are being used
(Redundant mode) or an additional port on an integral network switch on the primary network
(Switched mode).
4. Word Clock Out
Provides an output of the chosen system clock reference (can be switched between base rate
or network rate).
5. Word Clock In
Allows synchronisation of the Dante network to house word clock.
6. S/PDIF:
• OUT – Provides any adjacent odd-even signal pair, eg. 3–4 or 11–12. Software selectable.
• IN – Can be used as an alternative input for audio channels 3–4. Software switchable.
SECONDARYPRIMARY
WORD CLOCK
OUT
OUT
IN
INDARS
 
INOUT INOUT
D
IN
PUSH
OUT
THIS EQUIPMENT MUST BE EARTHED BY THE POWER CORD
WARNING
Focusrite
THIS EQUIPMENT MUST BE EARTHED BY THE POWER CORD
AES/EBU
9-16
IN & OUT
OUT IN (DARS)
PUSH 1-8
WORD CLOCK
OUT IN
IN
S/PDIF
OUT
AC ONY   
  H A
WARNING
PSU A PSU B
FocusriteR
PUSH
PRIMARY SECONDARY
PUSH
RedNet D16
RedNet D16R
1a IEC Mains Inlet B
Input connector for backup mains power source. Power supply B remains on standby but
will seamlessly take over if PSU A develops a fault or loses its mains input supply.
If an uninterruptable supply (UPS) is available, it is recommended that this is applied to input B.
9
1a
1 2 3 4 5 6 7 8
91 2 3 4 5 6 7 8
D16R

9
7. XLR Out
Permanent AES3 output of audio channel pair 1–2.
8. XLR In
Can be used as an alternate AES3 audio source for channels 1–2. Software switchable. May
also be used as a clock source when fed with either AES3 or DARS (Digital Audio Reference
Signal – AES3 distributed clock as per AES11). Software selectable.
9. DB25 Connectors
Eight AES/EBU input and output channels per connector. Wired to AES59 Combined Digital I/O.
See page 14 for connector pinouts.
SECONDARYPRIMARY
WORD CLOCK
OUT
OUT
IN
INDARS
 
INOUT INOUT
D
IN
PUSH
OUT
THIS EQUIPMENT MUST BE EARTHED BY THE POWER CORD
WARNING
Focusrite
THIS EQUIPMENT MUST BE EARTHED BY THE POWER CORD
AES/EBU
9-16
IN & OUT
OUT IN (DARS)
PUSH 1-8
WORD CLOCK
OUT IN
IN
S/PDIF
OUT
AC ONY   
  H A
WARNING
PSU A PSU B
FocusriteR
PUSH
PRIMARY SECONDARY
PUSH
RedNet D16
RedNet D16R
Rear Panels . . . Continued
97 8
97 8

10
Power Connection
IEC Power Cord Retaining Clip
RedNet D16/D16R is supplied with IEC power cord retaining clips. These prevents accidental
disconnection of a power cord during use. When the unit is first installed, the retaining clips will
need to be attached to power input socket[s] on the rear panel.
Insert each clip by squeezing together the legs as shown in the first image below, aligning the pins
with the through-holes on the IEC fixing posts one at a time, and then releasing.
Ensure that the orientation of each clip is as shown in the other images below or the effectiveness
will be compromised.

11
Physical Characteristics
RedNet D16/D16R dimensions are illustrated in the diagram above.
RedNet D16/D16R requires 1U of vertical rack space and at least 350 mm of rack depth, to allow for
cables. RedNet D16/D16R weighs 3.74 [3.84] kg and for installations in a fixed environment (eg., a
studio), the front-panel mounting screws will provide adequate support. If the units are to be used
in a mobile situation (eg., flight-cased for touring, etc.), consideration should be given to using side
support rails within the rack.
RedNet D16/D16R generates little significant heat and is cooled by natural convection.
Ventilation is via slots in the enclosure at both sides. Do not mount RedNet D16/D16R immediately
above any other equipment which generates significant heat, for example, a power amplifier. Also,
ensure that when mounted in a rack, the side vents are not obstructed.
Power Requirements
RedNet D16/D16R is mains-powered. It incorporates a ‘Universal’ power supply, which can operate
on any AC mains voltage from 100 V to 240 V. The AC connection is made via a standard 3-pin IEC
connector[s] on the rear panel.
One or two mating IEC cables are supplied with the unit – these should be terminated with mains
plugs of the correct type for your country.
The AC power consumption of the RedNet D16/D16R is 30VA.
Please note that there are no fuses in RedNet D16/D16R, or other user-replaceable components of
any type. Please refer all servicing issues to the Customer Support Team (see “Customer Support
and Unit Servicing” on page 18).
465.0mm / 18.3”
31.8mm / 1.25”
263mm / 10.35”
D16R
When PSU A & PSU B are both connected, PSU A becomes the default supply and therefore draws
more current than B. If a backup mains supply is provided from an uninterruptable source, it is
recommended that this is connected to input B.

12
REDNET D16/D16R OPERATION
First Use and Firmware Updates
Your RedNet D16/D16R may require a firmware update* when it is first installed and switched on.
Firmware updates are initiated and handled automatically by the RedNet Control application.
*It is important that the rmware update procedure is not interrupted – either by switching off power to the
RedNet D16/D16R unit or the computer on which RedNet Control is running, or by disconnecting either from
the network.
From time to time Focusrite will release RedNet firmware updates within new versions of RedNet
Control. We recommend keeping all RedNet units up to date with the latest firmware version supplied
with each new version of RedNet Control.
Digital Clocking
Each RedNet D16/D16R will automatically lock to a valid Network Master via its Dante connection.
Alternatively, If a Network Master is not present, then the unit can be chosen as the Network Master
by the user.
Pull Up and Pull Down Operation
RedNet D16/D16R is able to operate at a specified pull up or pull down percentage as selected in the
Dante Controller application.
Sample Rate Converters
SRC will need to be switched in for any sources that are not using the current system clock as a
reference signal.
SRC can be switched in or out separately for each input channel pair.
Note that engaging the sample rate converters will increase the overall latency of the device.

13
OTHER REDNET SYSTEM COMPONENTS
The RedNet hardware range includes various types of I/O interface and a PCIe digital audio interface
card which is installed in the system’s host computer. All the I/O units can be considered as
“Break-Out” (and/or “Break-In”) boxes to/from the network, and all are built in mains-powered,
19” rackmount housings. There are also three software items, RedNet Control (see below), Dante
Controller and Dante Virtual Soundcard.
USING REDNET CONTROL
RedNet Control will reflect the status of the RedNet units present in the system, presenting an
image representing each hardware unit.
The illustration above shows a RedNet D16R with 16 input signals (SRC switched in for channels 1–2
and channels 13–14) and signal present on five outputs.
PSUs A & B – Each illuminates if PSU has power input and all DC outputs are present
Networks – Each illuminates if a valid connection is present.
Locked – Unit is successfully locked to the network (changes to the red cross if not locked).
Network Master – Illuminated, indicating that unit is network master.
External Clock – Green: Illuminates when external clock is selected and locked.
Amber: Illuminates when external clock is selected but not locked.
Red: Illuminates when external clock is selected but not connected.
Signal Metering
Each input and output channel has a virtual signal indicator. Five different states are represented:
Black: No signal present
Dim green: > –126 dBFS
Green: –42 dBFS
Amber: –6 dBFS
Red: 0 dBFS
–SRC– : Indicates sample rate converters are switched in for an input channel pair.
D16R

14
ID (Identification)
Clicking on the ID icon will identify the physical device being controlled by flashing its front panel
LEDs.
Tools Menu
Clicking on the Tools icon will gain access to the following system settings:
Sample Rate Conversion – Each option an On/Off toggle. Can be switched separately.
• Channels 1–2
• Channels 3–4
• Channels 5–6
• Channels 7–8
• Channels 9–10
• Channels 11–12
• Channels 13–14
• Channels 15–16
RedNet Clock Source – Only one of the following can be selected at any time.
• Internal (RedNet is network master but running from internal clock)
• BNC Input (Word Clock)
• XLR Input (DARS or Audio)
• DB-25 (Input pair 1)
• DB-25 (Input pair 5)
Note: When selecting any clock source, RedNet D16/D16R will become a preferred master.
Preferred Master – On/Off state.
Input 1–2 from XLR – Tick option On/Off. Replaces channels 1–2 on the DB25 connector.
Input 3–4 from RCA – Tick option On/Off. Replaces channels 3–4 on the DB25 connector.
RCA Output Source – Only one can be selected at any time.
• Channels 1–2
• Channels 3–4
• Channels 5–6
• Channels 7–8
• Channels 9–10
• Channels 11–12
• Channels 13–14
• Channels 15–16
Word Clock Output – One can be selected at any time.
• Network
• Network (Base Rate)
Word Clock Input Termination – Tick option On/Off. (Terminates word clock input BNC with 75Ω.)

15
APPENDIX
Connector Pinouts
Ethernet Connector
Connector type: RJ-45 receptacle
Applies to: Ethernet (Dante)
DB-25 (AES59) Connector
Connector type: DB-25 receptacle
Applies to: AES3 I/O
XLR Connectors
Connector type: XLR-3 receptacle
Applies to: AES3/DARS Input
Connector type: XLR-3 plug
Applies to: AES3 Output
Pin Cat 6 Core
1 White + Orange
2 Orange
3 White + Green
4 Blue
5 White + Blue
6 Green
7 White + Brown
8 Brown
Pin Signal
1 Screen
2 Hot (+ve)
3 Cold (–ve)
Pin Signal
1 Out channels 7/8 +
14 Out channels 7/8 –
2 Ground
15 Out channels 5/6 +
3 Out channels 5/6 –
16 Ground
4 Out channels 3/4 +
17 Out channels 3/4 –
5 Ground
18 Out channels 1/2 +
6 Out channels 1/2
19 Ground
7 In channels 7/8 +
20 In channels 7/8 –
8 Ground
21 In channels 5/6 +
9 In channels 5/6 –
22 Ground
10 In channels 3/4 +
23 In channels 3/4 –
11 Ground
24 In channels 1/2 +
12 In channels 1/2 –
25 Ground
13 n/c
11
81
8
113
25 14

16
PERFORMANCE AND SPECIFICATIONS
Input Sample Rate Converters
Sample Rate Range 32 to 216 kHz
Gain Error -0.3 dB
Dynamic Range > 138 dB (-60 dBFS method)
THD+N < -130 dB (0.00003%); 0 dBFS input
Latency 11 to 45 samples (network and input sample rate dependent)
Digital Performance
Supported Sample Rates 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4% / -0.1% / +0.1% / +4.167%) at 24 bit
Clock Sources Internal, Word Clock, DARS, AES input 1-2, AES input 9-10 or from Dante Network Master
External Word Clock
Range Nominal sample rate ±7.5%
Rear Panel Connectivity
AES/EBU
Channel Count 16 x 16 AES/EBU channels
Input and Output 2 x DB-25 connectors (AES59 Combined I/O / Tascam Digital)
Alternate Input (Optional
DARS) 1 x Female XLR (replaces DB-25 channels 1-2)
Alternate Output 1 x Male XLR (duplicates DB-25 channels 1-2)
S/PDIF
Channel Count 2 x 2 S/PDIF Channels (reduces AES/EBU input channels)
Input 1 x RCA phono socket (replaces DB-25 channels 3-4)
Output 1 x RCA phono socket (switchable, duplicates any DB-25 channel pair)
Word Clock
Input 1 x BNC 75Ω port (switchable termination)
Output 1 x BNC 75Ω port
PSU & Network
PSU 1 [2] x IEC Inputs with retaining clips
Network 2 x RJ45 [2 x etherCON, also compatible with standard RJ45 connectors]

17
Front Panel Indicators
Power [PSU A] Green LED. Illuminates when an AC input is applied and all DC outputs are present
PSU B [D16R only] Green LED. Illuminates when an AC input is applied and all DC outputs are present
Primary Network
Green LED. Indicates that a network connection is present on primary port when in
redundant mode. When in Switched mode, a valid network connection at either Primary or
Secondary network port will cause this LED to illuminate
Secondary Network Green LED. Indicates that a network connection is present on secondary port when in
redundant mode. Not used in switched mode
Network Locked
Green LED. When unit is network slave, shows valid network lock. When network master,
shows unit is locked to indicated clock source. Flashing indicates external clock is
selected but not connected
Sample Rate Orange LED for each: 44.1 kHz, 48 kHz, x2, x4
Pull Up/Down Orange LED. Indicates unit is set to operate on a Dante pull up/down domain
Signal Indicators 16 Green LEDs: 8 input/8 output indicators. Illuminate at -126 dBFS
Clock Source Orange LED for each: Internal, Word Clock, DARS, Input 1–2, Input 9–10
Network Modes
Redundant Allows unit to connect to two independent networks
Switched Connects both ports to integrated network switch allowing daisy-chaining of devices
Power
PSU[s] 1 [2] x Internal, 100-240V, 50/60Hz, consumption 30VA
Dimensions
Height 44.5mm / 1.75” (1RU)
Width 482.6mm / 19”
Depth 263mm / 10.35”
Weight
Weight 3.74 [3.84] kg

18
Focusrite RedNet Warranty and Service
All Focusrite products are built to the highest standards and should provide reliable performance
for many years, subject to reasonable care, use, transportation and storage.
Very many of the products returned under warranty are found not to exhibit any fault at all. To
avoid unnecessary inconvenience to you in terms of returning the product please contact Focusrite
support.
In the event of a Manufacturing Defect becoming evident in a product within 12 months from the date
of the original purchase Focusrite will ensure that the product is repaired or replaced free of charge.
A Manufacturing Defect is defined as a defect in the performance of the product as described and
published by Focusrite. A Manufacturing Defect does not include damage caused by post-purchase
transportation, storage or careless handling, nor damage caused by misuse.
Whilst this warranty is provided by Focusrite the warranty obligations are fulfilled by the distributor
responsible for the country in which you purchased the product.
In the event that you need to contact the distributor regarding a warranty issue, or an out-of-warranty
chargeable repair, please visit: www.focusrite.com/distributors
The distributor will then advise you of the appropriate procedure for resolving the warranty issue.
In every case it will be necessary to provide a copy of the original invoice or store receipt to the
distributor. In the event that you are unable to provide proof of purchase directly then you should
contact the reseller from whom you purchased the product and attempt to obtain proof of purchase
from them.
Please do note that if you purchase a Focusrite product outside your country of residence or business
you will not be entitled to ask your local Focusrite distributor to honour this limited warranty,
although you may request an out-of-warranty chargeable repair.
This limited warranty is offered solely to products purchased from an Authorised Focusrite Reseller
(defined as a reseller which has purchased the product directly from Focusrite Audio Engineering
Limited in the UK, or one of its Authorised Distributors outside the UK). This Warranty is in addition
to your statutory rights in the country of purchase.
Registering Your Product
For access to Dante Virtual Soundcard, please register your product at: www.focusrite.com/register
Customer Support and Unit Servicing
You can contact our dedicated RedNet Customer Support team free of charge:
Email: [e-mail]
Phone (UK): [phone]
Phone (USA): [phone]
Troubleshooting
If you are experiencing problems with your RedNet D16/D16R, we recommend that in the first in-
stance, you visit our Support Answerbase at: www.focusrite.com/answerbase
