fohen Futura Fizz User manual
Page 1 of 32
T210058 Fohen combined instructions v1.0 Aug 2022
Installation instructions
Fohen
Futura Fizz
Model :
KM105 5-in-1 Boiling, Chilled & Sparkling system (all models)
WORK IN PROGRESS @ 02/09/22
T210058 Fohen combined instructions v1.0 Aug 2022 Page 2 of 32
Table of contents
Table of contents................................................................................................2
Tap features .......................................................................................................3
Using these instructions.....................................................................................4
Explanation of symbols......................................................................................4
IMPORTANT SAFETY INSTRUCTIONS ...........................................................4
Warnings and regulatory information .................................................................6
Installation checklist ...........................................................................................8
How to install the Tap.........................................................................................9
Position the tap & cut the tap hole.....................................................................9
Tap features and connections............................................................................10
Mount & secure the tap......................................................................................11
The under counter appliance .............................................................................12
How to install the under counter appliance........................................................13
Positioning and ventilation .................................................................................13
Plumbing connections........................................................................................14
CO2 connections ...............................................................................................15
Connect the system together.............................................................................16
Commissioning, setting and operation...............................................................17
Set up the chilled water system and flush the filter ...........................................17
Set up the sparkling water system.....................................................................18
Set up the boiling water system ........................................................................19
Adjust the boiling water set point ......................................................................20
Mixed water dispense ........................................................................................21
Boiling, chilled and sparkling functionality .........................................................22
Chilled water dispense.......................................................................................24
Boiling water dispense.......................................................................................25
Filter replacement ..............................................................................................26
UV lamp replacement ........................................................................................27
Cleaning .............................................................................................................28
Trouble shooting ................................................................................................29
Contact details ...................................................................................................31
Read the
instructions
Page 3 of 32
T210058 Fohen combined instructions v1.0 Aug 2022
Using these instructions
Read and use the instructions and safety information supplied
with individual kit components for a safe installation.
Explanation of symbols
Read the
instructions
WARNING DANGER
Electric shock
DANGER
Hot surface
!UV
!
!UV
!
!UV
!
!
UV
!
COGas
WARNING
DANGER
Flammable
Safety instructions
IMPORTANT SAFETY INSTRUCTIONS
Safety
This appliance is not intended for use by children under 8 years or persons
(including children under 8 years) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning the use of the appliance by a
person responsible for their safety. Children should be supervised to ensure
that they do not play with the appliance.
Refrigerant
WARNING! KEEP VENTILATION OPENINGS IN THE APPLIANCE
ENCLOSURE OR IN THE BUILT-IN STRUCTURE CLEAR OF
OBSTRUCTION.
The appliance uses HIGHLY FLAMMABLE R290 refrigerant under pressure.
Check the rating plate or contact us before commencing work.
Maintenance of the refrigeration unit must be carried out by an accredited
service provider or qualified refrigeration technician.
• Do not use mechanical devices or other means to accelerate the defrosting
process, other than those recommended by the manufacturer.
!
UV
!
!UV
!
Compliance
In the UK the system must be installed in accordance with water supply
byelaws, current IEE regulations and local authority byelaws.
Button/
coin battery
T210058 Fohen combined instructions v1.0 Aug 2022 Page 4 of 32
IMPORTANT SAFETY INSTRUCTIONS
CO2
• Keep out of reach of children.
• Use according to MSDS (material safety data sheet).
• Pressurised container. Contains gas under pressure, may explode if heated.
• Protect from sunlight.
• Do not expose to temperatures exceeding 50˚C.
• Do not expose to naked flame or any incandescent material.
• Do not pierce or burn, even after use. Avoid shock.
• High concentration of gas may cause asphyxiation.
• Use only in an upright position.
• The cylinder must be used with the supplied pressure regulator.
• The gas cylinder must be installed in an open plan area, or in an enclosed
room with a volume no less than 22m³ per 1200g cylinder, If more than
1 gas cylinder containing CO2 is present within the same location, the
recommended ventilated area should be in proportion to the number of gas
cylinders stored in that location. A ventilated area is a non-enclosed area
which could include the kitchen, living room etc.
• Refer to the gas cylinder and MSDS for a complete list of warnings (www.
fohen.co.uk).
Qualifications
To avoid hazards, all installation procedures must be carried out by a suitably
qualified tradesperson.
The power cable and power outlet must be in a safe visible position for
connection.
Venting
Sometimes steam and / or boiling water droplets may discharge through a
vent outlet on the tap. If not using the font, ensure the tap body is located so
the tap outlet safely dispenses into the sink bowl.
Lifting
Take care when lifting. The appliance may exceed safe lifting
limits. If you feel this is beyond your personal capabilities, please seek
assistance with the lift. The weight of the Command Centre is marked on the
packaging. Do not lift the Command Centre by the front cover or any of its
connections.
Airflow
The appliance operates within the ambient temperature range 5ºC - 35ºC.
Proper air circulation must be provided. The system will operate satisfactorily
only if the recommended air gaps are provided. The vent kit supplied must be
fitted.
Page 5 of 32
T210058 Fohen combined instructions v1.0 Aug 2022
WARNINGS AND REGULATORY INFORMATION
• For continued safety of this appliance it must be installed,
operated and maintained in accordance with the manufacturer’s
instructions.
• This appliance may deliver water at high temperature, refer to
local requirements and installation instructions to determine if
additional delivery temperature control is required.
• The appliance must be earthed, earthing is provided via the
supplied power cord. The resistance of the earth connection to
each exposed metal part must be less than 1Ω. Use the power
cable supplied. It is the responsibility of the installer to ensure
the power point is earthed.
• All installation and service work must be completed by trained
and suitably qualified tradespeople. Faulty operation due to
unqualified persons working on this product, may void warranty
coverage.
• As the installer, it is your responsibility to supply and install all
valves as required by local regulations and relevant standards.
• The appliance is rated for 220-240V 50Hz AC operation.
• Do not remove the cover of the appliance under any
circumstances without first isolating the appliance from the
power supply.
• Connect only to a potable (wholesome, cat1) mains water supply.
• Never locate the system near, or clean with water jets.
• Do not expose the appliance to the elements of nature.
• Use of tools can be hazardous, assess the risks before you start.
• A clearance behind the appliance must be provided to allow
adequate ventilation for the safe and effective use of the system.
• Valve and fitting threads must be sealed appropriately with PTFE
tape where compression seals are not provided.
• Always flush new filter before use.
• Do not over tighten plumbing and hose connections.
• Braided hoses supplied cannot be lengthened.
• Be aware of the risks of hazards which could cause harm when
handling compressed CO2. Assess the risks before starting the
installation.
• Do not proceed with a CO2 cylinder change if the seals are
damaged. Take care not to cross thread the regulator, a cross
threaded regulator poses a potential hazard.
• Care must be taken when working with high pressure carbon
dioxide, and in no case should the normal operating pressure of
3.0 bar be exceeded.
• The power cord and general power outlet must be in a safe
and accessible position after installation. When positioning
!UV
!
!UV
!
!UV
!
!
UV
!
T210058 Fohen combined instructions v1.0 Aug 2022 Page 6 of 32
the appliance, ensure the power supply cord is not trapped
or damaged. If the power supply cord is damaged it must be
replaced by a Fohen service provider or a qualified electrician.
• Do not locate multiple portable socket-outlets or portable power
supplies at the rear of the appliance.
• For safe operation, the appliance is designed to be installed,
commissioned and used within 48 hours. Should the appliance
not be required for an extended period of time, do not fill and
commission the appliance until ready for first use.
• For water taste and quality reasons, following any non-use
period of more than 48 hours, Zip recommends to perform
a system flush. Failure to flush the system may affect water
quality.
• For UK, this appliance incorporates adequate backflow
prevention
in accordance to S.I.1999 No.1148 The Water Supply (Water
fittings) Regulations 1999 Schedule 2 requirement. No further
backflow prevention is required for connection to the water
supply.
• For UK, this appliance only contains materials that conform to
the requirements of BS6920:2014 ‘Suitability of non metallic
materials and products for use in contact with water intended
for human consumption with regard to their effect on the quality
of water'.
• Use the new hose set supplied with the unit. Do not re-use old
hose set.
• The button/coin battery is hazardous and is to be kept away from
children. It can cause severe or fatal injuries in 2 hours or less
if it is swallowed or placed inside any part of the body. Medical
attention should be sought immediately if it is suspected the
battery has been swallowed or placed inside any part of the
body.
WARNINGS AND REGULATORY INFORMATION
!UV
!
!UV
!
!UV
!
!
UV
!
Page 7 of 32
T210058 Fohen combined instructions v1.0 Aug 2022
Installation checklist
• Check if there is adequate space to install all of the components.
• Note Not all fittings are supplied with the appliance kit. Isolation valves
are not supplied.
• Check the mains water pressure is within min / max requirements.
• Check the water quality to determine if extra filtration will be required.
• Note This product must be fitted to a wholesome water supply.
• Check the appliance rating plate and ensure correct power is
available.
• Check the under counter cupboard floor supporting the appliance is
adequate for its total weight, when full of water.
Before commissioning
• Check the system has been installed correctly.
• Check all plumbing fittings for water tightness.
• Ensure the outlet and vent pipes are positioned to drain correctly.
• Ensure there is adequate ventilation.
• Check all tubes and pipes from the appliance to the tap have a
constant rise and there are no sags or kinks in the hoses.
Commissioning
• Flush the supply line before connecting.
• Turn on the water and check for leaks.
• Flush the filter.
!UV
!
!UV
!
!UV
!
!
UV
!
T210058 Fohen combined instructions v1.0 Aug 2022 Page 8 of 32
u
u
I
way valve
How to install the Tap

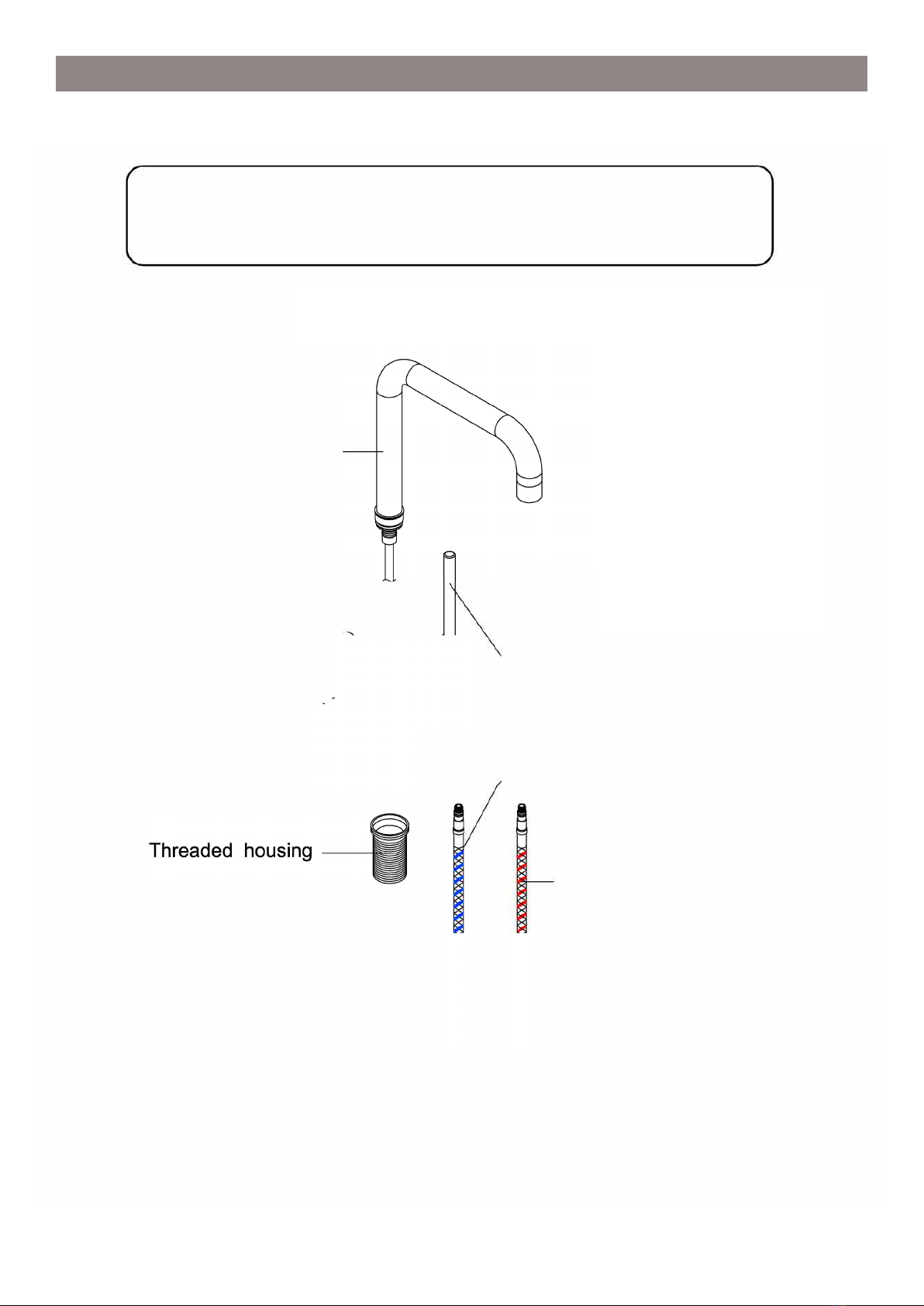

Tap components
Page 9 of 32
T210058 Fohen combined instructions v1.0 Aug 2022
I nstallatien
¢ ¢
p
'
I
0
2
How to install the Tap
Position the tap & cut the tap hole
T210058 Fohen combined instructions v1.0 Aug 2022 Page 10 of 32
I nstallatien

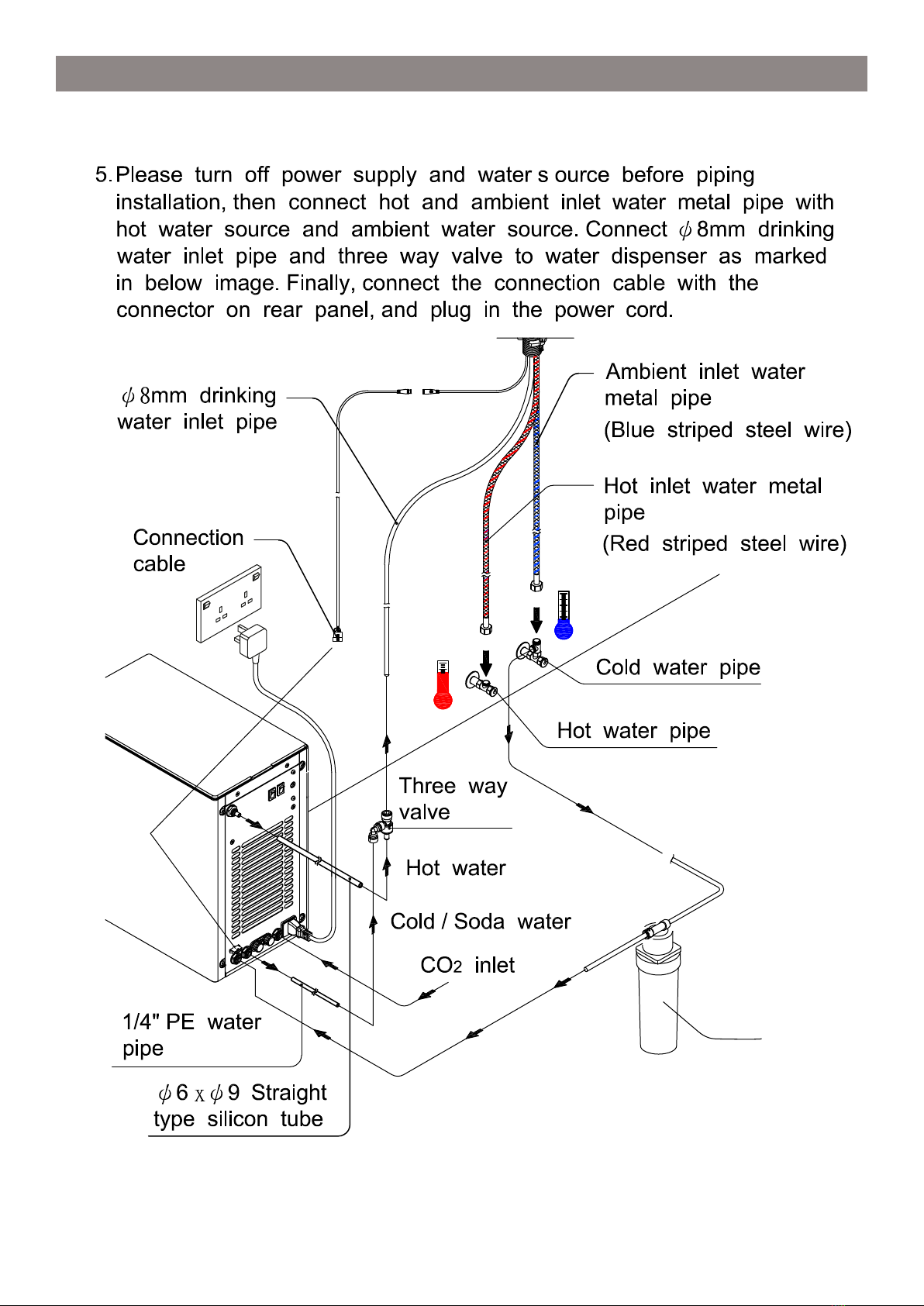

¢ 8mm drinking -
water inlet pipe
-�
,
�-
3
How to install the Tap
Tap features and connections
Page 11 of 32
T210058 Fohen combined instructions v1.0 Aug 2022
Installation
3. Aer tap is assembled,
insert threaded housing into
drilled hole including all
pipes and the cable.
Hole-drilling size
¢ 32mm ¢ 35mm
C
4

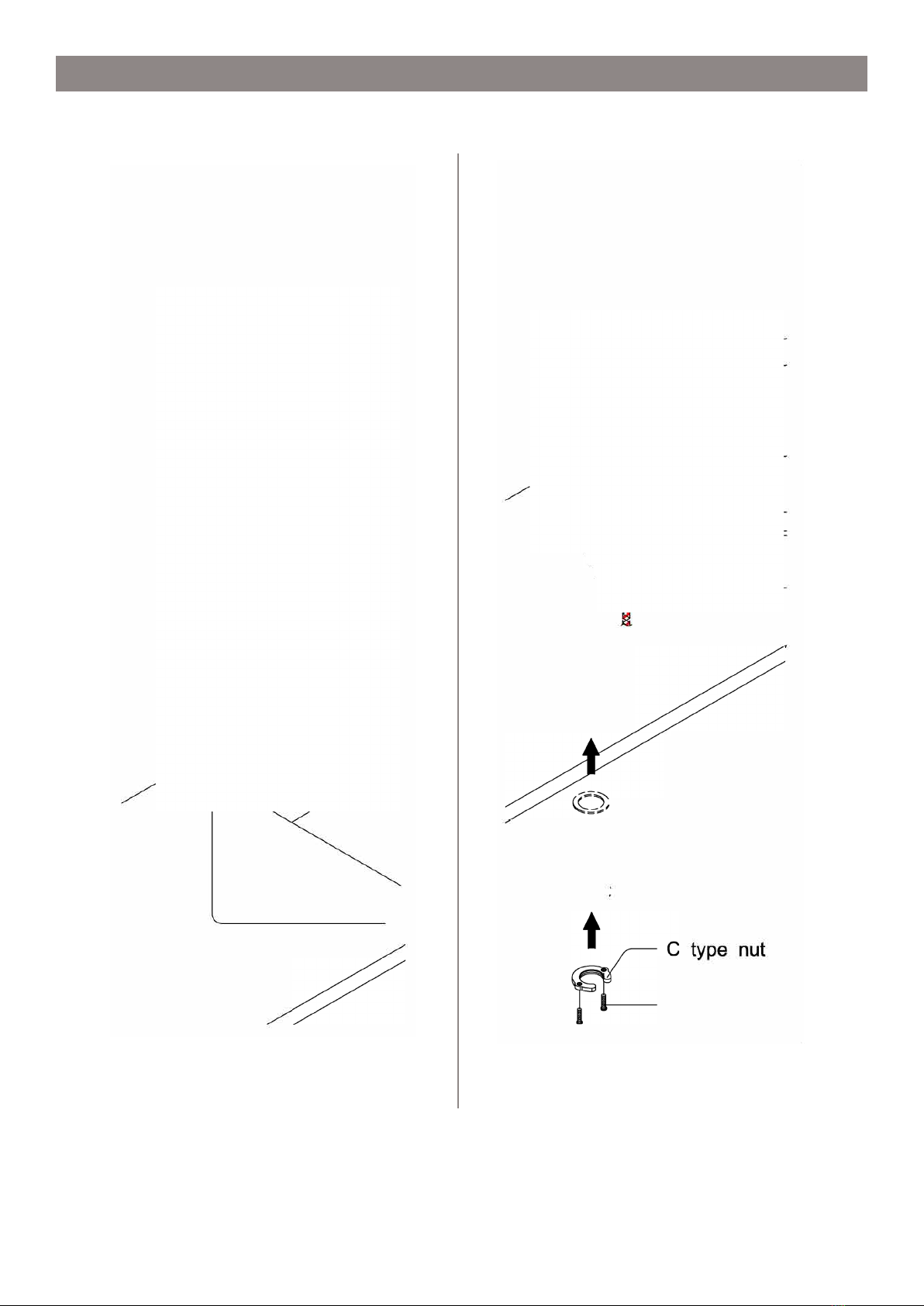

4. Follow the sequence as
marked in below image,
install silicone shim, metal
shim, and C type nut, then
tighten the screws.
I
111
II
lln
Ill I
111 1
�l!
- Silicone shim
t
Metal shim
Screw
How to install the Tap
Installation
3. Aer tap is assembled,
insert threaded housing into
drilled hole including all
pipes and the cable.
Hole-drilling size
¢ 32mm ¢ 35mm
C
4
4. Follow the sequence as
marked in below image,
install silicone shim, metal
shim, and C type nut, then
tighten the screws.
I
111
II
lln
Ill I
111 1
�l!
- Silicone shim
t
Metal shim
Screw
Mount & secure the tap
T210058 Fohen combined instructions v1.0 Aug 2022 Page 12 of 32
Under counter appliance
For continued safety of this appliance it must be installed, operated
and maintained in accordance with the manufacturer’s instructions.
!
UV
!
The under counter appliance
Features
Chilled + sparkling water
tank (inside)
Page 13 of 32
T210058 Fohen combined instructions v1.0 Aug 2022
How to install the under counter appliance
Positioning and ventilation
T210058 Fohen combined instructions v1.0 Aug 2022 Page 14 of 32
How to install the under counter appliance
Plumbing connections
!
!
Valves and fittings must be sealed with PTFE tape if compression seals
are not included.
!
!
Use Wholesome (cat1) water supply
Water supply pressure range 2 - 4 bar
1. Connect the appliance via a T-piece and isolation (ball valve), see drawing (A).
Page 15 of 32
T210058 Fohen combined instructions v1.0 Aug 2022
How to install the under counter appliance
CO2 connections
1. Prepare a pressure regulator, adapter and CO2bottle.
CO2braided hose
CO2braided hose
CO2
connector
!
Be aware of the risks of hazards which could cause harm when
handling compressed CO2.
Read the safety instructions at the start of this
instruction manual.
Assess the risks before starting the installation.
2. Connect the pressure regulator to
the CO2bottle with the adapter.
3. Connect the pressure regulator to
the under counter appliance with
the CO2braided hose supplied,
see arrangement below.
4. Secure the CO2bottle with the
strap provided.
T210058 Fohen combined instructions v1.0 Aug 2022 Page 16 of 32
Filter & head
How to install the under counter appliance
Connect the system together
Page 17 of 32
T210058 Fohen combined instructions v1.0 Aug 2022
Commissioning, setting and operation
Set up the chilled water system and flush the filter
1. Ensure that the power switches on the
rear panel are OFF.
2. Connect the appliance to the mains
electrical power supply.
3. Turn on the mains water isolation
valve.
4. See page 22 for tap operation.
5. Dispense 10 litres of chilled water to
flush the filter, to ensure best quality
drinking water.
6. Rotate and hold the dispense control to
the chilled water position until water is
dispensed, it make take 1 - 2 mins.
Boiling chilled and sparkling
water power switches
7. Switch ON the chilled water power switch at the back of the appliance, to start
the chilling cycle.
8. It takes up to 40 mins. to cool the chilled water to the rated temperature.
Set up the chilled water system
T210058 Fohen combined instructions v1.0 Aug 2022 Page 18 of 32
Commissioning, setting and operation

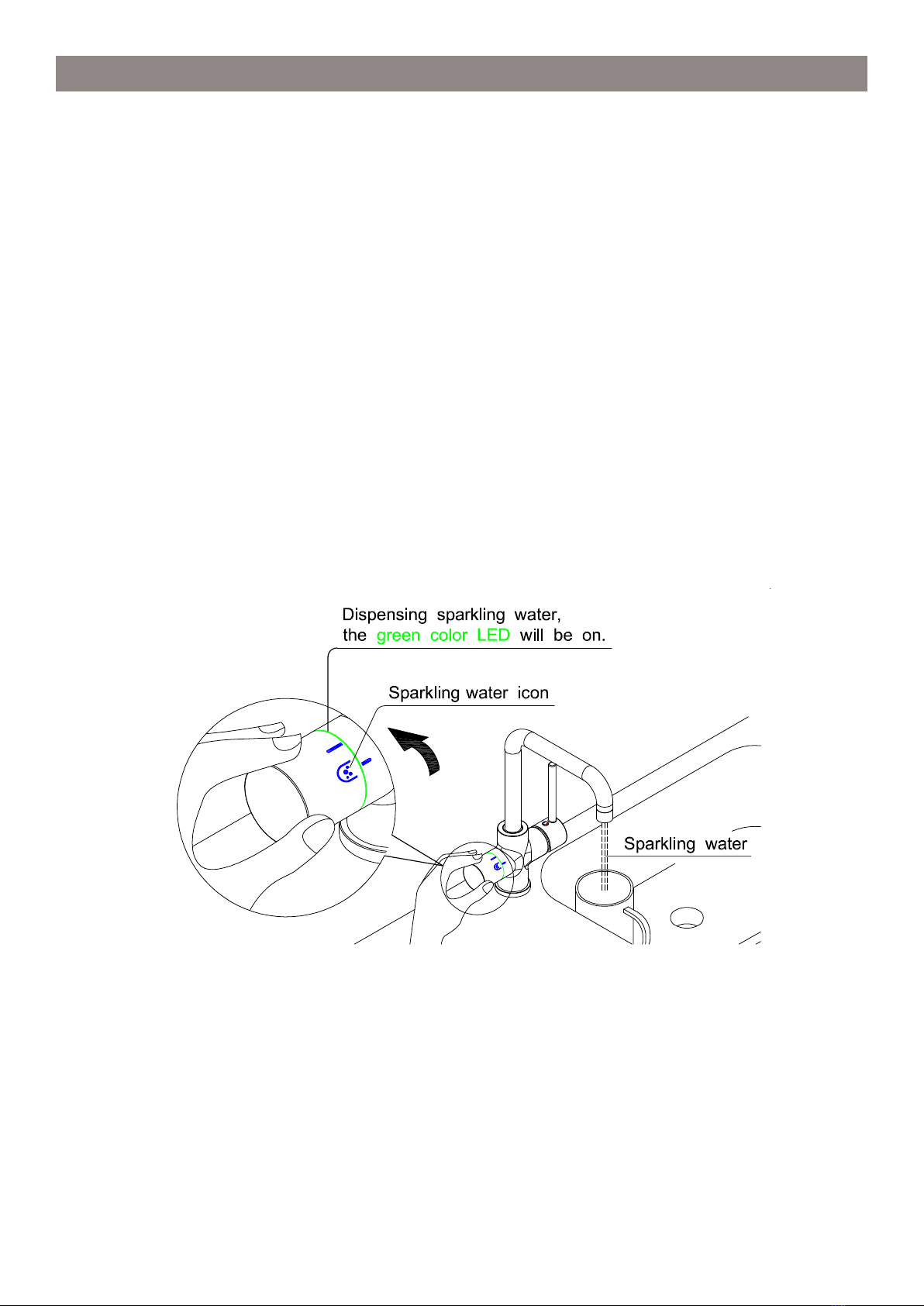

Set up the sparkling water system
1. Ensure that the power switches on the rear panel are OFF.
2. See page 22 for tap operation.
3. Dispense 10 litres of chilled water to flush the filter, to ensure best quality
drinking water.
4. Switch ON the sparkling water power switch at the back of the appliance, to
start the sparkling water chilling cycle.
5. It takes up to 40 mins. to cool the chilled water to the rated temperature.
6. Sparkling water is ready to be dispensed.
Page 19 of 32
T210058 Fohen combined instructions v1.0 Aug 2022
Commissioning, setting and operation
Set up the boiling water system
1. Ensure that the power switches on the rear panel are OFF (see page 17).
2. Rotate and hold the dispense control to the boiling water position to disable
the safety lock. See page 22 for tap operation.
3. Then re- rotate to the boiling water position to dispense.
4. Switch ON the boiling water power switch at the back of the appliance, to
start the boiling water cycle. (see page 17).
10
10
IMPORTANT water must be dispensed from the boling system before
switching ON the Boiling water switch, to ensure that the heating
element has been immersed
!
UV
!
5. The water in the boiling tank begins to heat. It takes up to 10 mins. to heat
the water to the boiling water set point.
T210058 Fohen combined instructions v1.0 Aug 2022 Page 20 of 32
Commissioning, setting and operation
Adjust the boiling water set point
This manual suits for next models
1
Table of contents
Popular Chiller manuals by other brands
LG
LG RCWW-1 Operation & maintenance manual
SMC Networks
SMC Networks HRSE018-A Operation manual
Haier
Haier CA0035AANC Installation, operation and technical manual
Mueller
Mueller PMC 40/50 Installation and operation manual
Samsung
Samsung AG010KSV Series installation manual
A2B Accorroni
A2B Accorroni RPE Series manual
