Fon Fonera SIMPL FON2405 User manual

Fonera Simpl (FON2405)
2
Table of Contents
HOW TO INSTALL AND REGISTER THE FONERA SIMPL ................................................................................................................ 3
INSTALLATION ..................................................................................................................................................................................... 3
REGISTRATION .................................................................................................................................................................................... 3
HOW TO MODIFY THE SETTINGS OF THE FONERA SIMPL VIA ITS WEB INTERFACE...................................................................... 7
STATUS.............................................................................................................................................................................................. 8
NETWORK SETTINGS............................................................................................................................................................................. 9
INTERNET SETTINGS............................................................................................................................................................................ 10
WIFI............................................................................................................................................................................................... 11
PASSWORD ...................................................................................................................................................................................... 13
SYSTEM ........................................................................................................................................................................................... 14
LANGUAGES ..................................................................................................................................................................................... 15
FIREWALL......................................................................................................................................................................................... 15
TROUBLESHOOTING THE FONERA SIMPL.................................................................................................................................. 17
MY FONERA FAILS TO CONNECT TO INTERNET.......................................................................................................................................... 17
MY FONERA IS CONNECTED CORRECTLY BUT DOESN’T BROADCAST THE PUBLIC SIGNAL..................................................................................... 17
MY FONERA IS SHOWING OFFLINE IN MY USERZONE ................................................................................................................................. 18
MY FONERA IS NOT SHOWING ON THE MAPS........................................................................................................................................... 19
FORGOTTEN FONERA’S MANAGEMENT CONSOLE PASSWORD...................................................................................................................... 19
REQUIRED PORTS............................................................................................................................................................................... 19
HOW TO RESTORE THE FACTORY SETTINGS ON MY FONERA ........................................................................................................................ 20
MY COMPUTER CONNECTS TO A FON SPOT INSTEAD OF MY HOME NETWORK ................................................................................................ 20
FORGOTTEN USERZONE PASSWORD....................................................................................................................................................... 21
HOW TO CHANGE MY EMAIL ADDRESS.................................................................................................................................................... 23
HOW TO ACCESS THE MANAGEMENT CONSOLE OF THE FONERA .................................................................................................................. 24
THE MAC ADDRESS ONLINE IS DIFFERENT THAN THE ONE FOUND ON MY ROUTER ........................................................................................... 24
FIRMWARE UPGRADE ......................................................................................................................................................................... 24
PPPOEMODE................................................................................................................................................................................... 24
IREGISTERED MY FONERA,BUT IT IS SHOWING THE REGISTER ICON ON ITS WEB INTERFACE ............................................................................... 25
WHEN ICONNECT MY WINDOWS DEVICE TO THE PRIVATE WIFI (MYPLACE)I’M PROMPTED TO INTRODUCE A PIN CODE....................................... 25
FONERA SIMPL SPECIFICATIONS ............................................................................................................................................... 27
TECHNICAL SPECIFICATIONS ................................................................................................................................................................. 27
LED STATUS DESCRIPTION................................................................................................................................................................... 28

Fonera Simpl (FON2405)
3
How to install and register the Fonera Simpl
Installation
Connect the internet port (white or orange) of the Fonera Simpl to your ISP's modem/router.
Plug in the power cable, and wait about 20 seconds until the two left LEDs (on the Fonera)
turn green.
Note: if you own a cablemodem, please proceed with the following installation instructions:
disconnect and power off both cablemodem and Fonera
connect the Fonera to the cablemodem
power on the Fonera
after a few seconds, power on the cablemodem
Registration
Step 1: Open your browser and type register.fon.com in the address bar
Step 2: Enter your Fonera's MAC and PIN CODE
This information is available on the sticker covering your Fonera.

Fonera Simpl (FON2405)
4
If you don’t have this information, or your Fonera is already registered under a different account and you
wish to update it, please submit a support ticket at https://support.fon.com/hc/categories/200052532
providing the MAC which appears on the underside of your Fonera.
Use only numbers (and letters) For the MAC field. Do not use the colons that separate them (this
will be filled automatically for you).
Click on "Next" to continue.

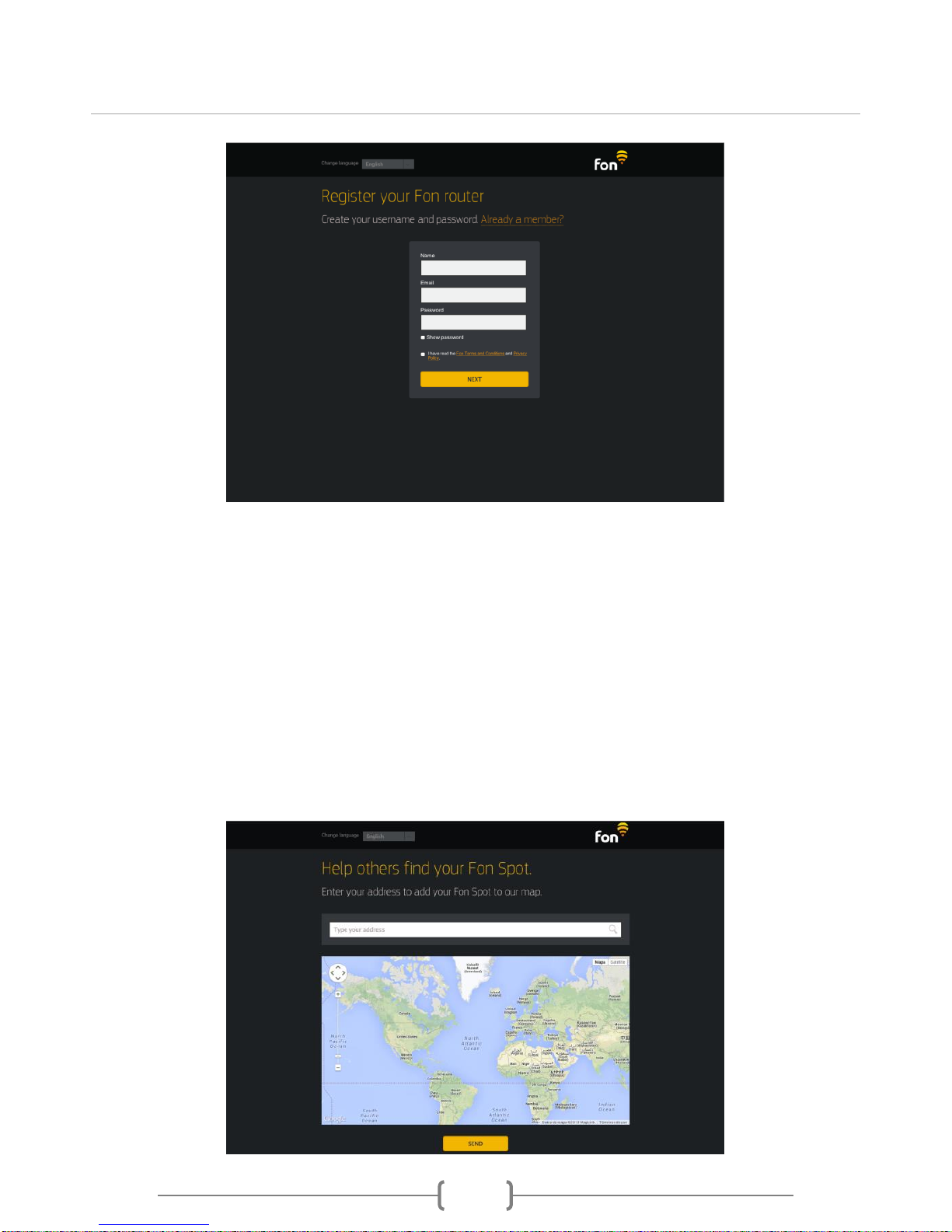

Step 3: Create your username and password
Note: If you already have a Fon account, click the "I am already a member" link to skip this step
(go to Step 4).
To create a Fon account, enter your Fon name and email and choose a password (all fields are
mandatory).

Fonera Simpl (FON2405)
5
Name: Must be at least 6 characters long.
Email: The email address provided will be your Fon username.
Password: Must be at least 6 (ASCII) characters long.
Tick to confirm you agree to our Terms and Conditions.
Click on Next to continue.
Step 4: Locate your Fon Spot on our maps
Type in your address on the search bar.
Check that your location is correct. If it isn't, you can drag and drop the pinpoint to the exact
location.
When the pinpoint is in the right location, click "Send".

Fonera Simpl (FON2405)
6
Step 5: Allow your Facebook friends to connect
If you are interested in sharing your WiFi with your Facebook friends, click the "Facebook" button
and link your Fon account to this social network.
Note: To use the Facebook sharing feature, both your Fon and Facebook accounts must have the
same email address.
Step 6: You're all set!
That's it, your Fonera is now registered, your Fon Spot on our map and you are part of the world’s
largest WiFi network!
Back to Table of Contents

Fonera Simpl (FON2405)
7
How to modify the settings of the Fonera Simpl via its
web interface
From the Fonera's web interface, you'll be able to change all sorts of settings and perform system
maintenance tasks such as rebooting and restoring factory defaults. You can access your
Fonera’s web interface via WiFi or Cable:
WiFi: use a computer or a mobile device to connect to its private WiFi signal
Cable: connect an Ethernet from the computer port of the Fonera to your computer
Then type http://fonera or http://192.168.10.1* into your web browser’s address bar and log in
with its password, the default is admin.
* Note: 192.168.10.1 is the Fonera's default IP address, if you ever change it, type in the new
value to access the web interface.
List of menus available:
1. Status
2. Network settings
3. Internet settings
4. WiFi
5. Password
6. System
7. Languages
8. Firewall

Fonera Simpl (FON2405)
8
Status
Configuration information is the reason why the page is called "Overview". On this page you
can see at first glance very relevant configuration information, such as internet connection and
network set-up, name of the private WiFi signal, channel and firmware version.
If you ever see an icon prompting you to register your Fonera, please just disregard it or click
on it. If your Fonera hasn't been registered yet, go to register.fon.com to make the registration. If
your Fonera has already been registered, just ignore that message as it only means that the
option to register is always available, at least until you click on it.
Back to Table of Contents

Fonera Simpl (FON2405)
9
Network settings
From the network settings page you can configure the Fonera's private network, which consists of
all devices connected to its private WiFi signal or LAN Ethernet port. Warning: We do not
recommend changing the network configutation unless you know what you are doing.
IP is the IP address of the Fonera in its own local network. This is the IP used to access the
Fonera's web interface (whether you type the IP address directly or http://fonera) as a result, if you
change the IP, you will get disconnected and will need to access again the Web interface on the
new IP. Important Note: The Fonera's (LAN) IP address and its WAN IP address must be in
different subnets.
Subnet is a logically visible subdivision of its IP network specified in the form of a subnet
mask. The default is 255.255.255.0 which is the network mask for the 192.168.10.0/24 prefix.
DHCP is the Dynamic Host Configuration Protocol (DHCP) server on the Fonera. Use this setting
to switch it ON and OFF. The DHCP server assigns IP addresses to devices connected to the
Fonera's local network. Disabling it will result on devices connecting to the Fonera's LAN and
private WiFi signal not acquiring an IP address automatically.
Back to Table of Contents

Fonera Simpl (FON2405)
10
Internet settings
From the internet settings page you can configure the way the Fonera connects to the internet. To
set up a new internet connection (the defaults are Cable and DHCP), you'll need to select a mode
and a protocol.
Protocol is the way the Fonera will be assigned an IP address. Select "DHCP" for the Fonera to
acquire an IP address automatically from your ISP's modem or local DHCP server, select "Static"
to configure an IP address manually or "PPPoE" if you need to establish a session with your ISP
to connect to the internet.
QoS actually refers to downstream and upstream Quality of Service. Activating it assigns high
priority to Internet video streaming.
Back to Table of Contents

Fonera Simpl (FON2405)
11
WiFi
From the WiFi settings page you can configure the Fonera's private WiFi signal, but please note
that modifying Mode, Channel, TX Power and 11N Mode will affect both the public and private
WiFi signals of your Fonera.
SSID is the name of the private WiFi signal that your Fonera is broadcasting. The default SSID is
MyPlace_XXXXX", but you can change it to a more convenient name such as MikeFonera.
Encryption is the type of security used to cipher the data exchanged between your devices and
the Fonera when the private wireless signal is used. The default is WPA2, and it is the most
secured option. Only change those settings if you have a device which doesn't support WPA2 and
you want to connect it to the Internet through the Fonera private signal. Other available modes
are WPA and WPA/WPA2 - which allow devices to connect to both WPA2 and WPA mode. We do
not recomment using WEP mode as it is not as secure.
Passphrase is the password you have to use to connect to your private wireless signal. The
default passphrase is written in very small print on the sticker under the Fonera.
Mode is the WiFi protocol that will be used to connect. The default mode is N/G/B mixed which
allows WiFi devices using 802.11b, 802.11g and 802.11n protocols to connect. Modifying this
setting may affect compatibility with devices and therefore we strongly suggest that you use

Fonera Simpl (FON2405)
12
its default unless for instance ALL your WiFi devices support 802.11n and you would like to use "N
only" for maximum speed and compatibility.
Channel is the WiFi channel that the Fonera uses to broadcast its WiFi signals (public and
private). Channel related interference can be reduced or eliminated by selecting the proper WiFi
channel for your network. In automatic mode your Fonera will try its best to avoid overlapping
channel interference. However, in environments where several WiFi signals are available,
choosing the best* channel can boost WiFi perfomance and prevent connection related issues.
We recommend channels 1, 6 and 11.
TX Power is the strength of the WiFi signal that the Fonera produces. A stronger signal will
generally provide a more reliable WiFi connection and therefore the default value is 100%. A lower
power setting means the signal will not go as far, decreasing its range and throughput. We
suggest keping TX Power at 100% and adjust it only if you have a good reason to change it.
11N Mode is the WiFi channel width, which can be 20MHz (HT20) or 40MHz (HT40). The default
is&nbspHT20 which ensures a stable signal. We do not recommend changing
to HT20/HT40 mode as some 802.11n devices and Operative Systems don't support HT40.
WPS is a network security standard (WiFi Protected Setup) that allow users to easily secure a
WiFi home network. This setting allows you to enable/disable WPS. When enabled, the Fonera's
WPS button is used to produce a pin, you then can use this instead of the passphrase to connect
to its private WiFi signal. The default is Button, which means that WPS is enabled and can by
triggered by tap pressing the Fonera's black back button.
Country is associated to dot11d's world-mode. We recommend configuring a country code. The
IEEE 802.11h protocol requires access points to include the country information element in
beacons and probe responses. By default, however, the country code is blank. Use the drop-down
menu to select the appropriate country.
Back to Table of Contents

Fonera Simpl (FON2405)
13
Password
From the password page you can change the password to access the Fonera's web interface. The
default password is admin. To keep it safe, we highly recommend you create a
unique password. The maximum length for a password is 63 chars.
Back to Table of Contents

Fonera Simpl (FON2405)
14
System
From the system page you can reboot the Fonera or restore its factory default settings.
Reboot Fonera use this option to restart the Fonera. Rebooting your Fonera might prove handy
when configuration changes don't take effect or if you ever notice a drop in its performance. A
reboot will leave the previously saved configuration unmodified.
Restet to Factory Settings use this option to get rid of custom configuration and go back to
default values.
Back to Table of Contents

Fonera Simpl (FON2405)
15
Languages
From the language page you can change the language in which the Fonera's web interface is
displayed. The default language is English.
Back to Table of Contents
Firewall
From the firewall settings page you can configure port forwarding by adding NAT mapping rules.
Port forwarding provides external access to services running on the Fonera's private network

Fonera Simpl (FON2405)
16
(devices connected to its privat WiFi signal or LAN port). Forwarding of ports is seldom if ever
required to allow clients of online PC game to function properly. However, some online games or
applications might require port forwarding to allow communications from the Internet.
Note: If the Fonera is connected to the internet via a router (as opposed to a modem) you'll first
have to forward the desired traffic/port to the Fonera's IP (WAN) and then forward it from the
Fonera to your computer.
Dest IP is the IP of the computer/device running the software that requires port redirection.
Source Port is the external port (number).
Dest Port is the internal port (number). Normally, you would use the same port number as
destination and source.
Protocol is the type of traffic that will be forward: TCP, UDP or TCP+UDP.
For example, if you want to run your own web server on your LAN, this would need to get requests
on port 80 (the default port number for HTTP traffic). If the PC running your web server on your
LAN had an address of say 192.168.10.2, you would configure the Fonera to forward any
(TCP/UDP) traffic from the WAN to its WAN address with a destination port of 80 to the PC at
192.168.10.2. When your web server replies to the request, it is sent through the Fonera back to
the WAN address of the original requester.
Back to Table of Contents

Fonera Simpl (FON2405)
17
Troubleshooting the Fonera Simpl
1. My Fonera fails to connect to Internet
2. My Fonera is connected correctly but doesn’t broadcast the public signal
3. My Fonera is showing offline in my userzone
4. My Fonera is not showing on the maps
5. Forgotten Fonera’s management console password
6. Required ports
7. How to restore the factory settings on my Fonera
8. My computer connects to a Fon Spot instead of my home network
9. Forgotten Userzone password
10. How to change my email address
11. How to access the management console of the Fonera
12. The MAC address online is different than the one found on my router
13. Firmware upgrade
14. PPPoE mode
15. I registered my Fonera but it is showing the register icon on its web interface
16. When I connect my Windows device to the private WiFi (MyPlace) I’m prompted to introduce a PIN
code
My Fonera fails to connect to Internet
Whenever you see that your Fonera lost internet connection (LEDs glowing static or blinking
orange), and your router settings were not modified, then you can proceed as follows:
Perform a factory reset
Repeat the installation
If it still fails to set an internet connection, it is very likely that the issue is hardware-related. As
this Fonera model is outdated, no replacement or further troubleshooting could be provided.
Back to Table of Contents
My Fonera is connected correctly but doesn’t broadcast the
public signal
Usually this means that you have to change the Internet settings to make the Fonera work in a different
mode from its default (DHCP). To do so, please follow these instructions:
Perform a factory reset
Repeat the installation

Fonera Simpl (FON2405)
18
Detect the private signal MyPlace_XXX and connect to it: WPA key appears on the label stuck at
the back of the Fonera
Open your web browser and introduce http://fonera in the bar address: default password to access
the web interface is admin
Go to "Internet settings"
Switch connection mode from DHCP to Static IP
Introduce an IP different from your router's and the Fonera's
In case your router operates under PPPoE mode, please get in touch with your ISP so he provides you with
the configuration information.
If you are still not able to see the public SSID:
Make sure the Ethernet cable is connected to the right port (Internet) on the Fonera and on the
main router (any spare DMZ LAN port).
If the Ethernet cable is correctly connected try using a different cable at hand and that you know
works.
Make sure the following ports are open on network's Firewall:
Port | Protocol | Description
53 | UDP/TCP | FON DNS
80 | TCP | HTTP
123 | UDP | Fonera Clock synchronization
443 | TCP | HTTPS for portal
1645 | UDP | Radius authentication
1812 | UDP | Radius authentication
1813 | UDP | Radius authentication
1937 | TCP | Fon heartbeat and updates
1938 | TCP | Fon heartbeat and updates
3990 | TCP | Coovachilli port
If it still fails to broadcast the public signal, it is very likely that the issue is hardware-related. As
this Fonera model is outdated, no replacement or further troubleshooting could be provided.
Back to Table of Contents
My Fonera is showing offline in my userzone
If you look at your router information in your user area at fon.com, you might notice that your
Fonera status is “Offline”, despite it’s actually connected and operating correctly.
This is nothing to be worried about. Indeed, it is due to the fact that this Fonera model is outdated
and any router-related data is saved in an old deprecated platform. For this reason, the
information showing in your userzone is not updated.

Fonera Simpl (FON2405)
19
If you check that your Fonera is connected (Internet LED glowing static green light), then you can
just ignore the offline mention.
Back to Table of Contents
My Fonera is not showing on the maps
First of all, please be aware that your Fon Spot doesn't show up on our maps (https://fon.com/maps/)
immediately after completing the registration process.
But, if more than 24 hours have passed since you created your Fon account and you're still unable to see
your hotspot on the Fon map; it could be that the geolocalisation process failed.
Unfortunately, geolocalisation (based on Google maps) isn’t a 100% accurate process.
As a possible workaround to fix this issue, please re-register your Fonera.
At step 4, introduce your address and move the pin which appears on the below map to the right location, if
necessary. Then, just complete the registration process to make sure the change is saved. Please note that
changes may take up to 24 hours to be reflected in your userzone, and the Fon map.
Back to Table of Contents
Forgotten Fonera’s management console password
The only way to recover your password to access the admin console of your Fonera is to reset it to its
factory settings.
Once done, please note the default password is admin.
Back to Table of Contents
Required ports
Foneras do not require a special port configuration to connect to the internet. You just have to make sure
that the following ports are not blocked:
Port 53
Port 1812
Port 1813

Fonera Simpl (FON2405)
20
Port 443
Back to Table of Contents
How to restore the factory settings on my Fonera
Here is how to get the Fonera back to its default settings using its button:
While the Fonera is powered OFF, press its back button and connect the power cable
Hold the button for at least 15 seconds while the Fonera is powering up
After 15 seconds, or a little more, release the button. The Fonera will be back to its factory settings
The password of the Fonera's web interface will be admin, and private wireless signal will be
named MyPlace
Note: You can also restore the defaults settings from the web interface.
Back to Table of Contents
My computer connects to a Fon Spot instead of my home
network
This occurs when your automatic wireless settings are giving priority to a connection to Fon over a
connection to your home router. Here's how to solve the problem for:
1. Windows XP Wireless Auto Configuration
2. Apple iPad, iPhone and iPod touch
If you're using other wireless management software, check the user documentation.
Windows XP Wireless Auto Configuration
If you have connected to a Fon Spot in the past, it might have been automatically added to the list
of your preferred wireless networks.
Double click the 'Wireless Connection' icon from the System Tray. 'Note:' If the wireless connection
icon is not available in the System Tray, click 'Start > Control Panel > Network Connections', double
click on the 'Wireless Network Connection'.
The following window appears. Click 'Properties'.
Click 'Wireless Networks' tab.
When you switch on your computer, it attempts to connect to the networks listed in the order they
appear. So if Fon (i.e. FON_FREE_INTERNET) is higher in the list than your home network and
both wireless networks are in range then you will be automatically connected to the Fon Spot.
To get around this issue move your home network so it is higher in the list than Fon (do this by
selecting your home router's SSID in the list and clicking on the 'Move up' button until it is above
