Forbes Marshall FMSTR34 Manual

Installation and Maintenance Manual
Forbes Marshall Cast Strainer
FMSTR34, FMSTR54, FMSTR54#600

1. Preface .................................................................................1
2. Important Safety Notes ........................................................1
3. Brief Product Information .....................................................3
4. Product Working Principle ..................................................7
5. Installation Guidelines ........................................................7
6. Start-up and Commissioning ..............................................8
7. Maintenance Guidelines ....................................................8
8. Troubleshooting ..................................................................10
9. Available Spares ................................................................11
10. Warranty Period .................................................................13
Table of Contents
PLEASE NOTE - Throughout this manual this cautionary symbol is used to
describe a potential damage or injury that might occur if the safety
considerations are overlooked. This symbol denotes CAUTION, WARNING or
DANGER.
Forbes Marshall Cast Strainer

1
1. Preface:
This manual is intended for anyone using, commissioning, servicing, or disposing the below
mentioned products safely and efficiently.
Forbes Marshall Cast Strainer [FMSTR34] Size: DN 40 (1 ½”), DN 50 (2”), DN 65 (2 ½”), DN 80
(3”), DN 100 (4”), DN 125 (5”), DN 150 (6”), DN 200 (8”).
Forbes Marshall Cast Strainer [FMSTR54/FMSTR54#600] Size: DN40 (1 ½”), DN50 (2”), DN 65
(2 ½”), DN80 (3”), DN100 (4”), DN125 (5”), DN150 (6”), DN200 (8”), DN250 (10”), DN300 (12”).
PLEASE NOTE:
Throughout this manual the following cautionary symbol is used to describe a potential damage
or injury that might occur if the safety considerations are overlooked.
2. Important Safety Notes:
Read this section carefully before installing/operating/maintaining the product. The
precautions listed in this manual are provided for personnel and equipment safety.
Furthermore, Forbes Marshall accepts no responsibility for accidents or damage
occurring as a result of failure to observe these precautions. Note that the product is
designed to perform for non-contaminated fluids only. A contamination in the form of
chemical, foreign particle etc. can lead to problem with product performance and life of
the product.
If these products in compliance with the operating instructions are, properly installed,
commissioned, maintained and installed by qualified personnel (refer Section 2.7) the safety
operations of these products can be guaranteed. General instructions for proper use of tools and
safety of equipments, pipeline and plant construction must also be complied with.
2.1 Intended use:
Check if the product is suitable for intended use/ application by referring to the installation
and maintenance instructions, name plates and technical information sheets.
i) The product is suitable for use as defined in the technical information sheet. In case the
need arises to use the product on any other fluid please contact Forbes Marshall for
assistance.
ii) Check for the suitability in conformance to the limiting conditions specified in technical
information sheet of the product.
iii) The correct installation and direction of fluid flow has to be determined.
iv) Forbes Marshall products are not intended to resist external stresses, hence necessary
precautions to be taken to minimize the same.
2.2 Accessibility and Lighting:
Safe accessibility and working conditions are to be ensured prior to working on the product.
FMSTR34, FMSTR54, FMSTR54#600

2
2.3 Hazardous environment and media:
The product has to be protected from hazardous environment and check to ensure that no
hazardous liquids or gases pass through the product.
2.4 Depressurizing of systems and normalizing of temperature:
Ensure isolation and safety venting of any pressure to the atmospheric pressure. Even if the
pressure gauge indicates zero, do not make an assumption that the system has been
depressurized.To avoid danger of burns allow temperature to normalize after isolation.
2.5 Tools and consumables:
Ensure you have appropriate tools and / or consumables available before starting the work.
Use of original Forbes Marshall replacement parts is recommended.
2.6 Protective clothing:
Consider for the requirement of any protective clothing for you/ or others in the vicinity for
protection against hazards of temperature (high or low), chemicals, radiation, dangers to
eyes and face, noise and falling objects.
2.7 Permits to work:
All work to be carried out under supervision of a competent person. Training should be
imparted to operating personnel on correct usage of product as per Installation and
Maintenance instruction. “Permit to work” to be complied with (wherever applicable), in
case of absence of this system a responsible person should have complete information and
knowledge on what work is going on and where required, arrange to have an assistant with
his primary goal and responsibility being safety. “Warning Notices” should be posted
wherever necessary.
2.8 Handling:
There is a risk of injury if heavy products are handled manually. Analyze the risk and use
appropriate handling method by taking into consideration the task, individual, the working
environment and the load.
2.9 Freezing:
Provision should be made to protect systems which are not self-draining, against frost
damage (in environment where they may be exposed to temperatures below freezing point)
to be made.
2.10 Freezing:
It is necessary to dispose this product only in accordance with local regulations at the
authorized, qualified collecting point specified for equipment’s and its parts—Please refer
the part details mentioned in the material table of this manual. Please follow all waste
disposal guidelines (Management & Handling) as published by local governing authorities in
India & abroad
2.11 Returning products:
Customers and Stockist are reminded that, when returning products to Forbes Marshall
they must provide information on any hazards and the precautions to be taken due to
contamination residues or mechanical damage which may present a health, safety or
environmental risk.This information must be provided in writing including Health and
Safety data sheets relating to any substances identified as hazardous or potentially
hazardous.
Forbes Marshall Cast Strainer
It is necessary to dispose this product only in accordance with local regulations at the
authorized, qualified collecting point specified for equipment’s and its parts—Please refer
the part details mentioned in the material table of this manual. Please follow all waste
disposal guidelines (Management & Handling) as published by local governing authorities
in India & abroad
2.12 Product Disposal

3
3. Brief Product Information:
3.1 Description:
Forbes Marshall Cast Strainers, FMSTR34, FMSTR54/FMSTR54#600 are available in cast iron
/ cast steelwith SS screen having 0.8mm dia perforation as standard up to DN 125 .
3.2 Sizes and End Connections:
CI : DN 40, 50, 65, 80, 100, 125, 150 and 200
CS : DN 40, 50, 65, 80, 100, 125, 150, 200, 250 and 300
Note :
1. Also available with IBR certificate on request
3.6 Limiting Conditions:
A) For CI Strainer - FMSTR34
Designed for a maximum cold hydraulic test pressure of 26 bar g
EN 1092 PN16 13 bar g
PMO BS10 Table F 13 bar g
ANSI 125 10 bar g
ANSI 150 10 bar g
TMO Maximum operating temperature 220°C
Minimum operating temperature 0°C
Maximum operating pressure
for saturated steam service
B) For CS Strainer - FMSTR54
Flange Max Working Temperature
Type Pressure Kg/cm²g Deg C
BS 10 Table F 10.5 425
BS 10 Table H 17.6 425
BS 10 Table J 24.6 425
BS 10 Table K 31.6 425
BS 10 Table R 42 425
Class 150 13 220
Class 300 28 425
Class 600 58 425
PN 10 7 425
PN 16 11.5 425
PN 25 20 425
PN 40 30 425
FMSTR34, FMSTR54, FMSTR54#600

4Forbes Marshall Cast Strainer
Pressure bar g
220
200
100
0
0
246 8 10 12
0
Temperature C
Steam
saturation
curve
13
Material:
Sr no Part Material Standard
1 Body Cast Iron IS 210 FG 260
Cast Steel ASTM A 216 Gr WCB
2 Cap Cast Iron IS 210 FG 260
Cast Steel SA-516 Gr.70
3 Screen Stainless Steel ASTM A 240 Gr. 304
4 Gasket SS exfoliated -
graphite
5 Stud Carbon Steel ASTM A 193 Gr. B7
6 Nut Carbon Steel ASTM A 194 Gr. 2H
Figure 1: Forbes Marshall Cast Strainer
3.5 Operating Range :
A) For CI Strainer - FMSTR34:

B) For CS Strainer - FMSTR54
BA
BA
-10
0
100
200
300
400
10 0 20 30 40 50 60
425
70 80 90 100
C
C
D
D
E
E
F
F
G
G
H
H
I
I
J
J
K
K
Steam
saturation
curve
L
L
o
Temperature C
Pressure bar g
A-AFlanged ANSI 300
C-C
B-BFlanged ANSI 150
D-D
E-E
F-F
Flanged ANSI 600
BS10 Table F
BS10 Table H
BS10 Table J F
I-I
G-G
H-H
J-J
K-K
BS10 Table K
BS10 Table R
PN16
PN25
PN40
L-L
PN10
This product must not be used in this region.
Figure 2: Dimensional drawing of FMSTR34 / FMSTR54
3.6 Product Dimension and Drawing:
5
FMSTR34, FMSTR54, FMSTR54#600

A) CI Strainer - FMSTR34
Dimensions and Weight (approx) in mm and kg
DIM→ B Weight
SIZE↓ A BS TABLE ANSI DIN Kg
DN F 150 PN10 PN16 C
40 230 140 127 150 150 159 8
50 242 165 152 165 165 179 10
65 292 185 178 185 185 229 12
80 298 203 190 200 200 225 18
100 348 229 229 220 220 267 30
125 400 279.5 254 250 250 316 40
150 484 305 279 285 285 367 90
200 604 368 343 340 340 470 118
B) C.S Strainer - FMSTR54
Dimensions and Weight (approx) in mm and kg
DIM→ B Weight
SIZE↓ A BS TABLE ANSI DIN C (Kg)
DN F H J K R 150 300 600 PN10 PN16 PN25 PN40
40 235 …. 140 …. 152 152 127 155 155 150 150 150 150 187 9
50 254 …. 165 …. 165 …. 152 165 165 165 165 165 165 203 15
65 292 184 184 184 184 184 177.8 190.5 190.5 185 185 185 185 229 19
80 330 203 203 203 203 203 190 210 210 200 200 200 200 245 23
100 381 …. …. …. 241 …. 229 254 273 220 220 235 235 299 33
125 400 279 279 279 279 279 254 279 330 250 250 270 270 316 70
150 540 …. 304.8 304.8 304.8 304.8 279.4 317.4 355.6 285 285 300 300 370 96
200 668 …. 368.3 368.3 368.3 368.3 343 381 419.1 340 340 360 375 470 160
250 813 …. …. …. 431.8 …. 406.4 444.5 508 395 405 425 450 650 200
300 894 …. 489 489 489 508 482.6 520.7 558 445 485 485 515 800 350
6Forbes Marshall Cast Strainer

4. Product Working Principle:
Forbes Marshall Cast Strainer is used to remove dirt, debris and other foreign particles from the
fluid, it restrict the particle size which are larger than specified sieve size (mesh or perforation).
Pressure drop across the strainer will increase as dirt and debris will block the opening of the sieve.
As pressure drop increases above certain specified limit the strainer sieve need to be cleaned.
5. Installation Guidelines : [Refer Figure 3 and 4]
Note: Before implementing any installations observe the 'Important Safety notes” in
section 2. Referring to the Installation and Maintenance Instructions, name-plate and
Technical Information Sheet, check that the product is suitable for the intended
installation.
1. Check the direction marked on the strainer and the direction of fluid flow.
2. Remove protective covers from connections.
3. Strainer can be fitted on steam /gases and liquid systems in either horizontal pipework or
vertical pipework when the flow and strainer pocket pointing downward. In a horizontal
pipeline on steam / gas system the strainer pocket should be in the horizontal plane as this
reduces the possibility of water hammer because of condense steam get accumulated in
screen when strainer pocket pointed downward. On liquid systems the strainer pocket
should point downwards.
4. Suitable isolation valves must be installed to allow for safe maintenance.
Note: Never install strainer in vertical pipework with flow from bottom to top it can lead to
re-entrainment of filtered dirt or foreign particles back into the incoming flow.
5. Strainer can be lagged (insulated) if required.

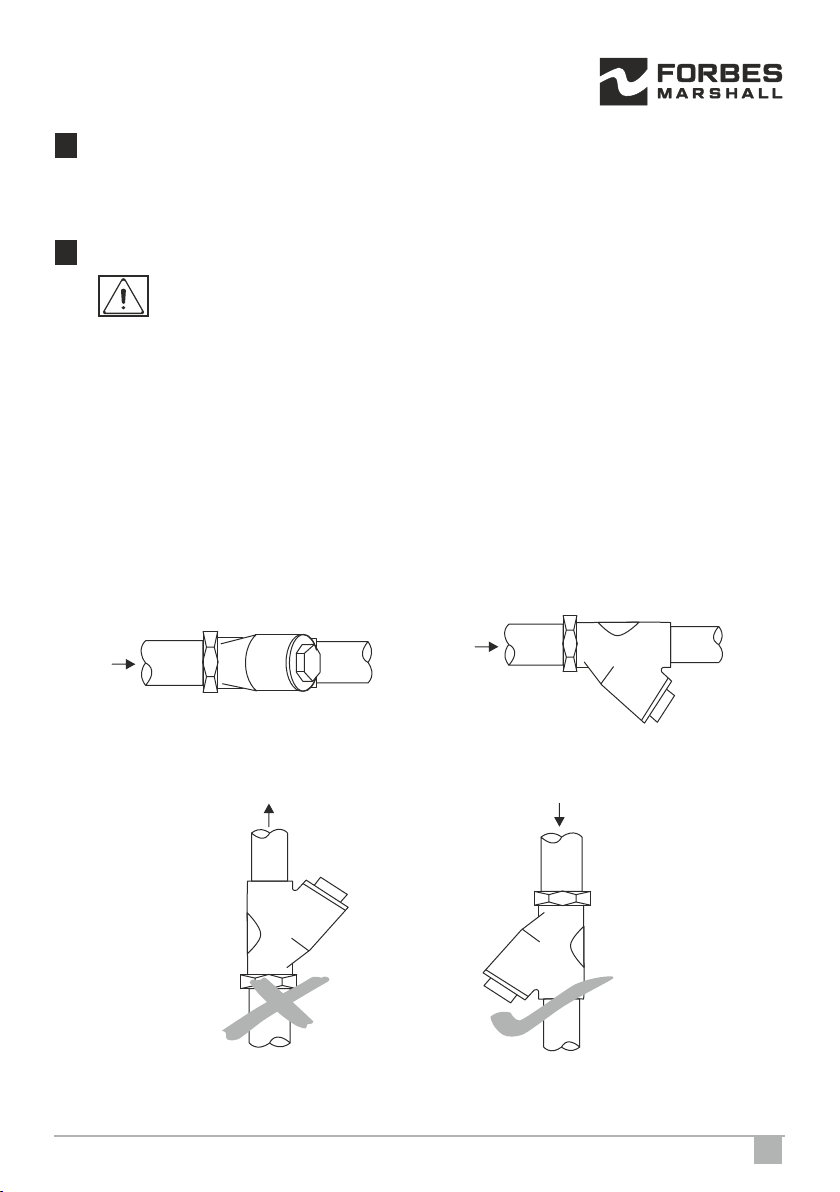

Figure 3 : Strainer installation on horizontal pipework
Figure 4 : Strainer installation on vertical pipework
6. Start-up and Commissioning:
6.1. Flushing of lines:
As part of pre-installation all fluid handling equipment particularly piping should be
thoroughly cleaned of scale and the internal debris which accumulates during construction.
This is accomplished by blowing or flushing with air, steam, water and other suitable
Strainer installed on steam or gas line
Strainer installed on liquid line
Flow downwards
Flow upwards
7
FMSTR34, FMSTR54, FMSTR54#600

medium.
Follow this step to carry out flushing of lines.
Note: For a detailed procedure on flushing of lines please visit Forbes Marshall website.
6.2. Commissioning:
After installation or maintenance ensure that the system is fully functioning by confirming
fluid is passing through it.
7. Maintenance Guidelines:
Note: Before undertaking any maintenance of the product it must be isolated from
both supply line and return line and ensure pressure is normalized to atmosphere. The
product should then be allowed to cool. When re-assembling ensure that all joint faces
are clean.
Note: The strainer cap gasket contains a thin stainless steel support ring which may cause
physical injury if not handled and disposed of carefully.
7.1. Routine and preventive maintenance:
Please refer to the maintenance schedule mentioned in the table below to undertake
routine maintenance of the Strainer.
7.2. Recommended tightening torques:
Sr. No.
PARAMETERS TO BE CHECKED
FREQUENCY FOR CHECKING VARIOUS PARAMETERS
Daily
Weekly
Monthly
Quarterly
Half Yearly
Annually
1.
Clean of the screen
Y
8Forbes Marshall Cast Strainer

Table 1: Recommended tightening torques for strainer [FMSTR34]
Table 2: Recommended tightening torques for strainer [FMSTR54]
7.3. Procedure to clean or replace strainer screen: [Refer figure 1]
1. Unscrew nuts (6) and remove the strainer cap (2)
2. Remove the muck and clean screen (3) thoroughly, fit screen carefully and fit cap (2)
with new gasket (4).
3. Apply a thin coating of jointing paste.
4. Tighten nuts (6) uniformly open up isolation valve. Check for gasket (4) leak if any then
tighten the nuts (6) of strainer cap (2) if required.
8. Troubleshooting:
If the expected performance is unachievable after installation of the Forbes Marshall Cast Strainer,
check the following points for appropriate corrective measures.
Note: Never attempt to modify the product. When replacing old part with new part, use the spare
parts listed in section 9.
9. Available Spares: [Refer figure 5 and 6]
10. Warranty Period:
As per ordering information and agreements in the contract.
Size
Part
Torque Range
DN 40
Nut (6)
10 A/F
170-185 Nm
DN 50
10 A/F
190-210 Nm
DN 65
19 A/F
25-35 Nm
DN 80
19 A/F
25-35 Nm
DN 100
24 A/F
55-65 Nm
DN 125
19 A/F
55-65 Nm
DN 150
19 A/F
80-100 Nm
DN 200
30 A/F
80-100 Nm
DN 250
50 A/F
100-120 Nm
DN 300
55 A/F
100-120 Nm
Size
Part
Torque Range
DN 40
Nut (6)
10 A/F
170-185 Nm
DN 50
10 A/F
190-210 Nm
DN 65
19 A/F
25-35 Nm
DN 80
13 A/F
25-35 Nm
DN 100
19 A/F
55-65 Nm
DN 125
19 A/F
55-65 Nm
DN 150
19 A/F
80-100 Nm
DN 200
30 A/F
80-100 Nm
9
FMSTR34, FMSTR54, FMSTR54#600

10 Forbes Marshall Cast Strainer
Failure Mode
Possible Cause
Remedy
No flow through strainer.
Strainer screen is
clogged with rust or
debris.
Flush inline drip leg or pipeline and clean the
screen. If screen is rusted, replace with new
screen.
Increased pressure drop
across the strainer.
Screen is blocking
up.
Clean or replace the screen.
Fluid leakage from strainer
pocket.
Gasket deterioration
or damage.
Replace with new gasket and tighten the nut
of the Strainer cap to the recommended
torque.

Figure 5 : Exploded view of Forbes Marshall Cast Strainer [FMSTR34]
Figure 6 : Exploded view of Forbes Marshall Cast Strainer [FMSTR54]
11
FMSTR34, FMSTR54, FMSTR54#600

Spares
Part No.
Spare Code
Screen & Gasket kit for DN 40 FMSTR34 [Pack of 3]
3,4
SPARE-040FMSTR34-SGKIT
Screen & Gasket kit for DN 50 FMSTR34 [Pack of 3]
3,4
SPARE-050FMSTR34-SGKIT
Screen & Gasket kit for DN 65 FMSTR34 [Pack of 1]
3,4
SPARE-065FMSTR34-SGKIT
Screen & Gasket kit for DN 80 FMSTR34 [Pack of 1]
3,4
SPARE-080FMSTR34-SGKIT
Screen & Gasket kit for DN 100 FMSTR34 [Pack of 1]
3,4
SPARE-100FMSTR34-SGKIT
Screen & Gasket kit for DN 125 FMSTR34 [ Pack of 1 ]
3,4
SPARE-125FMSTR34-SGKIT
Screen & Gasket kit for DN 150 FMSTR34 [ Pack of 1 ]
3,4
SPARE-150FMSTR34-SGKIT
Screen & Gasket kit for DN 200 FMSTR34 [ Pack of 1 ]
3,4
SPARE-200FMSTR34-SGKIT
Screen & Gasket kit for DN 40 FMSTR54 [Pack of 3]
3,4
SPARE-040FMSTR54-SGKIT
Screen & Gasket kit for DN 50 FMSTR54 [Pack of 3]
3,4
SPARE-050FMSTR54-SGKIT
Screen & Gasket kit for DN 65 FMSTR54 [Pack of 3]
3,4
SPARE-065FMSTR54-SGKIT
Screen & Gasket kit for DN 80 FMSTR54 [Pack of 1]
3,4
SPARE-080FMSTR54-SGKIT
Screen & Gasket kit for DN 100 FMSTR54 [Pack of 1]
3,4
SPARE-100FMSTR54-SGKIT
Screen & Gasket kit for DN 125 FMSTR54 [Pack of 1]
3,4
SPARE-125FMSTR54-SGKIT
Screen & Gasket kit for DN 150 FMSTR54 [Pack of 5]
3,4
SPARE-150FMSTR54-SGKIT
Screen & Gasket kit for DN 200 FMSTR54 [Pack of 5]
3,4
SPARE-200FMSTR54-SGKIT
Screen & Gasket kit for DN 250 FMSTR54 [Pack of 5]
3,4
SPARE-250FMSTR54-SGKIT
Screen & Gasket kit for DN 300 FMSTR54 [Pack of 5]
3,4
SPARE-300FMSTR54-SGKIT
Gasket kit for DN 40 FMSTR34 [PACK OF 5]
4
SPARE-040FMSTR34-GKIT
Gasket kit for DN 50 FMSTR34 [PACK OF 5]
4
SPARE-050FMSTR34-GKIT
Gasket kit for DN 65 FMSTR34 [PACK OF 5]
4
SPARE-065FMSTR34-GKIT
Gasket kit for DN 80 FMSTR34 [PACK OF 5]
4
SPARE-080FMSTR34-GKIT
Gasket kit for DN 100 FMSTR34 [PACK OF 5]
4
SPARE-100FMSTR34-GKIT
Gasket kit for DN 125 FMSTR34 [PACK OF 5]
4
SPARE-125FMSTR34-GKIT
Gasket kit for DN 150 FMSTR34 [PACK OF 5]
4
SPARE-150FMSTR34-GKIT
Gasket kit for DN 200 FMSTR34 [PACK OF 5]
4
SPARE-200FMSTR34-GKIT
12 Forbes Marshall Cast Strainer

How to Order:
Example- 1 No. DN 40 Forbes Marshall Cast Strainer, FMSTR34 strainer flanged to table F,
IBR
How to Order Spares:
Always order spares by using the description given in the column headed “Available
Spares” in user manual
Spares
Part No.
Spare Code
Gasket kit for DN 40 FMSTR54 [PACK OF 5]
4
SPARE-040FMSTR54-GKIT
Gasket kit for DN 50 FMSTR54 [PACK OF 5]
4
SPARE-050FMSTR54-GKIT
Gasket kit for DN 65 FMSTR54 [PACK OF 5]
4
SPARE-065FMSTR54-GKIT
Gasket kit for DN 80 FMSTR54 [PACK OF 5]
4
SPARE-080FMSTR54-GKIT
Gasket kit for DN 100 FMSTR54 [PACK OF 5]
4
SPARE-100FMSTR54-GKIT
Gasket kit for DN 125 FMSTR54 [PACK OF 5]
4
SPARE-125FMSTR54-GKIT
Gasket kit for DN 150 FMSTR54 [PACK OF 5]
4
SPARE-150FMSTR54-GKIT
Gasket kit for DN 200 FMSTR54 [PACK OF 5]
4
SPARE-200FMSTR54-GKIT
Gasket kit for DN 250 FMSTR54 [PACK OF 5]
4
SPARE-250FMSTR54-GKIT
Gasket kit for DN 300 FMSTR54 [PACK OF 5]
4
SPARE-300FMSTR54-GKIT
13
FMSTR34, FMSTR54, FMSTR54#600

Doc# FMSS/0218/UM-FMSTR34_FMSTR54_FMSTR54#600/R1
ITEM CODE NO.- 99-001-1180482
Forbes Marshall Pvt Ltd
Manufacturing: B-85, Phase II Chakan Indl Area, Sawardari, Chakan
Tal. Khed, Dist, Pune 410 501. Tel: [phone]
Sales: Opp 106th Milestone, Bombay Pune Road, Kasarwadi,
Pune 411034 Tel.: [phone]
CIN No: U28996PN1985PTC037806
Disclaimer:
This information is strictly proprietary and legally privileged. All contents herein shall be the property of Forbes
Marshall Pvt Ltd and having protection under the intellectual property rights. No part of this information or data may
be distributed or disclosed in any form to any third party. Any dissemination, use, review, distribution, printing or
copying is strictly prohibited, if you are not the intended recipient or user of this information.
Email : [email protected] www.forbesmarshall.com
