Forest DIAMOND SENSE REMOTE User manual

02/2020 WDOC Diamond Sense www.forestgroup.com v1.4

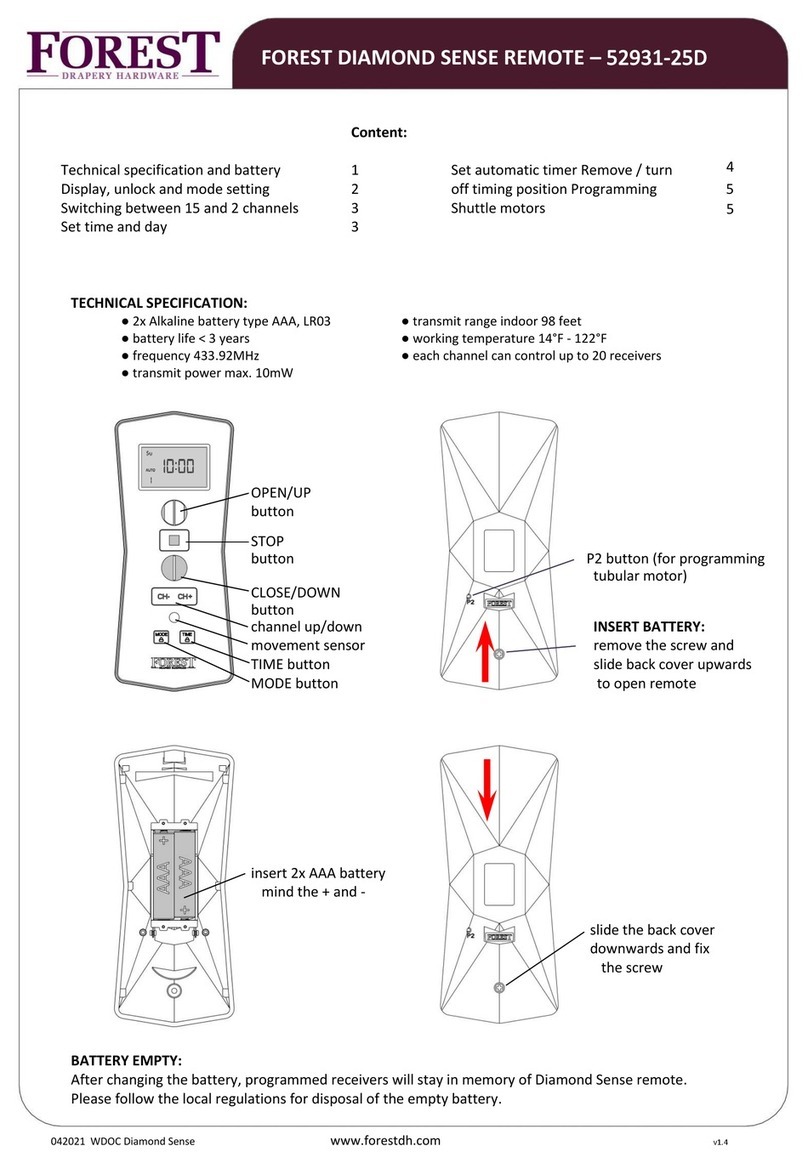

FOREST DIAMOND SENSE REMOTE –520109X470
Content:
Technical specification and battery 1 Remove / turn off timing position 5
Display, unlock and mode setting 2 Programming Shuttle motor S / M / L 5
Switching between 15 and 2 channels 3 Programming Shuttle click-on receiver 6
Set time and day 3 Programming external receiver 7
Set automatic timer 4 Programming tubular and BS motor 8
TECHNICAL SPECIFICATION:
● 2x Alkaline battery type AAA, LR03 ● transmit range indoor max. 30mtr
● battery life < 3 years ● working temperature -10°C - +50°C
● frequency 433.92MHz ● each channel can control up to 20 receivers
● transmit power max. 10mW
OPEN/UP
button
STOP
button P2 button (for programming
tubular motor)
CLOSE/DOWN
button
channel up/down INSERT BATTERY:
movement sensor remove the screw and
TIME button slide back cover upwards
MODE button to open remote
insert 2x AAA battery
mind the + and -
slide the back cover
downwards and fix
the screw
BATTERY EMPTY:
After changing the battery, programmed receivers will stay in memory of Diamond Sense remote.
Please follow the local regulations for disposal of the empty battery.

02/2020 WDOC Diamond Sense www.forestgroup.com v1.4
FOREST DIAMOND SENSE REMOTE –SETTINGS
DISPLAY: day of the week
mode time
channel no.
UNLOCK THE MODE AND TIME BUTTONS:
Keep both buttons MODE and
TIME pressed for about 4 seconds
until the display shows ‘LOC’.
Now you can set the mode and time.
MODE: MAN Manual mode: automatic timer mode is off
AUTO Auto mode: automatic timer mode is on
AUTO Random mode: automatic timer mode is on, OPEN and CLOSE time will vary
between + and –15 minutes
To change the mode, keep ‘MODE’ pressed until the desired mode appears in the display:

02/2020 WDOC Diamond Sense www.forestgroup.com v1.4
FOREST DIAMOND SENSE REMOTE –SET TIME
SWITCHING BETWEEN 15 AND 2 CHANNELS:
Default setting of the Diamond Sense is 15 channels. Channel 1 up to 15 can be used.
When desired, for example when you only have one or two motorized systems, you can change the setting to 2
channels:
Keep both buttons, CH- and CH+ pressed for about 8 sec until
the display shows F-02.
Now the Diamond Sense is a 2-channel remote control.
To change back to a 15-channel remote control:
Keep both buttons, CH- and CH+ pressed for about 8 sec until the display shows F-15. Now the Diamond Sense is a 15-
channel remote control.
SET CURRENT TIME AND DAY (when necessary, first unlock the buttons: press and hold MODE and TIME):
or or
MODE must be ‘MAN’
press TIME button once, change hours by pressing press TIME button once, change minutes by pressing
hours start blinking OPEN or CLOSE button minutes start blinking OPEN or CLOSE button
or
press TIME button once, change day by pressing press STOP button
day starts blinking OPEN or CLOSE button to finish
SET AUTOMATIC TIMER

02/2020 WDOC Diamond Sense www.forestgroup.com v1.4
FOREST DIAMOND SENSE REMOTE –SET TIMERS
SET AUTOMATIC OPEN AND CLOSE TIME (first unlock the buttons: press and hold MODE and TIME):
In total up to 9 OPEN and 9 CLOSE timing positions can be set. For example use 4 points:
Position 1: Ma-Tu-We-Th-Fr 7:30 OPEN
Position 2: Ma-Tu-We-Th-Fr 21:00 CLOSE
Position 3: Sa-Su 7:00 OPEN
Position 4: Sa-Su 20:00 CLOSE
SET TIMING POSITION 1 –OPEN:
or
MODE must be ‘AUTO’
or ‘AUTO’ OPEN
position 1
(press and hold
MODE button)
press MODE button once select the desired channel press TIME button once, change hours by pressing
hours start blinking OPEN or CLOSE button
or or
press TIME button once, change minutes by pressing press TIME button one, change day(s) by pressing press STOP button
minutes starts blinking OPEN or CLOSE button day starts blinking OPEN or CLOSE button to finish
SET TIMING POSITION 1 –CLOSE:
Repeat steps here above, only start by pressing MODE button twice position 1
CLOSE
NEXT TIMING POINTS:
can be set in the same way, press multiple times the MODE button until desired timing position OPEN or CLOSE is
reached. Maximum of 9 OPEN and 9 CLOSE positions can be set.

02/2020 WDOC Diamond Sense www.forestgroup.com v1.4
FOREST DIAMOND SENSE REMOTE –SET TIMERS
REMOVE / TURN OFF TIMING POSITION (example shows timing position 1 OPEN now on 07:00 CH2 →turn off)
MODE must be ‘AUTO’
or ‘AUTO’ OPEN
position 1
(houdt MODE knop
ingedrukt)
press MODE button once press a few times on press STOP button
CH- until --:-- appears to finish
When desired, repeat this action for any other timing position.
To turn off all timers temperately, set the remote control to mode ‘MAN’, see page 2.
You can recognize these Shuttle motors by the white antenna cable.
To program a Diamond Sense to a Shuttle S / L / M Receiver, first select the
desired channel and proceed:
antenna
LED MOVES FROM LED STARTS BLINKING
1st →2nd→3rd LED
3x 1x for 5 sec. press 1x OPEN button
Same procedure, but press CLOSE instead of OPEN, will erase the programmed channel.
Do not mount the motor within 1 meter from other equipment and receivers.
This will interfere with the receiver.
FOREST SHUTTLE S / L / M RECEIVER PROGRAMMING

02/2020 WDOC Diamond Sense www.forestgroup.com v1.4
FOREST MULTI RECEIVER / WALL SWITCH –5201001360
TECHNICAL SPECIFICATION:
● powered by Shuttle ● op meerdere Shuttles parallel aan te sluiten
●cable 0,5mtr → 5201001360 ● working temperature 0°C - +50°C
●cable 3,5mtr → 5201001361 ● controlled by Forest remote control and
Forest wall switch RF
program button control led
open button
stop button
close button
press program button, led will blink press program button, led will blink press stop and close button for ~6 sec.
press stop button press stop button led will blink and go off
hold the remote control within 0.5mtr hold the remote control within 0.5mtr
from receiver and press OPEN button from receiver and press CLOSE button
or
or
led blinks 3 times and will go off led will blink and go off
PROGRAMMING REMOTE / WALL CANCEL ONE CHANNEL OF DELETE ALL PREVIOUS PROGRAMMED
SWITCH TO RECEIVER: REMOTE / WALL SWITCH REMOTES / WALL SWITCHES:

02/2020 WDOC Diamond Sense www.forestgroup.com v1.4
FOREST FMS/BCS MULTI RECEIVER  5104011500
TECHNICAL SPECIFICATION FMS/BCS RECEIVER:
● power: 100 - 240Vac 50/60Hz –500Wmax.
● controls one tubular or FMS motor. When more motors → use group relay
● can also be used as wall switch
● terminal max. 2,5mm² to power to motor
● working temperature -10°C - +50°C
control LED
OPEN/UP button
STOP button
CLOSE/DOWN button
keep STOP button pressed keep STOP button pressed keep STOP and CLOSE button keep OPEN and CLOSE button
for 5 seconds until LED blinks for 5 seconds until LED blinks pressed for 6 seconds pressed for 6 seconds
5 sec 5 sec 6 sec
within 10 sec. select channel within 10 sec. select (to be after 5 sec. the blue LED will blue LED will blink 3x to
and press OPEN button: removed) channel and press blink 3x to acknowledge: acknowledge:
STOP button:
blue LED will blink 3x to blue LED will blink 3x to
acknowledge: acknowledge:
Do not mount within 1 meter from other equipment and receivers. This will interfere with the receiver.
PROGRAMMING CHANNEL REMOVE PROGRAMMED DELETE ALL PREVIOUS CHANGE MOTOR
TO RECEIVER: CHANNEL: PROGRAMMED CHANNELS: DIRECTION
6 sec

02/2020 WDOC Diamond Sense www.forestgroup.com v1.4
TUBULAR MOTOR AND BS 24V DOUBLE SHAFT MOTOR
BUILD-IN RECEIVER AND ELECTRONIC LIMIT SETTING
press button on motor, motor will ①st remote: press P button two times press P button one time
turn short to acknowledge
①
2x P 1x P
within 6 seconds:
press P button two times ②nd remote: press P button one time press STOP button one time
②
1x STOP
2x P 1x P
press OPEN button one time motor will turn to acknowledge press P button one time
1x OPEN
1x P
motor will turn to acknowledge to add another channel: motor will turn to acknowledge
1.press 2xP button of programmed channel,
2.select other channel and press P button
motor will turn to acknowledge
CHANGING DIRECTION OF ROTATION:
To change the direction of rotation,
keep green button on motor pressed
for 7 sec, until motor turns to
acknowledge.
Please check the motor manual for setting the end limits
PROGRAMMING REMOTE ADD MORE REMOTES OR
TO TUBULAR MOTOR: CHANNELS TO TUBULAR MOTOR CANCEL ALL REMOTES
